Automatic-Jockey Wheel Ø 73 mm, Nose load 800 kg

Name: Automatic-Jockey Wheel Ø 73 mm, Nose load 800 kg
SKU: 1366155

Prices visible after login Log in

Product information

Product number: 1366155

GTIN/EAN: 4250422581908

Manufacturer: 700022 Firma Alois Kober GmbH in Kötz

Product information "Automatic-Jockey Wheel Ø 73 mm, Nose load 800 kg"

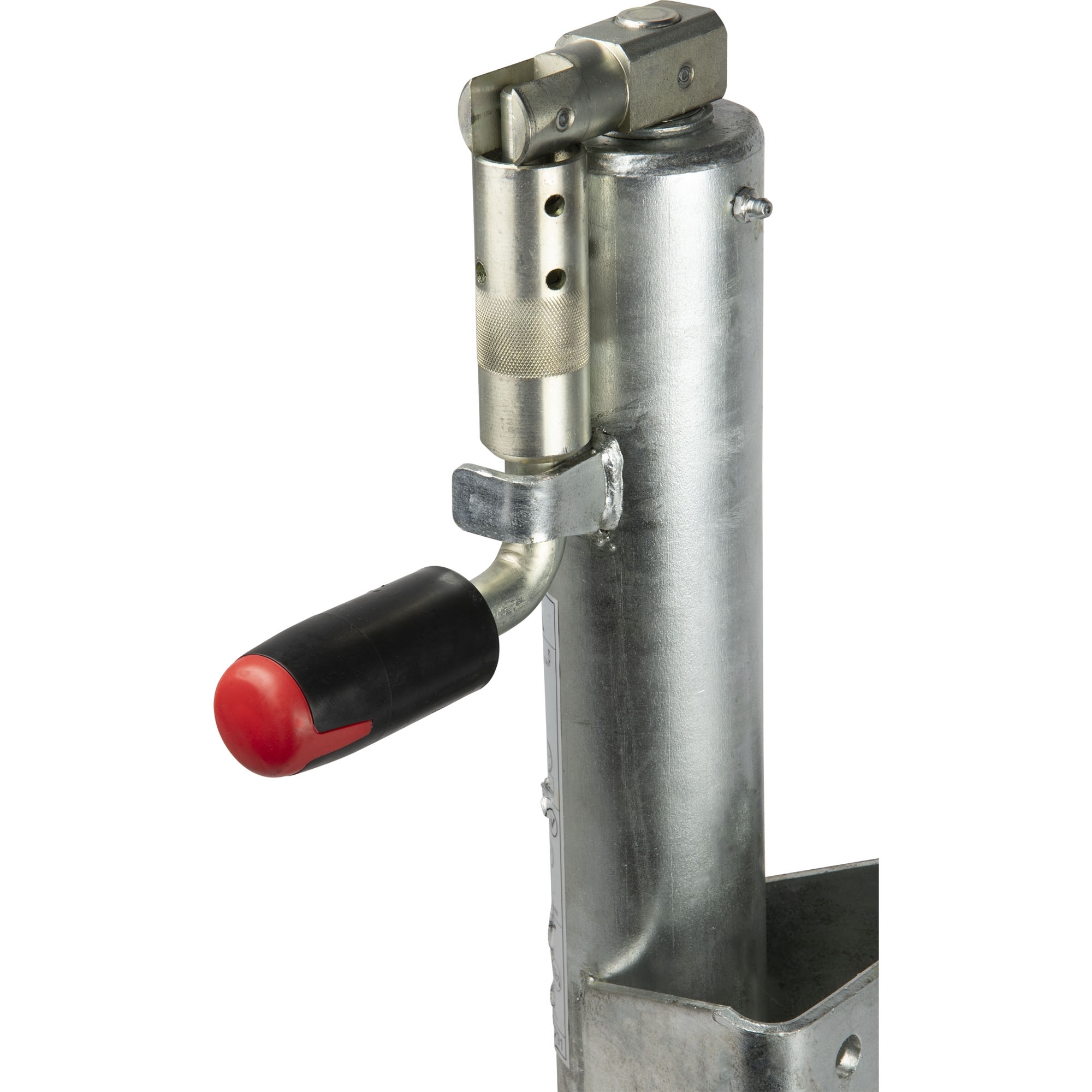

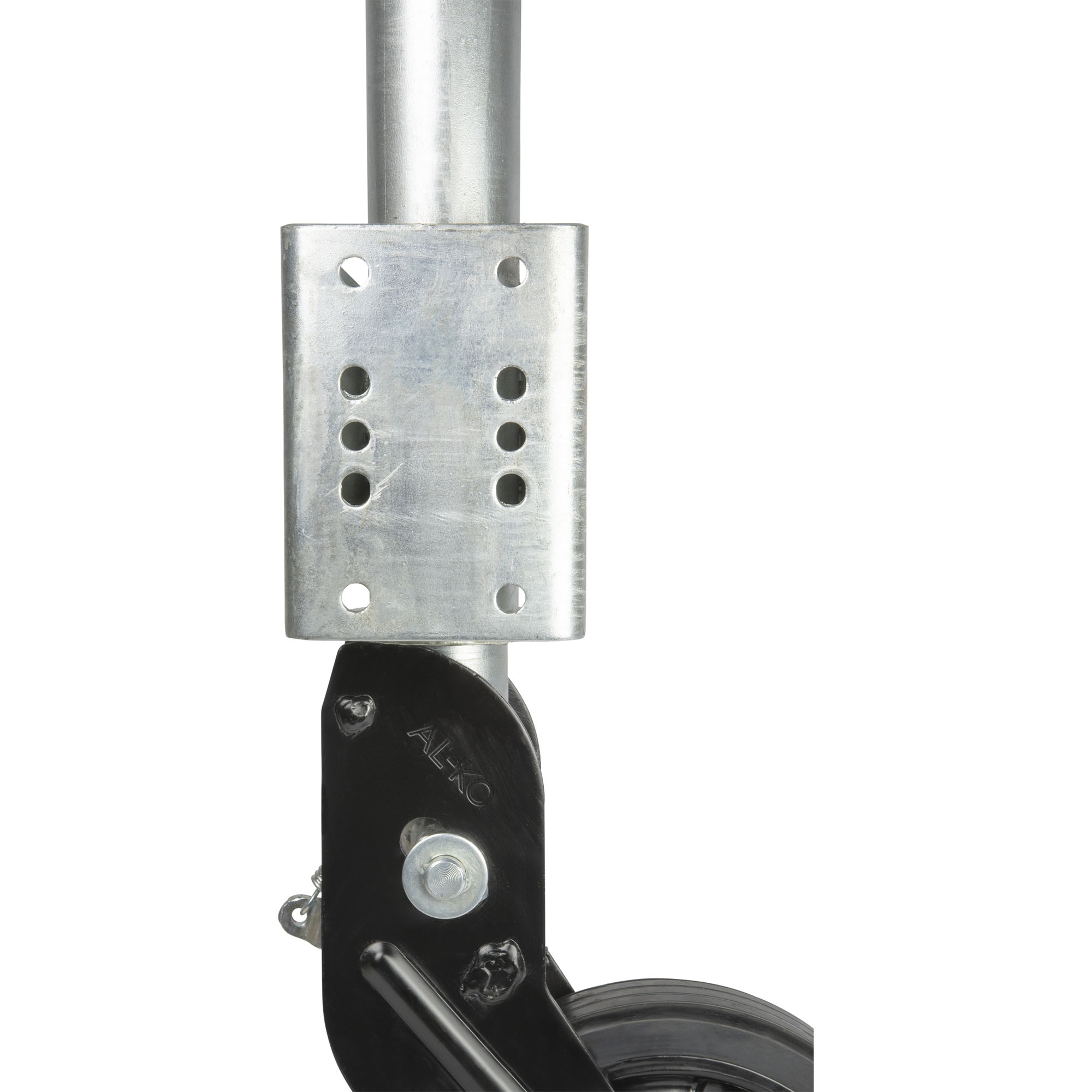

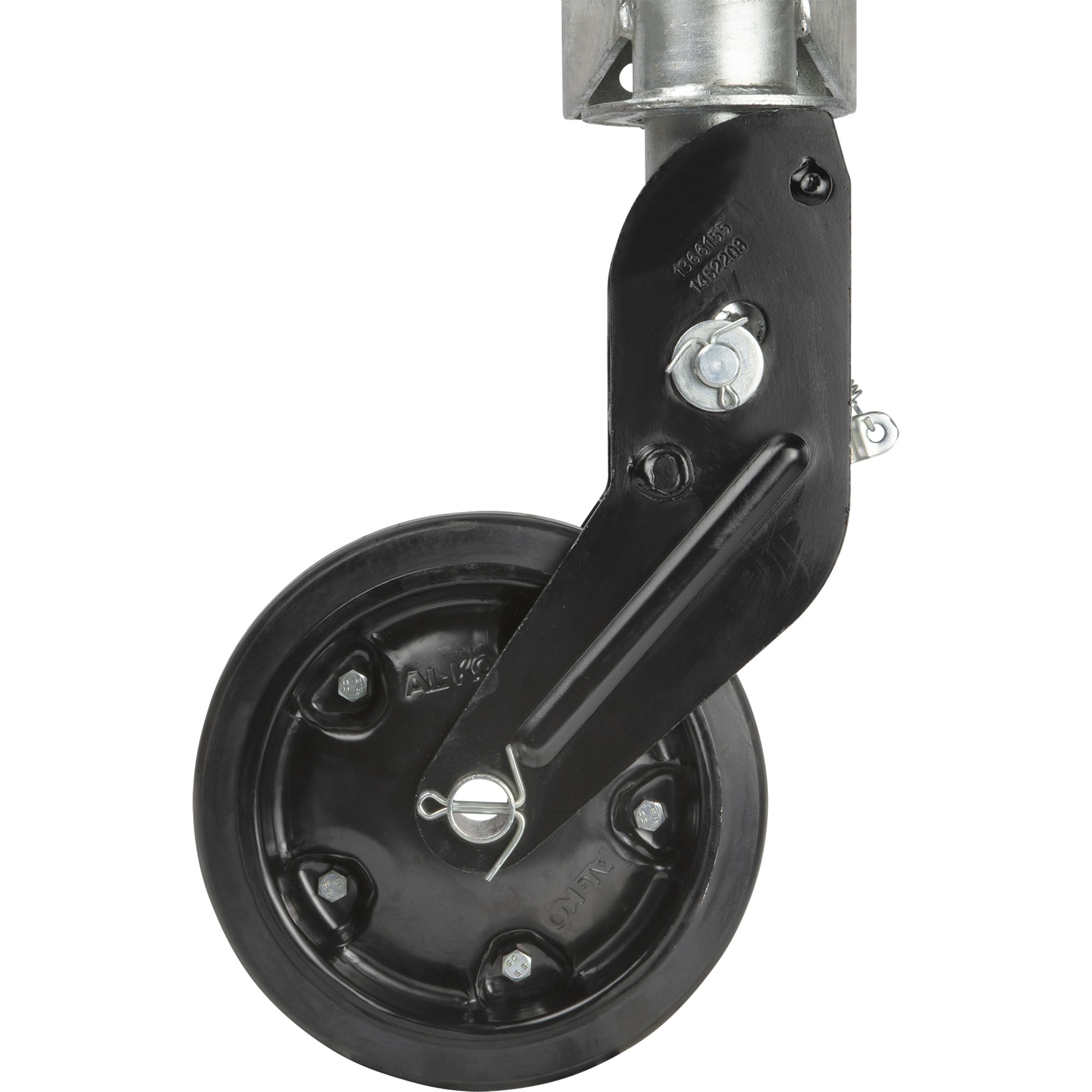

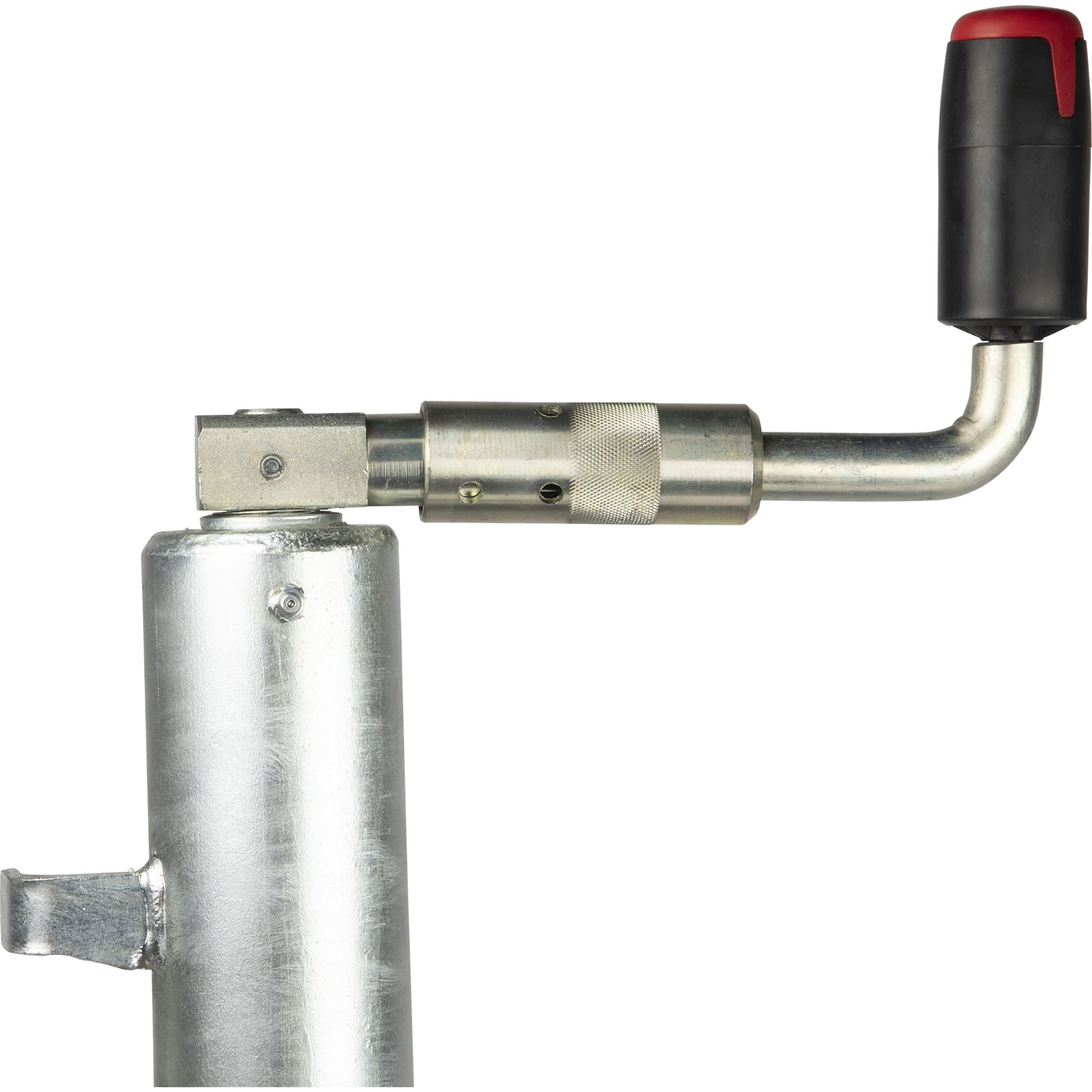

Automatic-jockey wheel AL-KO Ø 73 mm with mounting plate, with folding crank Solid rubber wheel with metal rim Wheel 260 x 65 mm Nose load 800 kg Tube length 453 mm Extended length 200 mm Material galvanised steel high corrosion protection Weight 21.2 kg

Product info Technical details

Durchmesser (mm):	73
Gewicht:	21.2
Hersteller:	AL-KO
Hub (mm):	200
Material:	Stahl
Reifen-Ø (mm):	260
Reifenbreite (mm):	65
Rohrlänge (mm):	453
Stützlast (kg):	800

Service Documents

Instruction Manual	Download
Safety Instruction	Download

Recommendation Matching accessories

Zubehör

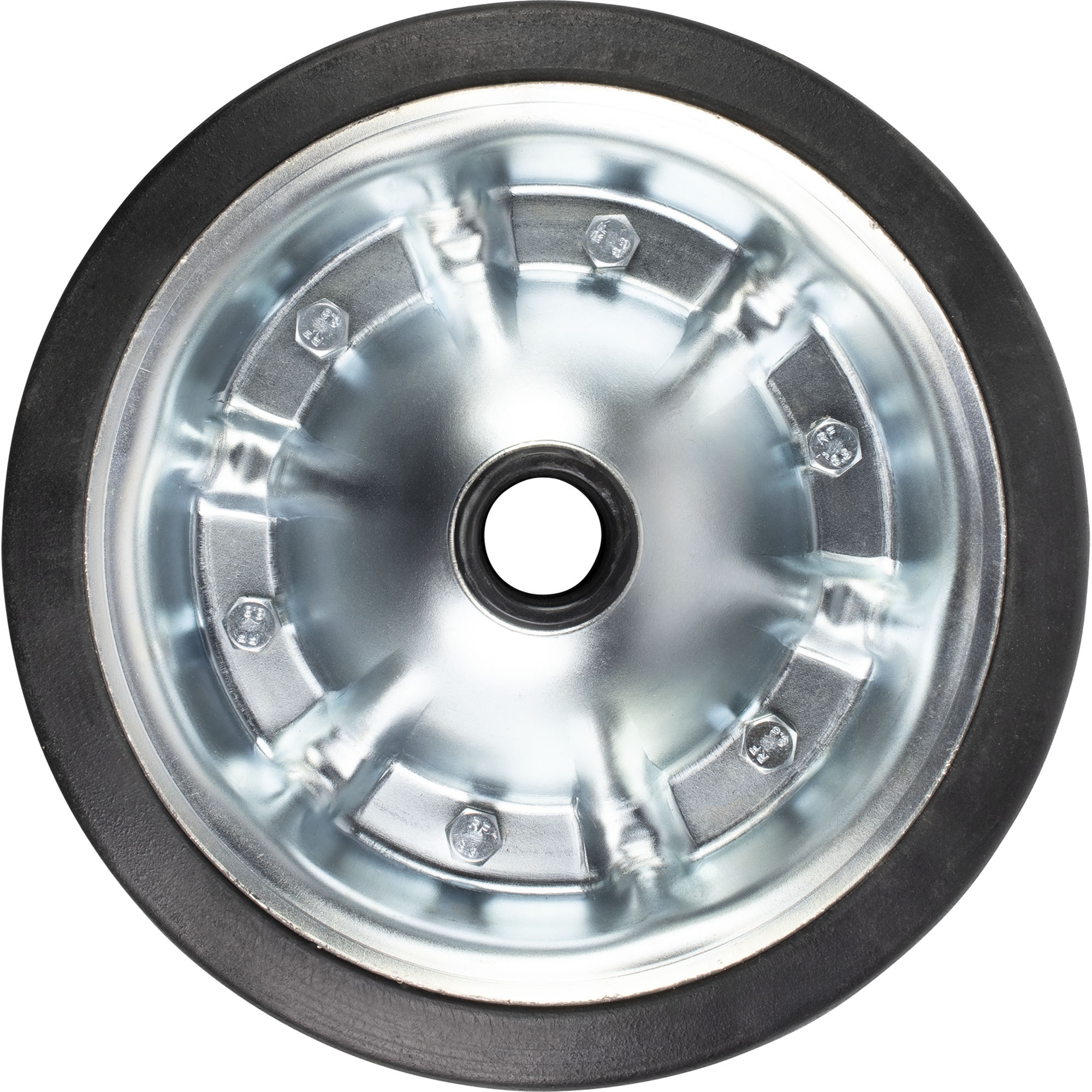

Solid Rubber Wheel, 260x65 mm, Metal Rim

Solid rubber wheel for jockey wheel with reinforced metal rim Wheel 260 x 65 mm Hub-Ø 30 mm Hub length 76 mm

Product number: 649238

Prices visible after login Log in

Crank for Jockey Wheel, AL-KO, Foldable

Crank AL-KO for jockey wheel 1366155 foldable

Product number: 693697

Prices visible after login Log in
