AL-KO

Button for handle 693676, AL-KO

Coupling Head suitable for Humbaur Including Soft Dock and plug holder Drawbar square Perm. gross weight 750 kg Nose load 75 kg Drawbar 60 mm Hole vertical Ø 10.5 mm Hole horizontal Ø 10.5 mm Hole distance horizontal 75 mm Hole distance vertical 90 mm

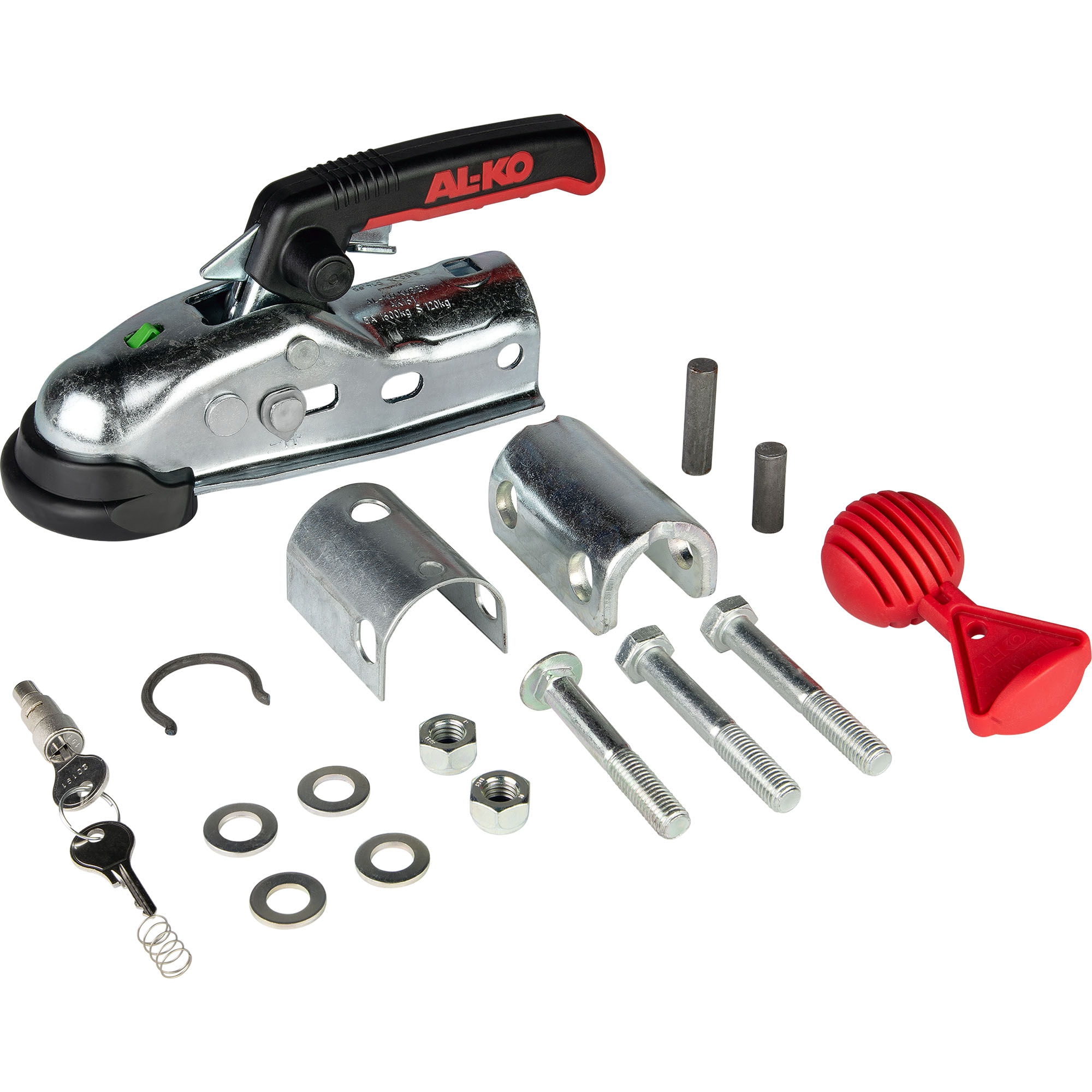

Coupling Head AL-KO AK 161, with Soft-Dock, Safety-Ball, lock, Screws, incl. reducer Perm. gross weight 1600 kg Nose load 120 kg Drawbar-Ø 50 mm Reducer Ø 35 / 45 mm Hole horizontal Ø 12.0 mm Hole vertical Ø 12.0 mm Hole distance horizontal 47 - 54 mm Hole distance vertical 40 mm

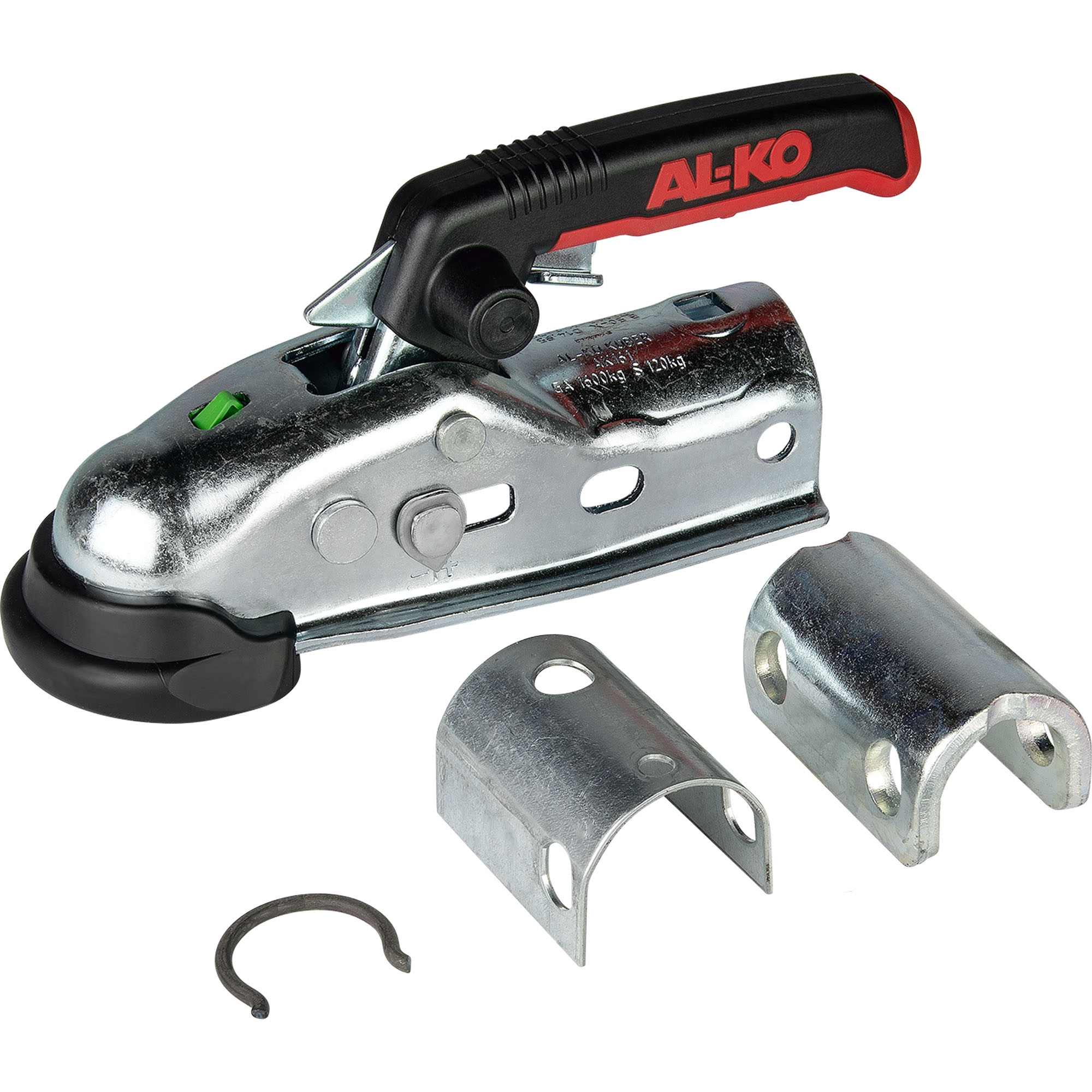

Coupling Head AL-KO AK 161, with Soft-Dock, incl. reducer Perm. gross weight 1600 kg Nose load 120 kg Drawbar-Ø 50 mm Reducer Ø 35 / 45 mm Hole horizontal Ø 12.0 mm Hole vertical Ø 12.0 mm Hole distance horizontal 47 - 54 mm Hole distance vertical 40 mm

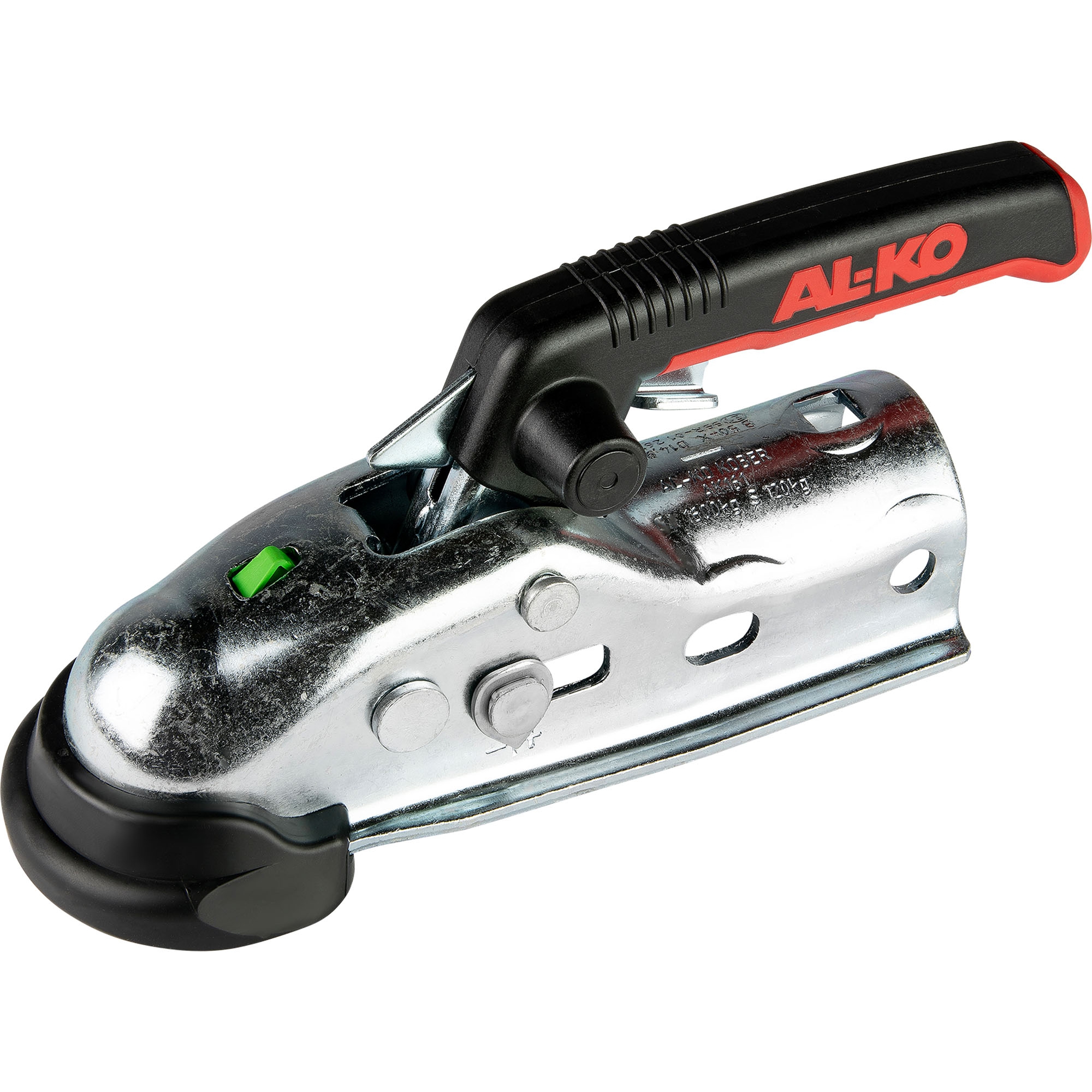

Coupling Head AL-KO AK 161 with Soft-Dock Perm. gross weight 1600 kg Nose load 120 kg Drawbar-Ø 50 mm Hole horizontal Ø 12.0 mm Hole vertical Ø 12.0 mm Hole distance horizontal 47 - 54 mm Hole distance vertical 40 mm

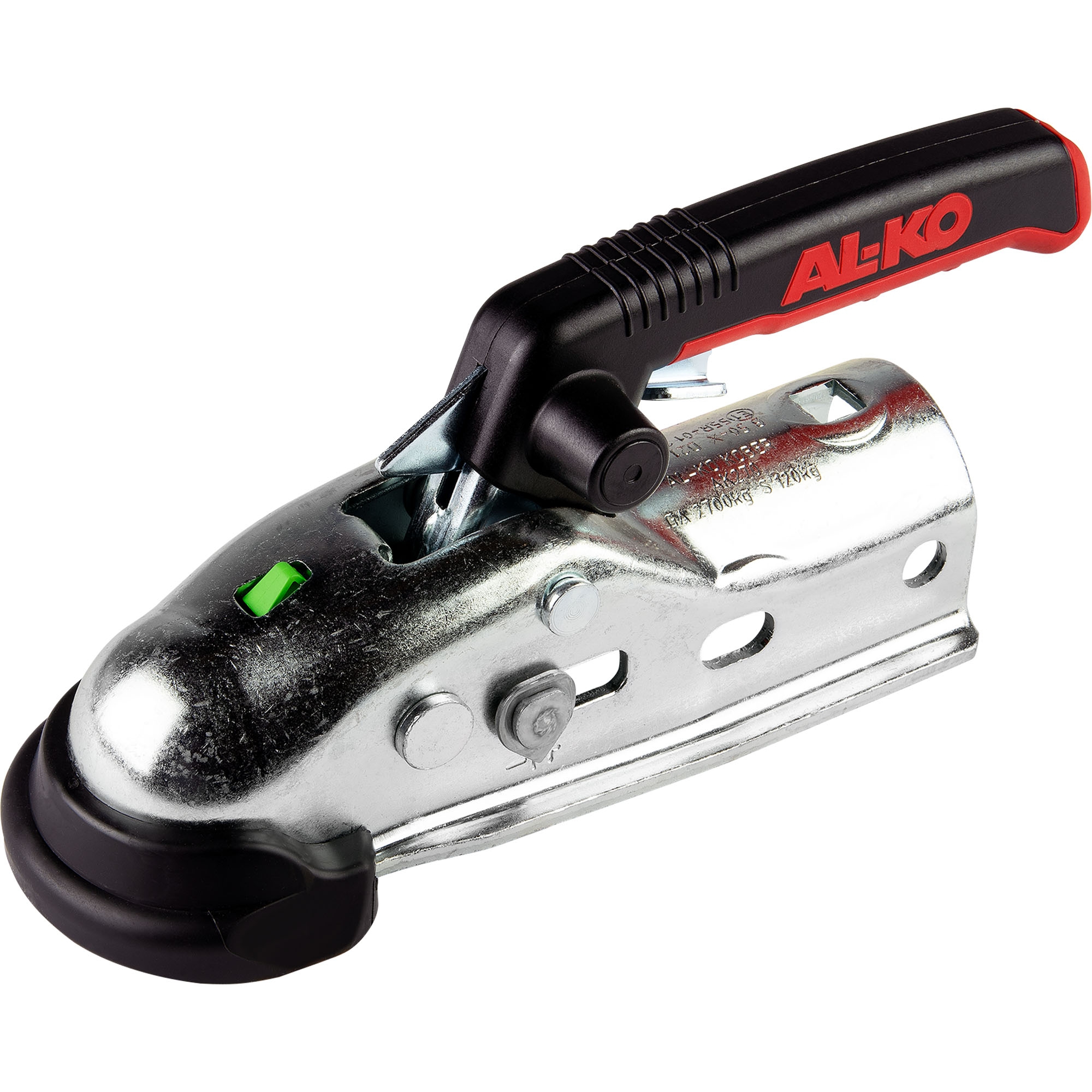

Coupling Head AL-KO AK 270, with Soft-Dock Perm. gross weight 2700 kg Nose load 120 kg Drawbar-Ø 50 mm Hole horizontal Ø 12.0 mm Hole vertical Ø 12.0 mm Hole distance horizontal 47 - 54 mm Hole distance vertical 40 mm

Coupling Head AL-KO AK 270, with Soft-Dock, Screws, incl. reducer Perm. gross weight 2700 kg Nose load 120 kg Drawbar-Ø 50 mm Reducer Ø 35 / 40 / 45 mm Hole horizontal Ø 12.0 mm Hole vertical Ø 12.0 mm Hole distance horizontal 47 - 54 mm Hole distance vertical 40 mm

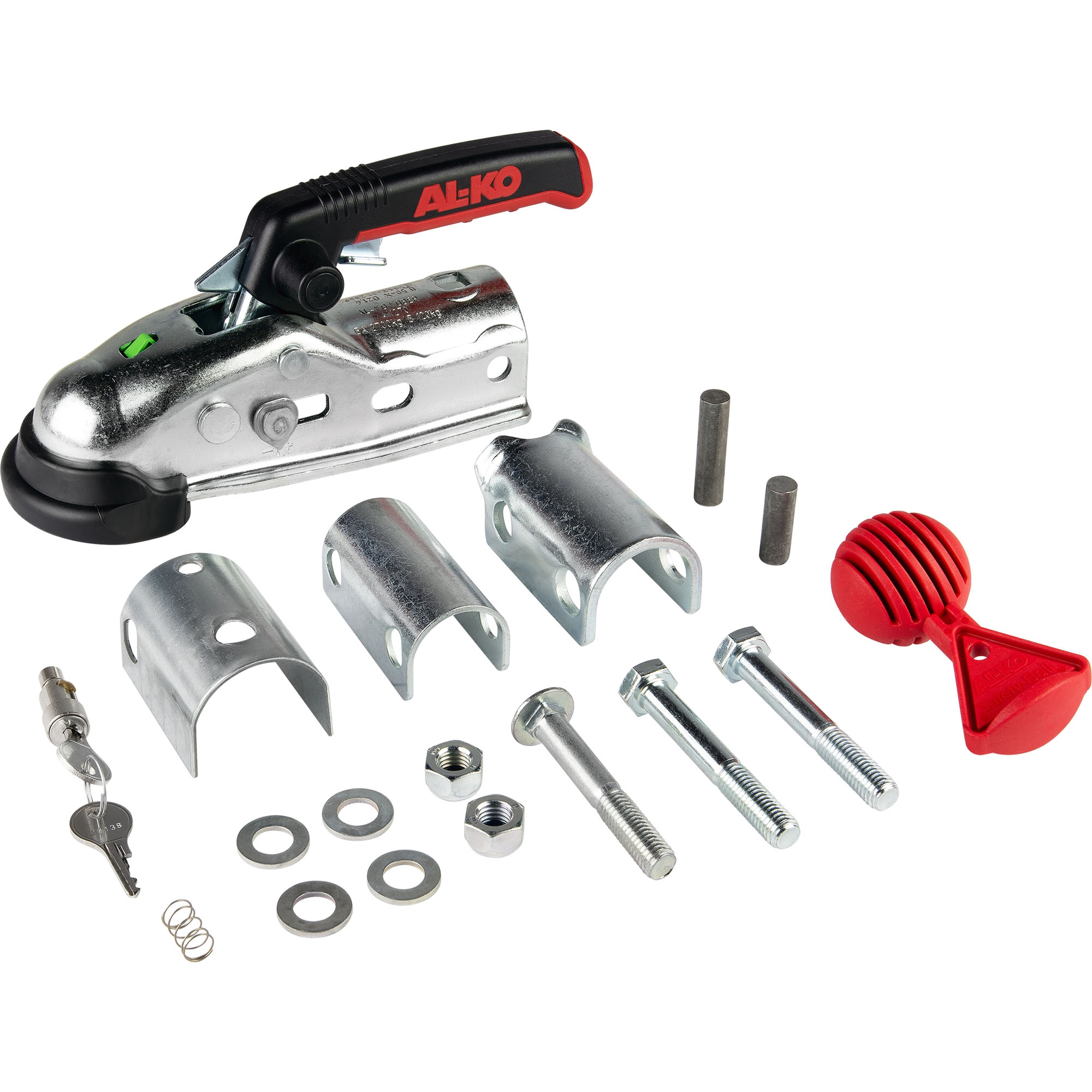

Coupling Head AL-KO AK 270, with Soft-Dock, Screws, Safety-Ball, lock, incl. reducer Perm. gross weight 2700 kg Nose load 120 kg Drawbar-Ø 50 mm Reducer Ø 35 / 40 / 45 mm Hole horizontal Ø 12.0 mm Hole vertical Ø 12.0 mm Hole distance horizontal 47 - 54 mm Hole distance vertical 40 mm

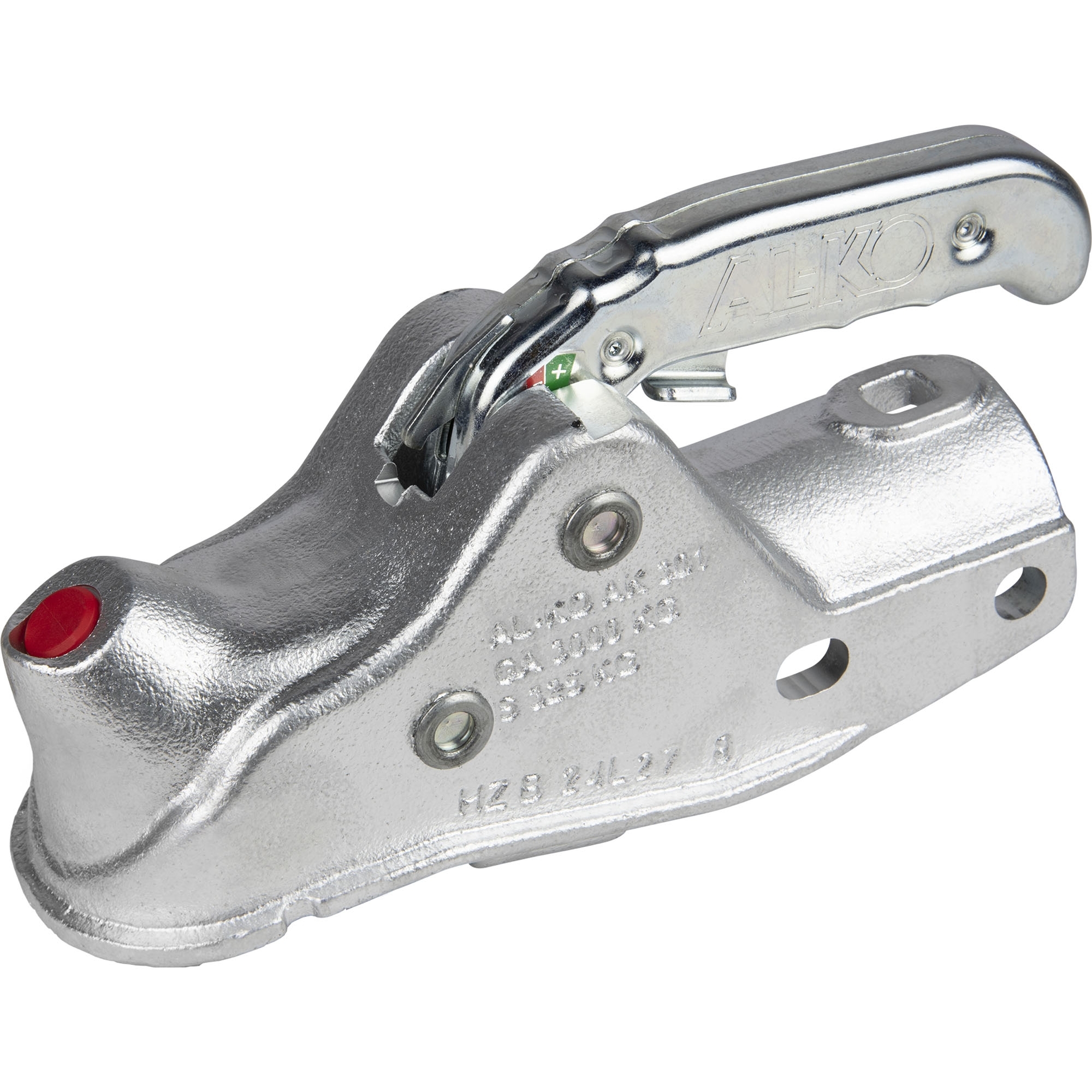

Coupling Head AL-KO Profi Typ AK 301 Perm. gross weight 3000 kg Nose load 325 kg Drawbar-Ø 50 mm Hole horizontal Ø 12.2 mm Hole vertical Ø 12.2 mm Hole distance horizontal 45 - 54 mm Hole distance vertical 40 mm

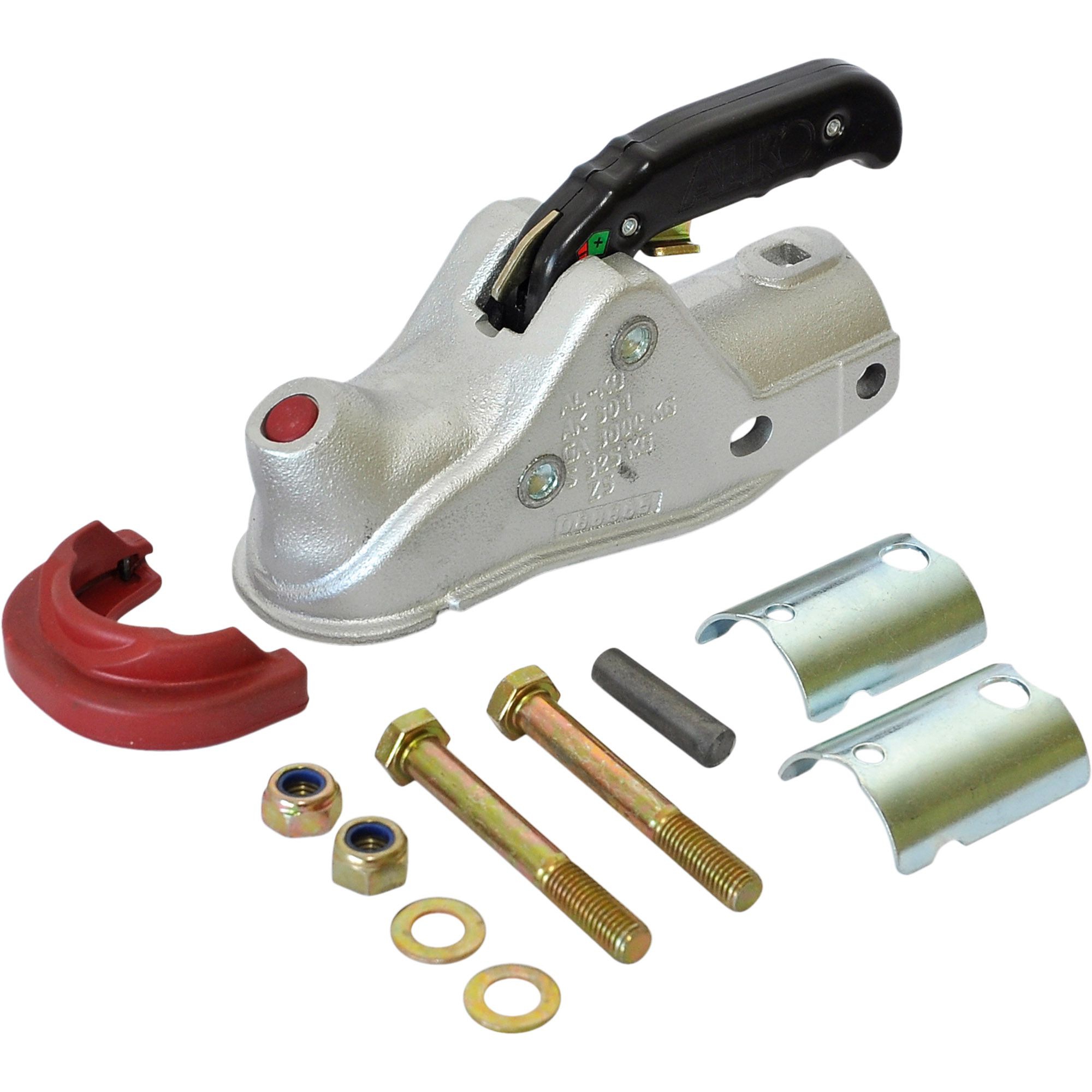

Coupling Head AL-KO Profi Typ AK 301 with Soft-Dock Perm. gross weight 3000 kg Nose load 325 kg Drawbar-Ø 50 mm incl. reducers Ø 45 mm Hole horizontal Ø 12.2 mm Hole vertical Ø 12.2 mm Hole distance horizontal 45 - 54 mm Hole distance vertical 40 mm

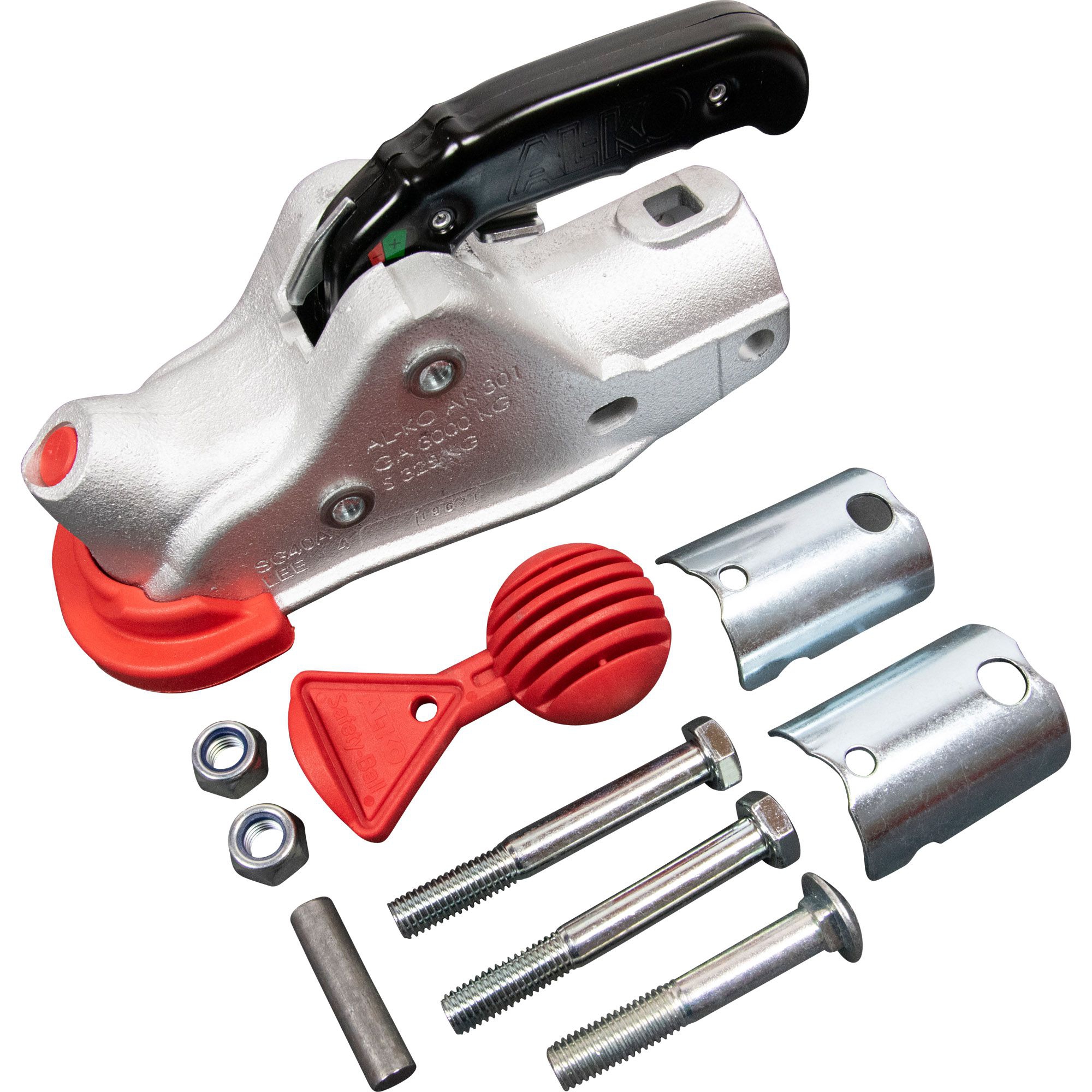

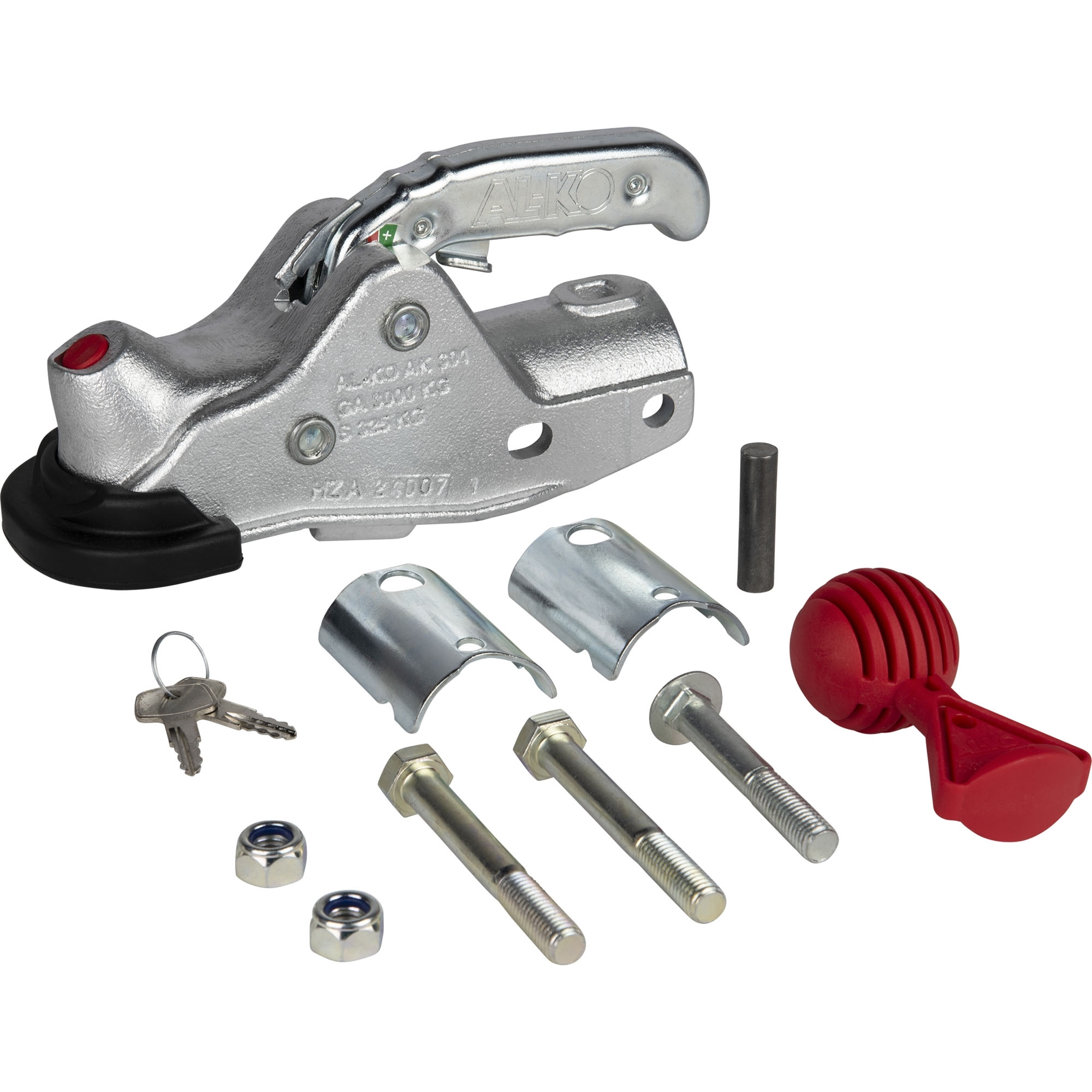

Coupling Head AL-KO Profi Typ AK 301 with Soft-Dock + Safety-Kit Perm. gross weight 3000 kg Nose load 325 kg Drawbar-Ø 50 mm incl. reducers Ø 45 mm Hole horizontal Ø 12.2 mm Hole vertical Ø 12.2 mm Hole distance horizontal 45 - 54 mm Hole distance vertical 40 mm

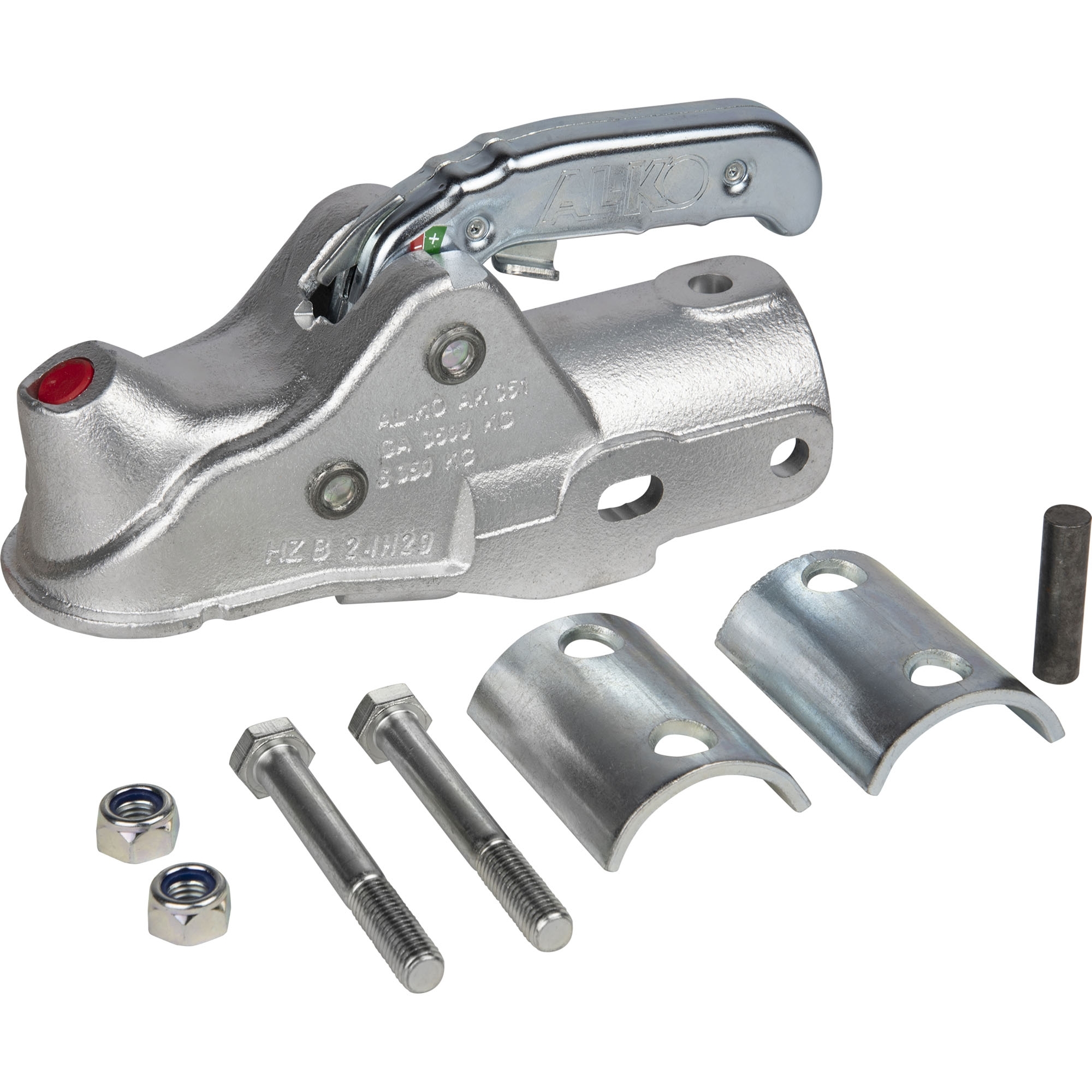

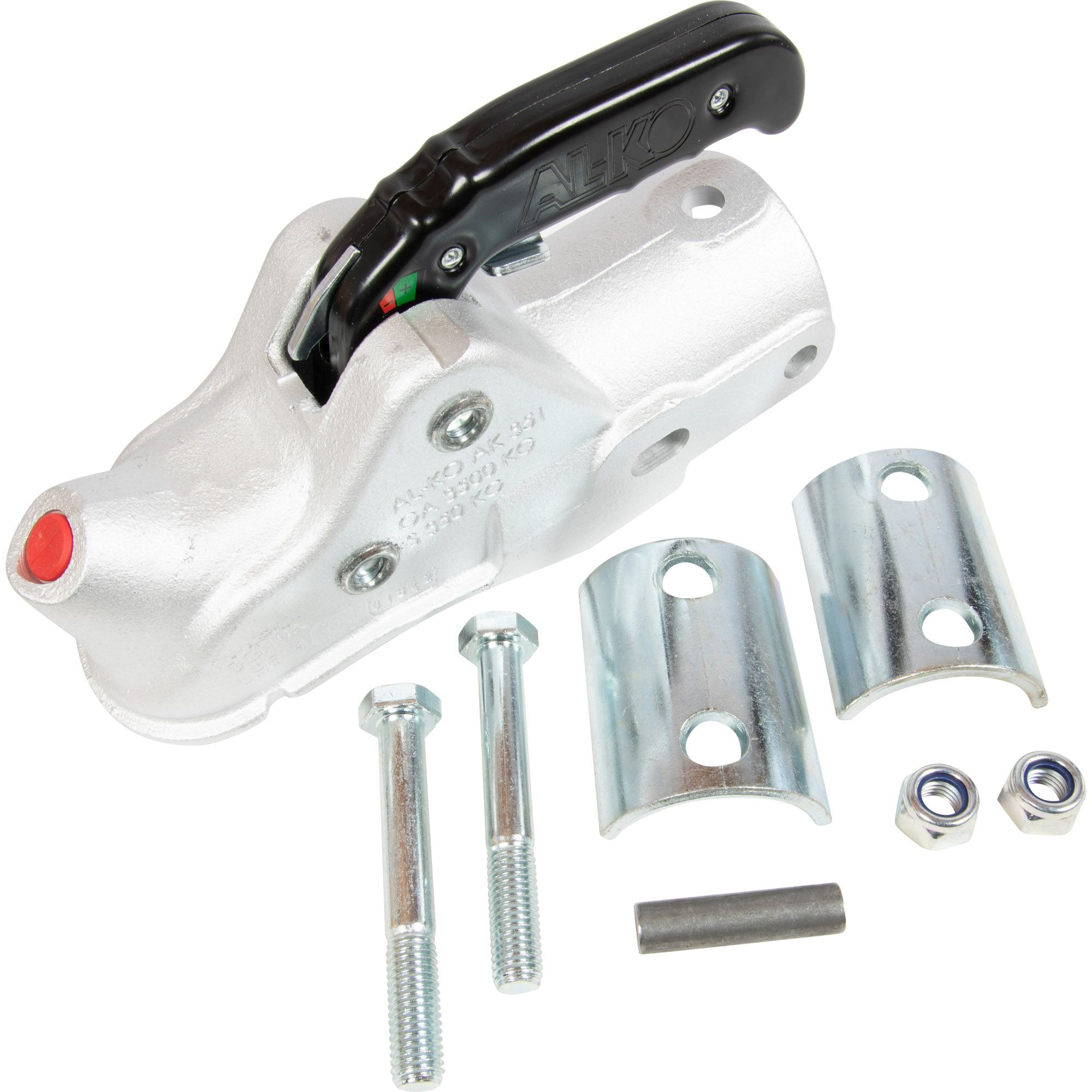

Coupling Head AL-KO Profi Typ AK 351, incl. reducer Perm. gross weight 3500 kg Nose load 350 kg Drawbar-Ø 60 mm Reducer Ø 50 mm Hole horizontal Ø 16.2 mm Hole vertical Ø 16.2 mm Hole distance horizontal 50 - 54 mm Hole distance vertical 45 mm

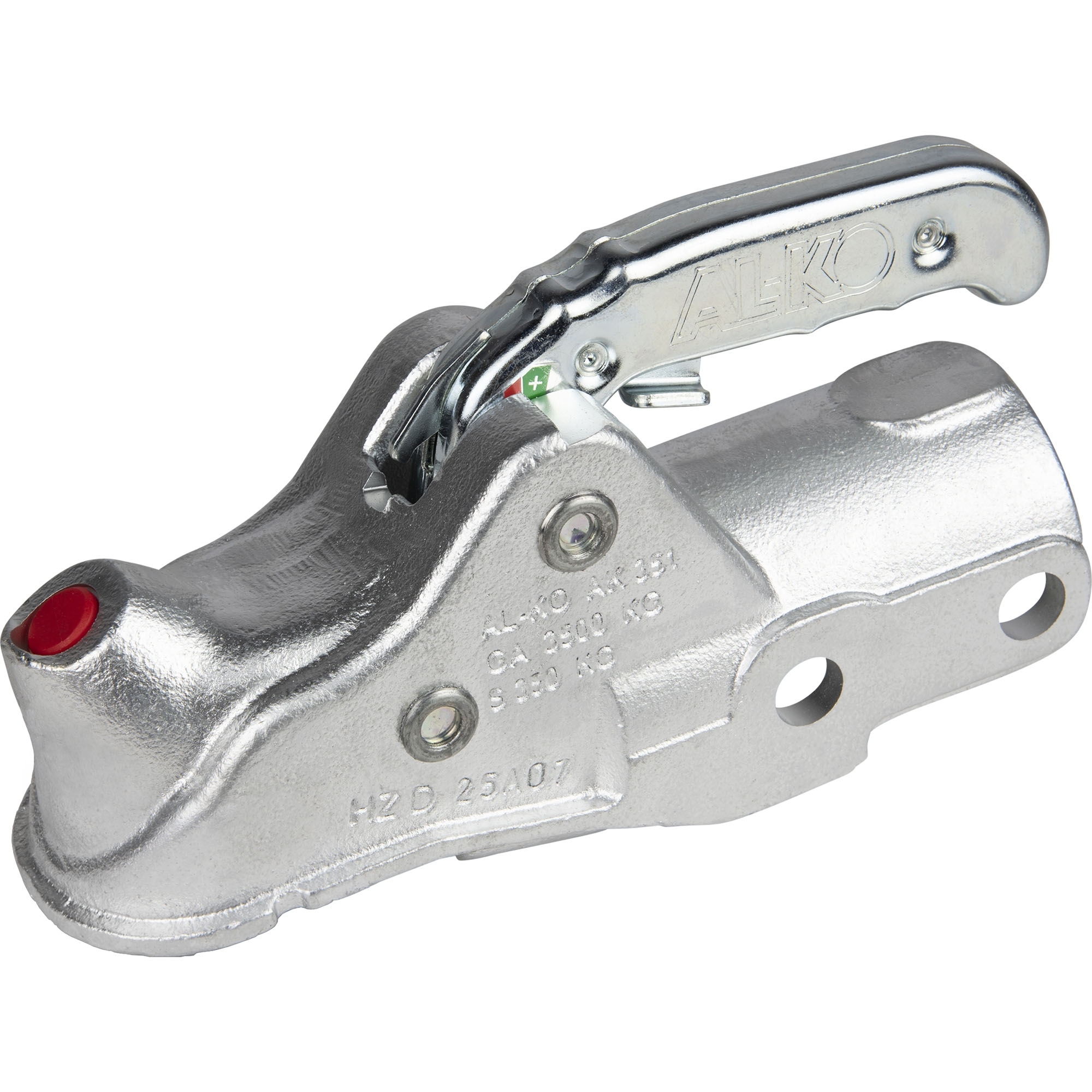

Coupling Head AL-KO Profi Typ AK 351 Perm. gross weight 3500 kg Nose load 350 kg Drawbar-Ø 60 mm Hole horizontal Ø 16.2 mm Hole distance 54 mm

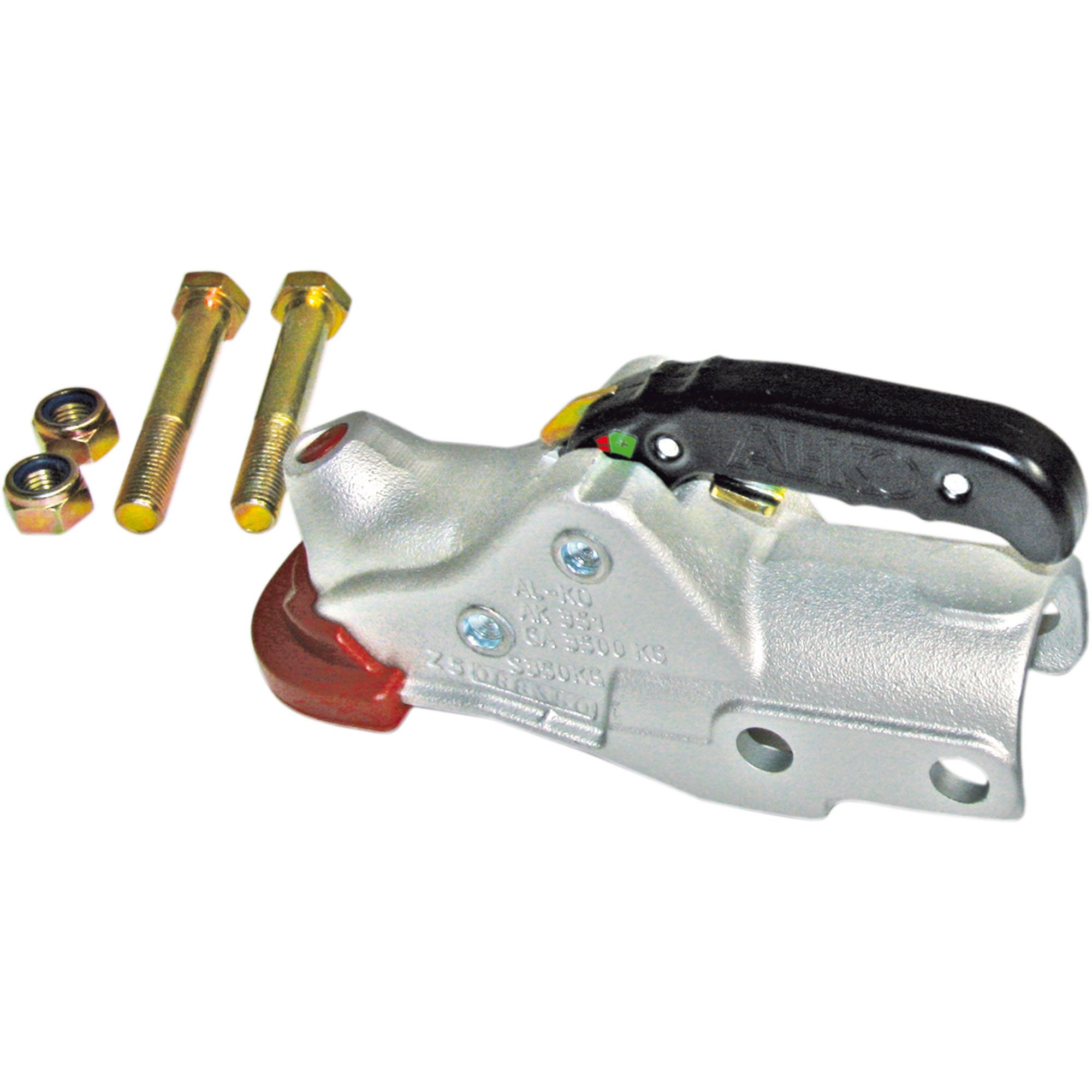

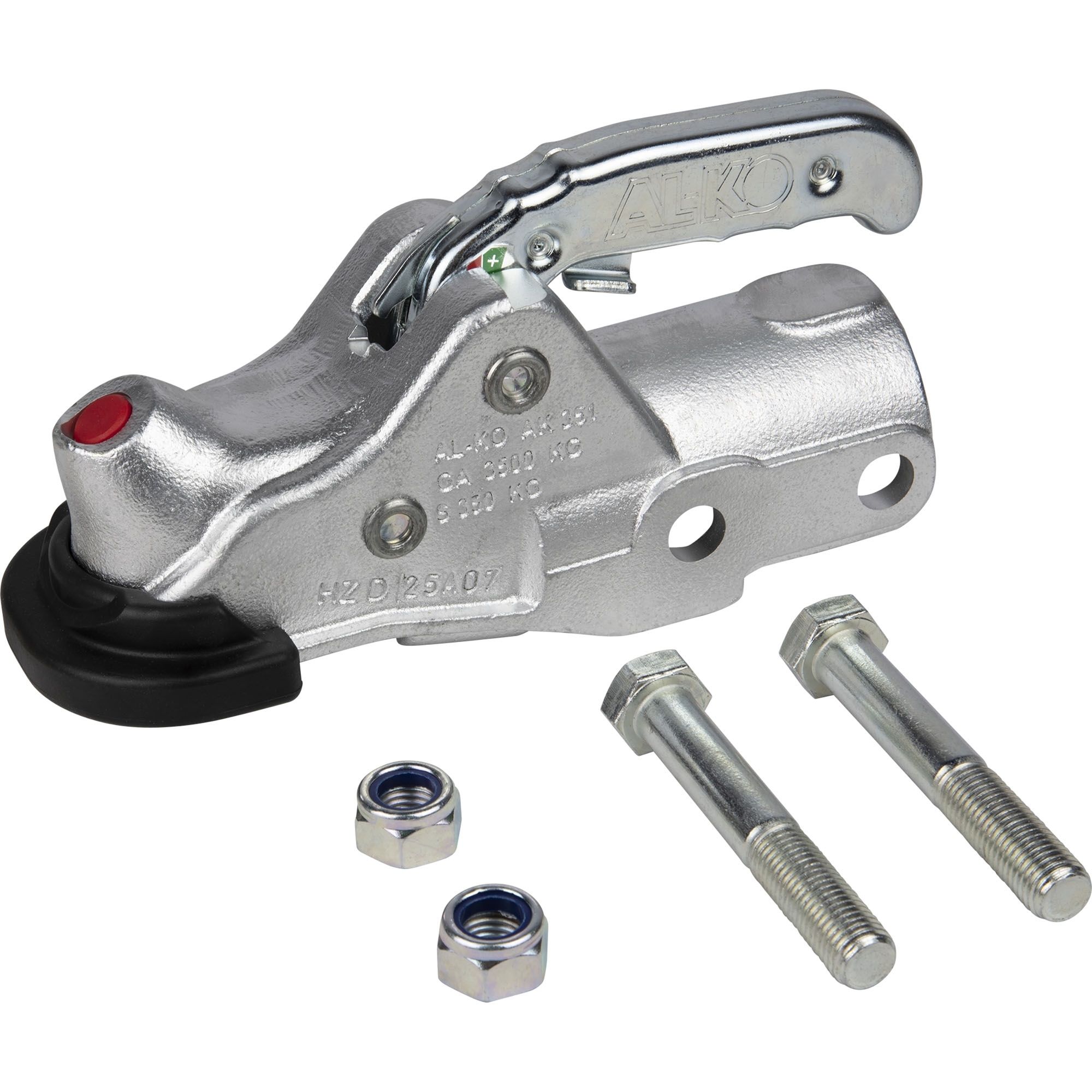

Coupling Head AL-KO Profi Typ AK 351, with Soft-Dock Perm. gross weight 3500 kg Nose load 350 kg Drawbar-Ø 60 mm Hole horizontal Ø 16.2 mm Hole distance 54 mm

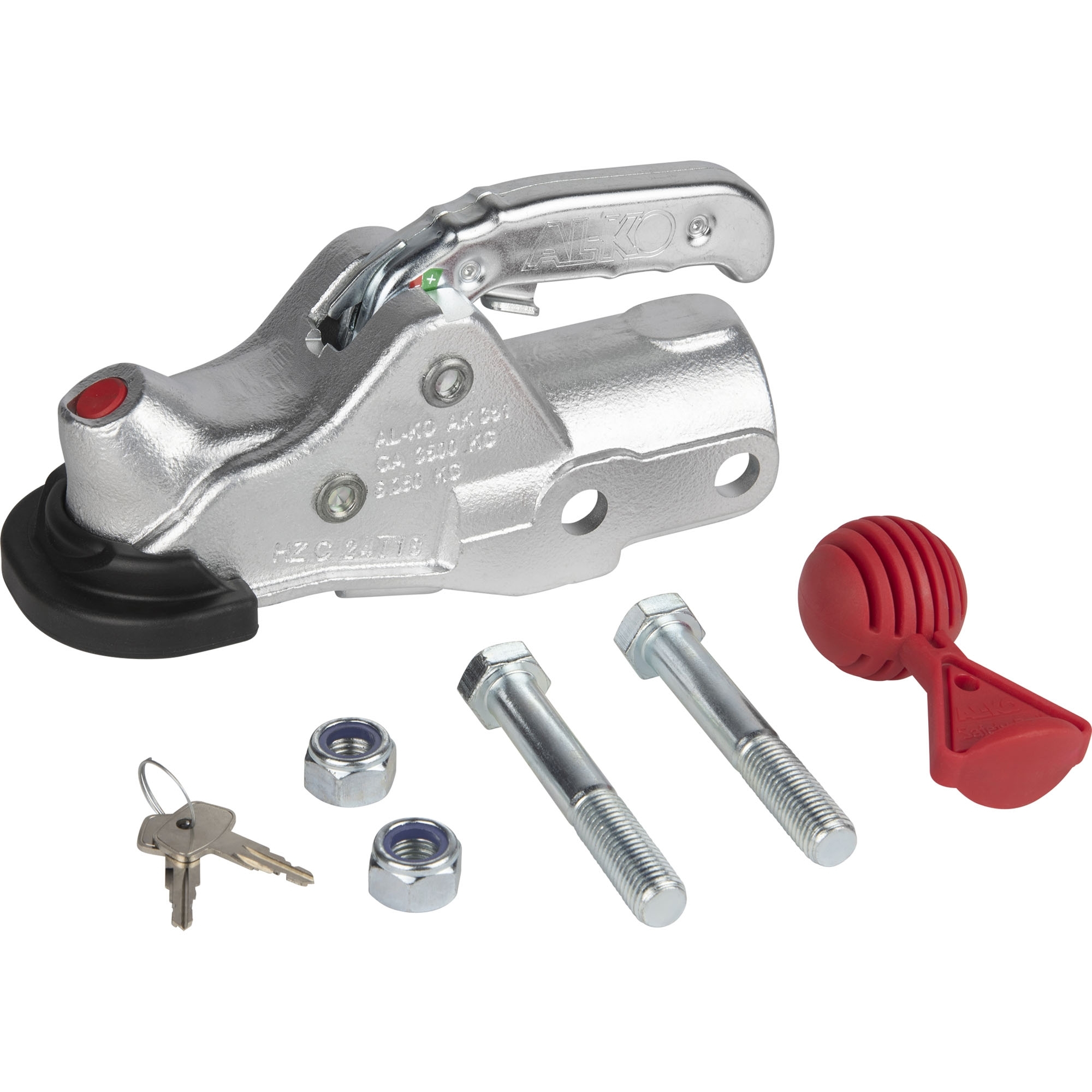

Coupling Head AL-KO Profi Typ AK 351, with Soft-Dock + Safety Kit Perm. gross weight 3500 kg Nose load 350 kg Drawbar-Ø 60 mm Hole horizontal Ø 16.2 mm Hole distance 54 mm

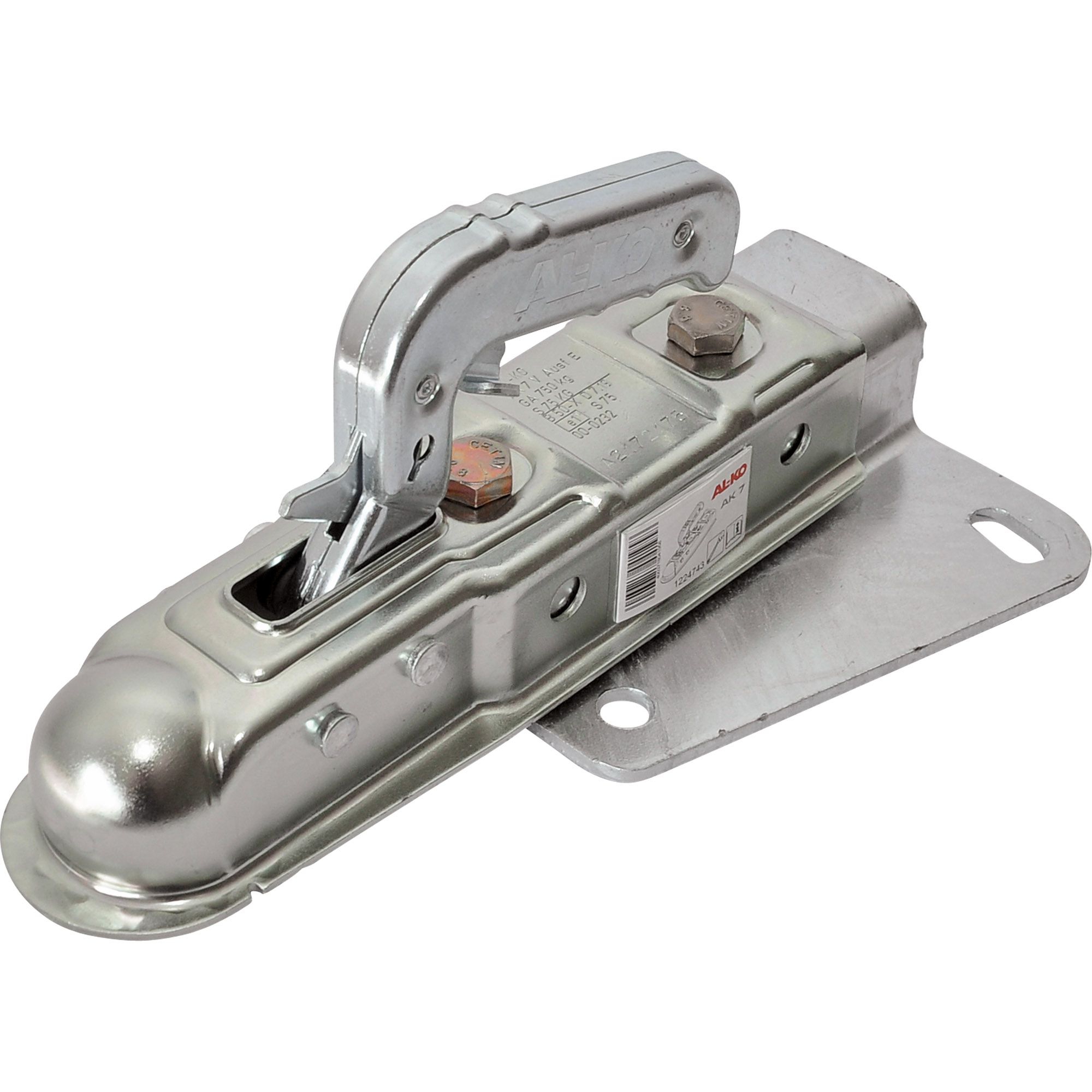

Coupling Head AL-KO AK 7 Plus – 75 V version A V-Drawbar Perm. gross weight 750 kg Nose load 75 kg Hole Ø 12.0 mm Hole distance 100 / 130 / 160 mm

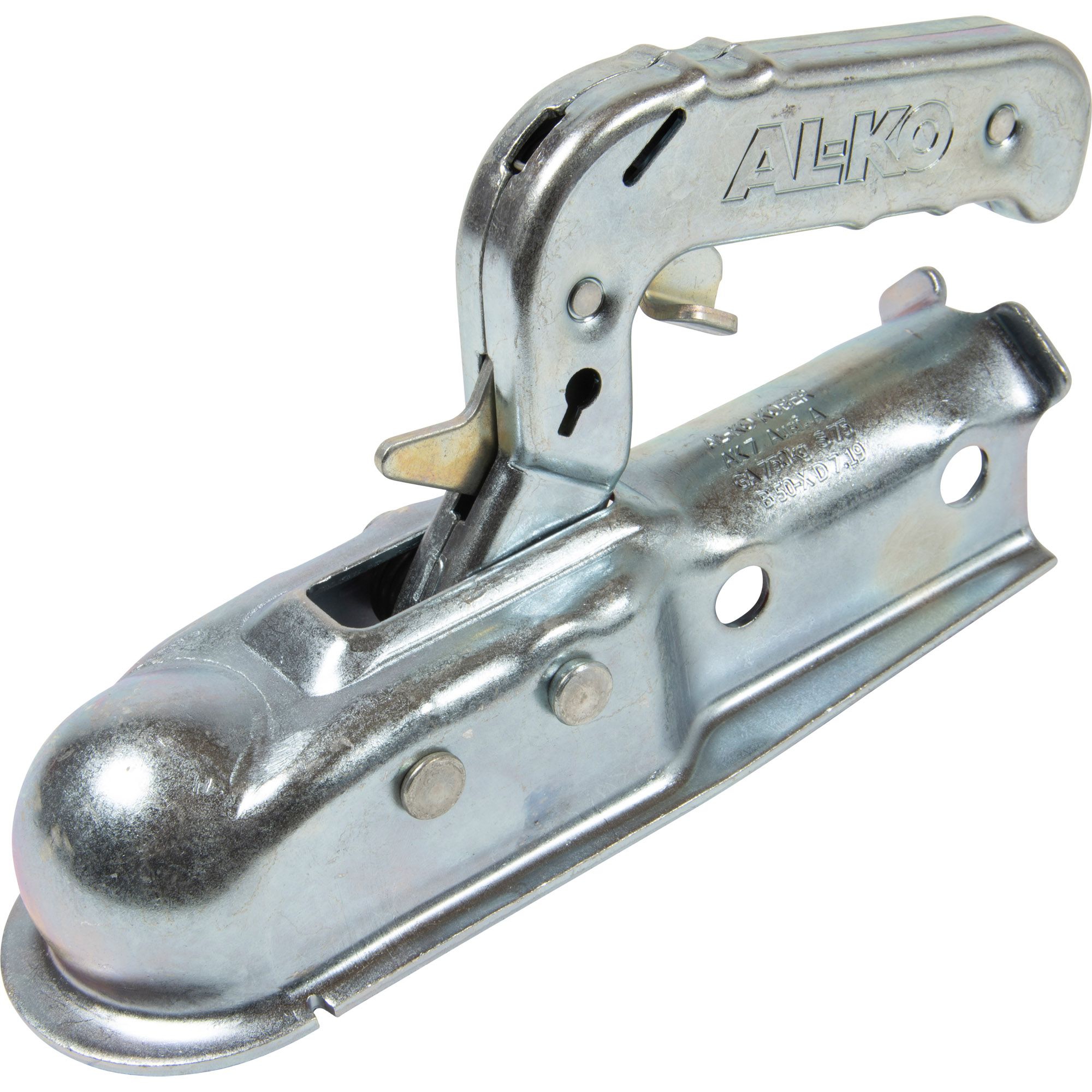

Coupling Head AL-KO AK 7 Plus version A Drawbar round Perm. gross weight 750 kg Nose load 75 kg Drawbar-Ø 35 mm Hole horizontal Ø 12.2 mm Hole distance 54 mm

Coupling Head AL-KO AK 7 Plus version B Drawbar round Perm. gross weight 750 kg Nose load 75 kg Drawbar-Ø 60 mm Hole vertical Ø 12.2 mm Hole distance 90 + 116 mm

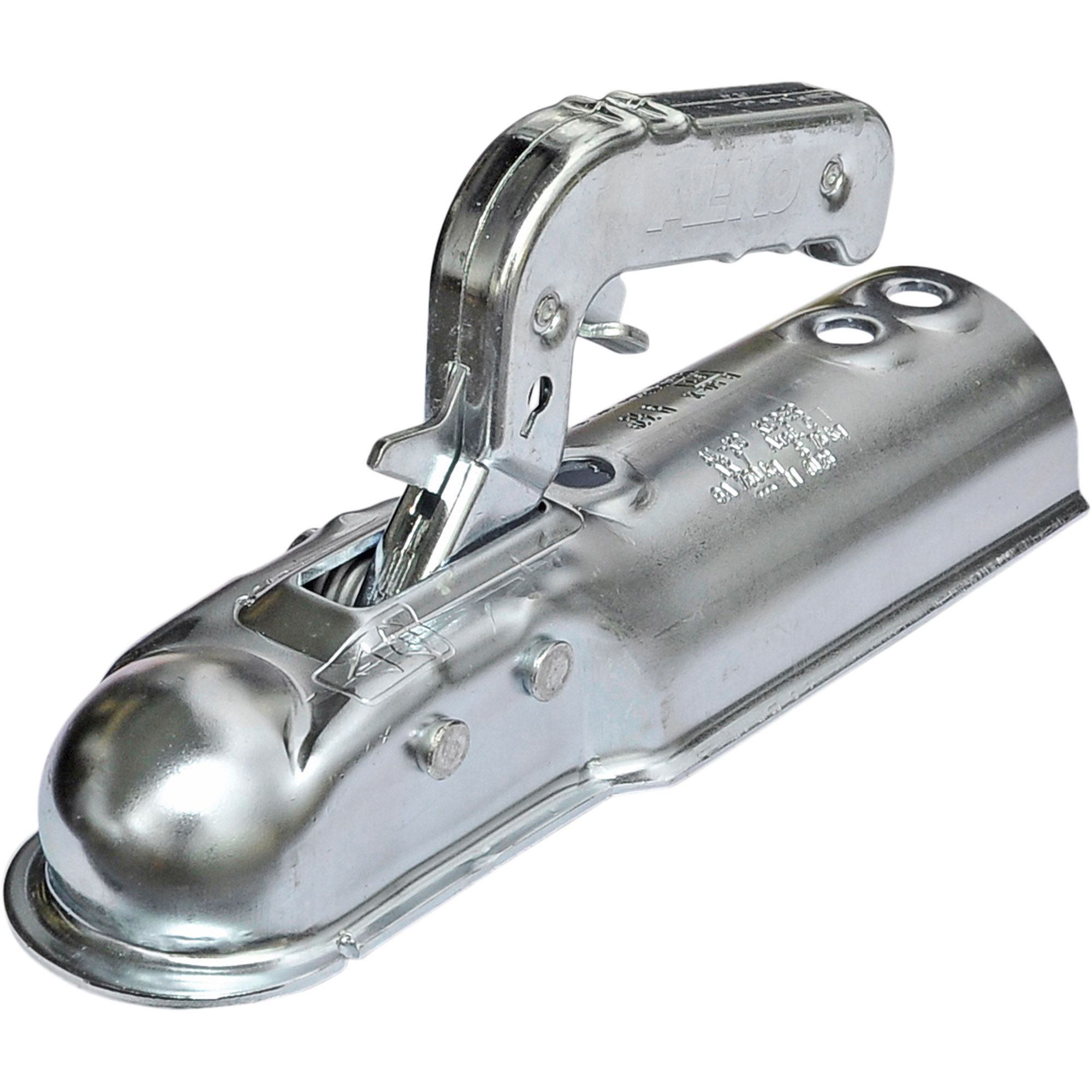

Coupling Head AL-KO AK 7 Plus version C Drawbar round Perm. gross weight 750 kg Nose load 75 kg Drawbar-Ø 70 mm Hole vertical Ø 12.2 mm Hole distance 90 + 116 mm

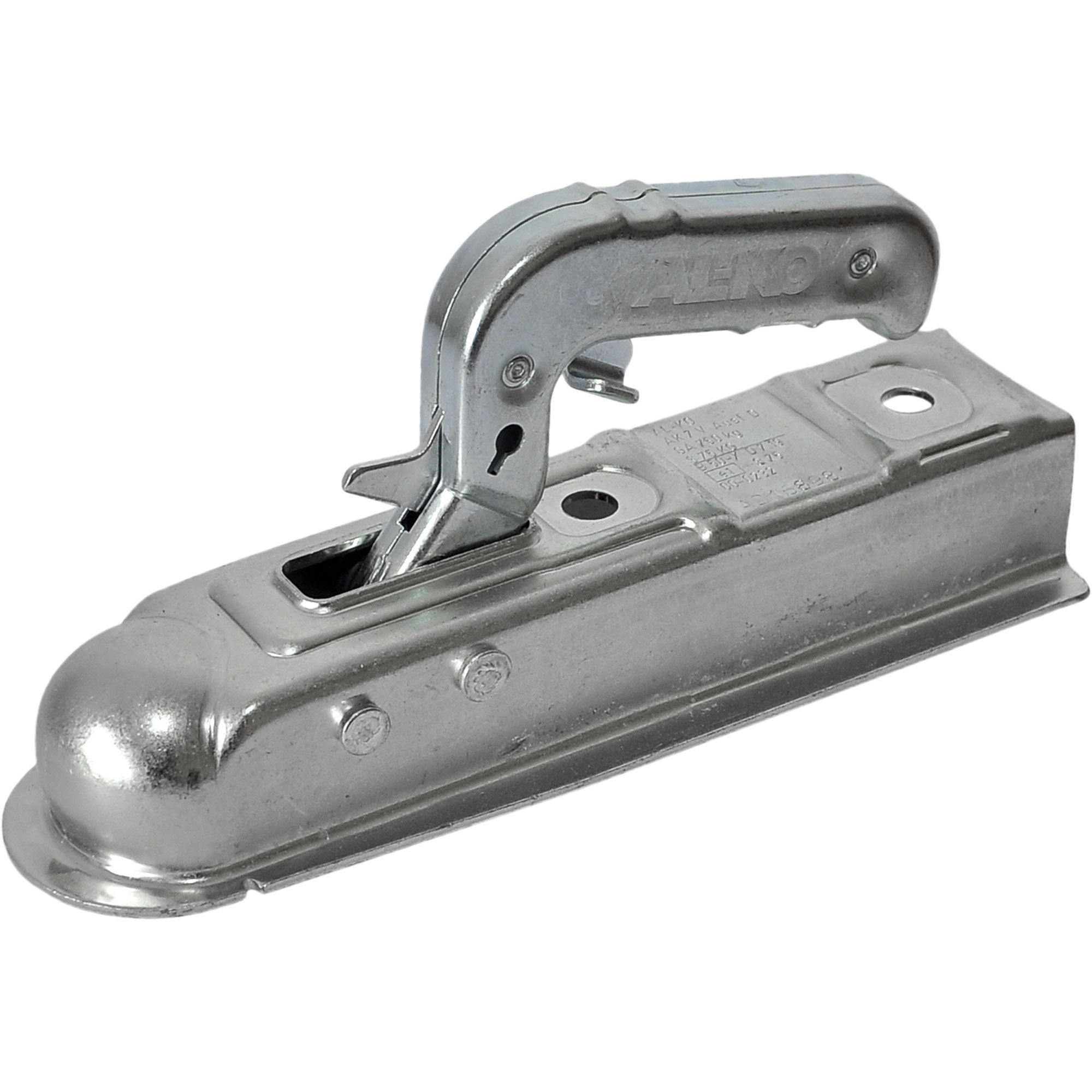

Coupling Head AL-KO AK 7 V Plus version D Drawbar square Perm. gross weight 750 kg Nose load 75 kg Drawbar 50 mm Hole horizontal Ø 10.5 mm Hole vertical Ø 10.5 mm Hole distance horizontal 80 - 90 mm Hole distance vertical 90 mm

Coupling Head AL-KO AK 7 V Plus version D Drawbar square Perm. gross weight 750 kg Nose load 75 kg Drawbar 50 mm Hole vertical Ø 12.2 mm Hole distance 90 mm

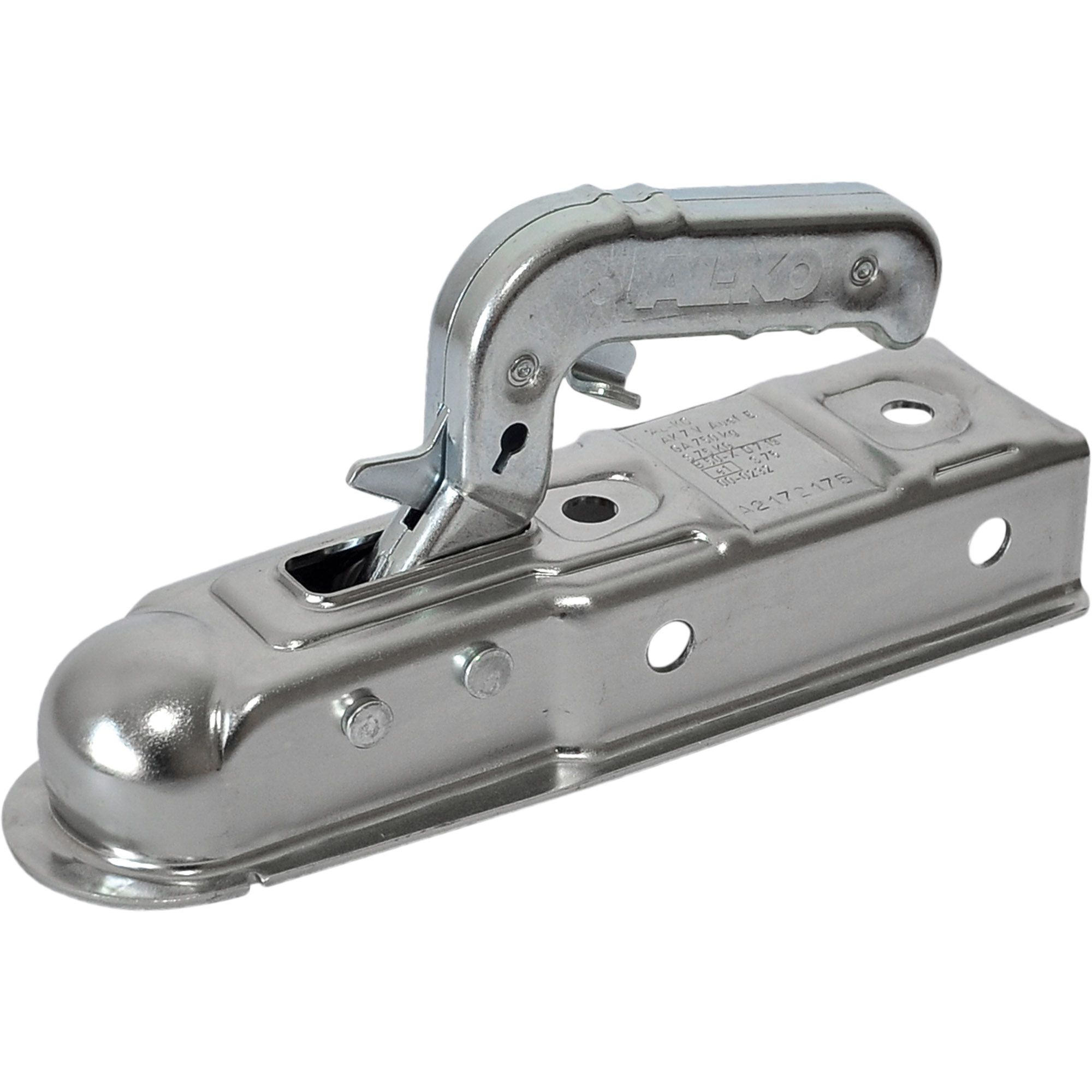

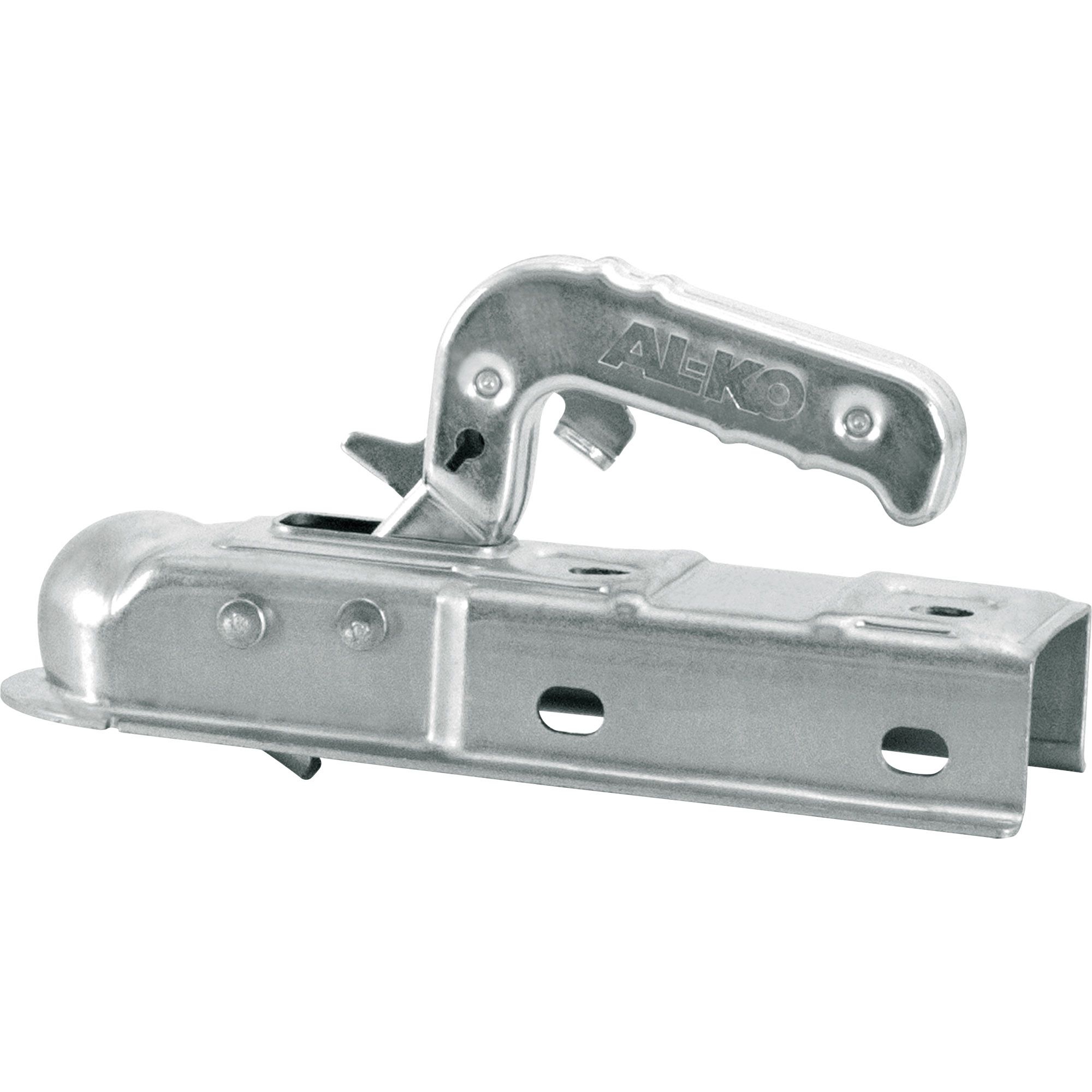

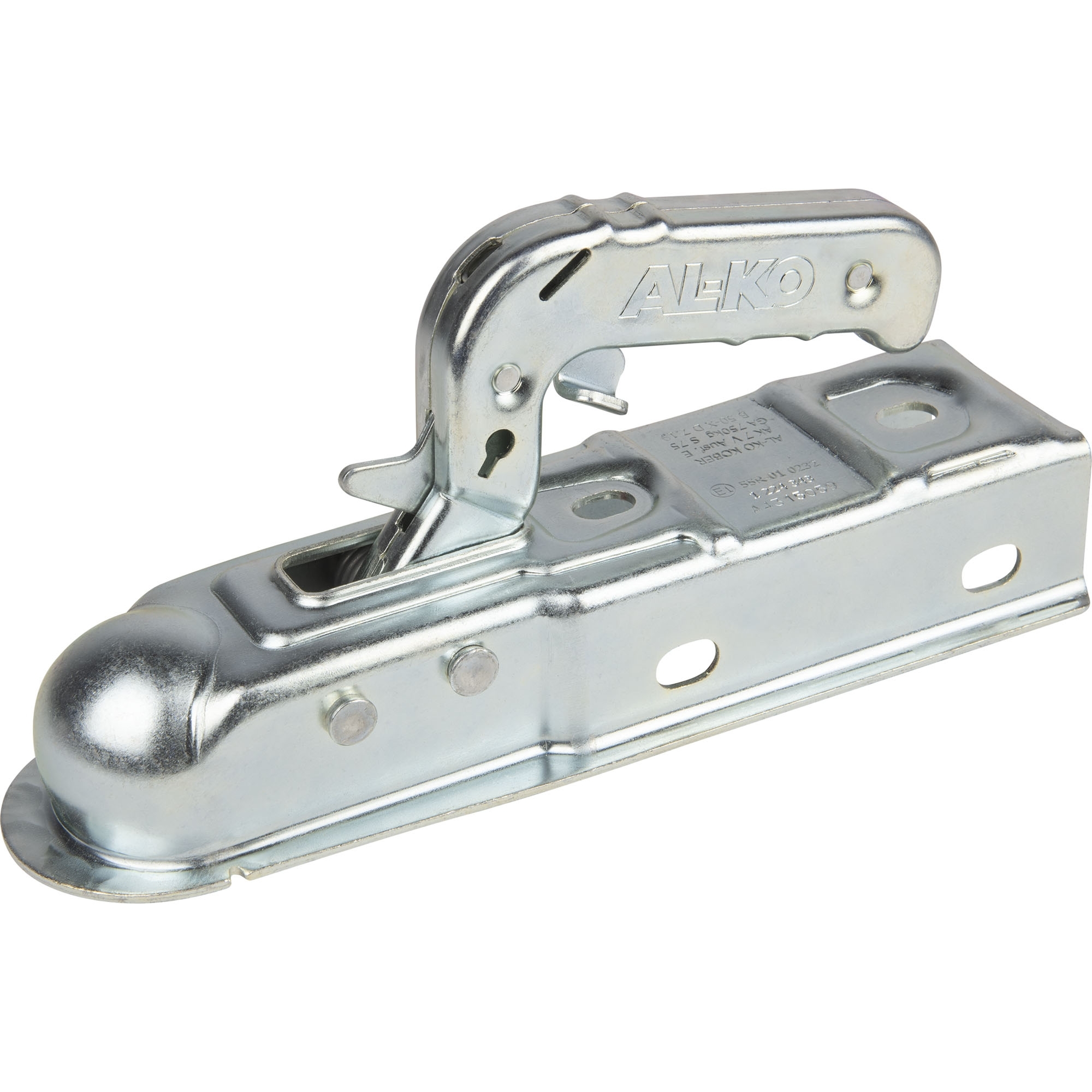

Coupling Head AL-KO AK 7 V Plus version E Drawbar square Perm. gross weight 750 kg Nose load 75 kg Drawbar 60 mm Hole horizontal Ø 12.5 mm Hole vertical Ø 12.5 mm Hole distance horizontal 90 mm Hole distance vertical 90 mm

Coupling Head AL-KO AK 7 V Plus version E Drawbar square Perm. gross weight 750 kg Nose load 75 kg Drawbar 60 mm Hole horizontal Ø 10.5 mm Hole distance 57 mm

Coupling Head AL-KO AK 7 V Plus version E Drawbar square Perm. gross weight 750 kg Nose load 75 kg Drawbar 60 mm Hole horizontal Ø 10.5 mm Hole vertical Ø 10.5 mm Hole distance horizontal 80 - 90 mm Hole distance vertical 80 - 90 mm
