DIN towing eyes

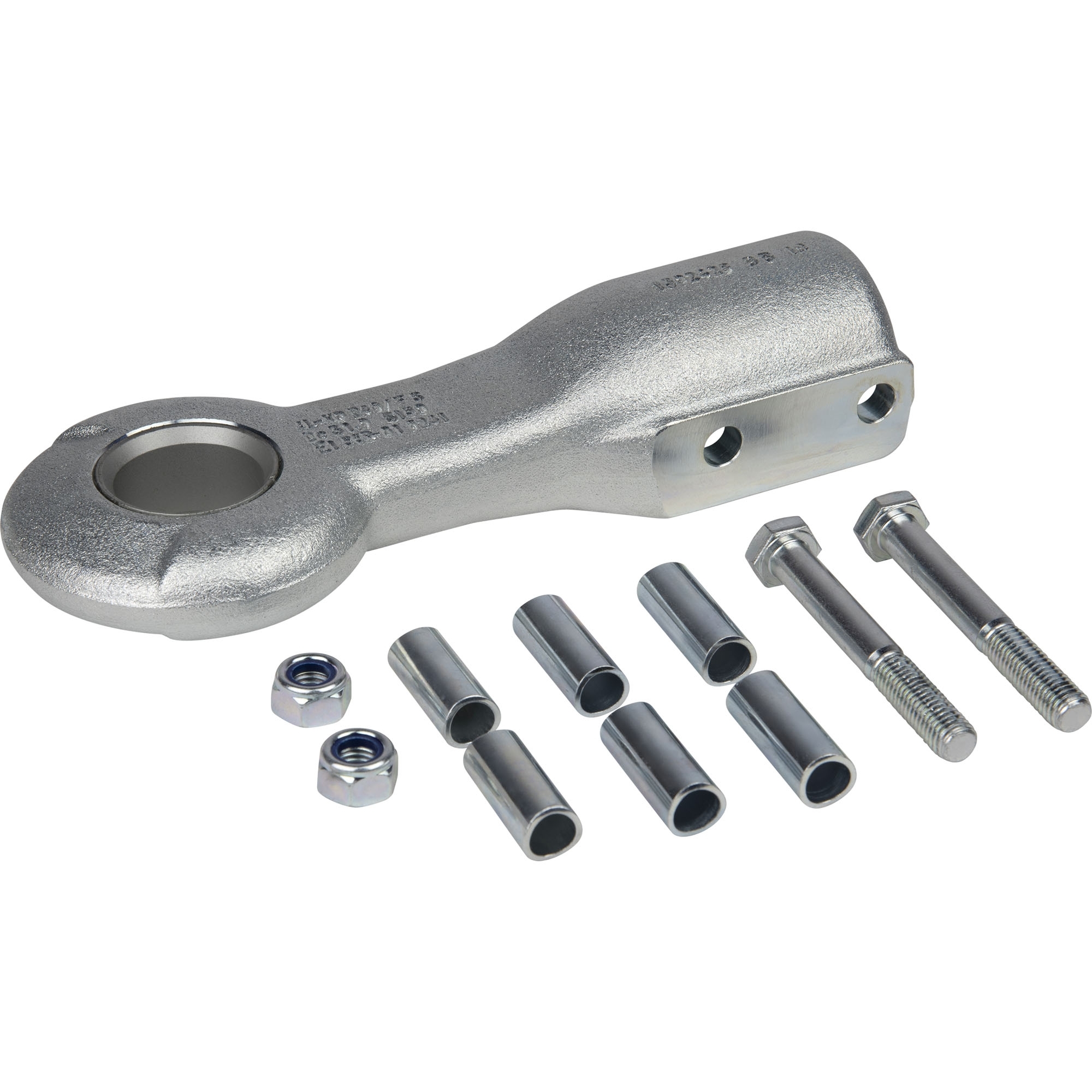

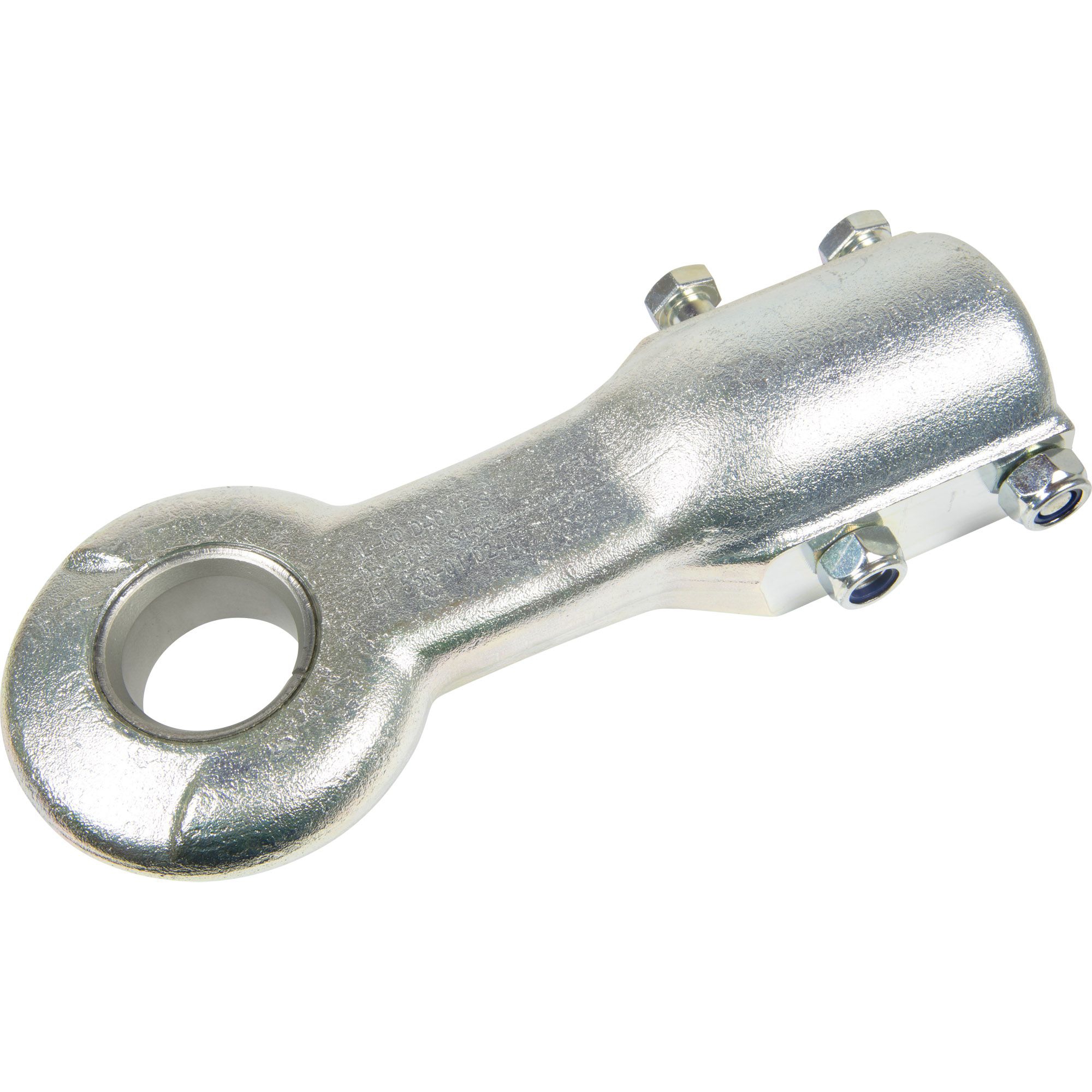

Drawbar eye AL-KO incl. screw material Eyelet Ø 40 mm Permitted total weight 2700 kg Permitted payload 150 kg Pull rod Ø 50 mm Horizontal drilling Ø 12.2 mm Spacing of holes 50 mm suitable for height-adjustable Type 161 VB, 251 VB

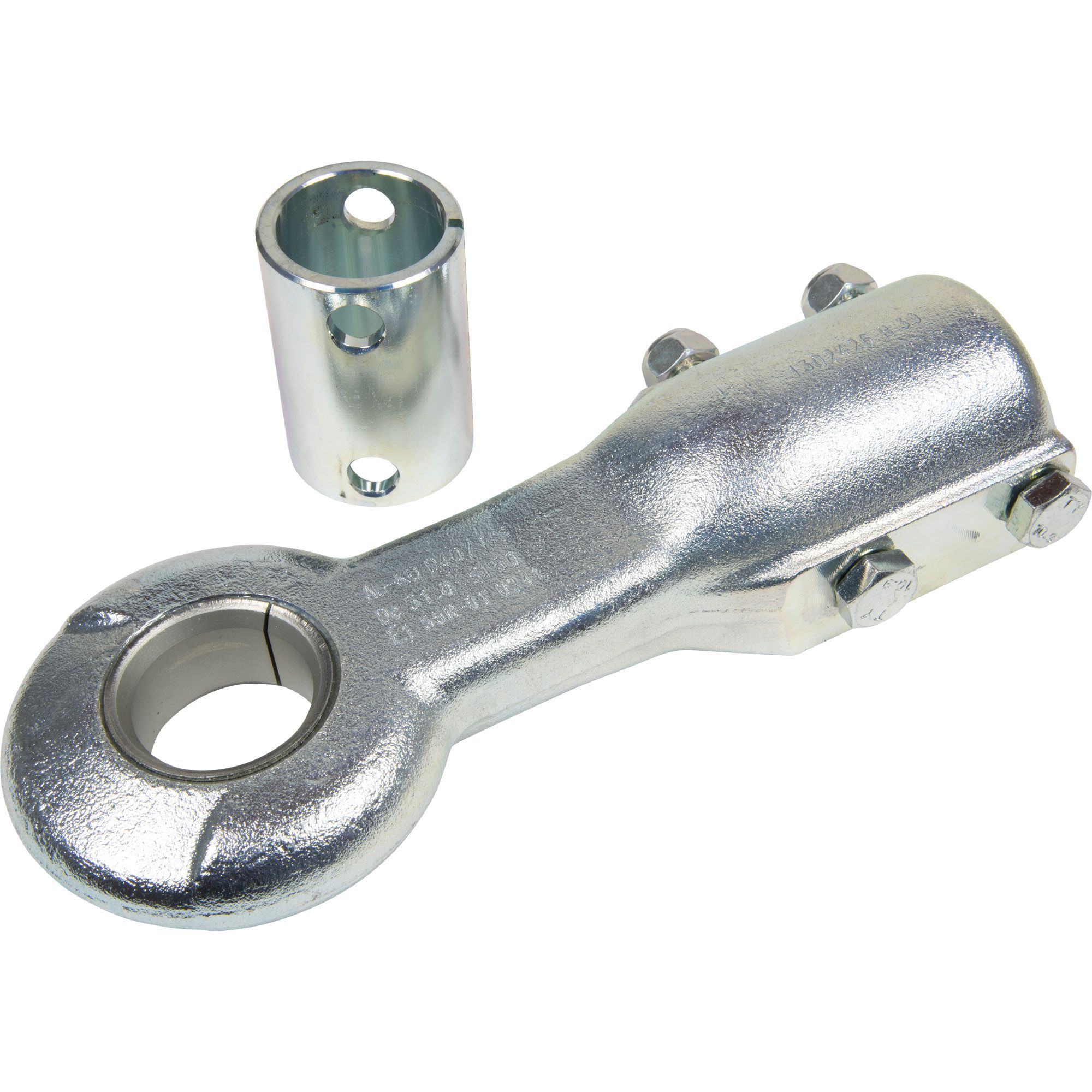

Drawbar eye AL-KO incl. screw material Eyelet Ø 40 mm Permitted total weight 3000 kg Permitted payload 150 kg Pull rod Ø 50 mm Reduction pieces to Ø 40 mm Horizontal drilling Ø 12.2 mm Spacing of holes 50 mm suitable for Type 101 VB

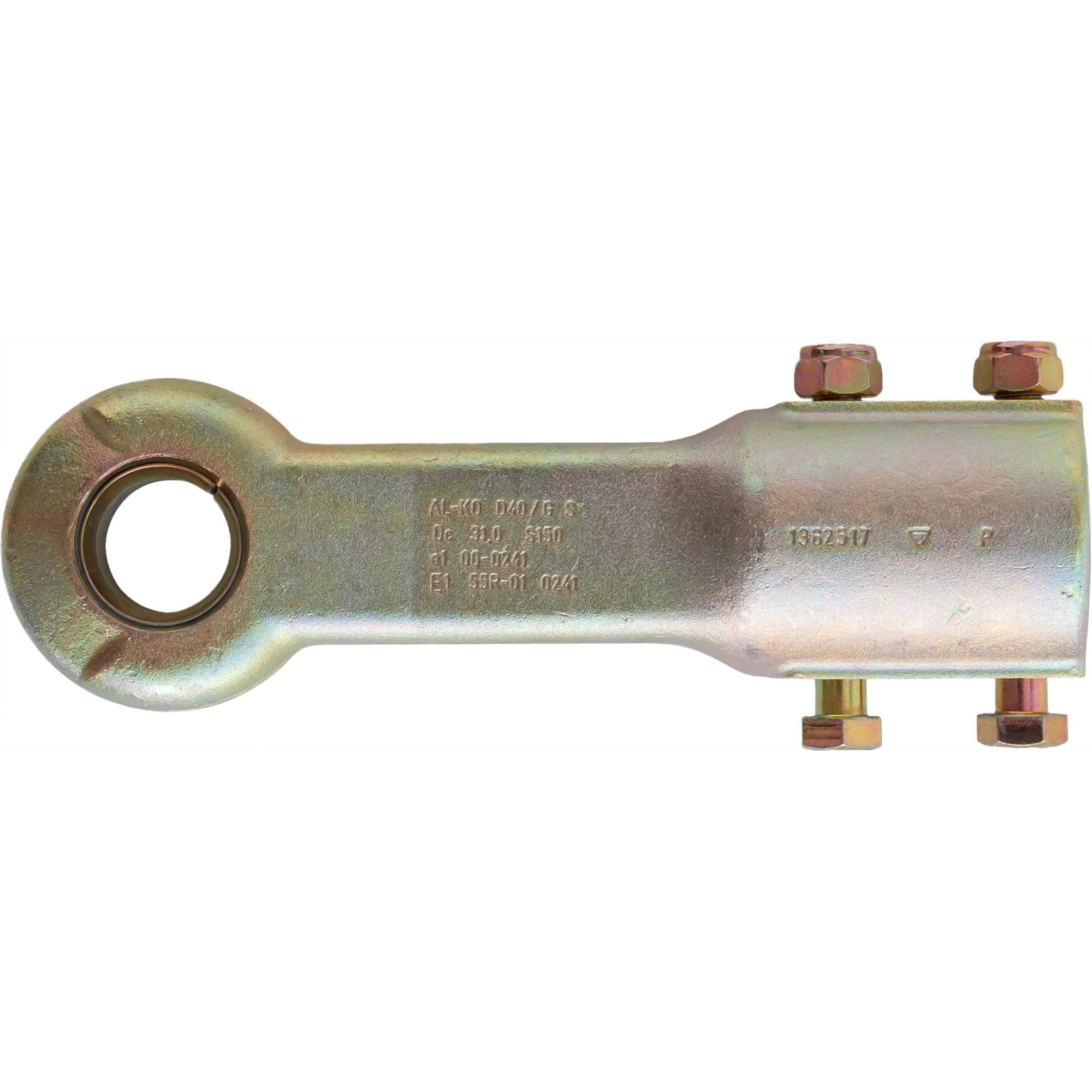

Drawbar eye AL-KO incl. screw material Eyelet Ø 40 mm Permitted total weight 3500 kg Permitted payload 350 kg Pull rod Ø 60 mm Horizontal drilling Ø 16.0 mm Spacing of holes 54 mm suitable for Type 351 VB, Profi 3500, 2,8 VB/1

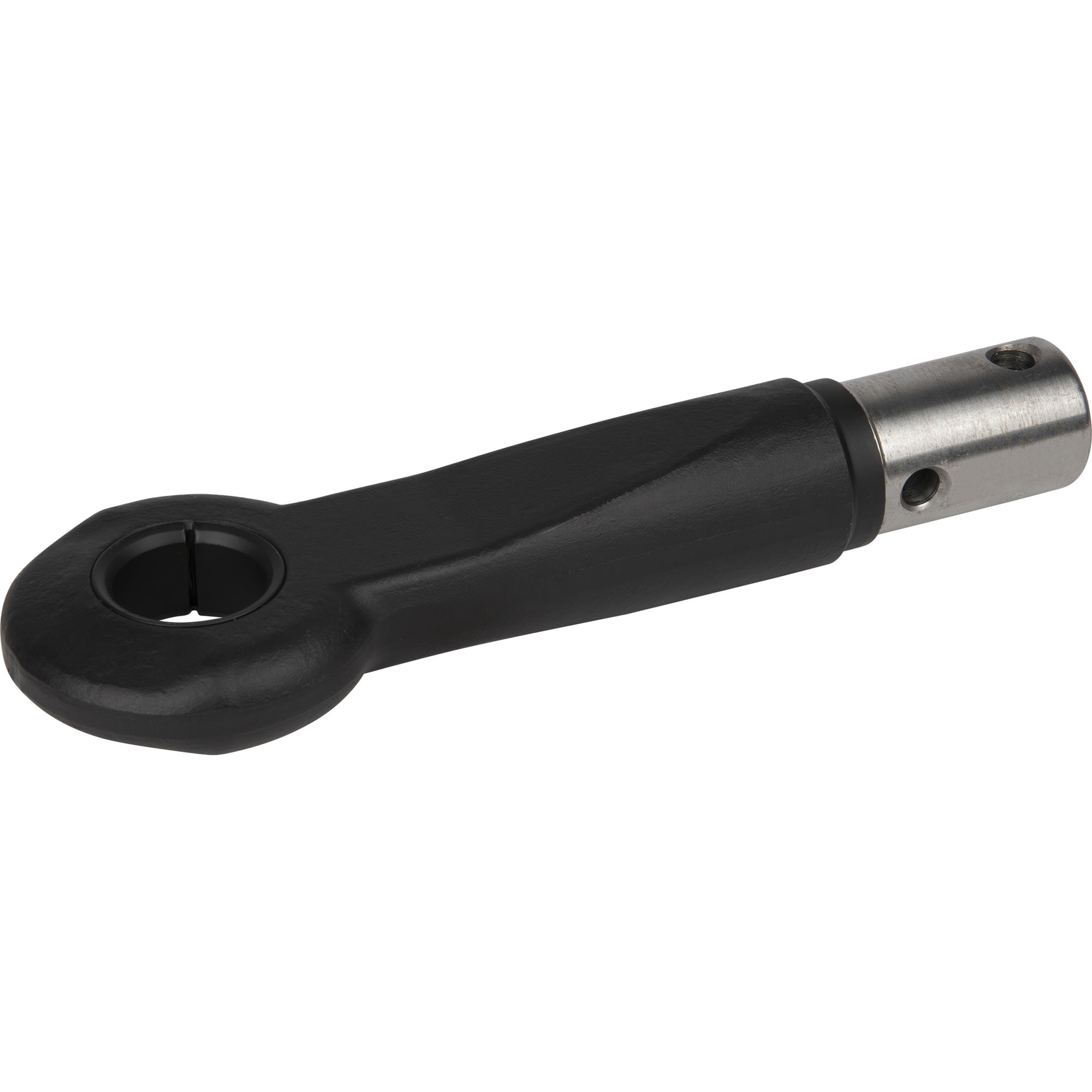

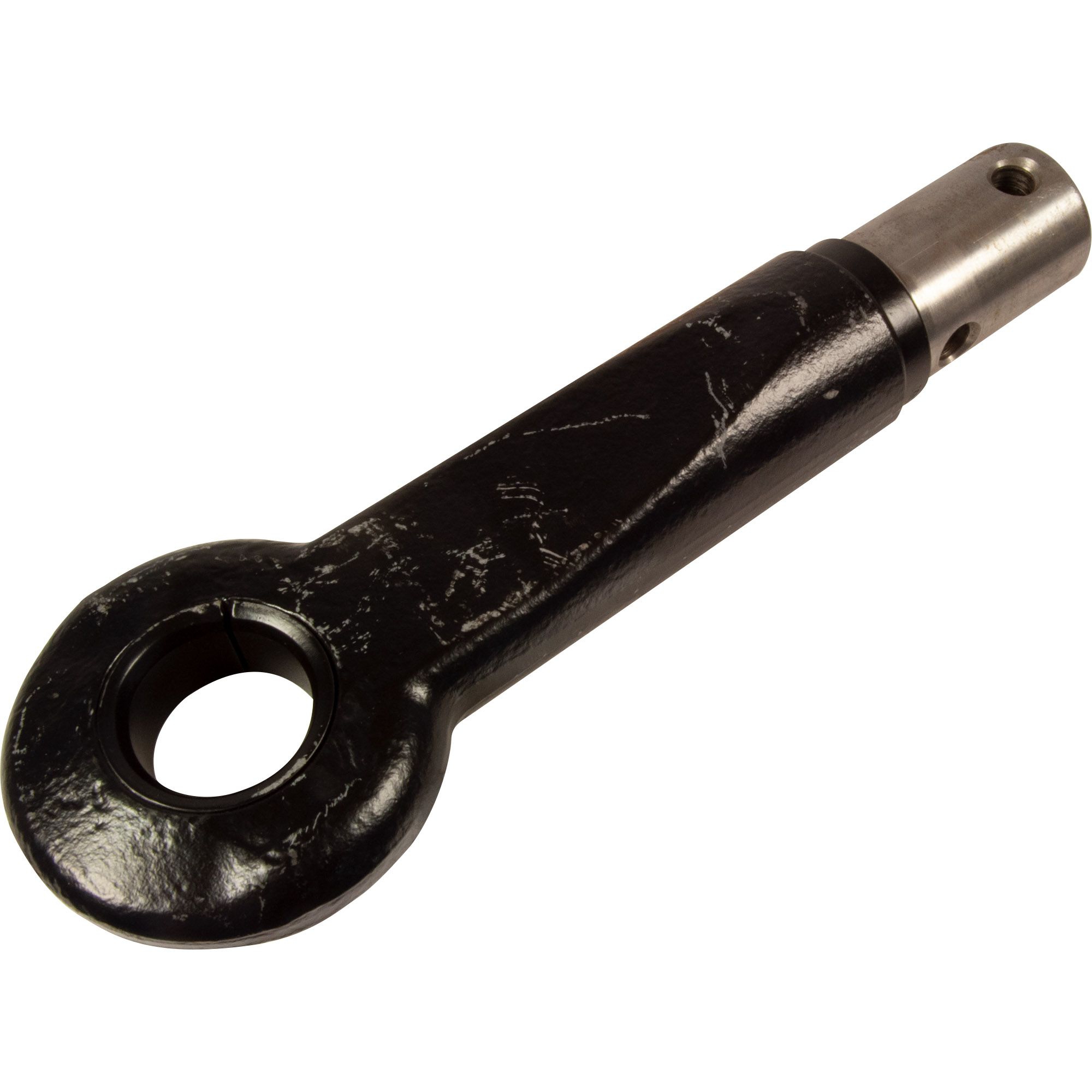

Drawbar eye BPW Eyelet Ø 40 mm Permitted total weight 2900 kg Permitted payload 150 kg Pull rod Ø 50 mm Horizontal drilling Ø 12.2 mm Spacing of holes 40 mm suitable for ZAV1,6-5, ZAV2,0-5, ZAV2,7-4

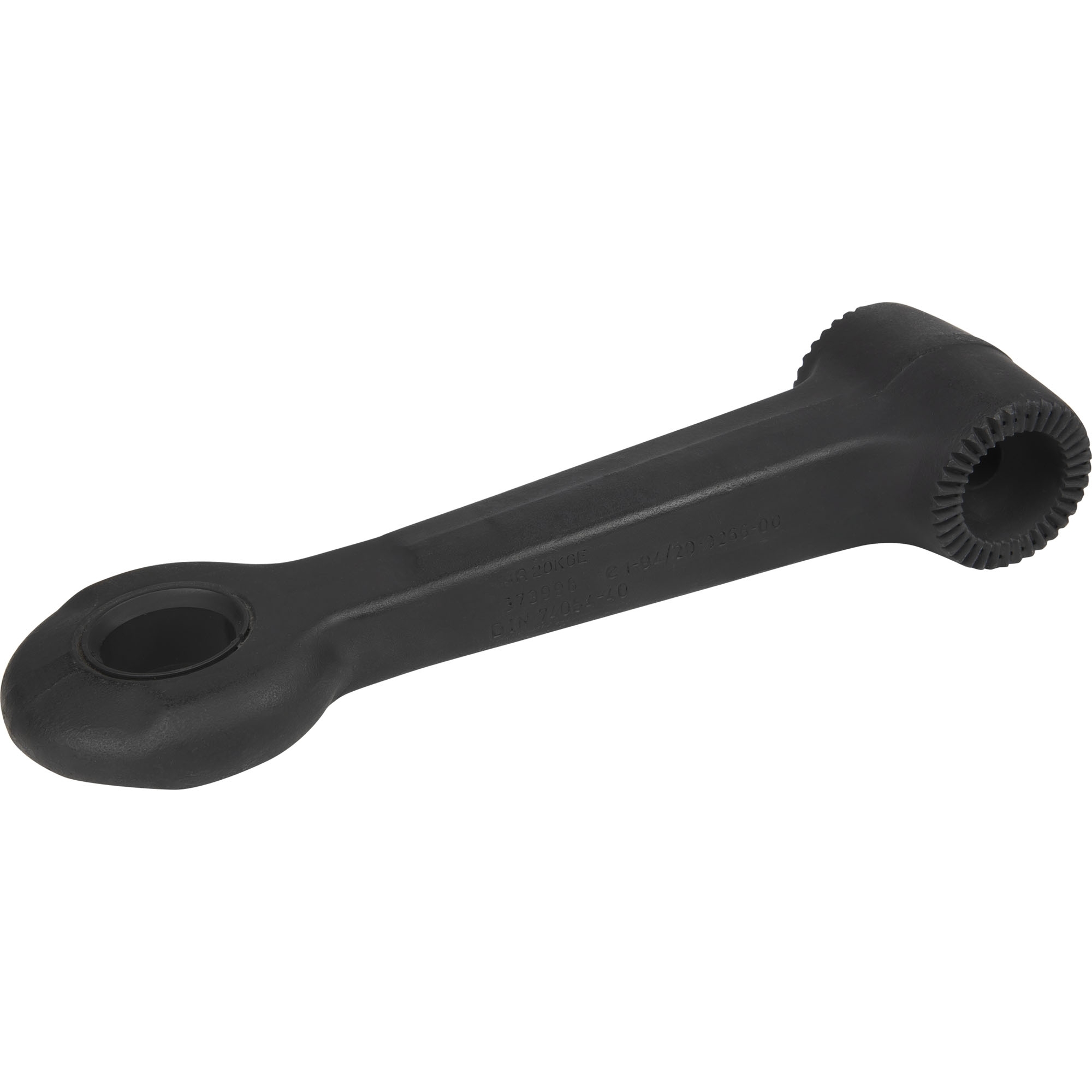

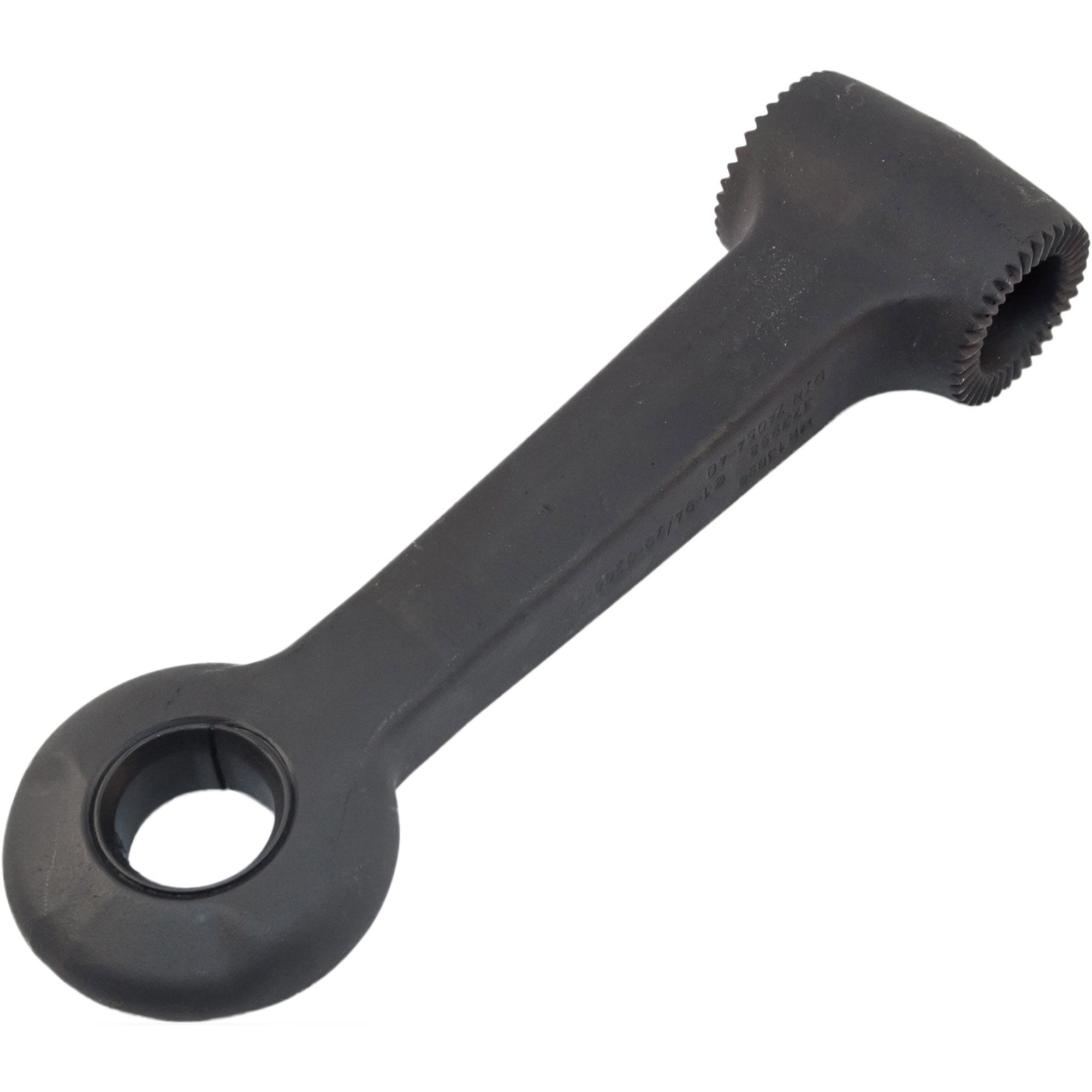

Drawbar eye AL-KO with gear segment Diameter eylet 40 mm usable for overrun devices with the type 70.1VO, 75VU, 102VB

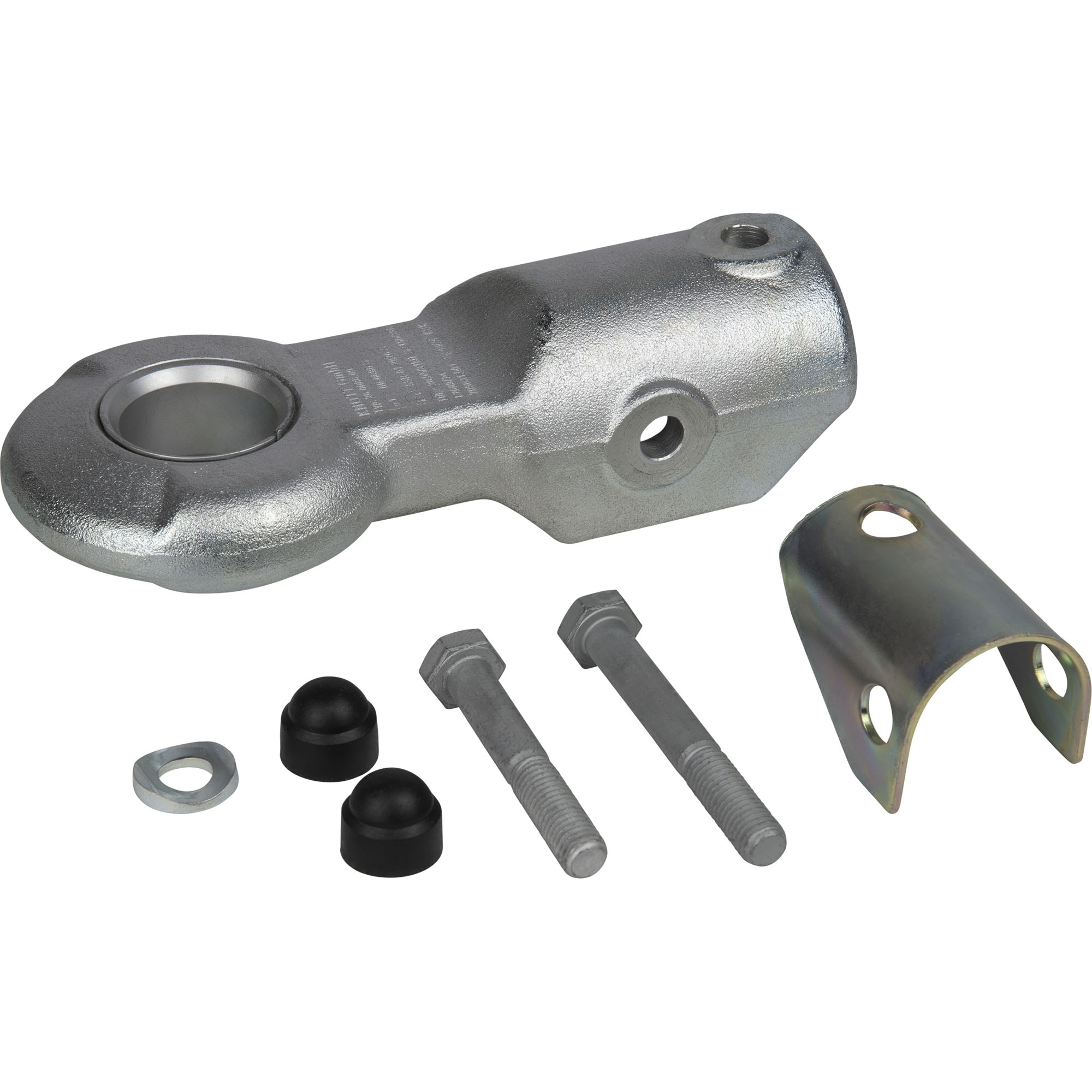

Drawbar eye Knott incl. screw material Eyelet Ø 40 mm Permitted total weight 3500 kg Permitted payload 350 kg Pull rod Ø 50 mm Reduction pieces to Ø 45 mm Horizontal drilling Ø 12.5 mm Vertical drilling Ø 12.5 mm Spacing of holes 40 mm

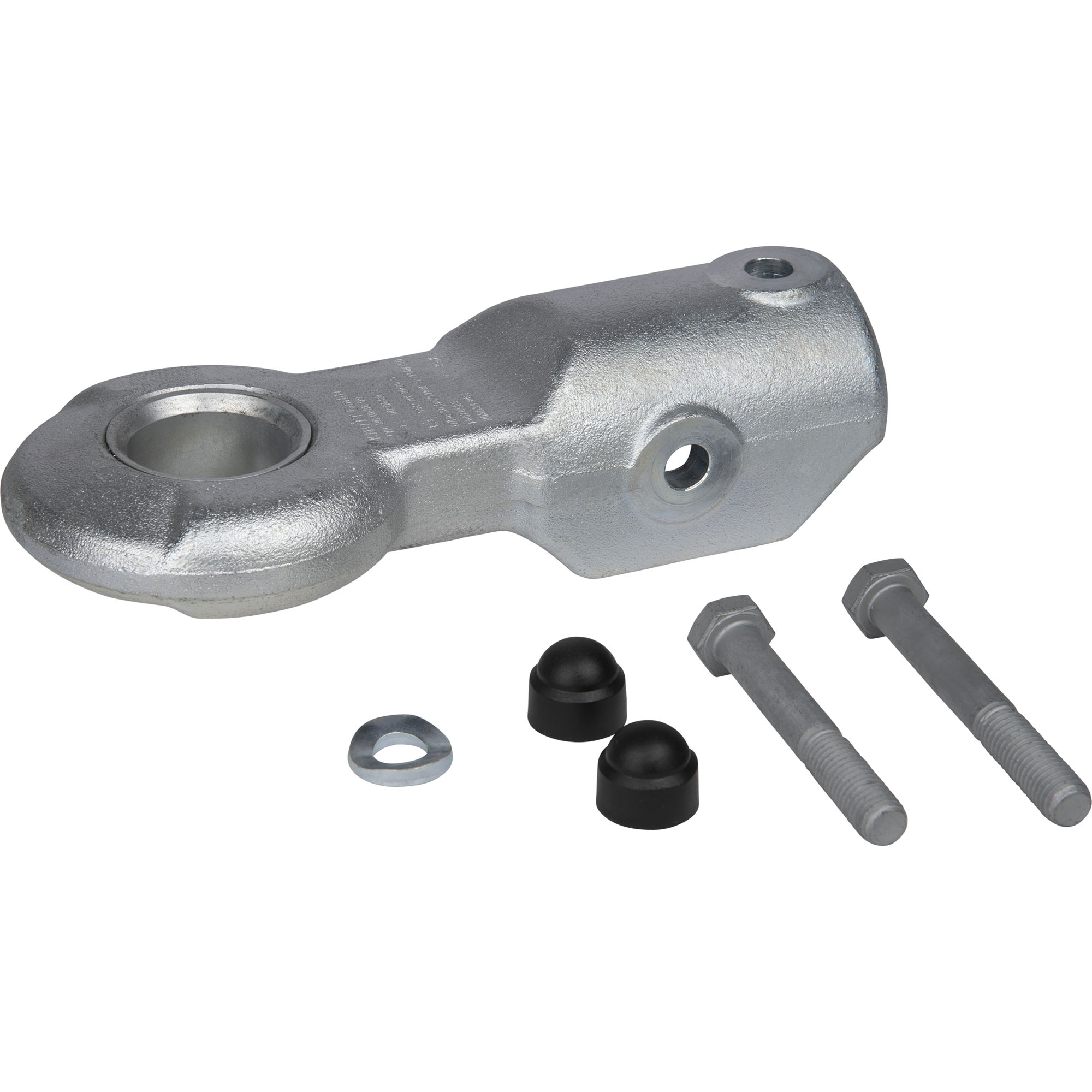

Drawbar eye Knott incl. screw material Eyelet Ø 40 mm Permitted total weight 3500 kg Permitted payload 350 kg Pull rod Ø 50 mm Horizontal drilling Ø 12.5 mm Vertical drilling Ø 12.5 mm Spacing of holes 40 mm
Drawbar eye Knott incl. screw material Eyelet Ø 40 mm Permitted total weight 3500 kg Permitted payload 350 kg Pull rod Ø 50 mm Horizontal drilling Ø 14.5 mm Vertical drilling Ø 12.5 mm Spacing of holes 40 mm

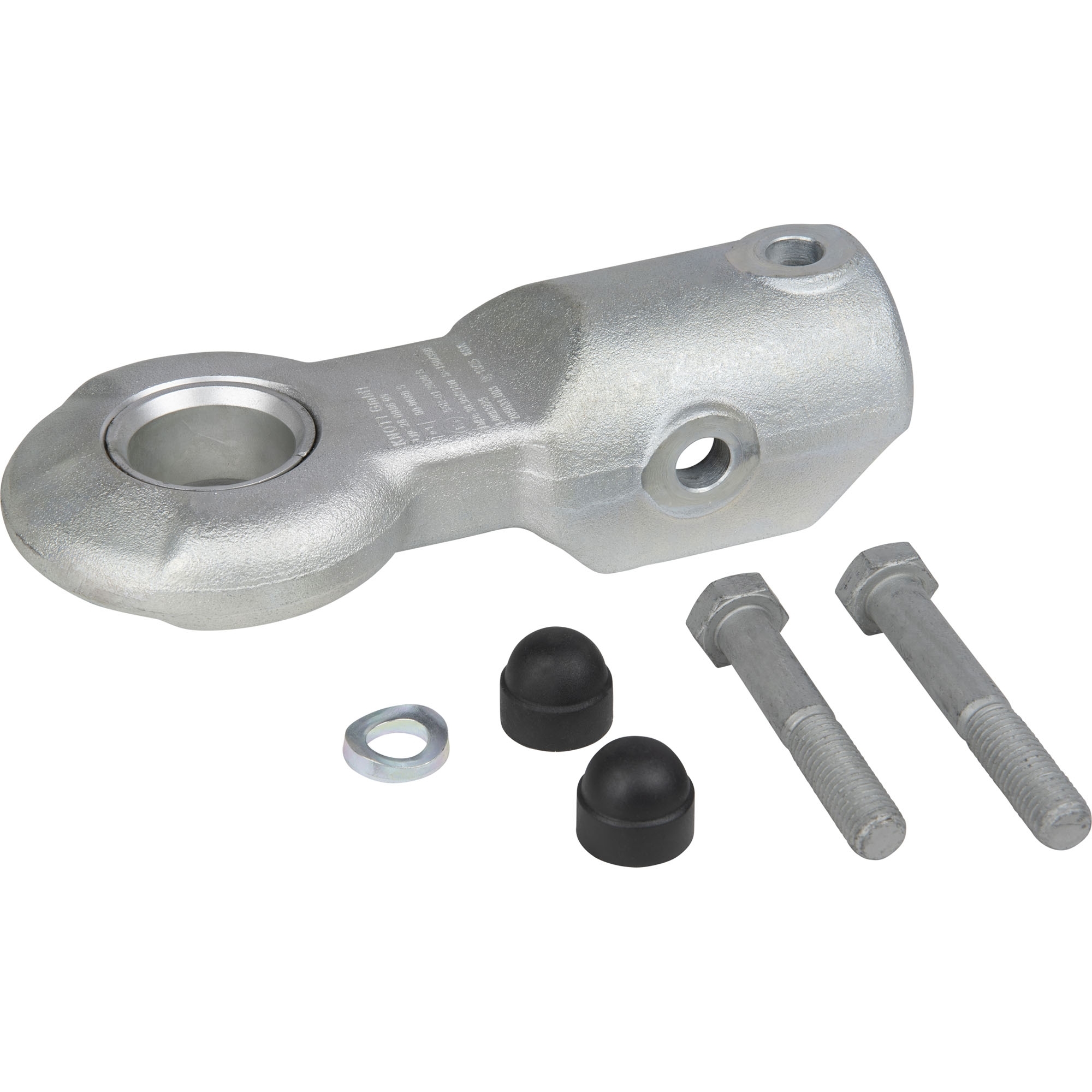

Drawbar eye Knott incl. screw material Eyelet Ø 40 mm Permitted total weight 3500 kg Permitted payload 350 kg Pull rod Ø 50 mm Horizontal drilling Ø 14.5 mm Vertical drilling Ø 14.5 mm Spacing of holes 40 mm

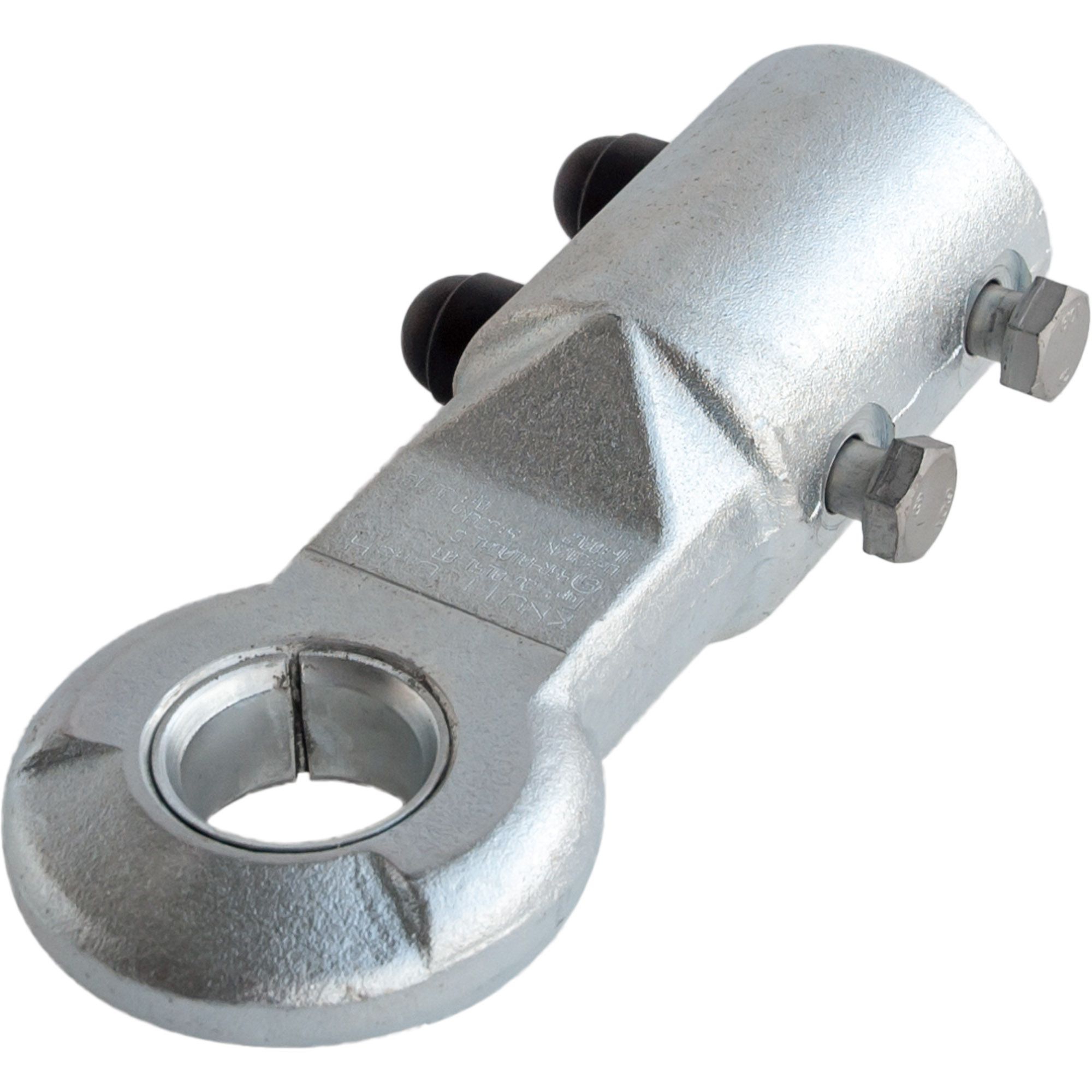

Drawbar eye Knott incl. screw material Eyelet Ø 40 mm Permitted total weight 3500 kg Permitted payload 350 kg Pull rod Ø 60 mm Horizontal drilling Ø 14.5 mm Spacing of holes 54 mm

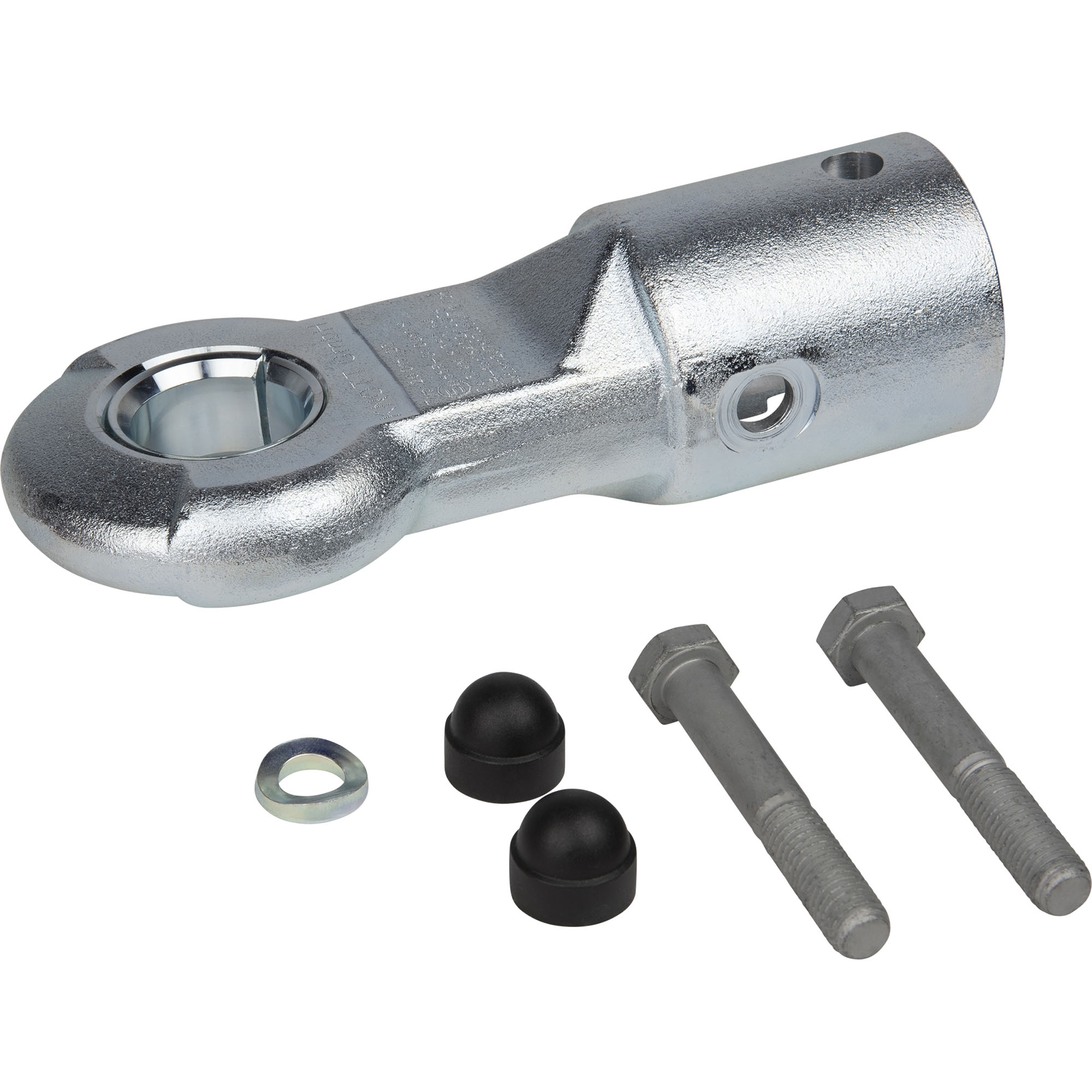

Drawbar eye Knott incl. screw material Eyelet Ø 40 mm Permitted total weight 3500 kg Permitted payload 350 kg Pull rod Ø 60 mm Horizontal drilling Ø 14.5 mm Vertical drilling Ø 14.5 mm Spacing of holes 40 mm
