Fittings

Centre wall retainer, galvanised dimensions: 126 x 65 mm

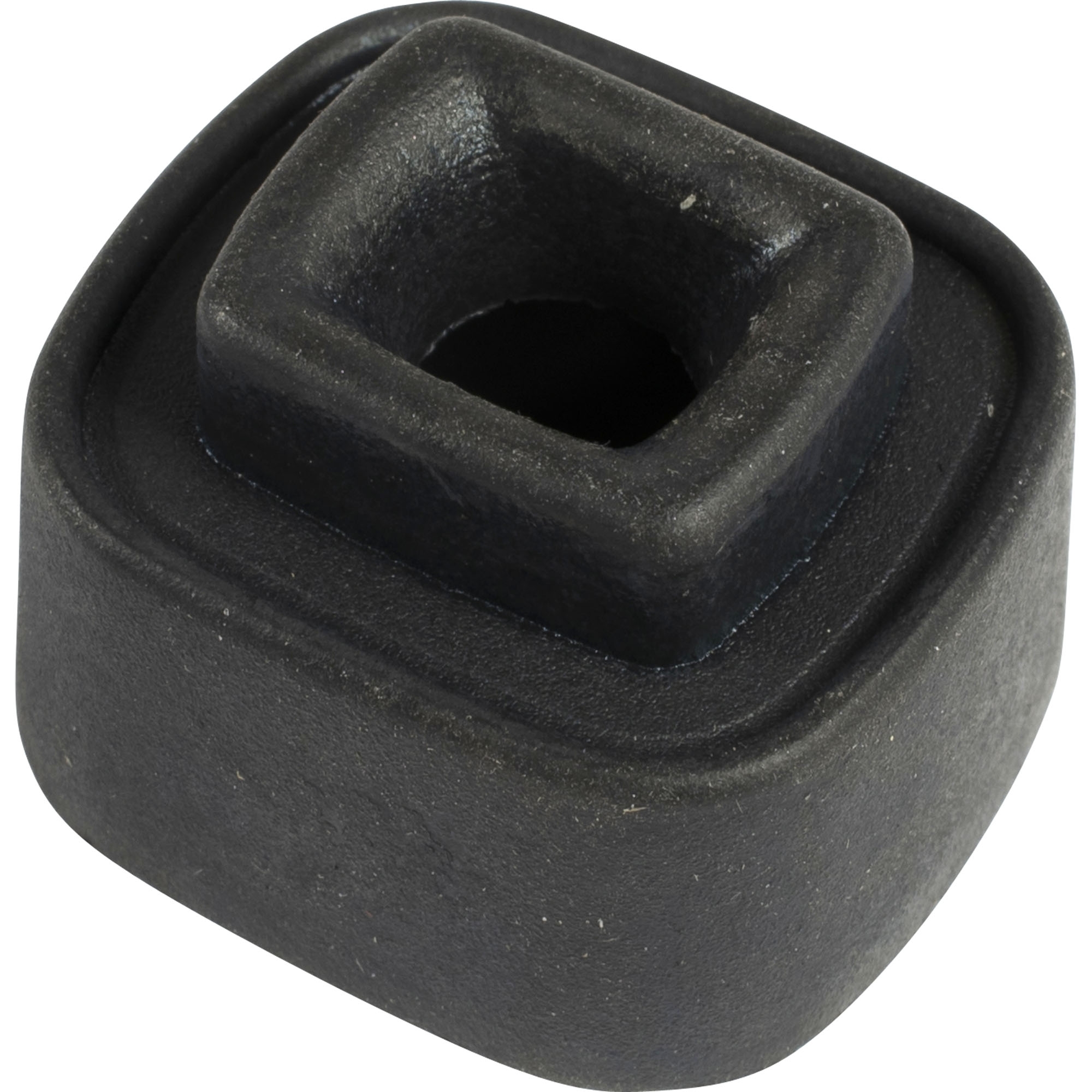

Clamp-fitted buffer, rubber black dimensions 30 x 26 x 19

Clamp-fitted buffer, rubber black dimensions 38 x 42 x 30

Counterpart for closure, galvanised hole space 42 mm drilling Ø 9 mm eye-Ø 18 mm height 31 mm width 61 mm

Cover holder, rubber, large version total length approx. 180 mm

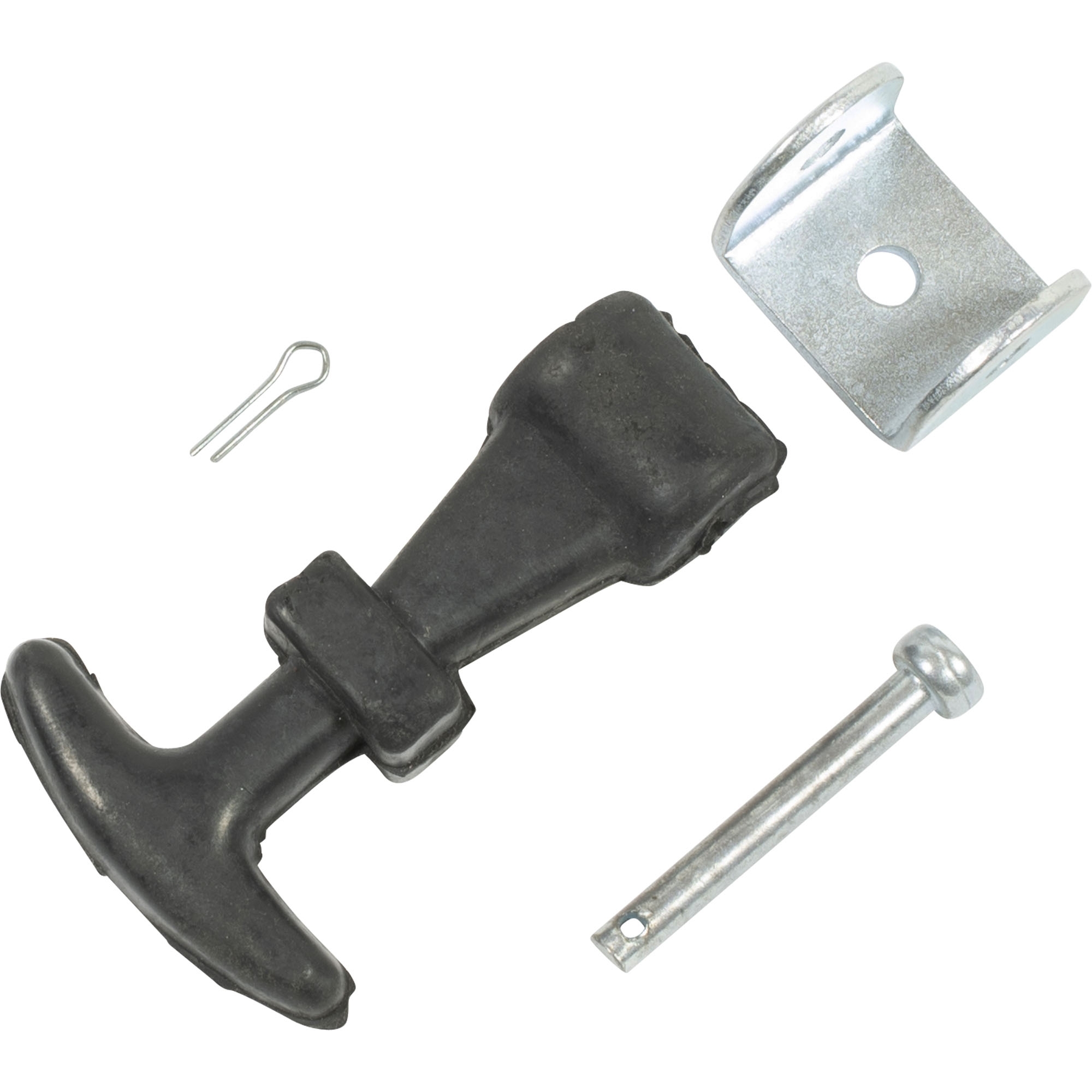

Cover holder, rubber, small version total length approx. 65 mm

Door Holder Blue (Female). Used on the current horsebox range to hold the inspection door open, Eventa M Ramp gate and inspection door assemblies. Door Holder (Male). Used to hold the inspection door open on the current horsebox range, HB510XL, HB610, Eventa M Inspection door and livestock deck kits. Ø 40 mm Height 35 mm

Door stop housing without clamp-on buffer AlMg polished dimensions 86 x 44 x 25 mm

Door stop housing without clamp-on buffer AlMg polished dimensions 65 x 33 x 17 mm

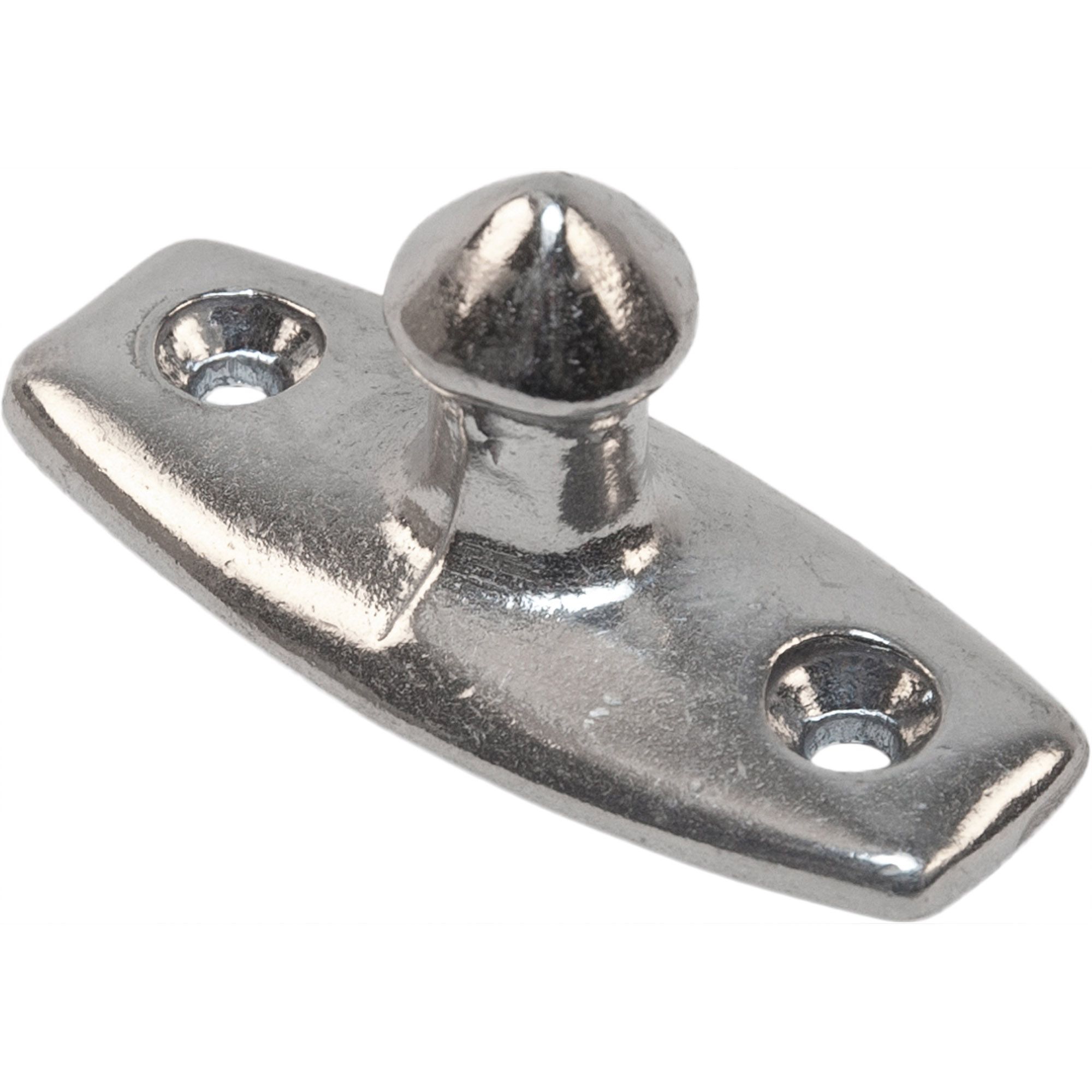

Door stop pin-part plate AlMg polished pin is steel chromium-plated dimensions 50 x 22 x 21.5 mm pin-Ø 12 mm

Door stop pin-part plate AlMg polished pin is steel chromium-plated dimensions 70 x 30 x 30 mm pin-Ø 17 mm

Door stop pin-part plate AlMg polished pin is steel chromium-plated dimensions 70 x 30 x 40 mm pin-Ø 17 mm

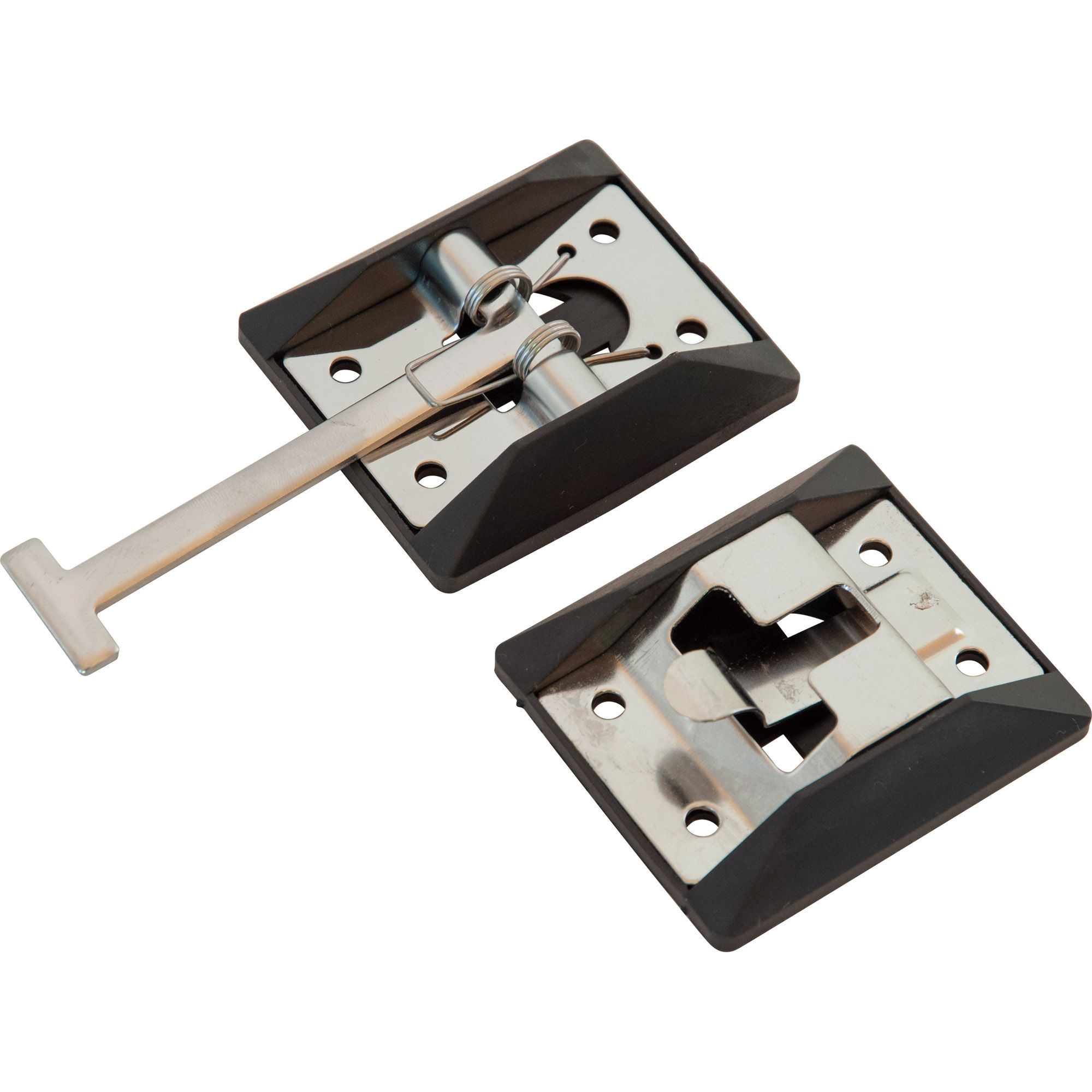

Door stop set, Nirosta 1x Door stop 122 x 40 mm, hole size 5 mm 1x holding device 67x40 mm, hole size 5 mm 2x Cover 70 x 60 x 15 mm, hole size 5 mm

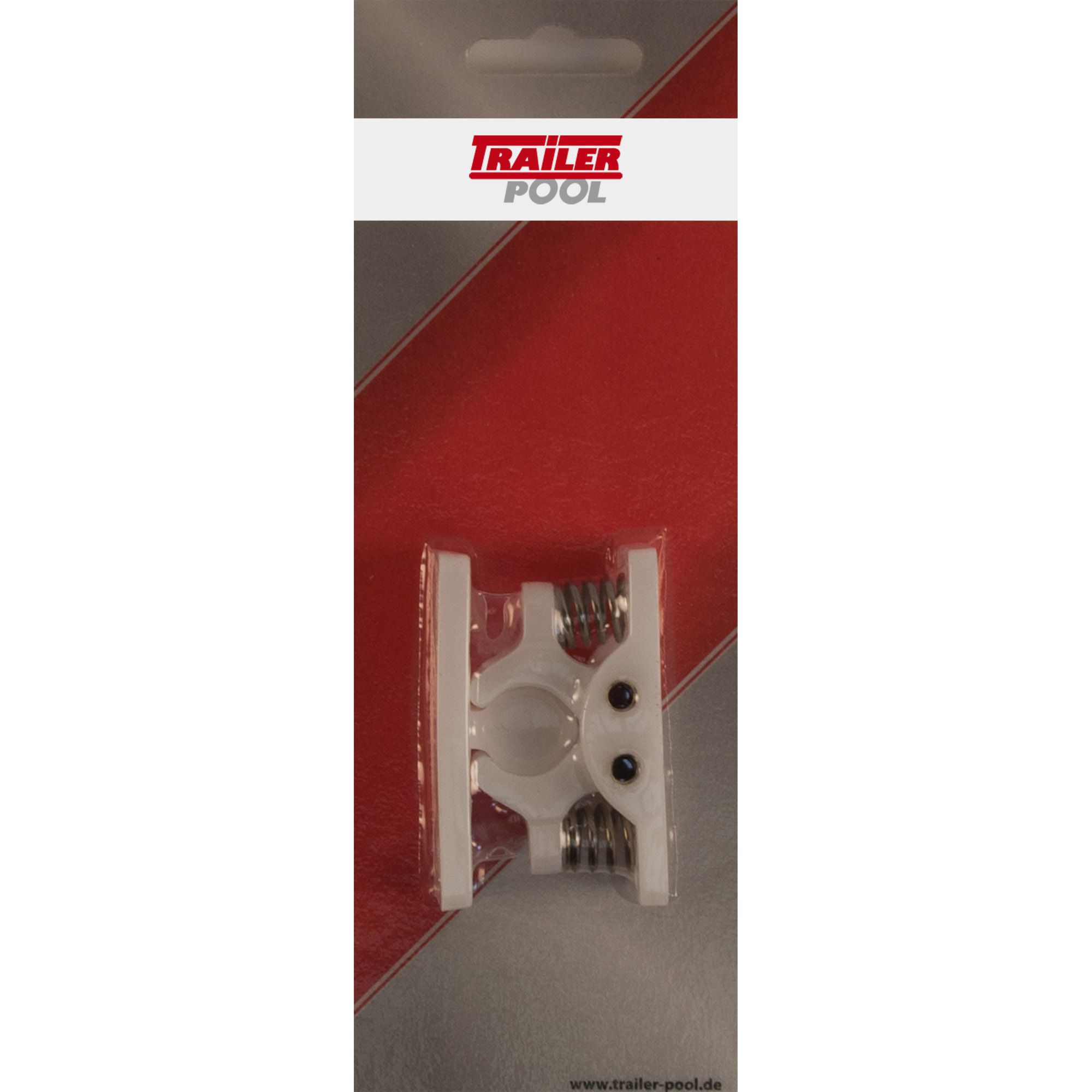

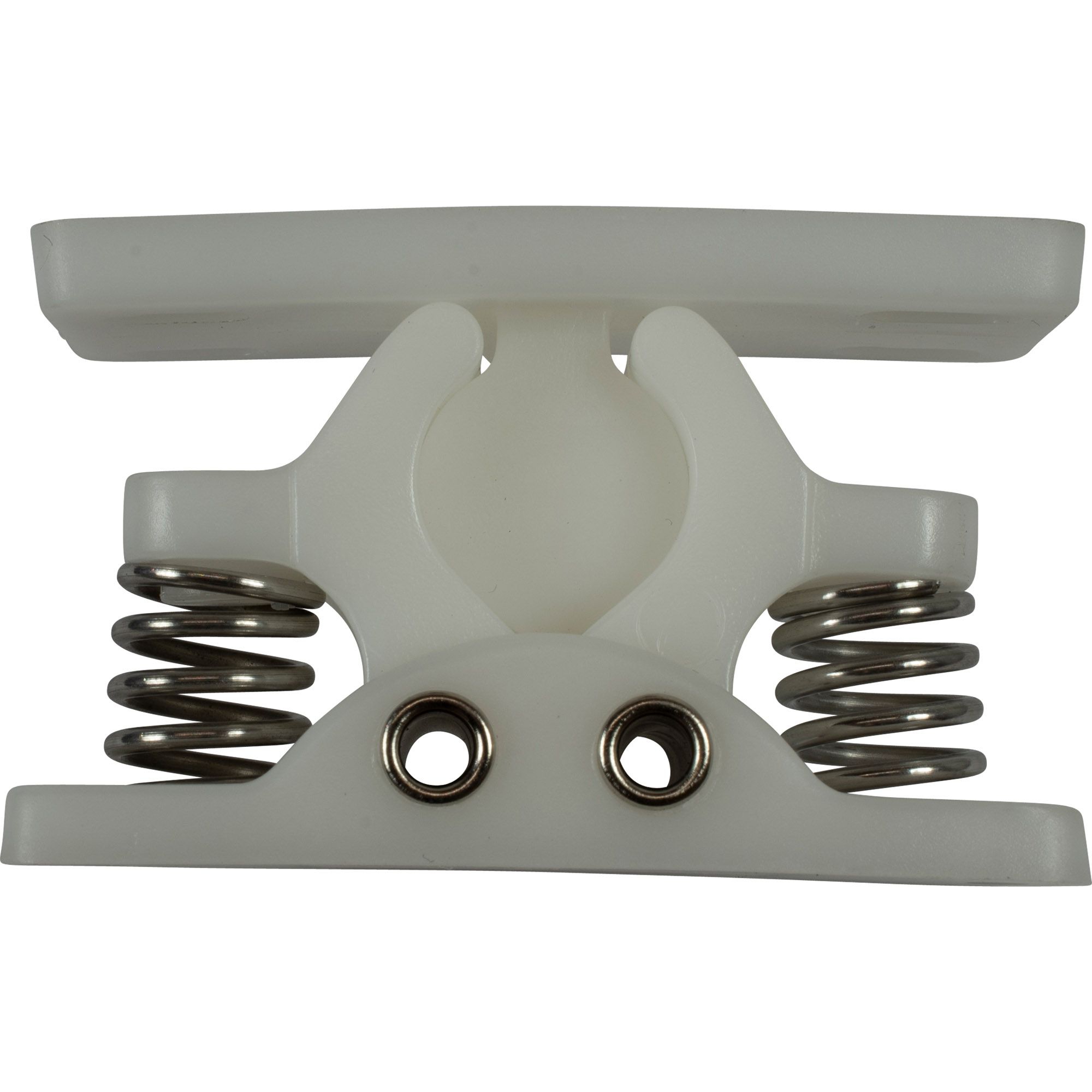

Door stops , plastic, white, two-piece

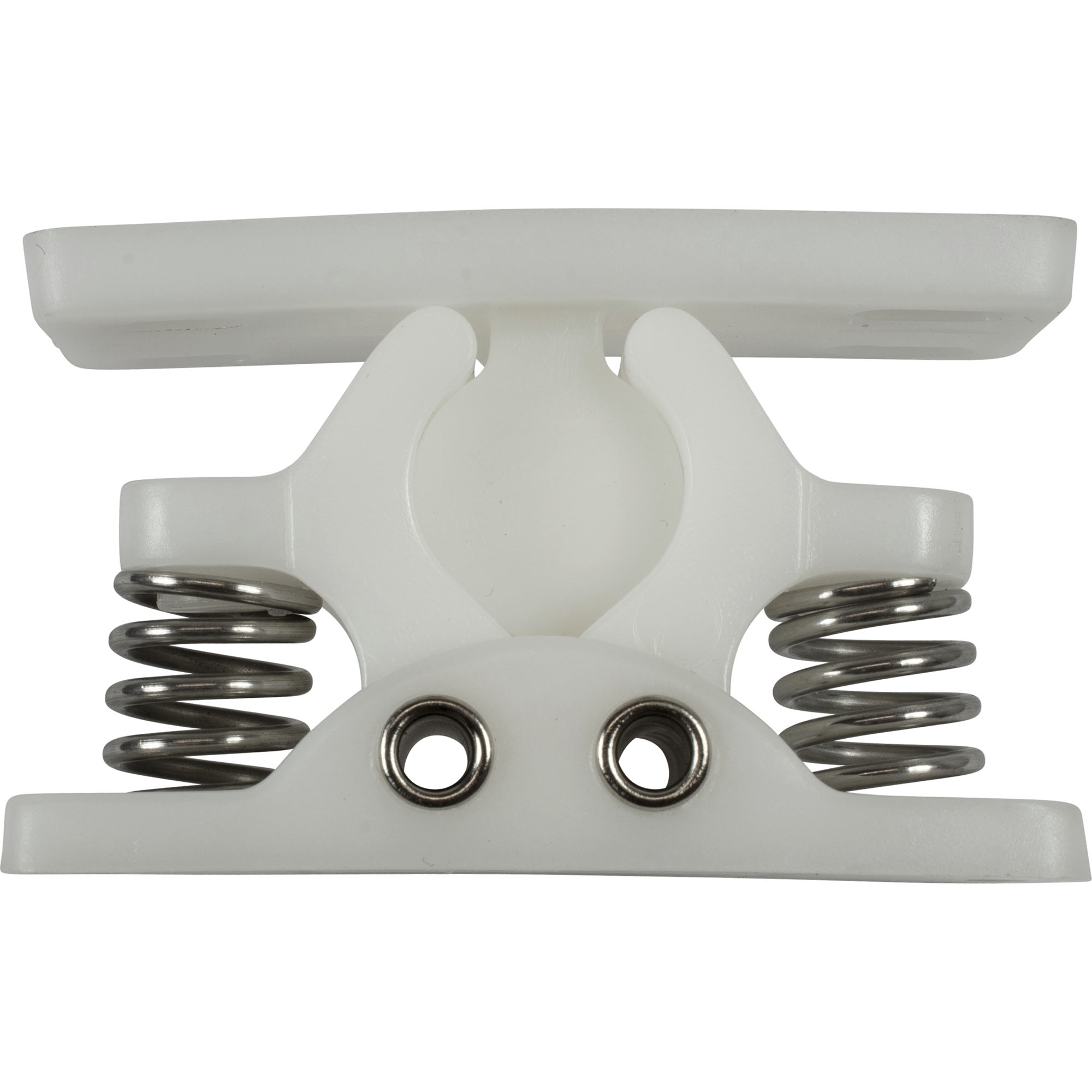

Door stops , plastic, white, two-piece

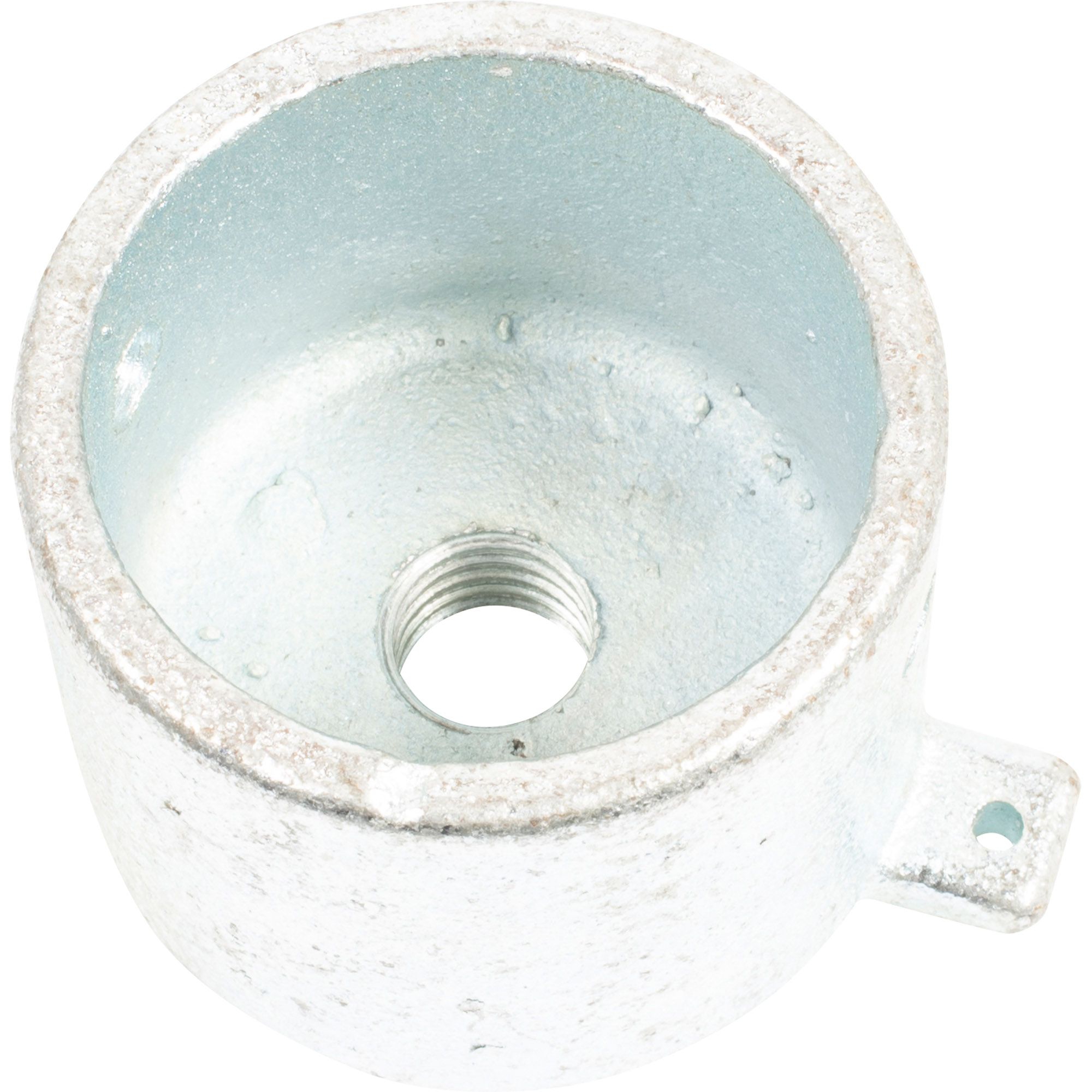

End for pin and hook galvanised

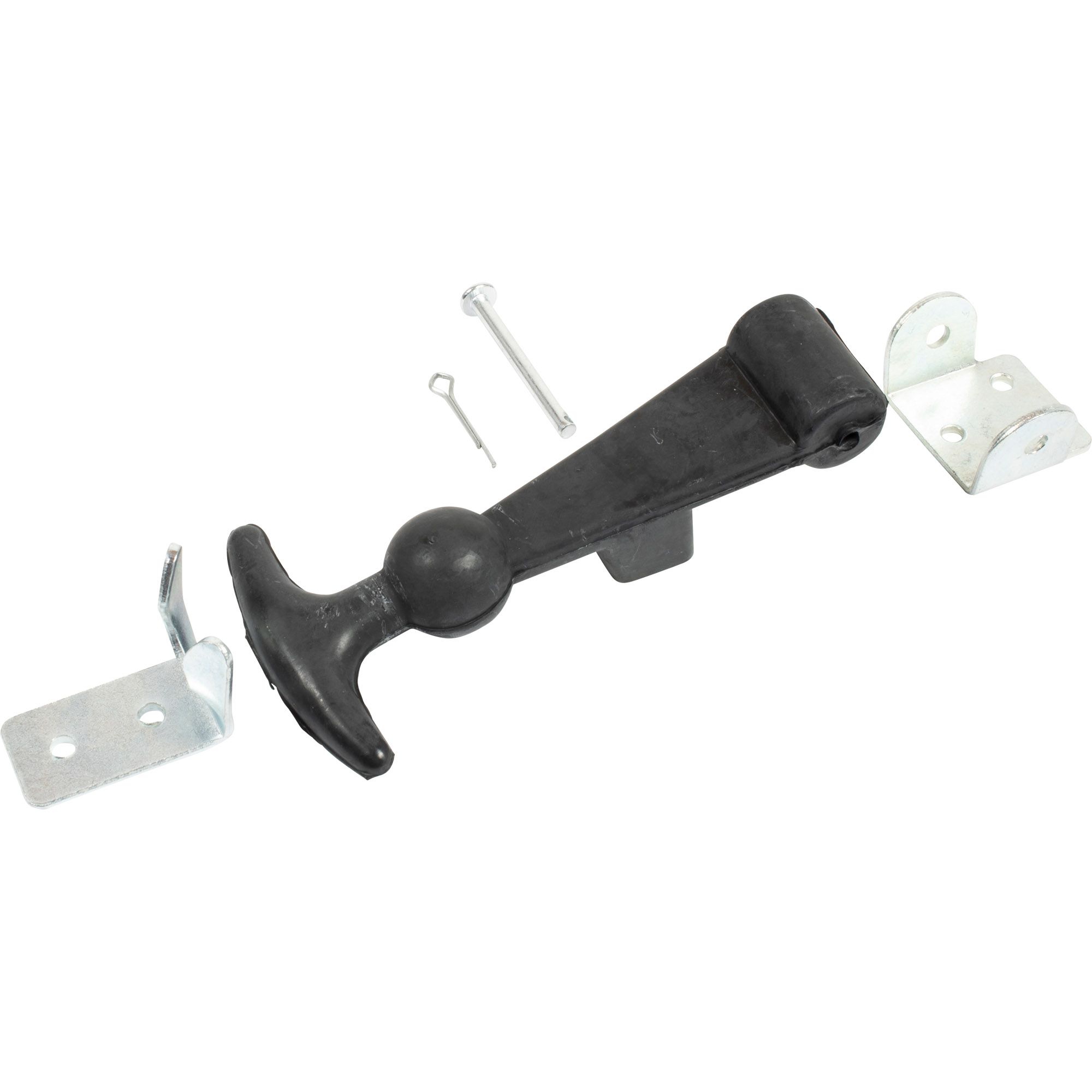

Hood pin, rubber, inc. swivel and a fixing part

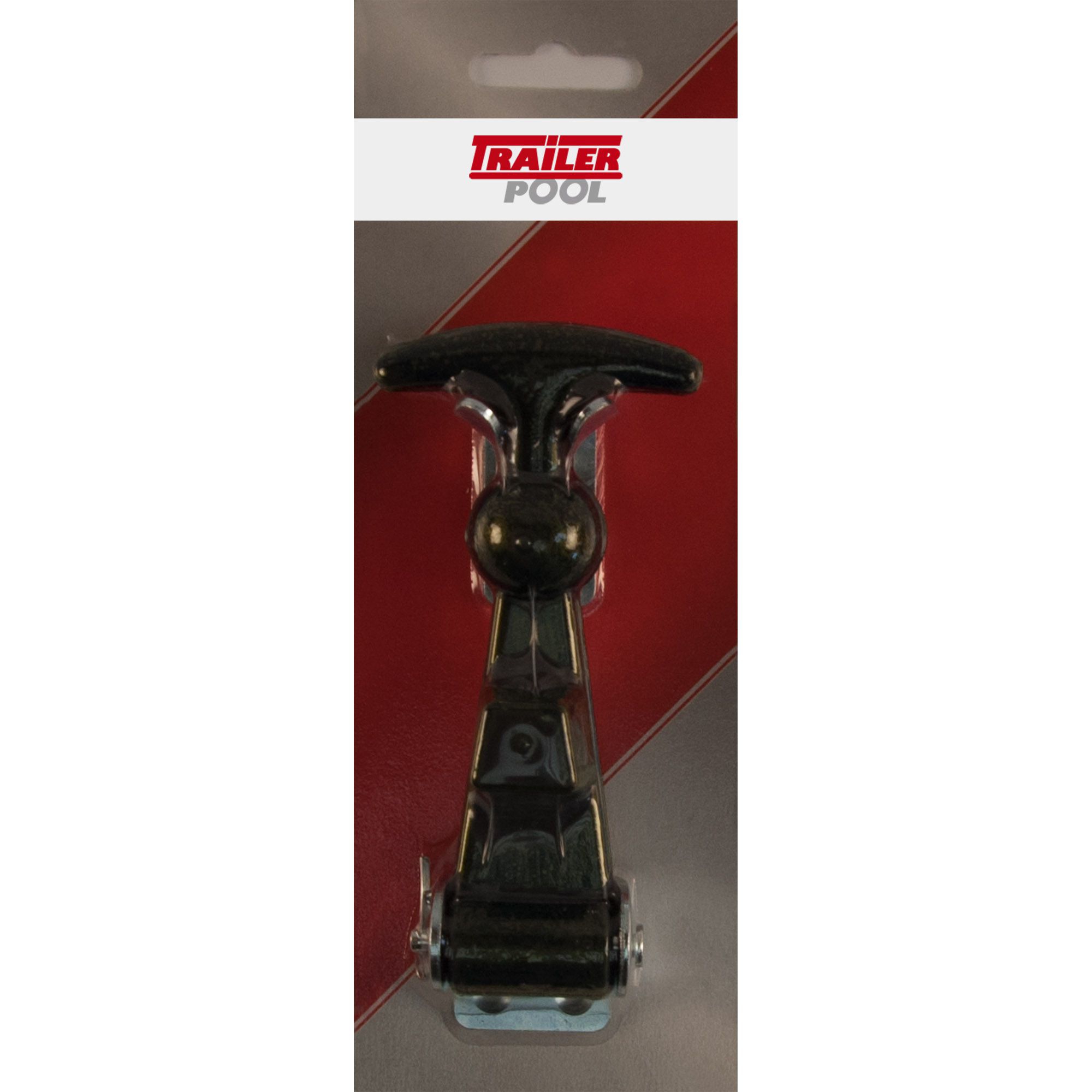

Hood pin, rubber inc. swivel and a fixing part

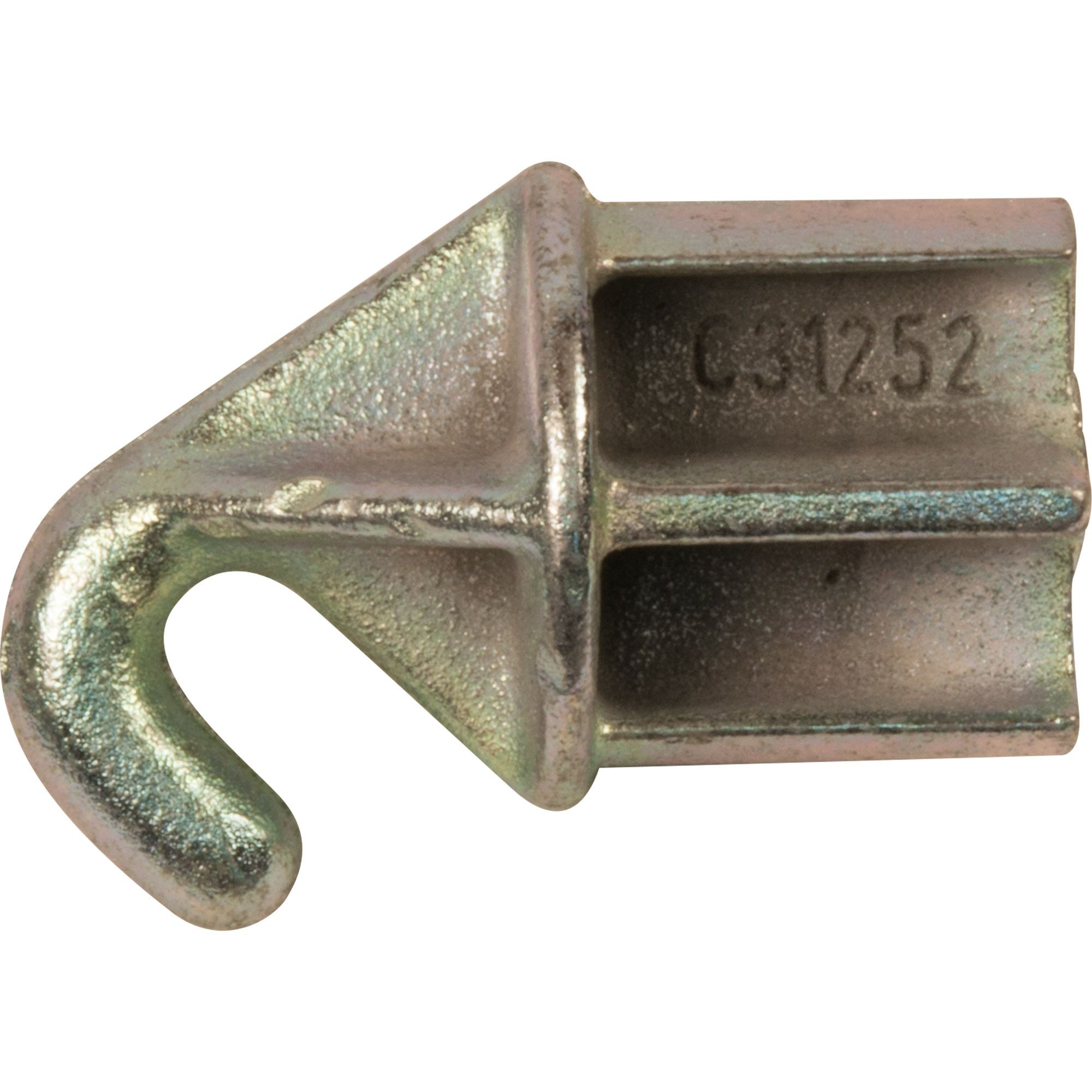

Hook End for breast/breeching bars End pin Ø 47 mm End pin length 90 hook-Ø 13 mm

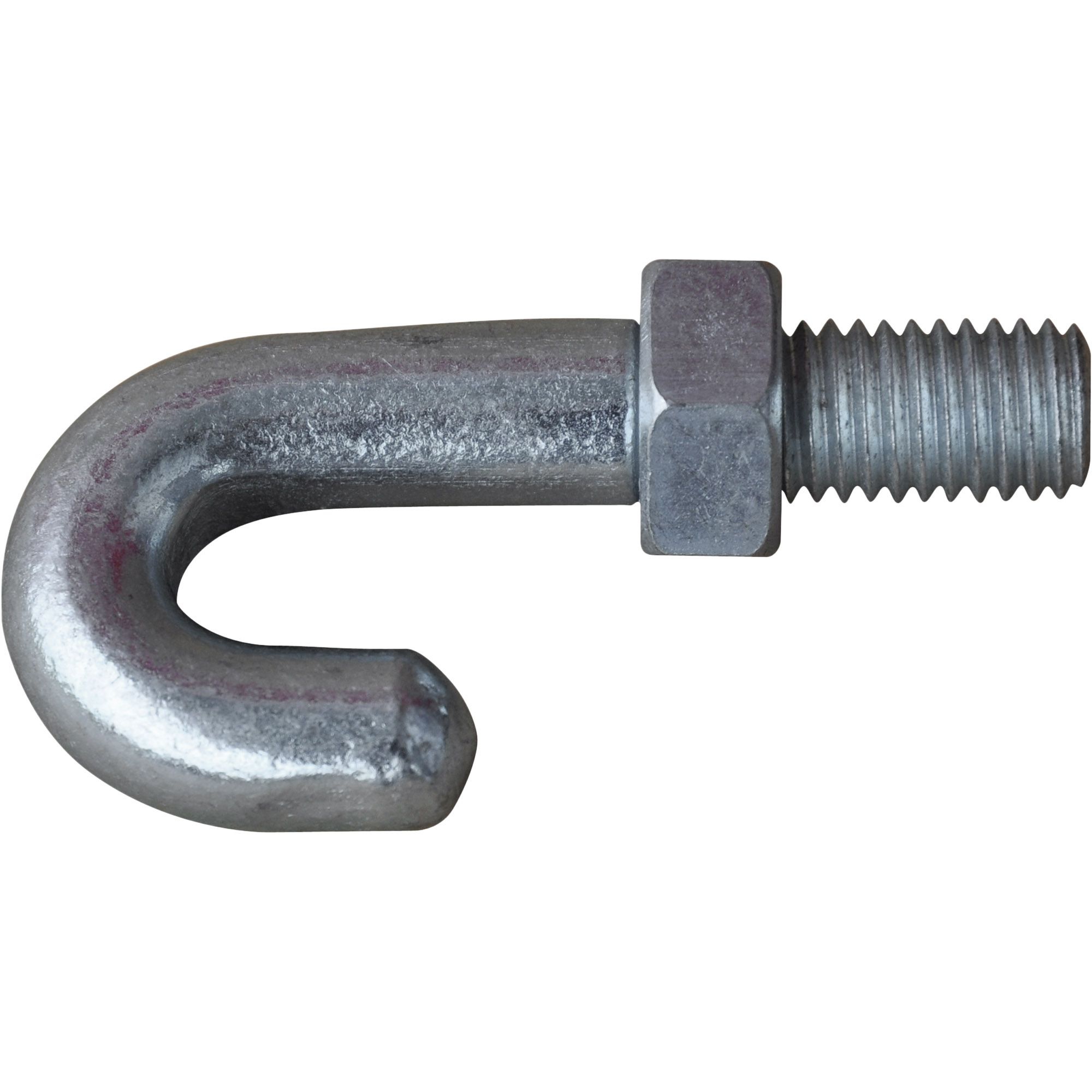

Hook forged, galvanised M14

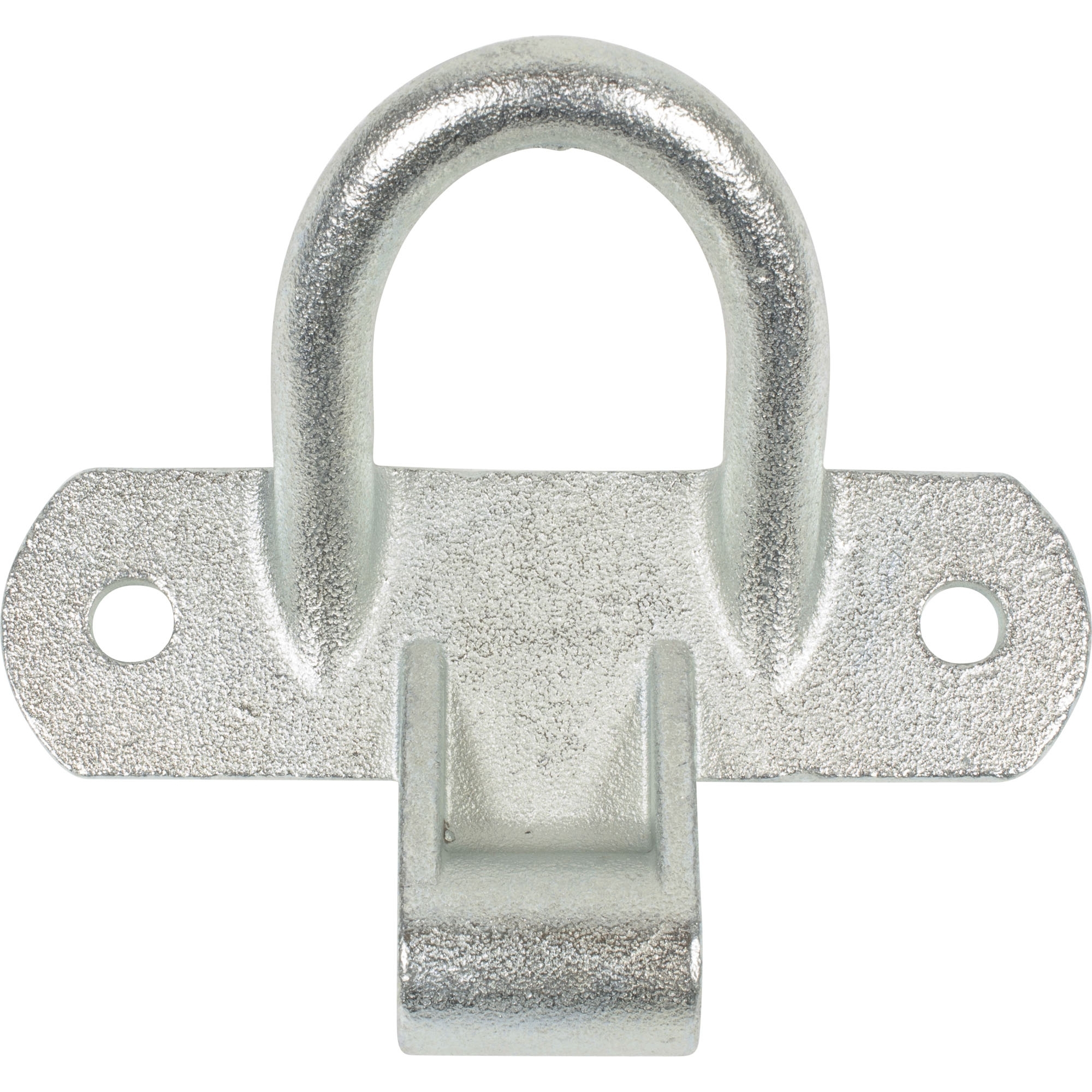

Lashing fixture with studmounting hole drilling base plate 10 mm hole spacing 98 mm studmounting hole Ø 15.5 mm

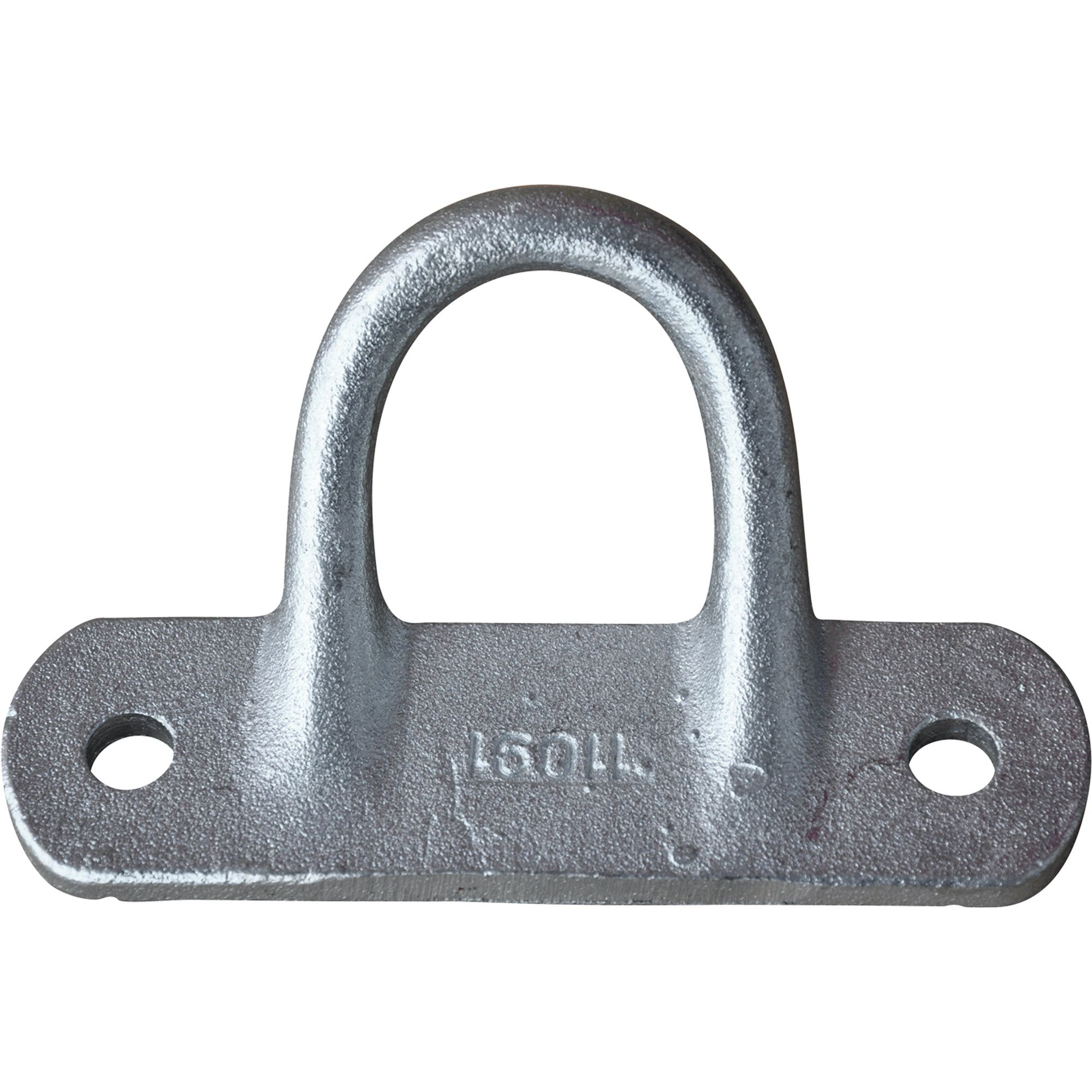

Lashing fixture without studmounting hole drilling 10.5 mm hole spacing 98 mm Length 130 mm Height 60 mm

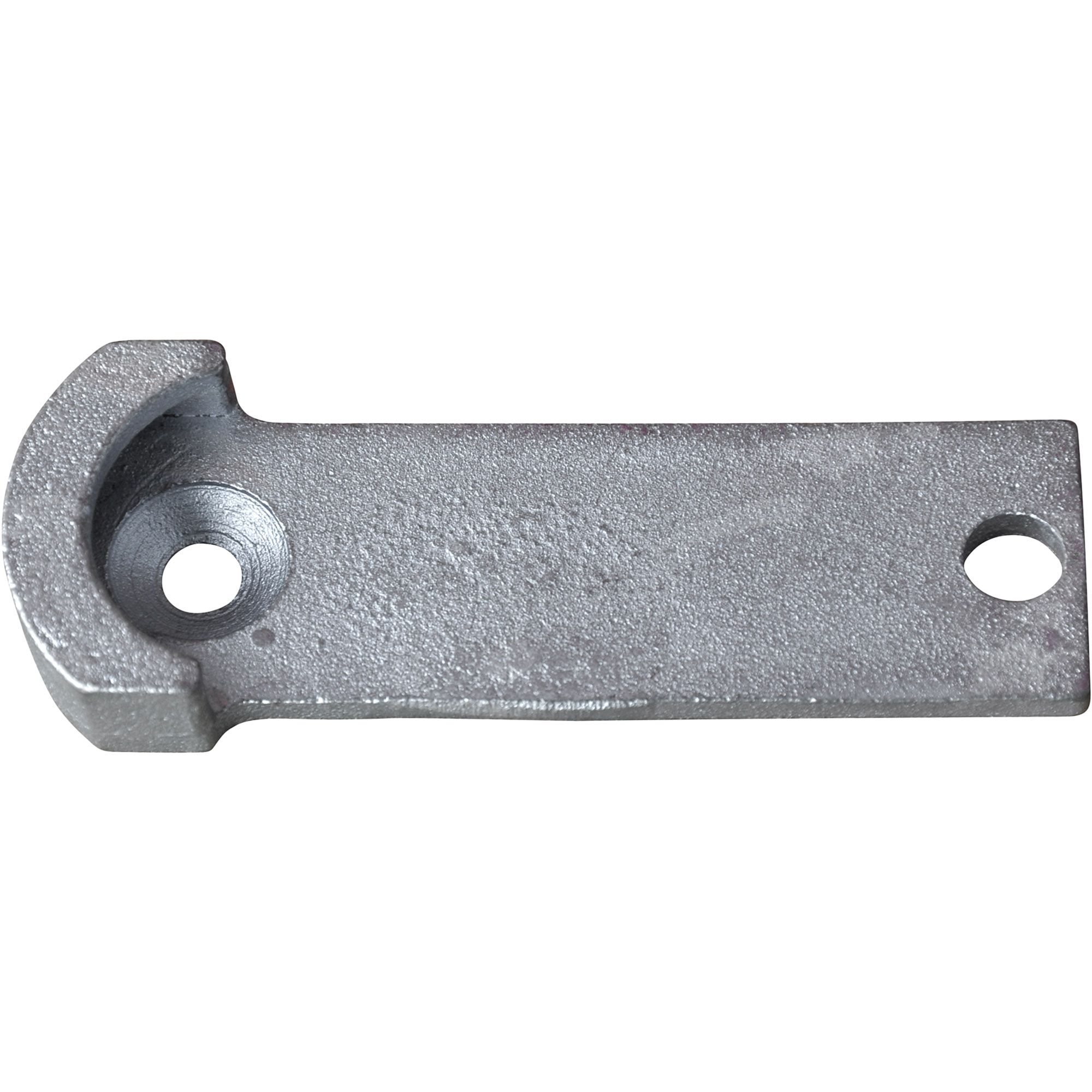

Panic bolt lower part dimensions: 127 x 39 mm drilling top Ø 9.5 mm drilling lower part Ø 12 mm hole distance 97 mm

Panic bolt ring bolt thread M10 length of thread 12 mm total length 112 mm
