Winterhoff

Coupling Head DDR-Version KK 92 A Drawbar round Perm. gross weight 1600 kg Nose load 120 kg Drawbar-Ø 70 mm Hole horizontal Ø 12.0 mm Hole distance 55 mm

Coupling Head DDR-Version KK 92 B Drawbar round Perm. gross weight 1600 kg Nose load 120 kg Drawbar-Ø 60 mm Hole horizontal Ø 12.0 mm Hole distance 55 mm

Coupling Head DDR-Version KK 92 F Drawbar square Perm. gross weight 1600 kg Nose load 120 kg Drawbar 60 mm Hole horizontal Ø 12.0 mm Hole distance 55 mm

Coupling Head Winterhoff WW 20-F1 Drawbar round Perm. gross weight 2000 kg Nose load 100 kg Drawbar-Ø 60 mm Hole vertical Ø 12.5 mm Hole distance 90 + 116 mm

Coupling Head Winterhoff WW 20-F2 Drawbar round Perm. gross weight 2000 kg Nose load 100 kg Drawbar-Ø 70 mm Hole vertical Ø 12.5 mm Hole distance 90 + 116 mm

Coupling Head Winterhoff WW 200-C4-H Drawbar round Perm. gross weight 3000 kg Nose load 150 kg Drawbar-Ø 80 mm Hole vertical Ø 12.5 mm Hole distance 116 mm

Coupling Head Winterhoff WW 200-C7-H Drawbar round Perm. gross weight 3000 kg Nose load 150 kg Drawbar-Ø 70 mm Hole vertical Ø 12.5 mm Hole distance 90 + 116 mm

Coupling Head WW 30-D3-K1412 Perm. gross weight 3000 kg Nose load 150 kg Drawbar-Ø 50 mm Hole horizontal Ø 14.5 mm Hole vertical Ø 12.5 mm Hole distance 40 mm

Coupling Head WW 30-D3-K1414 Perm. gross weight 3000 kg Nose load 150 kg Drawbar-Ø 50 mm Hole horizontal Ø 14.5 mm Hole vertical Ø 14.5 mm Hole distance 40 mm

Coupling Head suitable for Humbaur WW30K D50H1412 Perm. Gross weight 3000 kg Nose load 150 kg Drawbar-Ø 50 mm Hole horizontal Ø 14/12 mm Hole distance 40 mm incl. mounting screws

Coupling Head WW 350-RB-K1212 Perm. gross weight 3500 kg Nose load 200 kg Drawbar-Ø 50 mm Hole horizontal Ø 12.5 mm Hole vertical Ø 12.5 mm Hole distance 40 mm

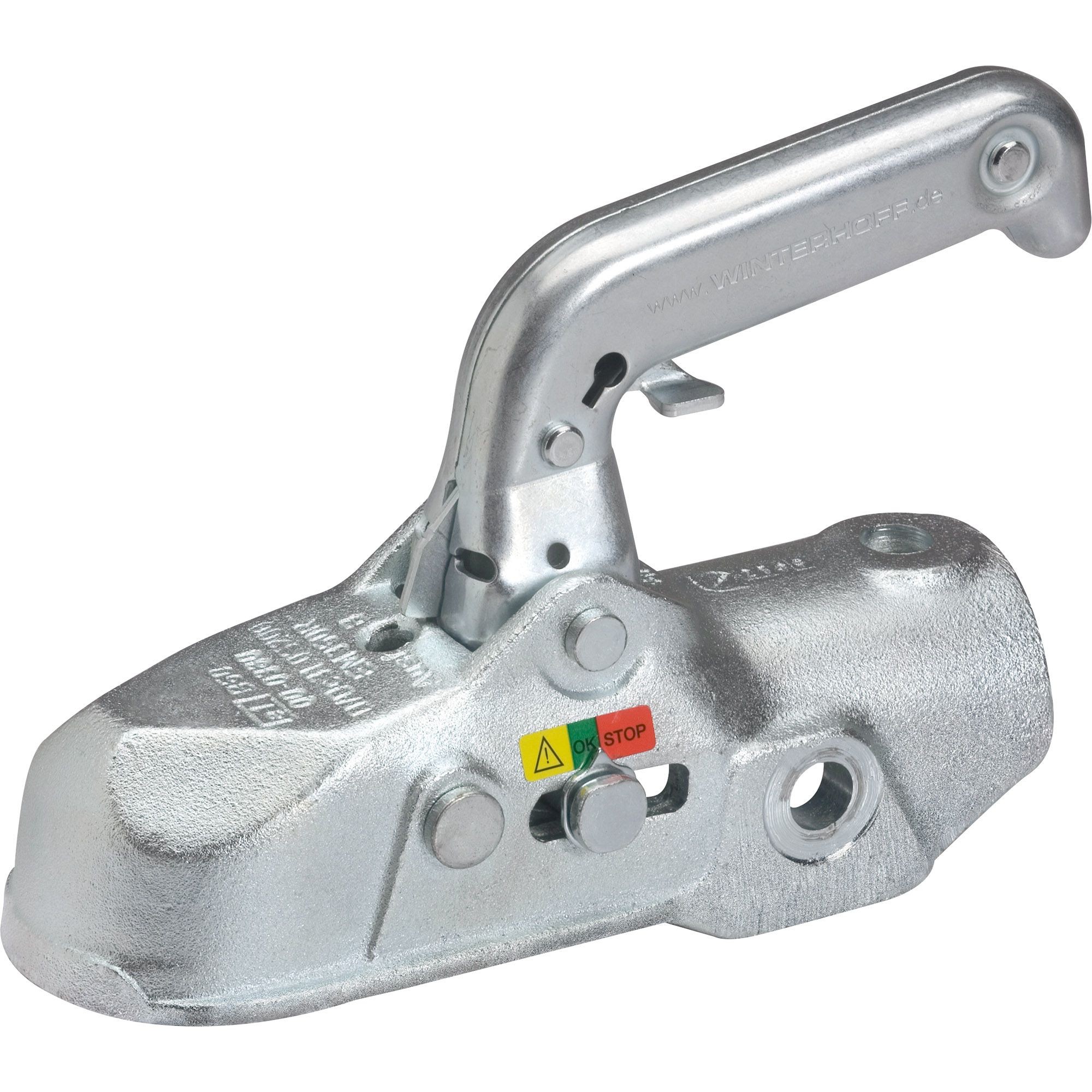

Coupling Head WW 350-RB-K1412 Perm. gross weight 3500 kg Nose load 200 kg Drawbar-Ø 50 mm Hole horizontal Ø 14.5 mm Hole vertical Ø 12.5 mm Hole distance 40 mm

Coupling Head WW 350-RB-K1414 Perm. gross weight 3500 kg Nose load 200 kg Drawbar-Ø 50 mm Hole horizontal Ø 14.5 mm Hole vertical Ø 14.5 mm Hole distance 40 mm

Coupling Head WW 350-RC-1212 Perm. gross weight 3500 kg Nose load 200 kg Drawbar-Ø 60 mm Hole horizontal Ø 12.5 mm Hole vertical Ø 12.5 mm Hole distance 40 mm

Coupling Head WW 350-RC-1414 Perm. gross weight 3500 kg Nose load 200 kg Drawbar-Ø 60 mm Hole horizontal Ø 14.5 mm Hole vertical Ø 14.5 mm Hole distance 40 mm

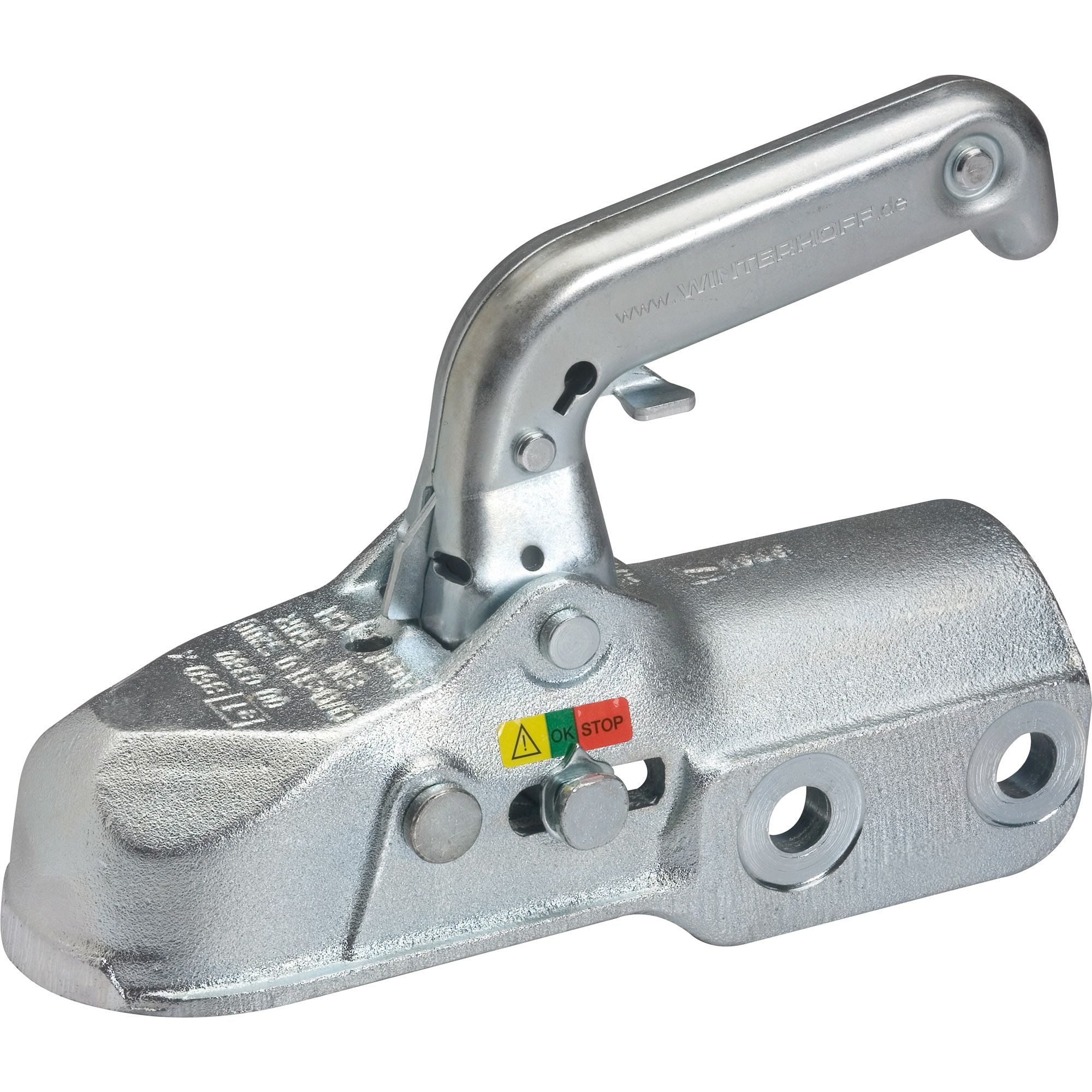

Coupling Head WW 350-RCH-K1414 Perm. gross weight 3500 kg Nose load 200 kg Drawbar-Ø 60 mm Hole horizontal Ø 14.5 mm Hole distance 54 mm

Coupling Head WW 350-RD-1414 Perm. gross weight 3500 kg Nose load 200 kg Drawbar-Ø 65 mm Hole horizontal Ø 14.5 mm Hole vertical Ø 14.5 mm Hole distance 40 mm

Coupling Head WW 350-RD-K1212 Perm. gross weight 3500 kg Nose load 200 kg Drawbar-Ø 65 mm Hole horizontal Ø 12.5 mm Hole vertical Ø 12.5 mm Hole distance 40 mm

Coupling Head WW 350-RD-K1412 Perm. gross weight 3500 kg Nose load 200 kg Drawbar-Ø 65 mm Hole horizontal Ø 14.5 mm Hole vertical Ø 12.5 mm Hole distance 40 mm

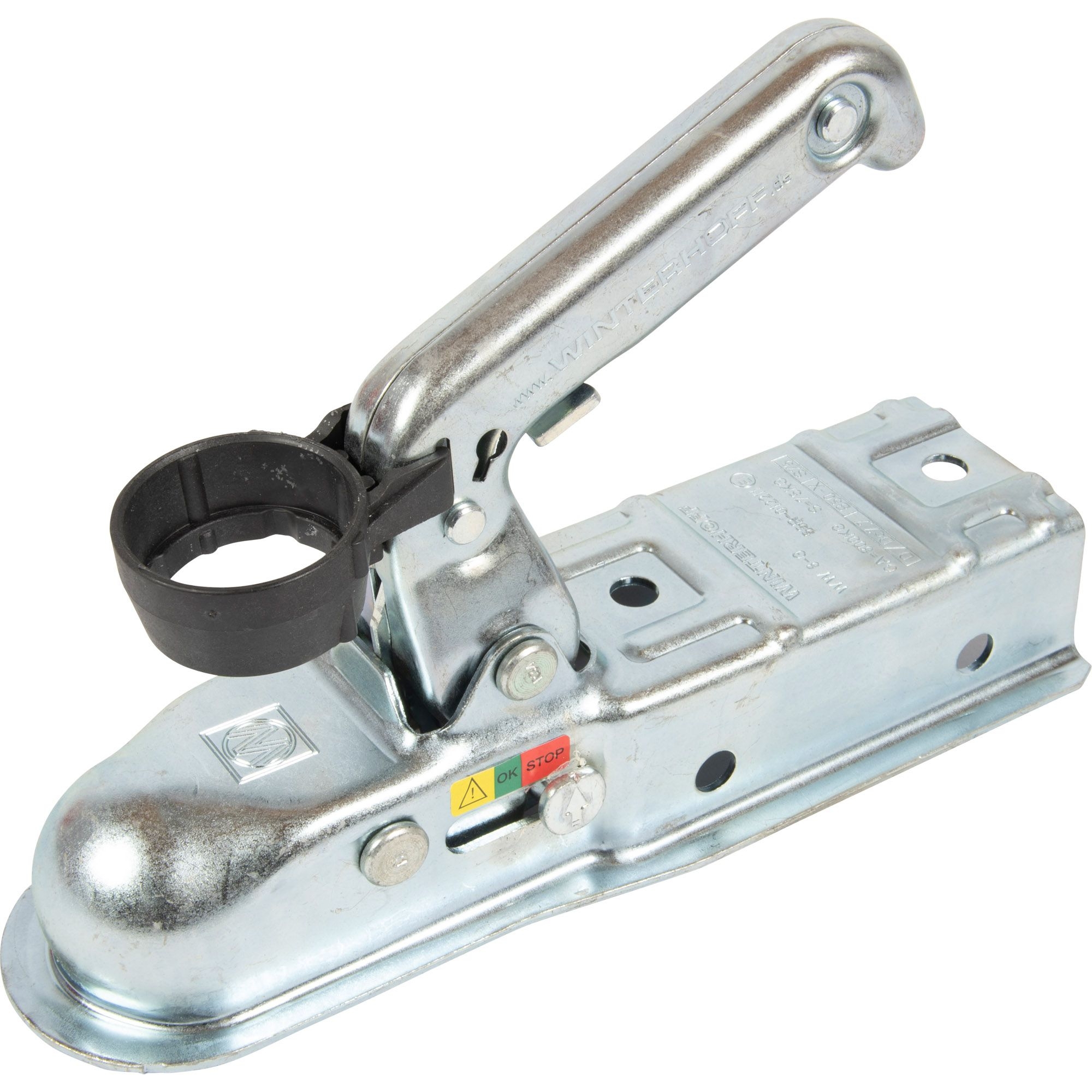

Coupling Head for Humbaur Drawbar square Perm. gross weight 750 kg Nose load 75 kg Drawbar 60 mm Hole vertical Ø 10.5 mm Hole horizontal Ø 10.5 mm Hole distance horizontal 75 mm Hole distance vertical 90 mm

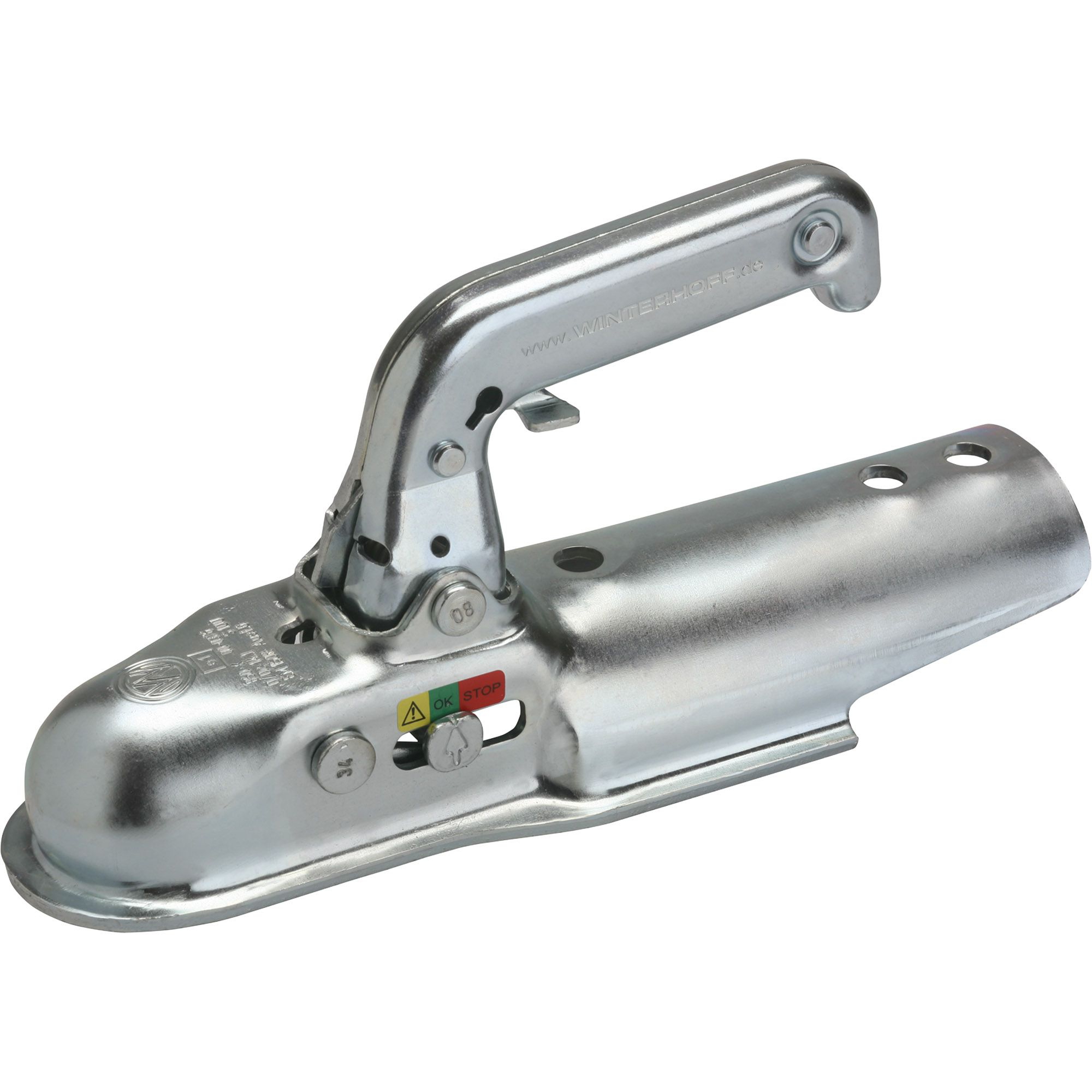

Coupling Head WW 150-RG Perm. gross weight 1500 kg Nose load 100 kg Drawbar-Ø 70 mm Hole vertical Ø 12.5 mm Hole distance 90 + 116 mm

Coupling Head WW 13-N Perm. gross weight 1500 kg Nose load 100 kg Drawbar-Ø 45 mm Hole horizontal Ø 12.5 mm Hole vertical Ø 12.5 mm Hole distance 40 mm

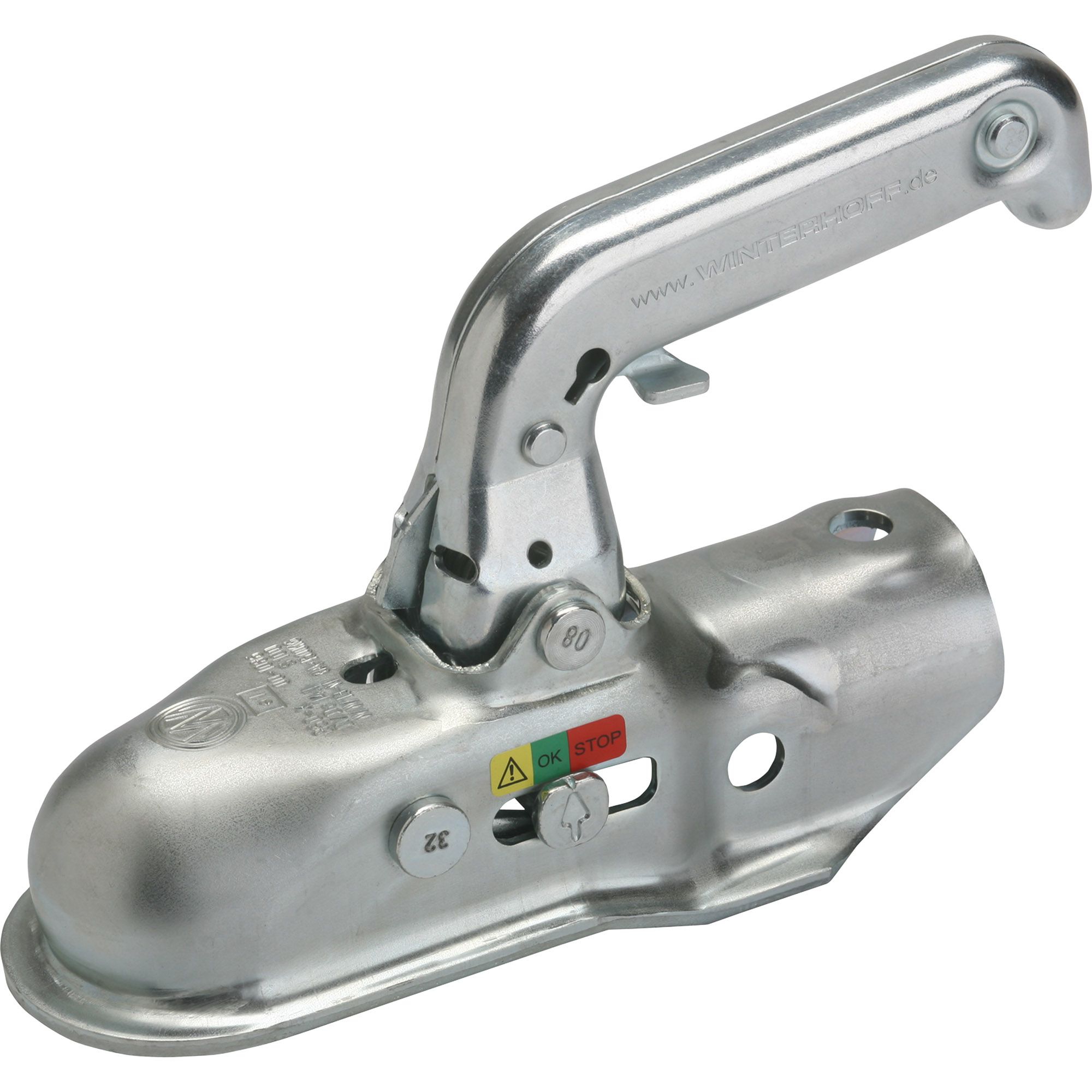

Coupling Head WW 150-RB Perm. gross weight 1500 kg Nose load 100 kg Drawbar-Ø 50 mm Hole horizontal Ø 12.5 mm Hole vertical Ø 12.5 mm Hole distance 40 mm

Coupling Head WW 220-RA Perm. gross weight 2200 kg Nose load 100 kg Drawbar-Ø 45 mm Hole horizontal Ø 12.5 mm Hole vertical Ø 12.5 mm Hole distance 40 mm
