Angle lever closures

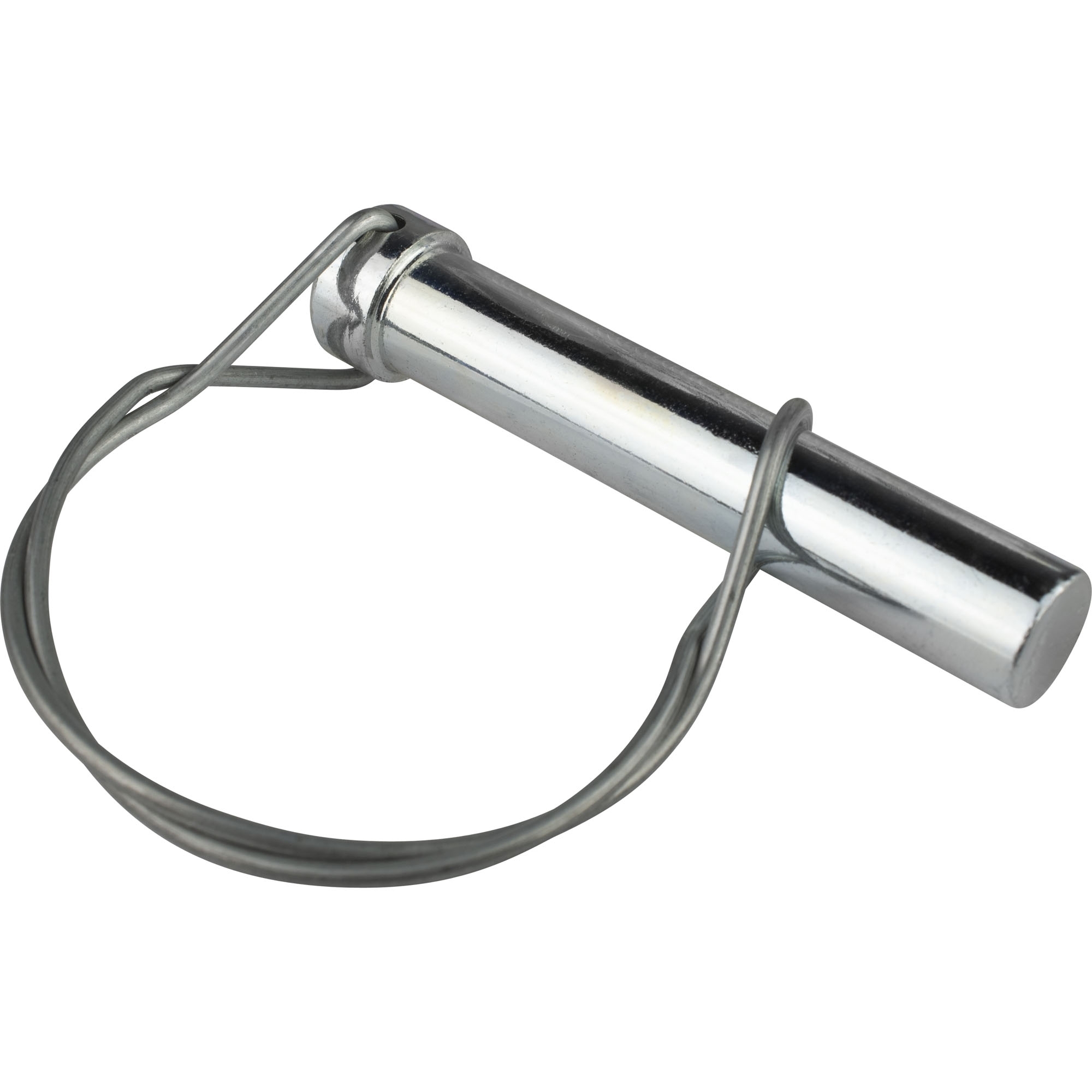

12 mm bolt with spring lock

2 x Spring Cotter Pin Ø 1.5 mm Standard version Form single bent Bolt-Ø 6 – 10 Length 30 mm Material spring steel wire (DIN 2076 A), galvanized packed on skinboard

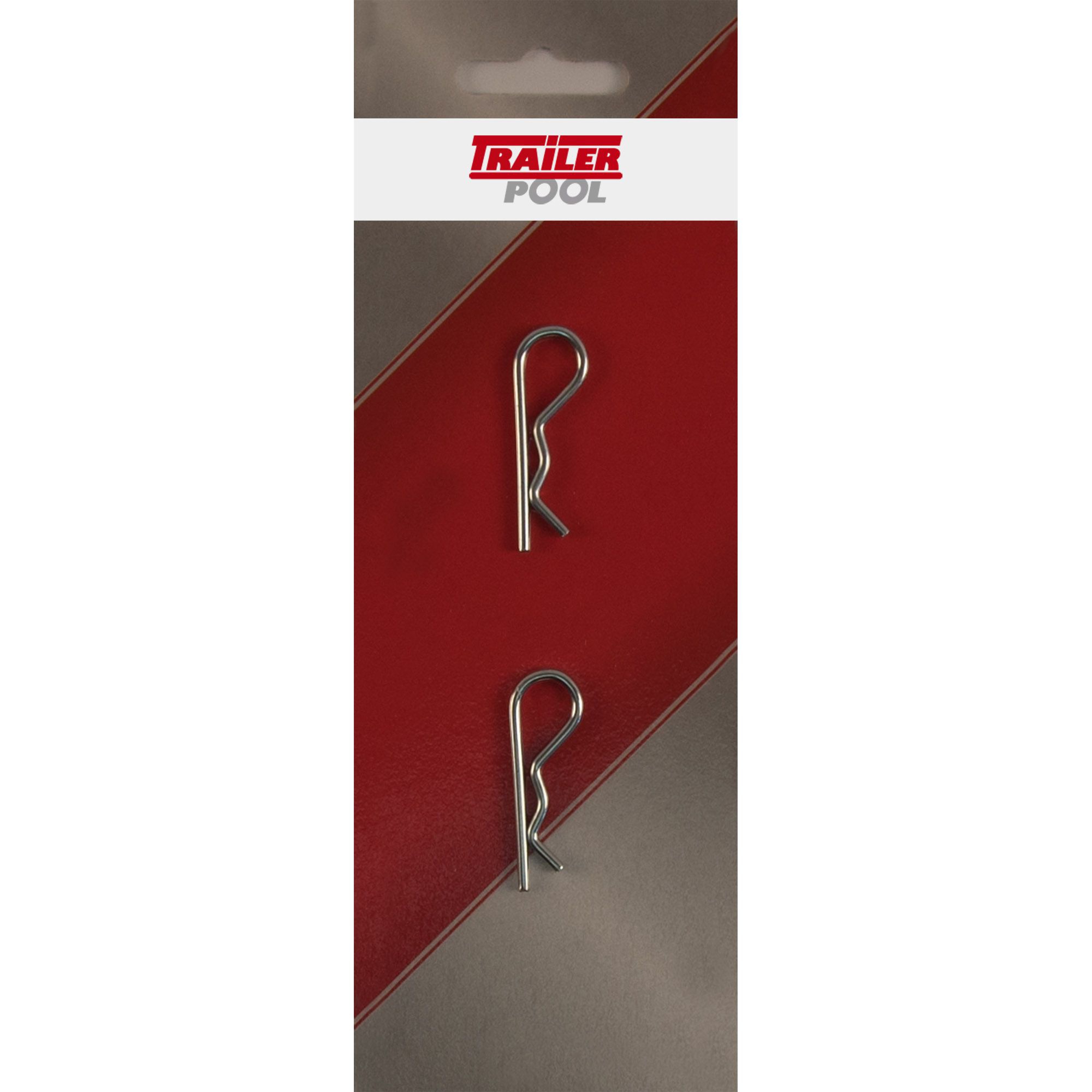

2 x Spring Cotter Pin Ø 2.0 mm Standard version Form single bent Bolt-Ø 8 – 12 Length 41 mm Material spring steel wire (DIN 2076 A), galvanized packed on skinboard

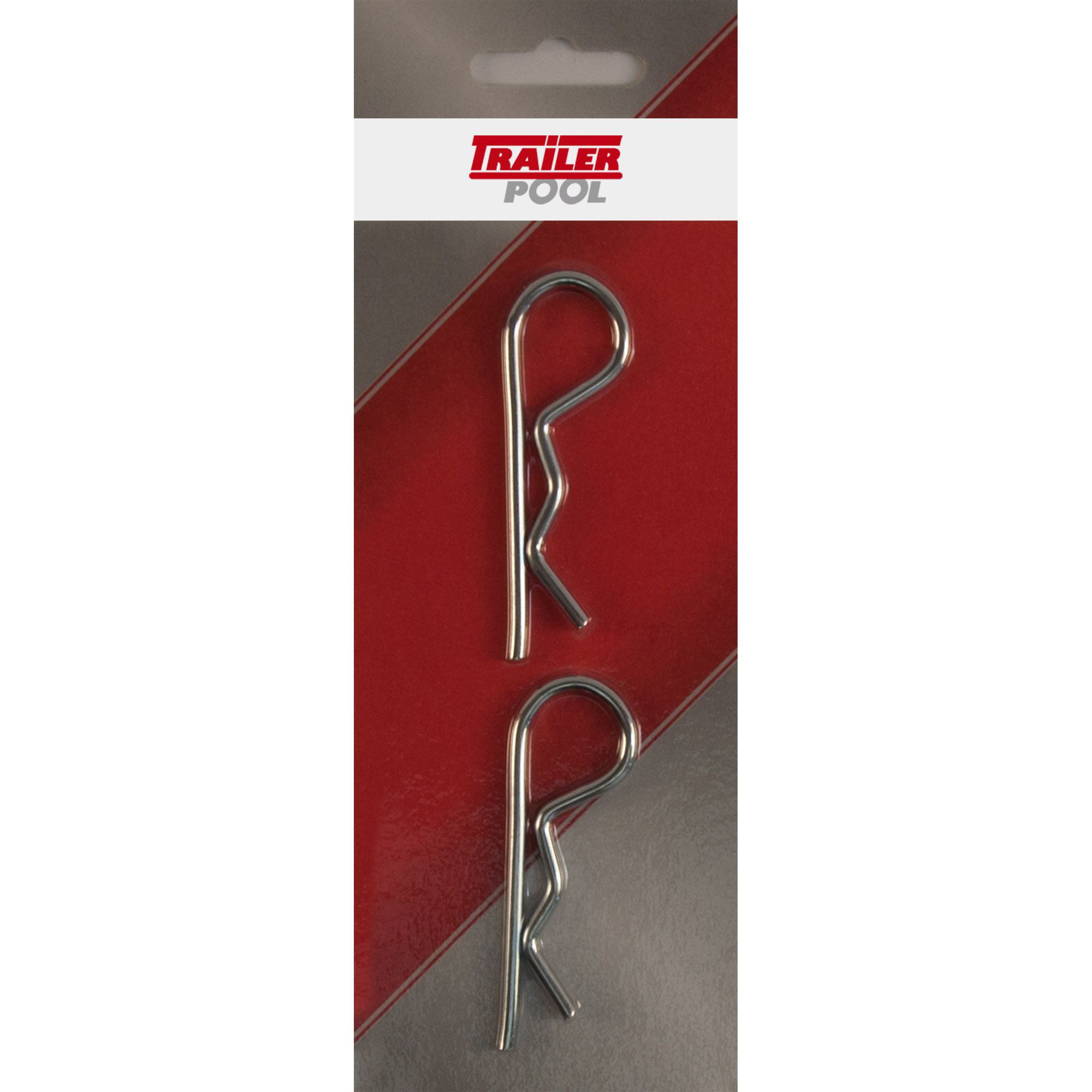

2 x Spring Cotter Pin Ø 4.0 mm Standard version Form single bent Bolt-Ø 14 – 18 Length 75 mm Material spring steel wire (DIN 2076 A), galvanized packed on skinboard

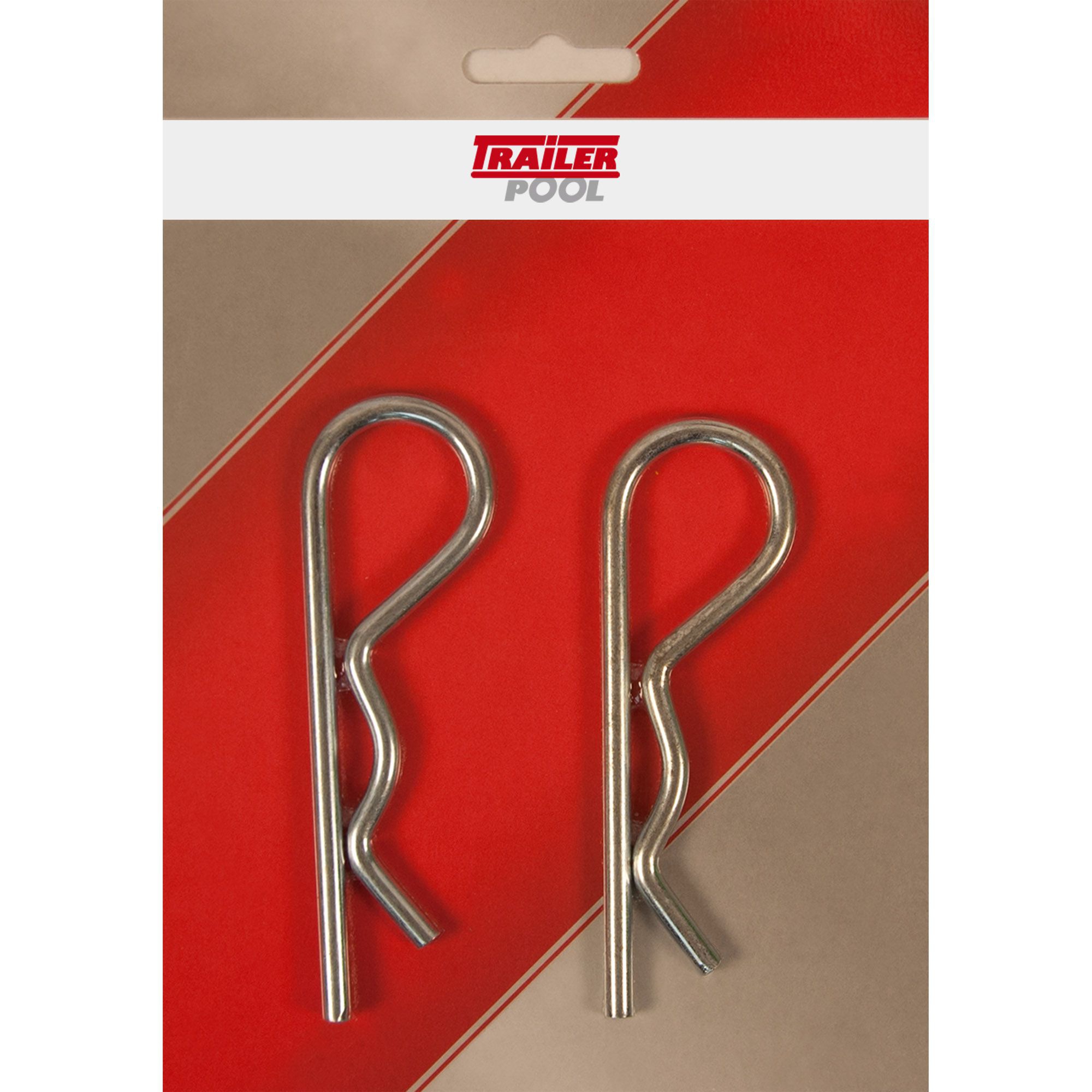

2 x Spring Cotter Pin Ø 5.0 mm Standard version Form single bent Bolt-Ø 18 – 26 Length 105 mm Material spring steel wire (DIN 2076 A), galvanized packed on skinboard

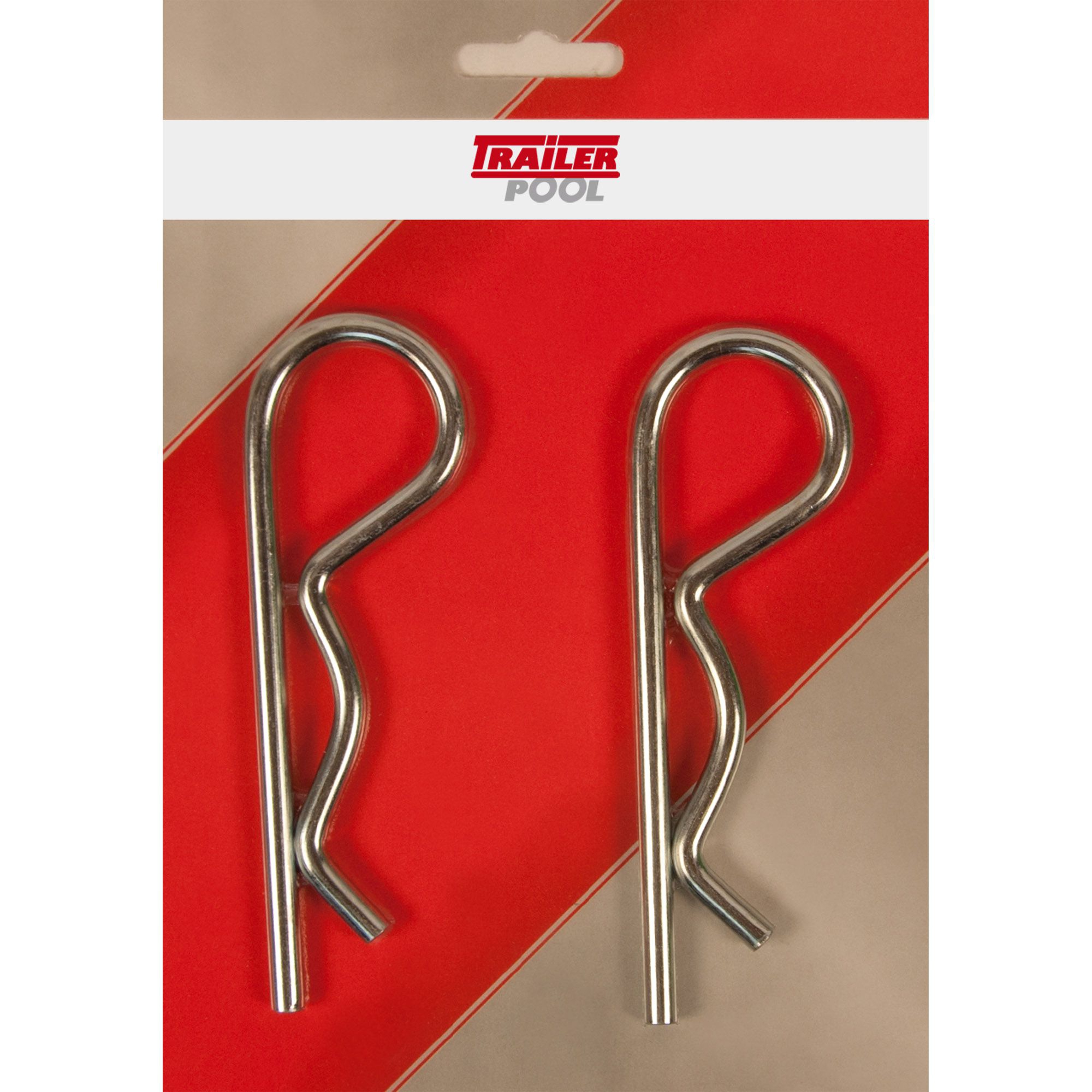

2 x Spring Cotter Pin Ø 6.0 mm Standard version Form single bent Bolt-Ø 26 – 35 Length 127 mm Material spring steel wire (DIN 2076 A), galvanized packed on skinboard

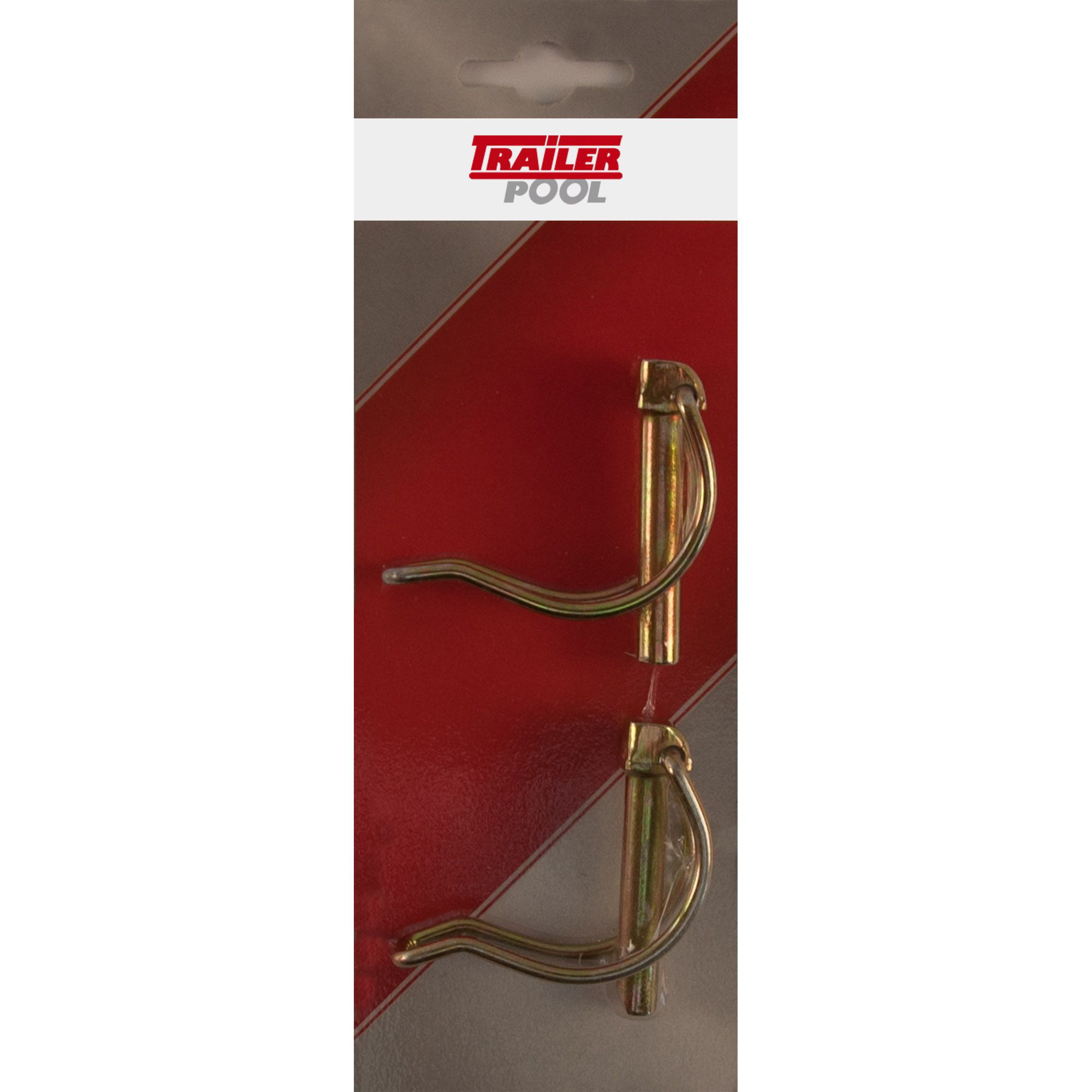

2-Set tube clip 8x45 galvanised packaged

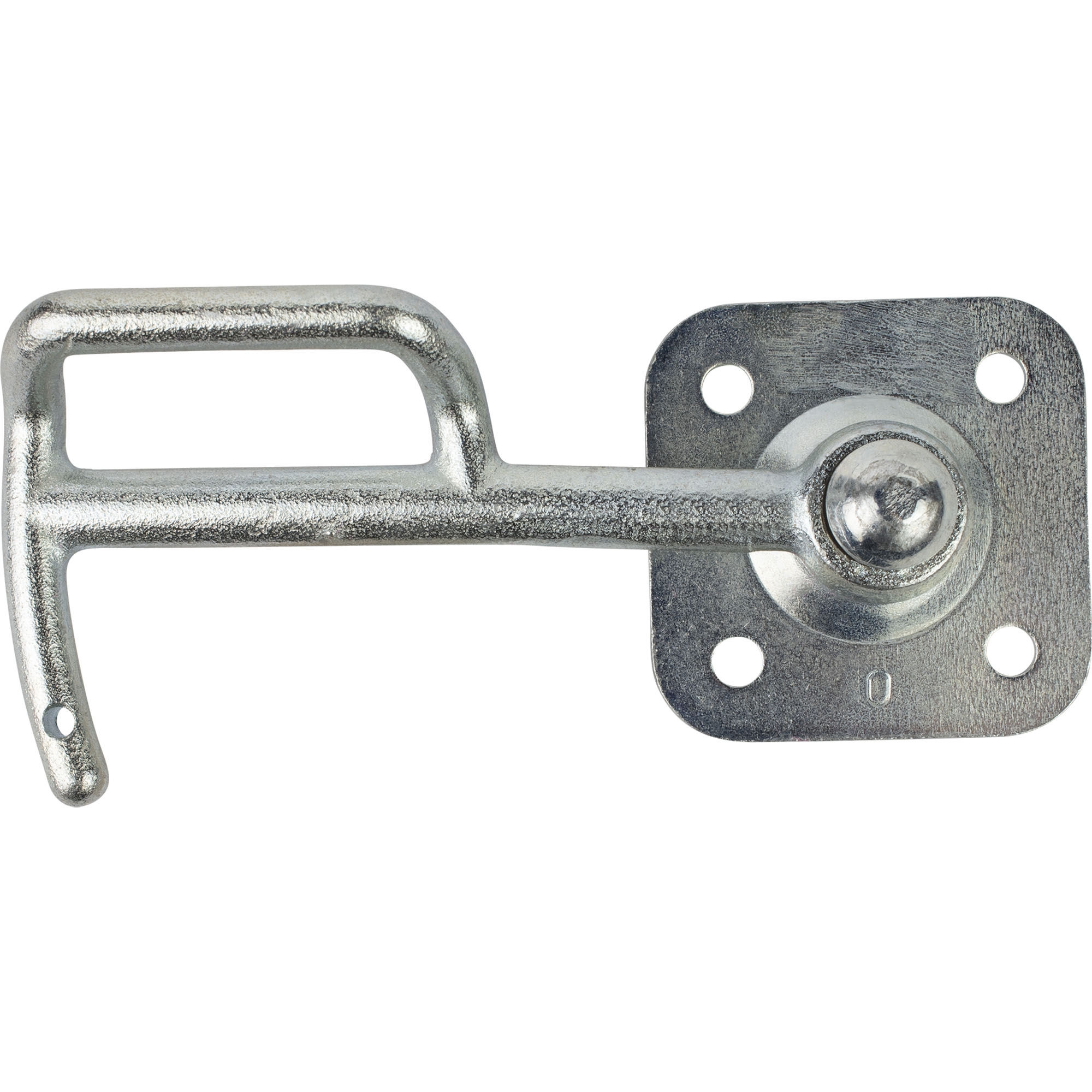

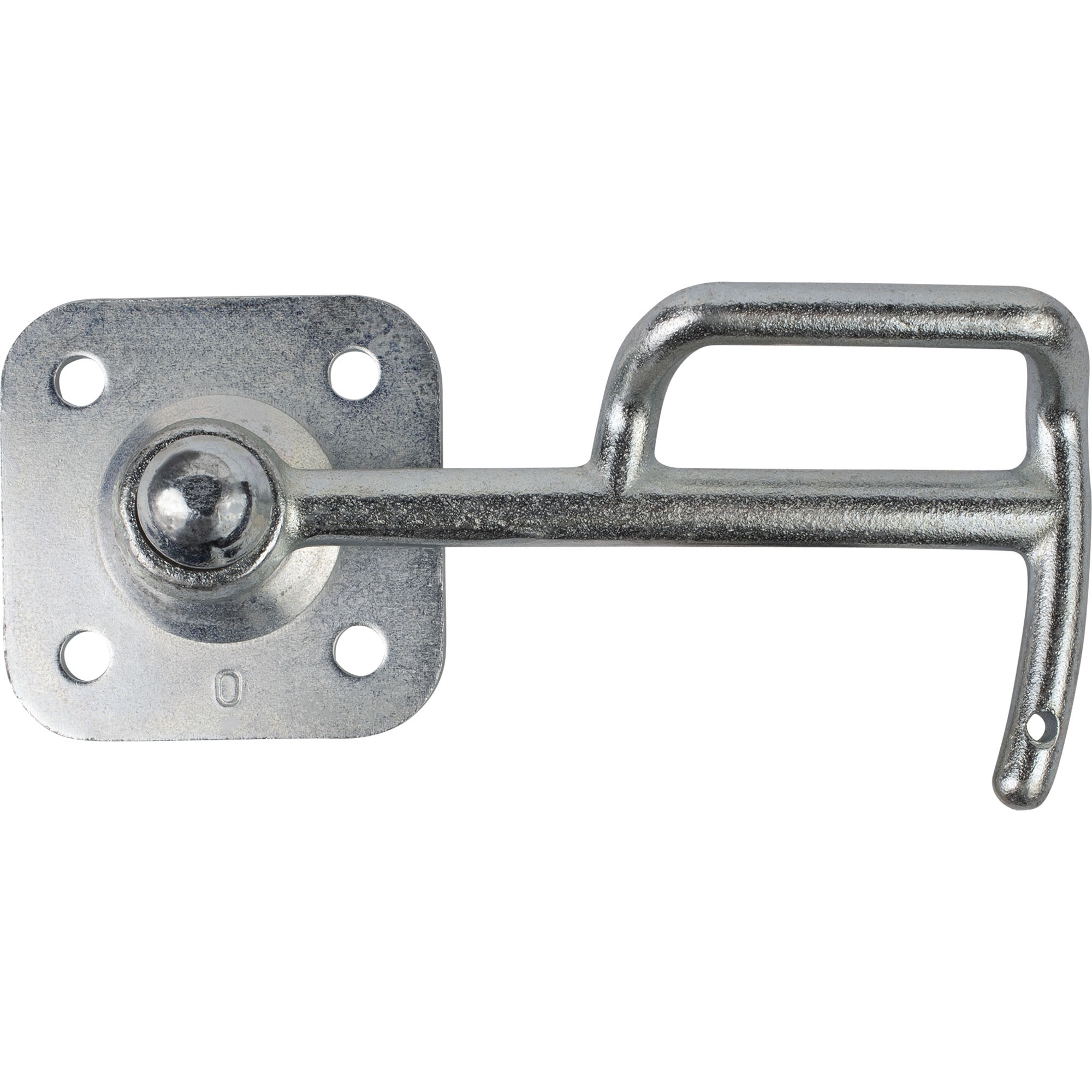

Box fastener Version left Size 0 Length 111 mm

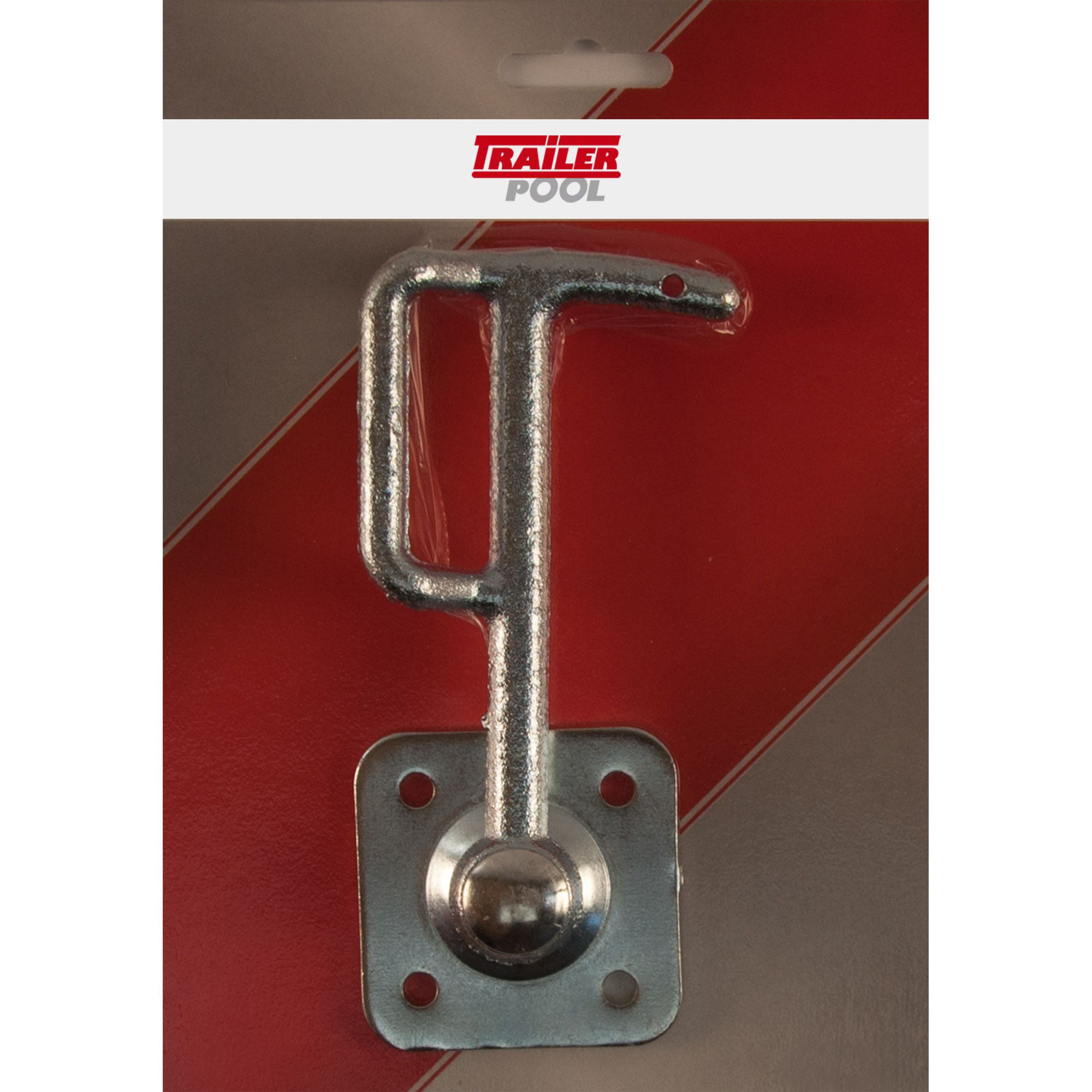

Box fastener Version left Size 0 Length 111 mm packed on skinboard

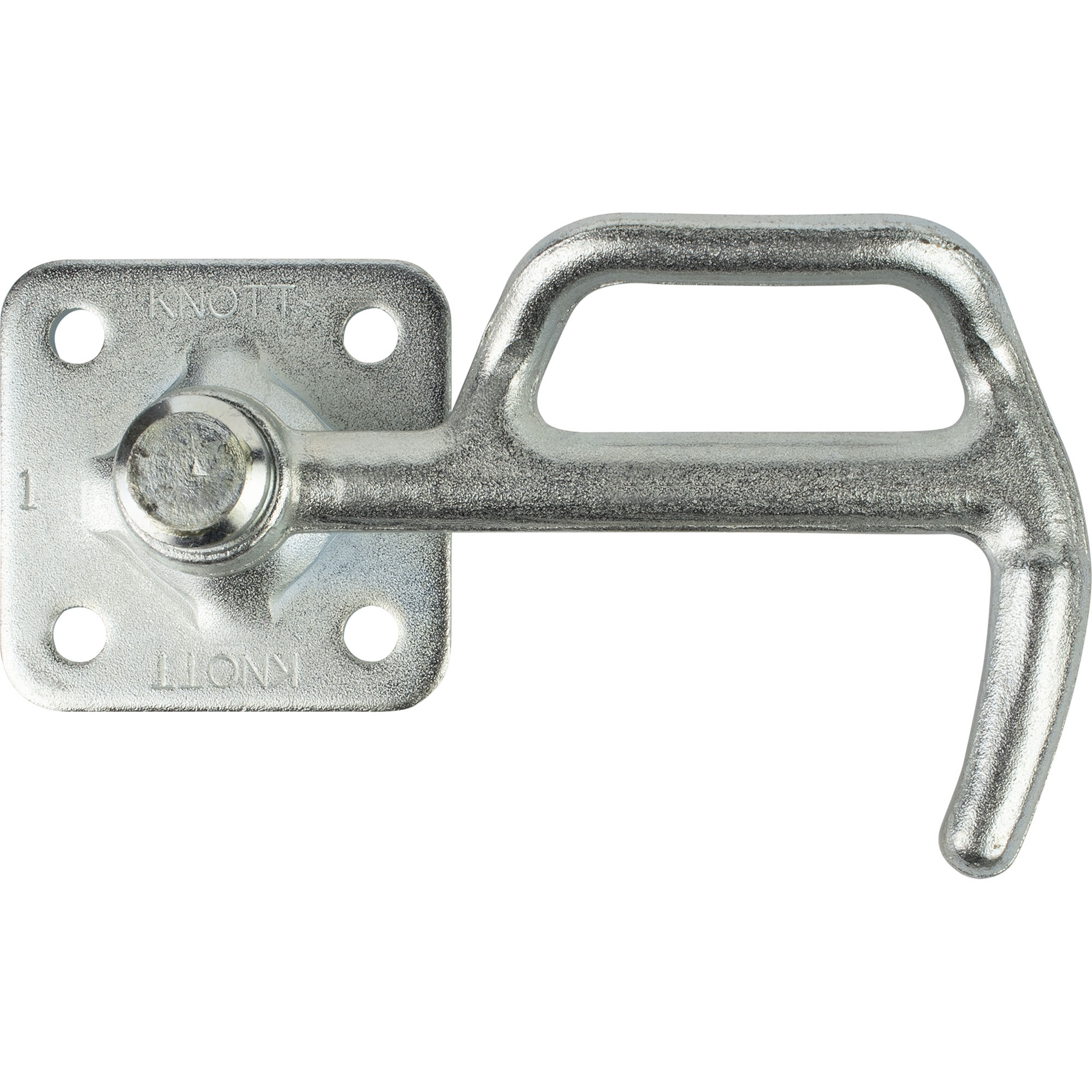

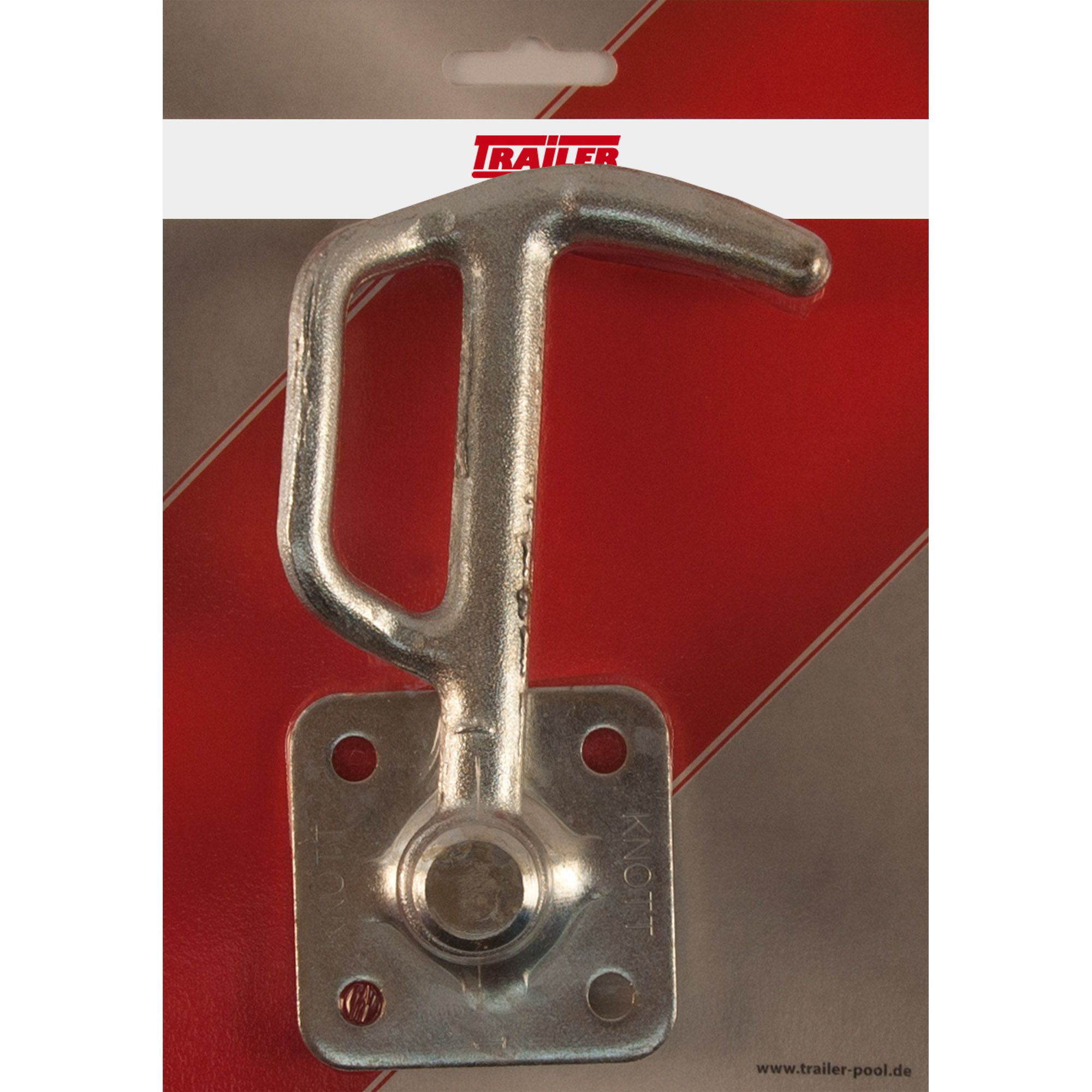

Box fastener Version left Size 1 Length 130 mm packed on skinboard

Box fastener Version left Size 1 Length 130 mm

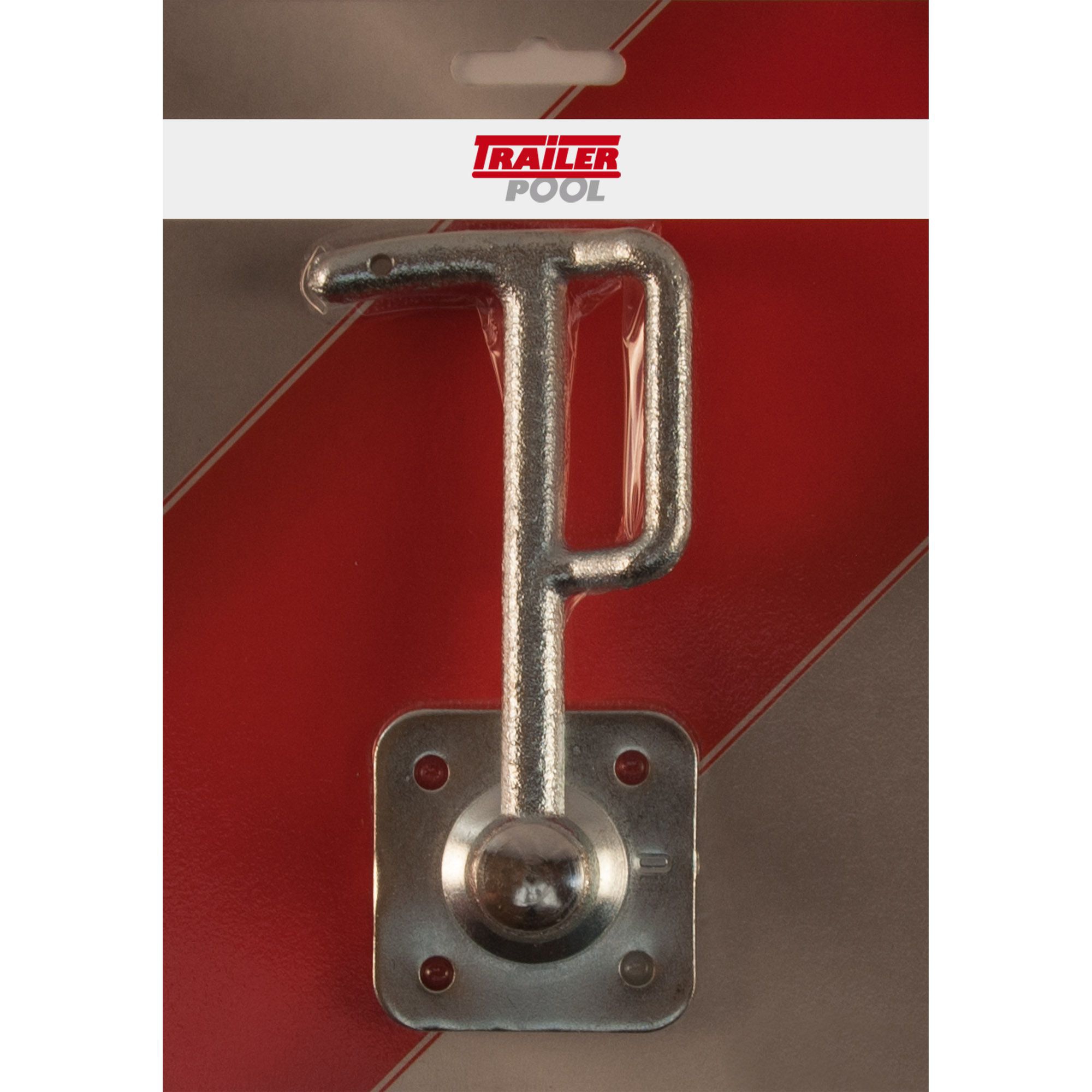

Box fastener Version right Size 0 Length 111 mm packed on skinboard

Box fastener Version right Size 0 Length 111 mm

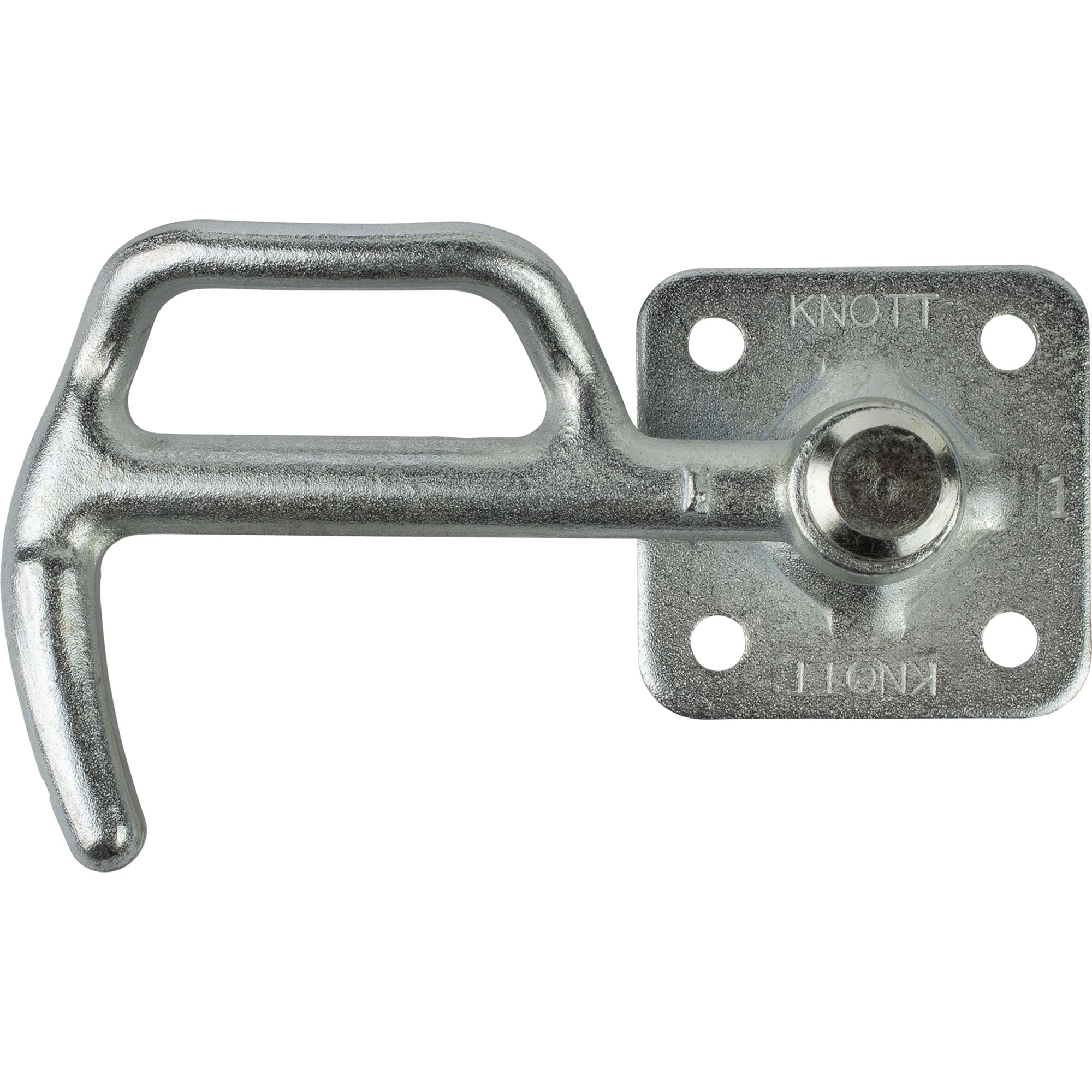

Box fastener Version right Size 1 Length 130 mm

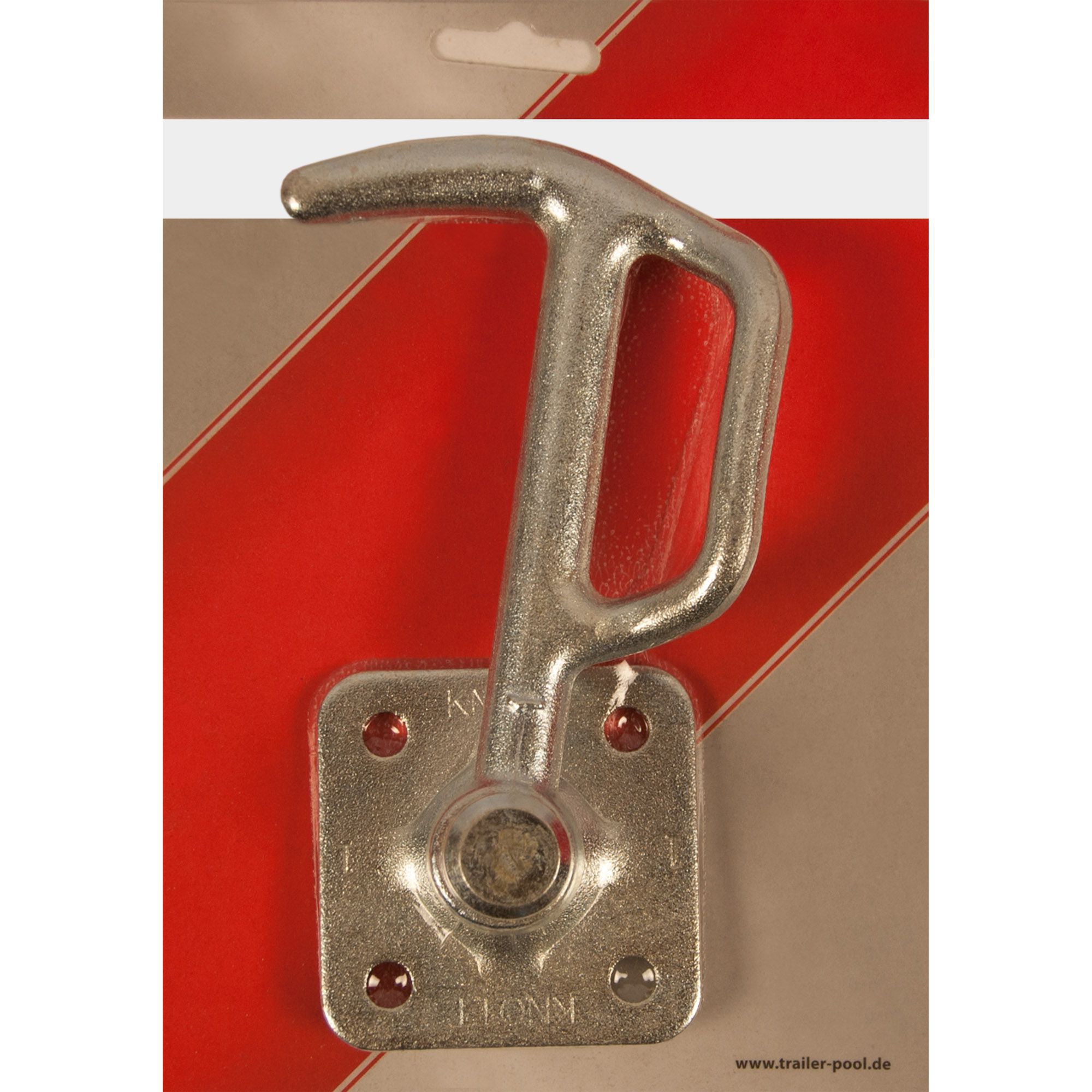

Box fastener Version right Size 1 Length 130 mm packed on skinboard

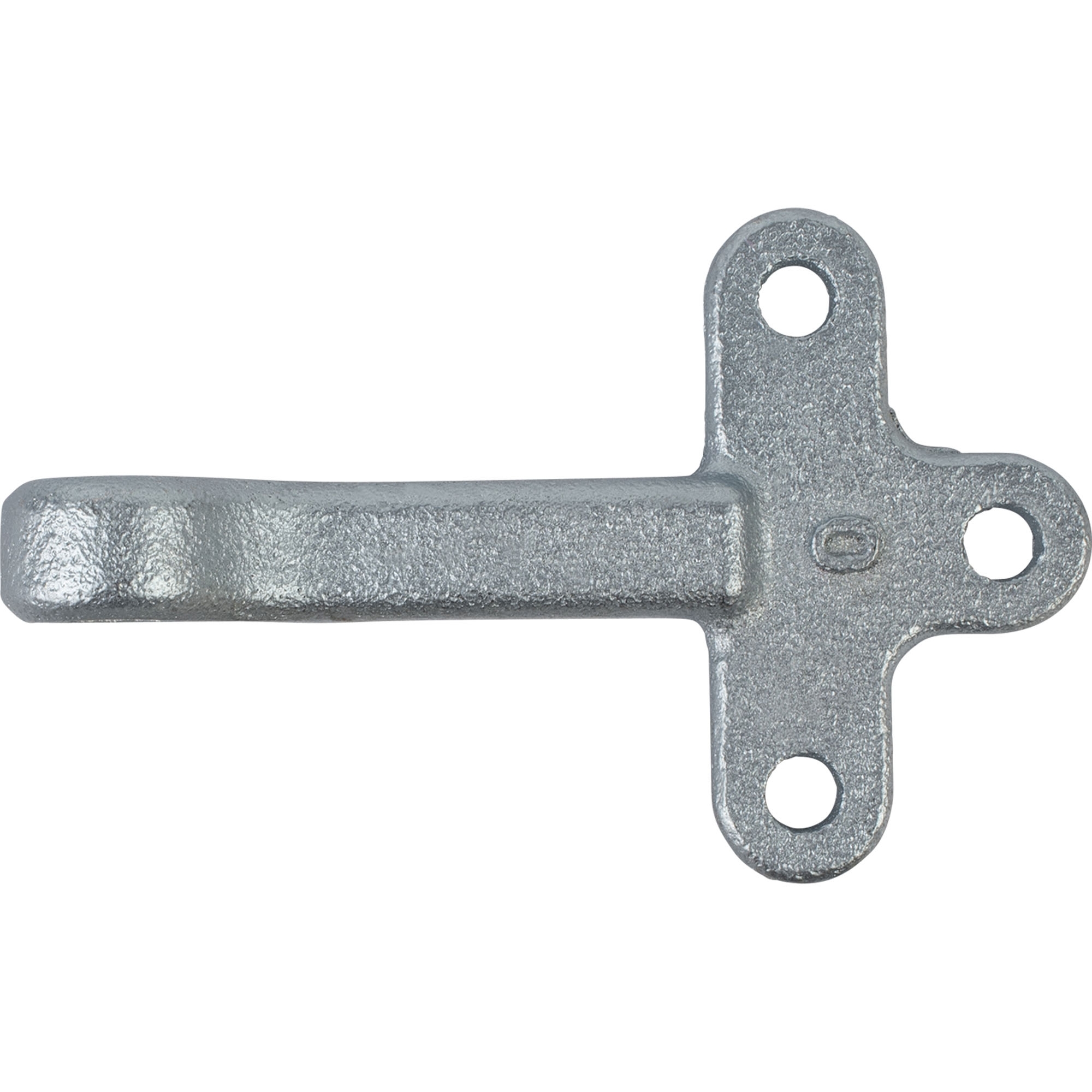

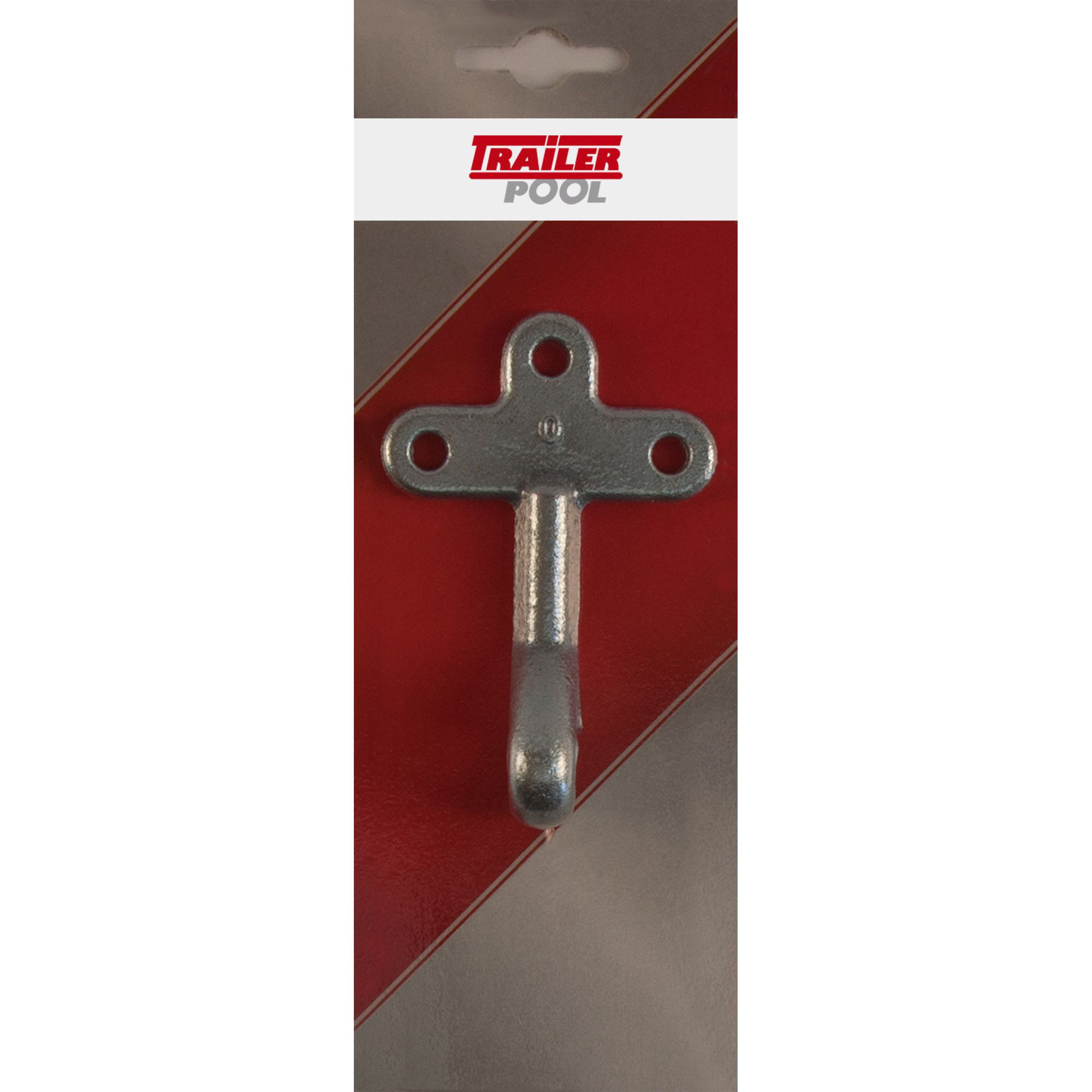

Eyelet for lever fastener screw-on Eyelet Ø 12 mm with 3 holes Size 0 Dimensions 95 x 60 mm Material steel, galvanized packed on skinboard

Eyelet for lever fastener screw-on Eyelet Ø 12 mm with 3 holes Size 0 Dimensions 95 x 60 mm Material steel, galvanized

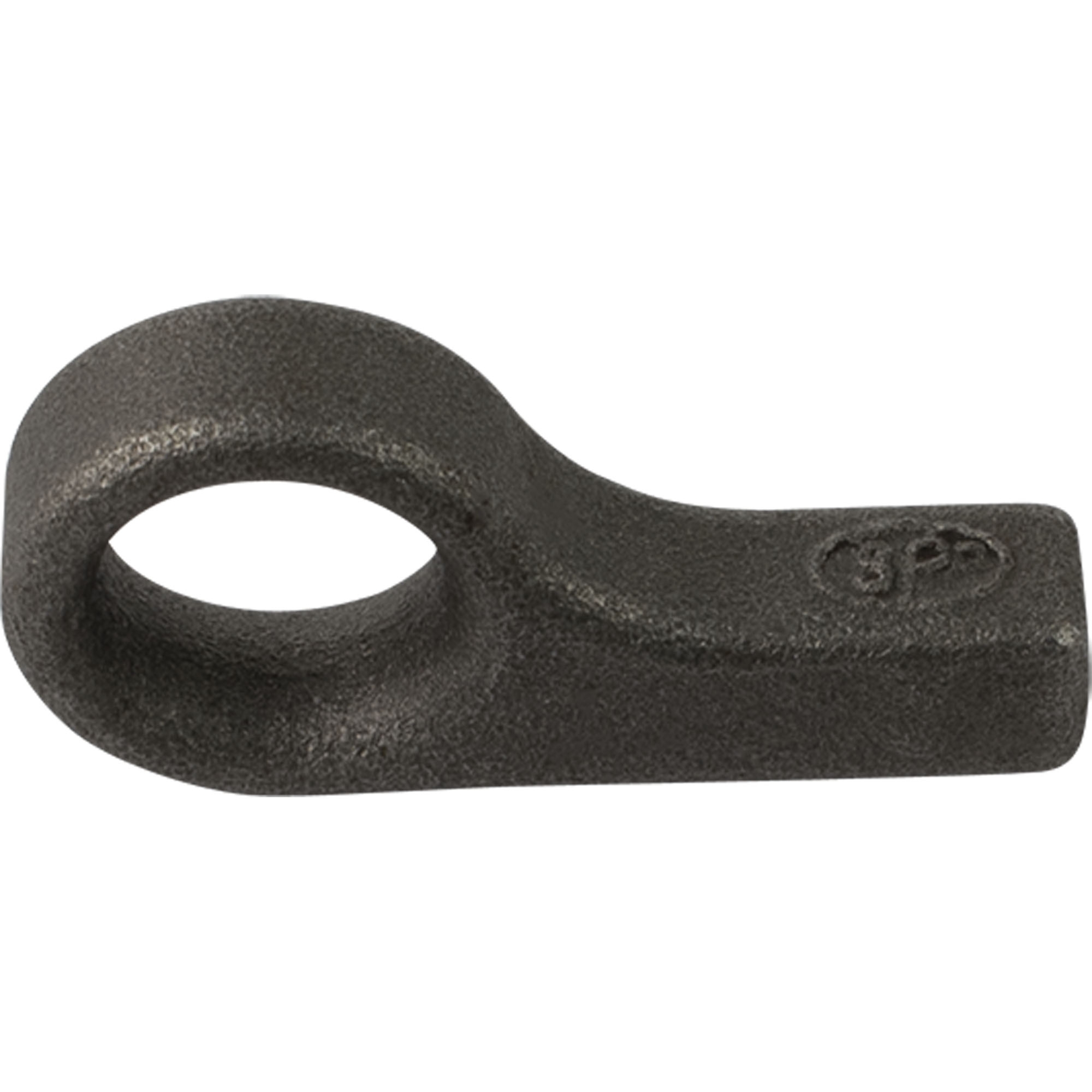

Eyelet for lever fastener for welding on Size 0 Material steel Please note: Raw parts can be oxidized and must be cleaned and primed for processing!

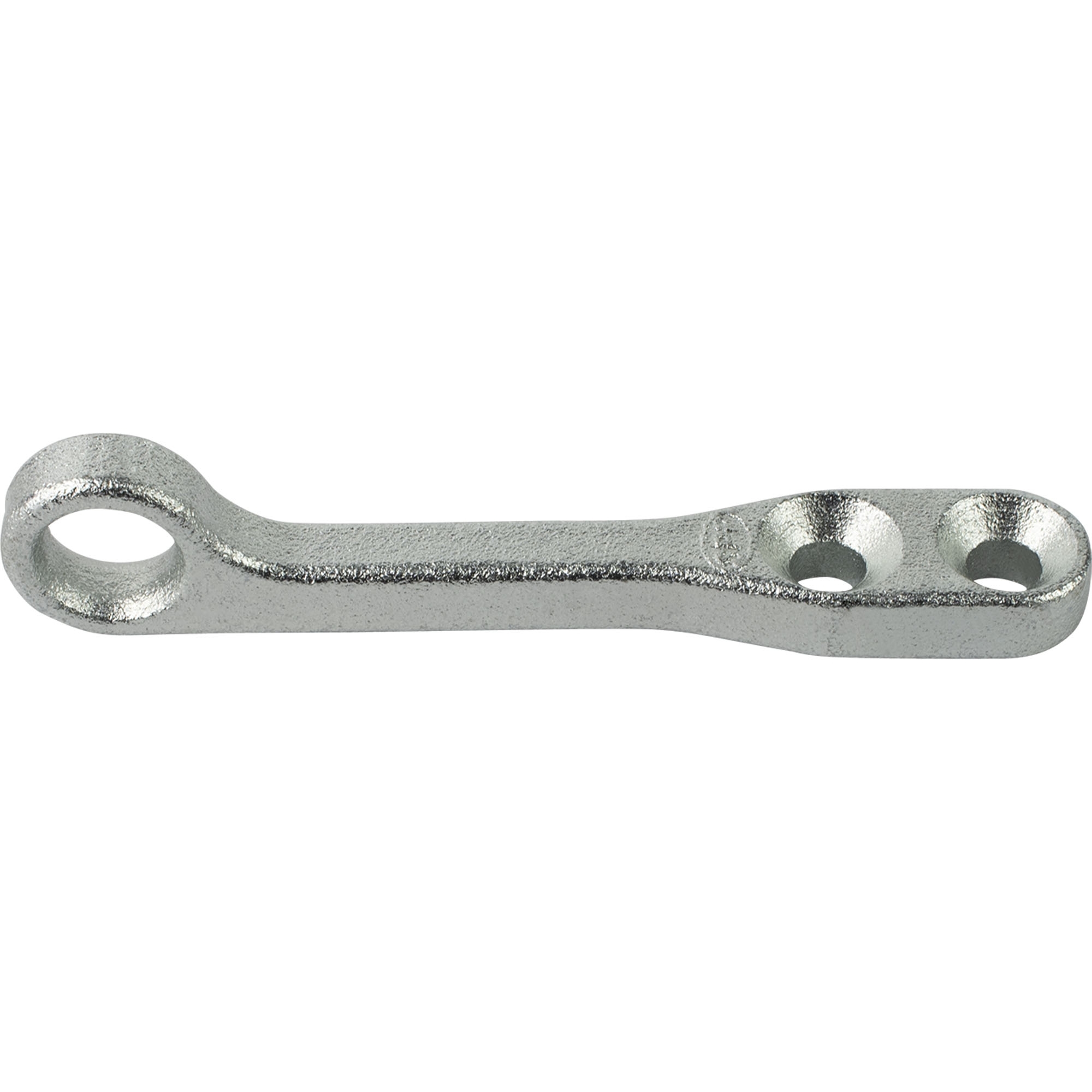

Eyelet for lever fastener screw-on Eyelet Ø 12 mm with 2 holes Ø 8.4 mm Size 0 Length 122 mm Material steel, galvanized

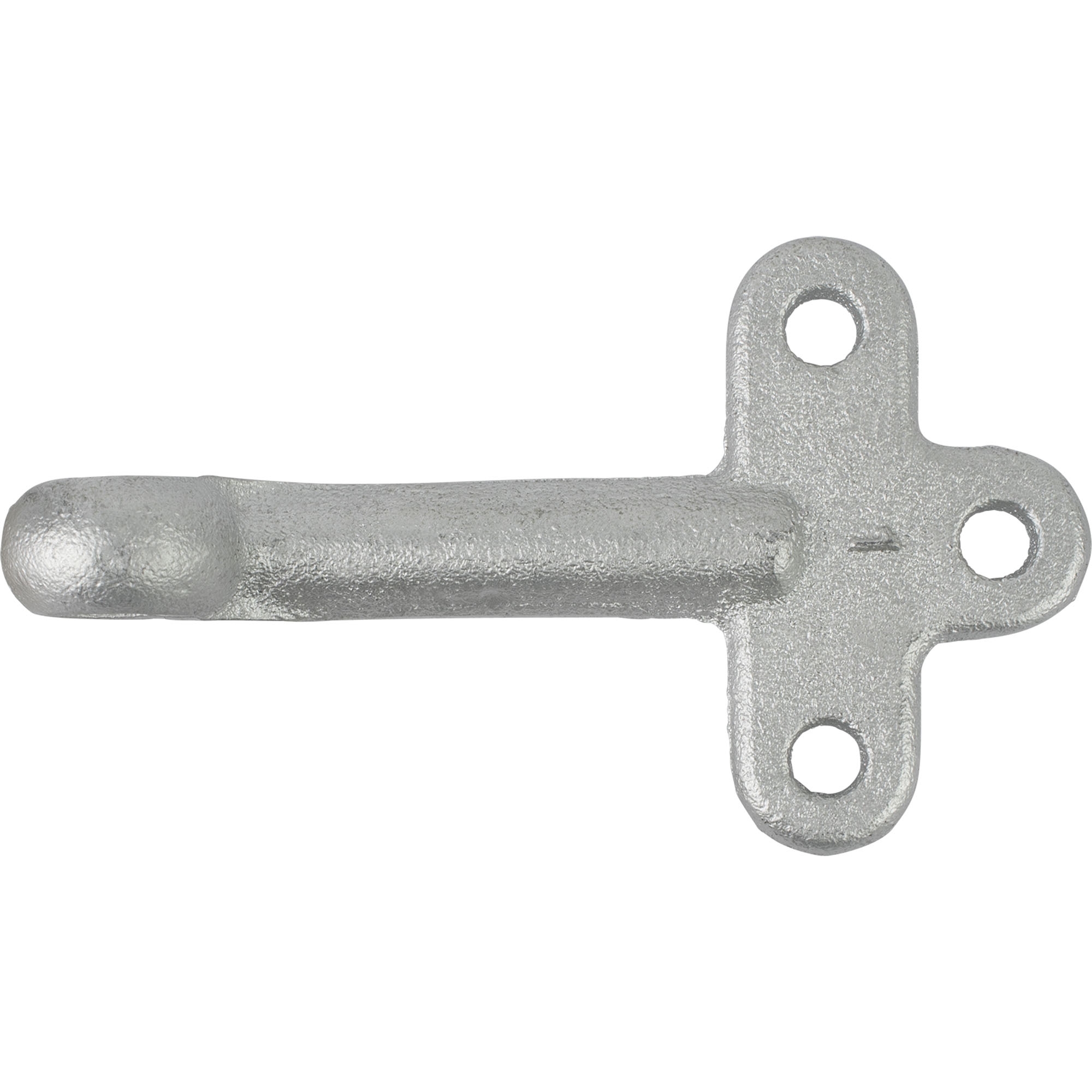

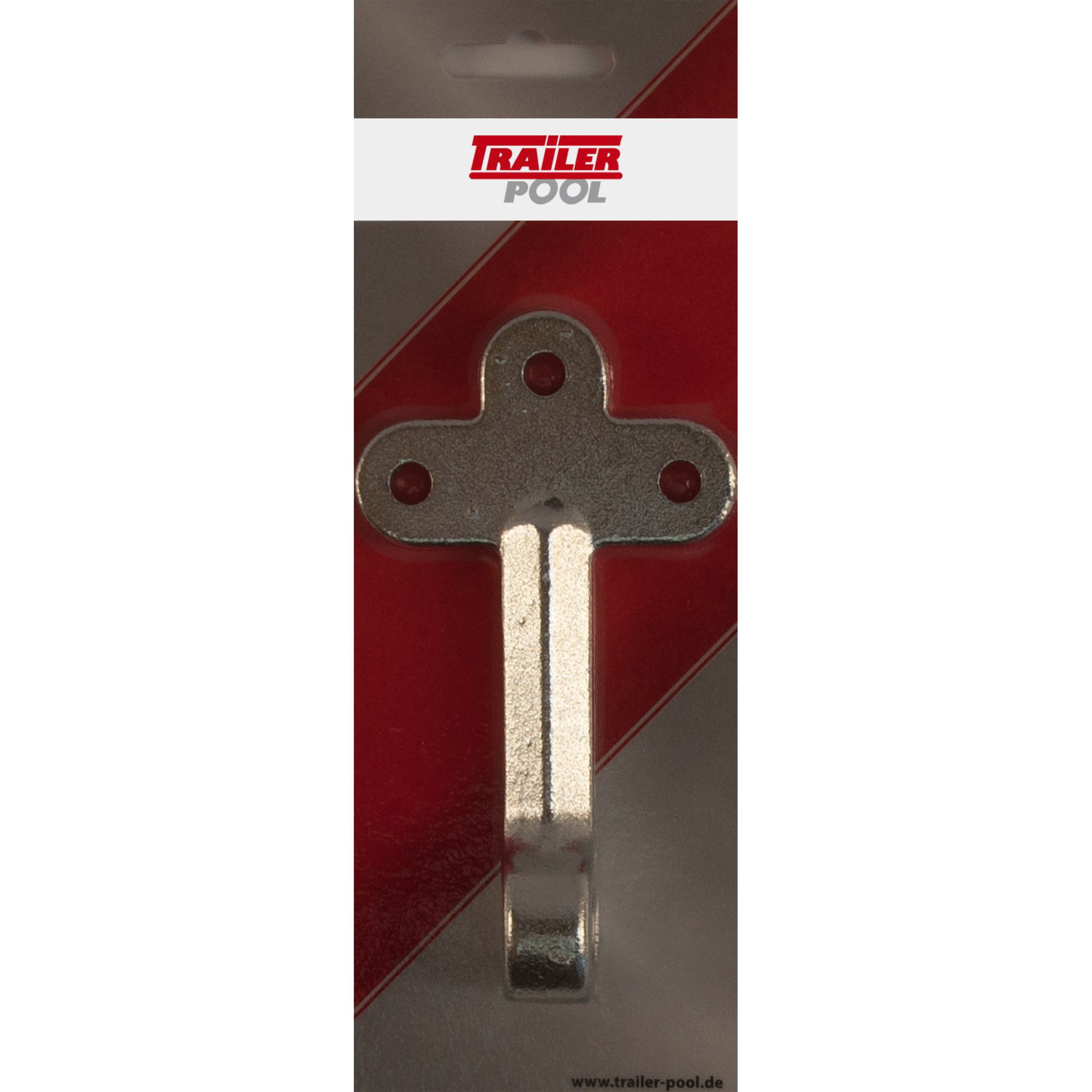

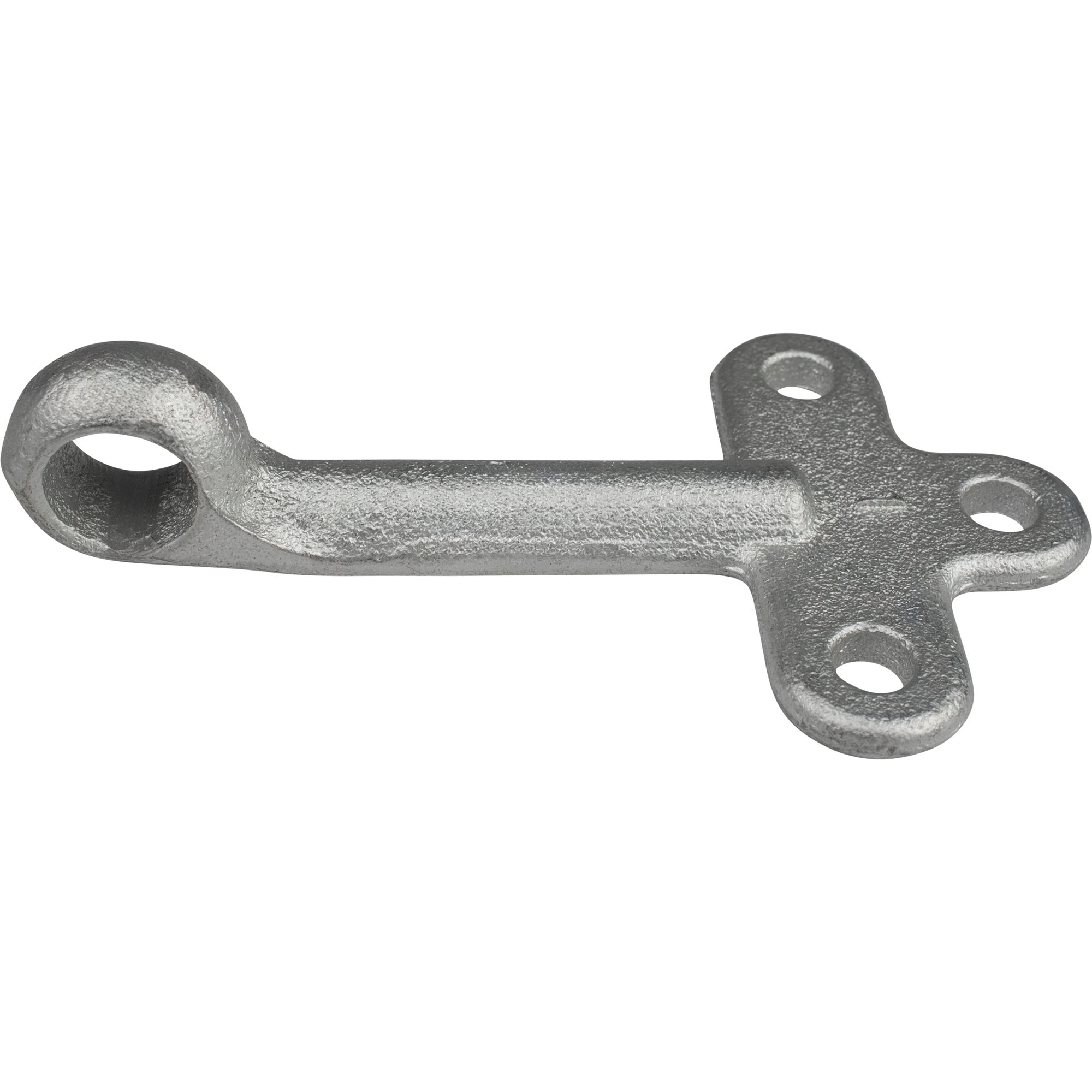

Eyelet for lever fastener screw-on Eyelet Ø 14 mm with 3 holes Size 1 Dimensions 125 x 70 mm Material steel, galvanized packed on skinboard

Eyelet for lever fastener screw-on Eyelet Ø 14 mm with 3 holes Size 1 Dimensions 125 x 70 mm Material steel, galvanized

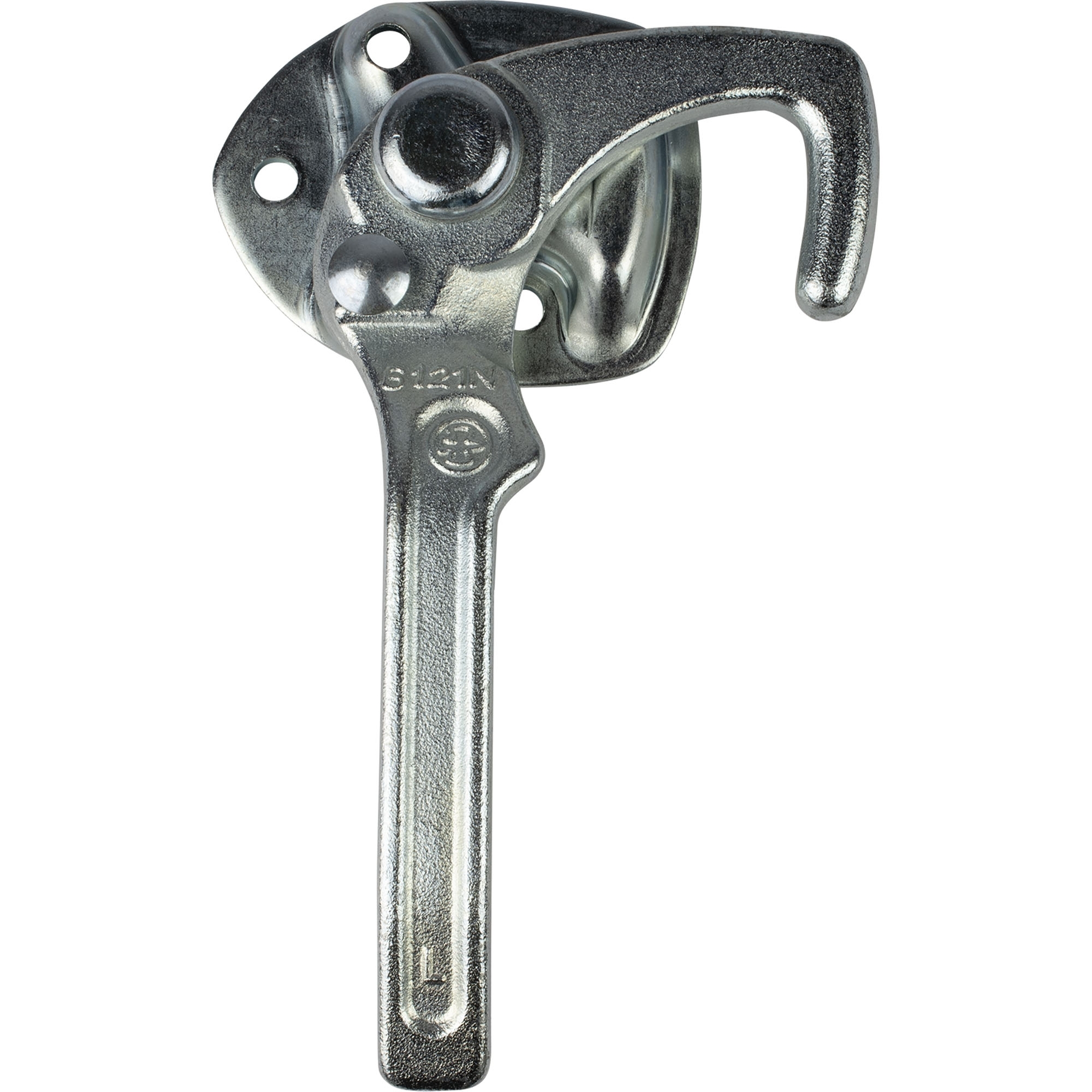

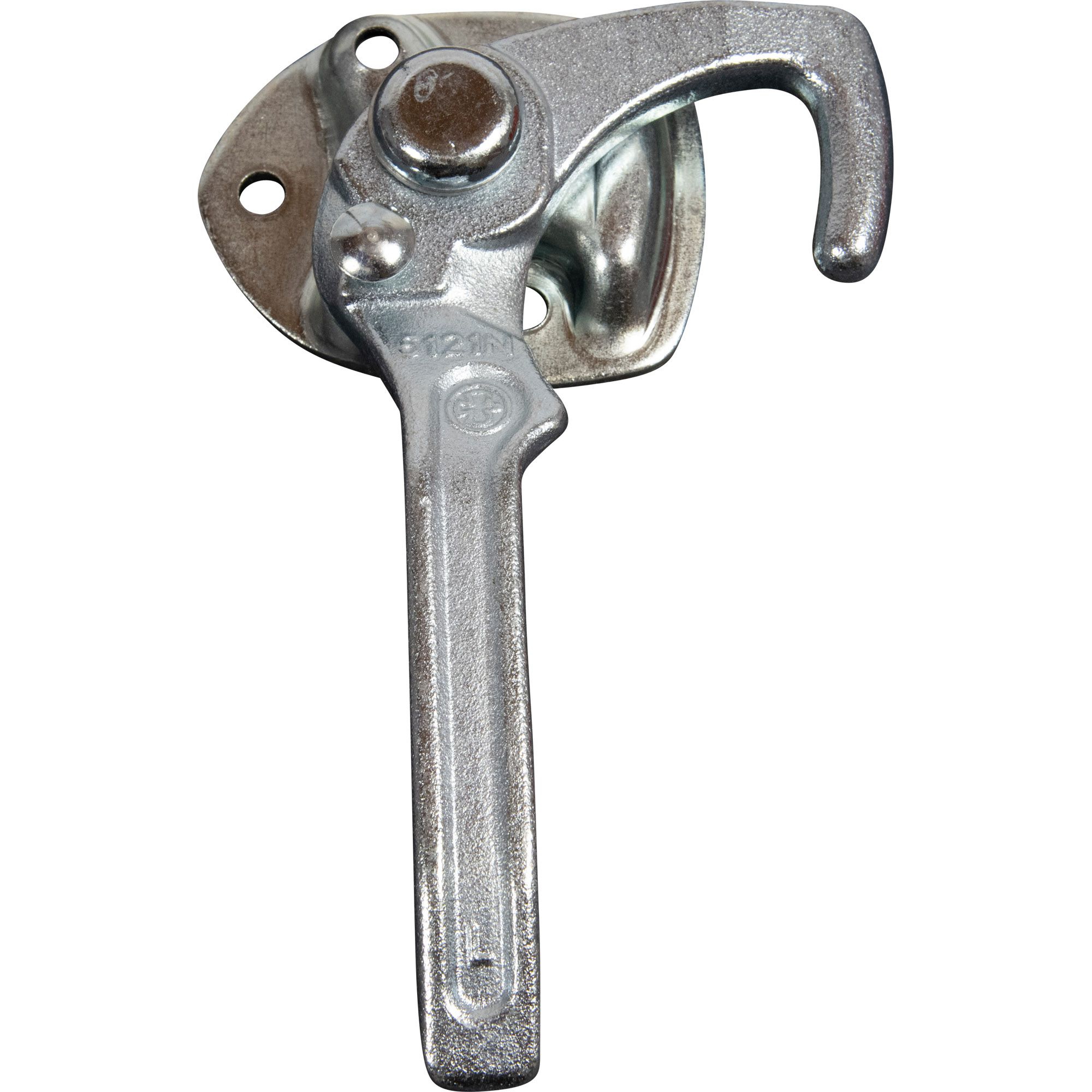

Lever fastener Version left with Push Button Protection Size 0 Length 169 mm

Lever fastener Version left with Push Button Protection Size 1 Length 170 mm

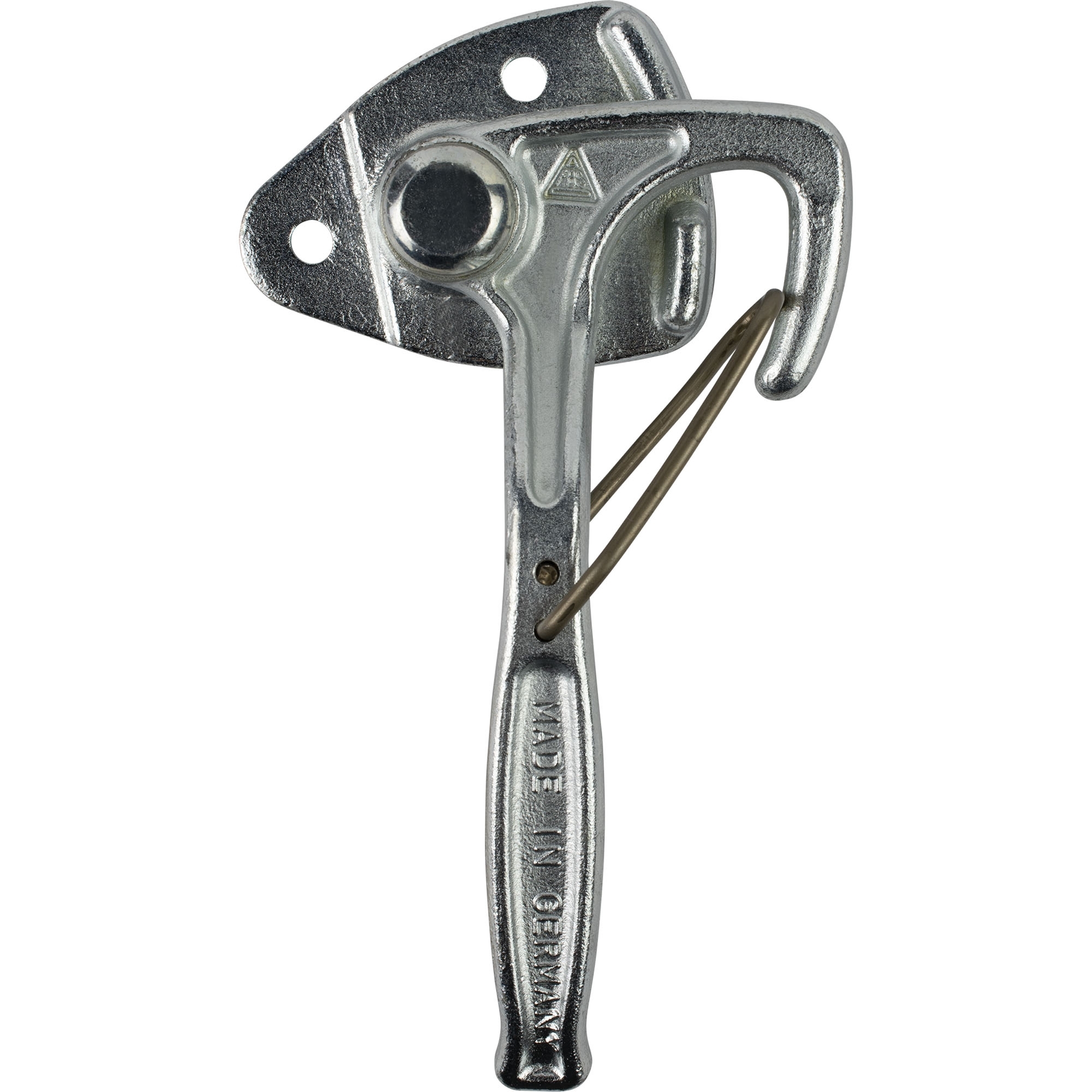

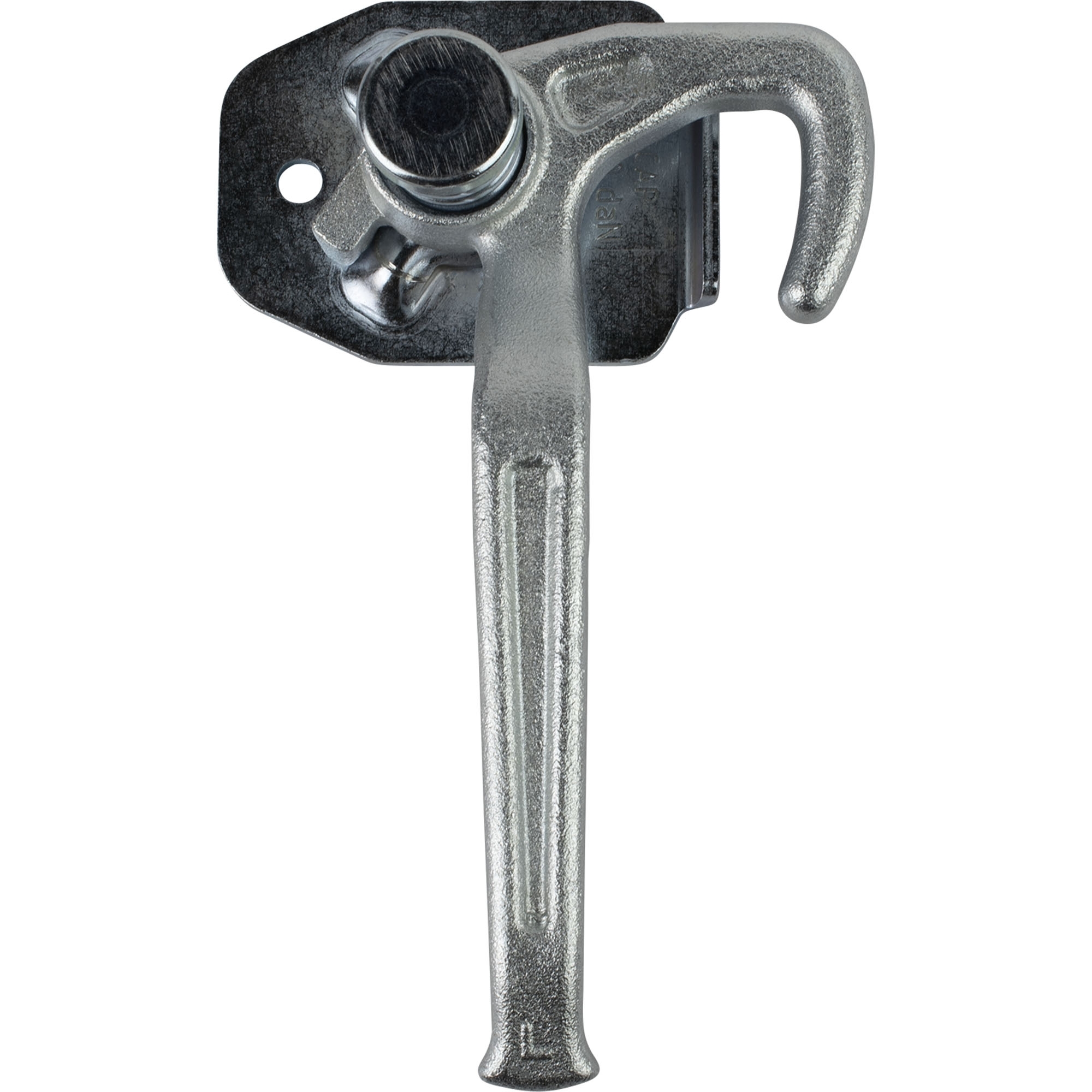

Lever fastener Version left with spring protection Size 0 Length 142 mm
