Loading rails

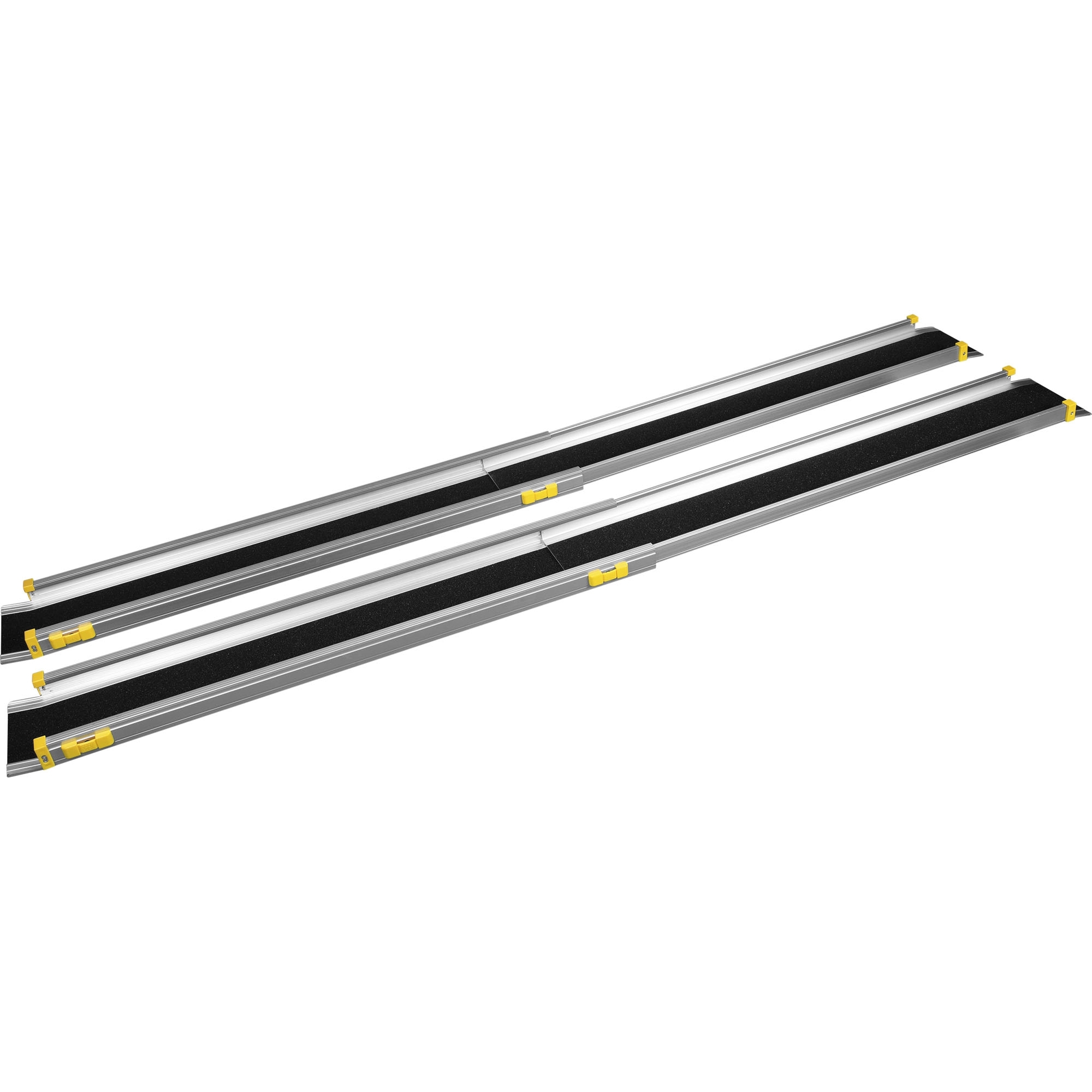

1 Pair Loading Ramp, extendable with edge Material Aluminium Length 1065 - 1800 mm Internal width 150 mm External width 194 mm Construction height 50 mm Height difference 388 - 430 mm (at 30 % gradient) Load capacity at centre distance: >1200 mm: 270 kg Attention: With a smaller centre distance or point load, the load capacity may be reduced by up to 50%. Follow general safety instructions.

1 Pair Loading Ramp, extendable with edge Material Aluminium Length 1220 - 2100 mm Internal width 150 mm External width 194 mm Construction height 50 mm Height difference 517 – 575 mm (at 30 % gradient) Load capacity at centre distance: >1200 mm: 270 kg Attention: With a smaller centre distance or point load, the load capacity may be reduced by up to 50%. Follow general safety instructions.

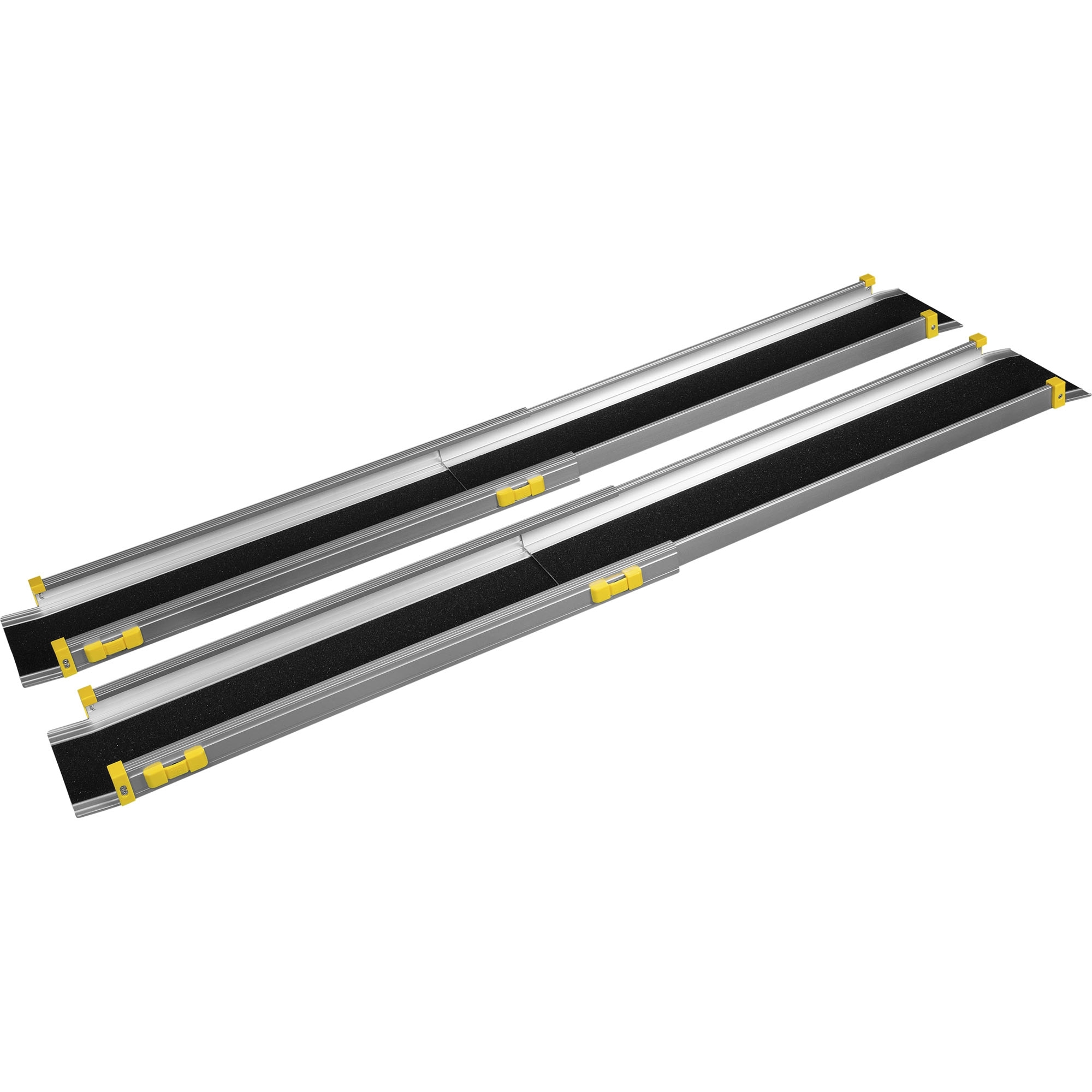

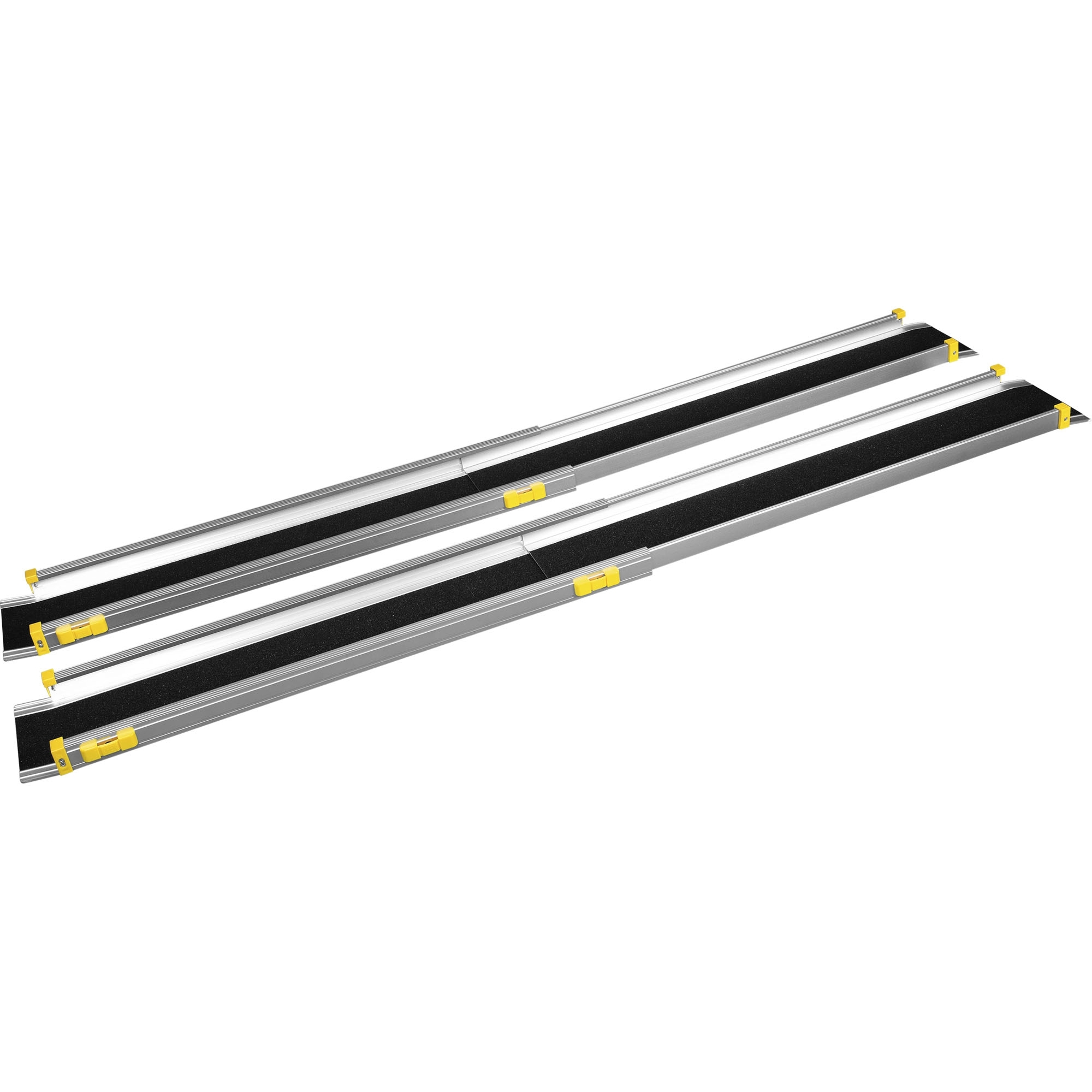

1 Pair Loading Ramp, extendable with edge Material Aluminium with Anti-Slip Tape Length 915 - 1500 mm Internal width 150 mm External width 194 mm Construction height 50 mm Height difference 388 - 430 mm (at 30 % gradient) Load capacity at centre distance: >1200 mm: 270 kg Attention: With a smaller centre distance or point load, the load capacity may be reduced by up to 50%. Follow general safety instructions.

1 Pair loading ramps without edge, with support tongue Material aluminum Load capacity 550 kg Length 1995 mm Outer width 200 mm Height 60 mm Height difference 310 - 540 mm (at 30 % gradient)

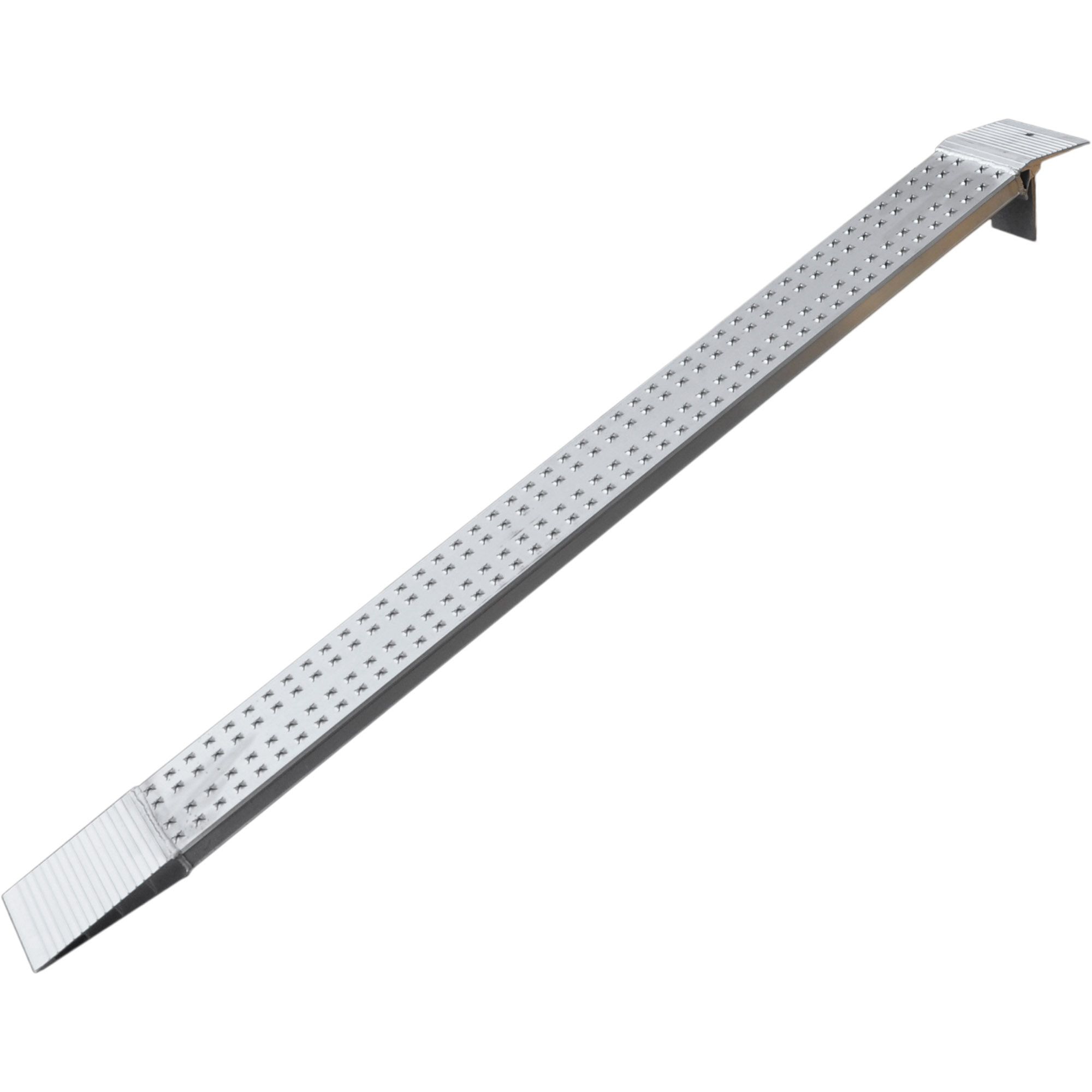

1 Pair loading ramps without edge, with support tongue Material aluminum Load capacity 900 kg Length 1995 mm Outer width 300 mm Height 60 mm Height difference 310- 540 mm (at 30 % gradient)

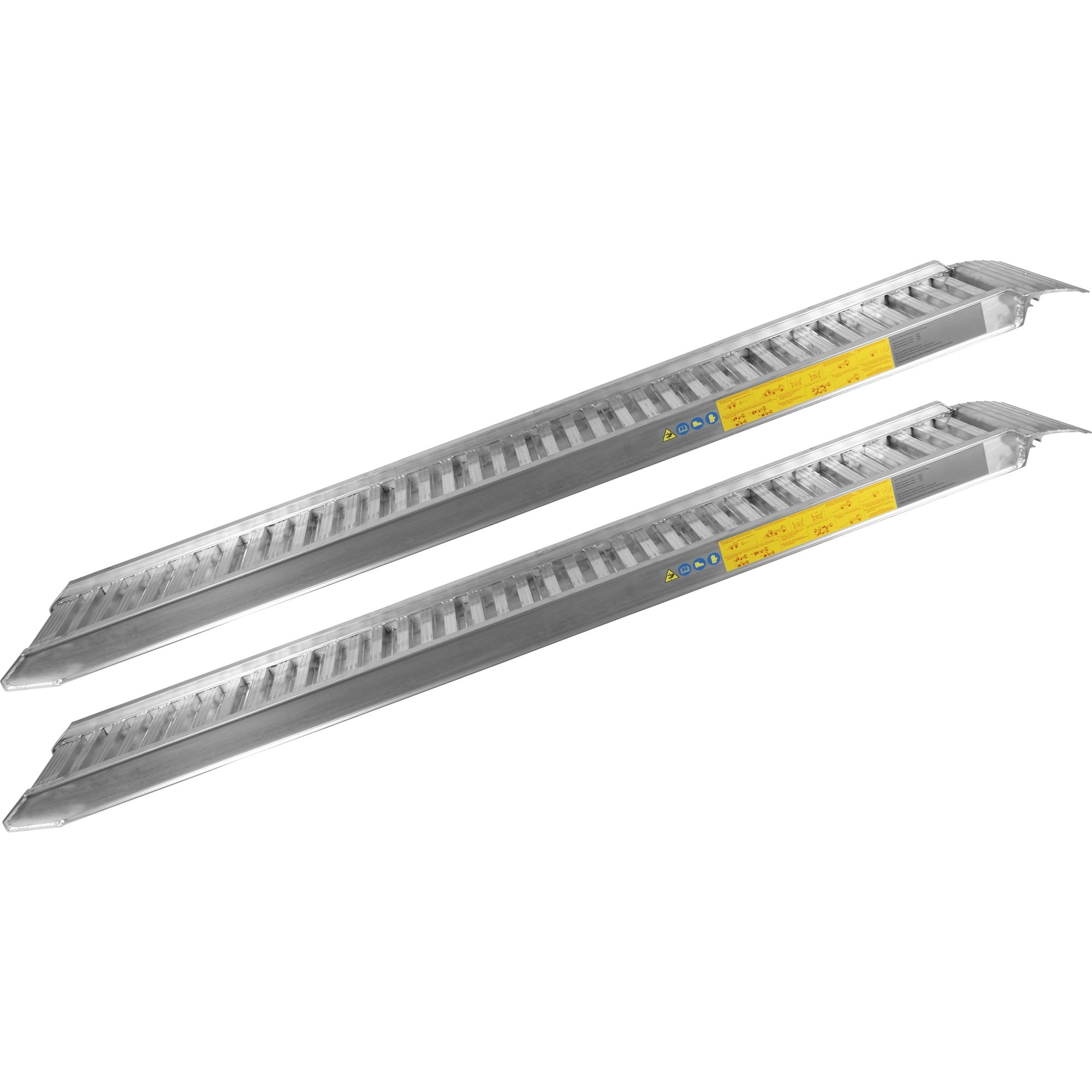

1 Pair loading ramps without edge, with support tongue Slide guard, for rubber-tyred vehicles Material aluminum Load capacity 2250 kg Length 2000 mm Outer width 345 mm Height 65 mm Height difference 600 mm (at 30 % gradient)

1 Pair loading ramps suitable for Humbaur trailer without edge, with support tongue Slide guard, for rubber-tyred vehicles Material aluminum Load capacity 2230 kg Length 2230 mm Outer width 250 mm Height 65 mm Height difference 670 mm (at 30 % gradient)

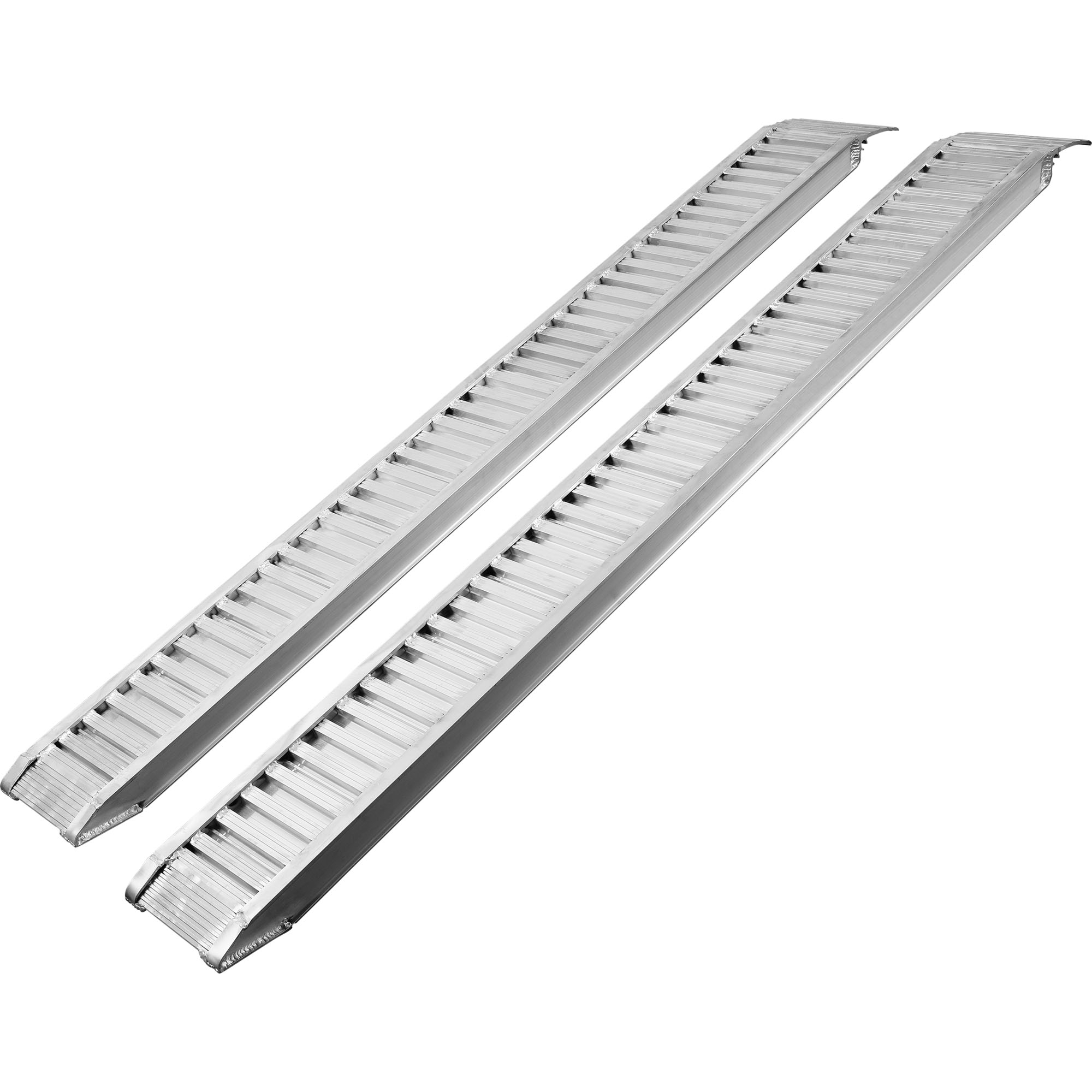

1 Pair loading ramps suitable for Humbaur trailer without edge, with support tongue Slide guard, for rubber-tyred vehicles Material aluminum Load capacity 1930 kg Length 2475 mm Outer width 250 mm Height 130 mm Height difference 750 mm (at 30 % gradient)

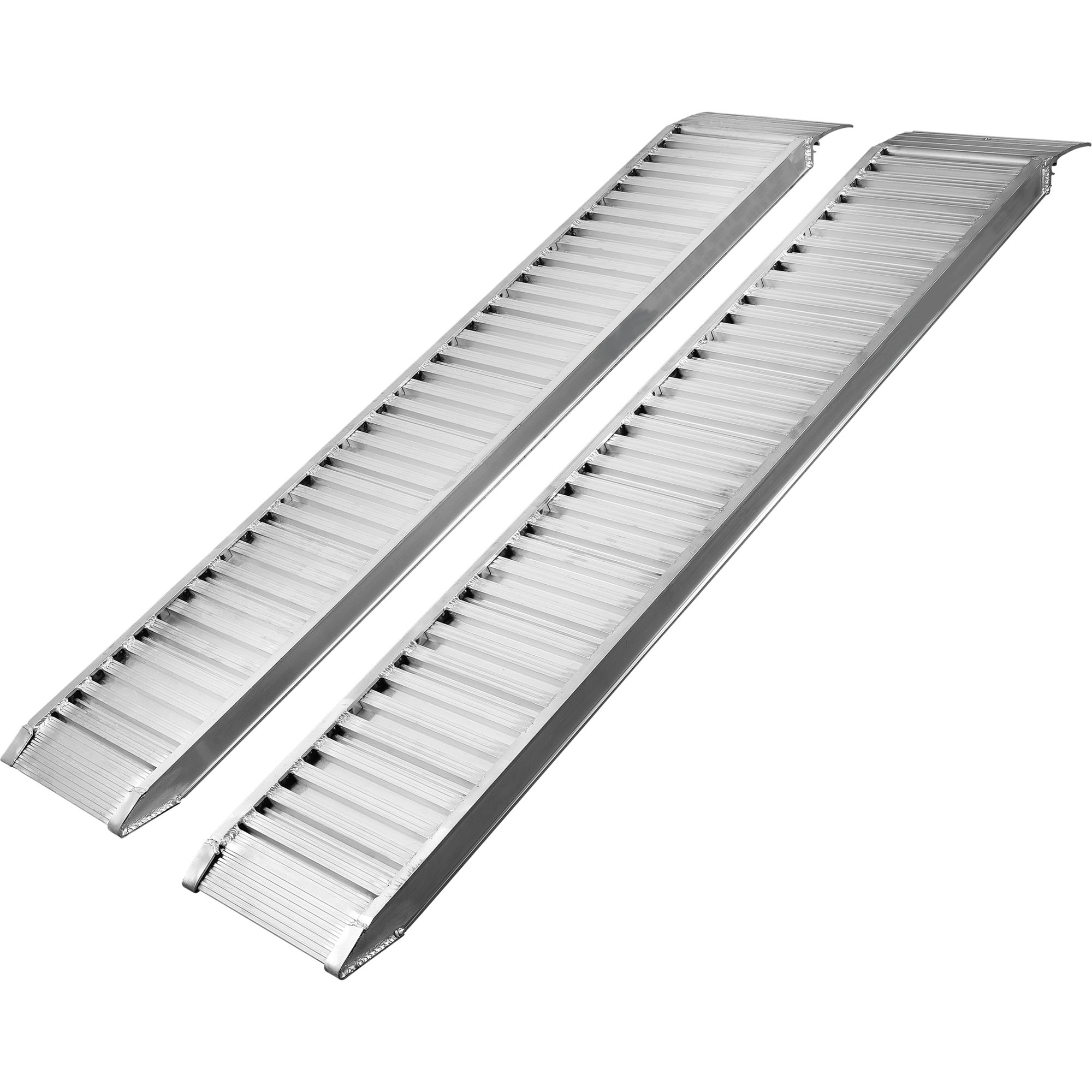

1 Pair loading ramps without edge, with support tongue Slide guard, for rubber-tyred vehicles Material aluminum Load capacity 2900 kg Length 2500 mm Inner width 300 mm Outer width 360 mm Height 105 mm Height difference 750 mm (at 30 % gradient)

1 Pair loading ramps suitable for Humbaur trailer with edge, with support tongue Slide guard, for rubber-tyred vehicles Material aluminum Load capacity 2800 kg Length 2650 mm Inner width 290 mm Outer width 350 mm Height 105 mm Height difference 800 mm (at 30 % gradient)

1 Pair loading ramps suitable for Humbaur trailer without edge, with support tongue Slide guard, for rubber-tyred vehicles Material aluminum Load capacity 2800 kg Length 2650 mm Outer width 350 mm Height 130 mm Height difference 800 mm (at 30 % gradient)

1 Pair loading ramps without edge, with support tongue Slide guard, for rubber-tyred vehicles Material aluminum Load capacity 3050 kg Length 3000 mm Inner width 300 mm Outer width 360 mm Height 120 mm Height difference 900 mm (at 30 % gradient)

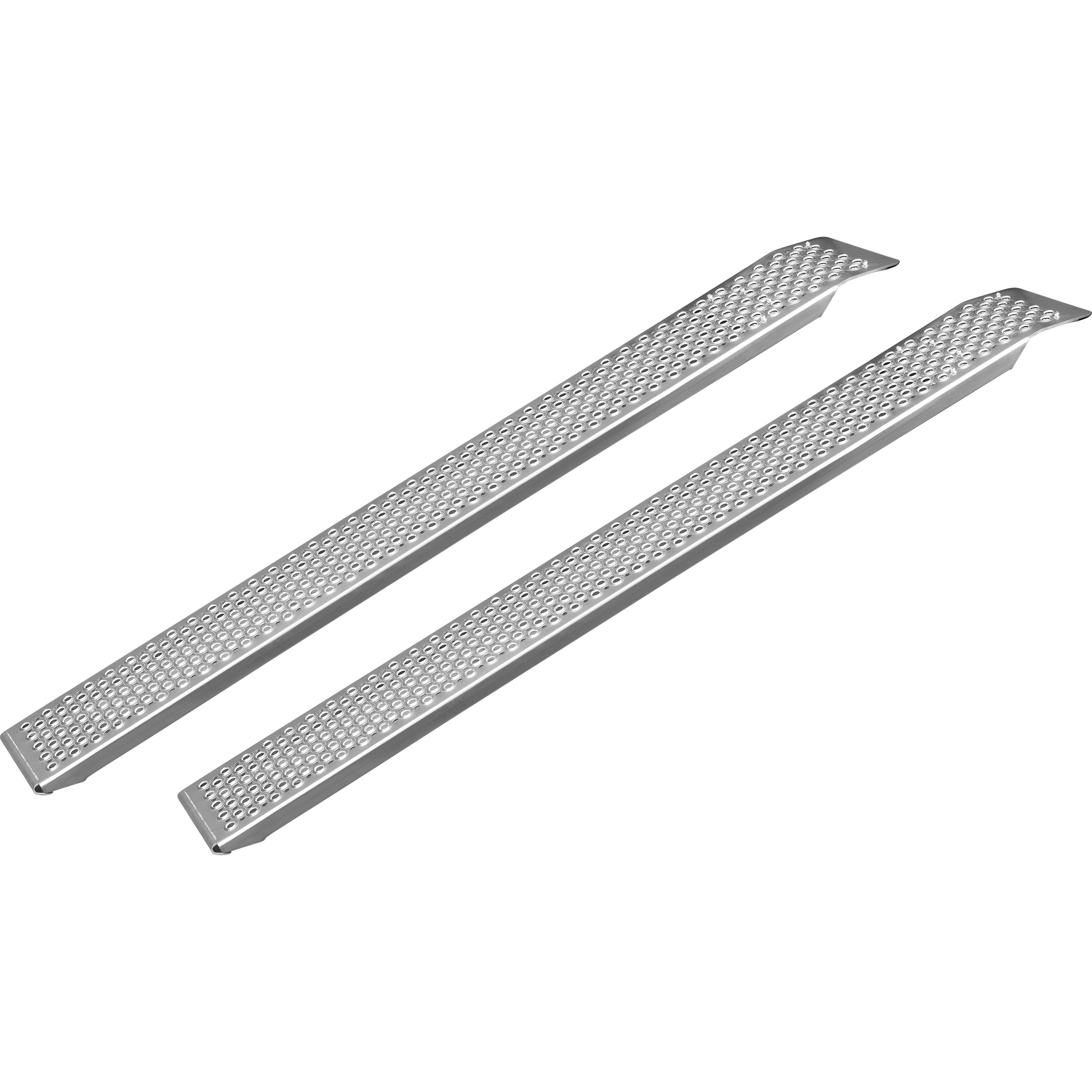

1 Pair loading ramps without edge, with reinforced support tongue and bolt securing slip-resistant and perforated surface only for rubber-tyred vehicles Material aluminum Length 1500 mm Outer width 200 mm Height 40 mm Height difference 388 - 430 mm (at 30 % gradient) Wheelbase 750 mm Load capacity by wheelbase: 0-499 mm: 220 kg 500-750 mm: 280 kg 751-1200 mm: 360 kg >1200 mm: 400 kg

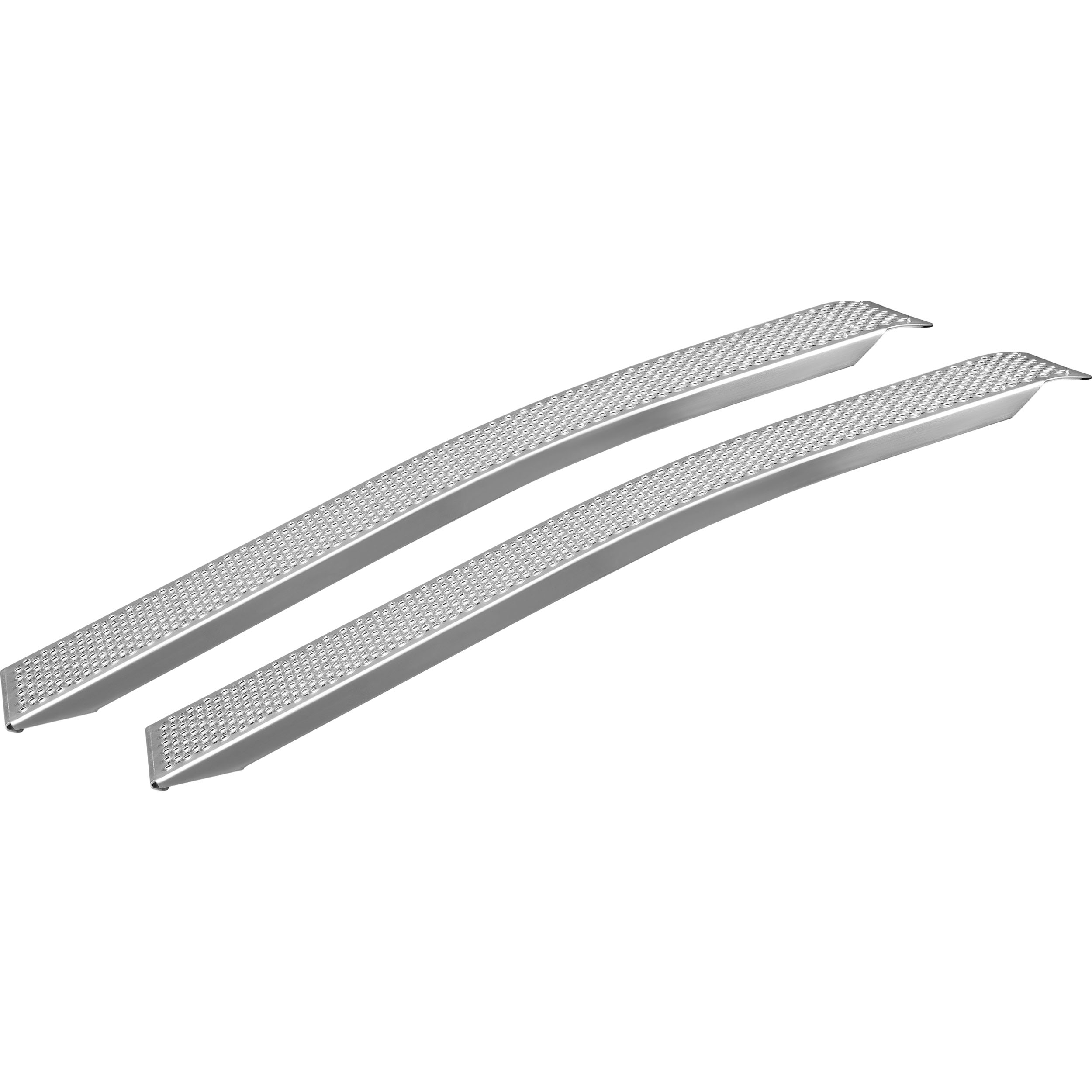

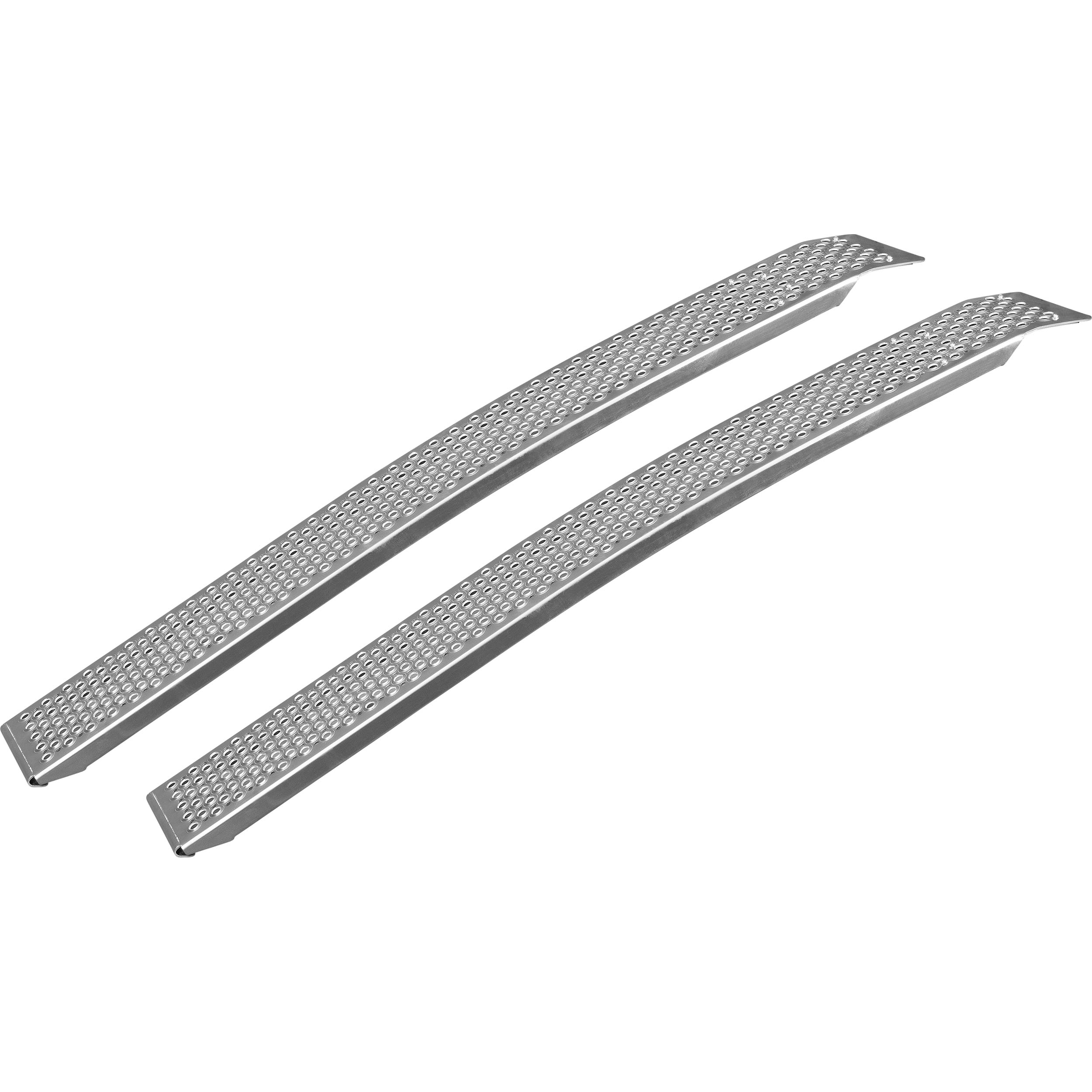

1 Pair loading ramps, vers. curved without edge, with reinforced support tongue and bolt securing slip-resistant and perforated surface only for rubber-tyred vehicles Material aluminum Length 2000 mm Outer width 260 mm Height 65 mm Height difference 517 - 575 mm (at 30 % gradient) Load capacity by wheelbase: 0-499 mm: 650 kg 500-750 mm: 750 kg 751-1200 mm: 800 kg >1200 mm: 1000 kg

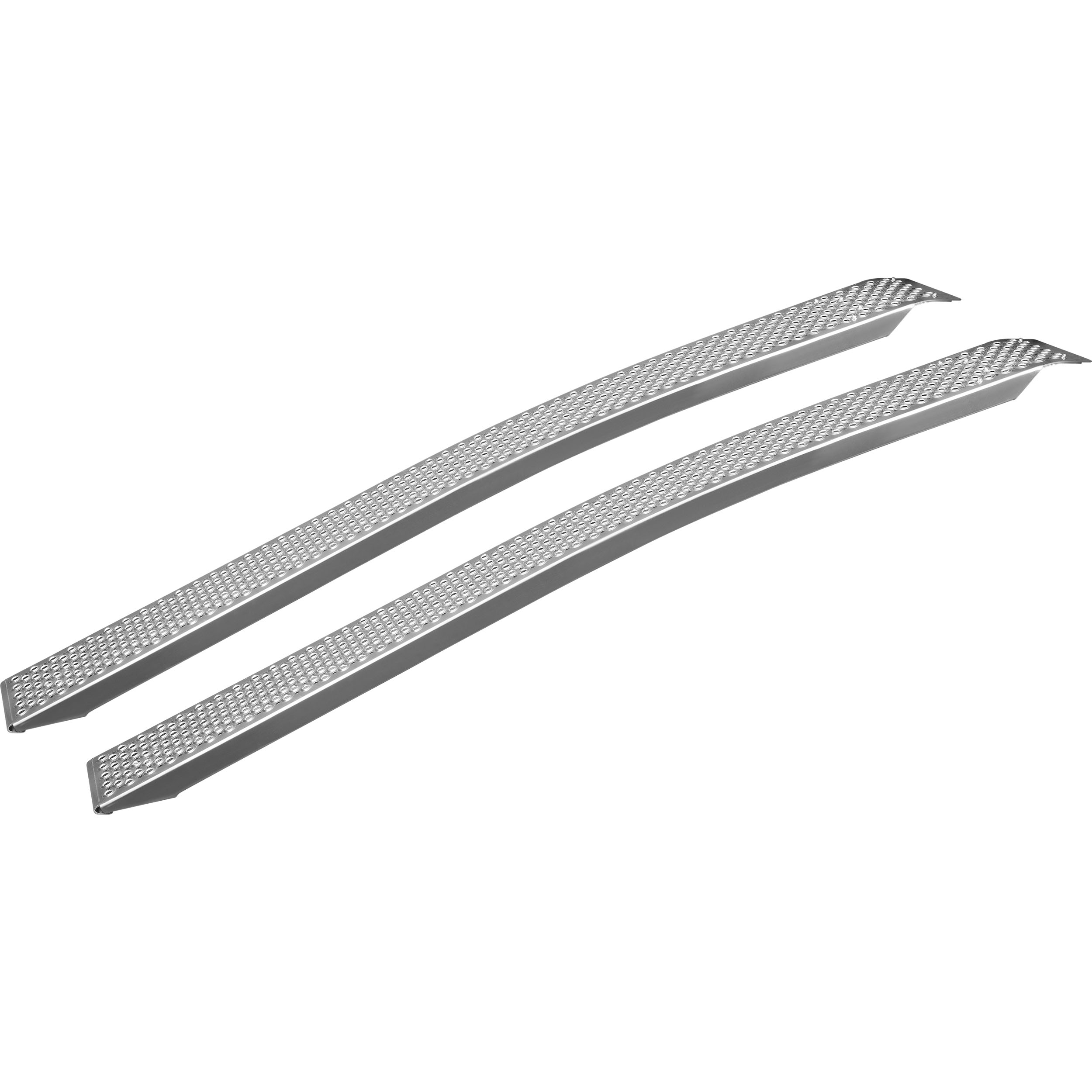

1 Pair loading ramps, vers. curved without edge, with reinforced support tongue and bolt securing slip-resistant and perforated surface only for rubber-tyred vehicles Material aluminum Length 2000 mm Outer width 200 mm Height 55 mm Height difference 517 - 575 mm (at 30 % gradient) Load capacity by wheelbase: 0-499 mm: 260 kg 500-750 mm: 320 kg 751-1200 mm: 400 kg >1200 mm: 400 kg

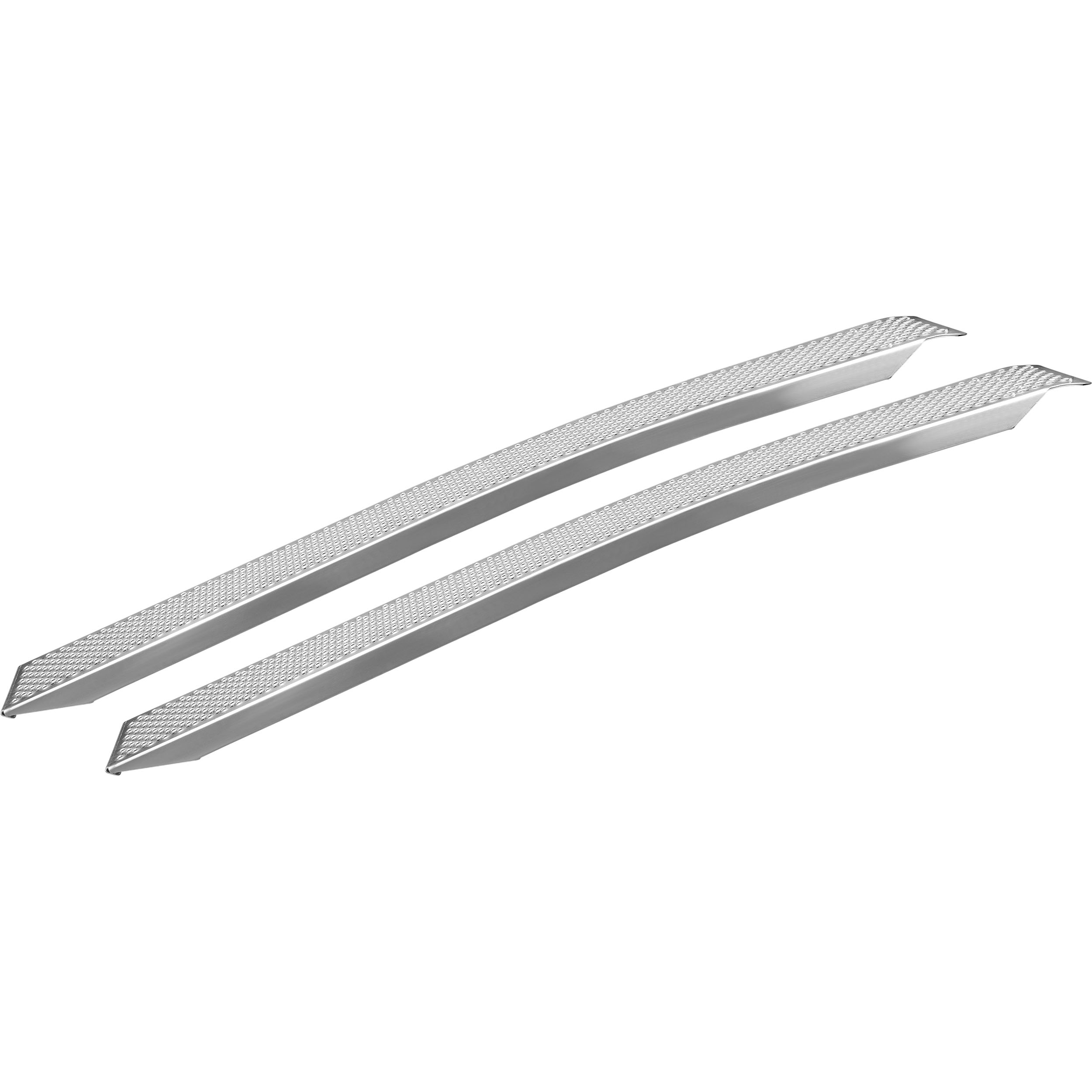

1 Pair loading ramps, vers. curved without edge, with reinforced support tongue and bolt securing slip-resistant and perforated surface only for rubber-tyred vehicles Material aluminum Length 2500 mm Outer width 260 mm Height 80 mm Height difference 647 - 718 mm (at 30 % gradient) Load capacity by wheelbase: 0-499 mm: 650 kg 500-750 mm: 750 kg 751-1200 mm: 800 kg >1200 mm: 1000 kg

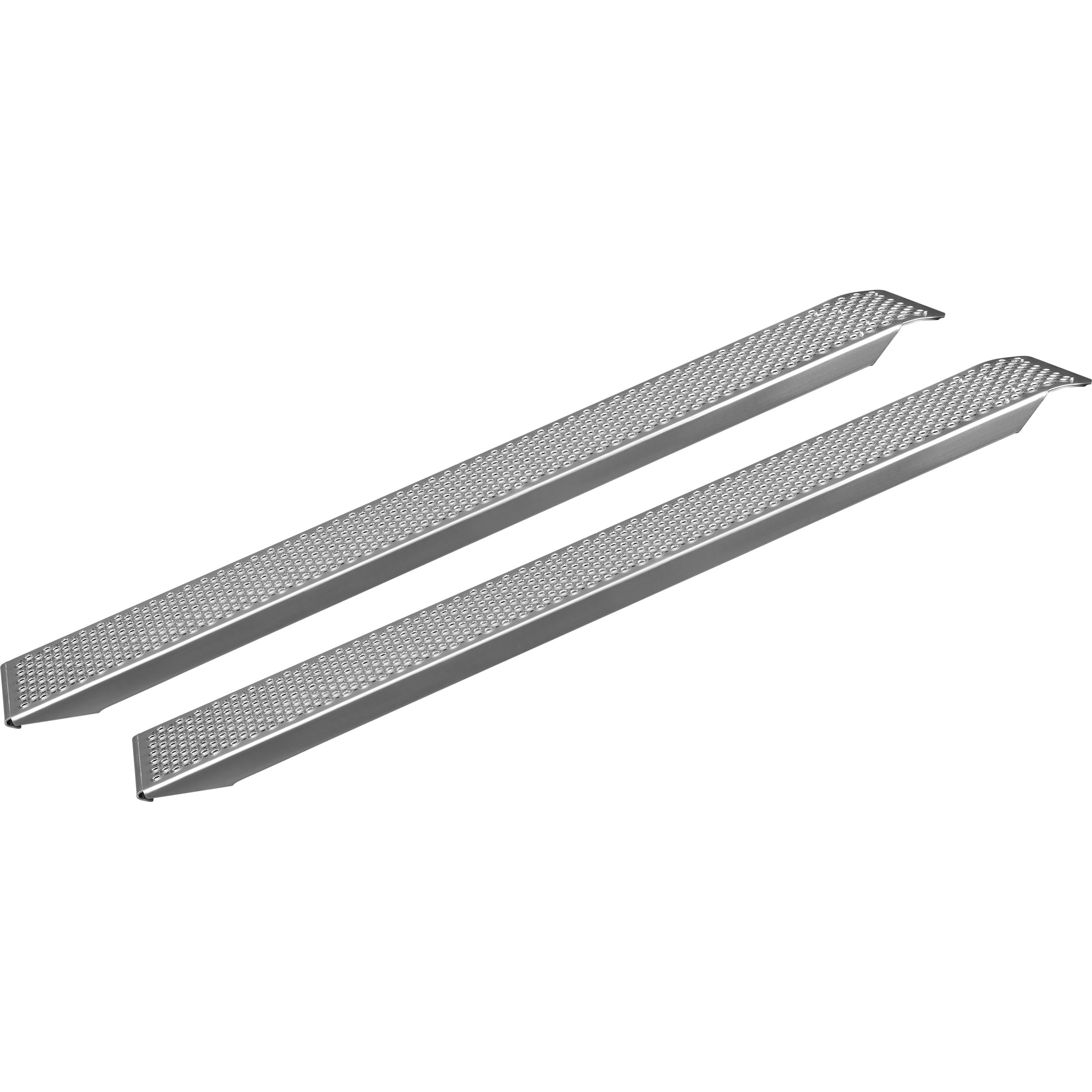

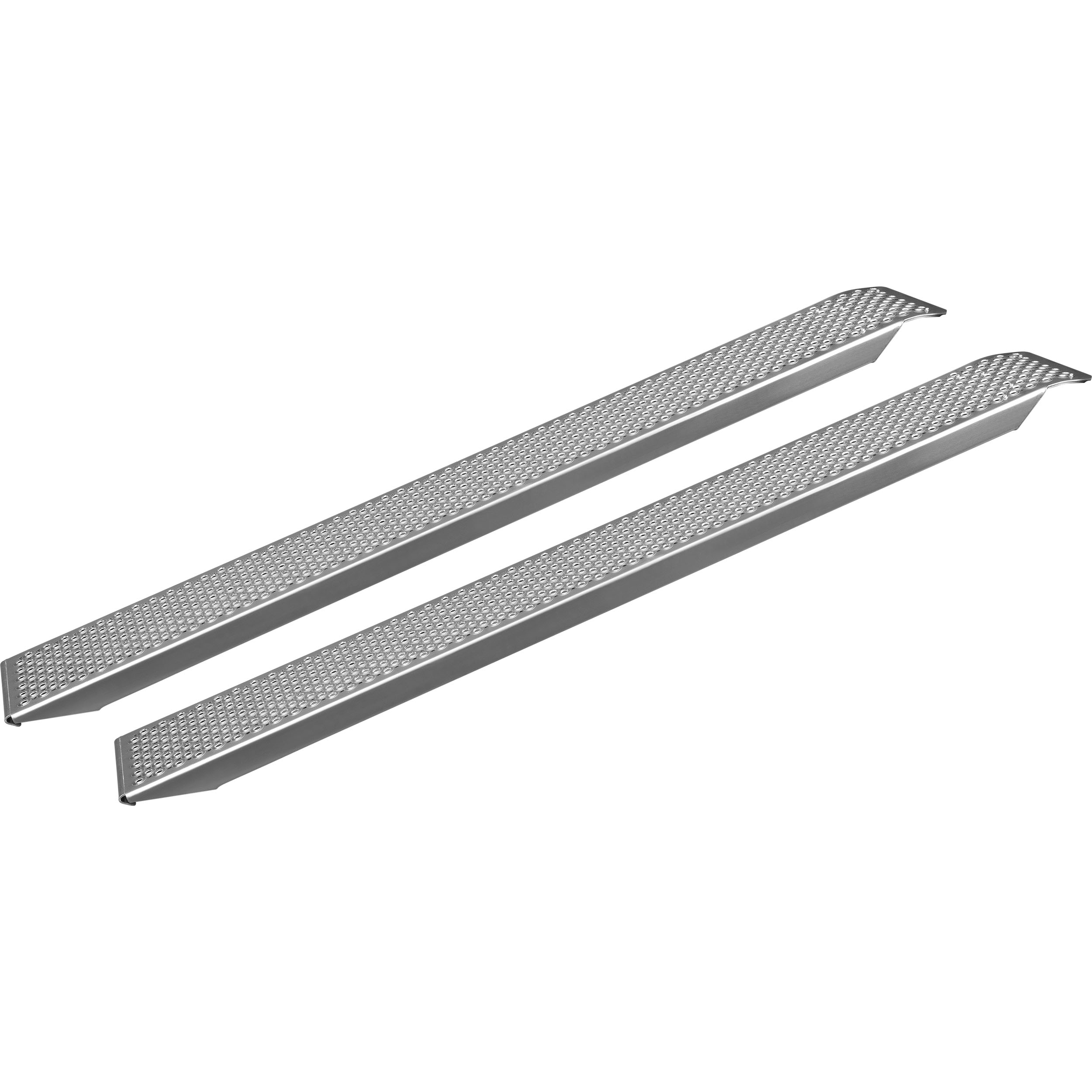

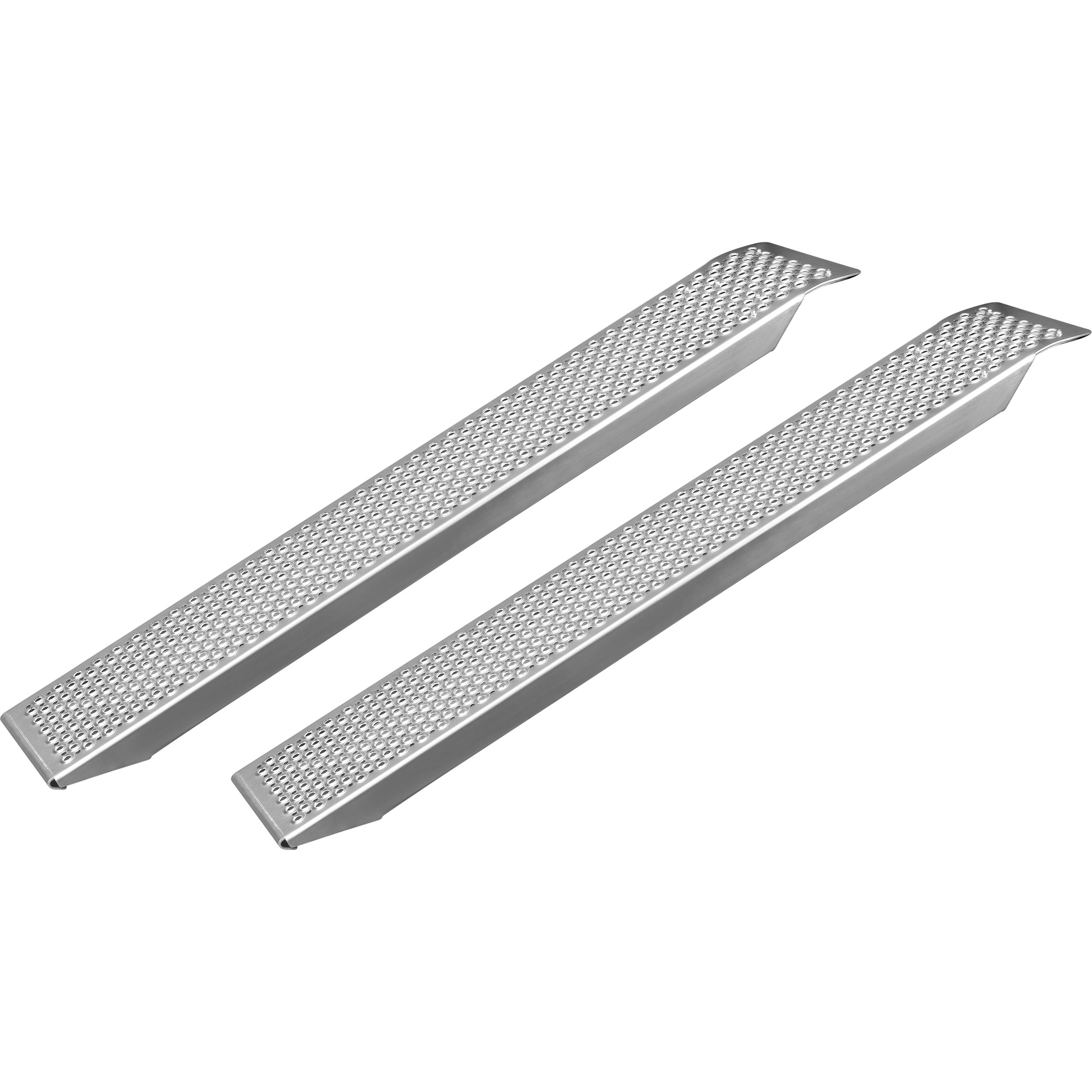

1 Pair loading ramps, vers. straight without edge, with reinforced support tongue and bolt securing slip-resistant and perforated surface only for rubber-tyred vehicles Material aluminum Length 1500 mm Outer width 260 mm Height 65 mm Height difference 388 - 430 mm (at 30 % gradient) Load capacity by wheelbase: 0-499 mm: 650 kg 500-750 mm: 750 kg 751-1200 mm: 800 kg >1200 mm: 1000 kg

1 Pair loading ramps, vers. straight without edge, with reinforced support tongue and bolt securing slip-resistant and perforated surface only for rubber-tyred vehicles Material aluminum Length 1500 mm Outer width 200 mm Height 40 mm Height difference 388 - 430 mm (at 30 % gradient) Load capacity by wheelbase: 0-499 mm: 220 kg 500-750 mm: 280 kg 751-1200 mm: 360 kg >1200 mm: 400 kg

1 Pair loading ramps, vers. straight without edge, with reinforced support tongue and bolt securing slip-resistant and perforated surface only for rubber-tyred vehicles Material aluminum Length 2000 mm Outer width 260 mm Height 65 mm Height difference 517 - 575 mm (at 30 % gradient) Load capacity by wheelbase: 0-499 mm: 650 kg 500-750 mm: 750 kg 751-1200 mm: 800 kg >1200 mm: 1000 kg

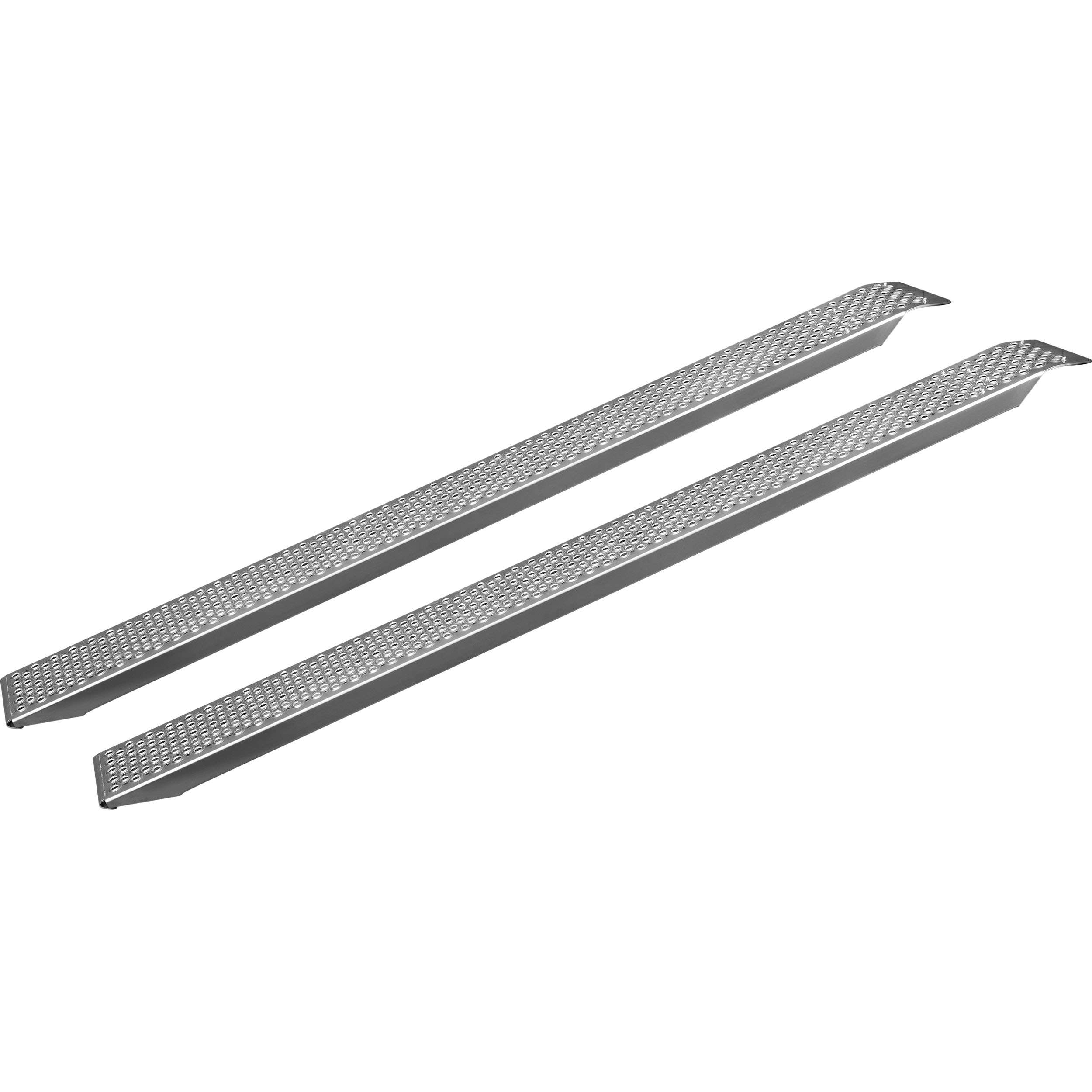

1 Pair loading ramps, vers. straight without edge, with reinforced support tongue and bolt securing slip-resistant and perforated surface only for rubber-tyred vehicles Material aluminum Length 2000 mm Outer width 200 mm Height 55 mm Height difference 517 - 575 mm (at 30 % gradient) Load capacity by wheelbase: 0-499 mm: 260 kg 500-750 mm: 320 kg 751-1200 mm: 400 kg >1200 mm: 400 kg

1 Pair loading ramps, vers. straight without edge, with reinforced support tongue and bolt securing slip-resistant and perforated surface only for rubber-tyred vehicles Material aluminum Length 2500 mm Outer width 260 mm Height 80 mm Height difference 647 - 718 mm (at 30 % gradient) Load capacity by wheelbase: 0-499 mm: 650 kg 500-750 mm: 750 kg 751-1200 mm: 800 kg >1200 mm: 1000 kg

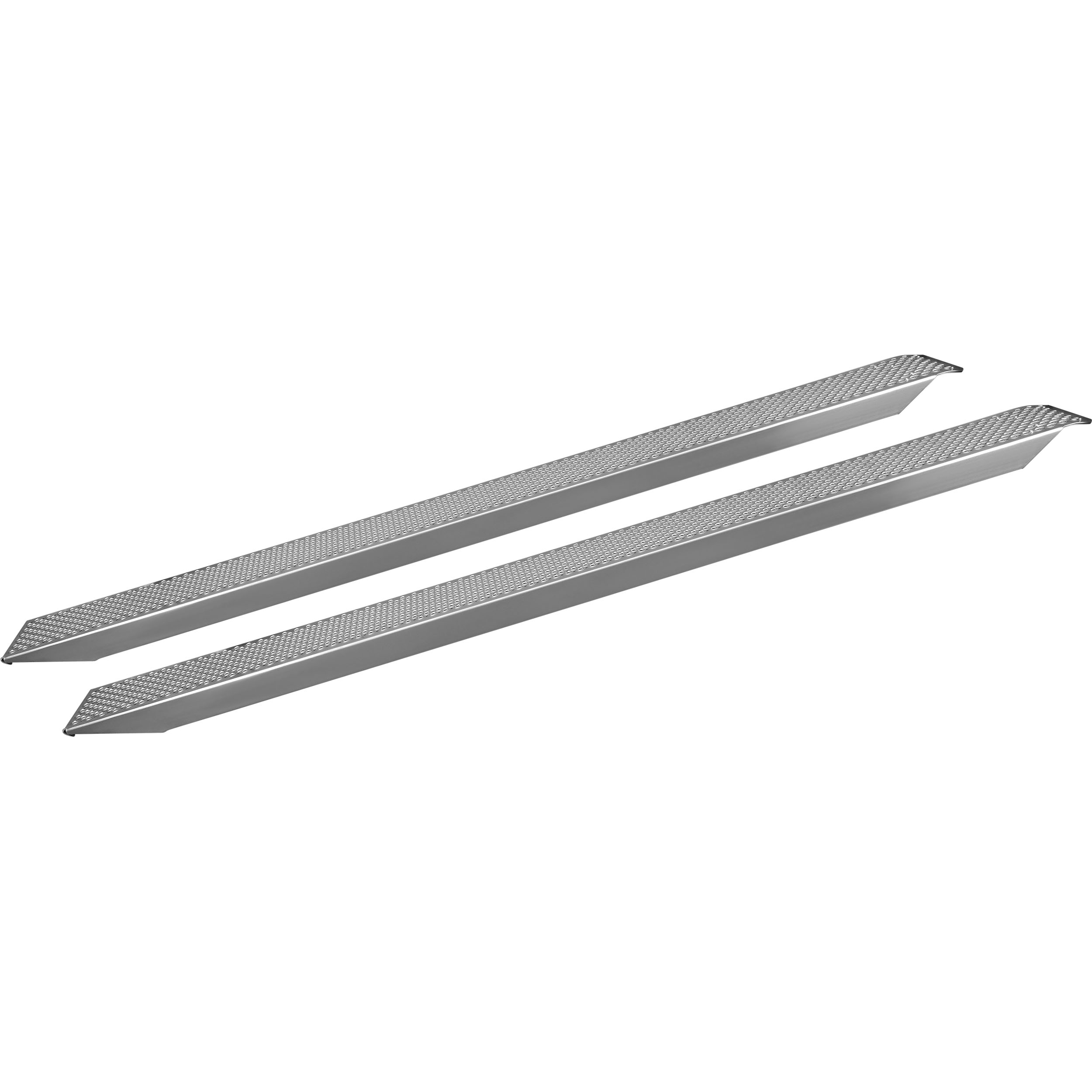

1 Pair loading ramps, vers. straight without edge, with reinforced support tongue and bolt securing slip-resistant and perforated surface only for rubber-tyred vehicles Material aluminum Length 3000 mm Outer width 260 mm Height 95 mm Height difference 776 - 862 mm (at 30 % gradient) Load capacity by wheelbase: 0-499 mm: 650 kg 500-750 mm: 750 kg 751-1200 mm: 800 kg >1200 mm: 1000 kg

1 Pair loading ramps, 2-fold foldable without edge, with support tongue Material steel Outer width 250 mm Unfolded state Load capacity 500 kg Length 2000 mm Height 50 mm Folded state Load capacity 1000 kg Length 898 mm Height 150 mm Can be used as a ramp or jack with 2 stoppers. With carrying straps and safety chains.

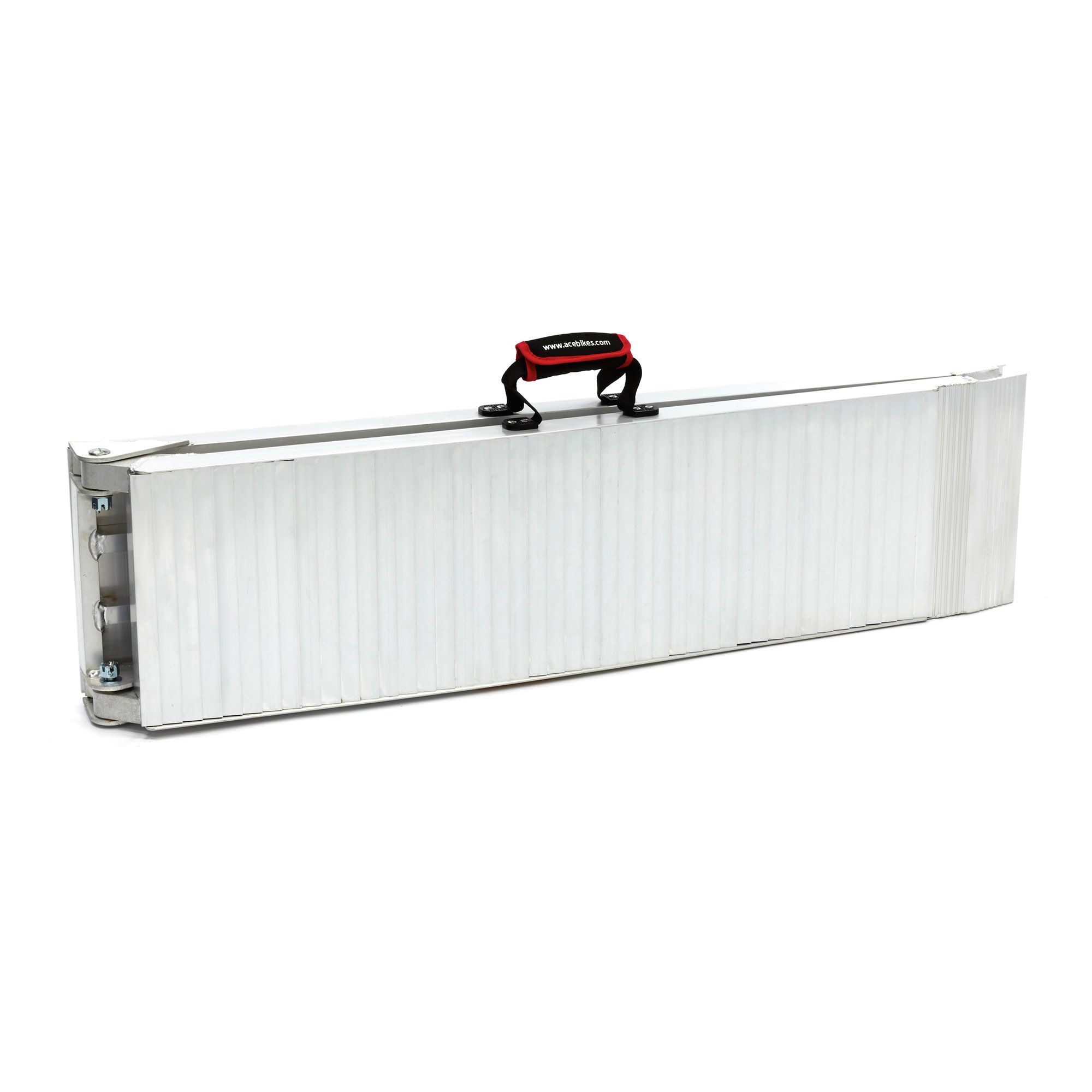

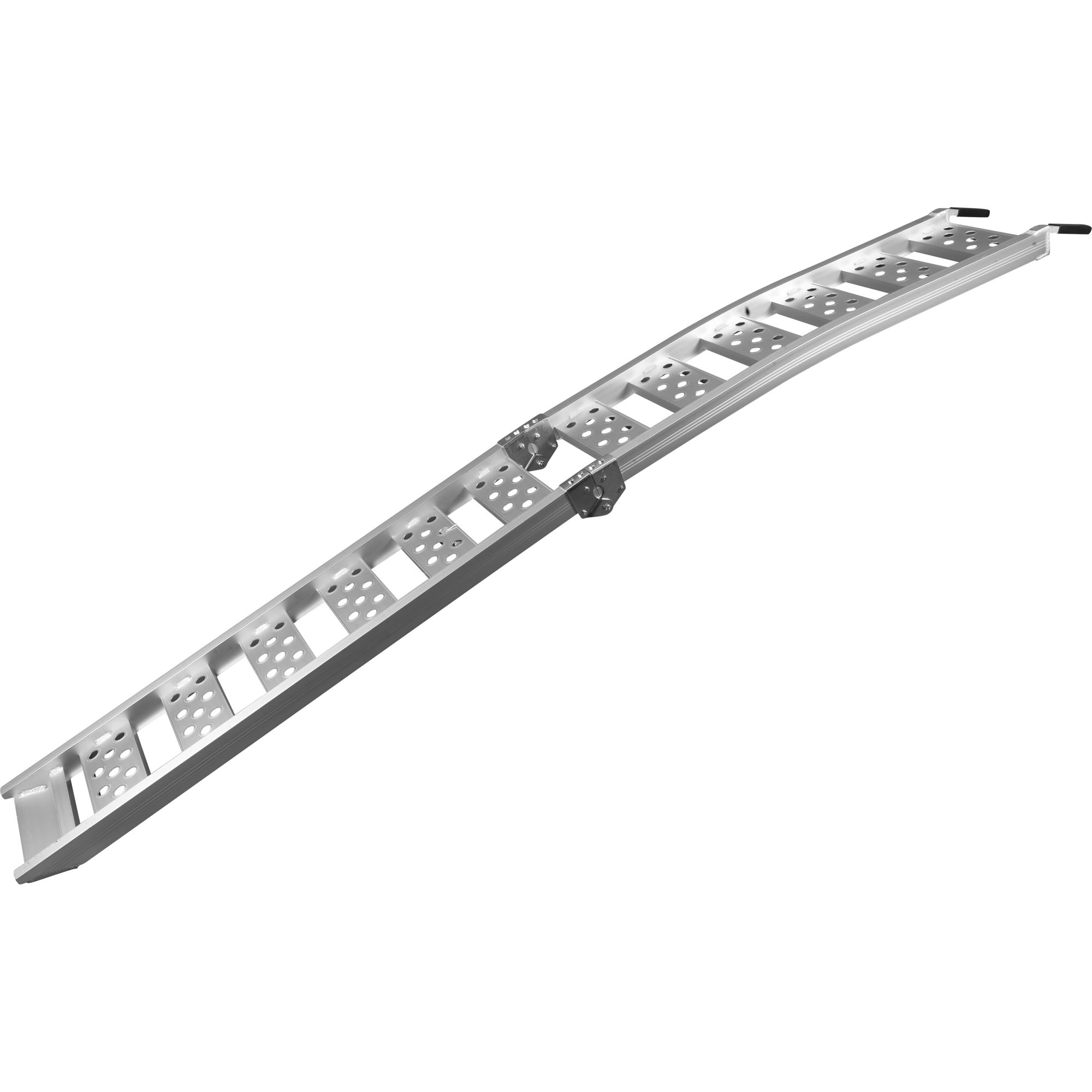

Loading Ramp, foldable for ATV / Enduro with edge Material Aluminium Length 2200 mm Internal width 230 mm External width 280 mm Construction height 50 mm Height difference 517 – 575 mm (at 30 % gradient) Load capacity by wheelbase: >1200 mm: 340 kg Attention: With a smaller centre distance or point load, the load capacity may be reduced by up to 50%. Follow general safety instructions.
