Drawbar eye, AL-KO, 3500 kg, Ø 60 mm, M16

Name: Drawbar eye, AL-KO, 3500 kg, Ø 60 mm, M16
SKU: 1224114

Prices visible after login Log in

Product information

Product number: 1224114

GTIN/EAN: 4250422555589

Manufacturer: 700022 Firma Alois Kober GmbH in Kötz

Product information "Drawbar eye, AL-KO, 3500 kg, Ø 60 mm, M16"

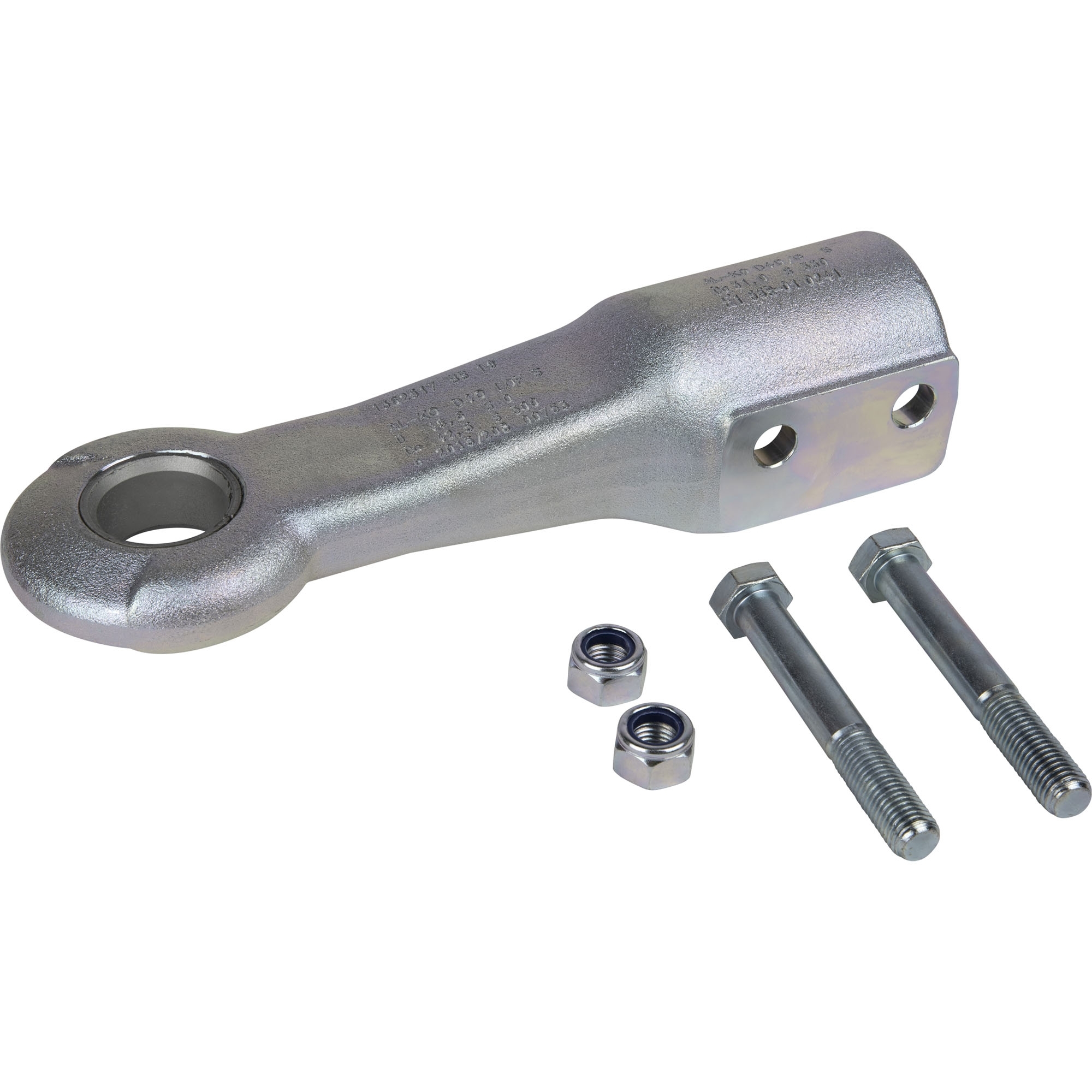

Drawbar eye AL-KO incl. screw material Eyelet Ø 40 mm Permitted total weight 3500 kg Permitted payload 350 kg Pull rod Ø 60 mm Horizontal drilling Ø 16.0 mm Spacing of holes 54 mm suitable for Type 351 VB, Profi 3500, 2,8 VB/1

Product info Technical details

Bohrung waagrecht (mm):	16
Durchmesser (mm):	60
Form:	rund
Gewicht:	5.46
Hersteller:	AL-KO
Lochabstand waagrecht (mm):	54
Material:	Stahl
Stützlast (kg):	350
zul. Gesamtgewicht (kg):	3500

Service Documents

Instruction Manual	Download
Safety Instruction	Download
