Drawbar eye, AL-KO, 3000 kg, Ø 40/50 mm, M12

Name: Drawbar eye, AL-KO, 3000 kg, Ø 40/50 mm, M12
SKU: 1224660

Prices visible after login Log in

Product information

Product number: 1224660

GTIN/EAN: 4250422585661

Manufacturer: 700022 Firma Alois Kober GmbH in Kötz

Product information "Drawbar eye, AL-KO, 3000 kg, Ø 40/50 mm, M12"

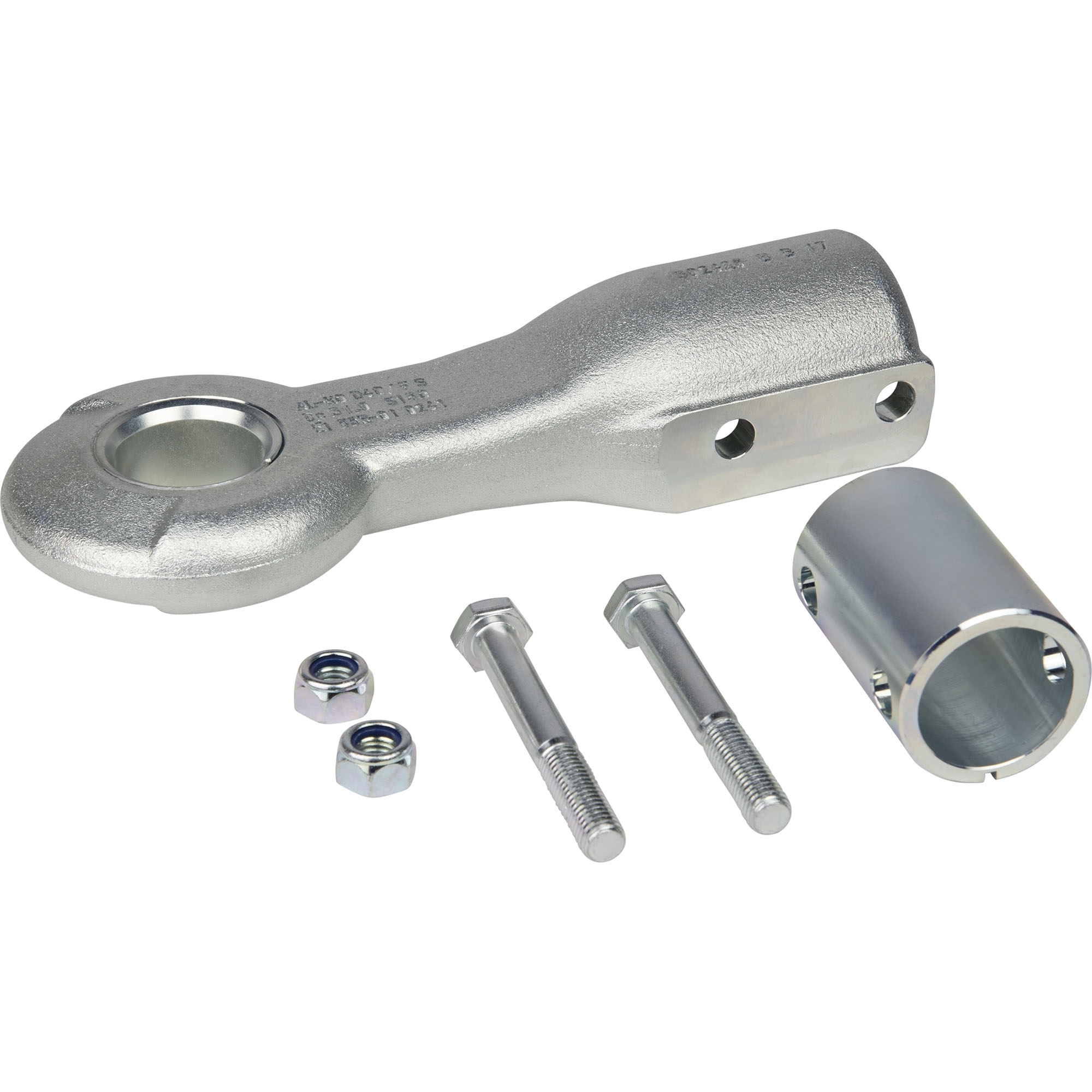

Drawbar eye AL-KO incl. screw material Eyelet Ø 40 mm Permitted total weight 3000 kg Permitted payload 150 kg Pull rod Ø 50 mm Reduction pieces to Ø 40 mm Horizontal drilling Ø 12.2 mm Spacing of holes 50 mm suitable for Type 101 VB

Product info Technical details

Bohrung waagrecht (mm):	12,2
Durchmesser (mm):	40, 50
Form:	rund
Gewicht:	3.66
Hersteller:	AL-KO
Lochabstand waagrecht (mm):	50
Material:	Stahl
Stützlast (kg):	150
zul. Gesamtgewicht (kg):	3000

Service Documents

Instruction Manual	Download
Safety Instruction	Download
