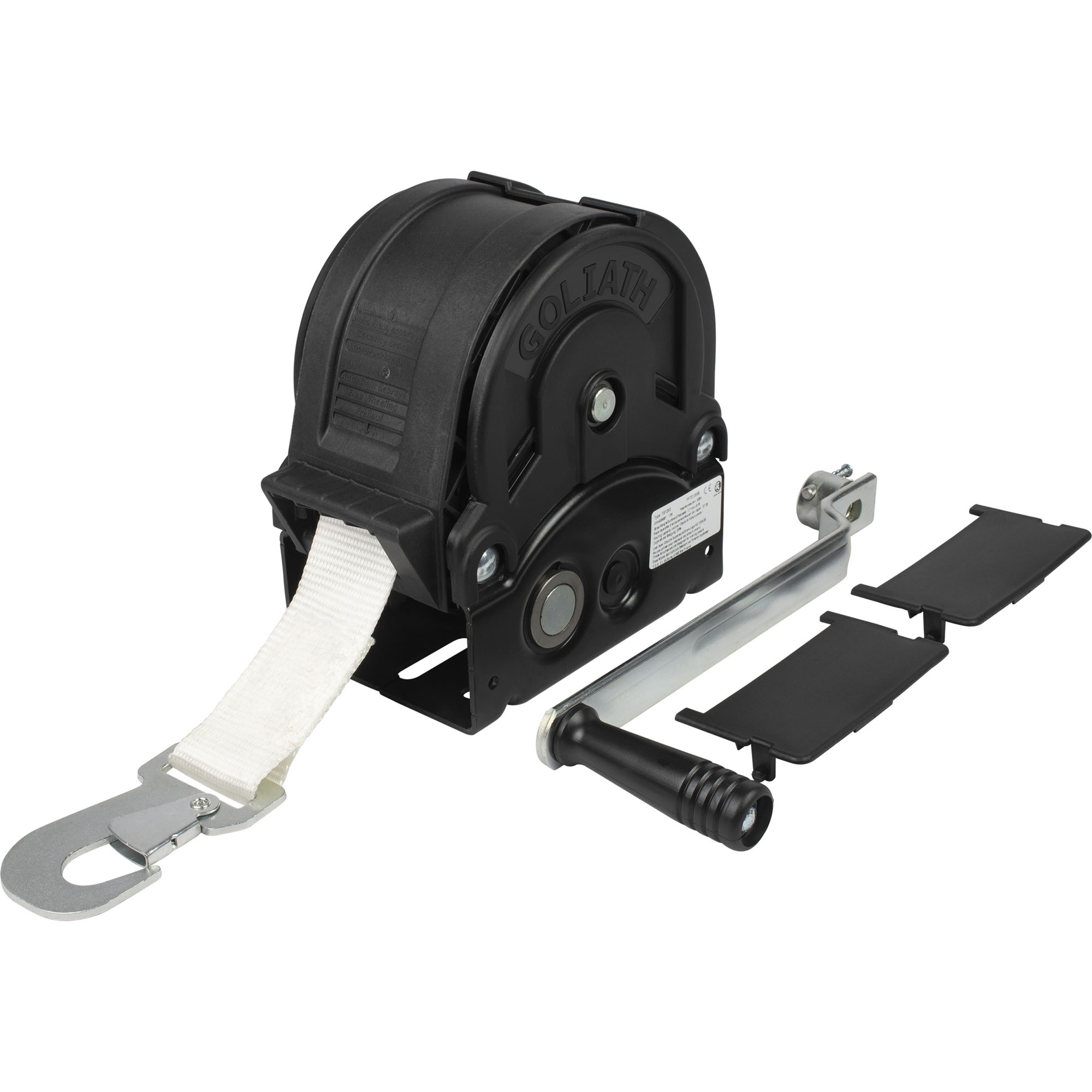

Product information "Cable Winch, TS1200, 1200 kg, Band 8 m"
Cable winch
Type TS1200
for Boat trailer (2-stage gear)
with 8 m band
Tensile force max. 1200 kg
Reduction 1 gear 4.85:1
Reduction 2 gear 9.71:1
Force per crank 5 daN at 900 kg boat
Force per crank 7 daN at 1200 kg boat

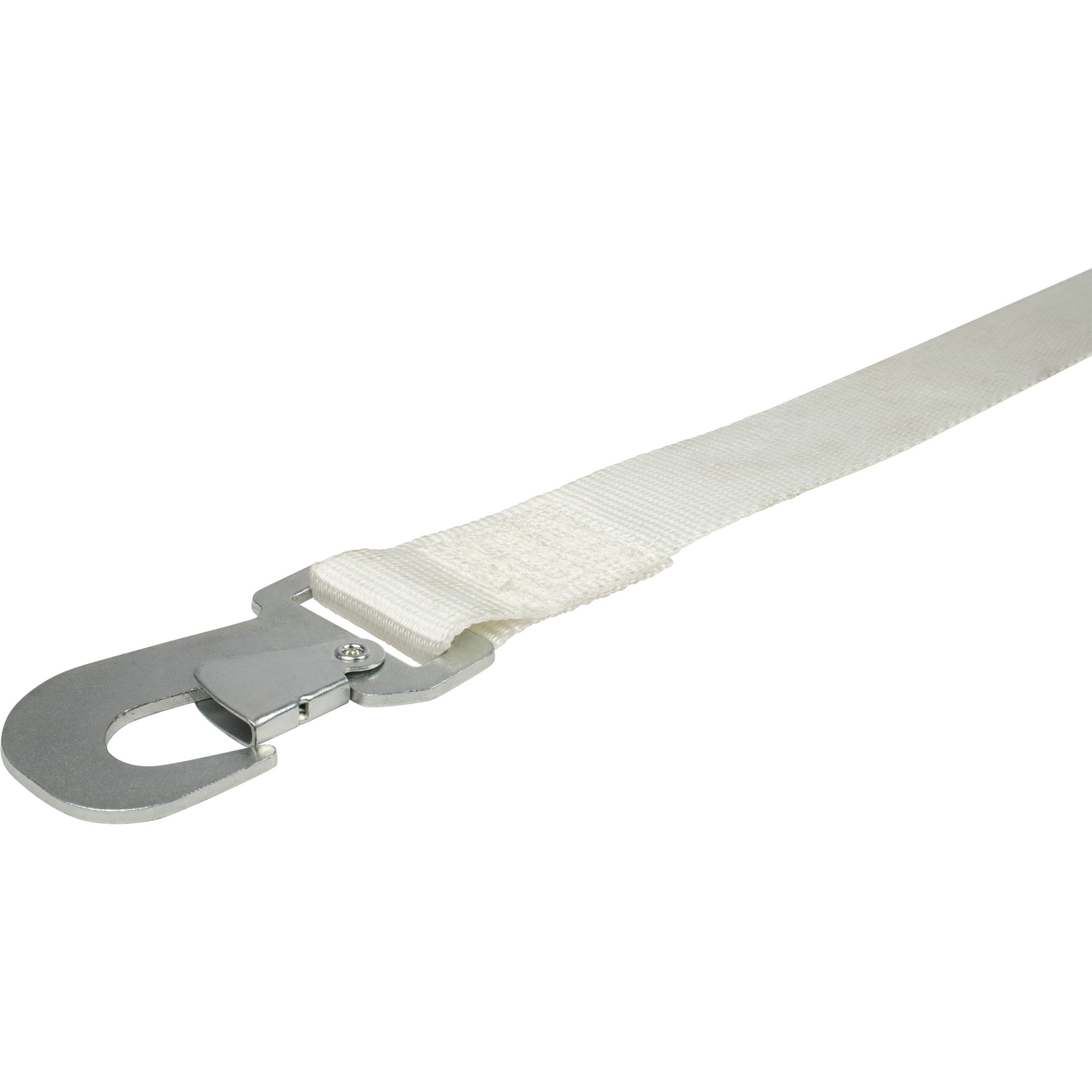

Band length 8 m
Band width 50 mm
Removable crank
Crank length 250 mm
Dimensions without crank 190 x 120 x 210 mm
Hole pattern 130 x 70 mm
With freewheel
Equipment
with patented safety system
Safety note: Cable winch not suitable for lifting loads, securing loads and transporting people!
| Breite: | 120 |
|---|---|
| Farbe: | schwarz |
| Gewicht: | 6.1 |
| Höhe: | 210 |
| Kurbelkraft 1 (daN): | 900 |
| Kurbelkraft 2 (daN): | 1200 |
| Länge: | 190 |
| Material: | Stahl |
| Trommelkapazität Band (m): | 8 |
| Typ: | TS1200 |
| Untersetzung 1: | 4,85:1 |
| Untersetzung 2: | 9,71:1 |
| Zugkraft (kg): | 1200 |
Recommendation
Matching accessories
Skip product gallery
Zubehör

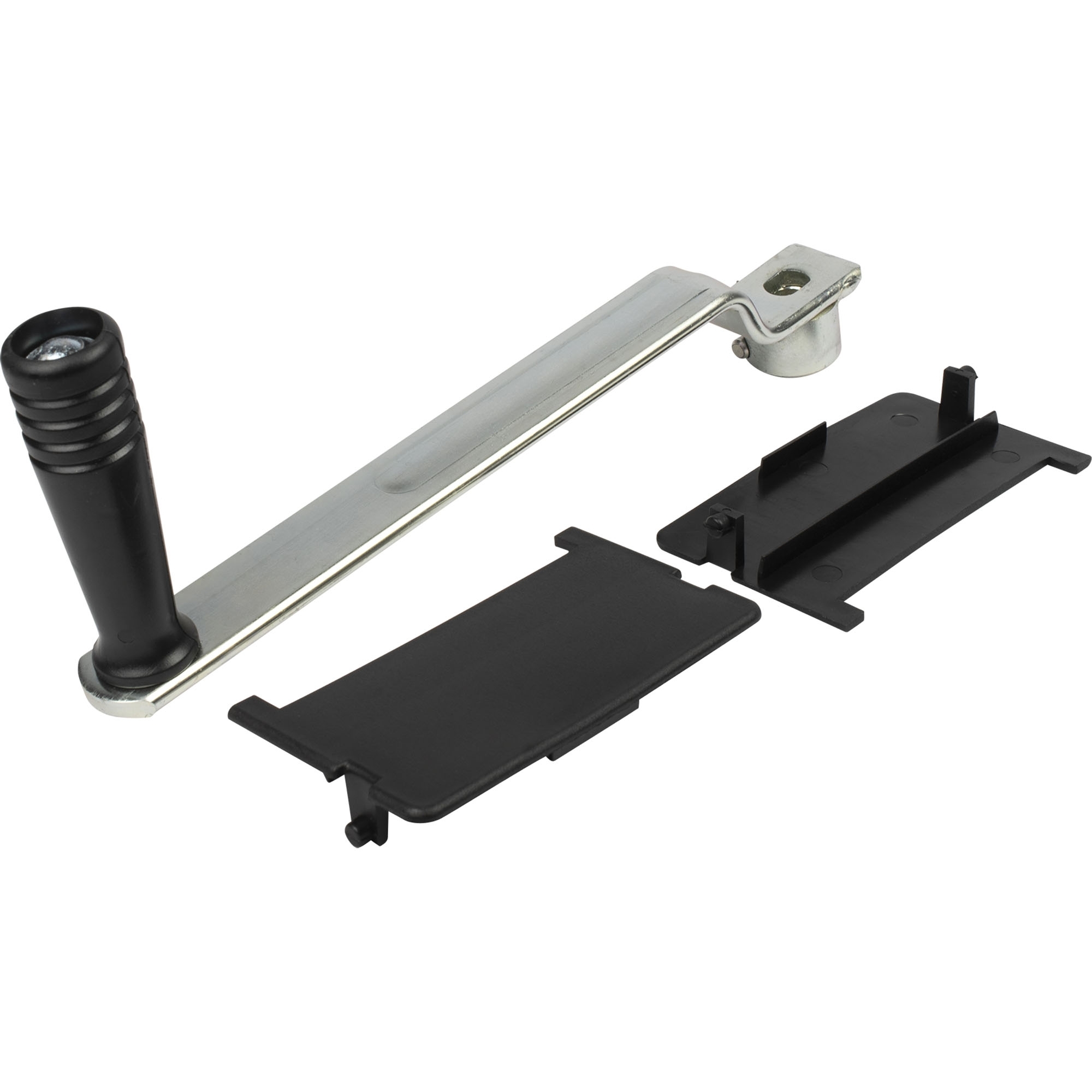

Crank for winch TPV and TS-winch, removable
