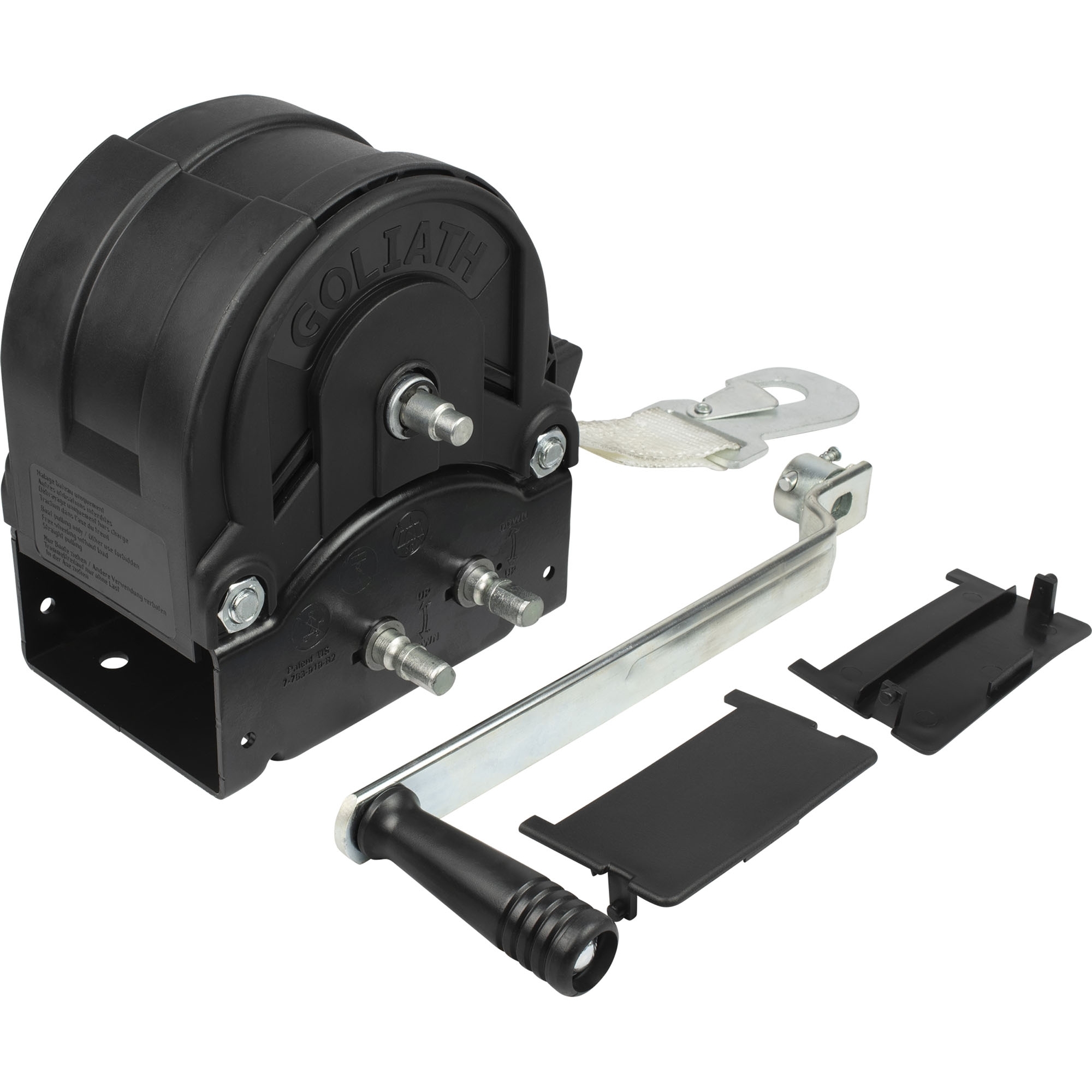

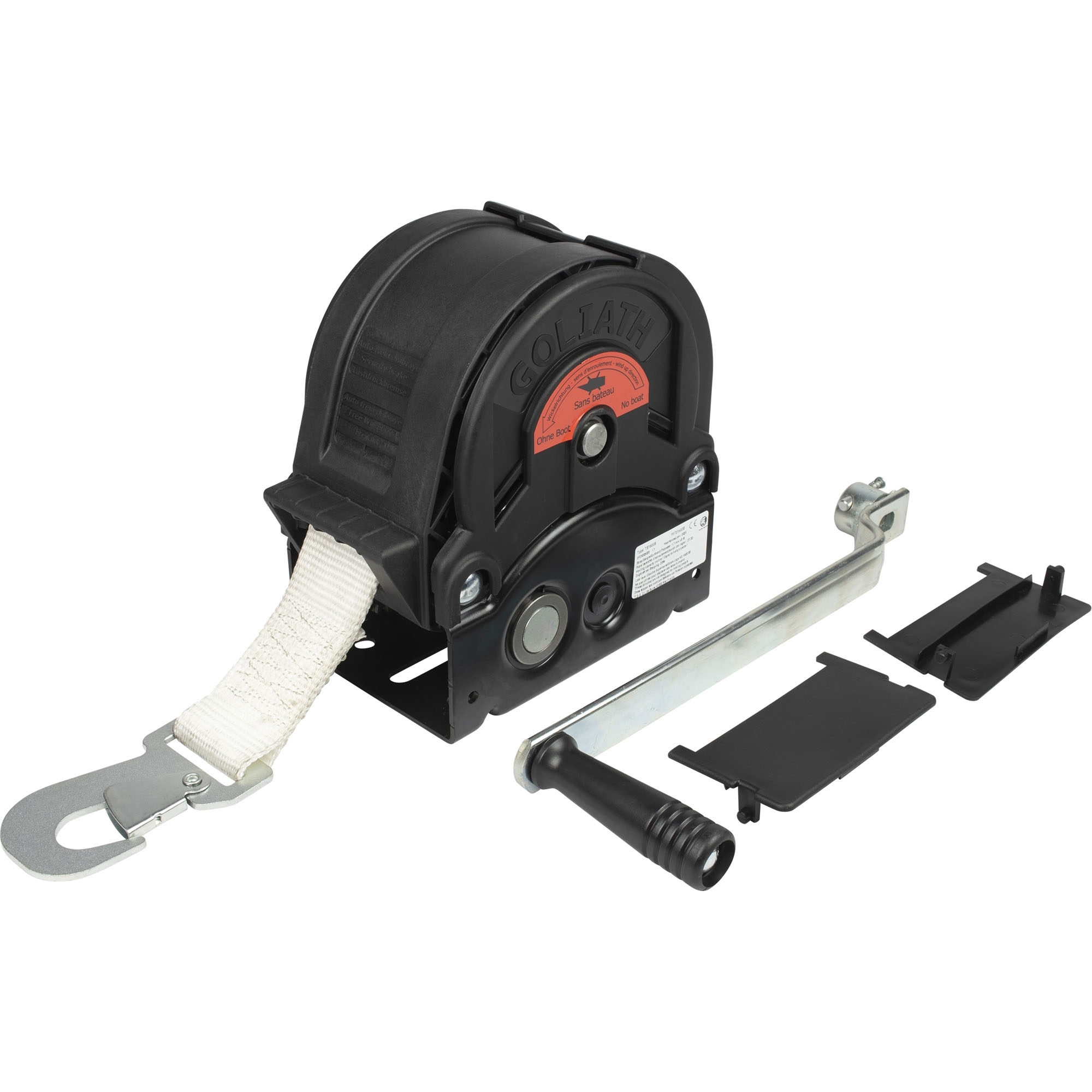

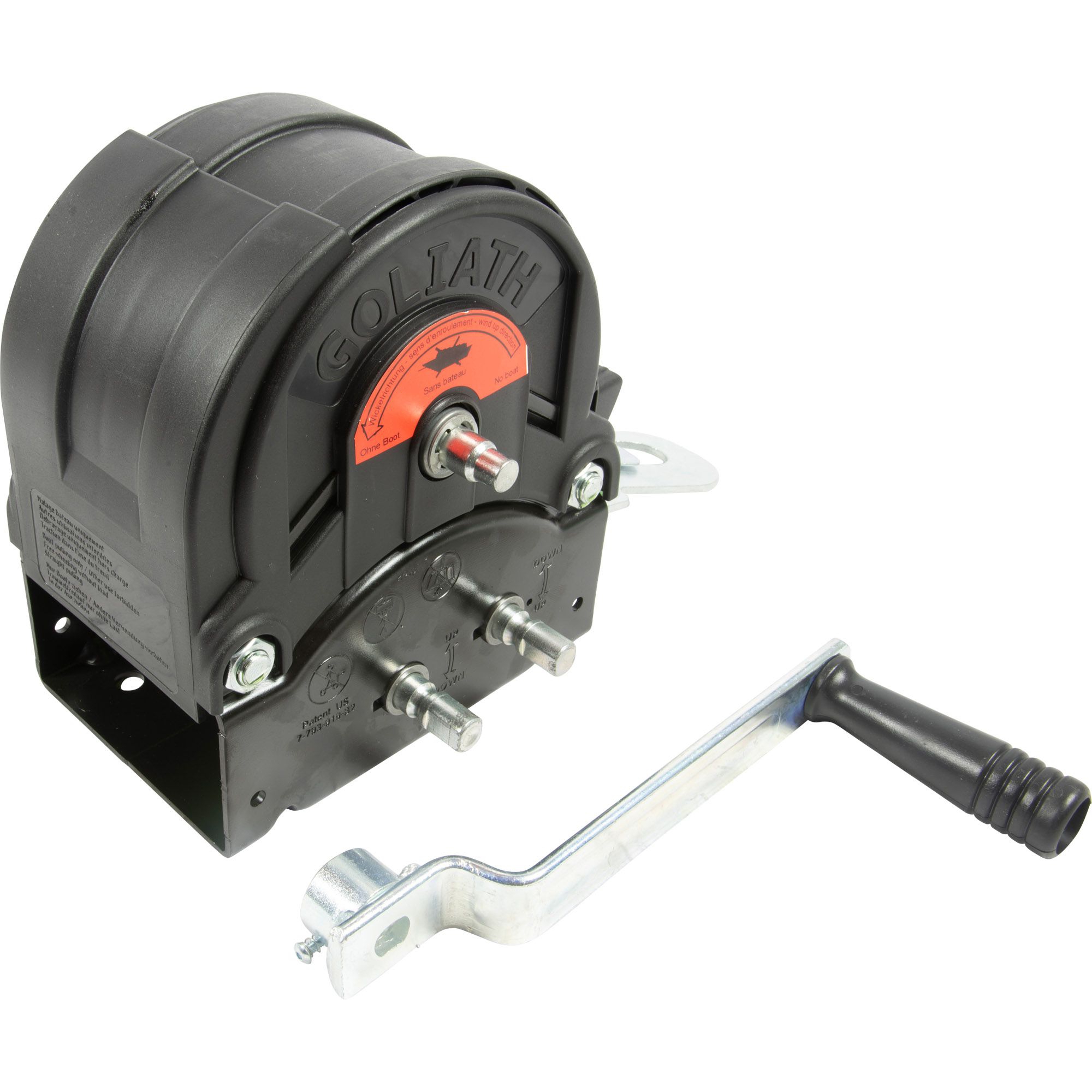

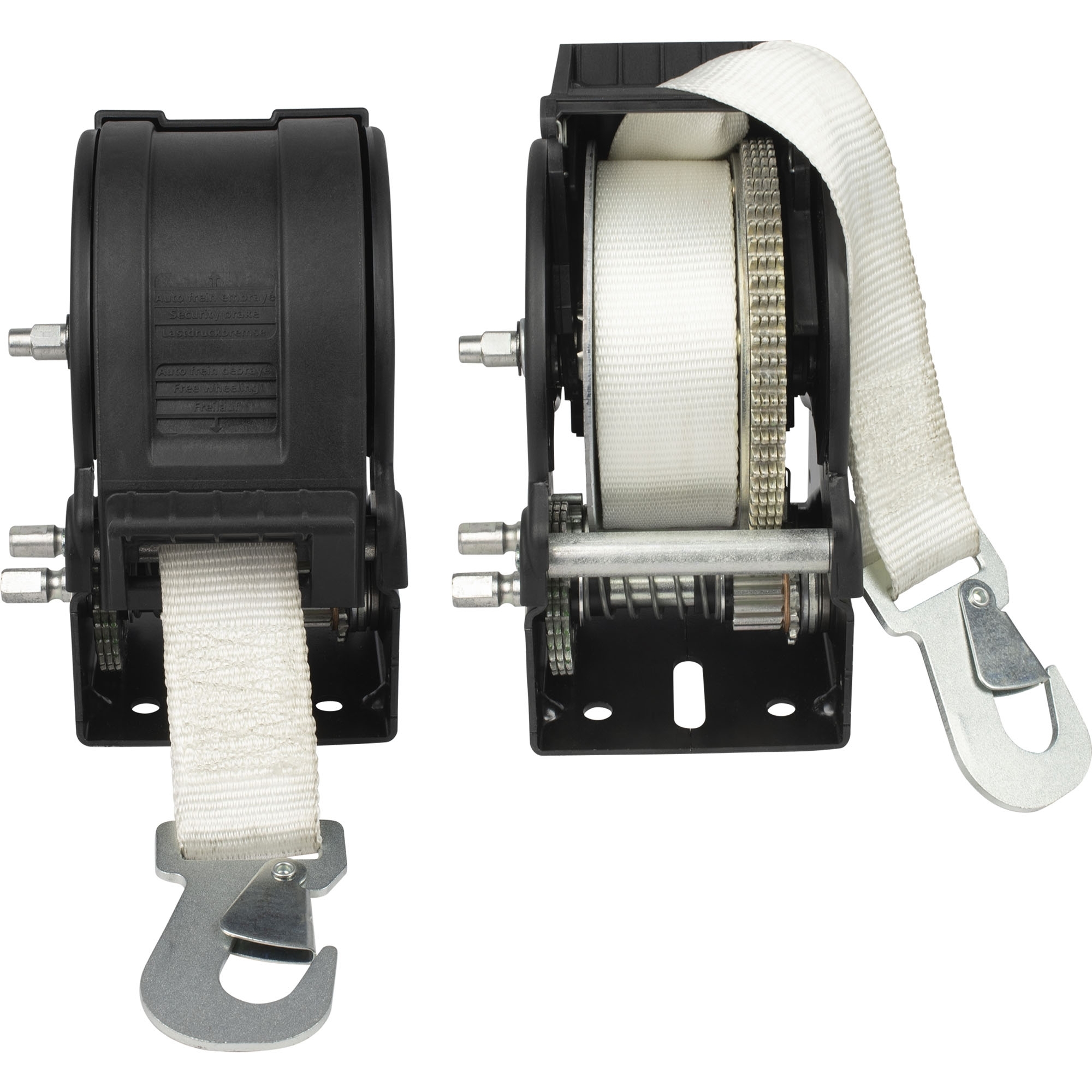

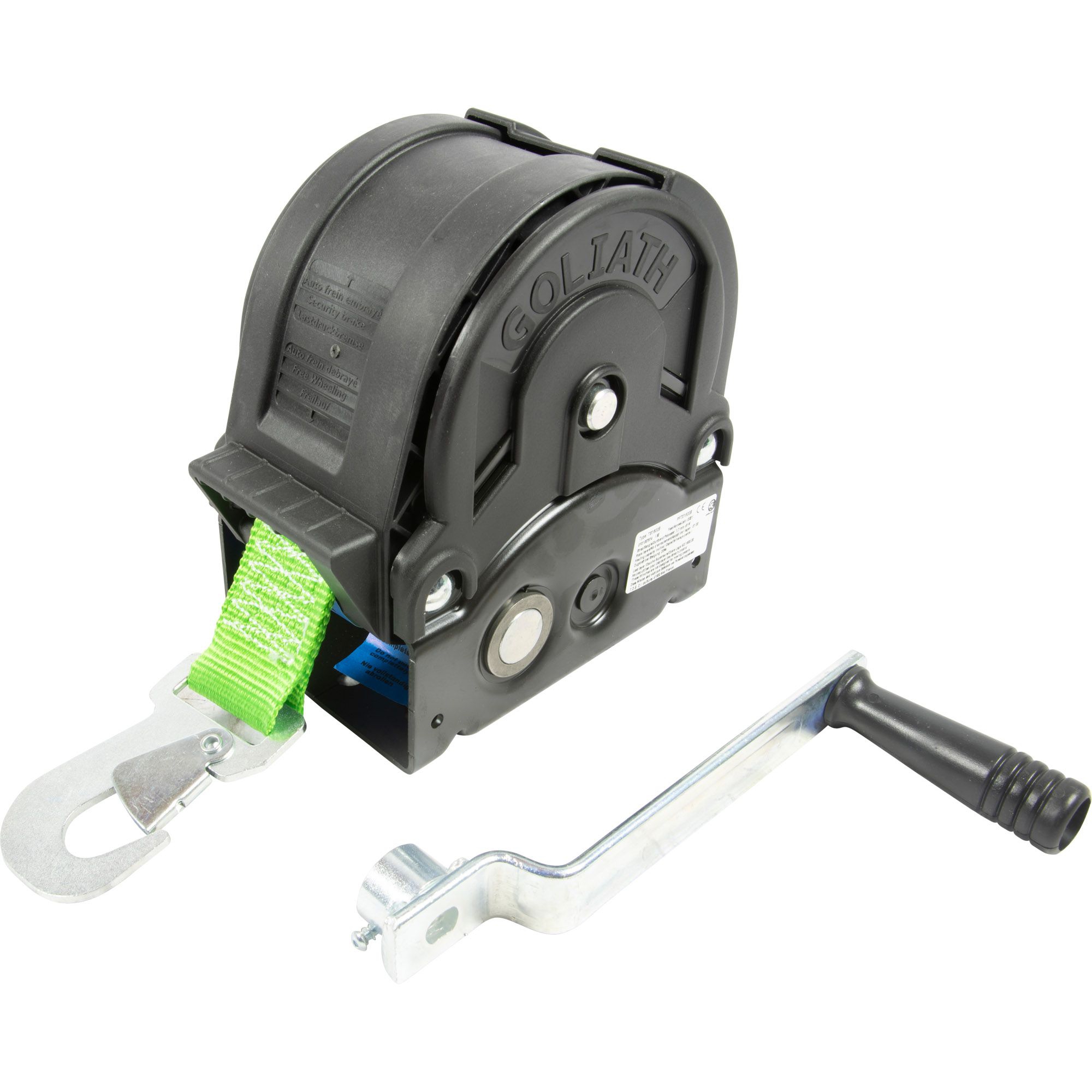

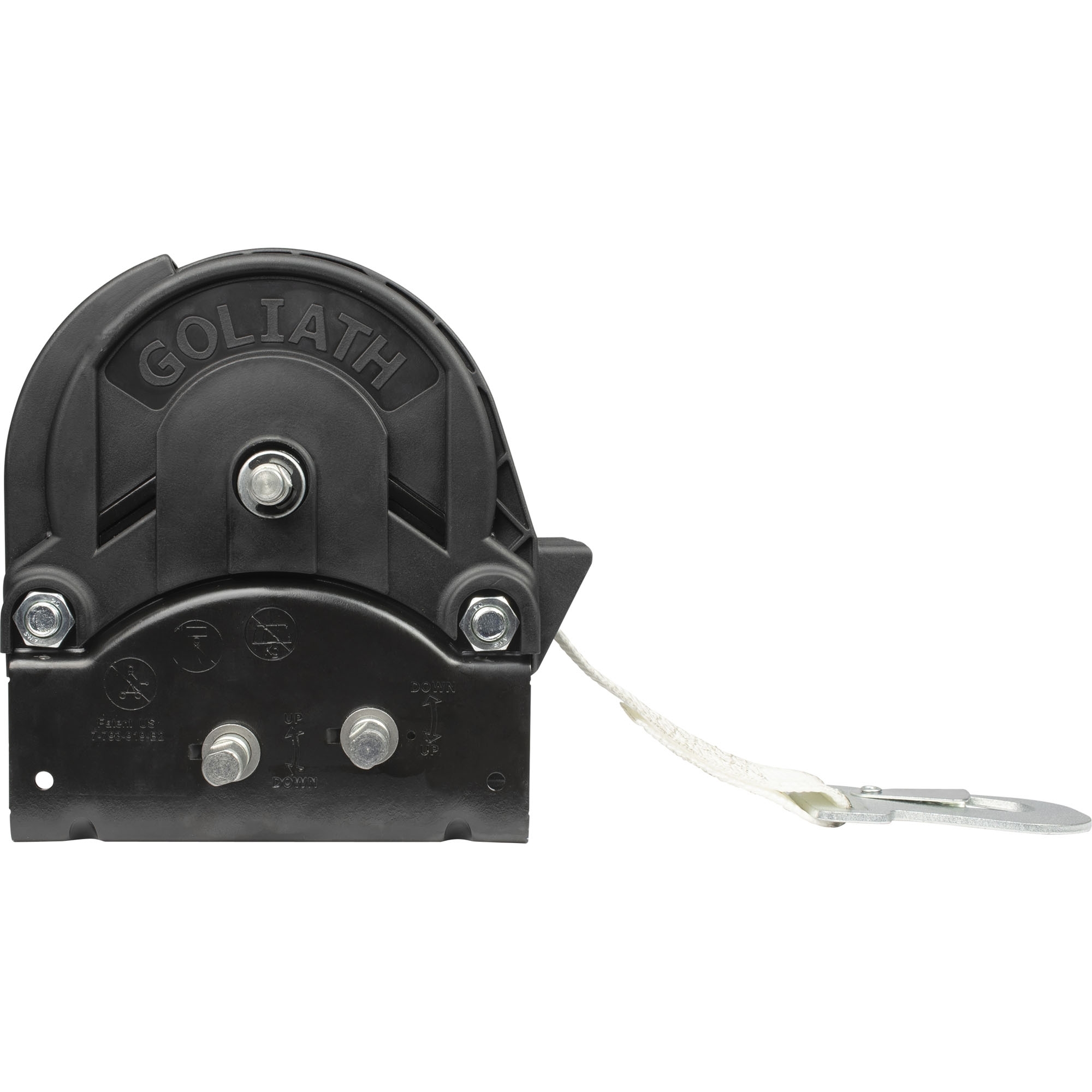

Product information "Cable Winch, TS1600, 1600 kg, Band 8 m"
Cable winch
Type TS1600
for Boat trailer (2-stage gear)
with 8 m band
Tensile force max. 1600 kg
Reduction 1 gear 4.85:1
Reduction 2 gear 9.71:1
Force per crank 5 daN at 1200 kg boat
Force per crank 7 daN at 1600 kg boat

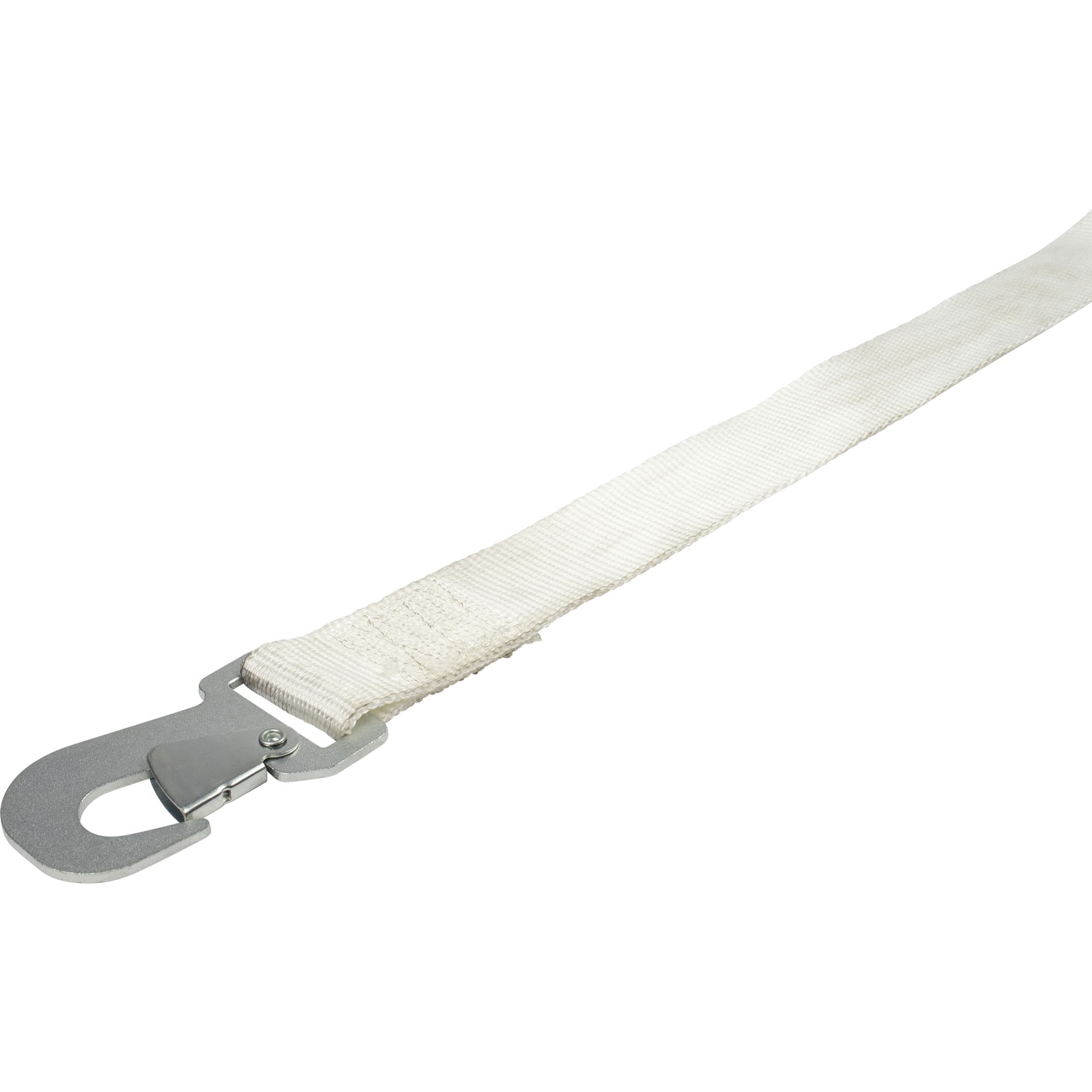

Band length 8 m
Band width 50 mm
Removable crank
Crank length 290 mm
Dimensions without crank 190 x 120 x 210 mm
Hole pattern 130 x 70 mm
With freewheel
Equipment
with patented safety system
Safety note: Cable winch not suitable for lifting loads, securing loads and transporting people!
| Breite: | 120 |
|---|---|
| Farbe: | schwarz |
| Gewicht: | 6.1 |
| Höhe: | 210 |
| Kurbelkraft 1 (daN): | 1200 |
| Kurbelkraft 2 (daN): | 1600 |
| Länge: | 190 |
| Material: | Stahl |
| Trommelkapazität Band (m): | 8 |
| Typ: | TS1600 |
| Untersetzung 1: | 4,85:1 |
| Untersetzung 2: | 9,71:1 |
| Zugkraft (kg): | 1600 |
| empfohlene VPE (Karton): | 1 |
Recommendation
Matching accessories
Skip product gallery
Zubehör
Crank for winch TPV and TS-winch, removable
Crank for winch TPV and TS-winch, removable, length 250 mm
Product number:
017800506
Prices visible after login
Register now
Register now

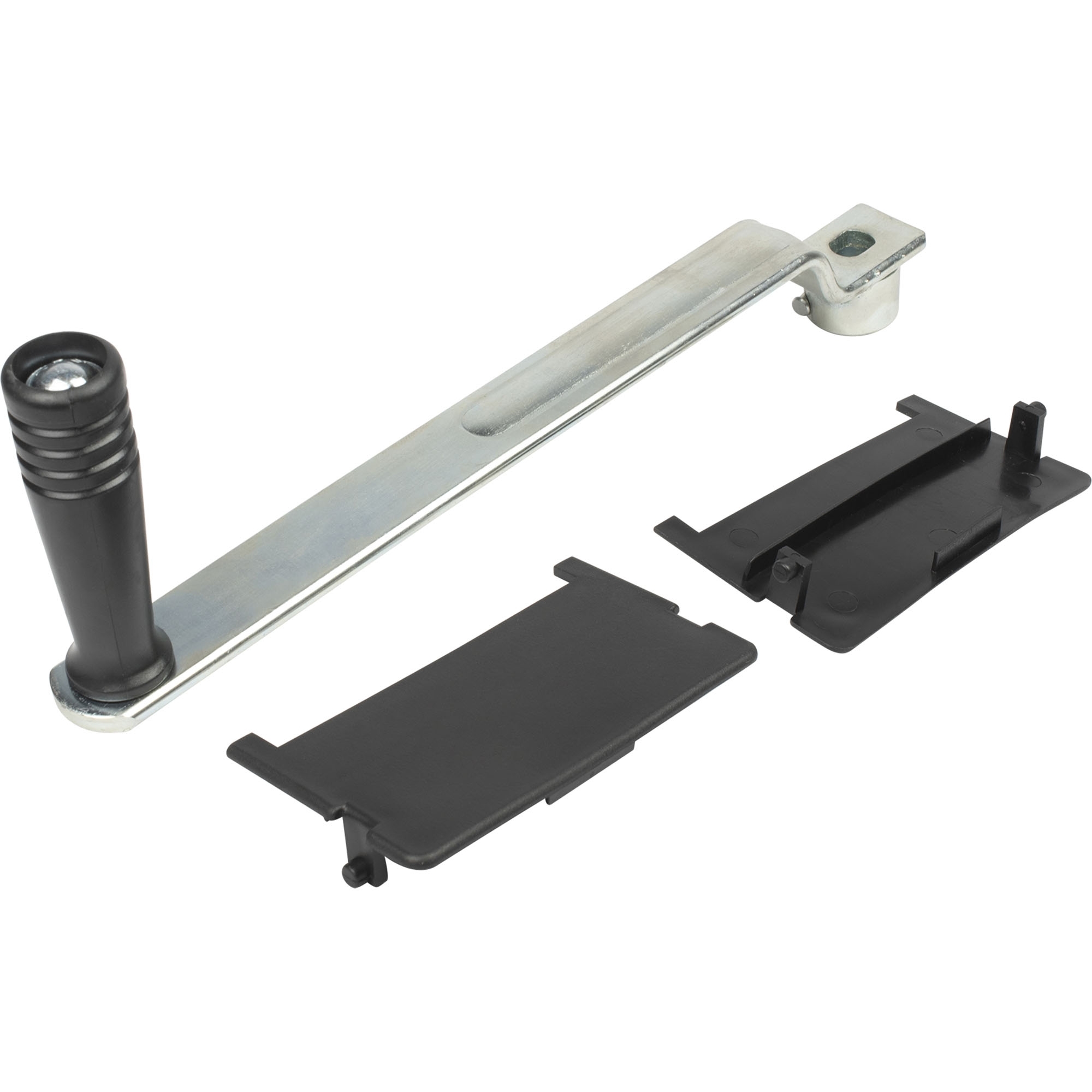

Crank for winch TS, removable, length 290 mm
