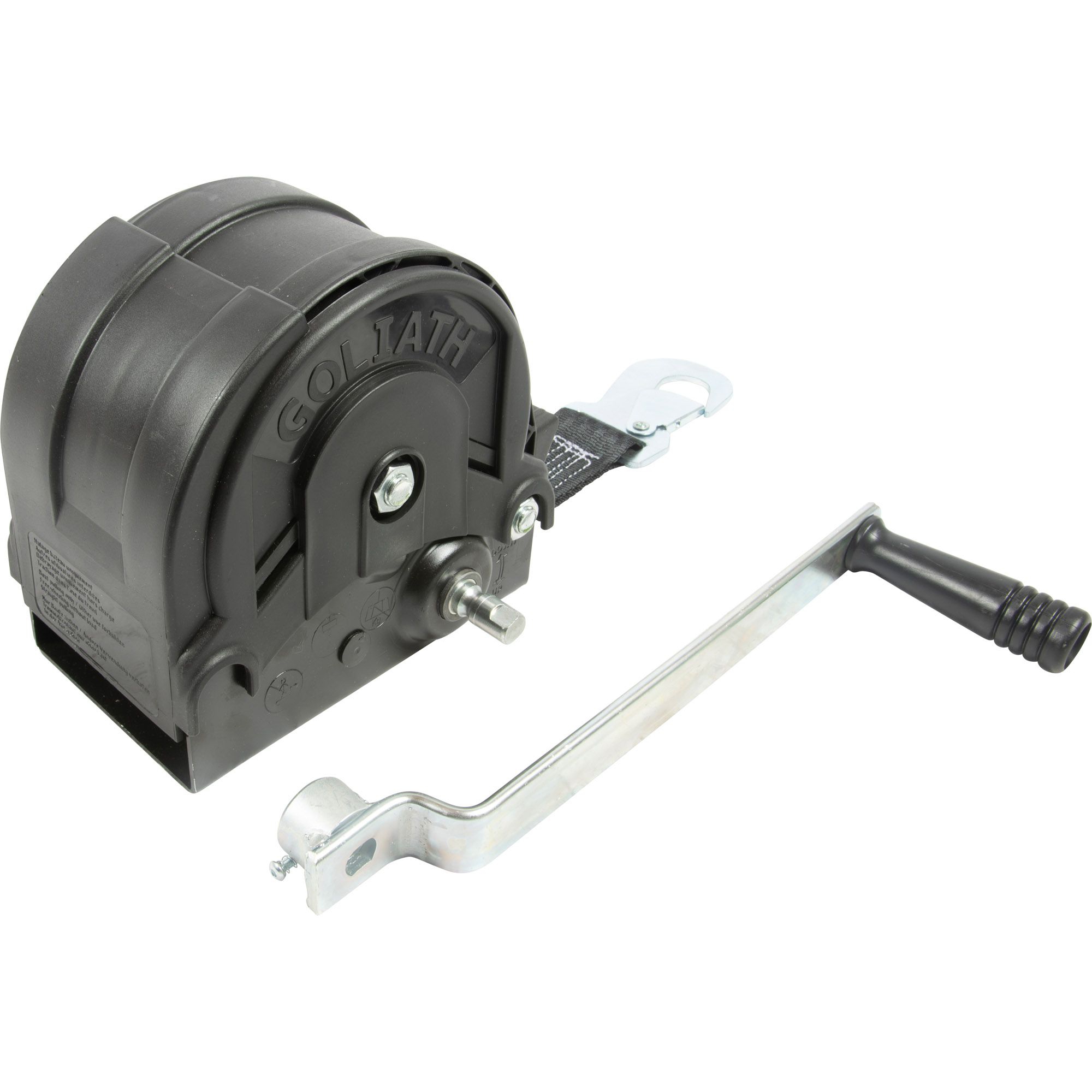

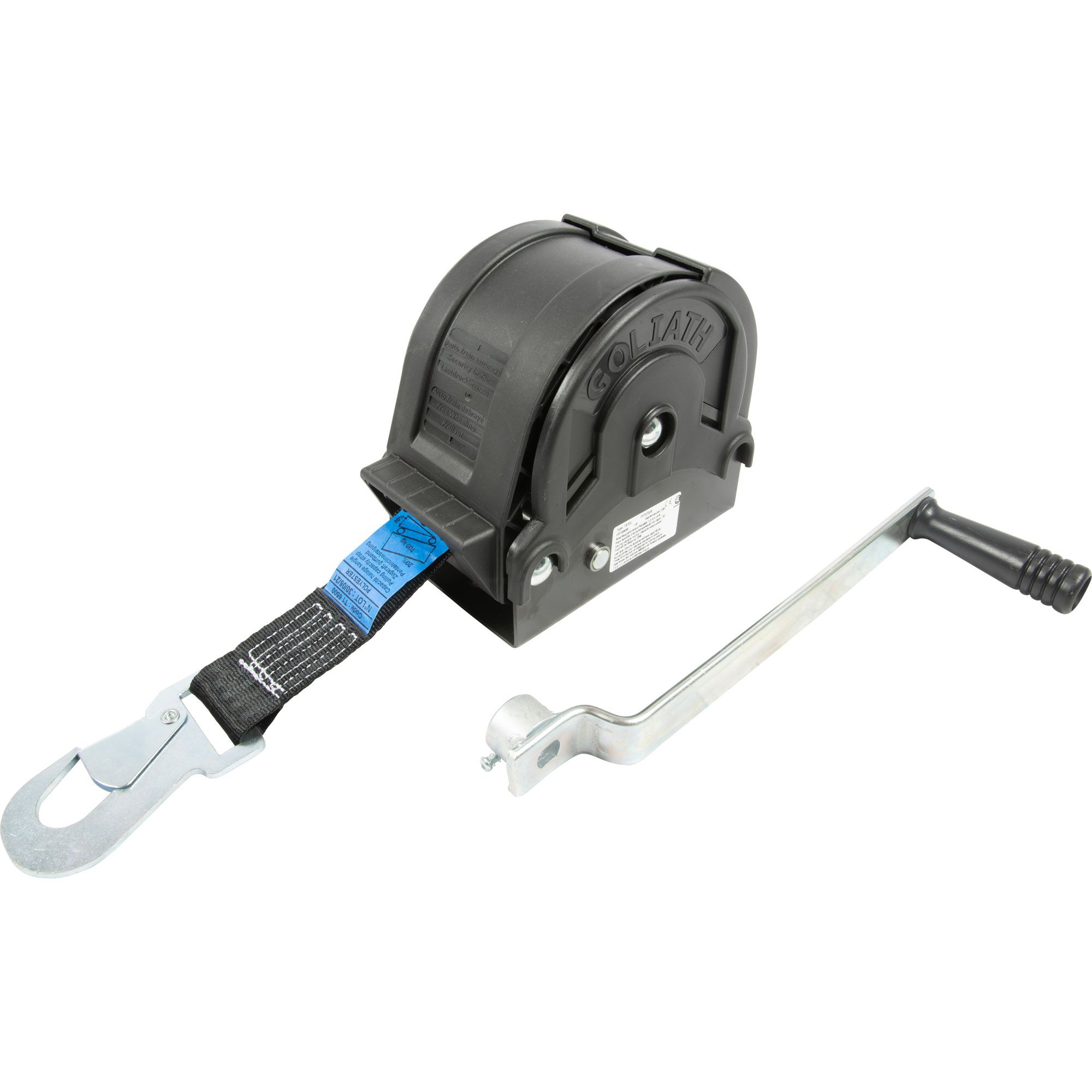

Product information "Cable Winch, TS700, 700 kg, Band 6 m, black"
Cable winch
Type TS700
for Boat trailer (1-stage gear)
with 6 m band
Tensile force max. 700 kg
Reduction 3.5 : 1
Force per crank 5 daN at 560 kg boat
Force per crank 7 daN at 700 kg boat
Band length 6 m
Band width 50 mm
Band color black
Removable crank
Crank length 290 mm
Dimensions without crank 190 x 120 x 185 mm
Hole pattern 130 x 70 mm
With freewheel
Equipment
with patented safety system
Safety note: Cable winch not suitable for lifting loads, securing loads and transporting people!
| Breite: | 120 |
|---|---|
| Farbe: | schwarz |
| Gewicht: | 4.7 |
| Höhe: | 185 |
| Kurbelkraft 1 (daN): | 560 |
| Kurbelkraft 2 (daN): | 700 |
| Länge: | 190 |
| Material: | Stahl |
| Trommelkapazität Band (m): | 6 |
| Typ: | TS700 |
| Untersetzung 1: | 3,5:1 |
| Zugkraft (kg): | 700 |
