Product number:
017800522

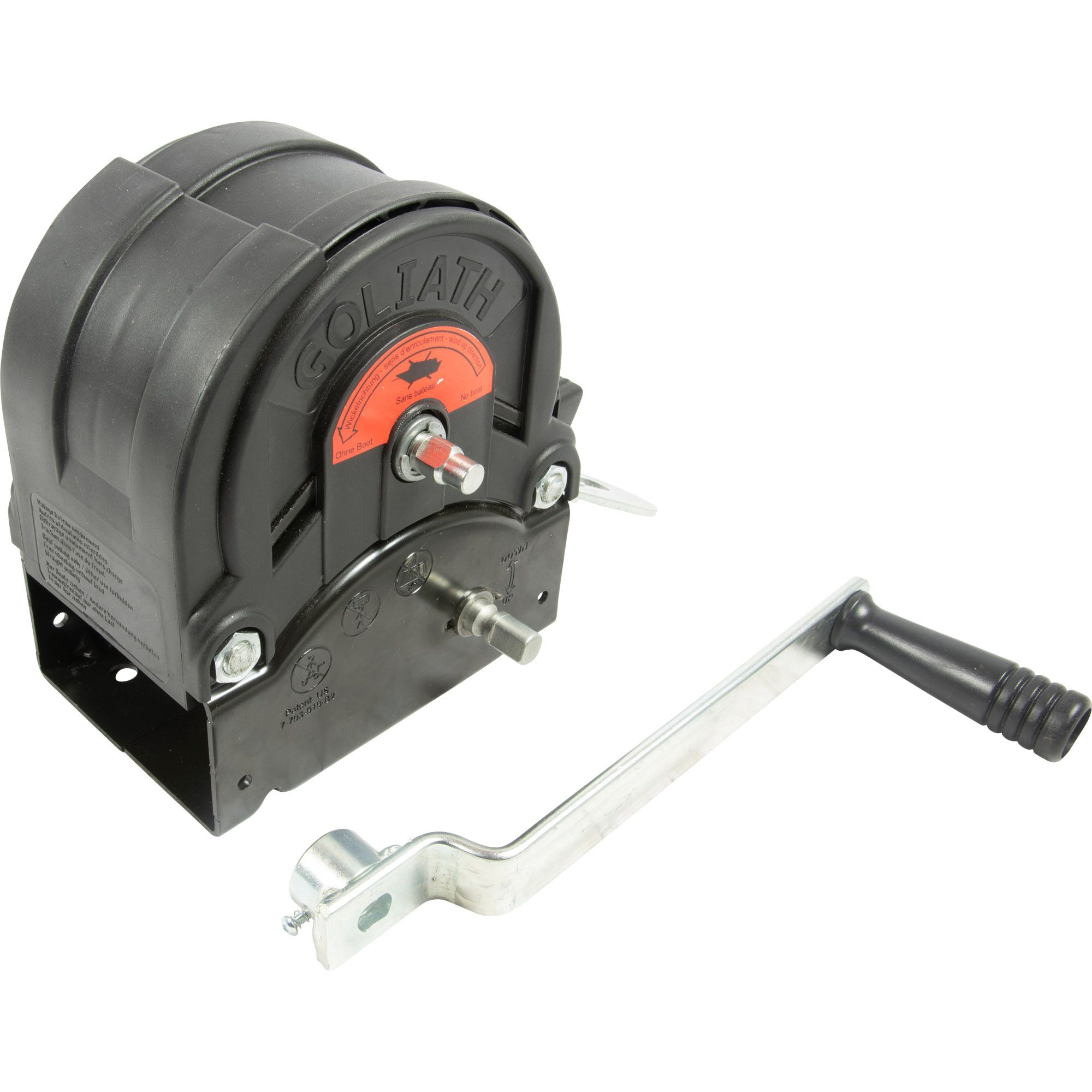

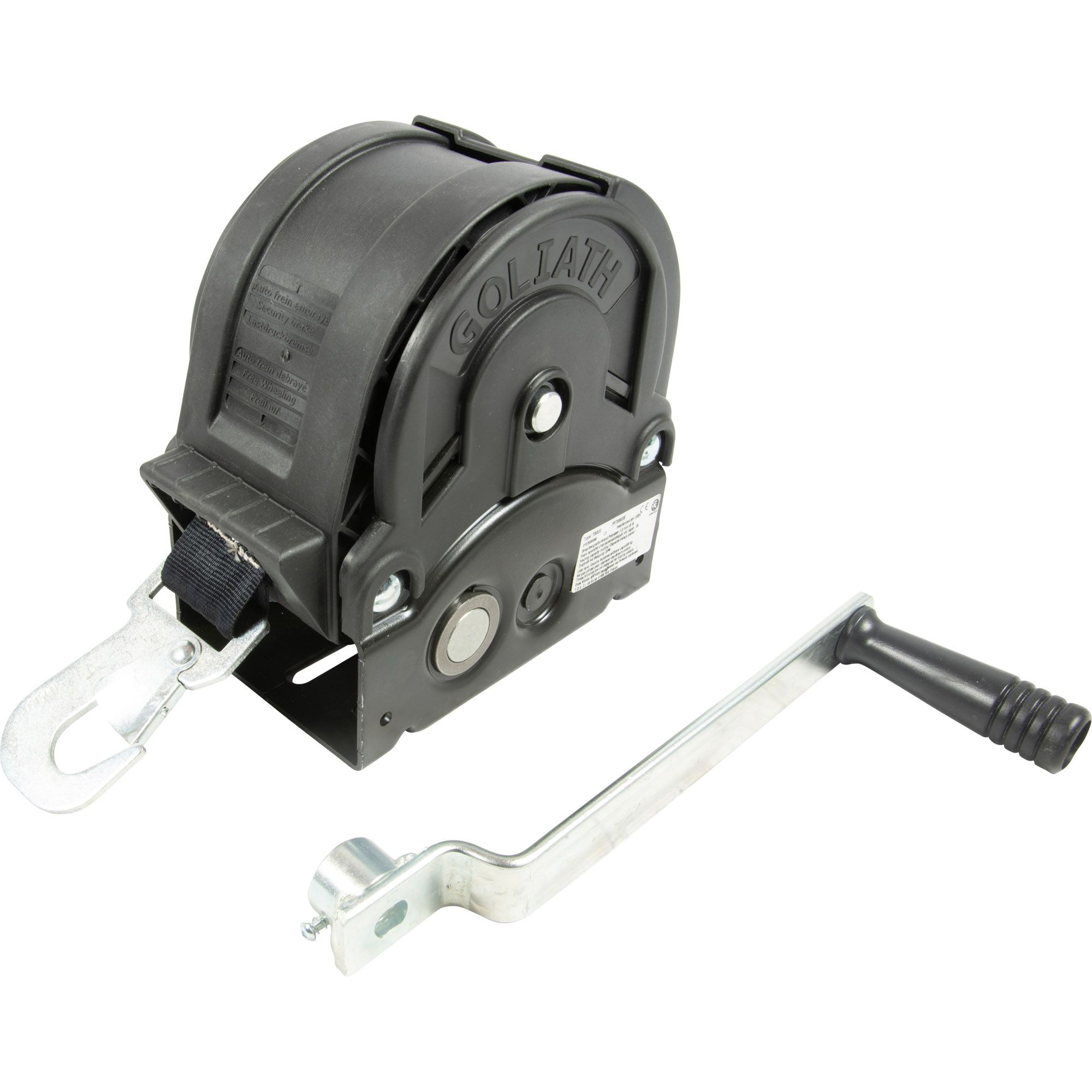

Product information "Cable Winch, TS800, 800 kg, Band 8 m, schwarz"
Cable winch
Type TS800
for Boat trailer (1-stage gear)
with 8 m band
Tensile force max. 800 kg
Reduction 4.85 : 1
Force per crank 5 daN at 590 kg boat
Force per crank 7 daN at 780 kg boat
Band length 8 m
Band width 50 mm
Band color black
Removable crank
Crank length 250 mm
Dimensions without crank 190 x 120 x 210 mm
Hole pattern 130 x 70 mm
With freewheel
Equipment
with patented safety system
Safety note: Cable winch not suitable for lifting loads, securing loads and transporting people!
| Breite: | 120 |
|---|---|
| Farbe: | schwarz |
| Gewicht: | 5.7 |
| Höhe: | 210 |
| Kurbelkraft 1 (daN): | 590 |
| Kurbelkraft 2 (daN): | 780 |
| Länge: | 190 |
| Material: | Stahl |
| Trommelkapazität Band (m): | 8 |
| Typ: | TS800 |
| Untersetzung 1: | 4,85:1 |
| Zugkraft (kg): | 800 |
