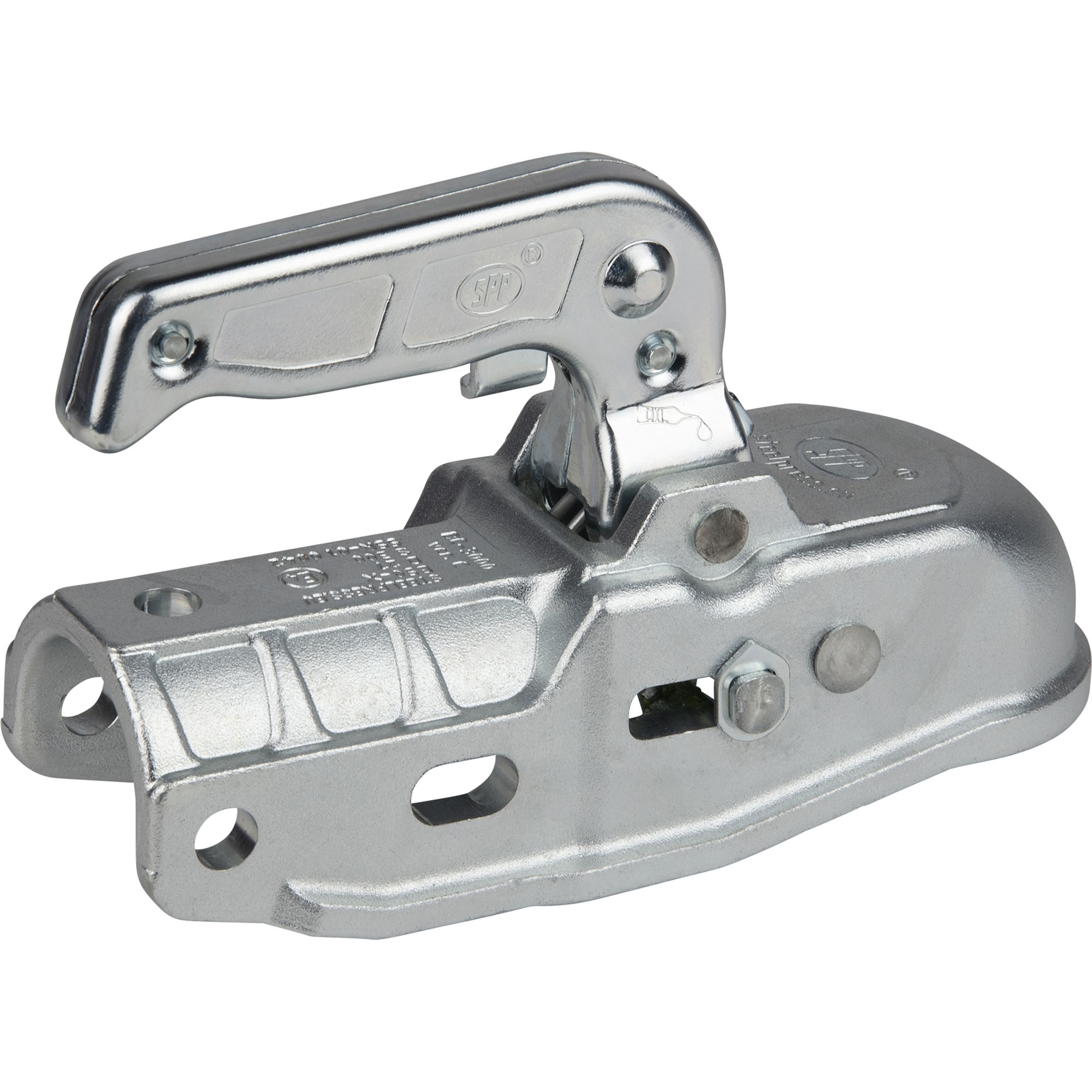

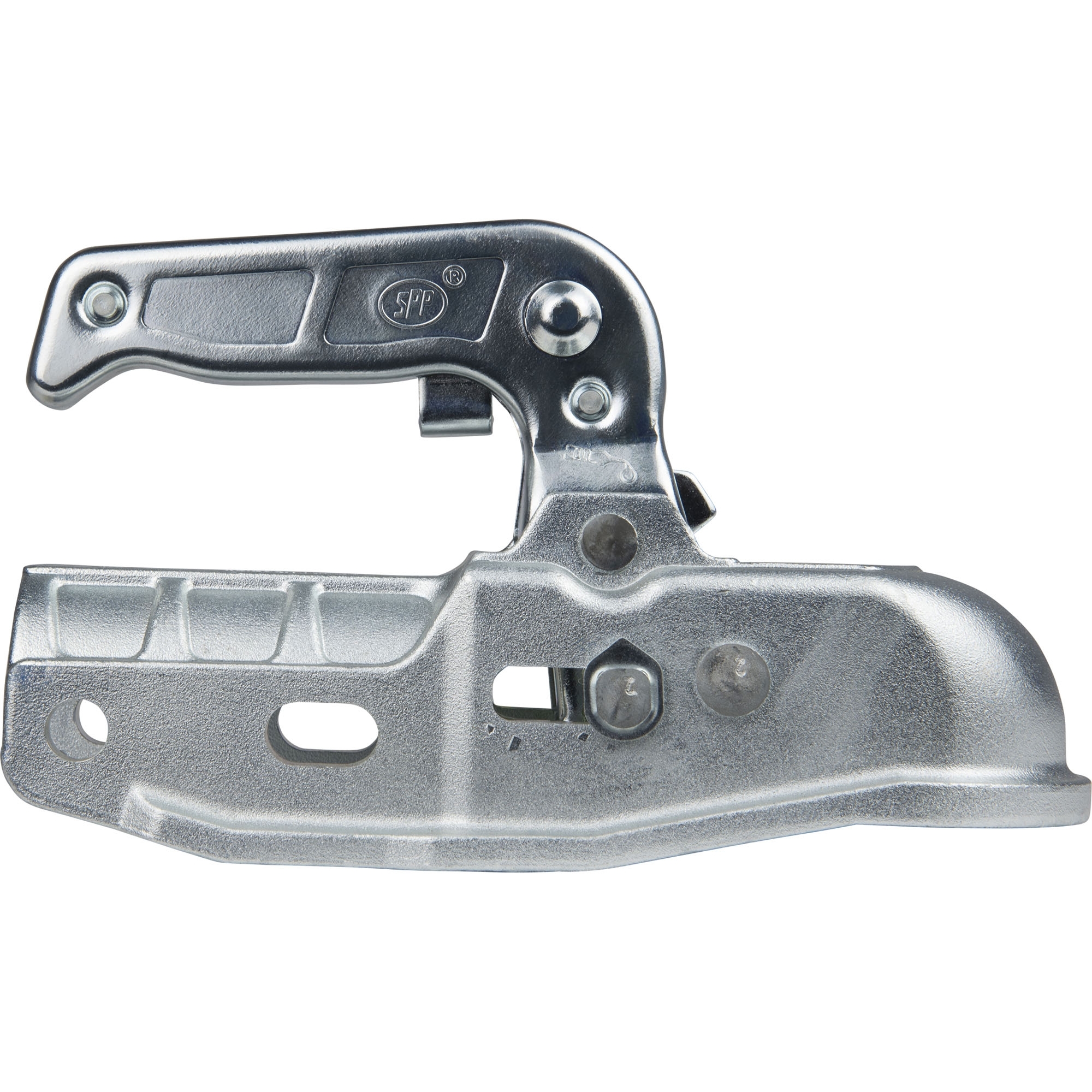

Product information "Coupling Head, 3000 kg, SPP BC-3000C, Ø 50 mm"
Coupling Head SPP
BC-3000C
Perm. gross weight 3000 kg
Nose load 300 kg
Drawbar-Ø 50 mm
Hole horizontal Ø 12.5 mm
Hole vertical Ø 12.5 mm
Hole distance horizontal 44 - 54 mm
Hole distance vertical 40 mm
Product info Technical details
| Ausführung: | C |
|---|---|
| Bohrung senkrecht (mm): | 12,5 |
| Bohrung waagrecht (mm): | 12,5 |
| Durchmesser (mm): | 50 |
| Form: | rund |
| Gewicht: | 2.873 |
| Hersteller: | SPP |
| Lochabstand senkrecht (mm): | 40 |
| Lochabstand waagrecht (mm): | 44 - 54 |
| Material: | Guss |
| Stützlast (kg): | 300 |
| Typ: | BC - 3000 |
| empfohlene VPE (Karton): | 8 |
| empfohlene VPE (Palette): | 200 |
| zul. Gesamtgewicht (kg): | 3000 |
