Product number:
016013095

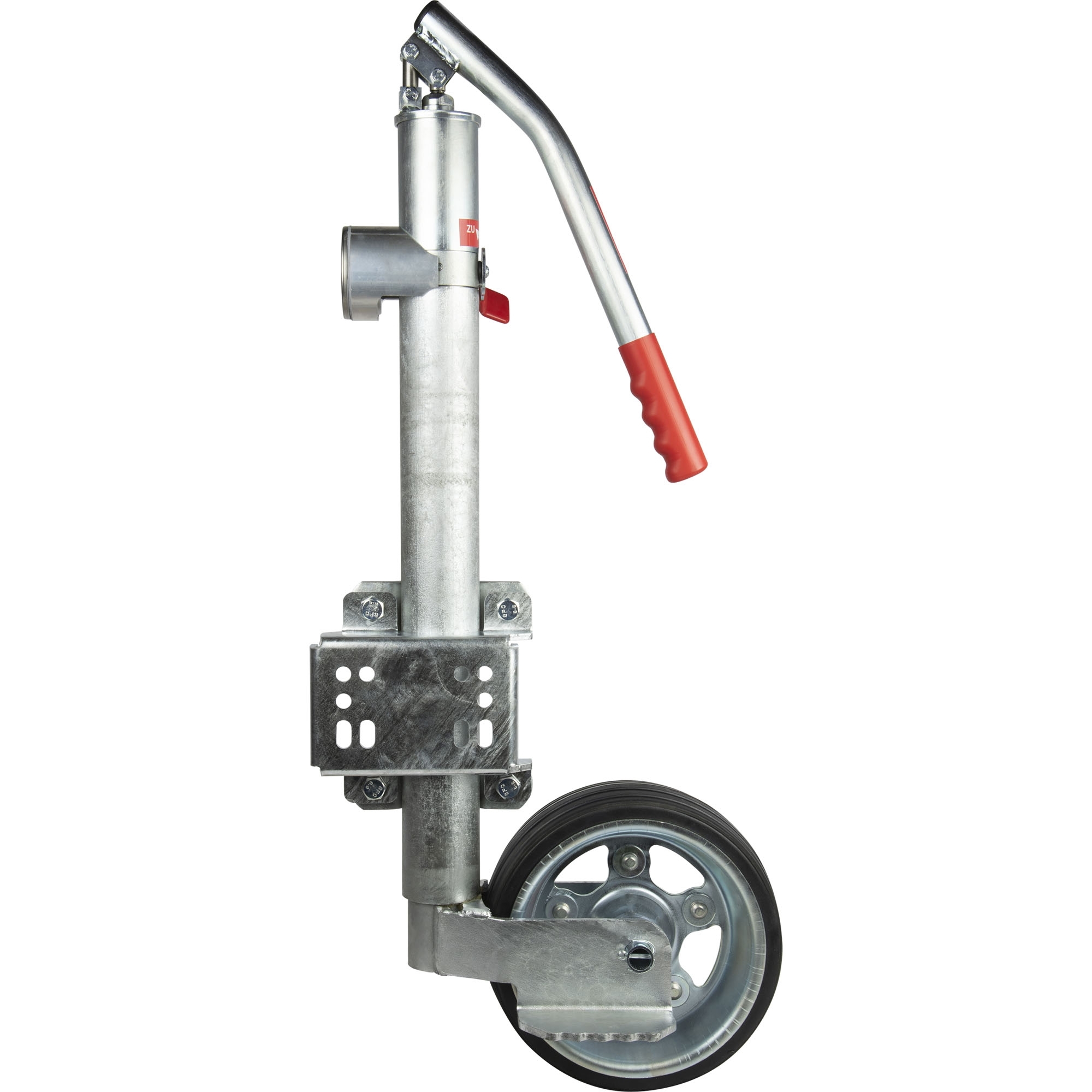

Product information "Hydraulic jockey wheel, Ø 60 mm, nose load indicator"

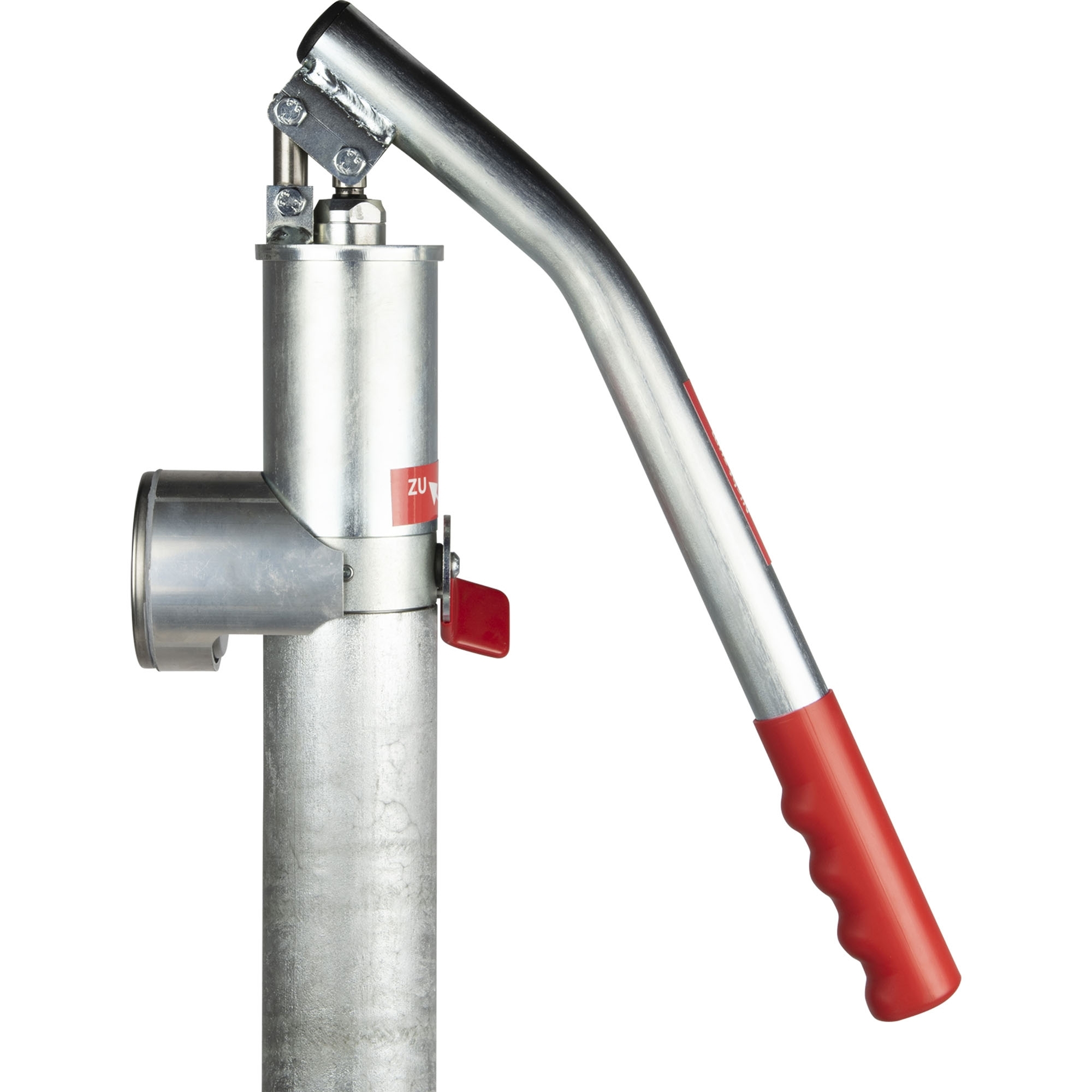

Jockey wheel with hydraulic pump mechanism
with adjustable mounting plate

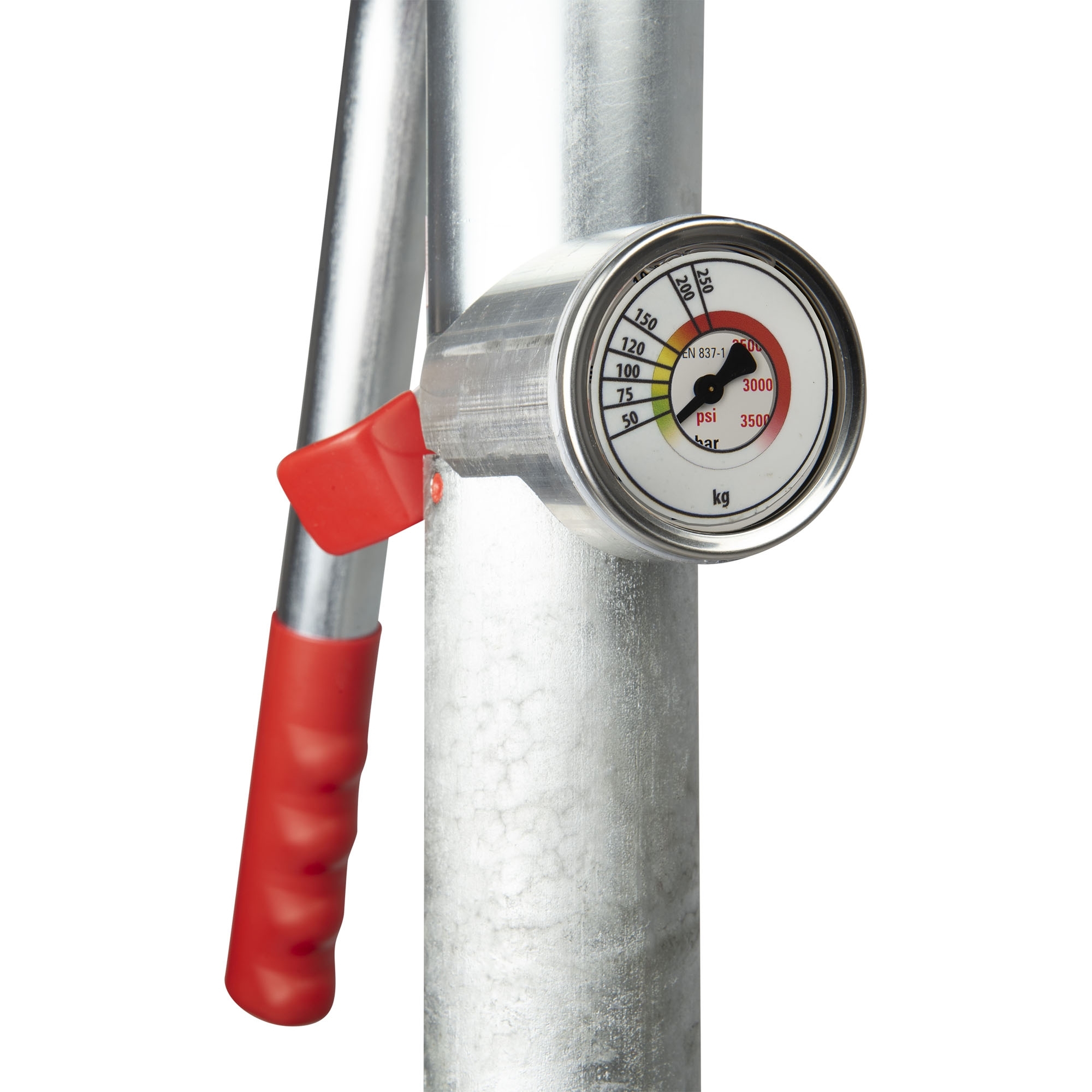

with nose load indicator
with spring latch
Fast extension with side step

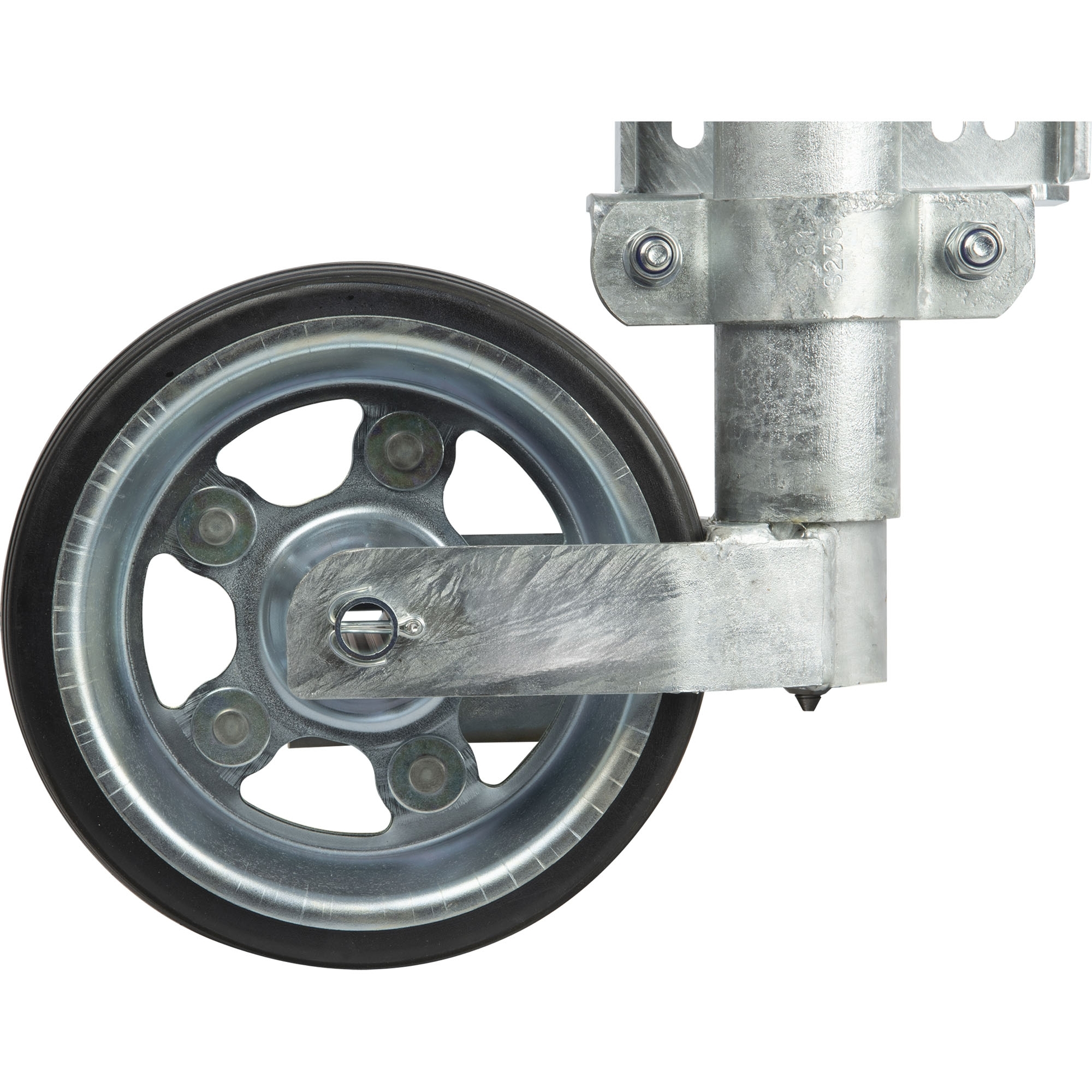

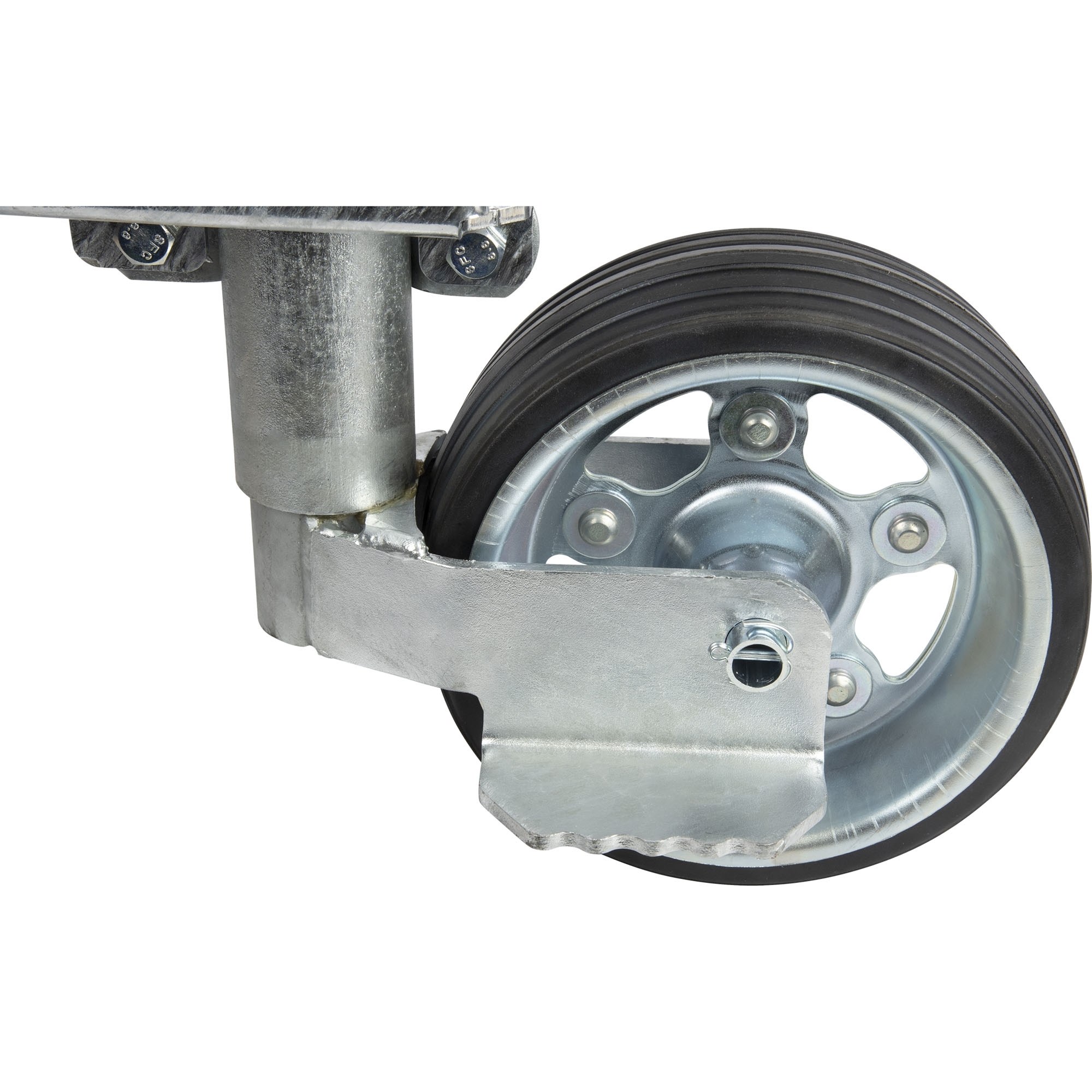

Solid rubber wheel with steel rim
Wheel dimensions 230 x 80 mm
Nose load 600 kg
Tube length 590 mm
Tube-Ø 60 mm
Stroke 350 mm
Material steel, galvanized
| Durchmesser (mm): | 60 |
|---|---|
| Gewicht: | 17.686 |
| Hersteller: | Frielitz |
| Hub (mm): | 350 |
| Höhe: | 60 |
| Material: | Stahl |
| Reifen-Ø (mm): | 230 |
| Reifenbreite (mm): | 80 |
| Rohrlänge (mm): | 590 |
| Stützlast (kg): | 600 |
| empfohlene VPE (Karton): | 2 |
| empfohlene VPE (Palette): | 25 |
Login
Skip product gallery
Zubehör
Solid Rubber Wheel, 230x80 mm, Steel Rim
Solid rubber wheel for jockey wheel
with steel rim
Wheel 230 x 80 mm
Hub-Ø inside 20 mm
Hub-Ø outside 49 mm
Capacity max. 500 kg
Hub length 96 mm
Product number:
016013079
Maneuvering Handle for Jockey Wheel Ø 60 mm
Maneuvering handle
for jockey wheel Ø 60 mm
Color
Material plastic
Product number:
012100212
