Hydraulics
Filter products
–
2 Taster Cable Remote Control for electro-hydraulic compact units
Cable Length: 4000 mm
Includes holder and LED battery indicator
Product number:
015000370

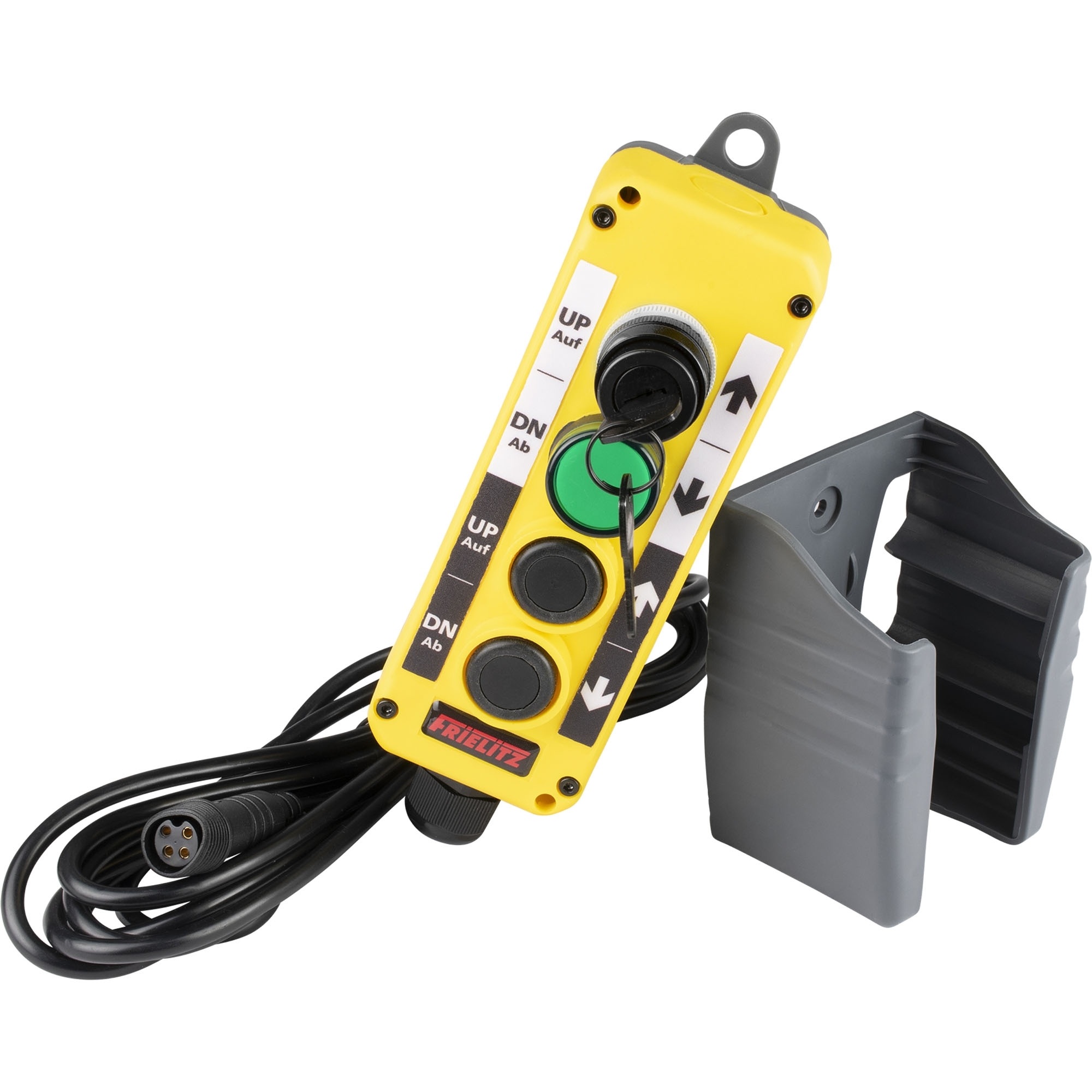

2 Taster Cable Remote Control for electro-hydraulic compact units
Cable Length: 4000 mm
lockable
Includes holder
Product number:
015000371
Adapter for tank plastic
Set consisting of adapter, screws, O-ring
and fuel pumps
Product number:
015000253
Chapel attachment set for manual pump
incl. tube, filter, O-ring, fan
Product number:
015000208
Casting for pump head, new version PMA1
Product number:
015000228
Coil for Chapel electro hydraulic pump
Product number:
015000331
Connector set, for pump head, since August 2006
Product number:
015000232
DC Power Unit, Double-acting, 3.1 litre,
E-engine 1800W/12V
- Plastic tank, lucent, filling- and venting filter
- DC motor with SmartStart-Relais
- Pressure relief valve 180 bar
- 4/3-Way solenoid valve, Neutral position A-B-P-T closed
- Connection A + B = G3/8 female thread
- Valid on-time approx. 10% ED
To temporarily supply double-acting cylinders e.g small dumper trucks,
tail lifts, lifting platforms.
Product number:
015000600
Drain valve for Chapel manual pump, type JPTOB
Product number:
015000202
Electric lift limiter
Protection class IP 65
Voltage 12V
Product number:
015000338
Electro hydraulic aggregate
12 V DC-Motor
1800 W
output 5,0 ccm
max. pressure 200 bar
Tank 5 litre
without remote control
Dimensions about 450 x 220 x 250 mm
Product number:
015001100
Electro-Hydraulic Compact Unit 12V
12V DC, 1.8 kW
For single-acting hydraulic cylinders
Connection G3/8"
Flow rate: 3.1 cc/rev
Pressure relief valve
Check valve
Lowering valve
10L plastic tank
Wired remote control with 4000 mm cable length
Horizontal mounting position
L x W x H: 740 x 180 x 180 mm
Product number:
015000364
Electro-Hydraulic Compact Unit 12V
12V DC, 1.8 kW
For single-acting hydraulic cylinders
Connection G3/8"
Flow rate: 3.1 cc/rev
Pressure relief valve
Check valve
Lowering valve
5L plastic tank
Wired remote control with 4000 mm cable length
Horizontal mounting position
L x W x H: 500 x 180 x 180 mm
Product number:
015000362
Electro-Hydraulic Compact Unit 12V
12V DC, 1.8 kW
For single-acting hydraulic cylinders
Connection G3/8"
Flow rate: 3.1 cc/rev
Pressure relief valve
Check valve
Lowering valve
8L plastic tank
Wired remote control with 4000 mm cable length
Horizontal mounting position
L x W x H: 650 x 180 x 180 mm
Product number:
015000363
Electronic stroke arresting device
limit switch 12 / 24 V
Product number:
015000320
Electrohydraulic Compact Unit 12V
12V DC, 2.0KW
For double-acting hydraulic cylinders
P/T aluminum control block
NG6 aluminium stack block
Connection G3/8"
Flow rate 2.1 cc/rev
12V NG6 Cetop3 4/3-way solenoid valve
A/B/P/T closed
Pressure relief valve
Check valve
4L plastic tank
Cable remote control with 4000 mm cable length
Without hydraulic oil, without electrical supply lines
Horizontal installation position
L x W x H: 200 x 230 x 200
Product number:
015000365
Electrohydraulic Compact Unit 12V
12V DC, 2.0KW
For single-acting hydraulic cylinders
P/T aluminum control block
Connection G3/8"
Flow rate 3.2 cc/rev
12V 2/2 way solenoid valve
Throttle valve
Pressure relief valve
Check valve
4L plastic tank
Cable remote control with LED battery indicator and holder
Cable length 4000 mm
Without hydraulic oil, without electrical supply lines
Horizontal installation position
Product number:
015000358
Electrohydraulic Compact Unit 12V
12V DC, 2.0KW
For single-acting hydraulic cylinders
P/T aluminum control block
Connection G3/8"
Flow rate 3.2 cc/rev
12V 2/2 way solenoid valve
Throttle valve
Pressure relief valve
Check valve
7L plastic tank
Cable remote control with LED battery indicator and holder
Cable length 4000 mm
Without hydraulic oil, without electrical supply lines
Horizontal installation position
L x W x H: 497 x 211 x 198
Product number:
015000360

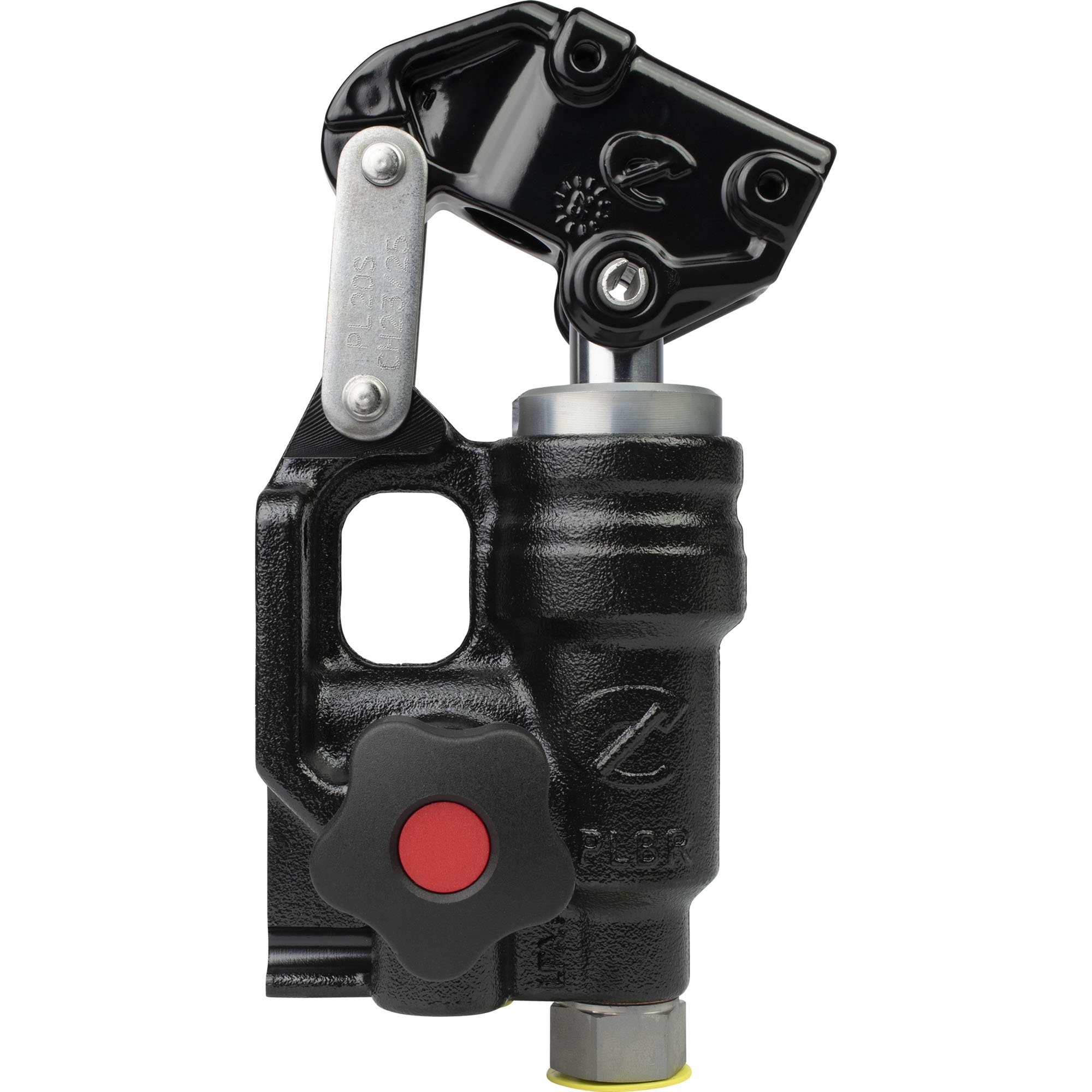

Emergency hand pump for line installation
without tank
Material aluminium
Volume 25 cm³
Pressure 200 bar
Supplement for single acting cylinder
Product number:
015001110
Emergency hand pump for line installation
without tank
Supplement for Electrohydraulic Unit
Product number:
015000212
Engine Cover
for hydraulic unit 015001100
Material plastic
Colour black
Product number:
015001100/1
Gimbal for 015001047 / 048 / 049
Capacity max. 8,0 t
Product number:
015001050
Handwheel incl. Valve
KIT - RUBINETTO POMPA "GH-HPR" - V08 + SFERA + GRN
suitable for item 015001124/125
Product number:
015001126
