Hydraulic aggregates and accessories

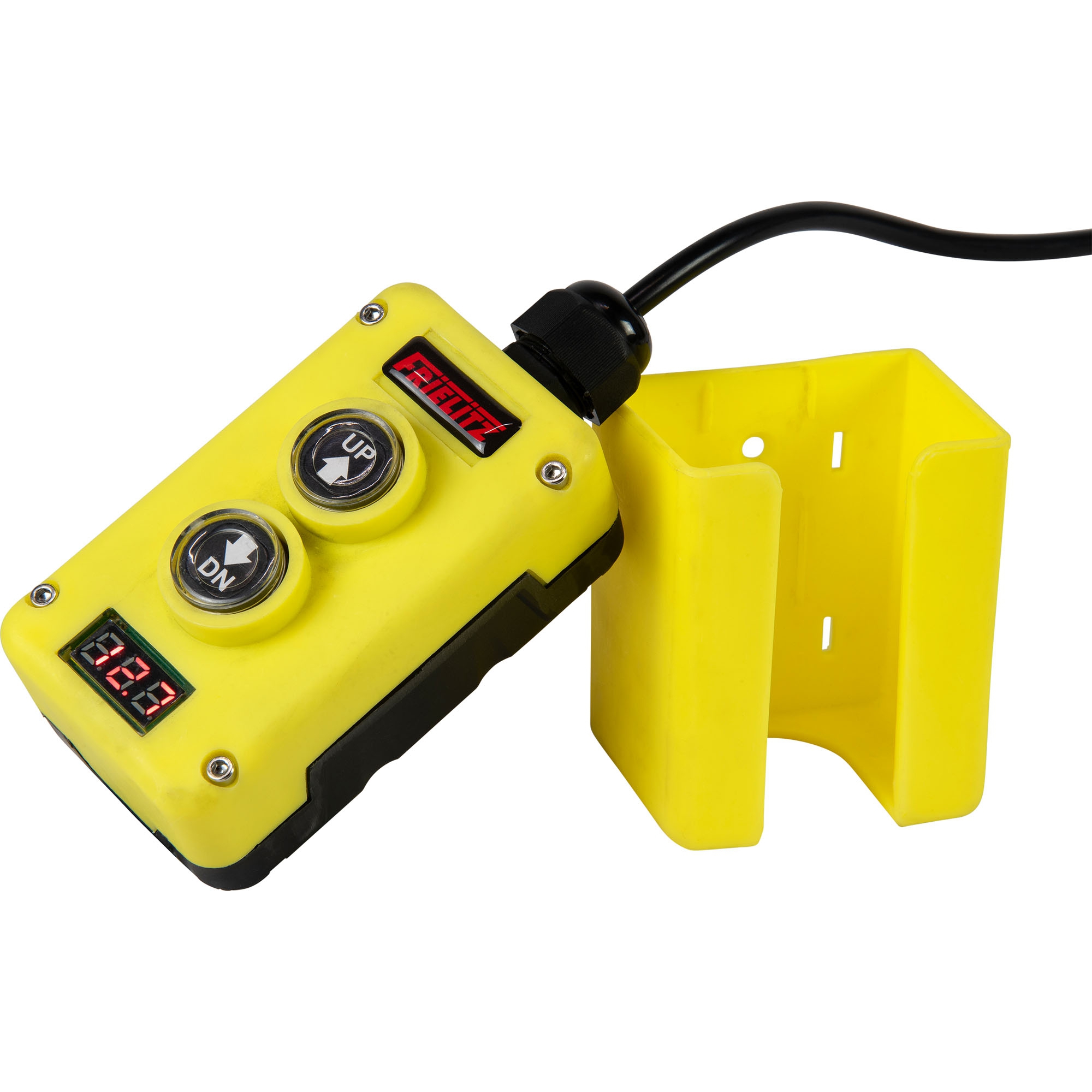

2 Taster Cable Remote Control, 4000 mm, LED battery indicator
2 Taster Cable Remote Control for electro-hydraulic compact units
Cable Length: 4000 mm
Includes holder and LED battery indicator
Product number:
015000370

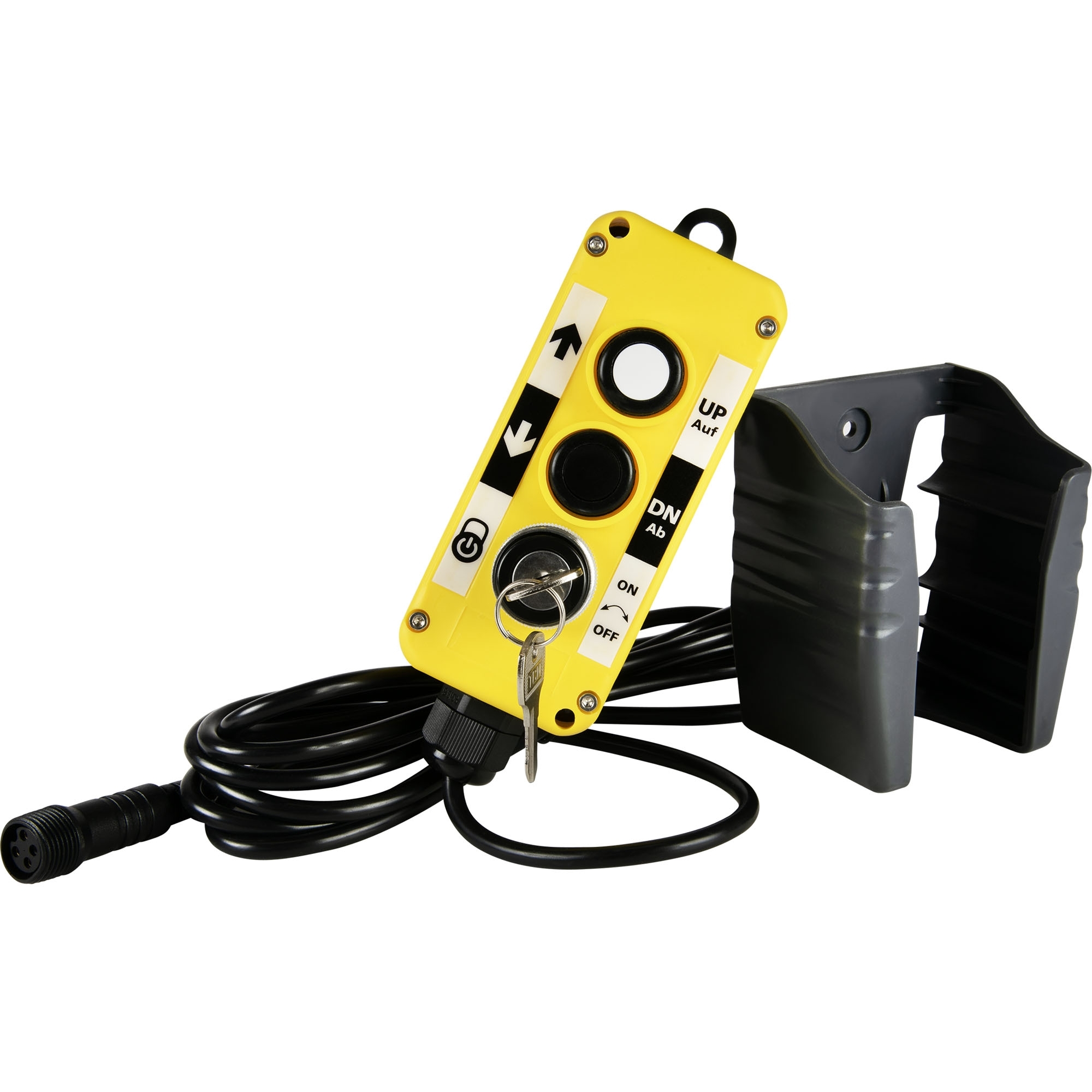

2 Taster Cable Remote Control, 4000 mm, lockable
2 Taster Cable Remote Control for electro-hydraulic compact units
Cable Length: 4000 mm
lockable
Includes holder
Product number:
015000371

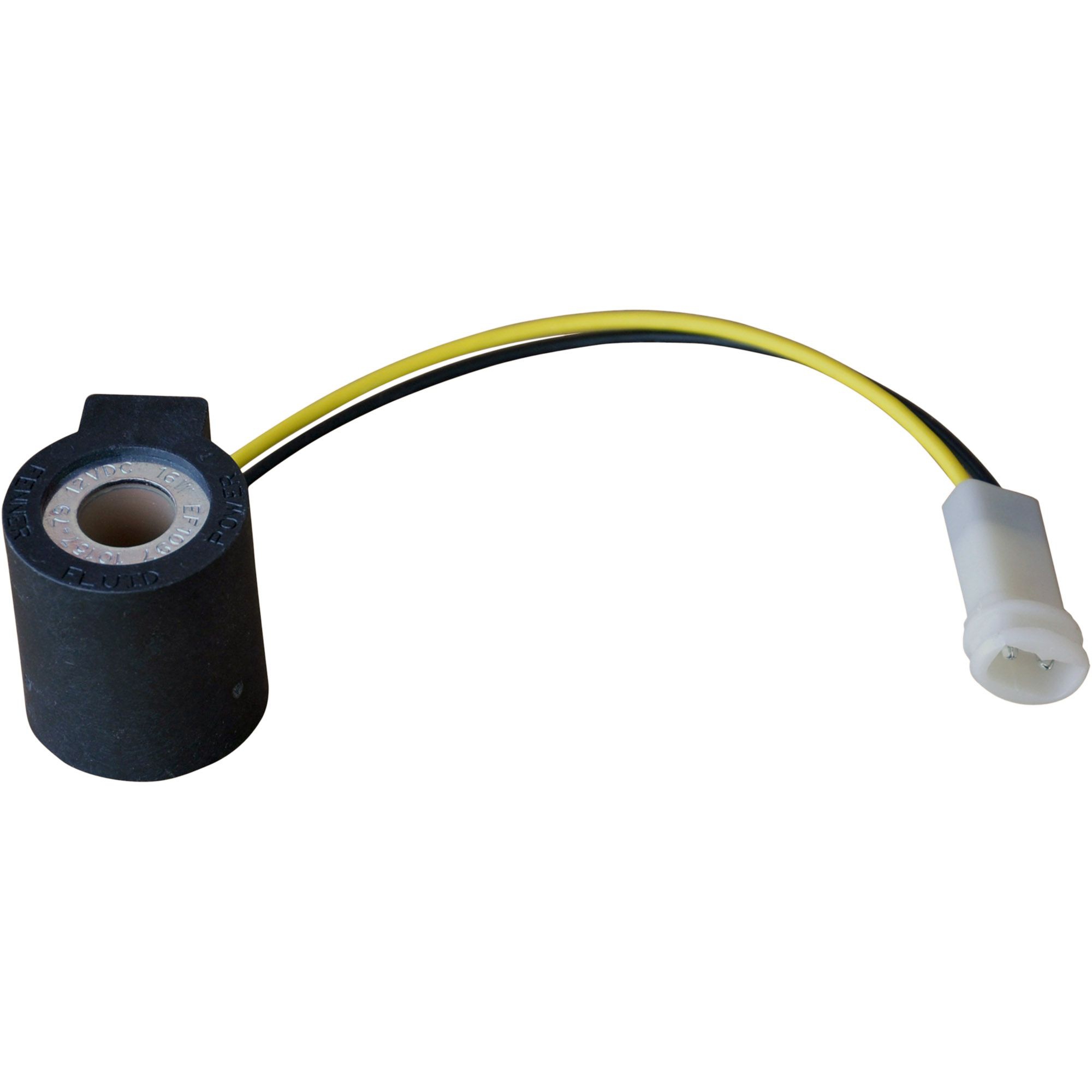

Coil for Chapel electro hydraulic pump
Coil for Chapel electro hydraulic pump
Product number:
015000331

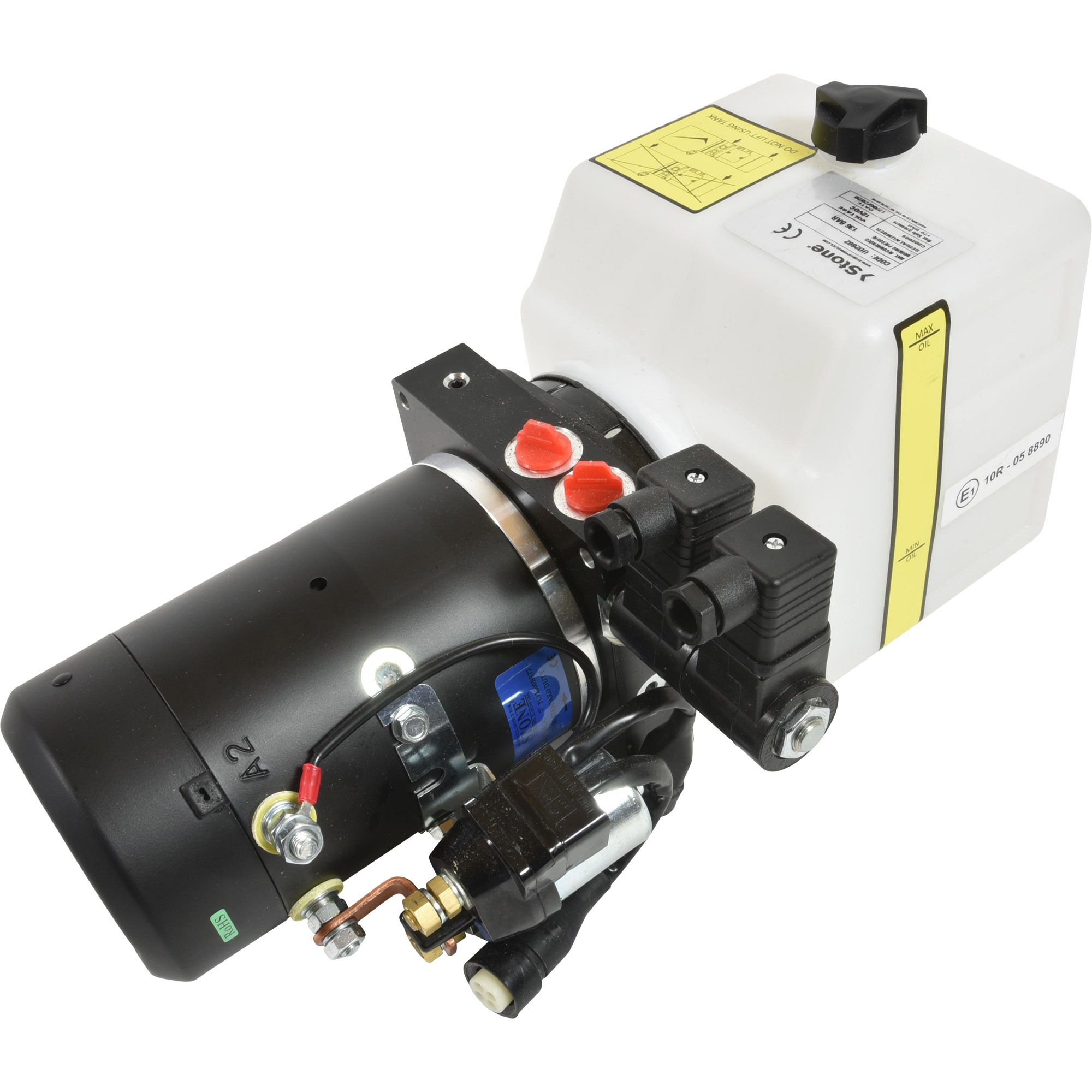

DC Power Unit, Double-acting, 1800 W
DC Power Unit, Double-acting, 3.1 litre,
E-engine 1800W/12V
- Plastic tank, lucent, filling- and venting filter
- DC motor with SmartStart-Relais
- Pressure relief valve 180 bar
- 4/3-Way solenoid valve, Neutral position A-B-P-T closed
- Connection A + B = G3/8 female thread
- Valid on-time approx. 10% ED
To temporarily supply double-acting cylinders e.g small dumper trucks,
tail lifts, lifting platforms.
Product number:
015000600

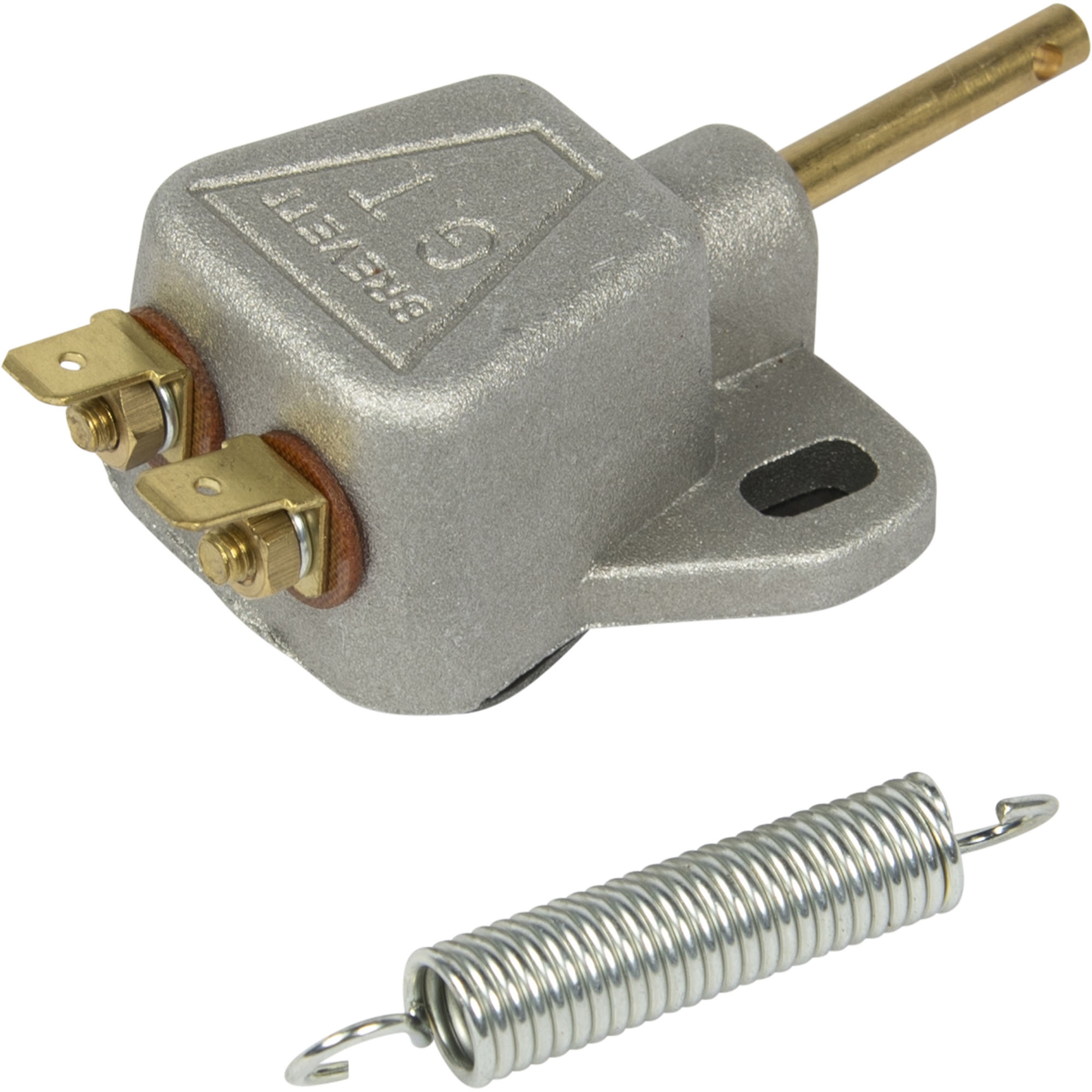

Electric lift limiter, 12V, IP65
Electric lift limiter
Protection class IP 65
Voltage 12V
Product number:
015000338

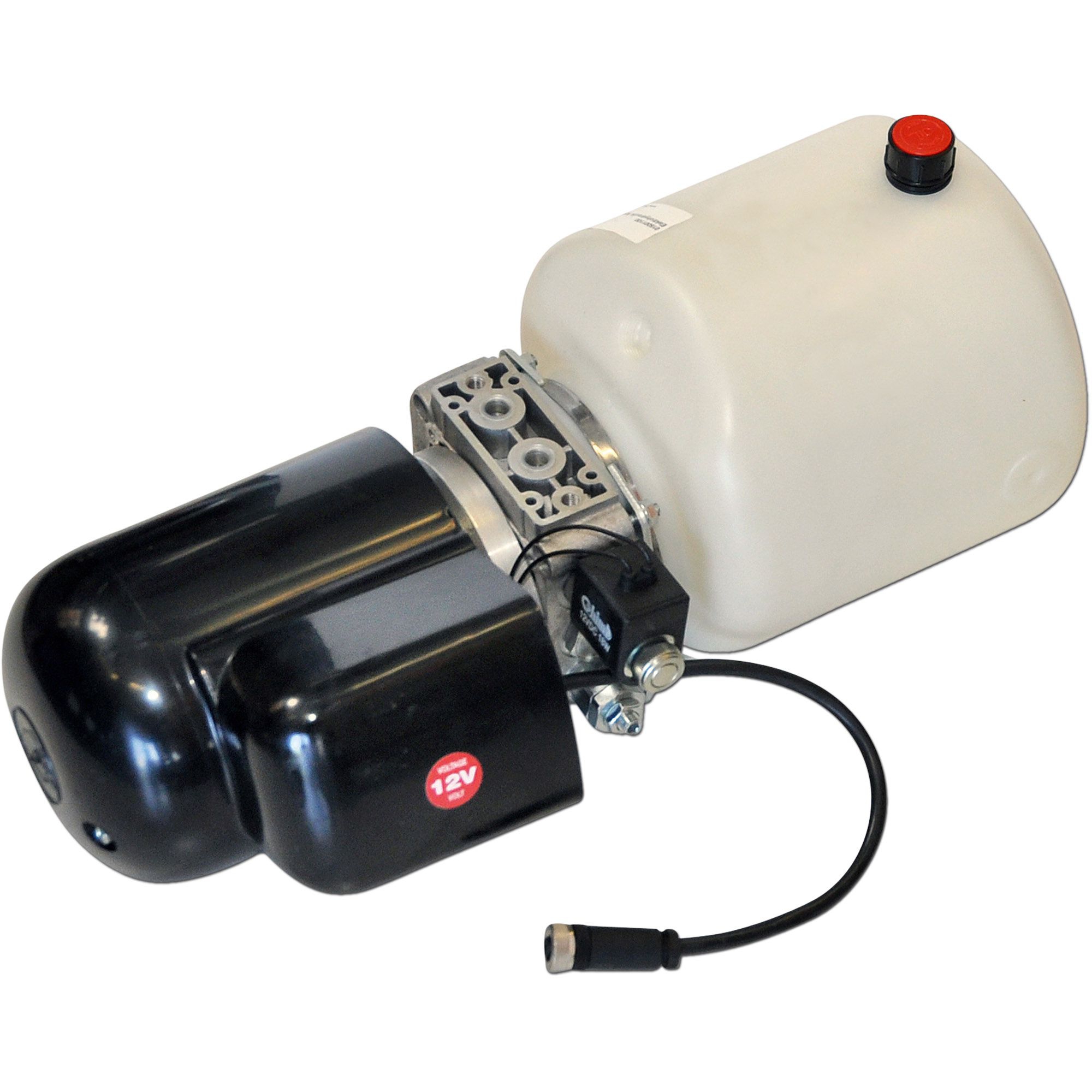

Electro hydraulic aggregate, 12 V, 7 litre tank
Electro hydraulic aggregate
12 V DC-Motor
1800 W
output 5,0 ccm
max. pressure 200 bar
Tank 5 litre
without remote control
Dimensions about 450 x 220 x 250 mm
Product number:
015001100

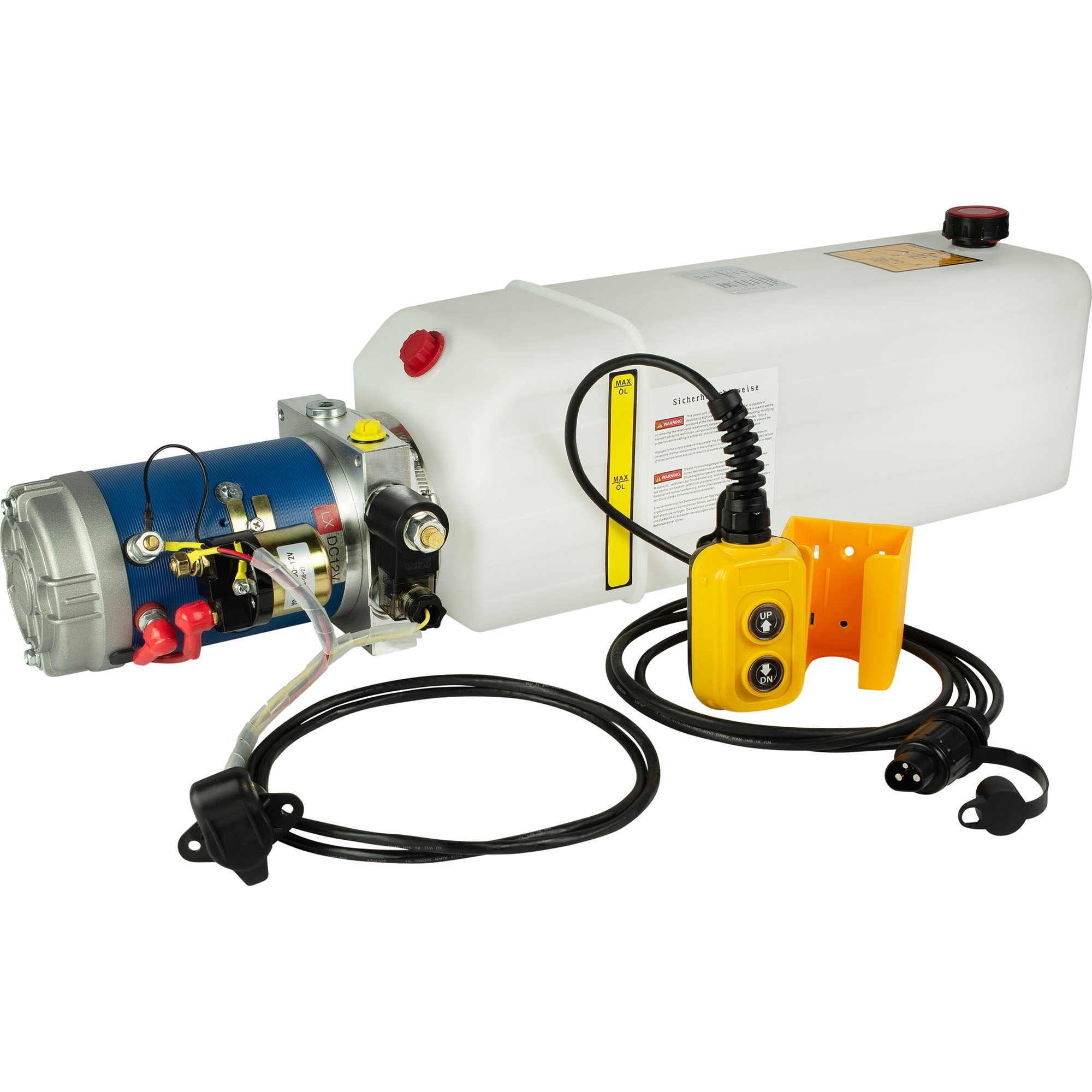

Electro-Hydraulic Compact Unit 12V, single-acting, 10L
Electro-Hydraulic Compact Unit 12V
12V DC, 1.8 kW
For single-acting hydraulic cylinders
Connection G3/8"
Flow rate: 3.1 cc/rev
Pressure relief valve
Check valve
Lowering valve
10L plastic tank
Wired remote control with 4000 mm cable length
Horizontal mounting position
L x W x H: 740 x 180 x 180 mm
Product number:
015000364

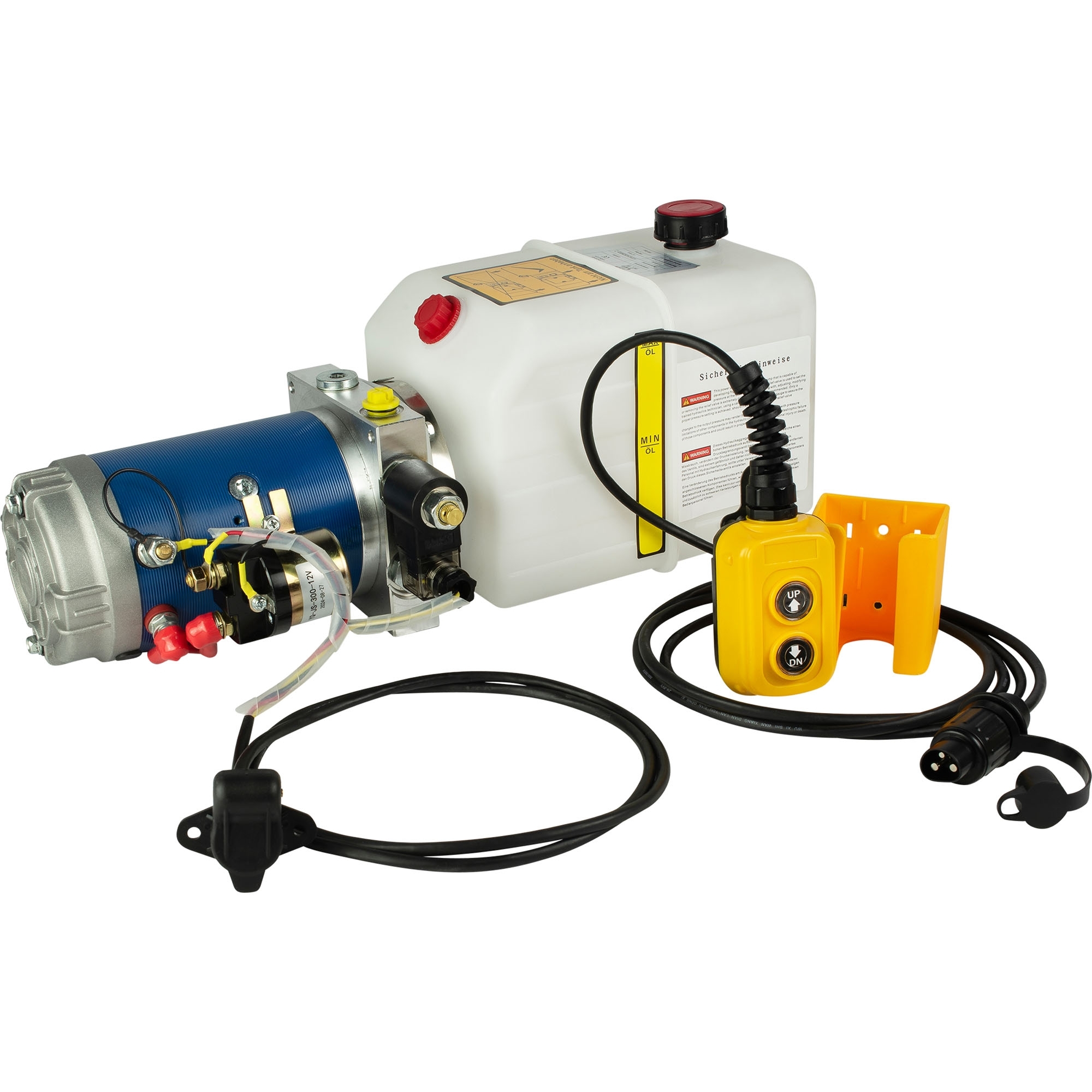

Electro-Hydraulic Compact Unit 12V, single-acting, 5L
Electro-Hydraulic Compact Unit 12V
12V DC, 1.8 kW
For single-acting hydraulic cylinders
Connection G3/8"
Flow rate: 3.1 cc/rev
Pressure relief valve
Check valve
Lowering valve
5L plastic tank
Wired remote control with 4000 mm cable length
Horizontal mounting position
L x W x H: 500 x 180 x 180 mm
Product number:
015000362

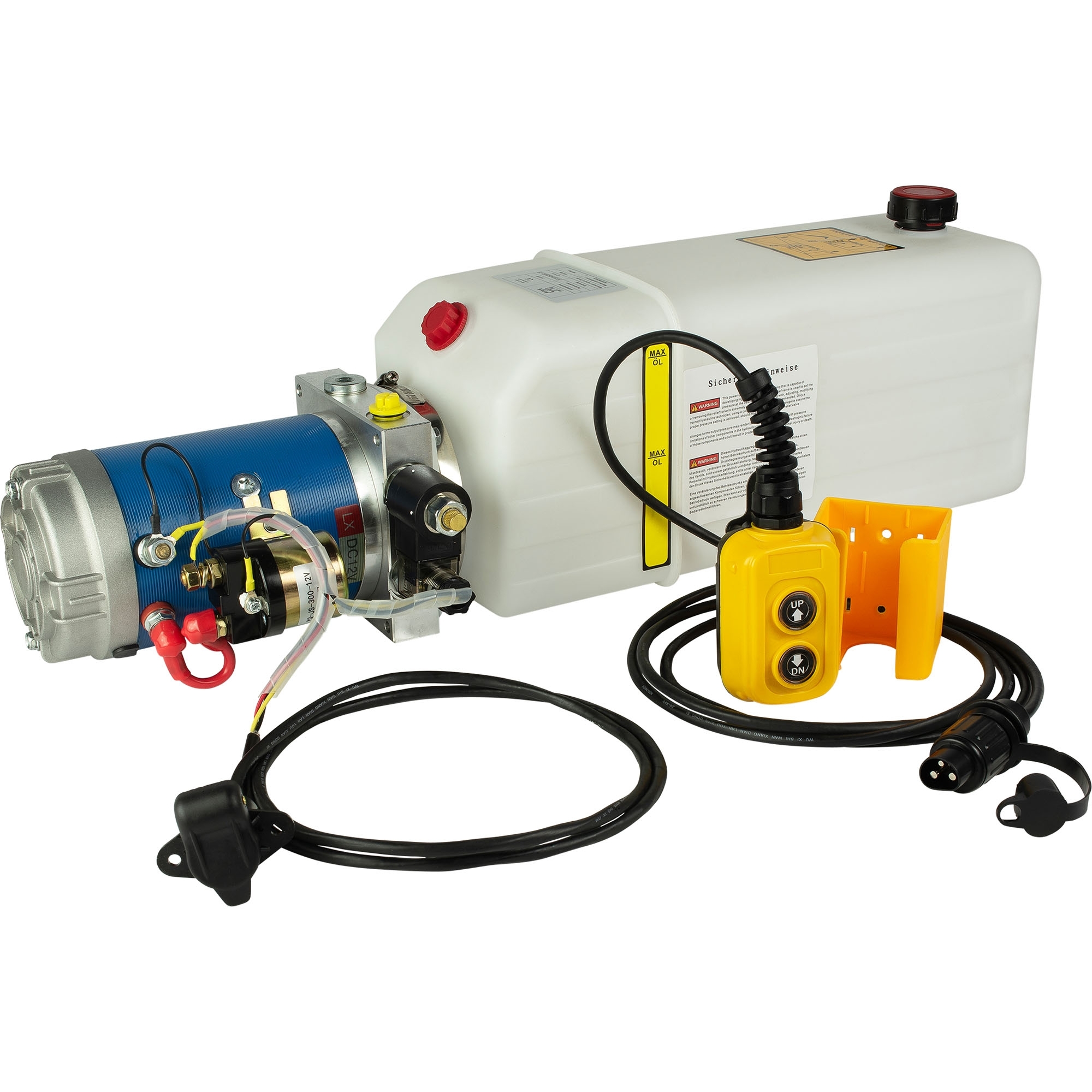

Electro-Hydraulic Compact Unit 12V, single-acting, 8L
Electro-Hydraulic Compact Unit 12V
12V DC, 1.8 kW
For single-acting hydraulic cylinders
Connection G3/8"
Flow rate: 3.1 cc/rev
Pressure relief valve
Check valve
Lowering valve
8L plastic tank
Wired remote control with 4000 mm cable length
Horizontal mounting position
L x W x H: 650 x 180 x 180 mm
Product number:
015000363

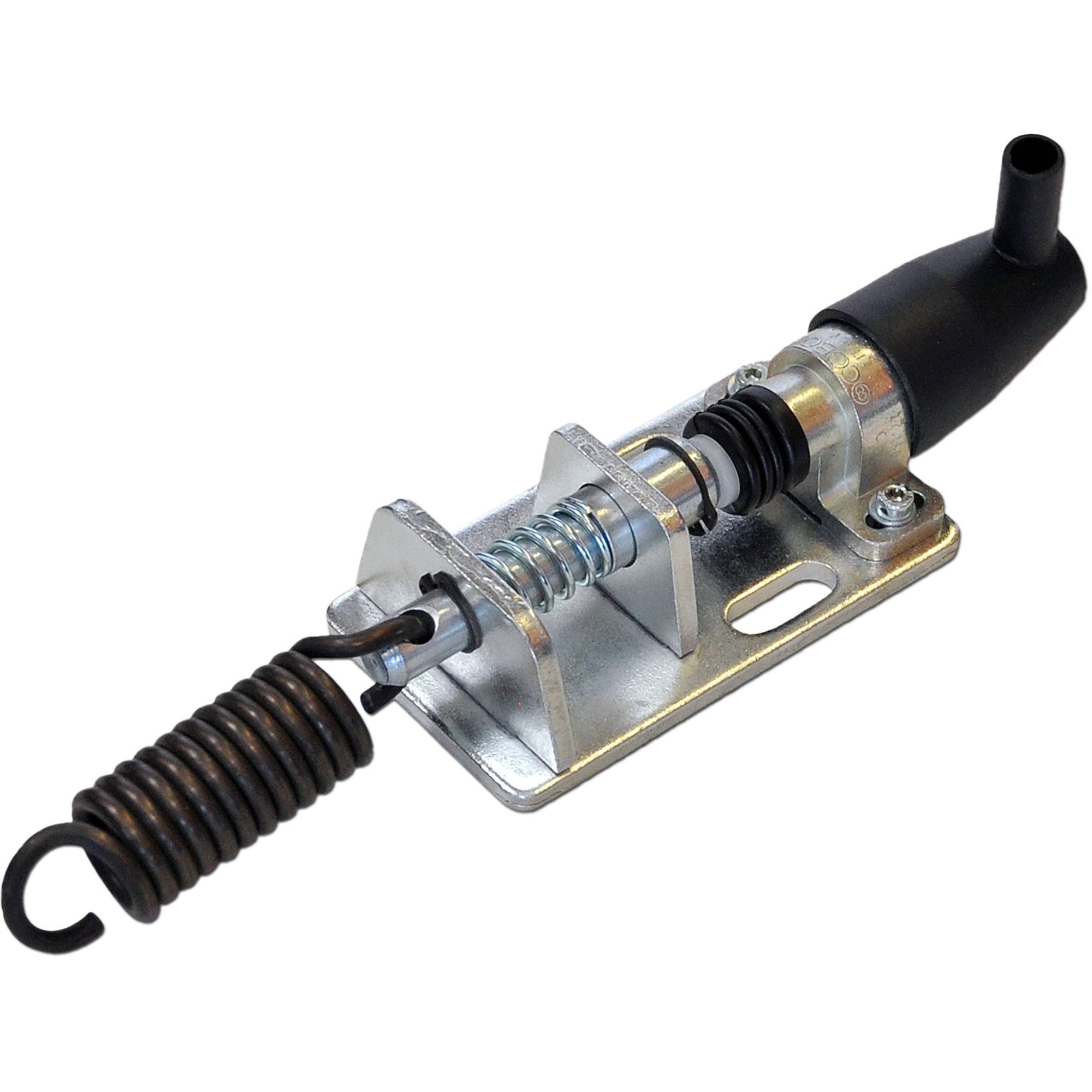

Electronic stroke arresting device, limit switch 1
Electronic stroke arresting device
limit switch 12 / 24 V
Product number:
015000320

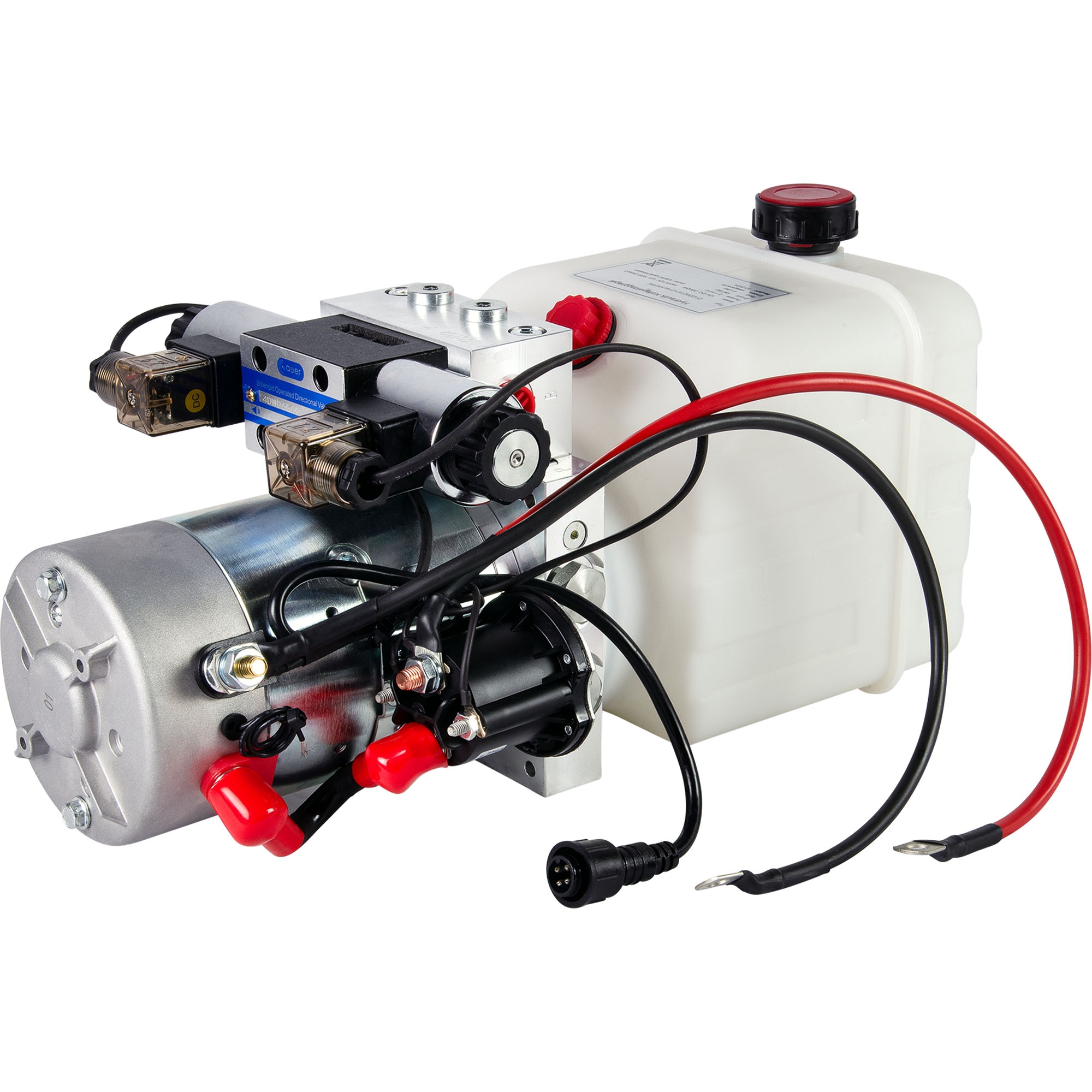

Elektrohydraulik Kompaktaggregat 12V, double-acting, 4L
Electrohydraulic Compact Unit 12V
12V DC, 2.0KW
For double-acting hydraulic cylinders
P/T aluminum control block
NG6 aluminium stack block
Connection G3/8"
Flow rate 2.1 cc/rev
12V NG6 Cetop3 4/3-way solenoid valve
A/B/P/T closed
Pressure relief valve
Check valve
4L plastic tank
Cable remote control with 4000 mm cable length
Without hydraulic oil, without electrical supply lines
Horizontal installation position
L x W x H: 200 x 230 x 200
Product number:
015000365

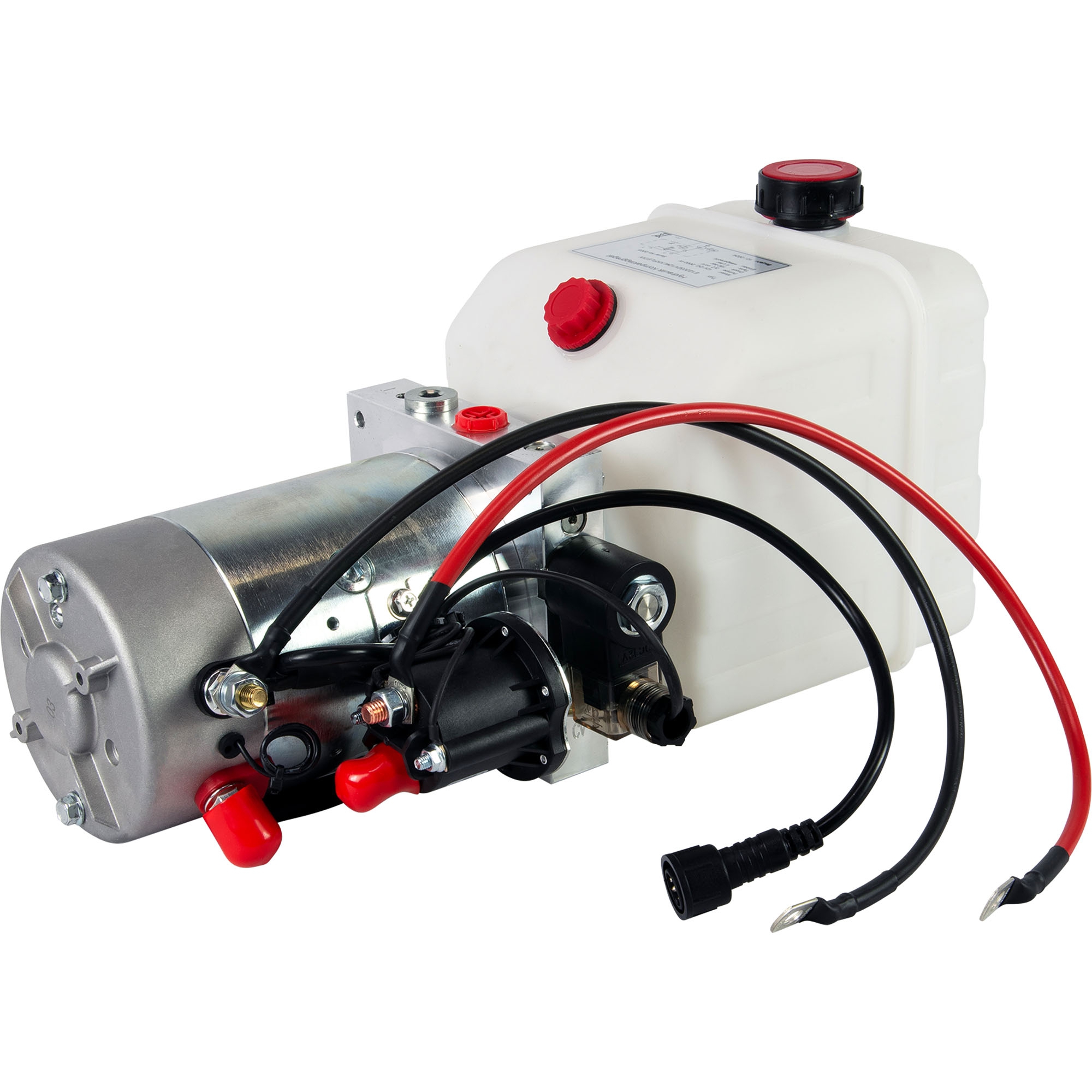

Elektrohydraulik Kompaktaggregat 12V, single-acting, 4L
Electrohydraulic Compact Unit 12V
12V DC, 2.0KW
For single-acting hydraulic cylinders
P/T aluminum control block
Connection G3/8"
Flow rate 3.2 cc/rev
12V 2/2 way solenoid valve
Throttle valve
Pressure relief valve
Check valve
4L plastic tank
Cable remote control with LED battery indicator and holder
Cable length 4000 mm
Without hydraulic oil, without electrical supply lines
Horizontal installation position
Product number:
015000358

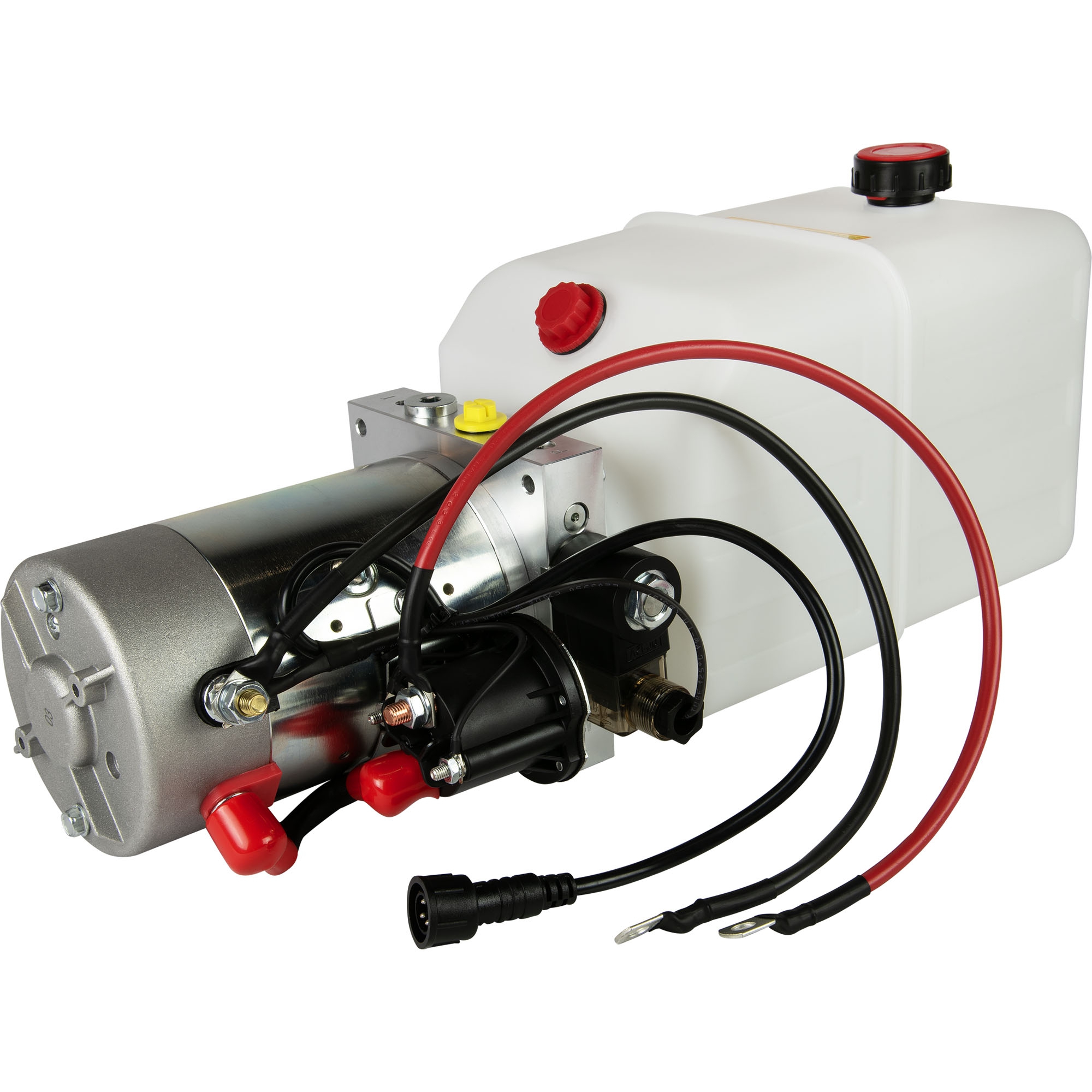

Elektrohydraulik Kompaktaggregat 12V, single-acting, 7L
Electrohydraulic Compact Unit 12V
12V DC, 2.0KW
For single-acting hydraulic cylinders
P/T aluminum control block
Connection G3/8"
Flow rate 3.2 cc/rev
12V 2/2 way solenoid valve
Throttle valve
Pressure relief valve
Check valve
7L plastic tank
Cable remote control with LED battery indicator and holder
Cable length 4000 mm
Without hydraulic oil, without electrical supply lines
Horizontal installation position
L x W x H: 497 x 211 x 198
Product number:
015000360

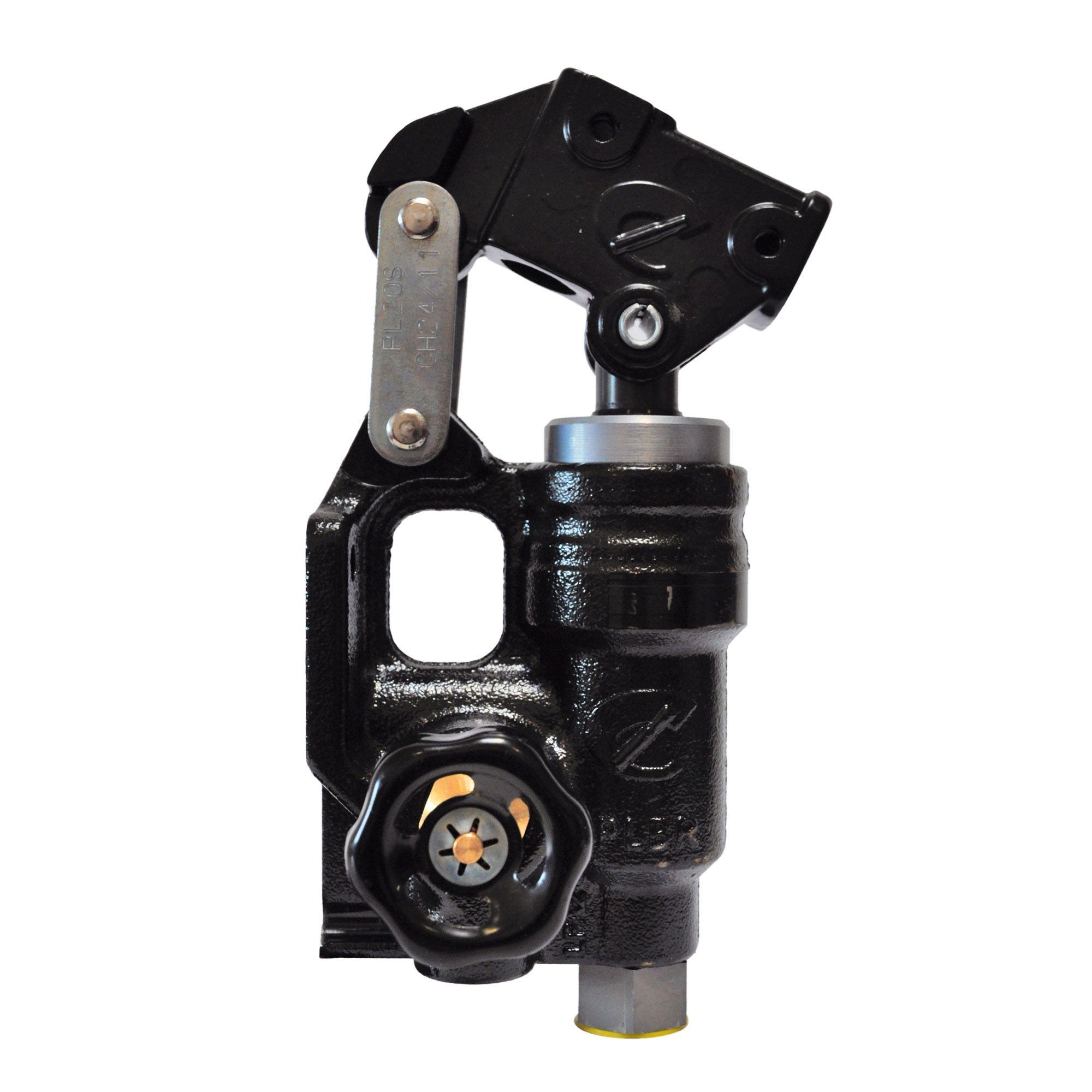

Emergency hand pump for line installation,
withou
Emergency hand pump for line installation
without tank
Supplement for Electrohydraulic Unit
Product number:
015000212

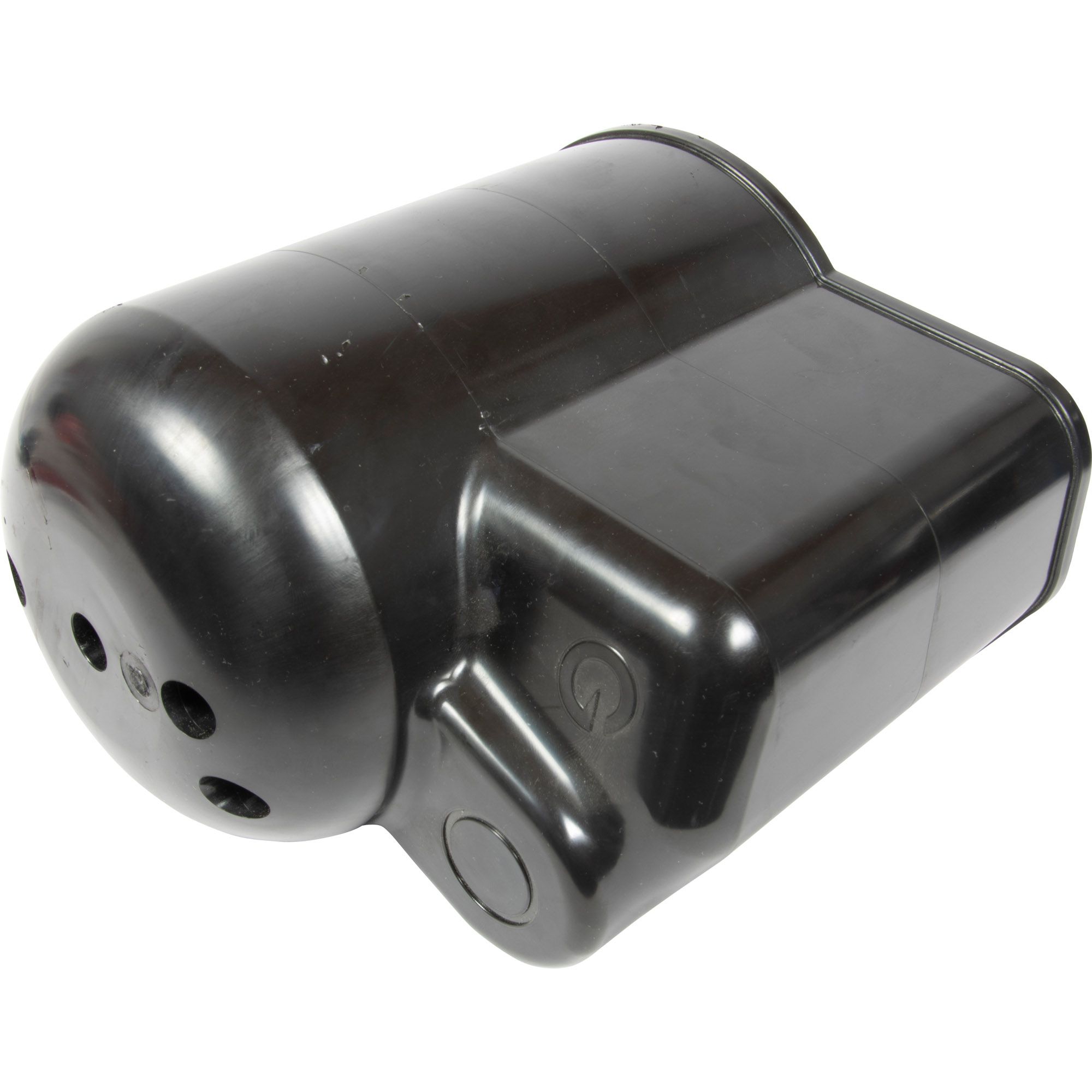

Engine Cover, for hydraulic unit 015001100
Engine Cover
for hydraulic unit 015001100
Material plastic
Colour black
Product number:
015001100/1

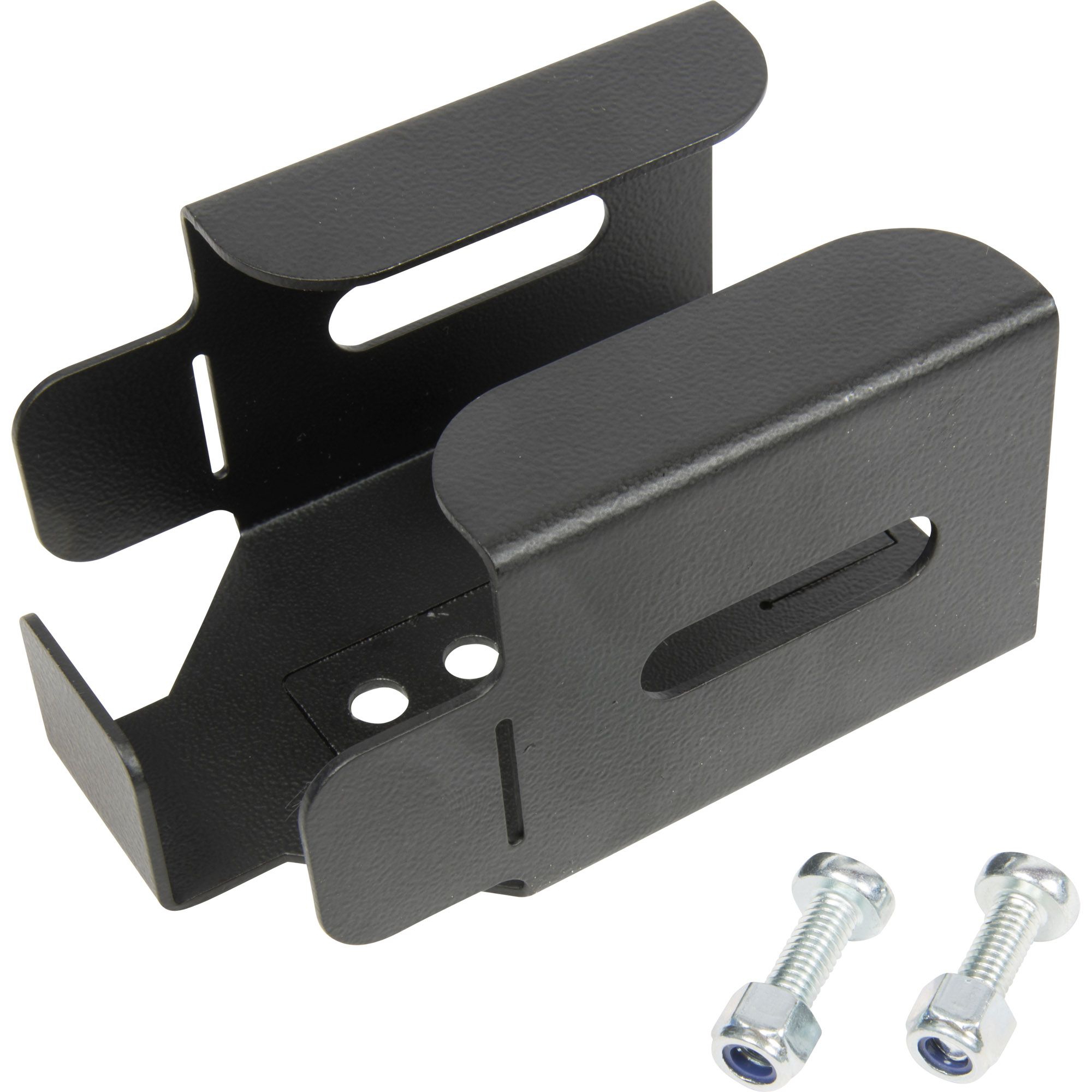

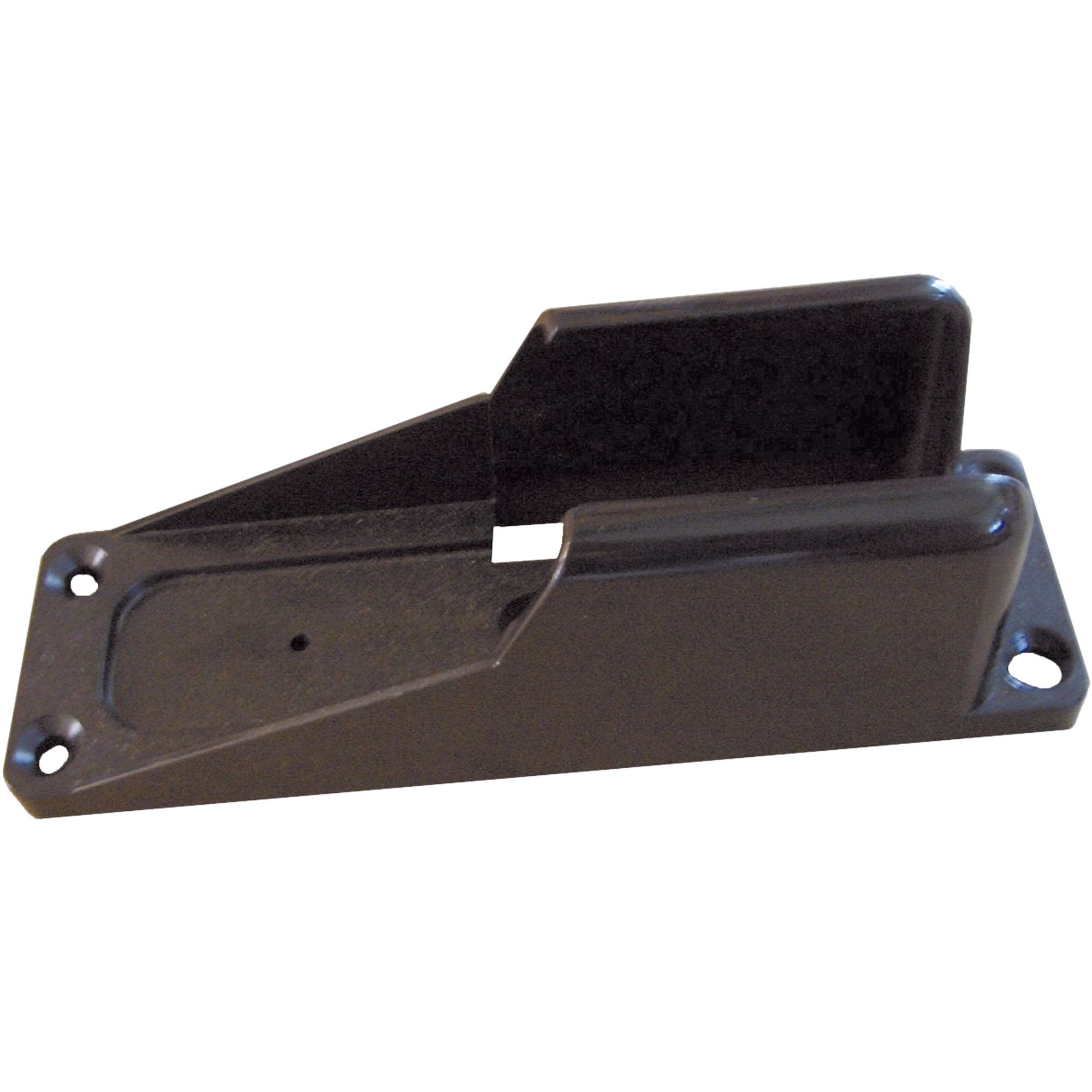

Holder for control box 015000316
Holder for control box 015000316
to electro-hydraulic unit
Product number:
015000315

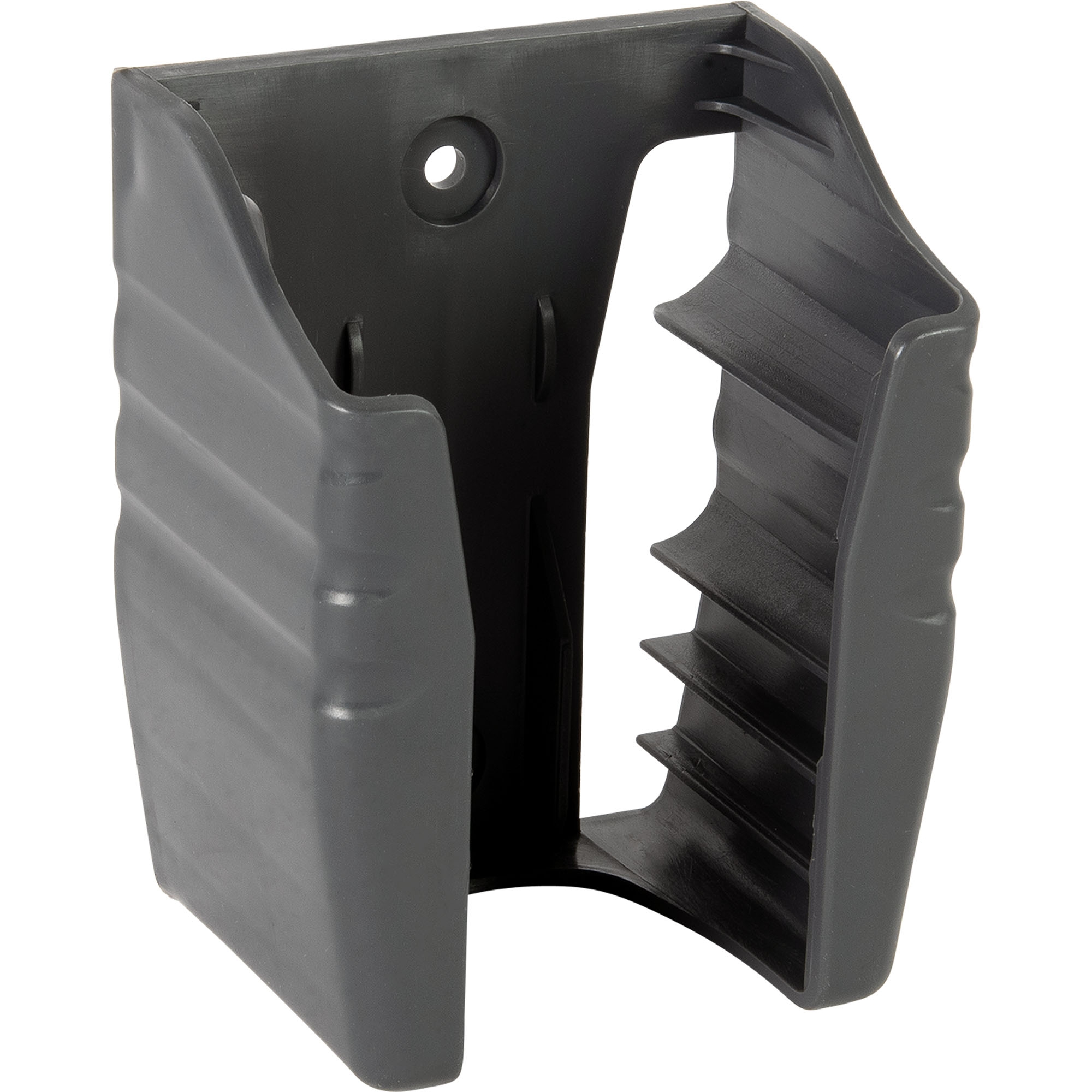

Holder for lockable cable remote control 015000371
Holder for lockable cable remote control 015000371
Product number:
015000372

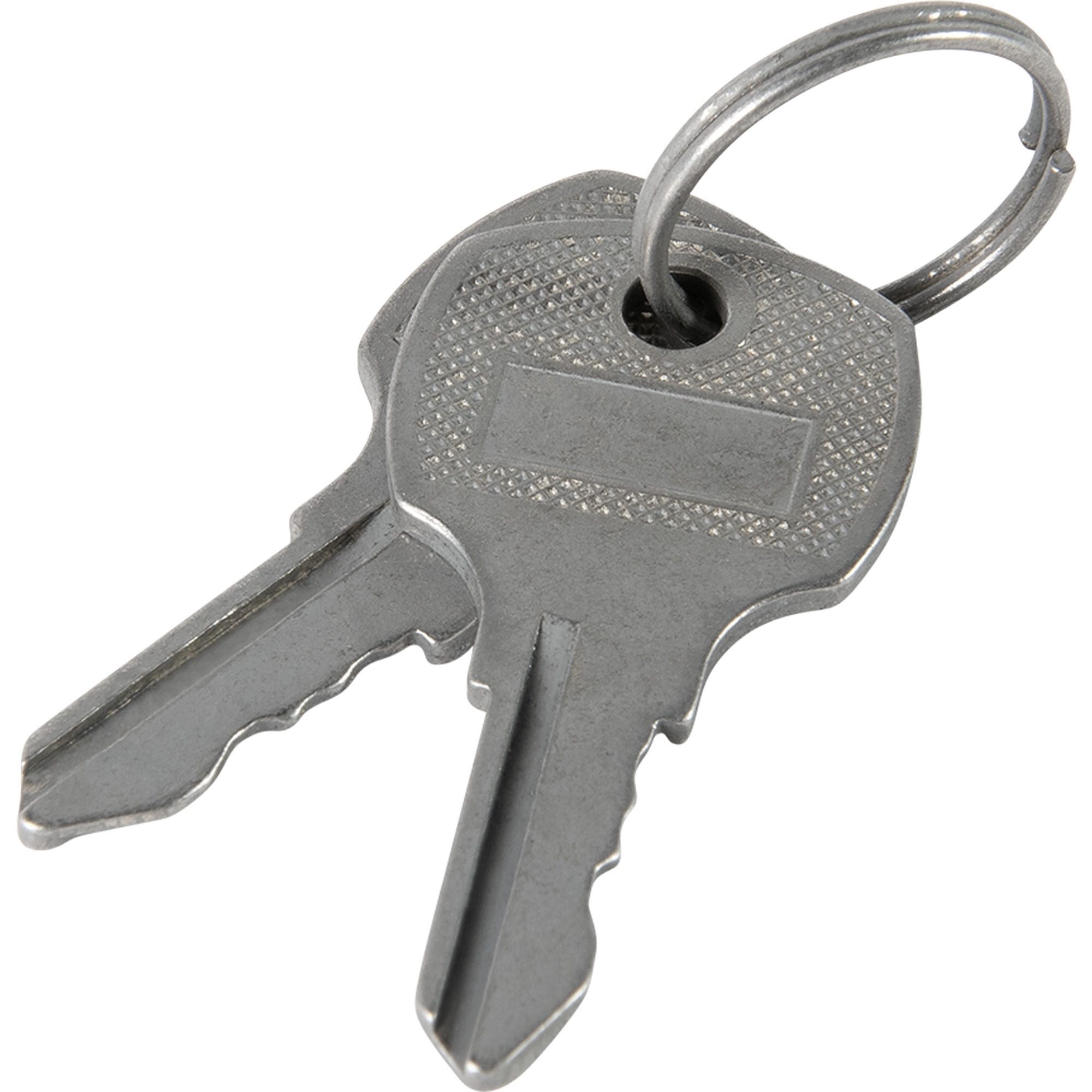

Key for lockable cable remote control 015000371
Key for lockable cable remote control 015000371
Product number:
015000373

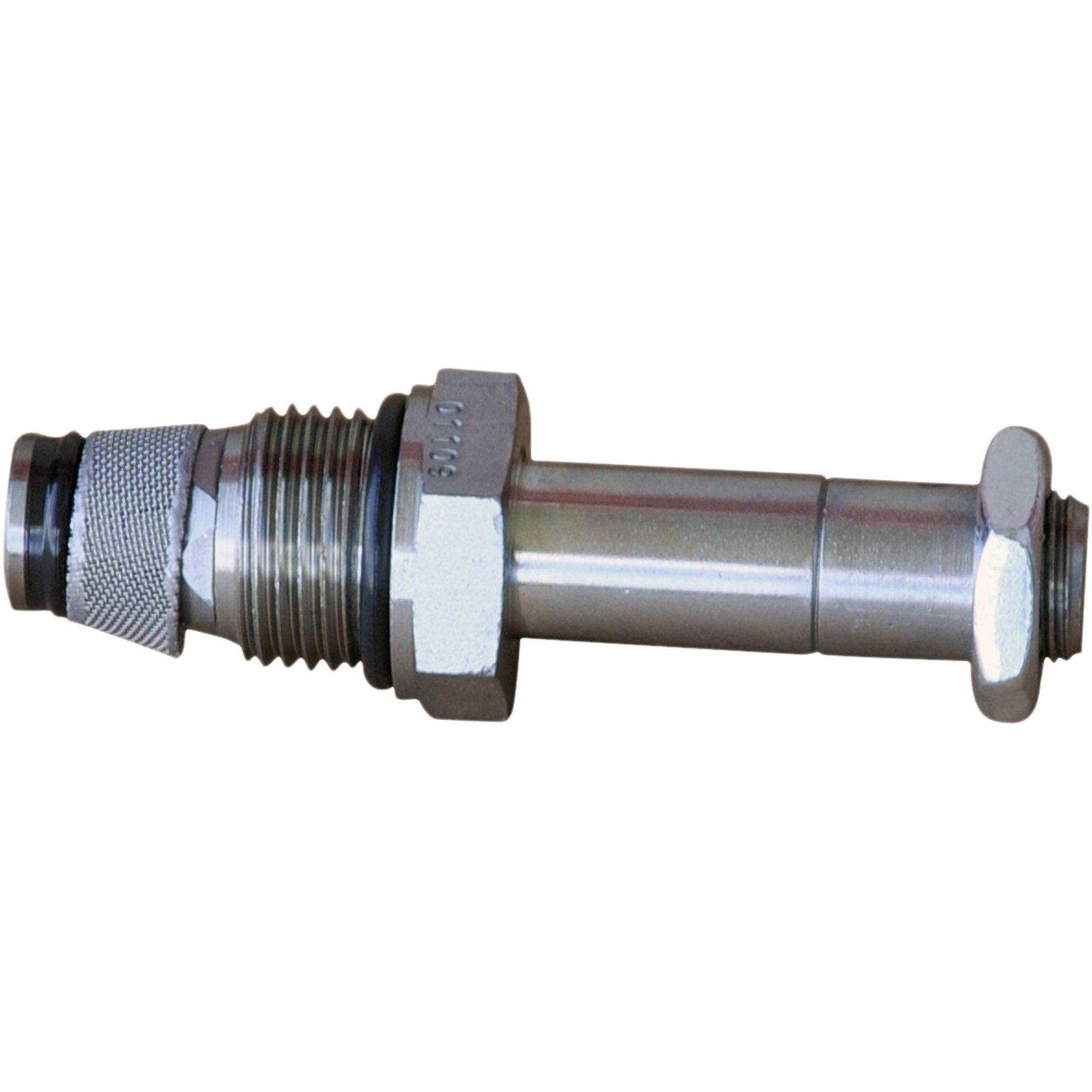

Lowering valve VHL2024 / 2025
Lowering valve for pump cylinder VHL2024 / 2025
Product number:
015000332

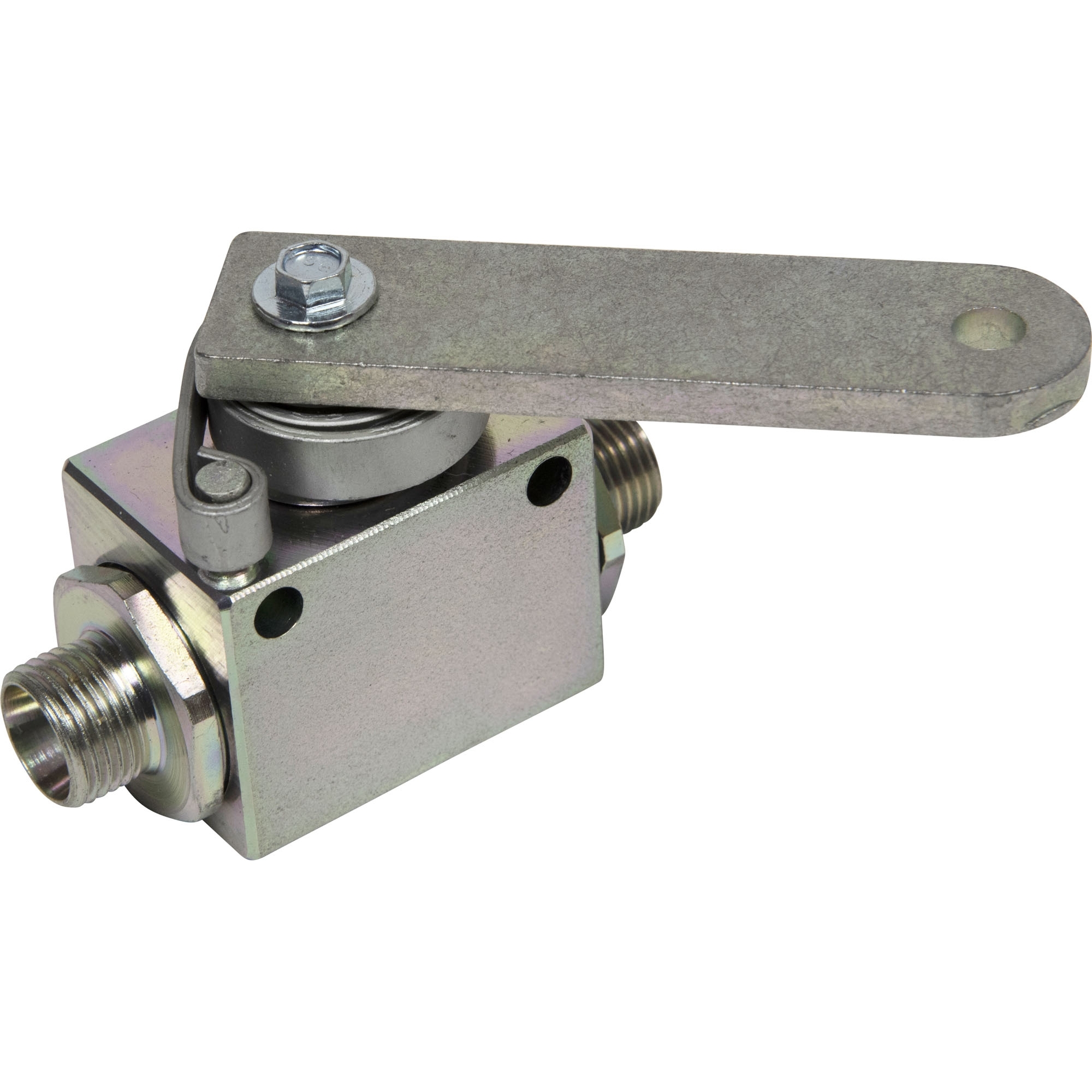

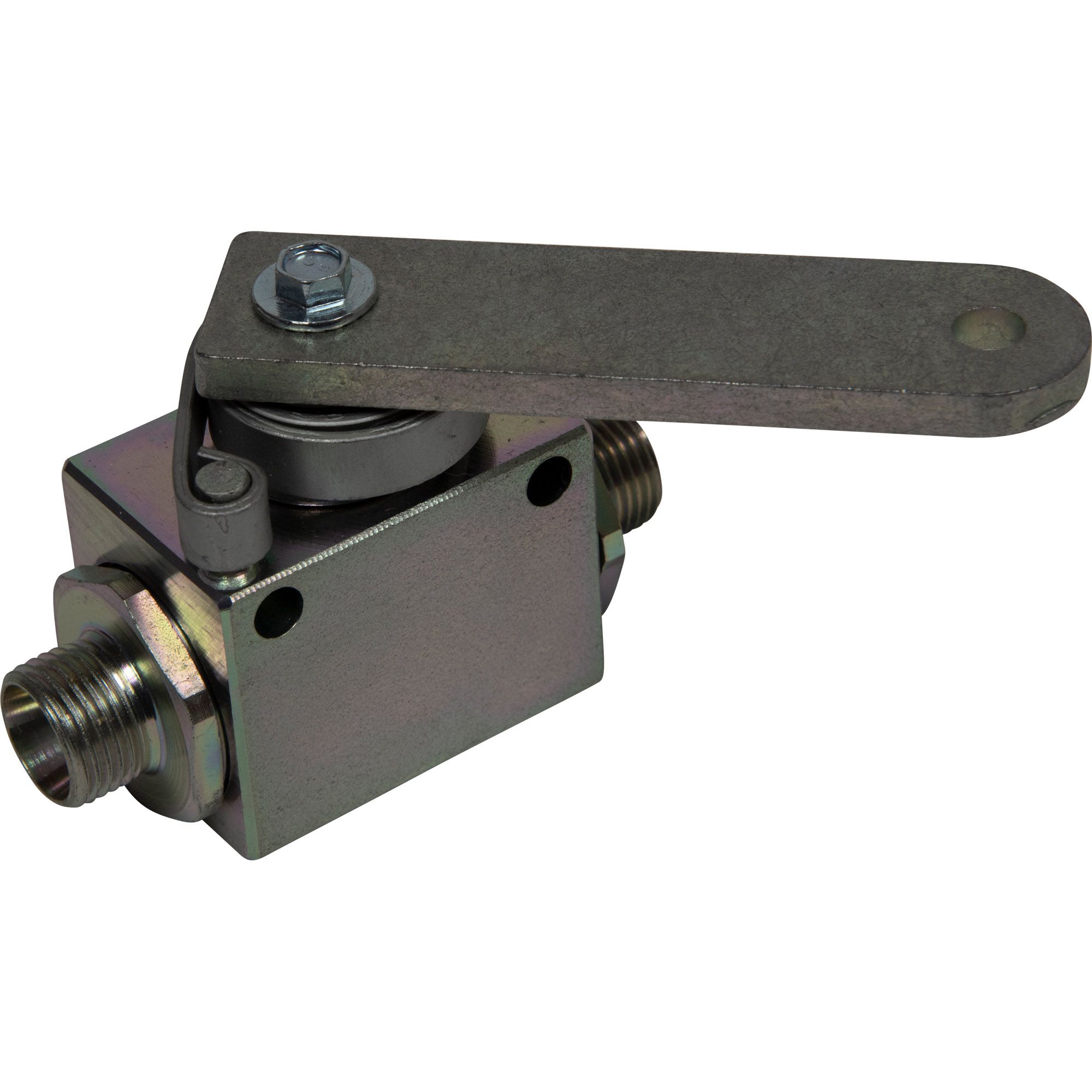

Mechanical stroke arresting device, for 12-line
Mechanical stroke arresting device, for 12-line
with flat spring, connections M 18 x 1.5, yellow galvanised
Product number:
015000325

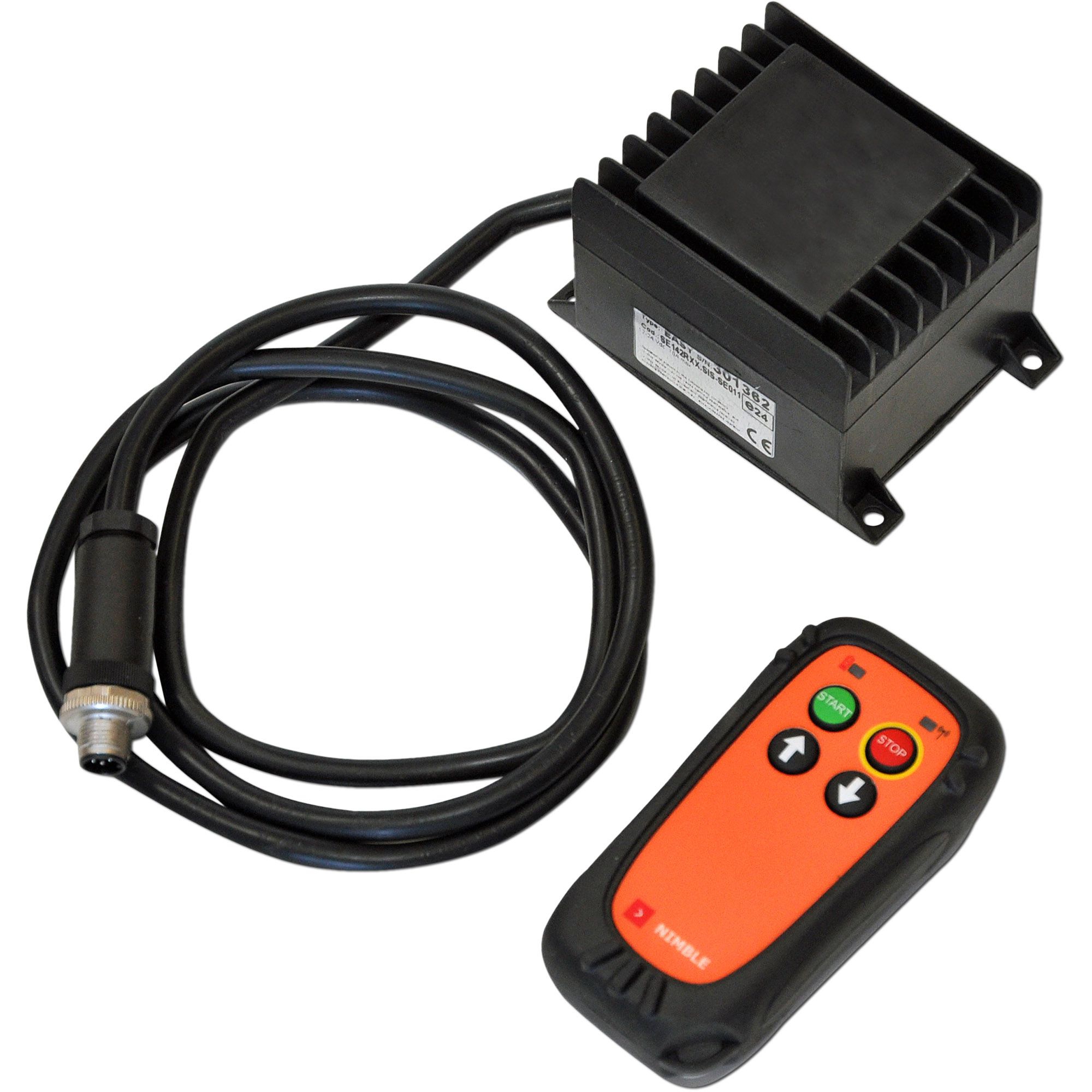

Remote control 12 / 24V
Remote control 12 / 24 V
2 Channel
Panel with 2 buttons UP - DOWN
START - STOP + Warning lights Charge and Transmission.
Product number:
015001101

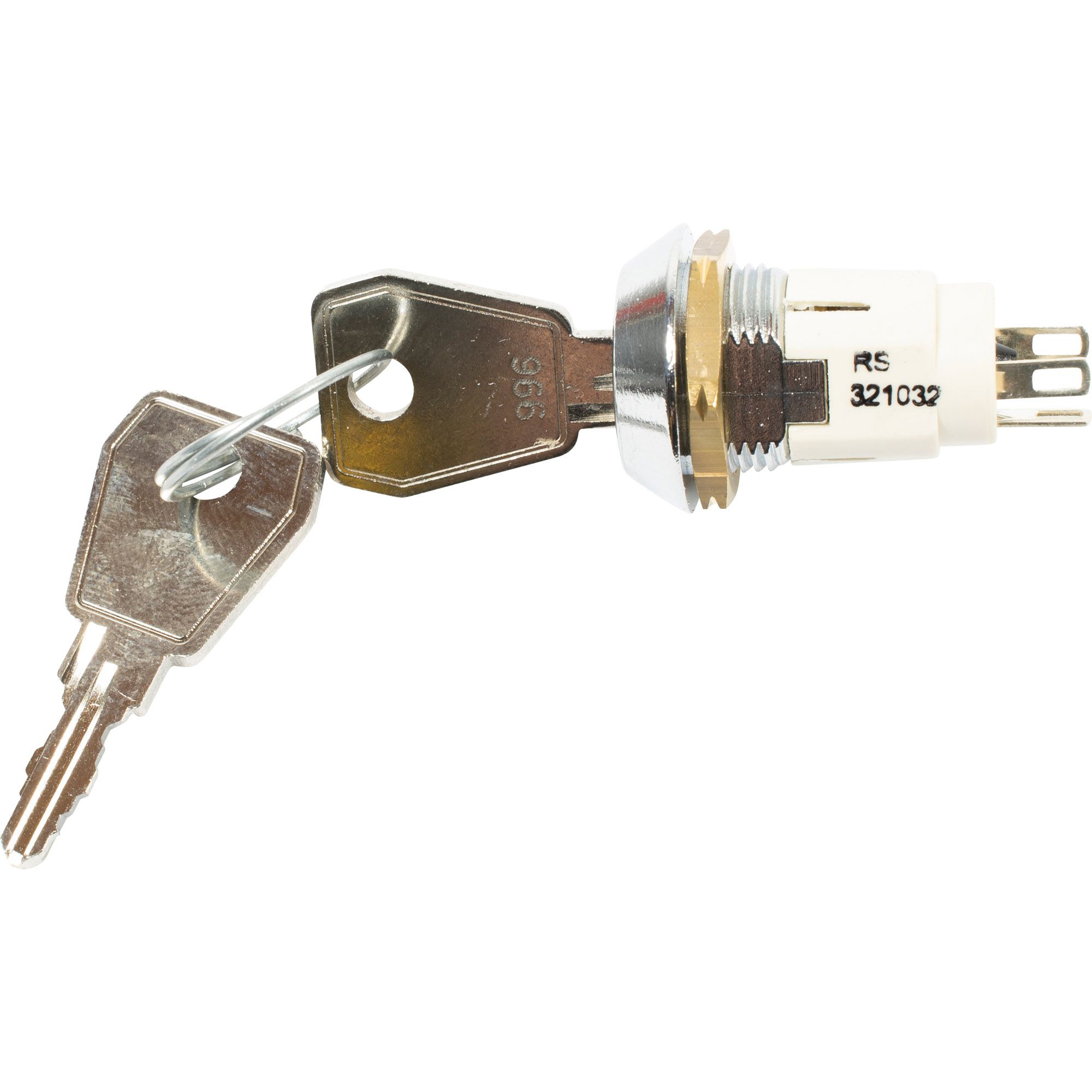

Replacement lock for Chapel switchbox, lockable
Replacement lock with 2 keys for Chapel switchbox for electro-hydraulic aggregate
lockable
Product number:
015000317
