Telescopic cylinders

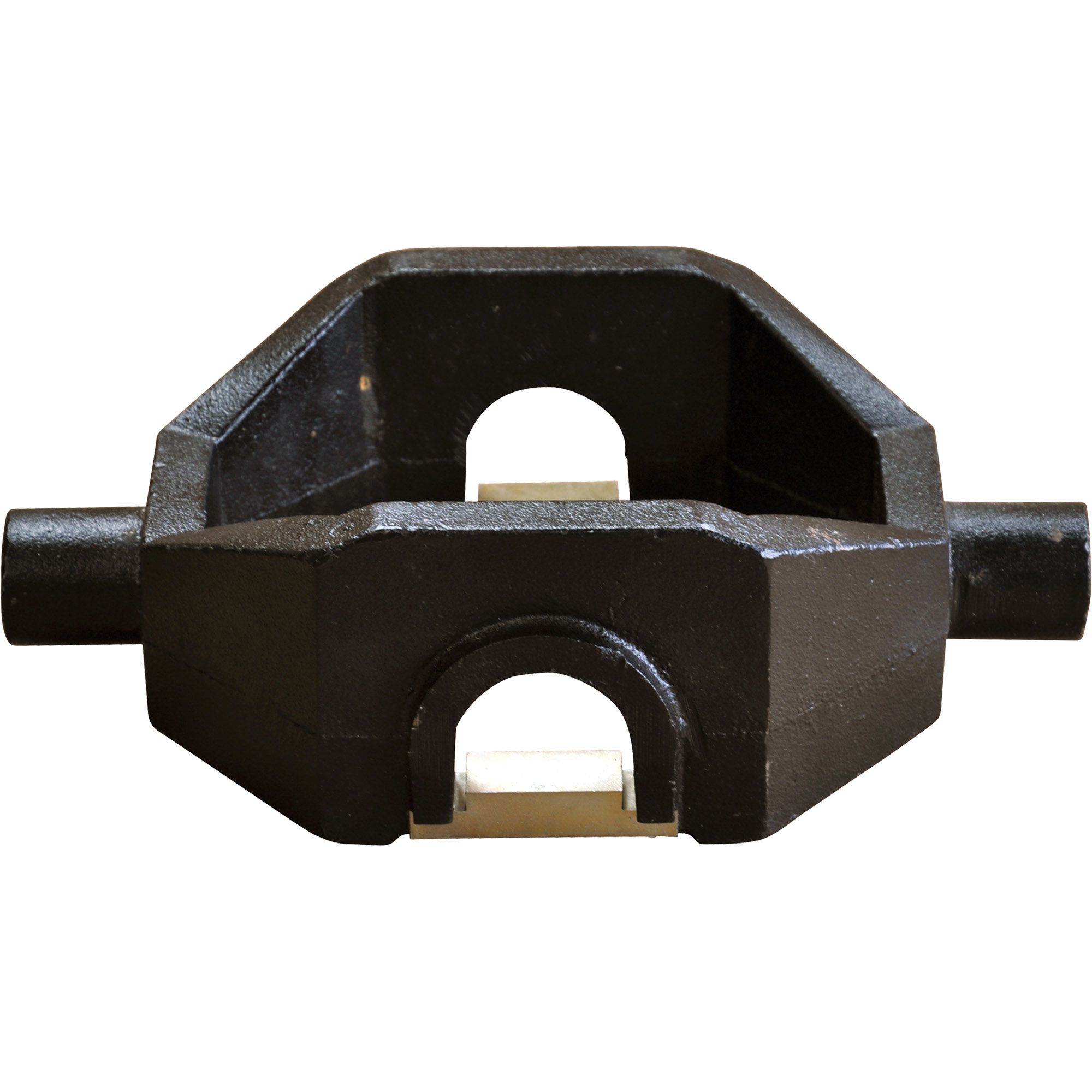

Gimbal for 015001047 / 048 / 049
Gimbal for 015001047 / 048 / 049
Capacity max. 8,0 t
Product number:
015001050

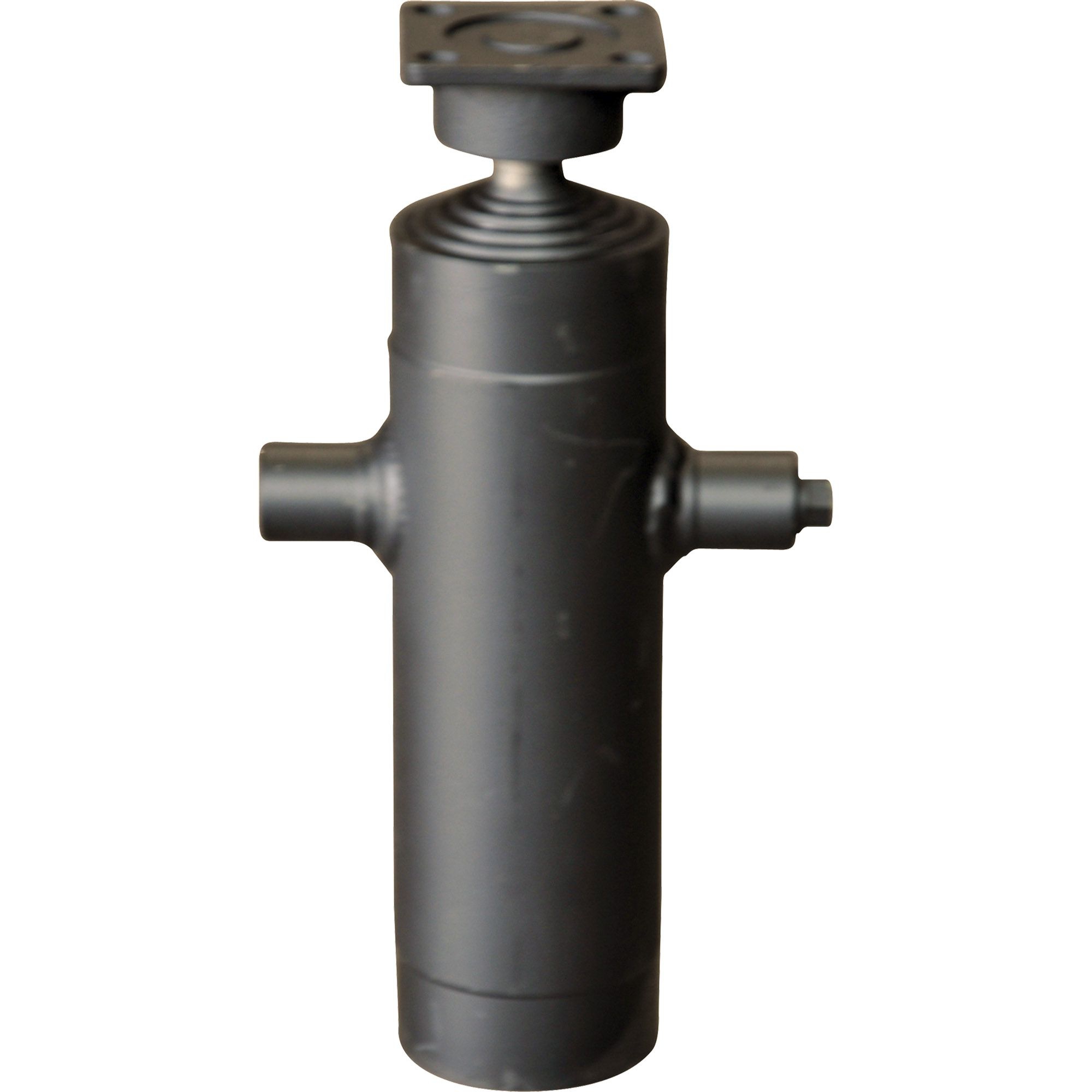

Telescopic cylinder, 3 steps, with ball socket
Telescopic cylinder, 3 steps, with ball socket, single-acting
stroke max. 730 mm, step diameter 45/61/76mm
height without ball approx. 350 mm
max. pressure 250 bar, volume 3.0 ltr.
weight approx. 20 kg
for vehicles up to max. 5.0 t
Product number:
015001047

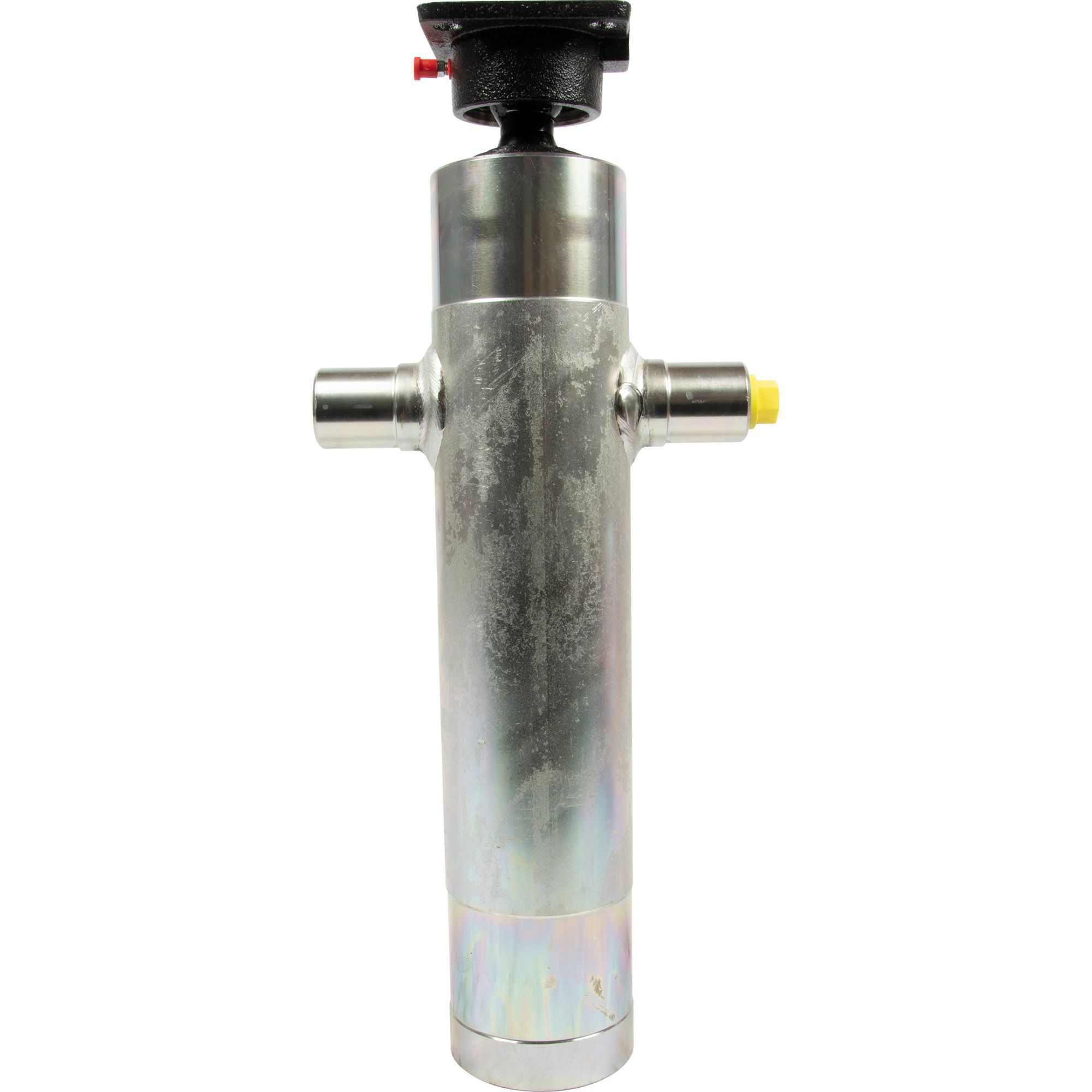

Telescopic cylinder, 3 steps, with ball socket
Telescopic cylinder, 3 steps, with ball socket, single-acting
stroke max. 570 mm, step diameter 45/61/76mm
height without ball approx. 350 mm
max. pressure 250 bar, volume 2.5 ltr.
weight approx. 17 kg
Product number:
015001055
Telescopic cylinder, 3 steps, with ball socket
Telescopic cylinder, 3 steps, with ball socket, single-acting
stroke max. 1030 mm, step diameter 45/61/76 mm
height without ball approx. 450 mm
max. pressure 250 bar, volume 4.0 ltr.
weight approx. 24 kg
for vehicles up to max. 5.0 t
Product number:
015001049
Telescopic cylinder, 4 steps, with ball socket
Telescopic cylinder, 4 steps, with ball socket, single-acting
stroke max. 945 mm, step diameter 45/61/76/91mm
height without ball approx. 350 mm
max. pressure 250 bar, volume 5.0 ltr.
weight approx. 22 kg
for vehicles up to max. 5.0 t
Product number:
015001048
