Shoring beams
1 Set Combi End Plug, Ø 19/24 mm, Slot 9 mm
1 set combi end plug
for aluminium shoring pole
End plug Ø 19 / 24 mm and slot 9 mm
Material steel, galvanized
Product number:
013010126

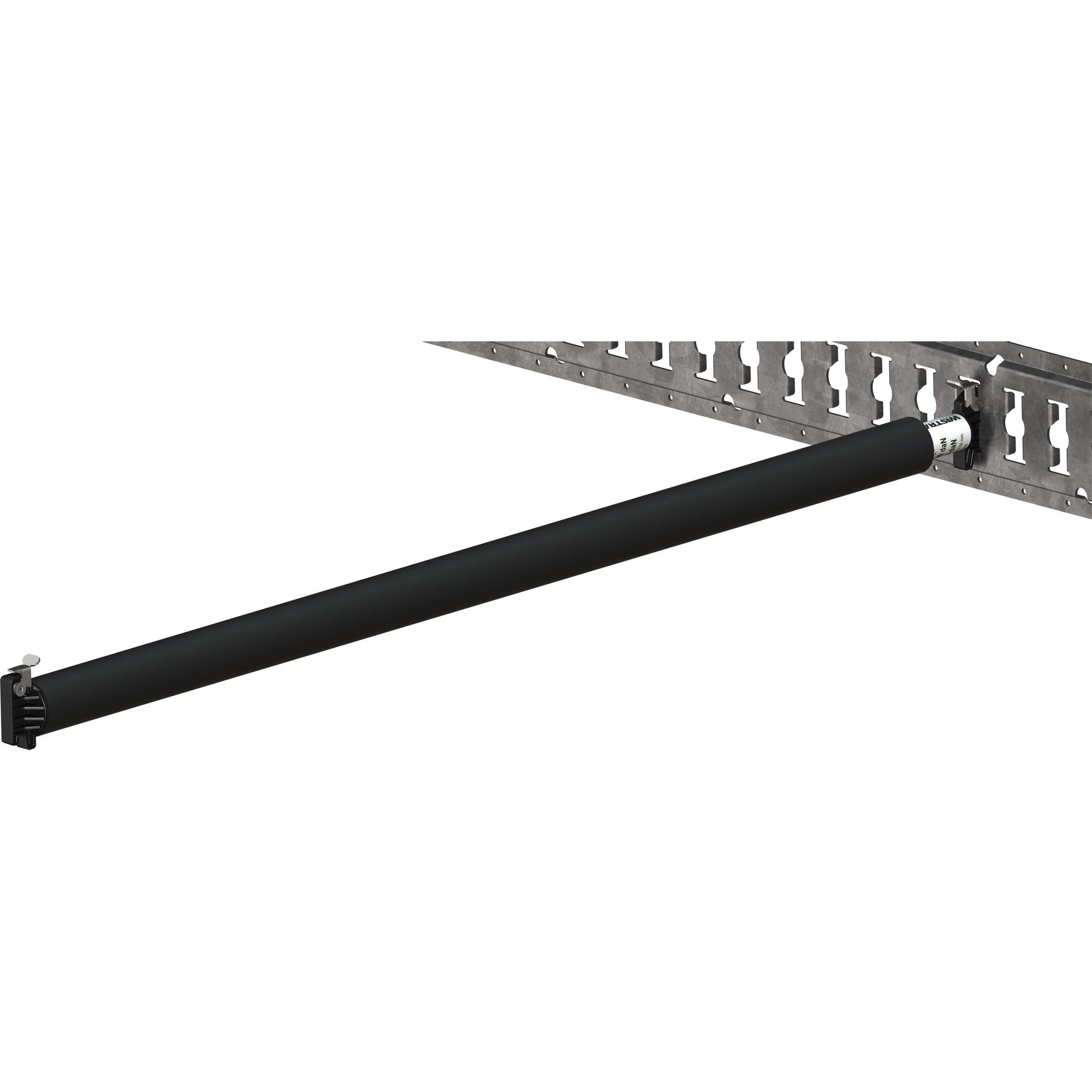

Aluminium blocking bar with PVC-coating, L2450 - 2520
Aluminium blocking bar, round
with PVC-coating
length 2450 - 2520 mm
blocking force 400 daN
suitable for anchor-combi-lashing channel and keyhole lashing channel
Product number:
013010160
Aluminium blocking bar, adjustment range 1200 - 1760
Aluminium blocking bar
adjustment range 1200 - 1760 mm
capability 300-150 daN
with airline automatic pin
adjustable length
PVC-coating, black
suitable for horzontal and vertical use
Product number:
013010135
Aluminium blocking bar, adjustment range 1800 - 2360
Aluminium blocking bar
adjustment range 1800 - 2360 mm
capability 300-100 daN
with airline automatic pin
PVC-coating, black
suitable for horzontal and vertical use
Product number:
013010137

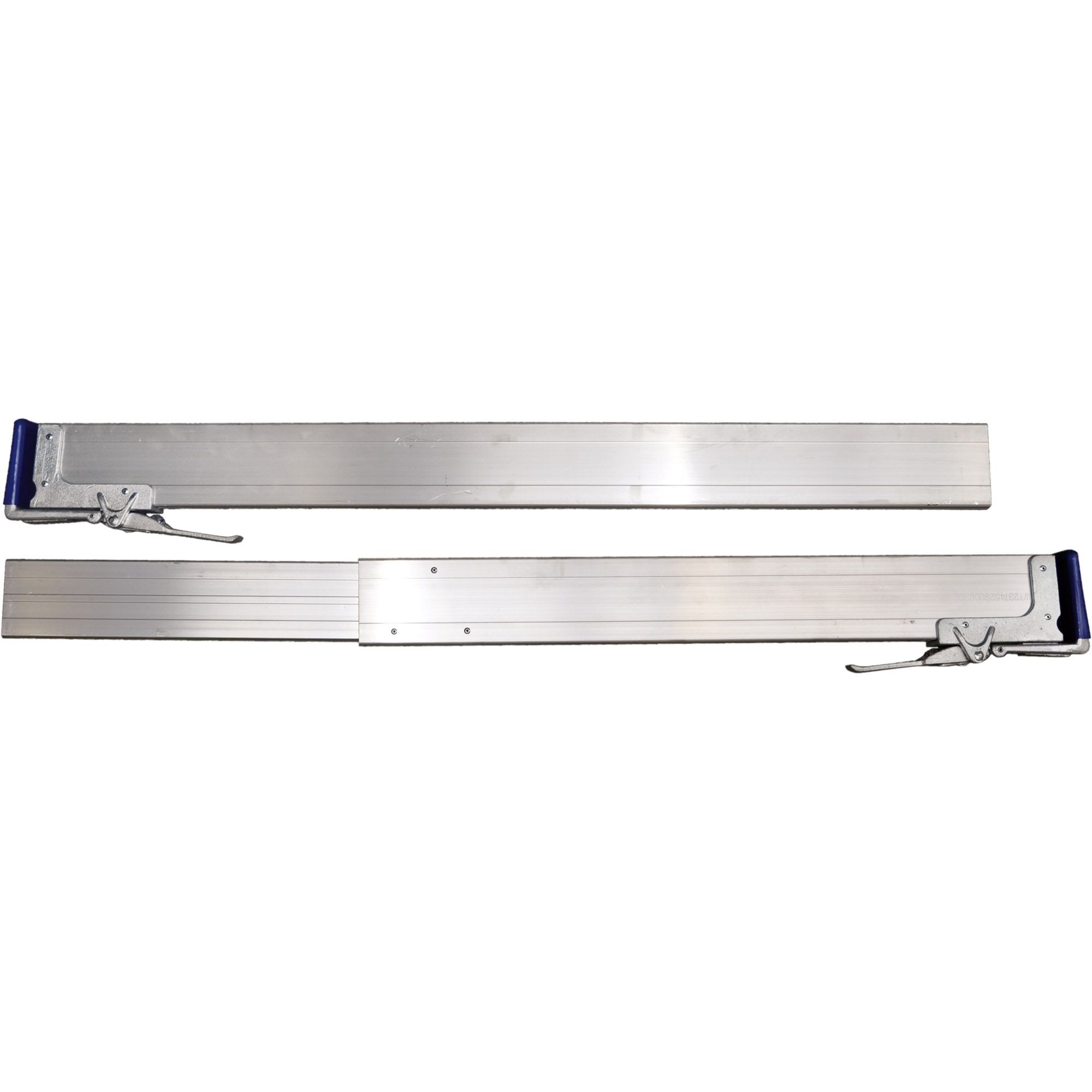

Aluminium parting wall lock
Aluminium parting wall lock
Intermediate closure 2-part, can be shortened
Length 2400-2700 mm (parcel service possible)
Load capacity max. 400 daN
Size 125 x 30 mm
Clamping range 21-36 mm
Weight 11 kg
Packing under 2m
Product number:
013010110

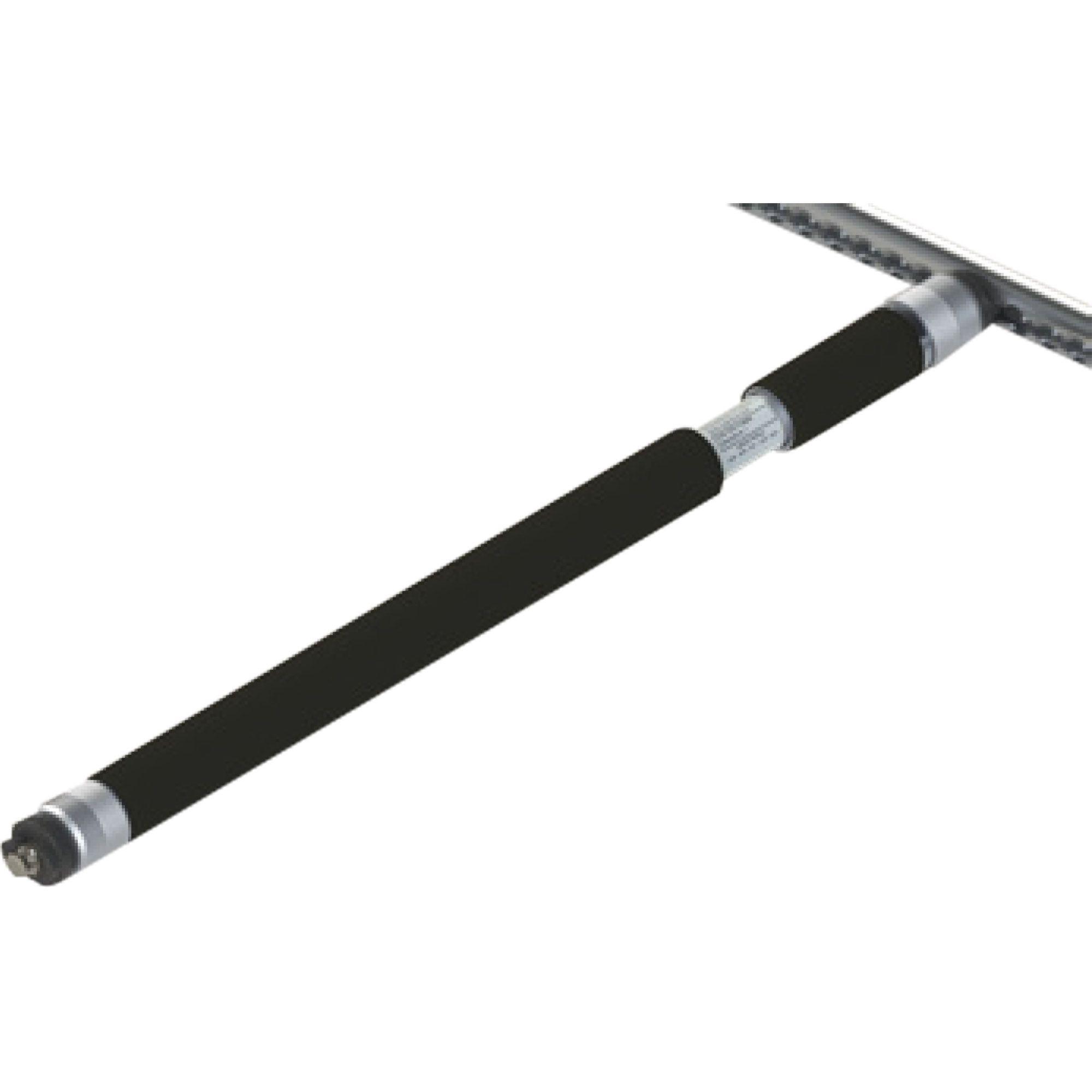

Aluminum load bar
Adjustment range 1300 - 1860 mm
Aluminum load bar
Adjustment range 1300 - 1860 mm
Load capacity 300-150 daN
with airline automatic pin
Adjustable length
PVC cover, black
suitable for horizontal and vertical use
Product number:
013010136

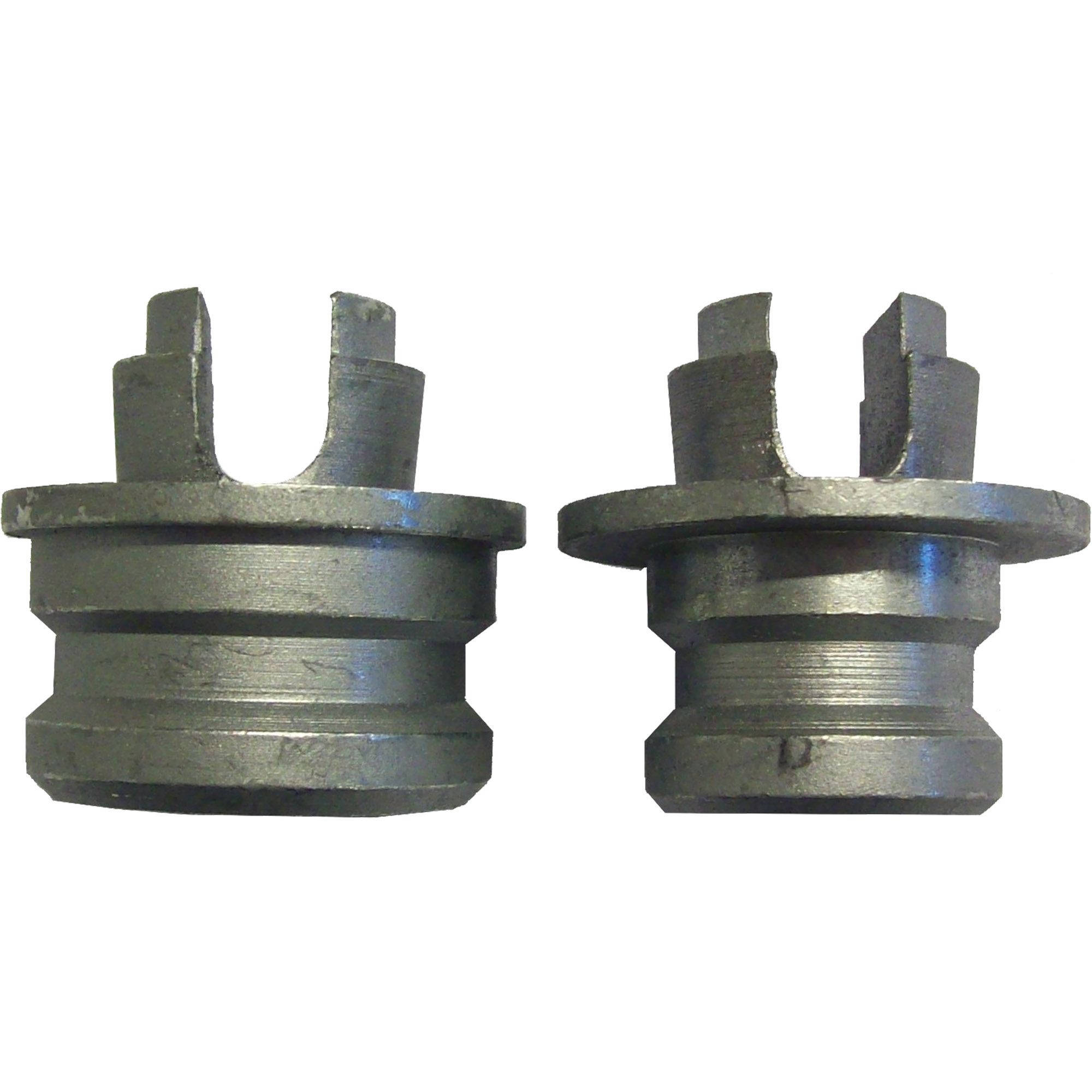

Combi endfitting for steel- round shoring beams
Combi endfitting for steel- round shoring beams
a set with two pieces for tube-diameter 1x42,4 mm and 1x33,7mm
Product number:
013010124

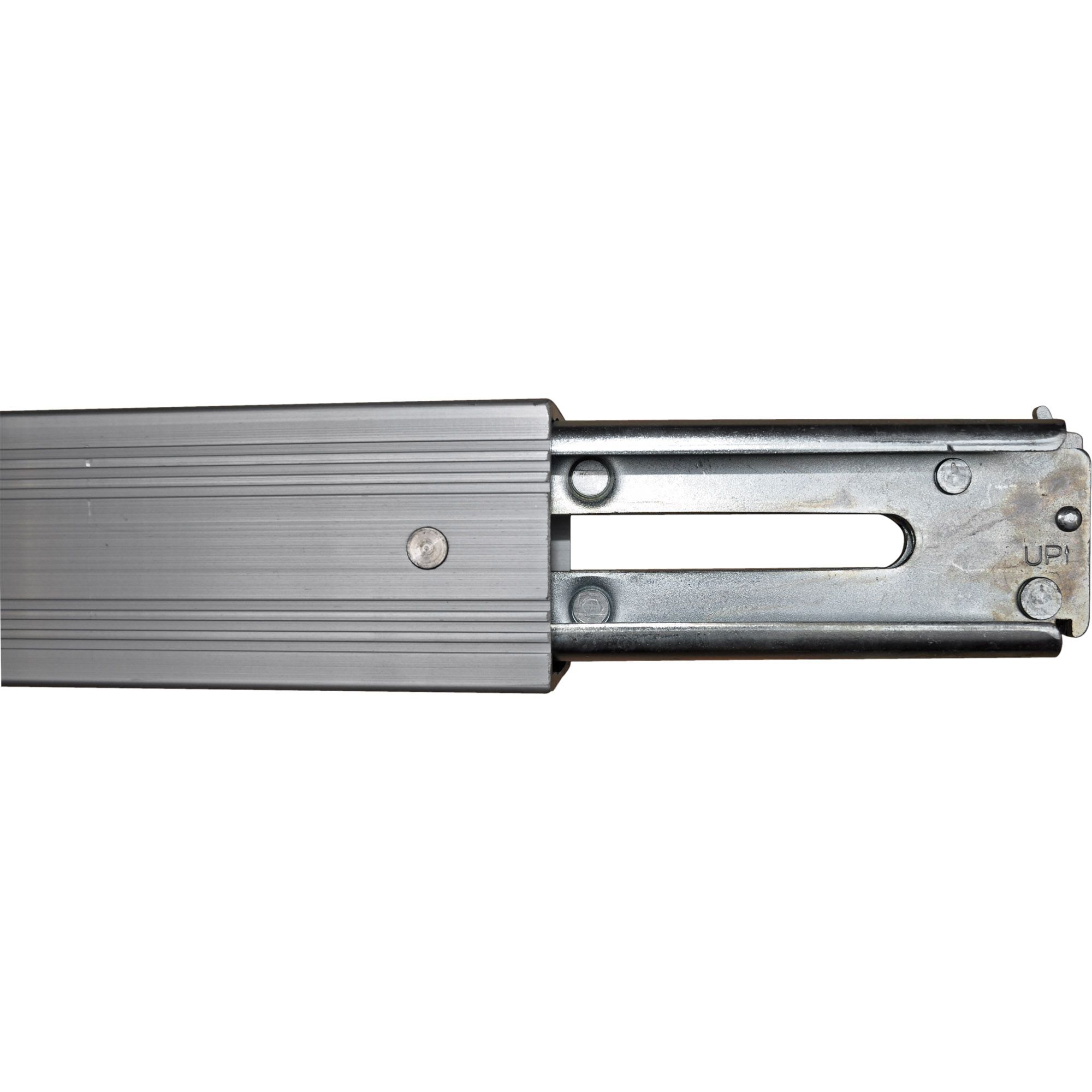

Loading bar made of aluminium construction
Loading bar made of aluminium construction
with steel end for anchor-combi-lashing channel
aluminium profile 66 x 84 mm
capability 1000 daN (1000kg) when loaded equally
range of application 2430 - 2650 mm interior dimensions of vehicle
weight 9.3 kg
suitable for combi-lashing channel item No. 013010000
Product number:
013010150

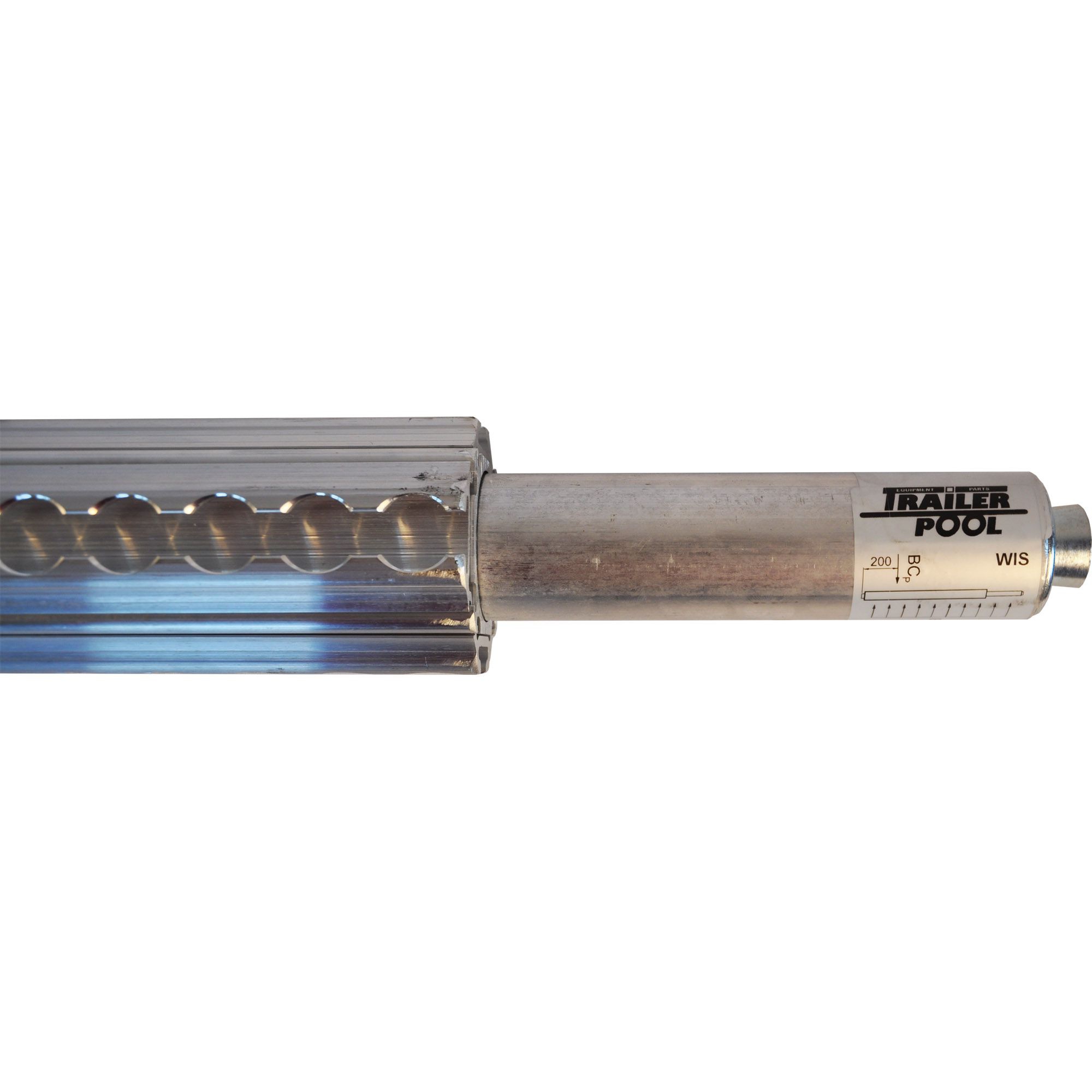

Locking bar with airline channel, length 2000 m
Locking bar with airline channel
pin-Ø 24 mm
length 2500 mm
supporting tube 2400 mm
Locking bar equipped with airline channel
Product number:
013010153

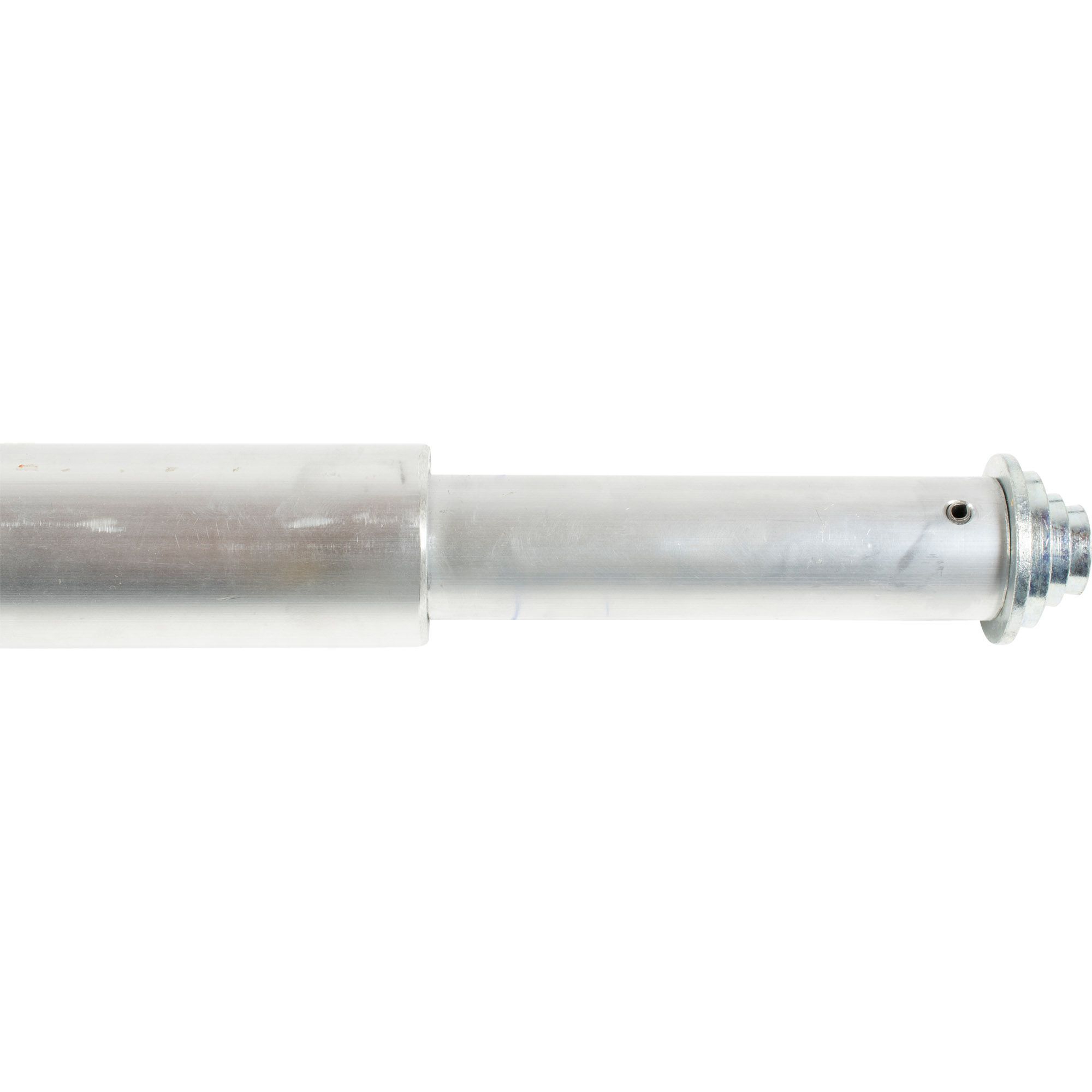

Shoring Pole PEN-BEAM, Aluminium, Lenght 2480 mm
Shoring pole PEN BEAM, round
with combi end plug Ø 19 / 24 / 33 mm
for airline-, round hole- and combi track
Lenght 2480 mm
Load capacity max. 500 daN
Pole Ø 42 mm
Material Aluminium
Product number:
013010193

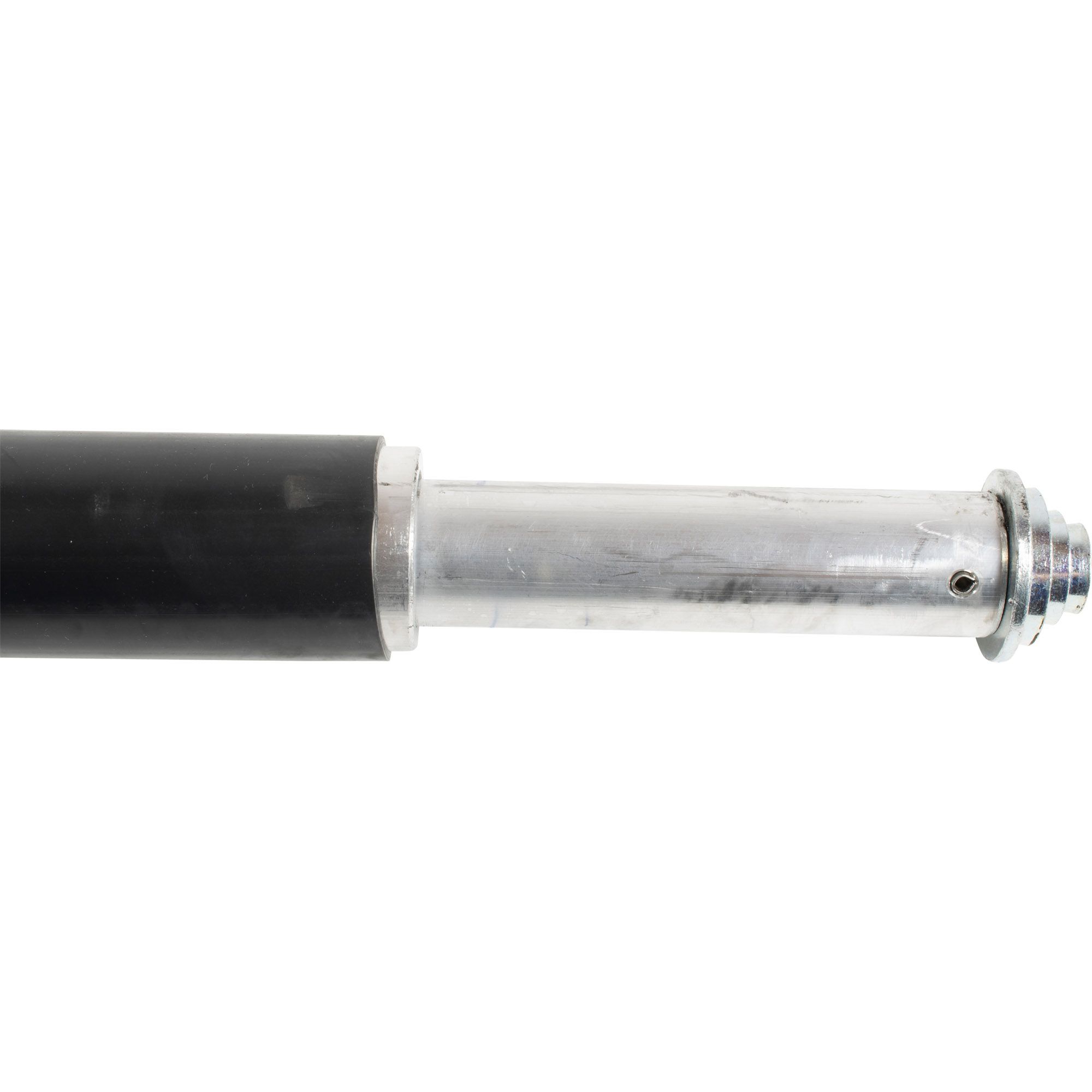

Shoring Pole PEN-BEAM, PVC coated, Alu, L 2480 mm
Shoring pole PEN BEAM, round
PVC coated
with combi end plug Ø 19 / 24 / 33 mm
for airline-, round hole- and combi track
Lenght 2480 mm
Load capacity max. 500 daN
Pole Ø 42 mm
Material Aluminium
Product number:
013010194
Shoring Pole, Alum, PVC coated 2000 - 2600 mm
Shoring pole "Fritz", round
PVC coated
with end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Locking by turning the inner tube
Working range 2000 - 2600 mm
Load capacity max. 120 daN
Pole Ø 42.5 mm
Material Aluminum
Product number:
013010177
Shoring Pole, Alum, PVC coated, 1000 - 1400 mm
Shoring pole "Fritz", round
PVC coated
with end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Locking by turning the inner tube
Working range 1000 - 1400 mm
Load capacity max. 200 daN
Pole Ø 42.5 mm
Material Aluminum
Product number:
013010187
Shoring Pole, Alum, PVC coated, 1250 - 1750 mm
Shoring pole "Fritz", round
PVC coated
with end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Locking by turning the inner tube
Working range 1250 - 1750 mm
Load capacity max. 200 daN
Pole Ø 42.5 mm
Material Aluminum
Product number:
013010175

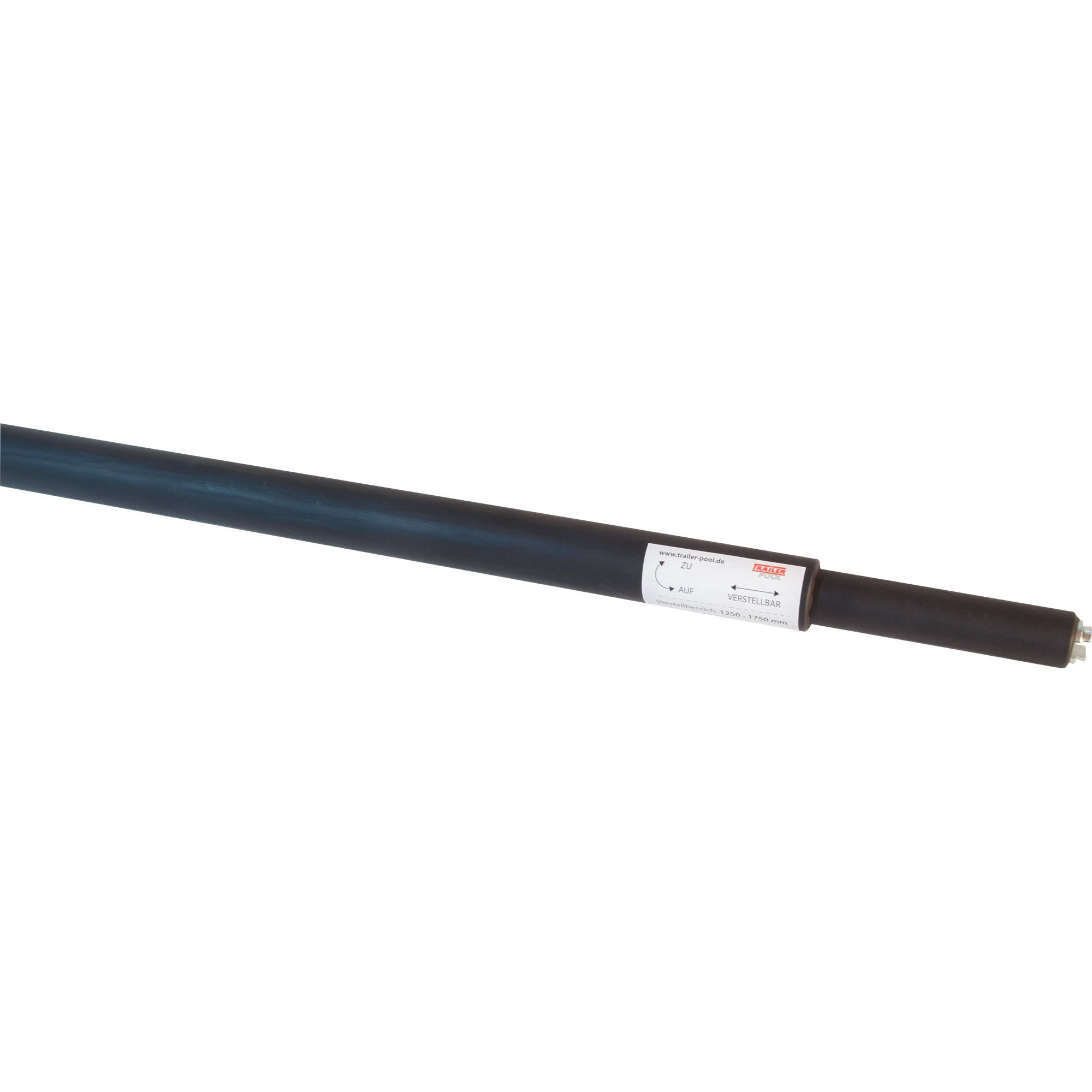

Shoring Pole, Alum, PVC coated, 1500 - 2000 mm
Shoring pole "Fritz", round
PVC coated
with end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Locking by turning the inner tube
Working range 1500 - 2000 mm
Load capacity max. 180 daN
Pole Ø 42.5 mm
Material Aluminum
Product number:
013010176
Shoring Pole, Alum, PVC coated, 640 - 800 mm
Shoring pole "Fritz", round
PVC coated
with end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Locking by turning the inner tube
Working range 640 - 800 mm
Load capacity max. 200 daN
Pole Ø 42.5 mm
Material Aluminum
Product number:
013010185

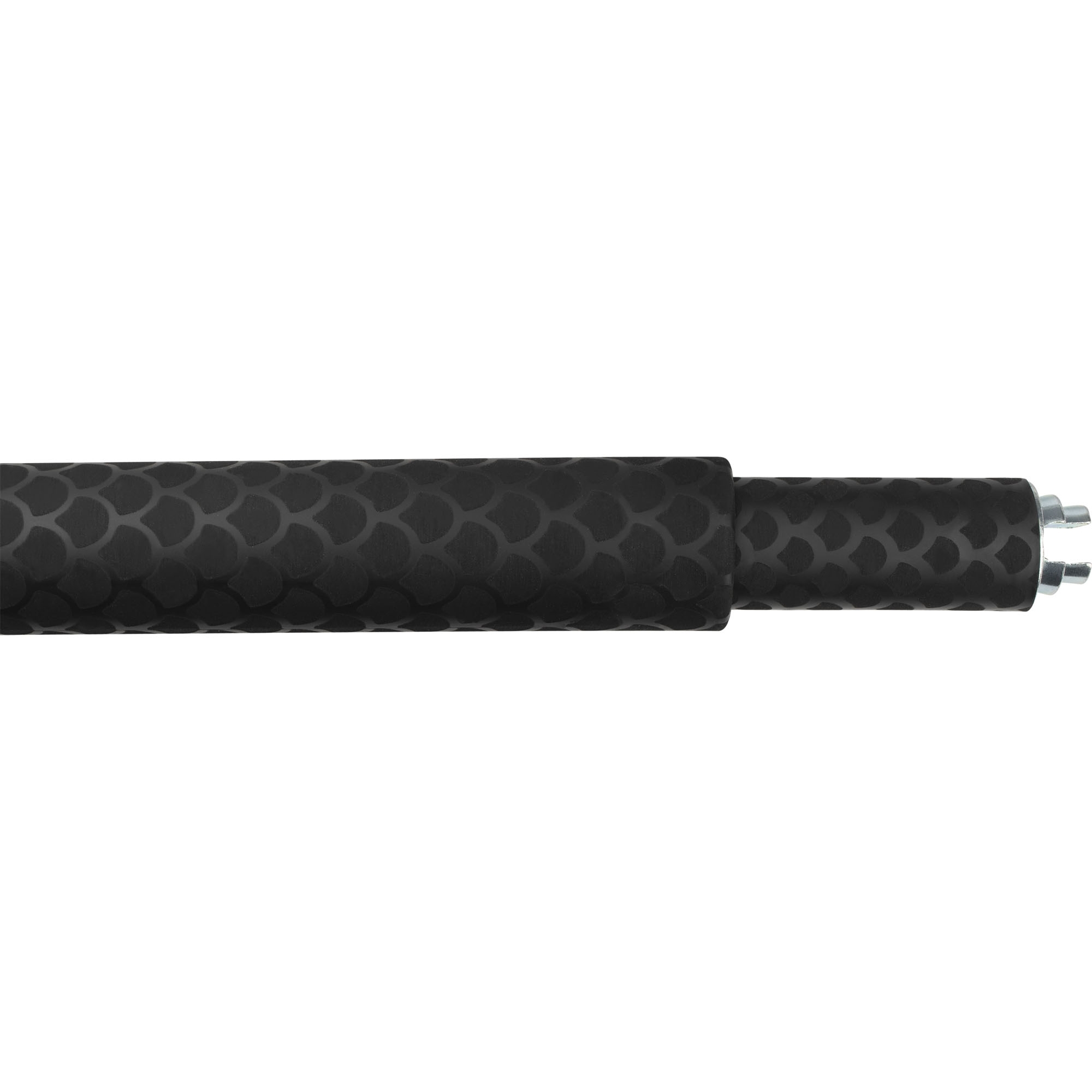

Shoring Pole, Alum, PVC coated, 800 - 1050 mm
Shoring pole "Fritz", round
PVC coated
with end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Locking by turning the inner tube
Working range 800 - 1050 mm
Load capacity max. 200 daN
Pole Ø 42.5 mm
Material Aluminum
Product number:
013010186

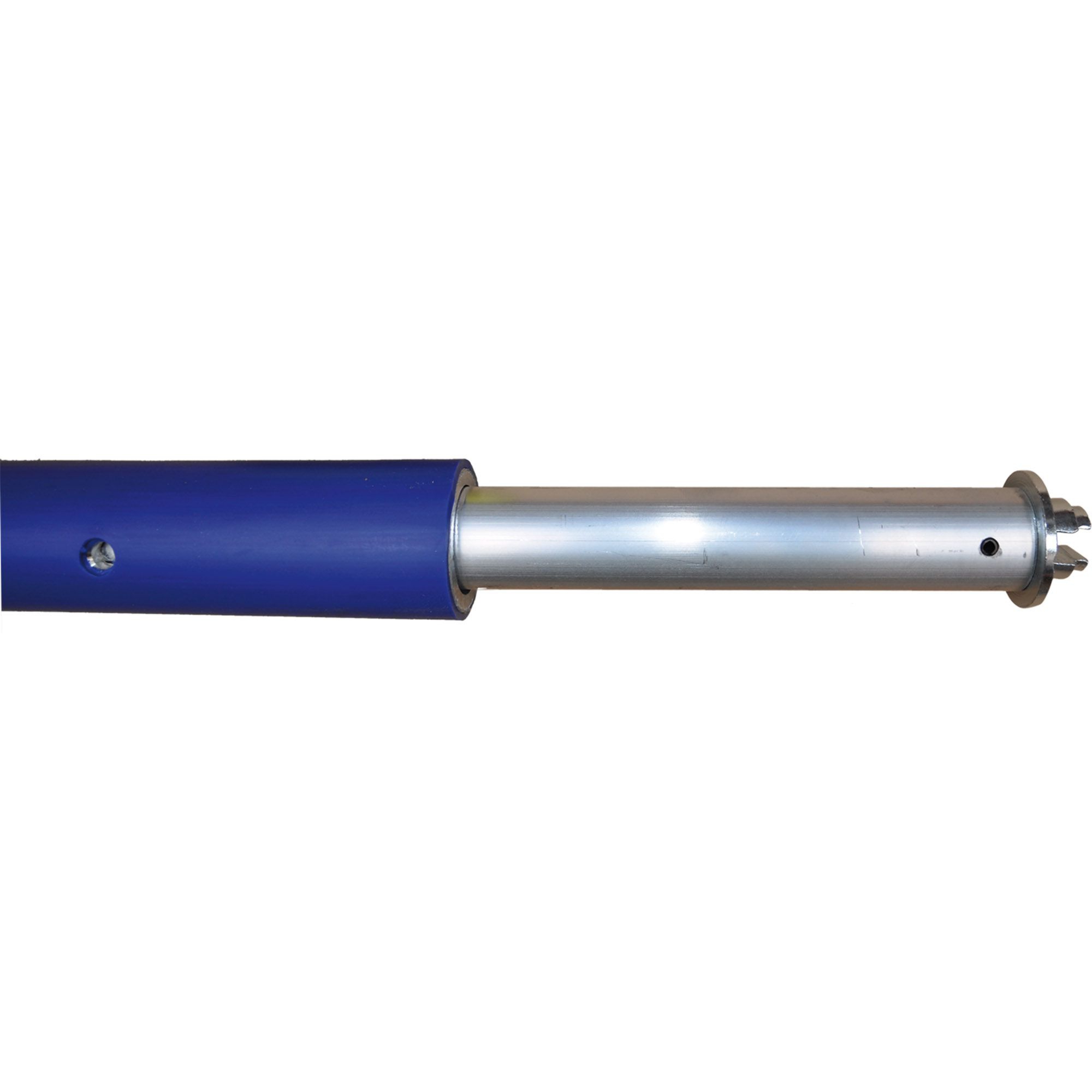

Shoring Pole, Alum, with PVC Coating, 2235–2685 mm
Shoring pole universal, round
with PVC coating
with combi end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Working range 2235 – 2685 mm
Load capacity max. 400 daN
Pole Ø 47 mm
Material Aluminum
Product number:
013010125

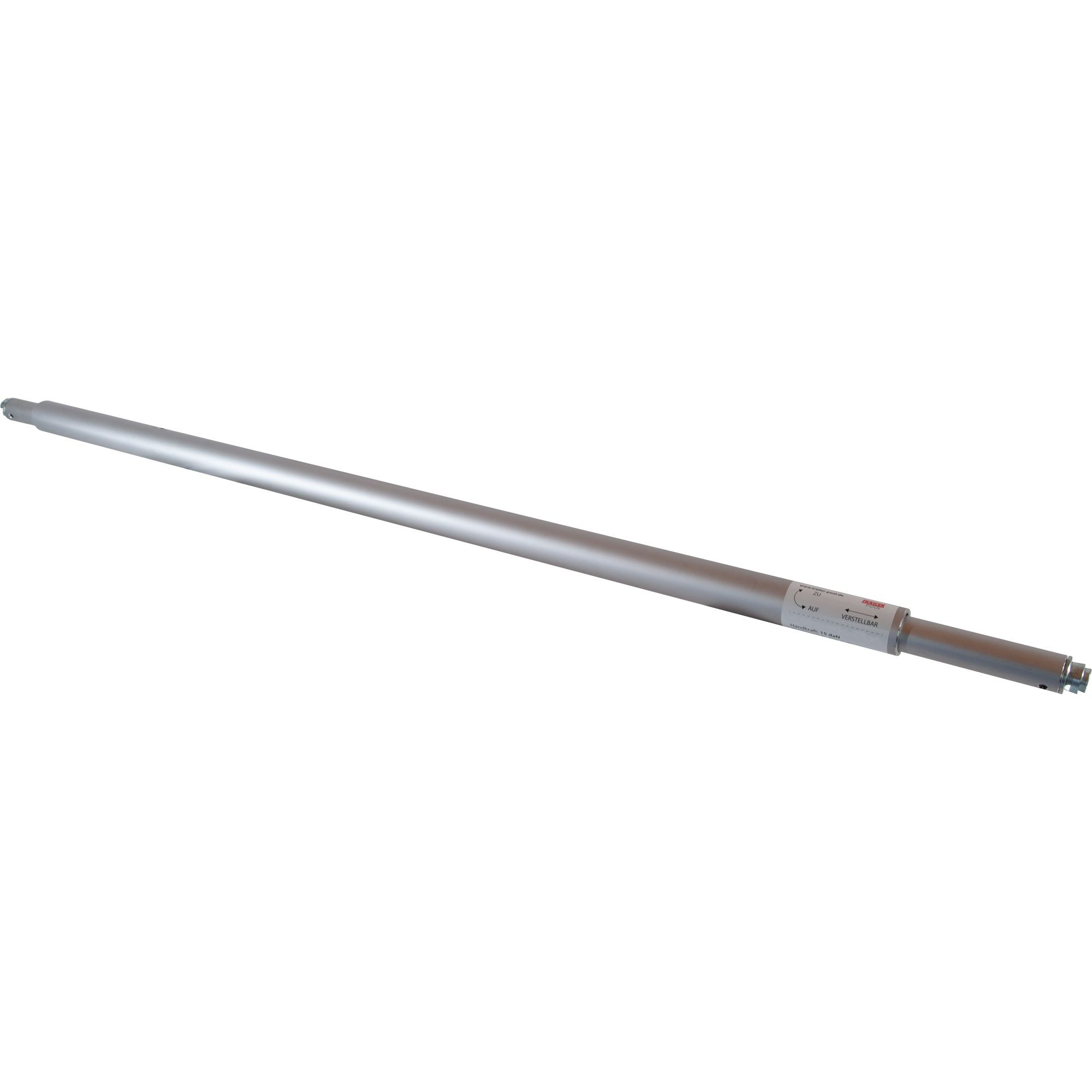

Shoring Pole, Alum, Working Range 1000 - 1400 mm
Shoring pole "Fritz", round
with end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Locking by turning the inner tube
Working range 1000 - 1400 mm
Load capacity max. 200 daN
Pole Ø 42.5 mm
Material Aluminum
Product number:
013010184

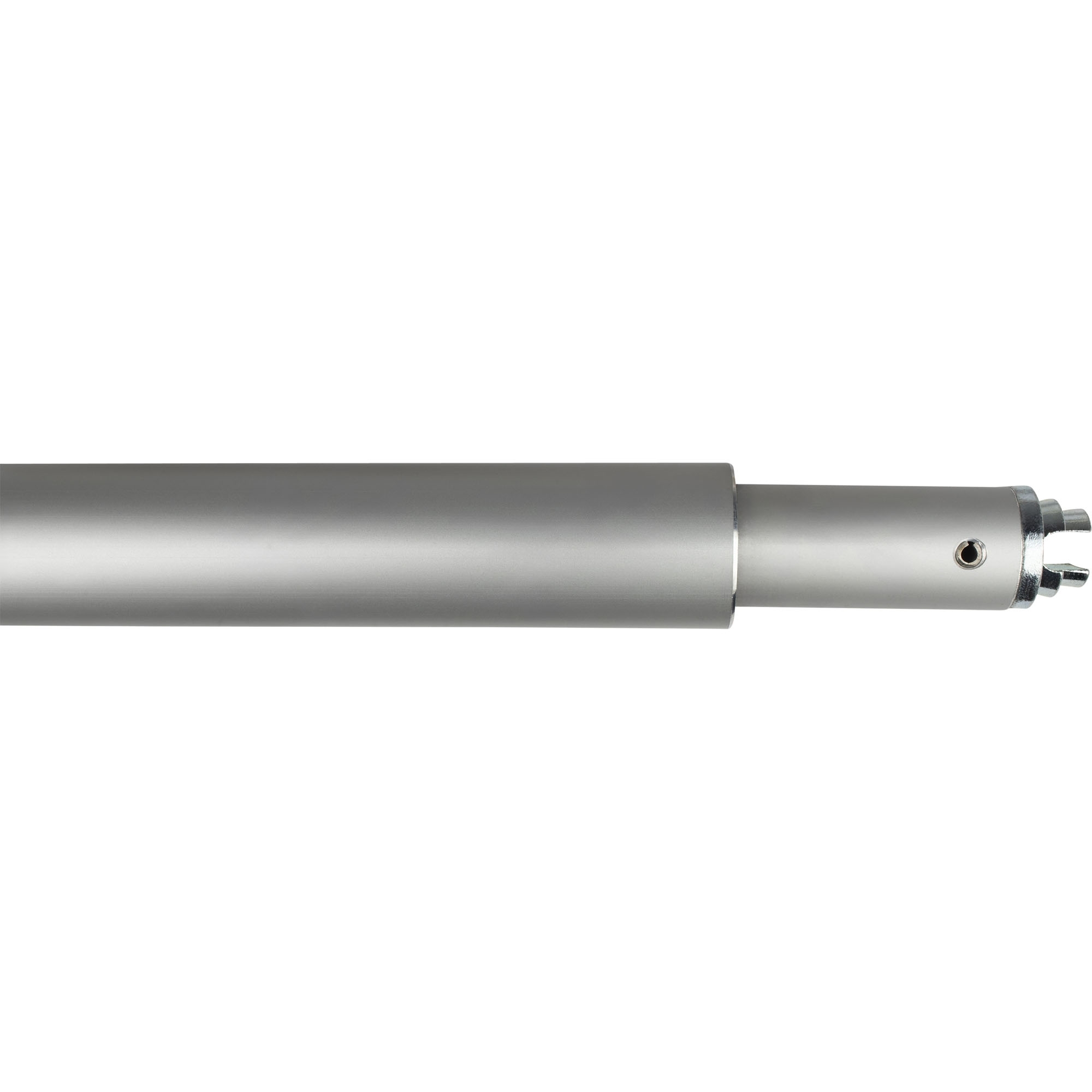

Shoring Pole, Alum, Working Range 1250 - 1750 mm
Shoring pole "Fritz", round
with end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Locking by turning the inner tube
Working range 1250 - 1750 mm
Load capacity max. 200 daN
Pole Ø 42.5 mm
Material Aluminum
Product number:
013010170
Shoring Pole, Alum, Working Range 1430 – 1925 mm
Shoring pole universal, round
with combi end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Working range 1430 – 1925 mm
Load capacity max. 400 daN
Pole Ø 42 mm
Material Aluminum
Product number:
013010122
Shoring Pole, Alum, Working Range 1500 - 2000 mm
Shoring pole "Fritz", round
with end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Locking by turning the inner tube
Working range 1500 - 2000 mm
Load capacity max. 180 daN
Pole Ø 42.5 mm
Material Aluminum
Product number:
013010171
Shoring Pole, Alum, Working Range 2000 - 2600 mm
Shoring pole "Fritz", round
with end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Locking by turning the inner tube
Working range 2000 - 2600 mm
Load capacity max. 120 daN
Pole Ø 42.5 mm
Material Aluminum
Product number:
013010172

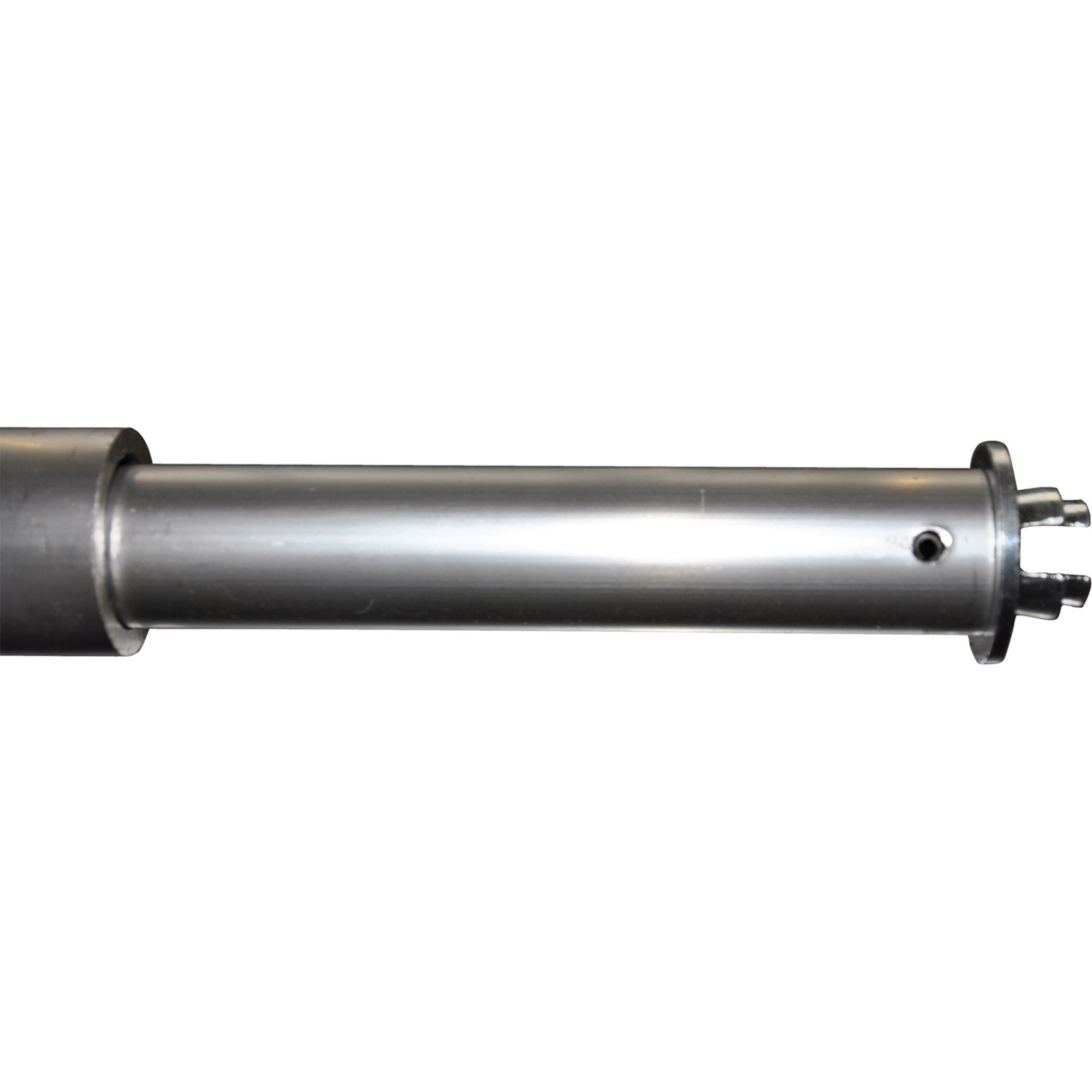

Shoring Pole, Alum, Working Range 2235 – 2685 mm
Shoring pole universal, round
with combi end plug Ø 19 / 24 mm and slot 9 mm
for airline-, round hole-, pin- and combi track
Working range 2235 – 2685 mm
Load capacity max. 400 daN
Pole Ø 42 mm
Material Aluminum
Product number:
013010121
