Loading ramps
1 Pair Loading Ramp, Extendable, Alum, Length 1065 - 1800 mm, 270 kg
1 Pair Loading Ramp, extendable
with edge
Material Aluminium
Length 1065 - 1800 mm
Internal width 150 mm
External width 194 mm
Construction height 50 mm
Height difference 388 - 430 mm (at 30 % gradient)
Load capacity at centre distance:
>1200 mm: 270 kg
Attention: With a smaller centre distance or point load, the load capacity may be reduced by up to 50%.
Follow general safety instructions.
Product number:
018900205
1 Pair Loading Ramp, Extendable, Alum, Length 1220 - 2100 mm, 270 kg
1 Pair Loading Ramp, extendable
with edge
Material Aluminium
Length 1220 - 2100 mm
Internal width 150 mm
External width 194 mm
Construction height 50 mm
Height difference 517 – 575 mm (at 30 % gradient)
Load capacity at centre distance:
>1200 mm: 270 kg
Attention: With a smaller centre distance or point load, the load capacity may be reduced by up to 50%.
Follow general safety instructions.
Product number:
018900210
1 Pair Loading Ramp, Extendable, Alum, Length 915 - 1500 mm, 270 kg
1 Pair Loading Ramp, extendable
with edge
Material Aluminium
with Anti-Slip Tape
Length 915 - 1500 mm
Internal width 150 mm
External width 194 mm
Construction height 50 mm
Height difference 388 - 430 mm (at 30 % gradient)
Load capacity at centre distance:
>1200 mm: 270 kg
Attention: With a smaller centre distance or point load, the load capacity may be reduced by up to 50%.
Follow general safety instructions.
Product number:
018900200
1 Pair Loading Ramps Alum, Length 1995 mm, 550 kg
1 Pair loading ramps
without edge, with support tongue
Material aluminum
Load capacity 550 kg
Length 1995 mm
Outer width 200 mm
Height 60 mm
Height difference 310 - 540 mm (at 30 % gradient)
Product number:
018001009

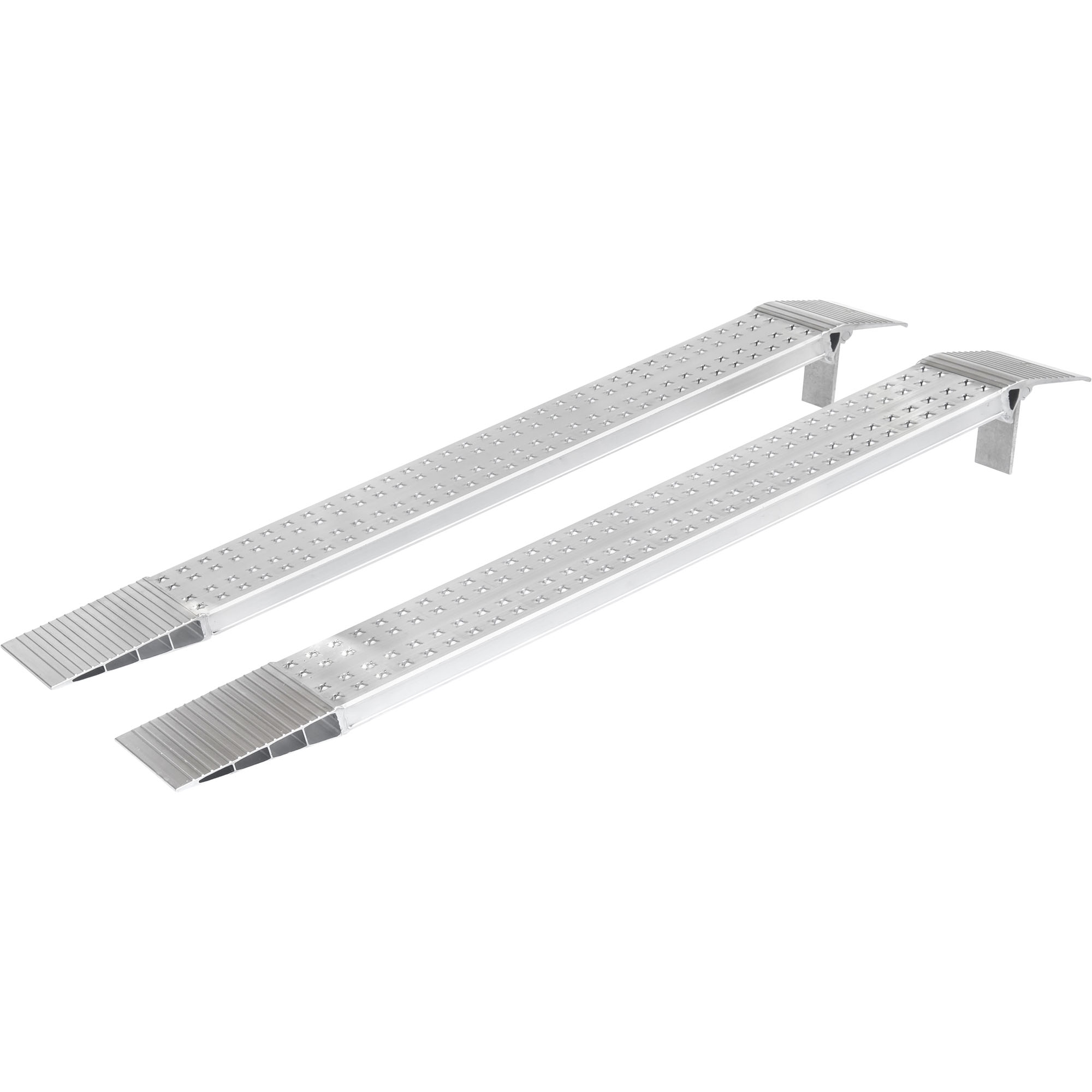

1 Pair Loading Ramps Alum, Length 1995 mm, 900 kg
1 Pair loading ramps
without edge, with support tongue
Material aluminum
Load capacity 900 kg
Length 1995 mm
Outer width 300 mm
Height 60 mm
Height difference 310- 540 mm (at 30 % gradient)
Product number:
018001021
1 Pair Loading Ramps Alum, Length 2000 mm, 2250 kg
1 Pair loading ramps
without edge, with support tongue
Slide guard, for rubber-tyred vehicles
Material aluminum
Load capacity 2250 kg
Length 2000 mm
Outer width 345 mm
Height 65 mm
Height difference 600 mm (at 30 % gradient)
Product number:
018900120
1 Pair Loading Ramps Alum, Length 2230 mm, 2230 kg
1 Pair loading ramps
suitable for Humbaur trailer
without edge, with support tongue
Slide guard, for rubber-tyred vehicles
Material aluminum
Load capacity 2230 kg
Length 2230 mm
Outer width 250 mm
Height 65 mm
Height difference 670 mm (at 30 % gradient)
Product number:
018900149
1 Pair Loading Ramps Alum, Length 2475 mm, 1930 kg
1 Pair loading ramps
suitable for Humbaur trailer
without edge, with support tongue
Slide guard, for rubber-tyred vehicles
Material aluminum
Load capacity 1930 kg
Length 2475 mm
Outer width 250 mm
Height 130 mm
Height difference 750 mm (at 30 % gradient)
Product number:
018900150
1 Pair Loading Ramps Alum, Length 2500 mm, 2900 kg
1 Pair loading ramps
without edge, with support tongue
Slide guard, for rubber-tyred vehicles
Material aluminum
Load capacity 2900 kg
Length 2500 mm
Inner width 300 mm
Outer width 360 mm
Height 105 mm
Height difference 750 mm (at 30 % gradient)
Product number:
018900125
1 Pair Loading Ramps Alum, Length 2650 mm, 2800 kg
1 Pair loading ramps
suitable for Humbaur trailer
with edge, with support tongue
Slide guard, for rubber-tyred vehicles
Material aluminum
Load capacity 2800 kg
Length 2650 mm
Inner width 290 mm
Outer width 350 mm
Height 105 mm
Height difference 800 mm (at 30 % gradient)
Product number:
018900154
1 Pair Loading Ramps Alum, Length 2650 mm, 2800 kg
1 Pair loading ramps
suitable for Humbaur trailer
without edge, with support tongue
Slide guard, for rubber-tyred vehicles
Material aluminum
Load capacity 2800 kg
Length 2650 mm
Outer width 350 mm
Height 130 mm
Height difference 800 mm (at 30 % gradient)
Product number:
018900155
1 Pair Loading Ramps Alum, Length 3000 mm, 3050 kg
1 Pair loading ramps
without edge, with support tongue
Slide guard, for rubber-tyred vehicles
Material aluminum
Load capacity 3050 kg
Length 3000 mm
Inner width 300 mm
Outer width 360 mm
Height 120 mm
Height difference 900 mm (at 30 % gradient)
Product number:
018900130

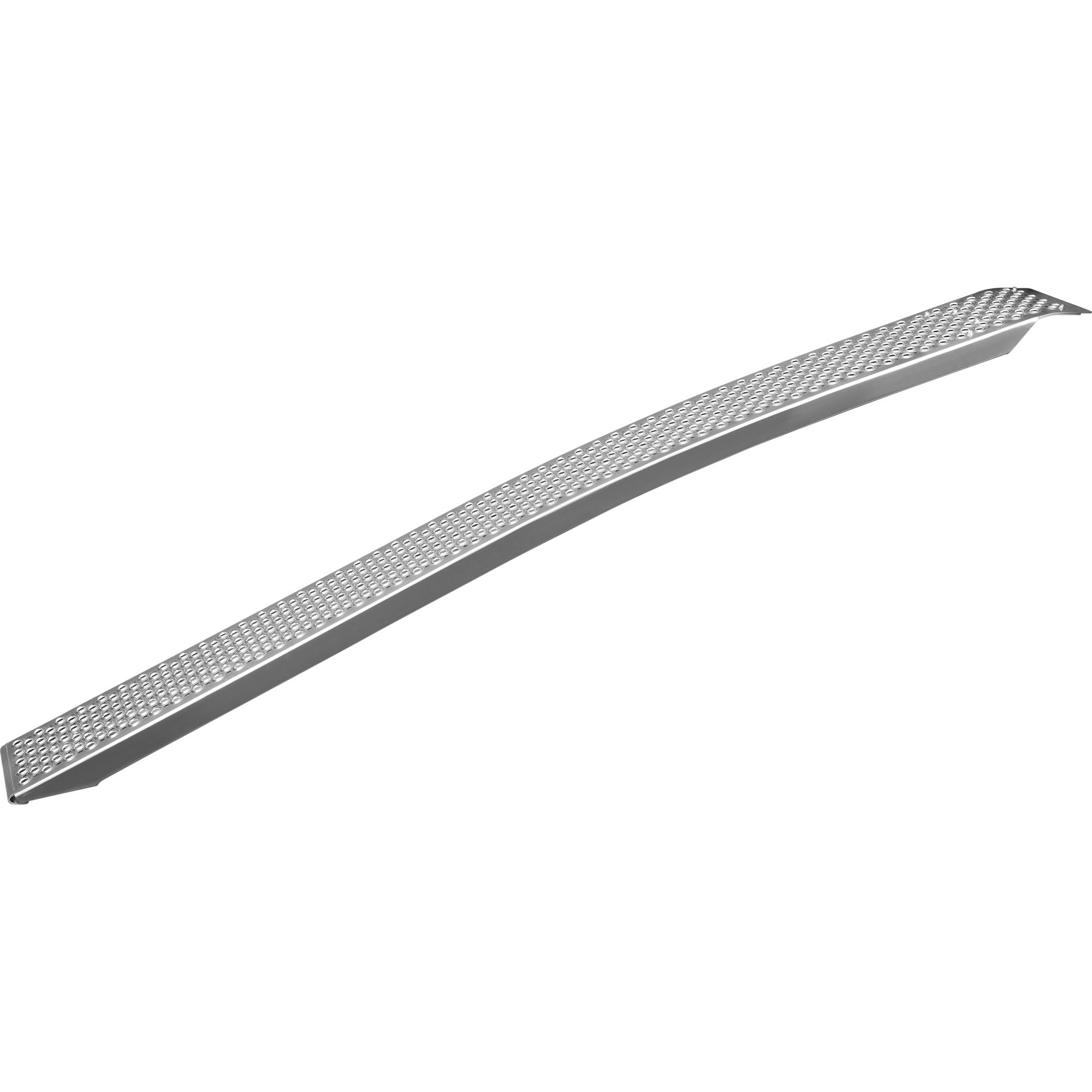

1 Pair Loading Ramps curved, Alum, Length 1500 mm, 400 kg
1 Pair loading ramps
without edge, with reinforced support tongue and bolt securing
slip-resistant and perforated surface
only for rubber-tyred vehicles
Material aluminum
Length 1500 mm
Outer width 200 mm
Height 40 mm
Height difference 388 - 430 mm (at 30 % gradient)
Wheelbase 750 mm
Load capacity by wheelbase:
0-499 mm: 220 kg
500-750 mm: 280 kg
751-1200 mm: 360 kg
>1200 mm: 400 kg
Product number:
018000210
1 Pair Loading Ramps curved, Alum, Length 2000 mm, 1000 kg
1 Pair loading ramps, vers. curved
without edge, with reinforced support tongue and bolt securing
slip-resistant and perforated surface
only for rubber-tyred vehicles
Material aluminum
Length 2000 mm
Outer width 260 mm
Height 65 mm
Height difference 517 - 575 mm (at 30 % gradient)
Load capacity by wheelbase:
0-499 mm: 650 kg
500-750 mm: 750 kg
751-1200 mm: 800 kg
>1200 mm: 1000 kg
Product number:
018000255
1 Pair Loading Ramps curved, Alum, Length 2000 mm, 400 kg
1 Pair loading ramps, vers. curved
without edge, with reinforced support tongue and bolt securing
slip-resistant and perforated surface
only for rubber-tyred vehicles
Material aluminum
Length 2000 mm
Outer width 200 mm
Height 55 mm
Height difference 517 - 575 mm (at 30 % gradient)
Load capacity by wheelbase:
0-499 mm: 260 kg
500-750 mm: 320 kg
751-1200 mm: 400 kg
>1200 mm: 400 kg
Product number:
018000220
1 Pair Loading Ramps curved, Alum, Length 2500 mm, 1000 kg
1 Pair loading ramps, vers. curved
without edge, with reinforced support tongue and bolt securing
slip-resistant and perforated surface
only for rubber-tyred vehicles
Material aluminum
Length 2500 mm
Outer width 260 mm
Height 80 mm
Height difference 647 - 718 mm (at 30 % gradient)
Load capacity by wheelbase:
0-499 mm: 650 kg
500-750 mm: 750 kg
751-1200 mm: 800 kg
>1200 mm: 1000 kg
Product number:
018000270
1 Pair Loading Ramps straight, Alum, Length 1500 mm, 1000 kg
1 Pair loading ramps, vers. straight
without edge, with reinforced support tongue and bolt securing
slip-resistant and perforated surface
only for rubber-tyred vehicles
Material aluminum
Length 1500 mm
Outer width 260 mm
Height 65 mm
Height difference 388 - 430 mm (at 30 % gradient)
Load capacity by wheelbase:
0-499 mm: 650 kg
500-750 mm: 750 kg
751-1200 mm: 800 kg
>1200 mm: 1000 kg
Product number:
018000235
1 Pair Loading Ramps straight, Alum, Length 1500 mm, 400 kg
1 Pair loading ramps, vers. straight
without edge, with reinforced support tongue and bolt securing
slip-resistant and perforated surface
only for rubber-tyred vehicles
Material aluminum
Length 1500 mm
Outer width 200 mm
Height 40 mm
Height difference 388 - 430 mm (at 30 % gradient)
Load capacity by wheelbase:
0-499 mm: 220 kg
500-750 mm: 280 kg
751-1200 mm: 360 kg
>1200 mm: 400 kg
Product number:
018000230
1 Pair Loading Ramps straight, Alum, Length 2000 mm, 1000 kg
1 Pair loading ramps, vers. straight
without edge, with reinforced support tongue and bolt securing
slip-resistant and perforated surface
only for rubber-tyred vehicles
Material aluminum
Length 2000 mm
Outer width 260 mm
Height 65 mm
Height difference 517 - 575 mm (at 30 % gradient)
Load capacity by wheelbase:
0-499 mm: 650 kg
500-750 mm: 750 kg
751-1200 mm: 800 kg
>1200 mm: 1000 kg
Product number:
018000250
1 Pair Loading Ramps straight, Alum, Length 2000 mm, 400 kg
1 Pair loading ramps, vers. straight
without edge, with reinforced support tongue and bolt securing
slip-resistant and perforated surface
only for rubber-tyred vehicles
Material aluminum
Length 2000 mm
Outer width 200 mm
Height 55 mm
Height difference 517 - 575 mm (at 30 % gradient)
Load capacity by wheelbase:
0-499 mm: 260 kg
500-750 mm: 320 kg
751-1200 mm: 400 kg
>1200 mm: 400 kg
Product number:
018000240
1 Pair Loading Ramps straight, Alum, Length 2500 mm, 1000 kg
1 Pair loading ramps, vers. straight
without edge, with reinforced support tongue and bolt securing
slip-resistant and perforated surface
only for rubber-tyred vehicles
Material aluminum
Length 2500 mm
Outer width 260 mm
Height 80 mm
Height difference 647 - 718 mm (at 30 % gradient)
Load capacity by wheelbase:
0-499 mm: 650 kg
500-750 mm: 750 kg
751-1200 mm: 800 kg
>1200 mm: 1000 kg
Product number:
018000260
1 Pair Loading Ramps straight, Alum, Length 3000 mm, 1000 kg
1 Pair loading ramps, vers. straight
without edge, with reinforced support tongue and bolt securing
slip-resistant and perforated surface
only for rubber-tyred vehicles
Material aluminum
Length 3000 mm
Outer width 260 mm
Height 95 mm
Height difference 776 - 862 mm (at 30 % gradient)
Load capacity by wheelbase:
0-499 mm: 650 kg
500-750 mm: 750 kg
751-1200 mm: 800 kg
>1200 mm: 1000 kg
Product number:
018000245
1 Pair Loading Ramps, Steel, L 2000 mm, 500 kg
1 Pair loading ramps, 2-fold foldable
without edge, with support tongue
Material steel
Outer width 250 mm
Unfolded state
Load capacity 500 kg
Length 2000 mm
Height 50 mm
Folded state
Load capacity 1000 kg
Length 898 mm
Height 150 mm
Can be used as a ramp or jack with 2 stoppers.
With carrying straps and safety chains.
Product number:
018900008

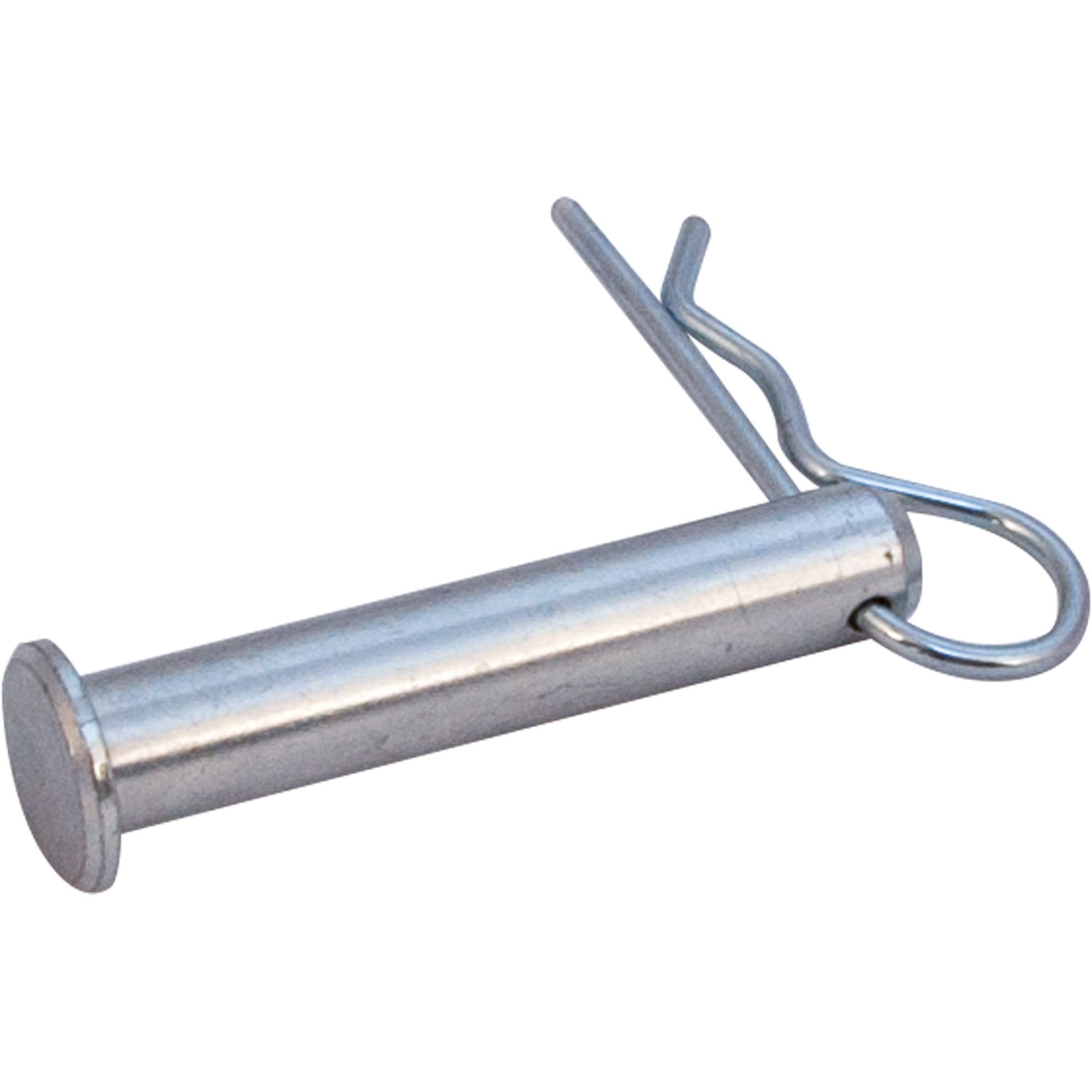

Fastening bolt, diameter 10mm
Fastening bolt
Diameter 10 mm
with spring cotter
Length 62 mm
Product number:
018100152
