Overrun Device BPW, V, Type ZAF 1,6-3
Prices visible after login
Register now
Register now

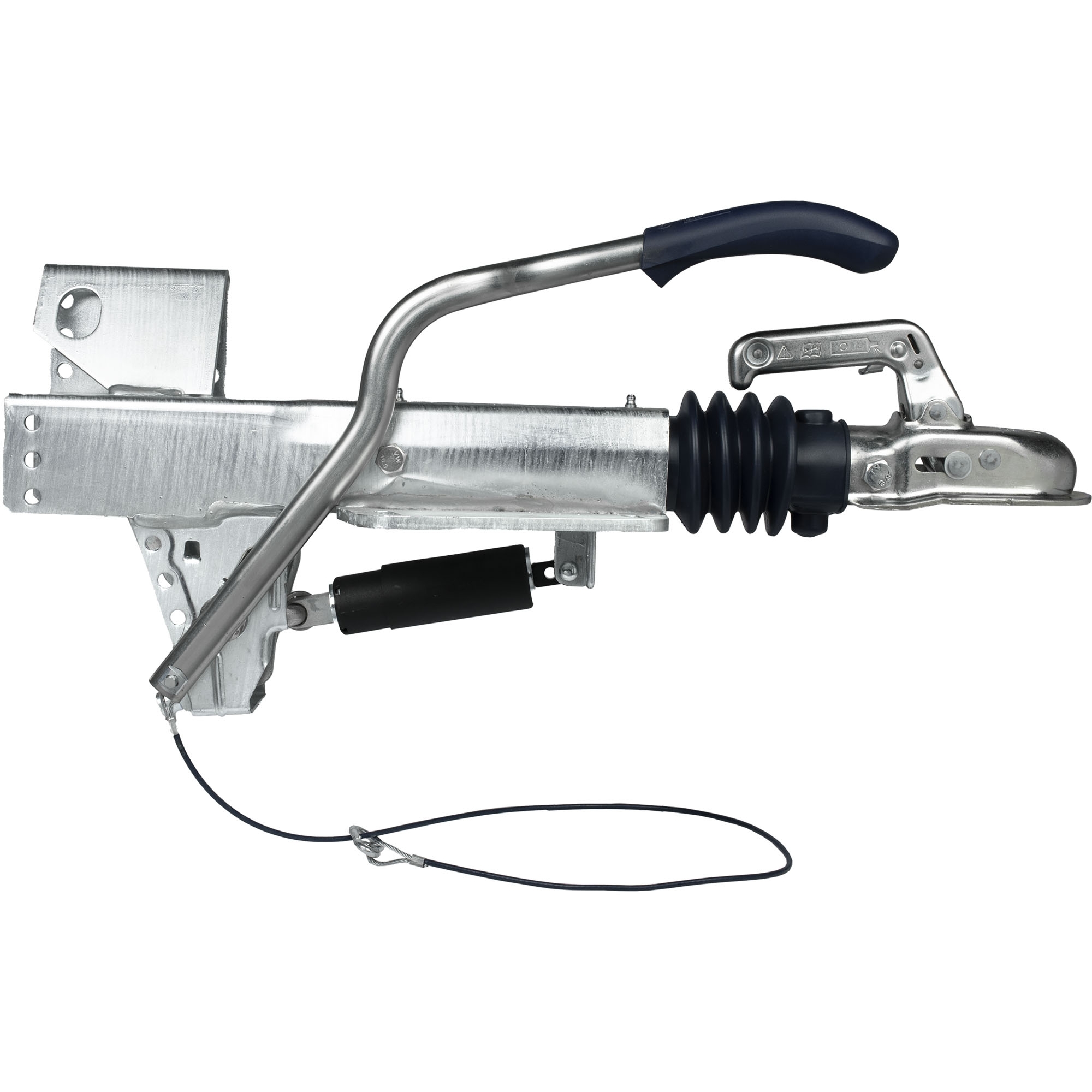

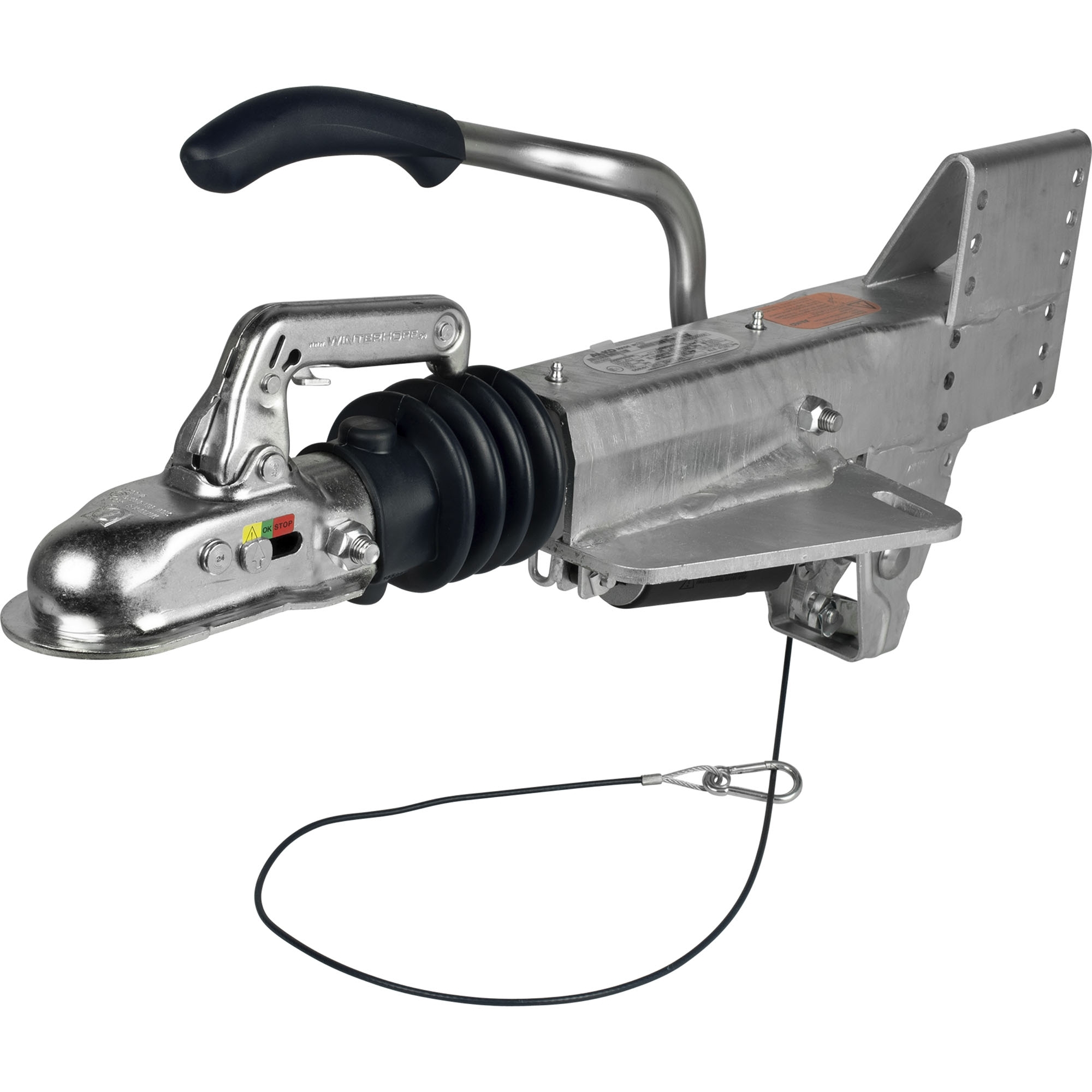

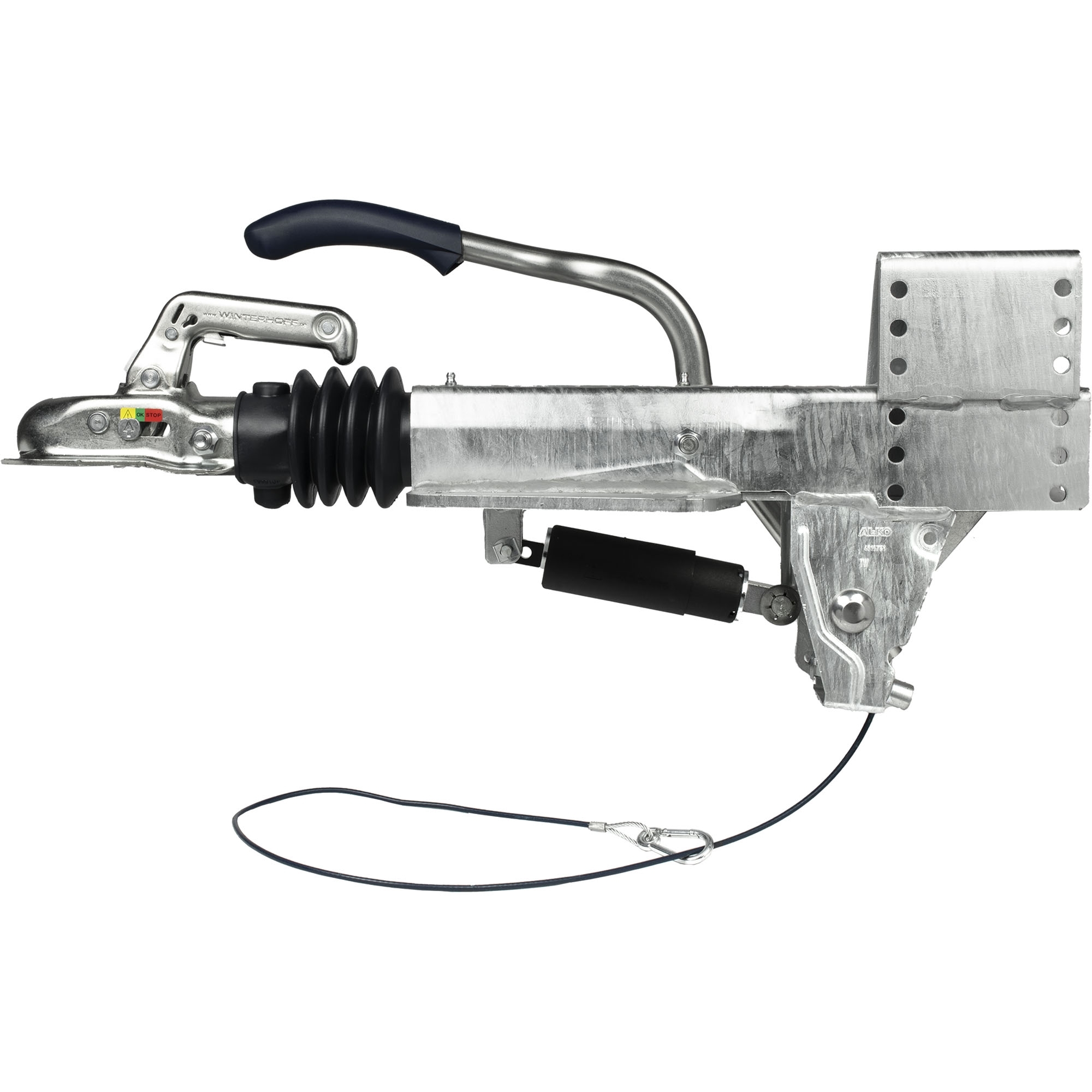

Product information "Overrun Device BPW, V, Type ZAF 1,6-3"
Overrun device BPW
for V-drawbar
Type ZAF 1,6-3
Perm. gross weight 750 – 1500 kg
Nose load 100 kg
with dead-centre hand lever
support wheel panel facing to the side
incl. coupling head WW150R-B
Lever mounted for wheel brake S1704-RASK, S2005-7RASK, S2504-7RASK, 2051
suitable for PAV/SR 1,3X
dimensions (see drawing):
A 714 mm
B 288 mm
C 166 mm
D 189-245 mm
E 110-130 mm
ETI 827003
| Bremsentyp: | 2051, S1704-RASK, S2005-7RASK, S2504-7RASK |
|---|---|
| Form: | V-Ausführung |
| Gewicht: | 17.13 |
| Hersteller: | AL-KO, BPW |
| Material: | Stahl |
| Maß A (mm): | 1044 |
| Maß B (mm): | 358 |
| Maß C (mm): | 166/207 |
| Maß D (mm): | 175/258 |
| Maß E (mm): | 130 |
| Stützlast (kg): | 100 |
| Typ: | ZAF1,5-2 |
| zul. Gesamtgewicht (kg): | 1500 |
