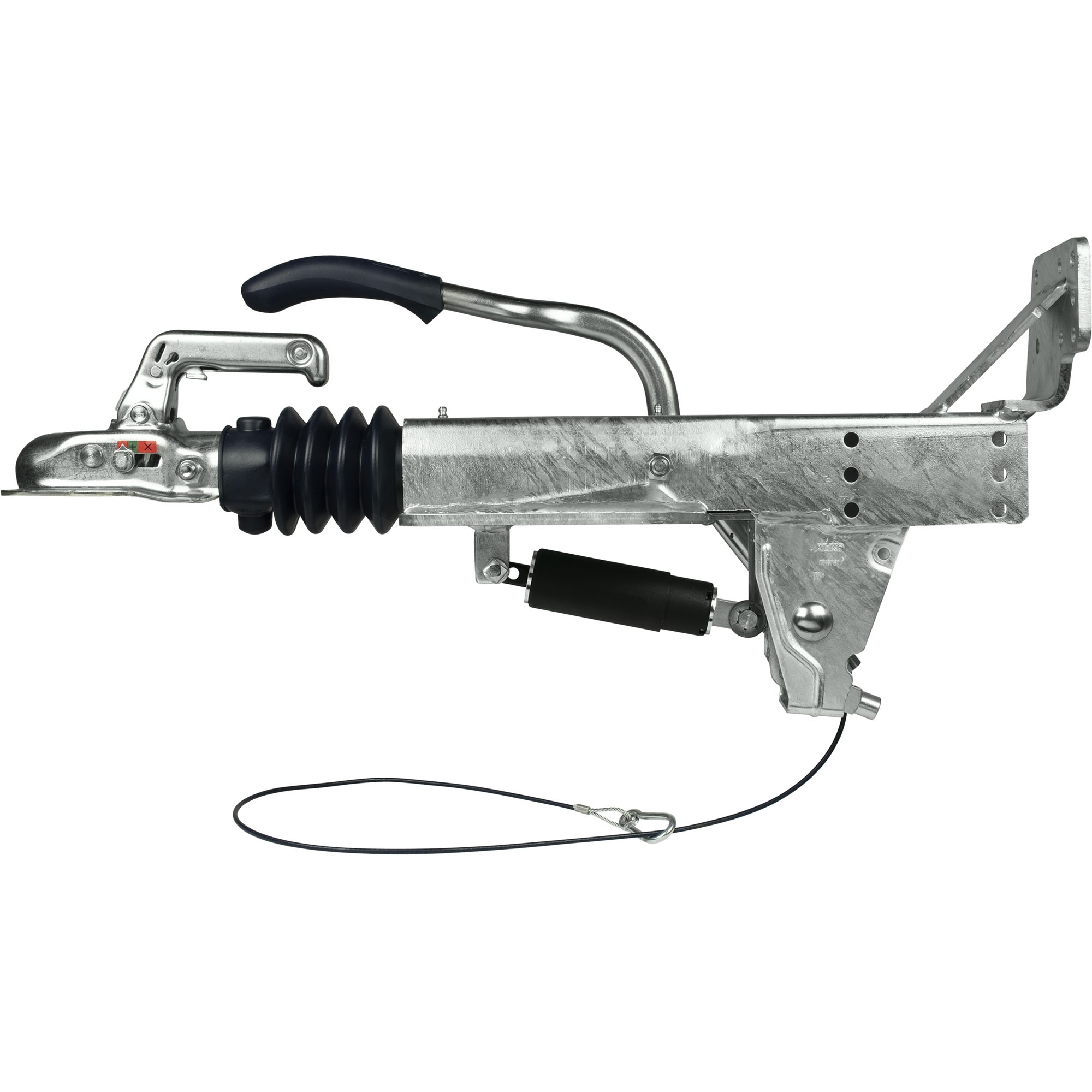

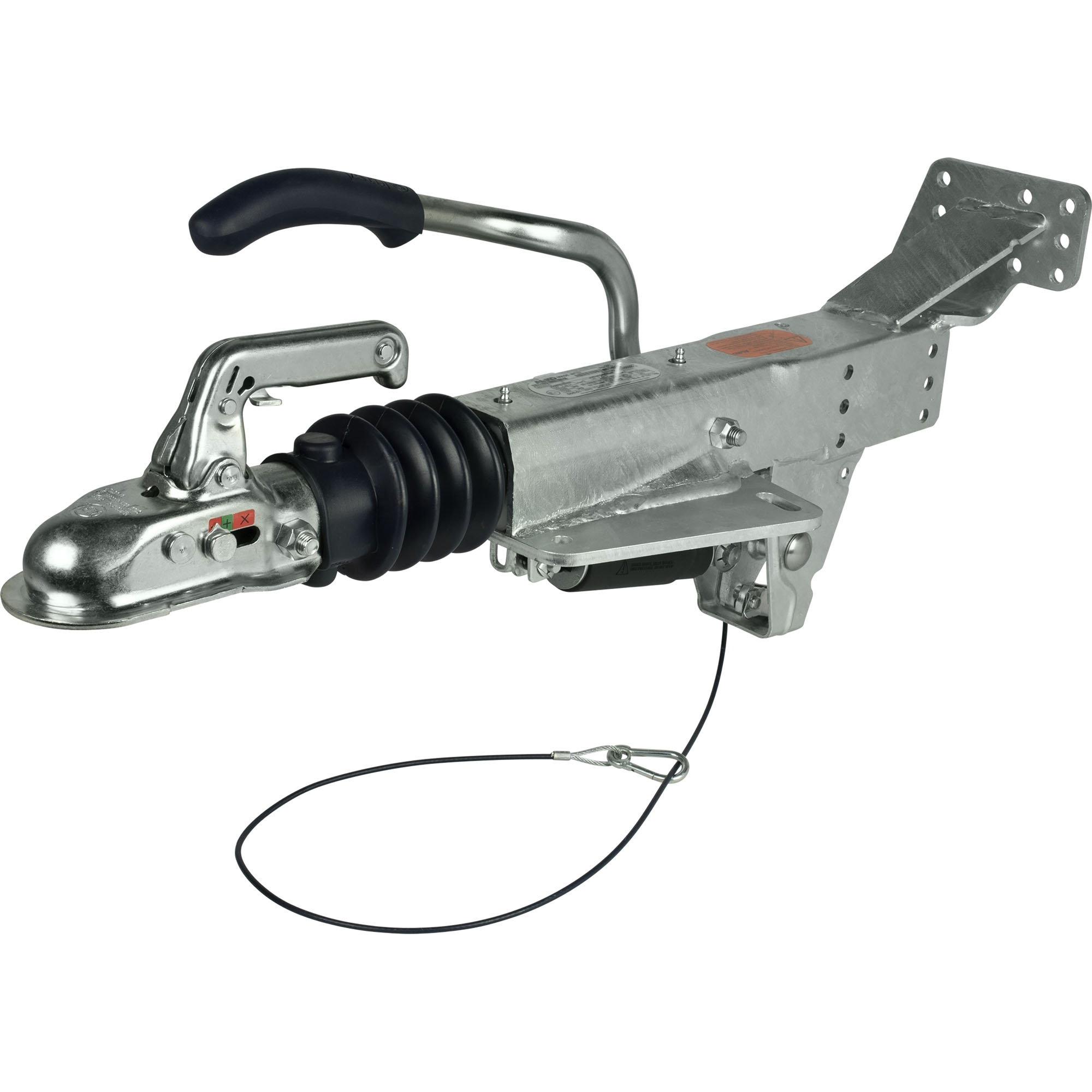

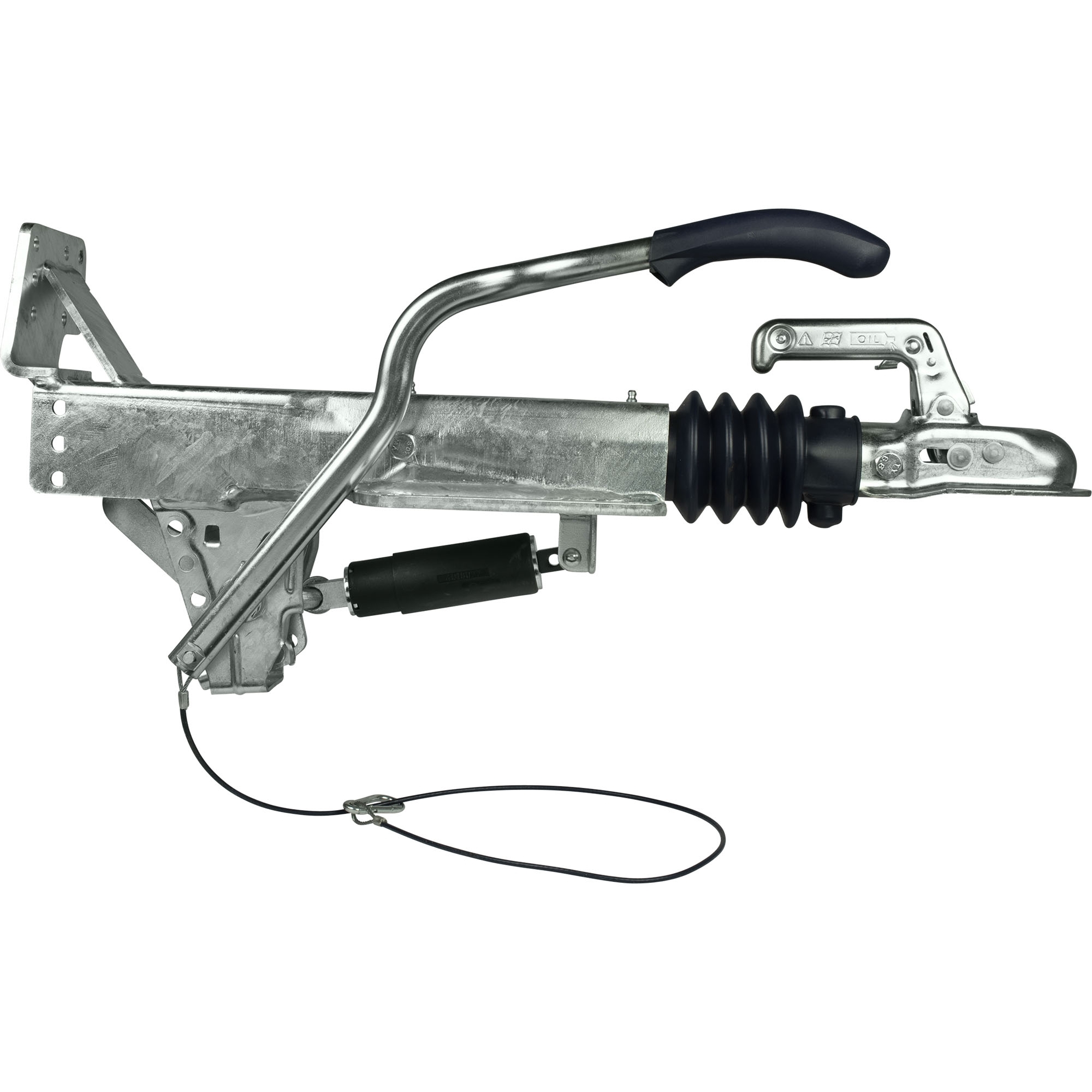

Overrun Device BPW, V, Type ZAF 2,0-3
Product information "Overrun Device BPW, V, Type ZAF 2,0-3"
Overrun device BPW
for V-drawbar
Type ZAF 2,0-3
Perm. gross weight 1300 – 2000 kg
Nose load 150 kg
with dead-centre hand lever and spring mechanism
support wheel panel facing to the side and backwards
incl. coupling head WW220R-B
Lever mounted for wheel brake S1704-7RASK, S2005-7RASK, S2504-7RASK, 2051
suitable for PAV/SR 2,0X
dimensions (see drawing):
A 738 mm
B 287 mm
C 166 mm
D 167-217 mm
E 120 mm
ETI 827002
Product info Technical details
| Bremsentyp: | 2051, S1704-RASK, S2005-7RASK, S2504-7RASK |
|---|---|
| Form: | V-Ausführung |
| Gewicht: | 17.7 |
| Hersteller: | AL-KO, BPW |
| Material: | Stahl |
| Maß A (mm): | 922 |
| Maß B (mm): | 310 |
| Maß C (mm): | 166 |
| Maß D (mm): | 195 |
| Maß E (mm): | 110 |
| Stützlast (kg): | 150 |
| Typ: | ZAF2,0-2 |
| zul. Gesamtgewicht (kg): | 2000 |
