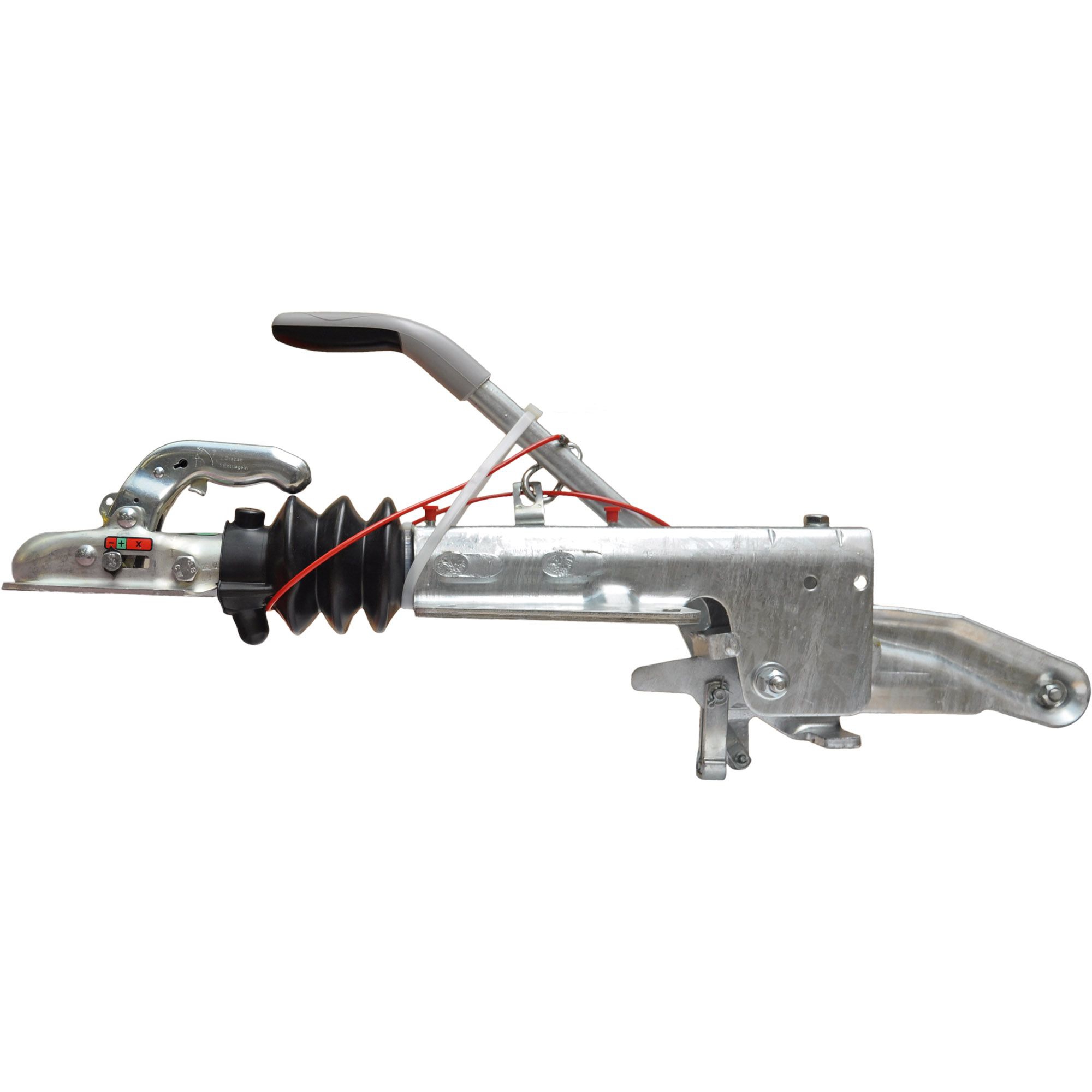

Product information "Overrun Device Knott, V, Type KFL12-A"
Overrun device Knott
for V-drawbar
Type KFL12-A
Perm. gross weight 750 – 1300 kg
Nose load 100 kg
Hole pattern 100-110 / 130 / 158 mm
with coupling head KK14-B N3
Version handbrake GF
without jockey wheel bracket
| Ausführung: | A |
|---|---|
| Form: | V-Ausführung |
| Gewicht: | 11.115 |
| Hersteller: | Knott |
| Material: | Stahl |
| Maß A (mm): | 588 |
| Maß B (mm): | 288 |
| Maß C (mm): | 130 |
| Maß D (mm): | 158 |
| Maß E (mm): | 100/110 |
| Maß F (mm): | 858 |
| Stützlast (kg): | 75 |
| Typ: | KFL12 |
| empfohlene VPE (Karton): | 1 |
| zul. Gesamtgewicht (kg): | 1300 |
