Product number:
012400006

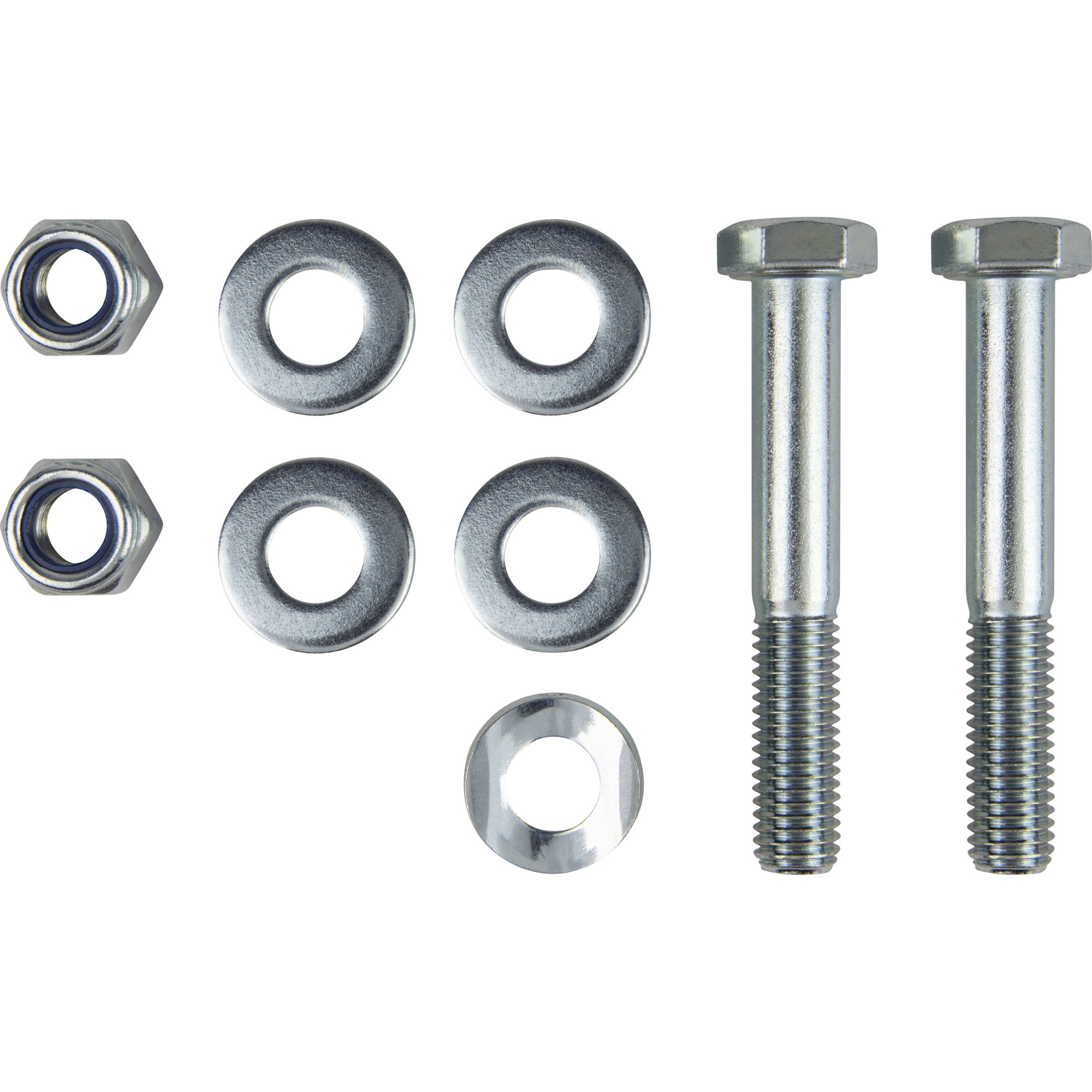

Product information "Screw set for coupling head, SK6, M12x90"
Screw set SK6
for coupling head
Content

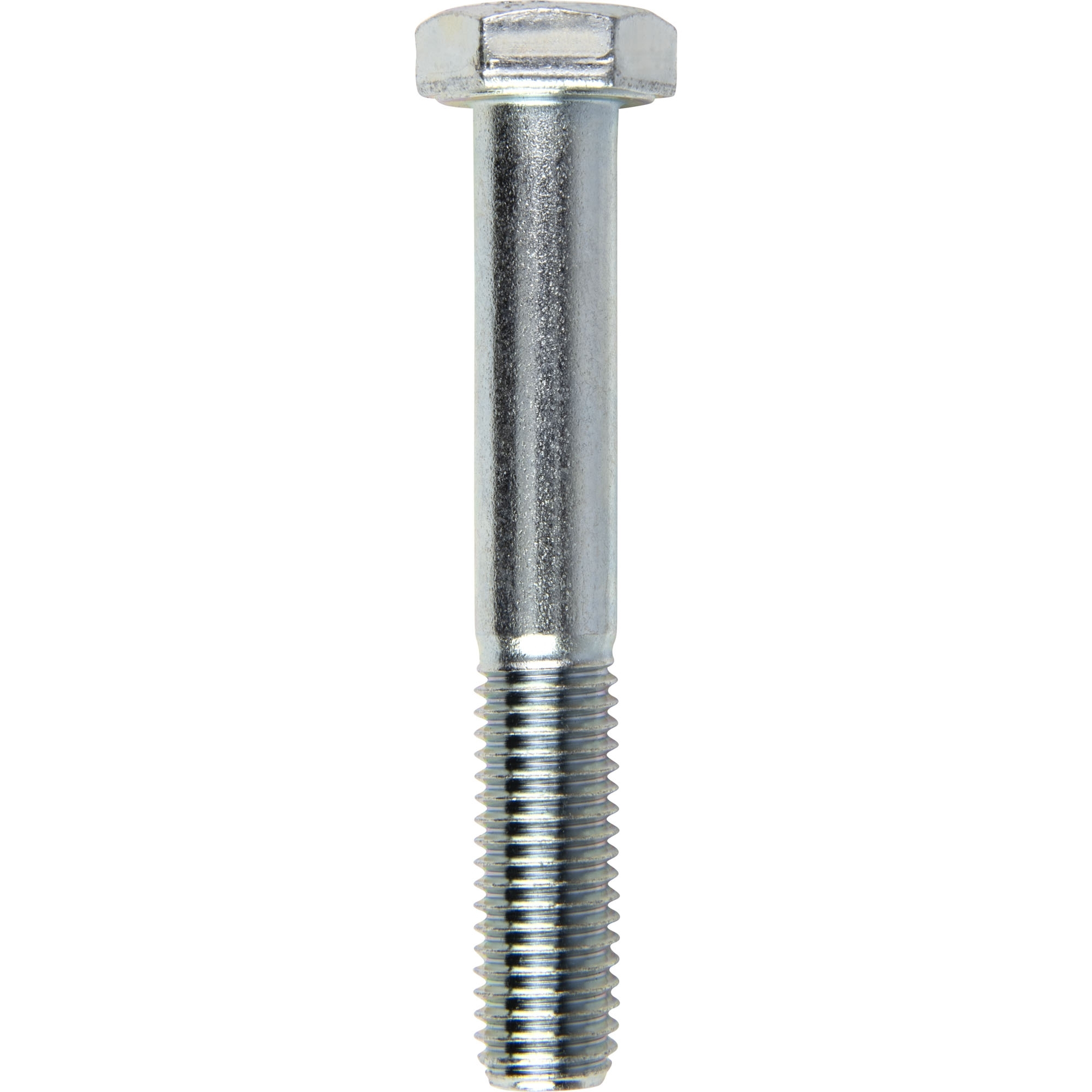

2 x screw M12x90

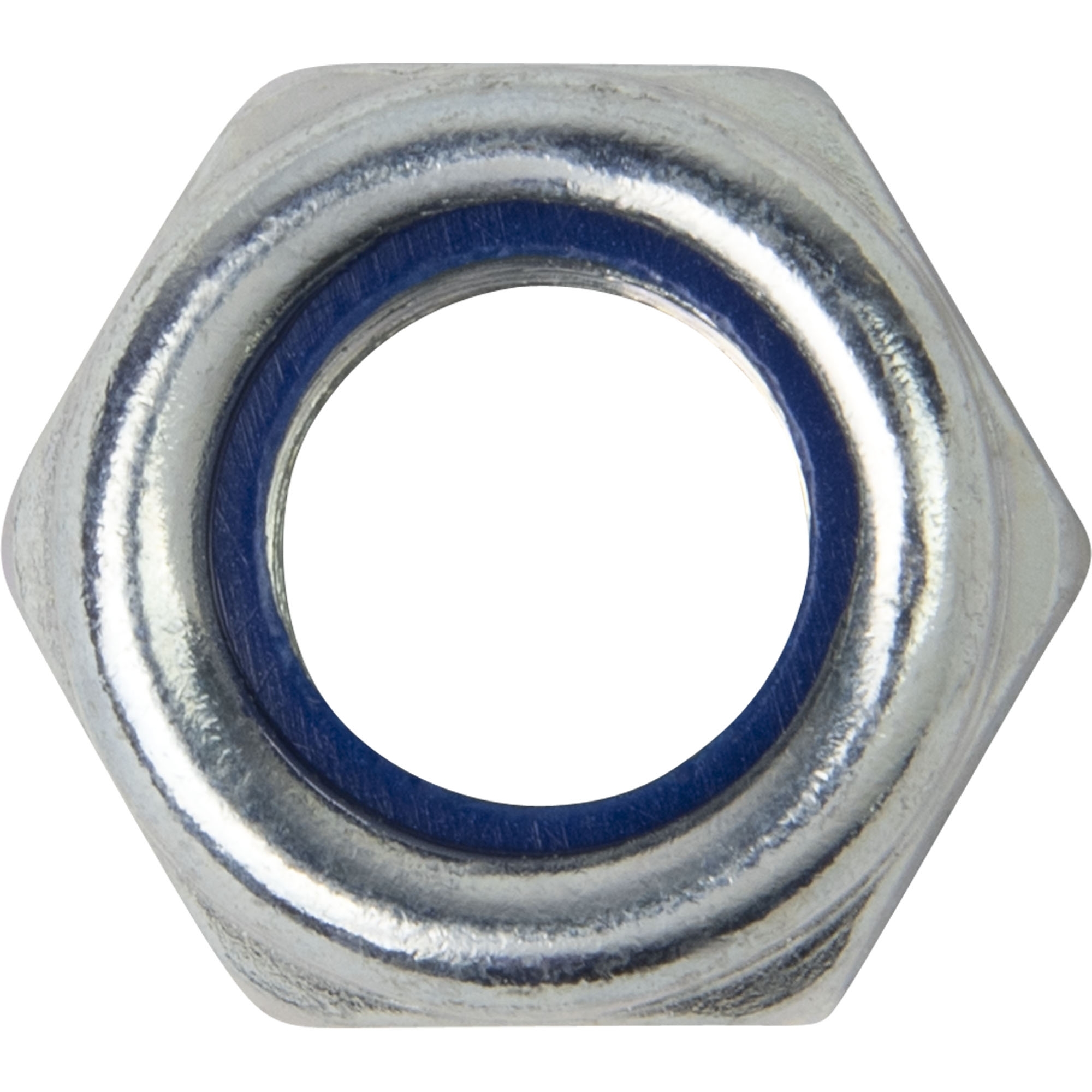

2 x nut M12

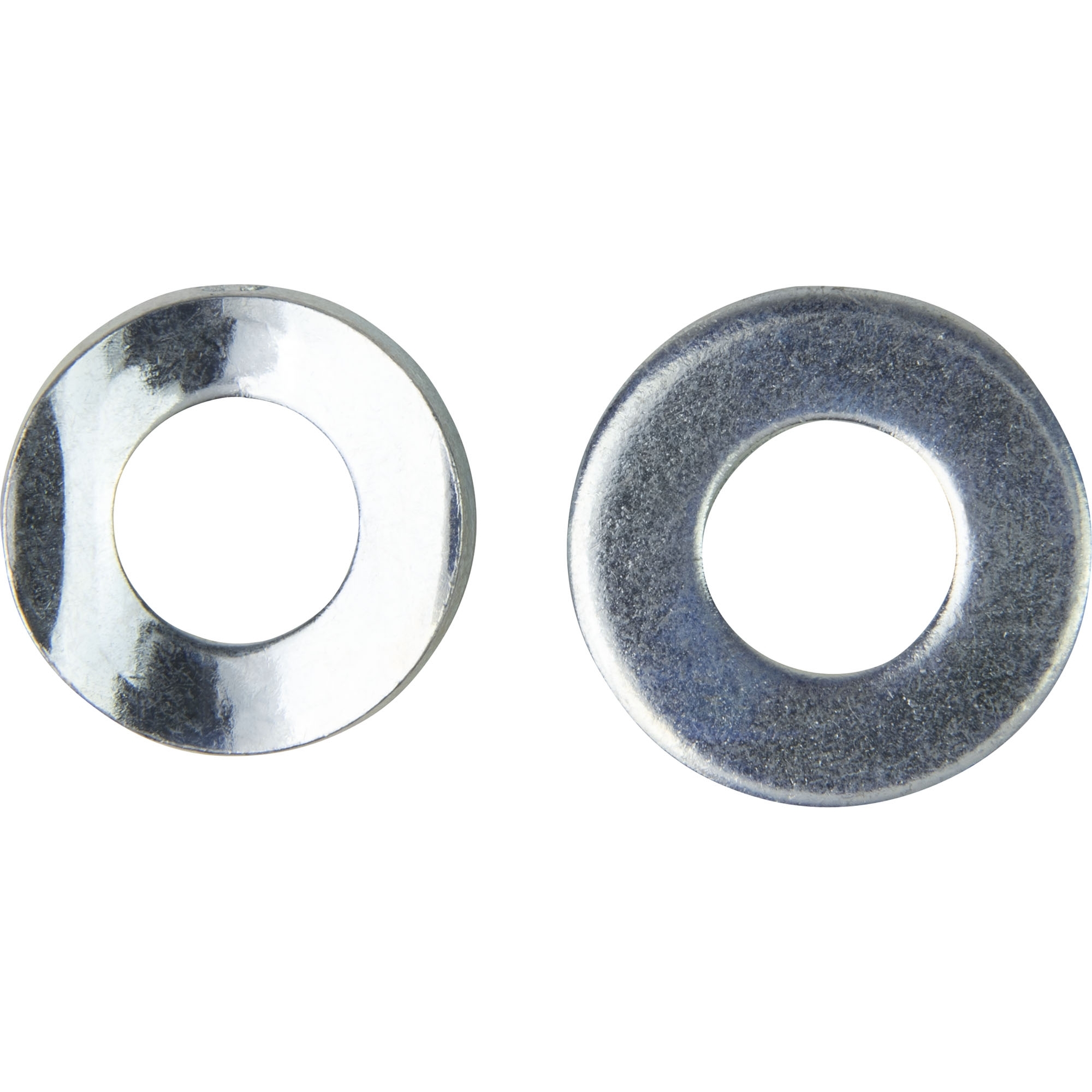

4 x U-disc
1 x saddle disc
| Gewicht: | 0.259 |
|---|---|
| Schlüsselweite: | 19 |
| Typ: | SK6 |
Login
Skip product gallery
Zubehör
Coupling Head, 750 kg, SPP ZSK-750D, Ø 60 mm
Coupling Head SPP
ZSK-750D
Drawbar round
Perm. gross weight 750 kg
Nose load 75 kg
Drawbar-Ø 60 mm
Hole vertical Ø 12.5 mm
Hole distance 90 mm
Product number:
012099932
Coupling Head, 750 kg, SPP ZSK-750I, square 60 mm
Coupling Head SPP
ZSK-750I
Drawbar square
Perm. gross weight 750 kg
Nose load 75 kg
Drawbar 60 mm
Hole vertical Ø 12.5 mm
Hole horizontal Ø 12.5 mm
Hole distance horizontal 80-90 mm
Hole distance vertical 90 mm
Product number:
012099937

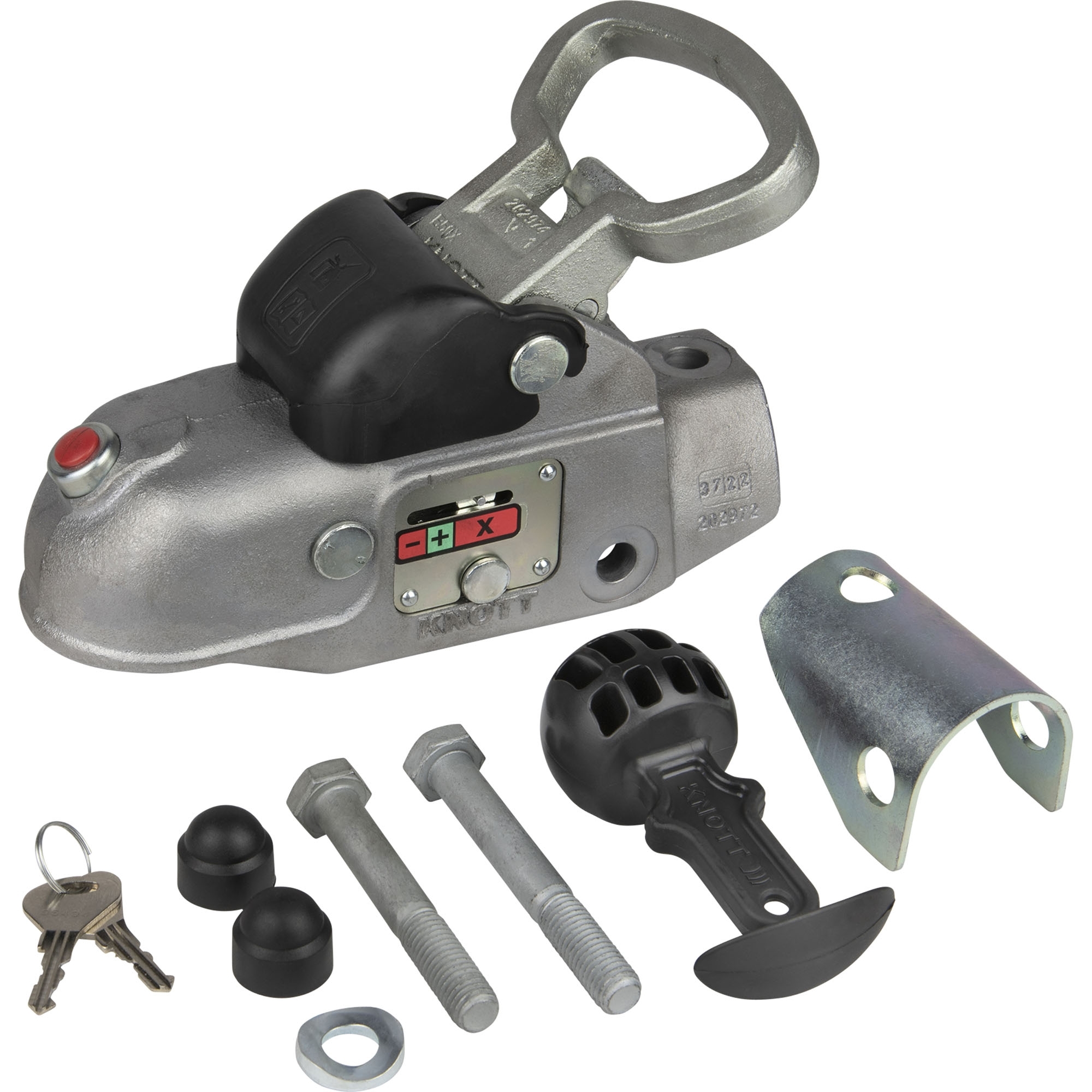

Coupling Head 3000 kg, Knott AV30-A, Ø 50 mm, SET
Coupling Head Knott
AV30-A, lockable
incl. reducer, screw material, safety ball
Perm. gross weight 3000 kg
Nose load 200 kg
Drawbar-Ø 50 mm
Reducer Ø 45 mm
Hole horizontal Ø 12.5 mm
Hole vertical Ø 12.5 mm
Hole distance 40 mm
Product number:
012099955
Coupling Head, 1300 kg, SPP ZSK-1300F, Ø 60 mm
Coupling Head SPP
ZSK-1300F
Perm. gross weight 1300 kg
Nose load 100 kg
Drawbar-Ø 60 mm
Hole vertical Ø 12.5 mm
Hole distance 90 mm
Product number:
012099969
Coupling Head 1300 kg, SPP ZSK-1300I, square 60 mm
Coupling Head SPP
ZSK-1300I
Drawbar square
Perm. gross weight 1300 kg
Nose load 100 kg
Drawbar 60 mm
Hole vertical Ø 12.5 mm
Hole distance 90 mm
Product number:
012099973
Coupling Head 2000 kg, WW 20-F1, Ø 60 mm
Coupling Head Winterhoff
WW 20-F1
Drawbar round
Perm. gross weight 2000 kg
Nose load 100 kg
Drawbar-Ø 60 mm
Hole vertical Ø 12.5 mm
Hole distance 90 + 116 mm
Product number:
012100077
Coupling Head 1600 kg, DDR - KK 92 B, Ø 60 mm
Coupling Head
DDR-Version KK 92 B
Drawbar round
Perm. gross weight 1600 kg
Nose load 120 kg
Drawbar-Ø 60 mm
Hole horizontal Ø 12.0 mm
Hole distance 55 mm
Product number:
012100084
Coupling Head 1600 kg, DDR - KK 92 F, square 60 mm
Coupling Head
DDR-Version KK 92 F
Drawbar square
Perm. gross weight 1600 kg
Nose load 120 kg
Drawbar 60 mm
Hole horizontal Ø 12.0 mm
Hole distance 55 mm
Product number:
012100085
Coupling Head, 750 kg, K7,5-D, Ø 60 mm
Coupling Head Knott
K7,5 version D
Drawbar round
Perm. gross weight 750 kg
Nose load 75 kg
Drawbar-Ø 60 mm
Hole vertical Ø 12.5 mm
Hole distance 90 mm
Product number:
012100802
Coupling Head, 750 kg, K7,5-L, square 60 mm
Coupling Head Knott
K7,5 version L
Drawbar square
Perm. gross weight 750 kg
Nose load 75 kg
Drawbar 60 mm
Hole vertical Ø 12.5 mm
Hole distance 90 mm
Product number:
012100807
Coupling Head, 2700 kg, K27-B, Ø 45 mm
Coupling Head Knott
K27 version B
Drawbar round
Perm. gross weight 2700 kg
Nose load 150 kg
Drawbar-Ø 45 mm
Hole horizontal Ø 12.5 mm
Hole vertical Ø 12.5 mm
Hole distance 40 mm
Product number:
012100810
Coupling Head, 2700 kg, K27-A, Ø 50 mm
Coupling Head Knott
K27 version A
Drawbar round
Perm. gross weight 2700 kg
Nose load 150 kg
Drawbar-Ø 50 mm
Hole horizontal Ø 12.5 mm
Hole vertical Ø 12.5 mm
Hole distance 40 mm
Product number:
012100811
Coupling Head, 3500 kg, K35-A, Ø 50 mm
Coupling Head Knott
K35 version A
Drawbar round
Perm. gross weight 3500 kg
Nose load 150 kg
Drawbar-Ø 50 mm
Hole horizontal Ø 12.5 mm
Hole vertical Ø 12.5 mm
Hole distance 40 mm
Product number:
012100852
Coupling Head, 750 kg, AK 7 ver. E, square 60 mm
Coupling Head AL-KO
AK 7 V Plus version E
Drawbar square
Perm. gross weight 750 kg
Nose load 75 kg
Drawbar 60 mm
Hole horizontal Ø 12.5 mm
Hole vertical Ø 12.5 mm
Hole distance horizontal 90 mm
Hole distance vertical 90 mm
Product number:
1224743
Coupling Head, 750 kg, AK 7 ver. F, round Ø 50 mm
Coupling Head AL-KO
AK 7 Plus version F
Drawbar round
Perm. gross weight 750 kg
Nose load 75 kg
Drawbar-Ø 50 mm
Hole vertical Ø 12.2 mm
Hole distance 90 mm
Product number:
1367023
Coupling Head, 750 kg, AK 7 ver. B, round Ø 60 mm
Coupling Head AL-KO
AK 7 Plus version B
Drawbar round
Perm. gross weight 750 kg
Nose load 75 kg
Drawbar-Ø 60 mm
Hole vertical Ø 12.2 mm
Hole distance 90 + 116 mm
Product number:
1367024

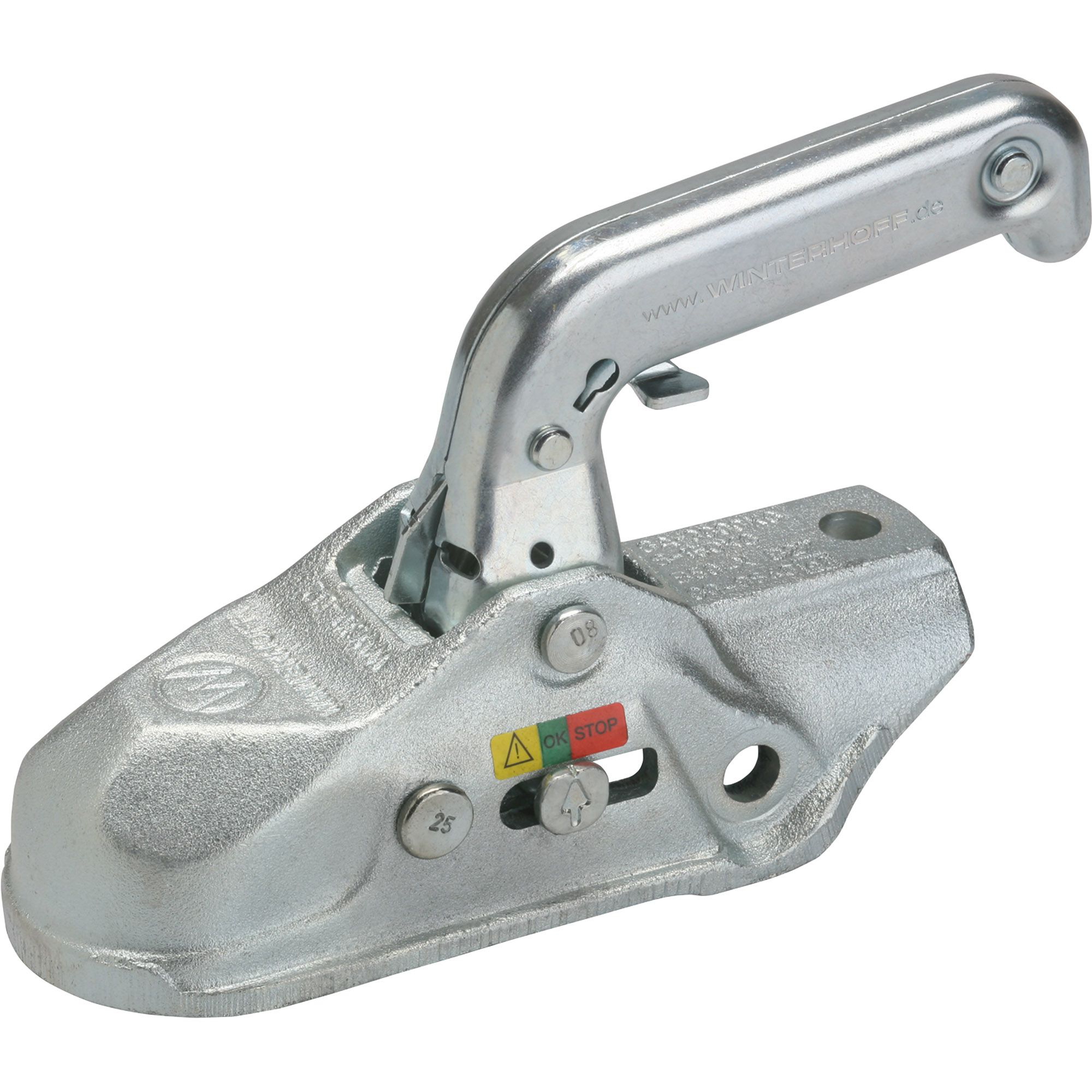

Coupling Head, 3000 kg, WW 30-D3-K1212, Ø 50 mm
Coupling Head
WW 30-D3-K1212
Perm. gross weight 3000 kg
Nose load 150 kg
Drawbar-Ø 50 mm
Hole horizontal Ø 12.5 mm
Hole vertical Ø 12.5 mm
Hole distance 40 mm
Product number:
1860798
Coupling Head 3500 kg, WW 350-RB-K1212, Ø 50 mm
Coupling Head
WW 350-RB-K1212
Perm. gross weight 3500 kg
Nose load 200 kg
Drawbar-Ø 50 mm
Hole horizontal Ø 12.5 mm
Hole vertical Ø 12.5 mm
Hole distance 40 mm
Product number:
1860803
