Prop stands

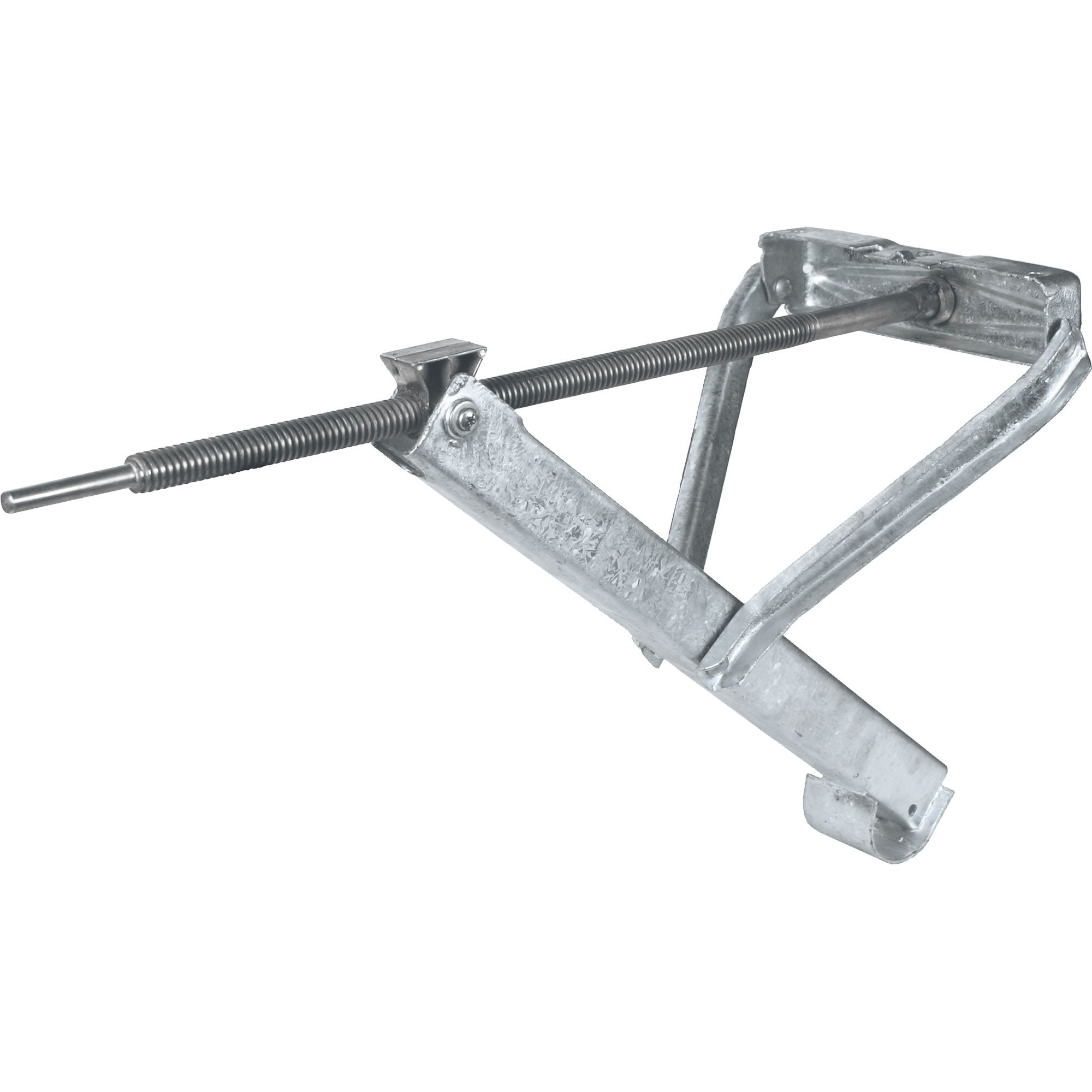

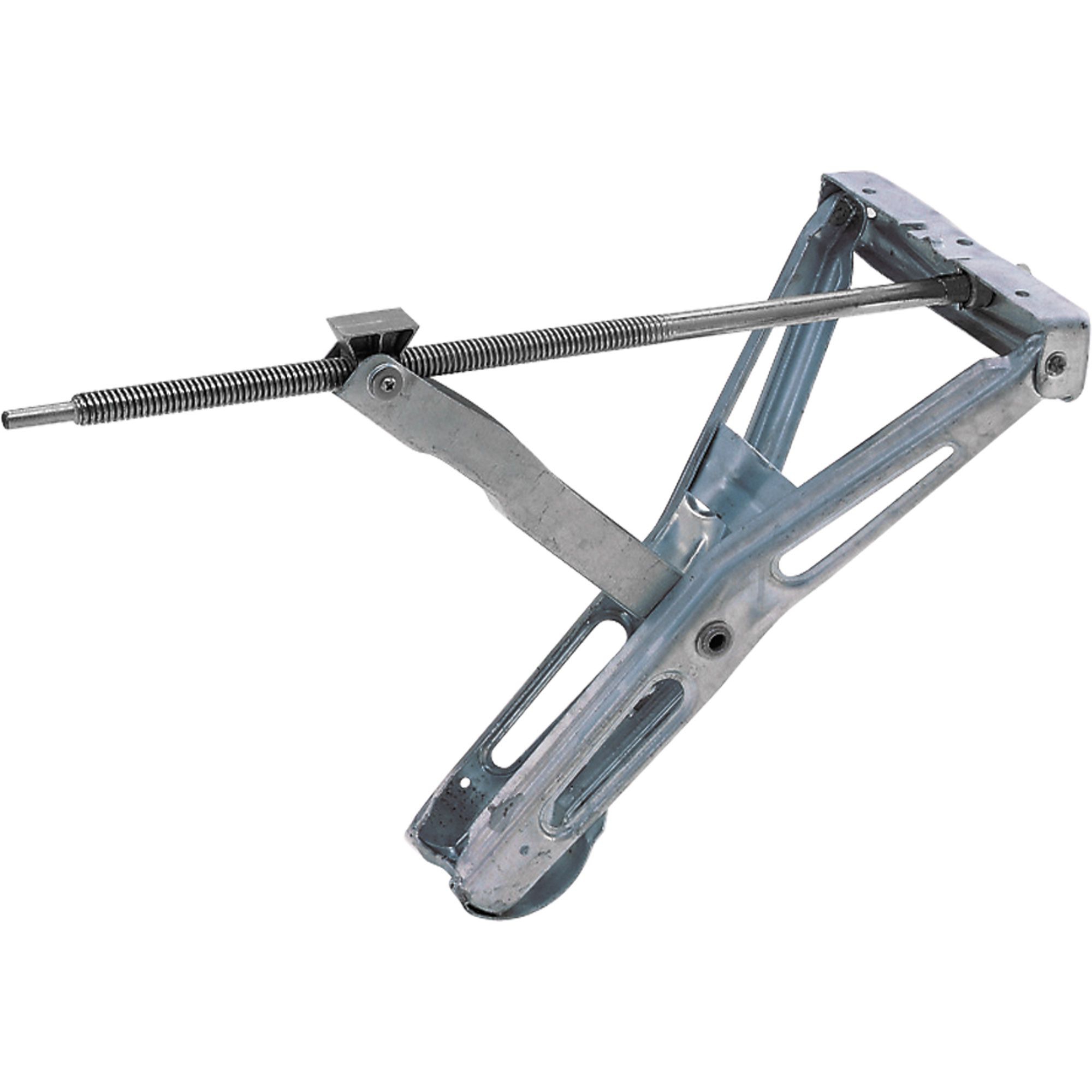

AL-KO Corner steady 800 kg short
AL-KO Corner steady short
Stationary nose load: max. 800 kg
Perm. gross weight* of the trailer (recommendation) max. 1,600 kg
Hot-dip galvanized - High-quality corrosion protection
Push-on crank - Operation with hexagon
Pivoting - Pivoting to save space
Length 505 mm
Width 260 mm
Stroke 470 mm
Weight 3.4 kg
Product number:
205808
AL-KO Corner steady short, max. 1,000 kg
AL-KO Corner steady short
Stationary nose load: max. 1,000 kg
Perm. gross weight* of the trailer (recommendation): max. 2,000 kg
Hot-dip galvanized - High-quality corrosion protection
Push-on crank - Operation with hexagon
Pivoting - Pivoting to save space
Length 605 mm
Width 280 mm
Stroke 470 mm
Weight 4.2 kg
Product number:
267265

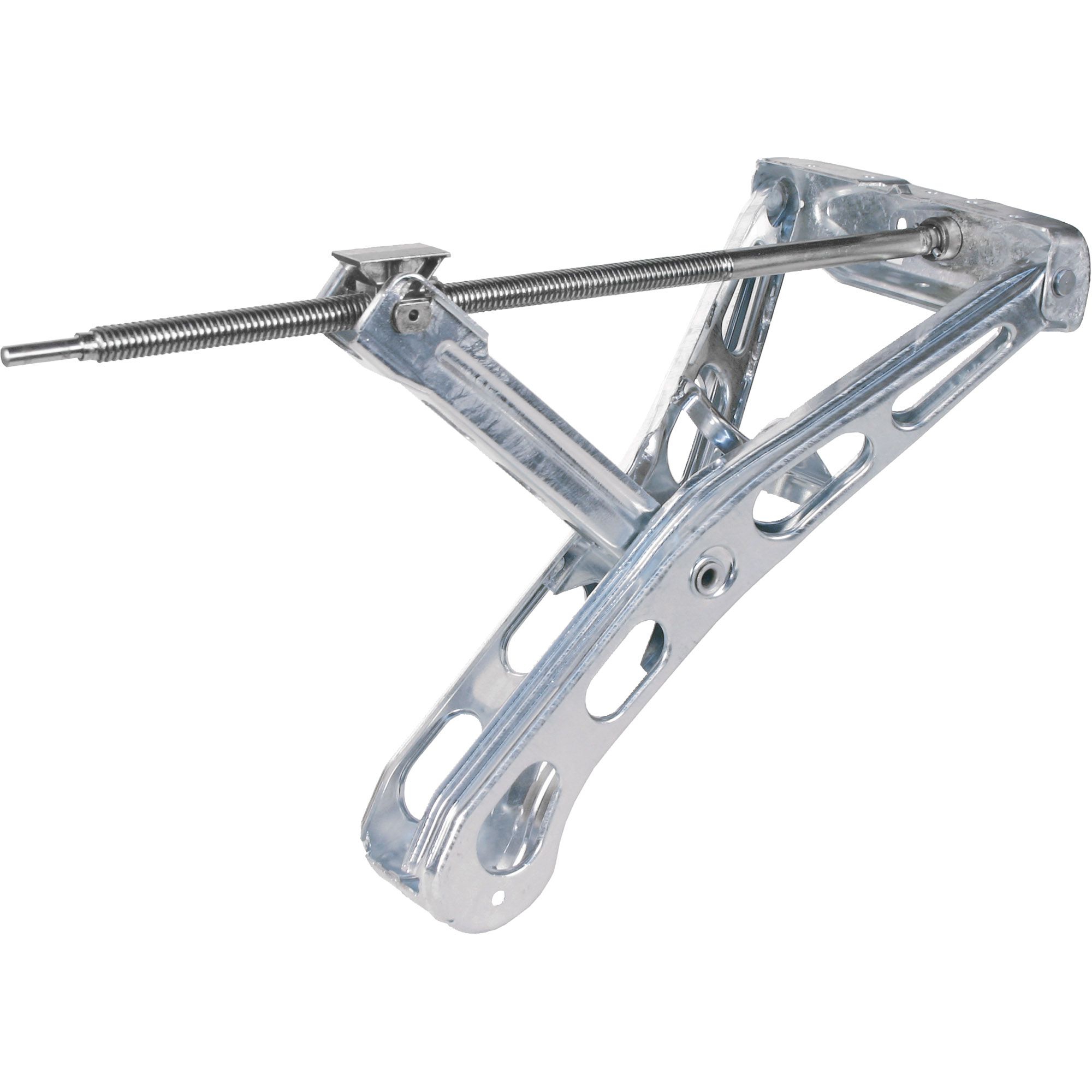

AL-KO Premium Corner steady long max. 1,250 kg
AL-KO Premium Corner steady long
Stationary nose load: max. 1,250 kg
Perm. gross weight* of the trailer (recommendation): max. 2,500 kg
Hot-dip galvanized - High-quality corrosion protection
Push-on crank - Operation with hexagon
Pivoting - Pivoting to save space
Length 605 mm
Width 281 mm
Stroke 520 mm
Weight 4.2 kg
Product number:
1221694
Big-Foot Adapter Set AL-KO, 4 units
Big-Foot Adapter Set AL-KO
content 4 units
for Stabilform steadies and Premium corner steadies
Product number:
1213899

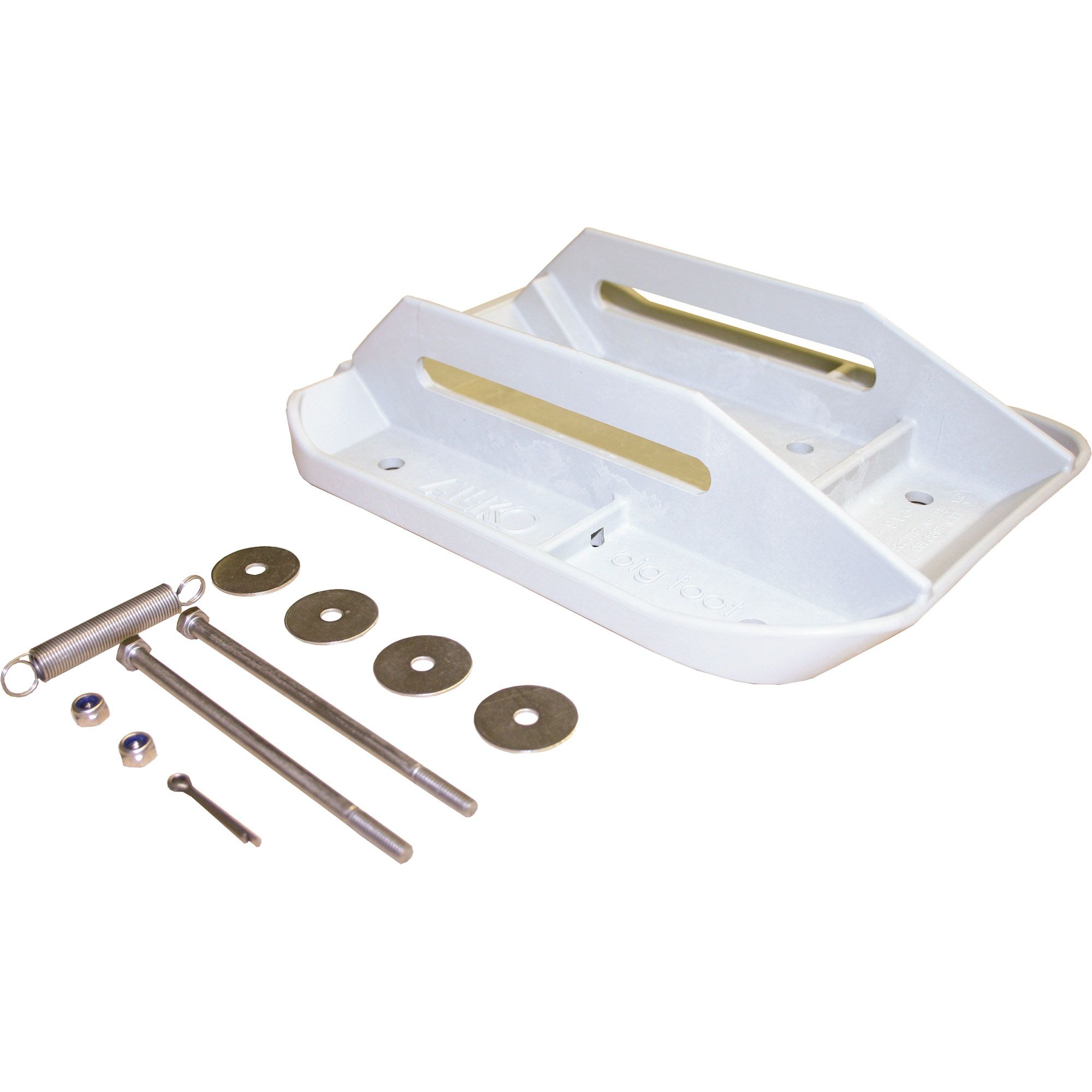

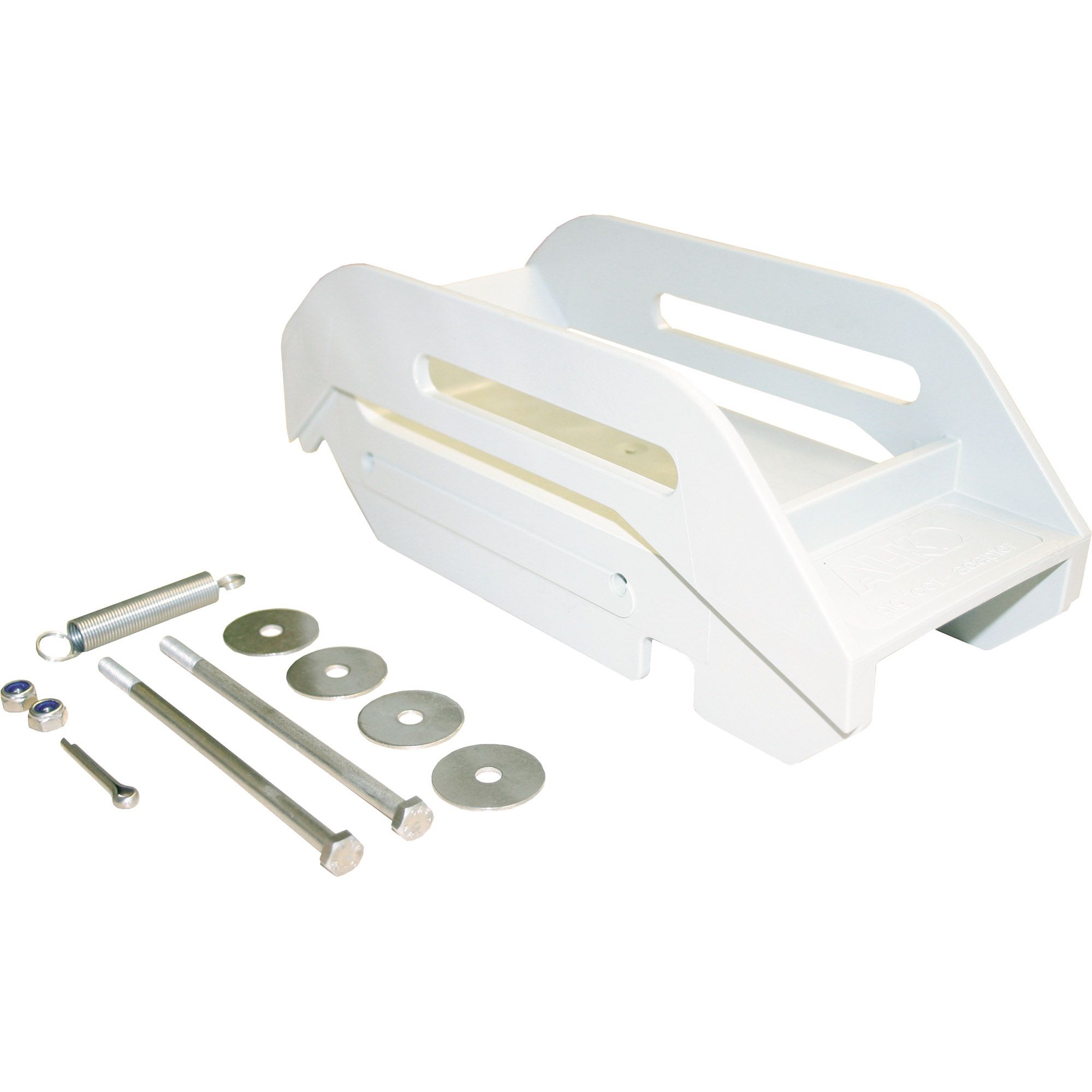

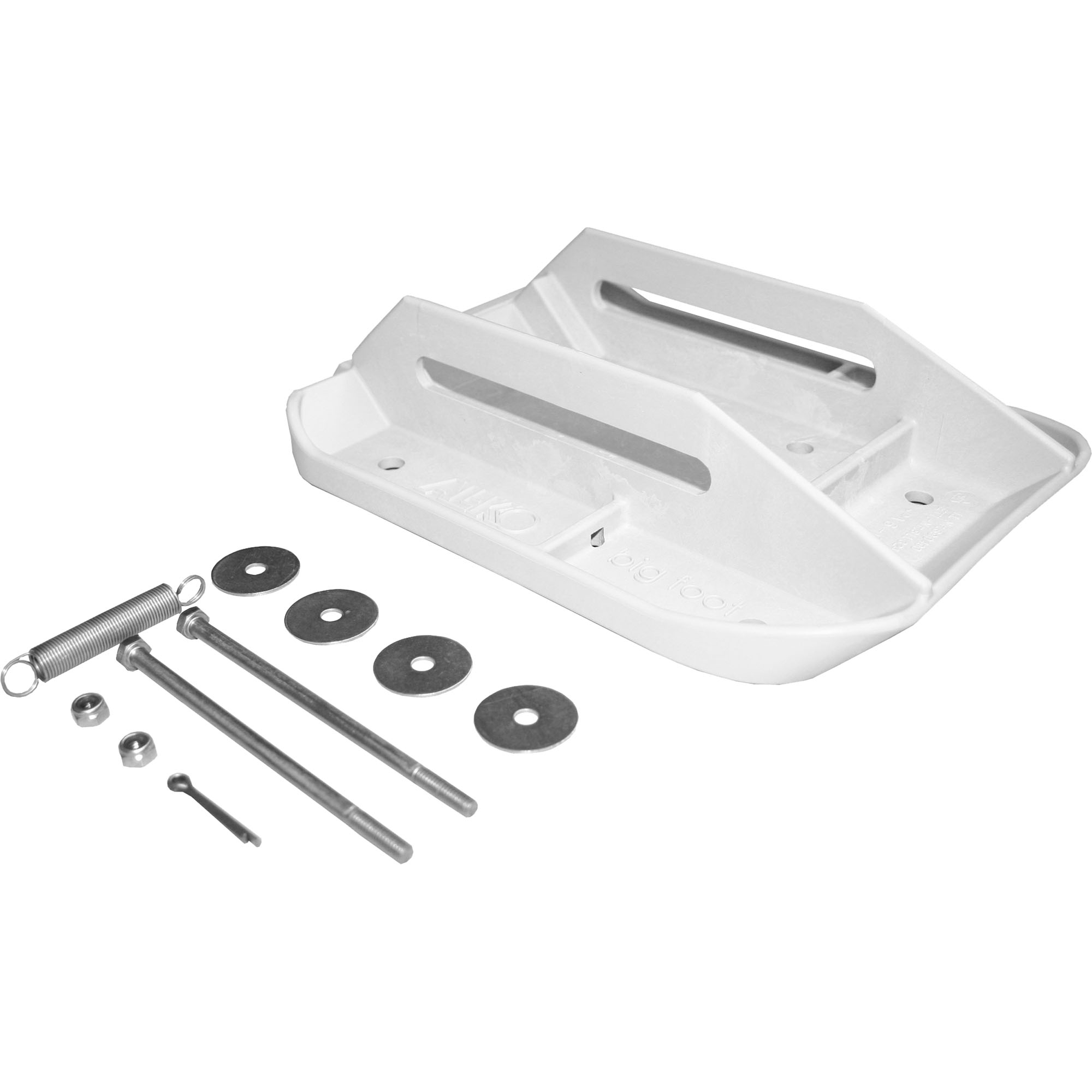

Big-Foot Set AL-KO, 4 units
Big-Foot Set AL-KO
content 4 units
for Stabilform steadies and Premium corner steadies
Product number:
1212458

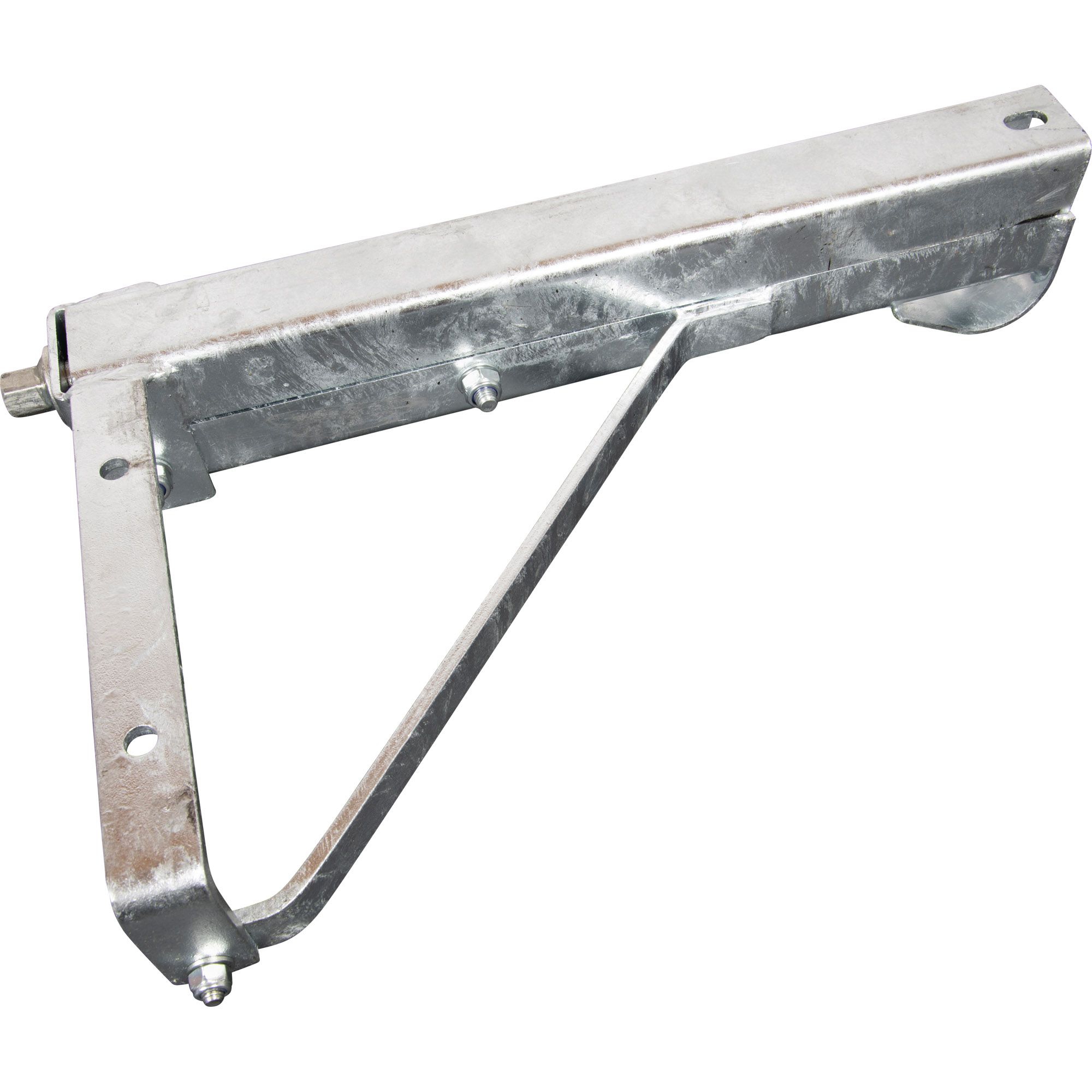

Corner steady, combinable left- and right
Corner steady, combinable left- and right
length: 480 mm, 3 drillings 140-480 mm
wrench x M 19, breaking load 300 kg,
lift range: 450 mm
Product number:
016007125

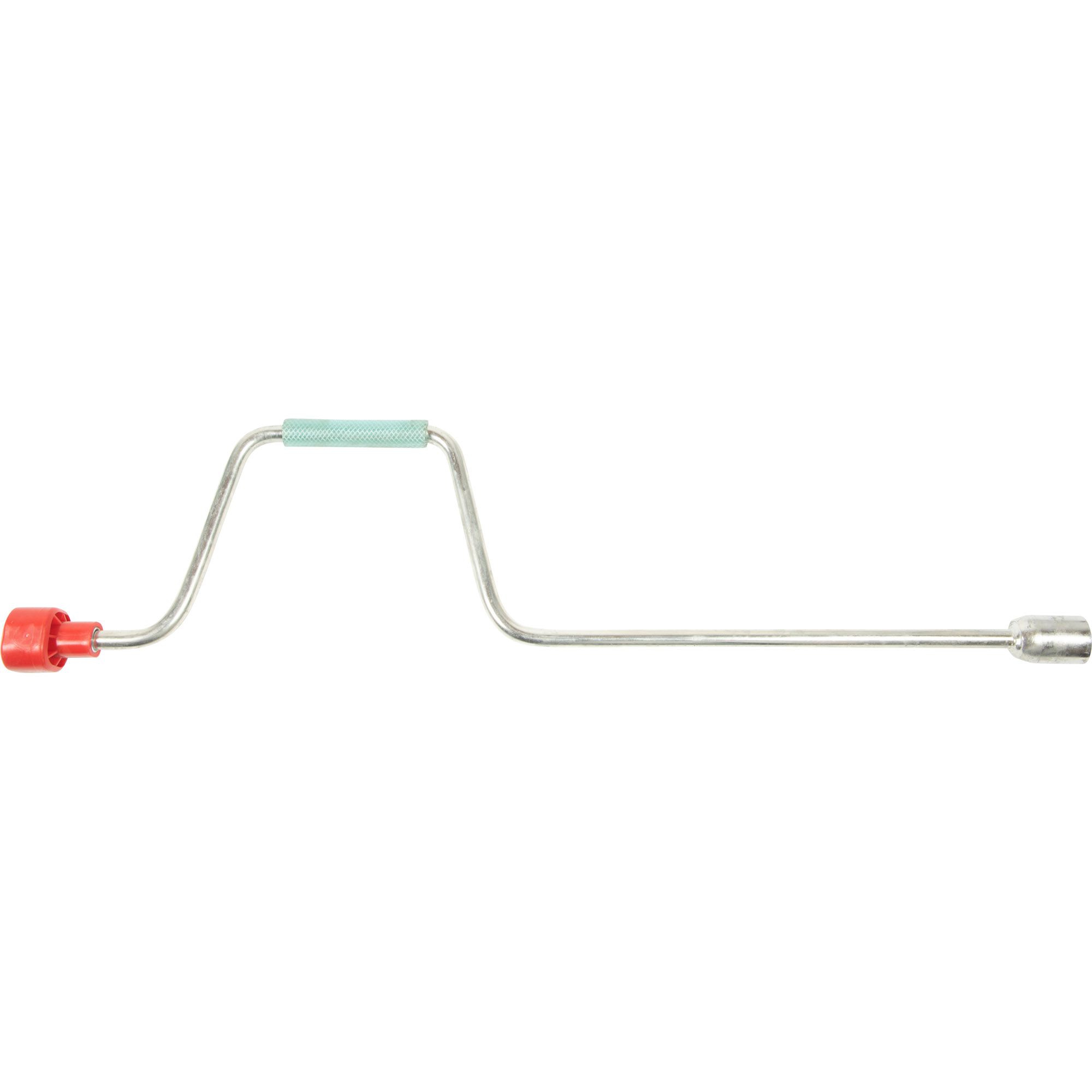

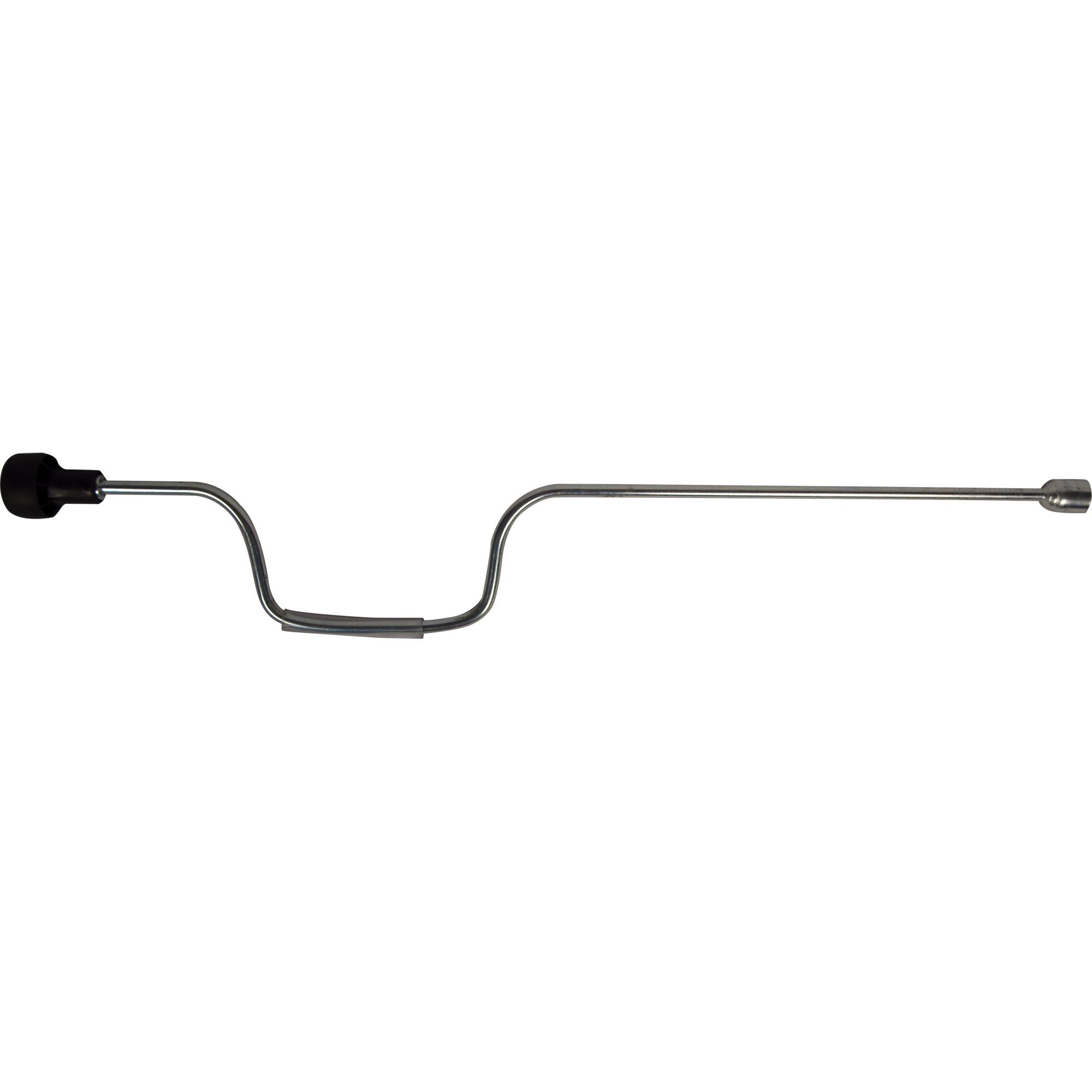

Crank for corner steady length: 1165, M 19
Crank for corner steady length: 1165, M 19
Product number:
1224784
Crank for corner steady length: 865, M 19
Crank for corner steady length: 865, M 19
Product number:
267363
Crank for parking jack length: 665, M 19
Crank for parking jack length: 665, M 19
Product number:
016007009
Crank prop foldable, 1300 kg, 415 mm, 60 x 60 mm
Crank prop foldable
max. carrying capacity 1300 kg
without crank
square 60 x 60
stroke 250 mm
hexagonal connection SW19
A 415 mm
B 280 mm
Product number:
016007084
Crank prop foldable, 1300 kg, 415 mm, with crank
Crank prop foldable
max. carrying capacity 1300 kg
square 60 x 60, with lateral crank
without flange plate
stroke 250 mm
A 415 mm
B 280 mm
C 105 mm
Product number:
016007080
Crank prop foldable, 1300 kg, 535 mm, with crank
Crank prop foldable
max. carrying capacity 1300 kg
square 60 x 60, with lateral crank
without flange plate
stroke 365 mm
A 535 mm
B 400 mm
C 105 mm
Product number:
016007081

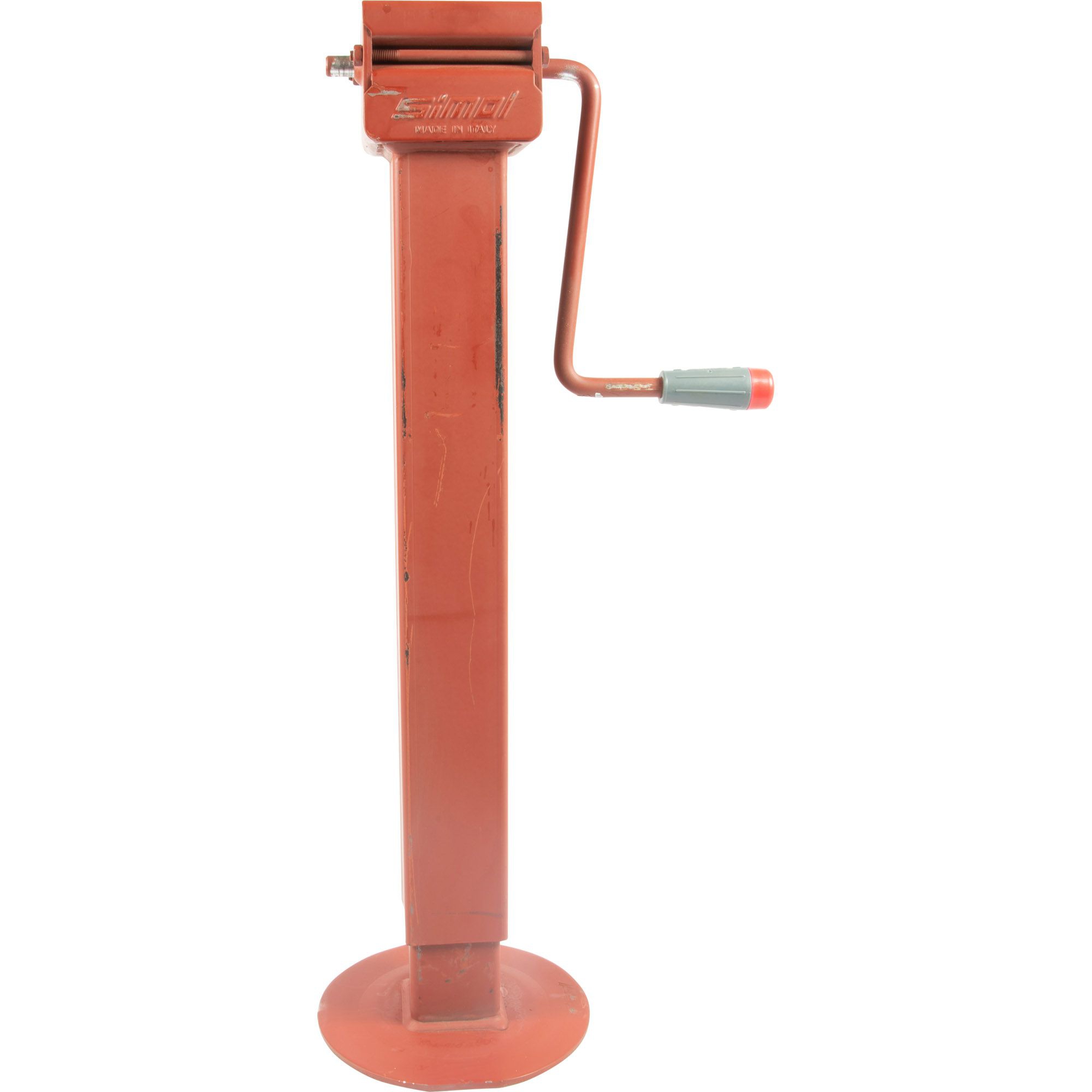

Crank prop, 4000kg, square 80 x 80, stroke 410 mm
Crank prop, max load capacity 4000kg
Outer tube 80 x 80 mm, primed
total height folded 705 mm
with vertical crank
2-speed auxiliary gearbox
Product number:
016007077

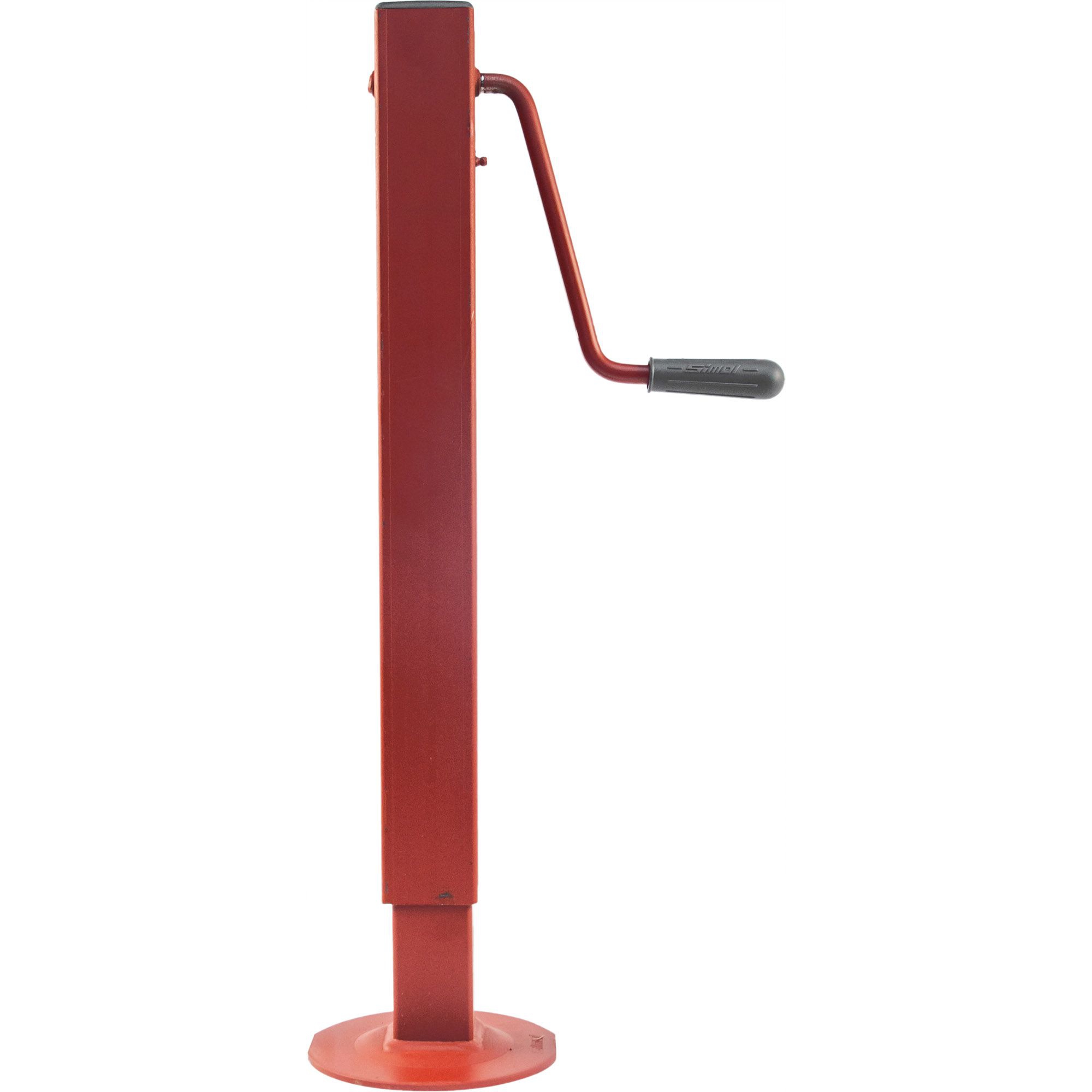

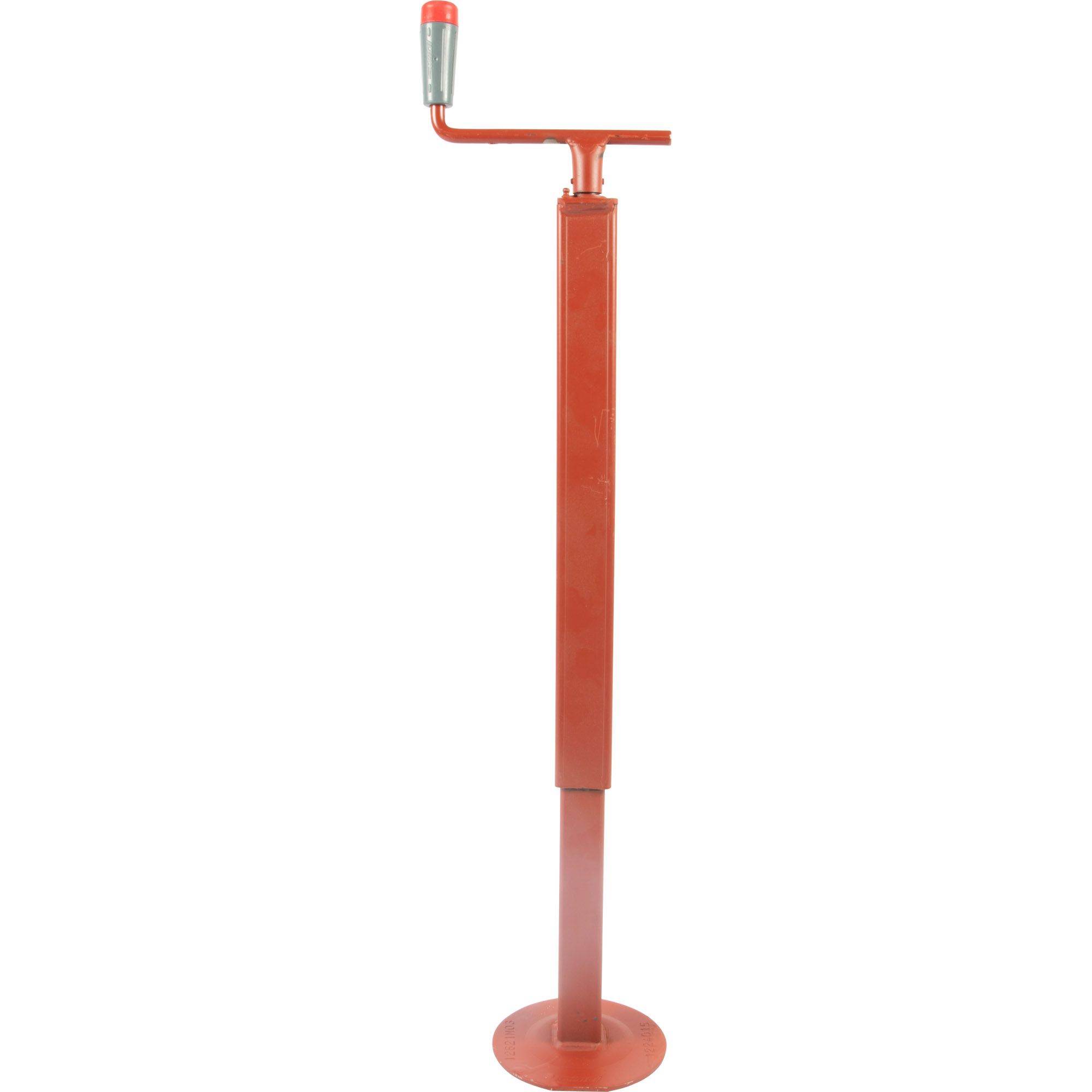

Crank prop, 60 x 60, stroke 300 mm
Crank prop with crank, 60 x 60
carrying capacity 800 kg
total height folded 565 mm
with vertical crank
primed
A 565 mm
C 200 mm
stroke 300
Product number:
016007078

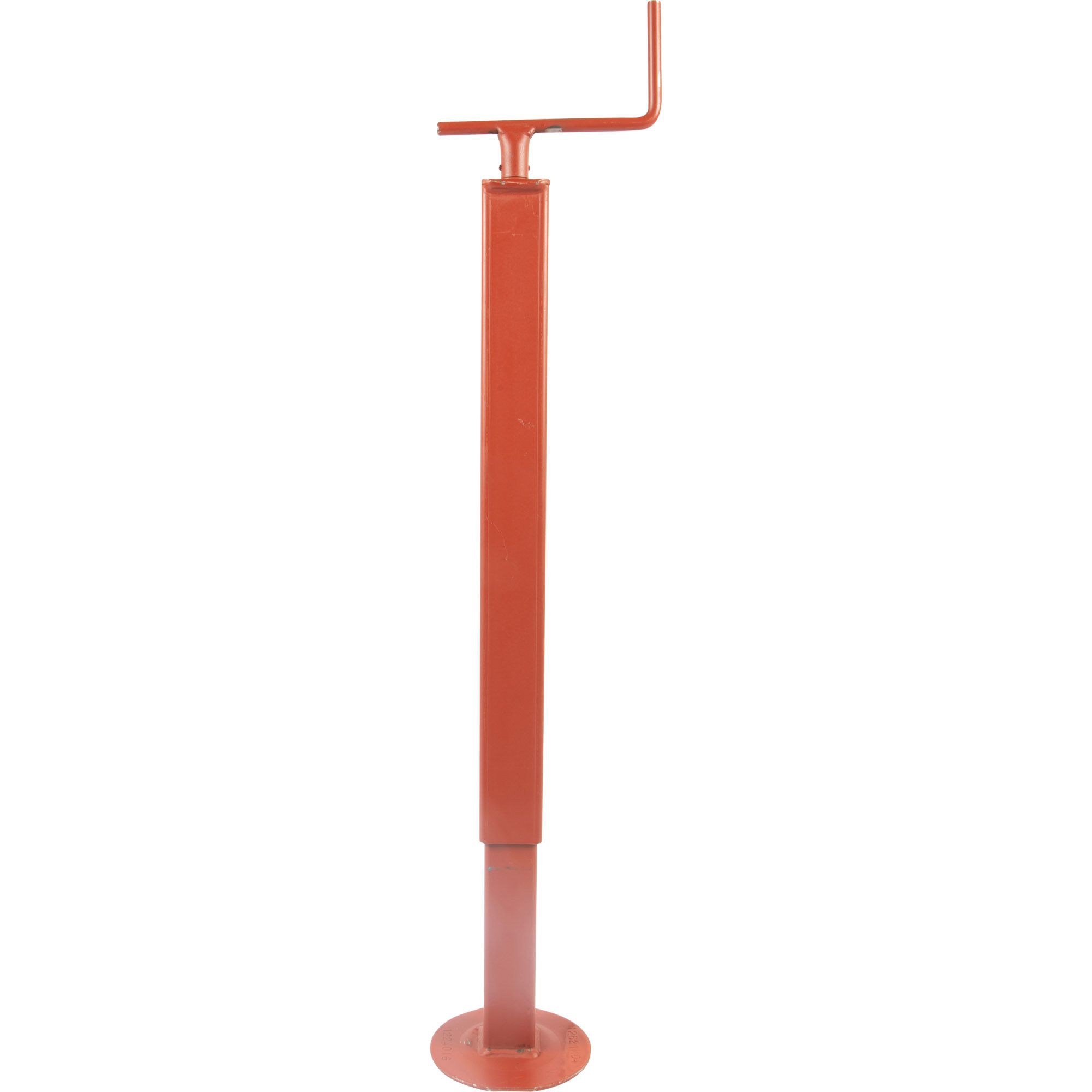

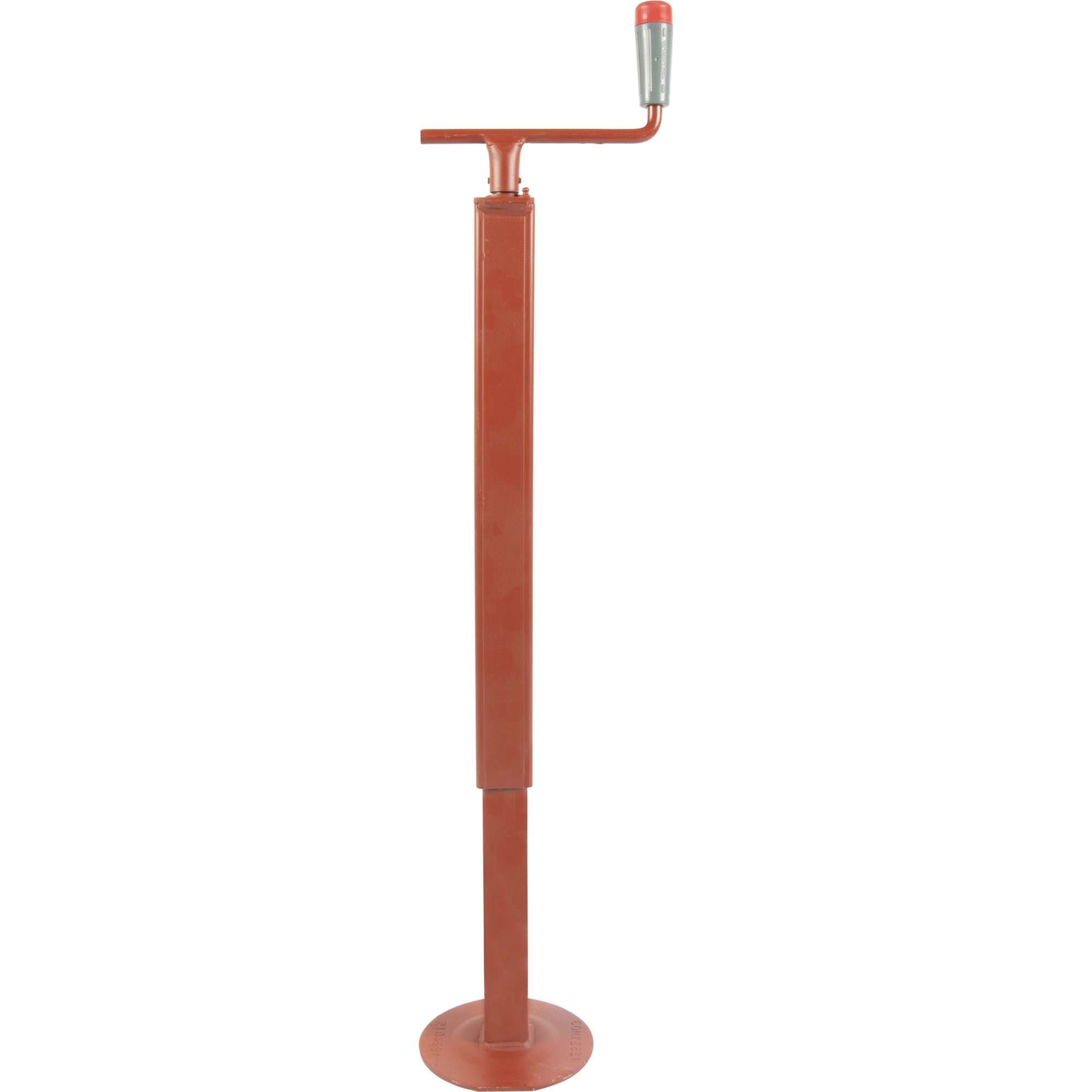

Crank support, square 50 x 50, primed, stroke 300
Crank support, square 50 x 50
primed, stroke 300 mm
capacity 500 kg
total height slid-in 520 mm
Product number:
1224015

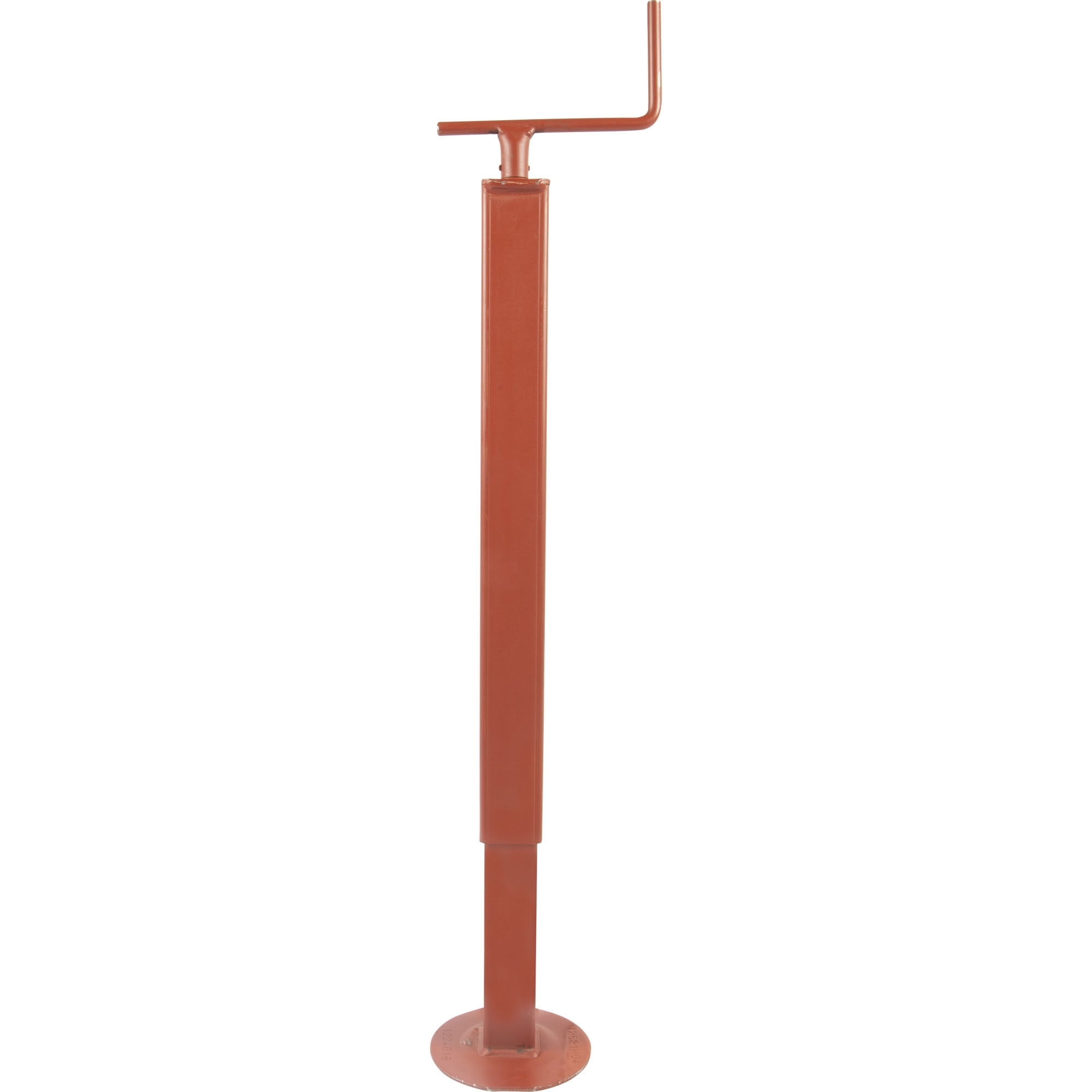

Crank support, square 60 x 60, primed, stroke 400
Crank support, square 60 x 60
primed, stroke 400 mm
capacity 800 kg
total height slid-in 620 mm
Product number:
1224016

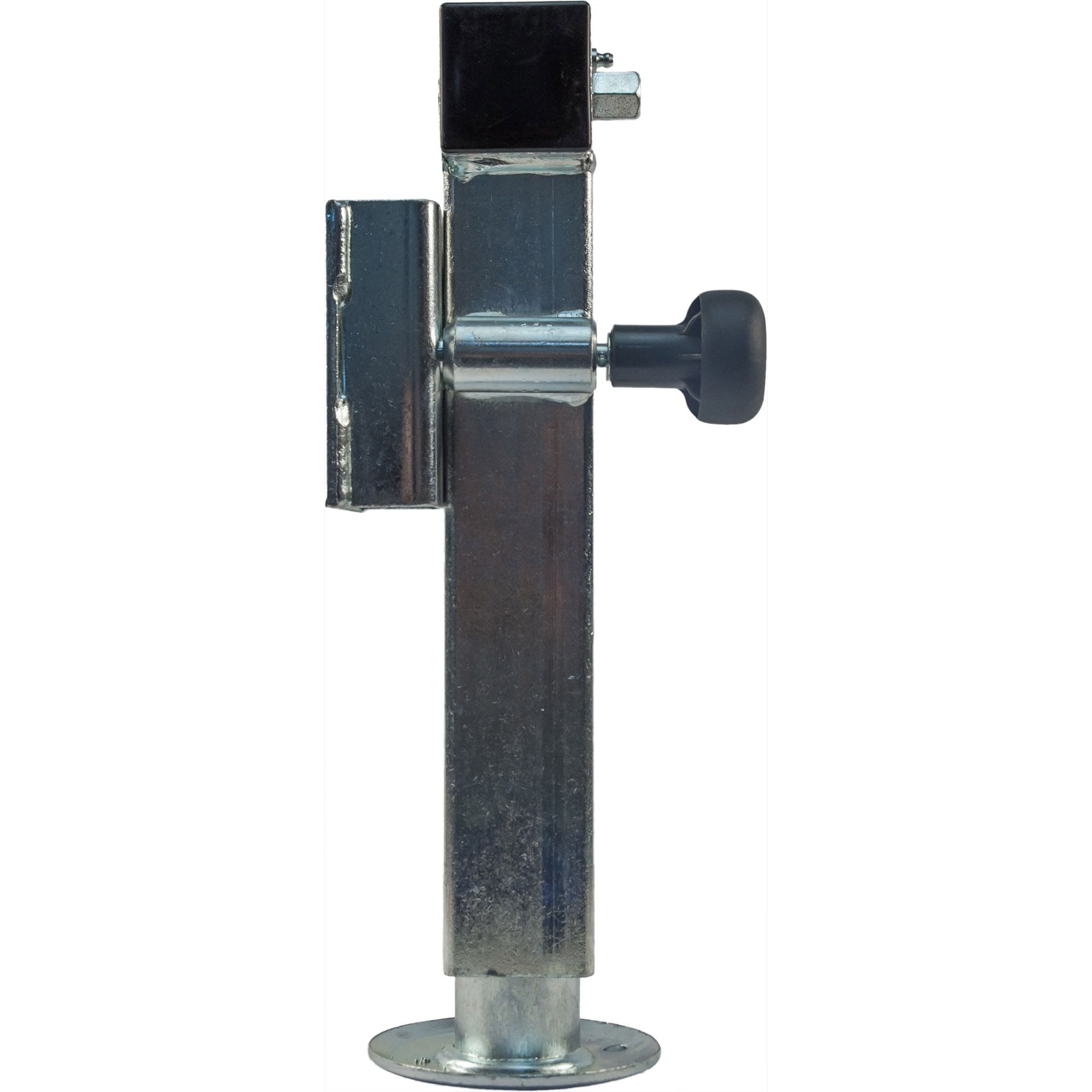

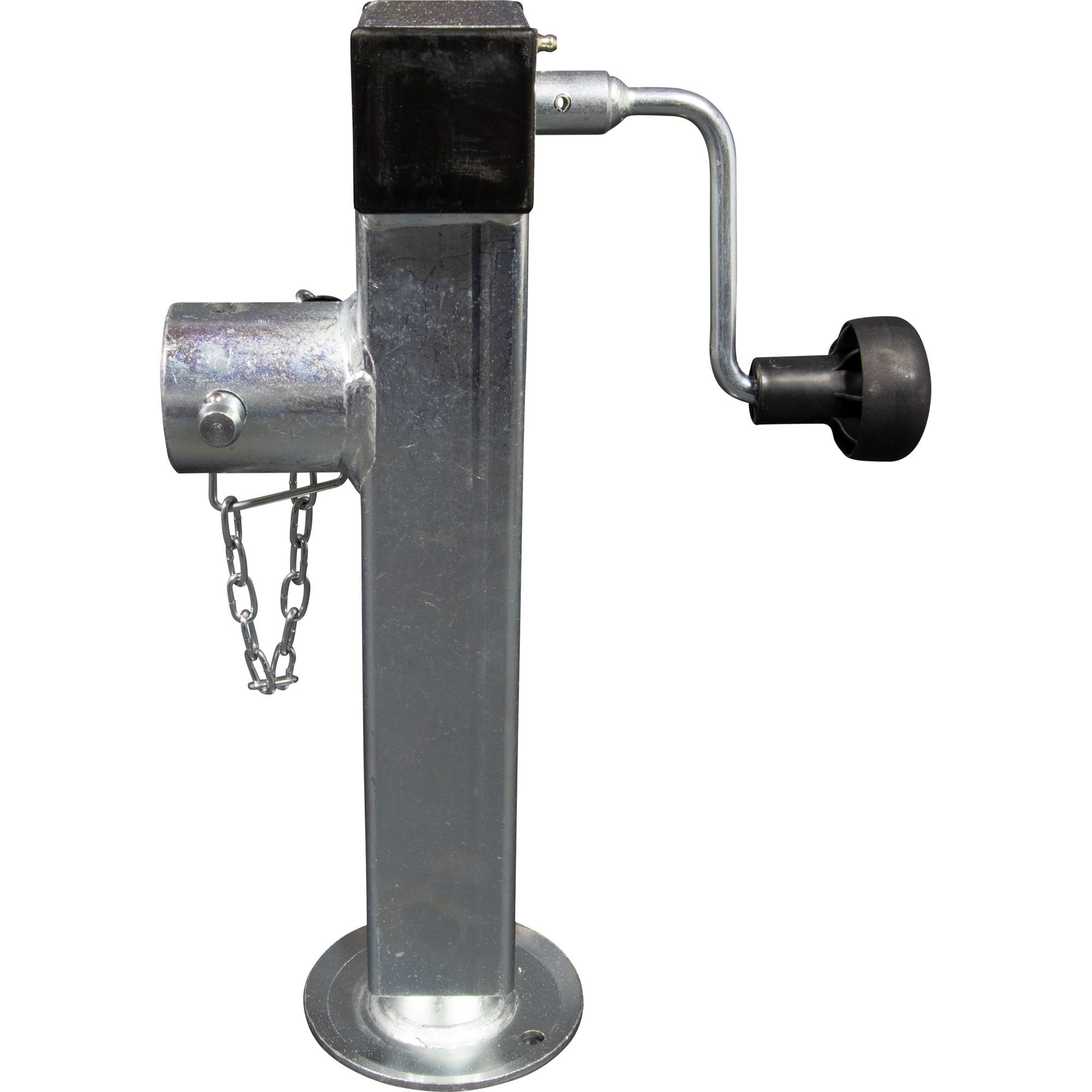

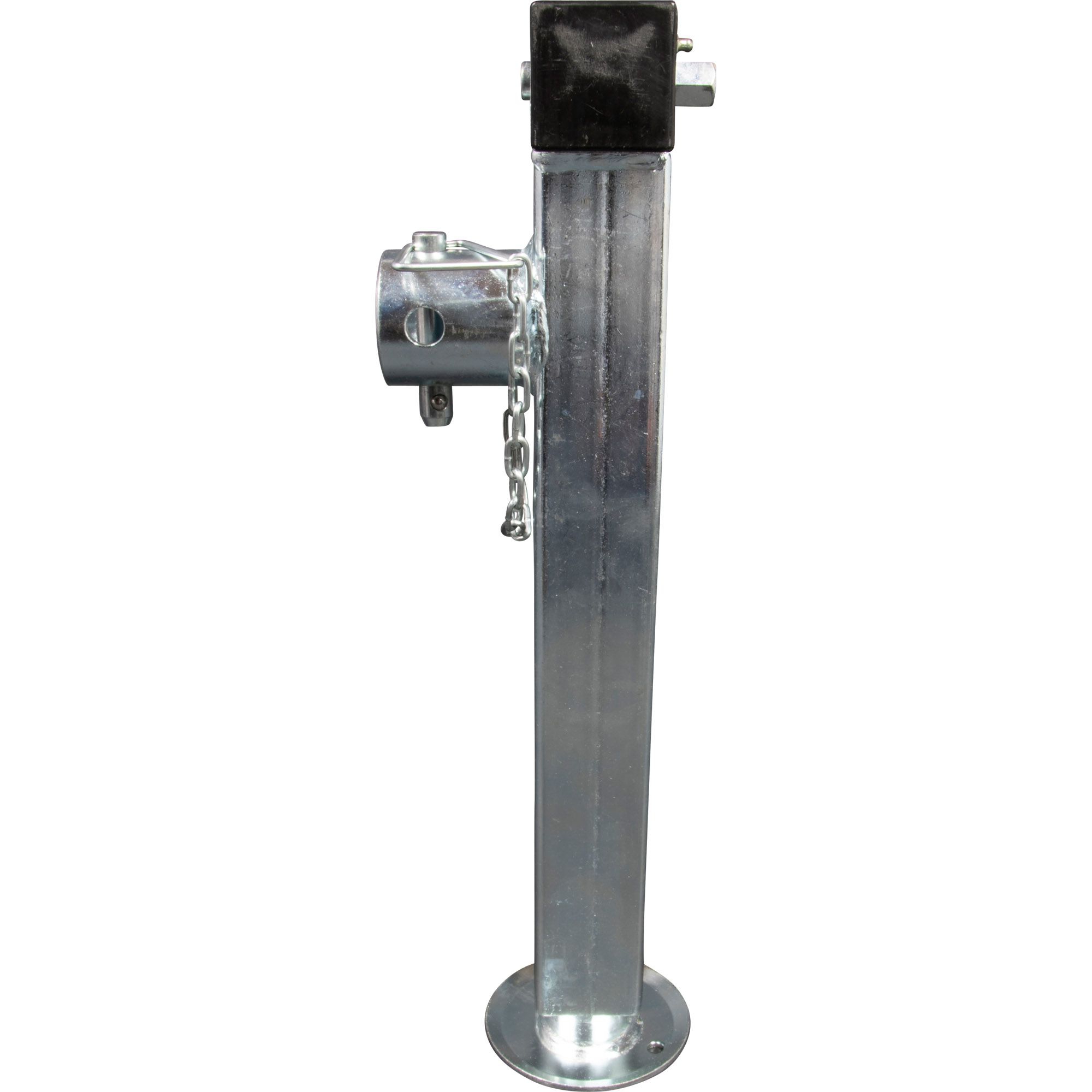

Crank support, swiveling, 1300 kg, H 415 mm, flange 42 mm
Crank support, pivoting
with quick-release fastener
Square 60 x 60 mm
Load capacity 1300 kg
Height 415 mm
Height center of flange 275 mm
Stroke 240 mm
Lock length 80 mm
Flange depth 42 mm
Total depth 190 mm
without crank
Hexagonal connection SW 19
Product number:
016007083
Crank support, swiveling, 1300 kg, H 415 mm, flange 85 mm
Crank support, pivoting
with quick-release fastener
Square 60 x 60 mm
Load capacity 1300 kg
Height 415 mm
Height center of flange 275 mm
Stroke 240 mm
Lock length 80 mm
Flange depth 85 mm
Total depth 230 mm
without crank
Hexagonal connection SW 19
Product number:
016007082

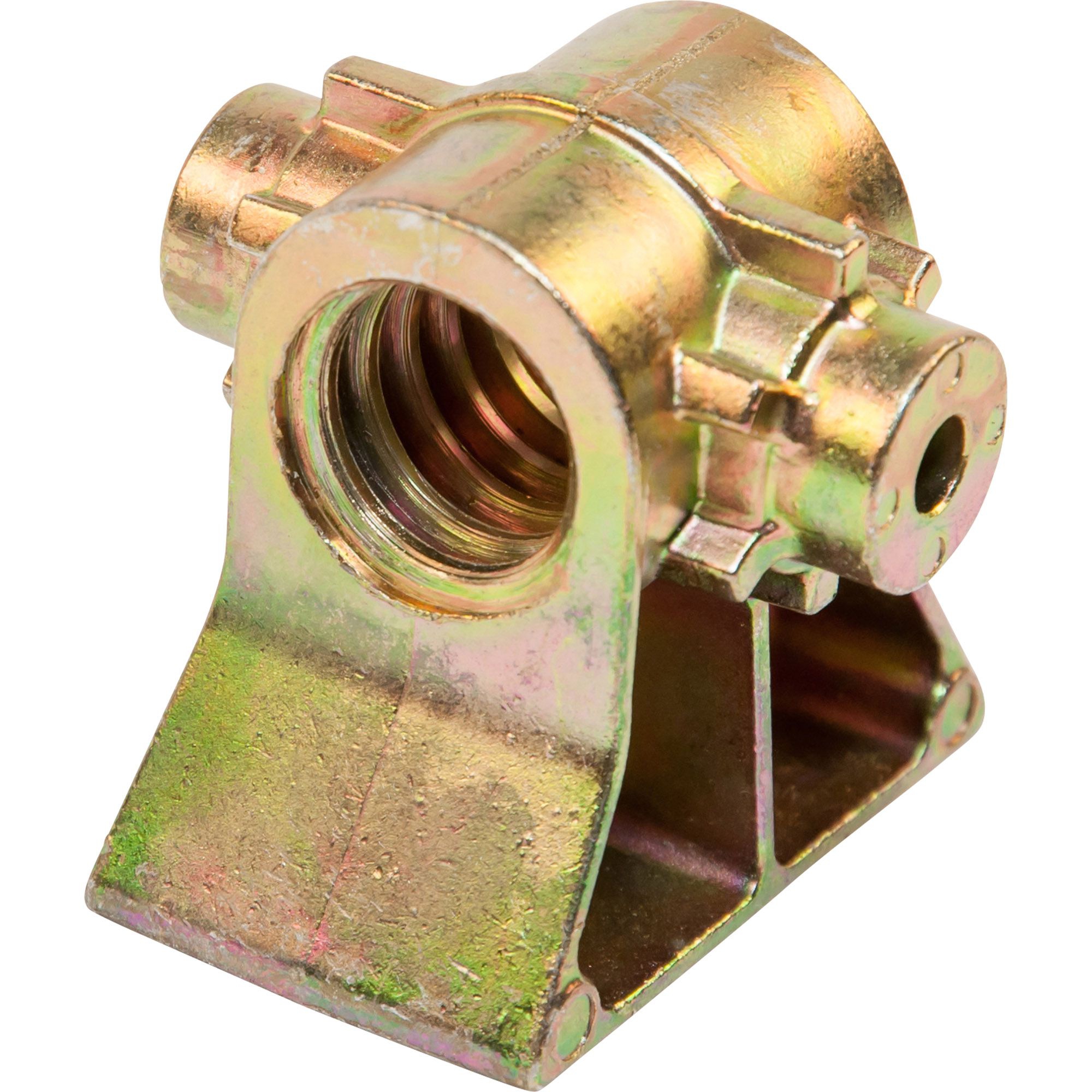

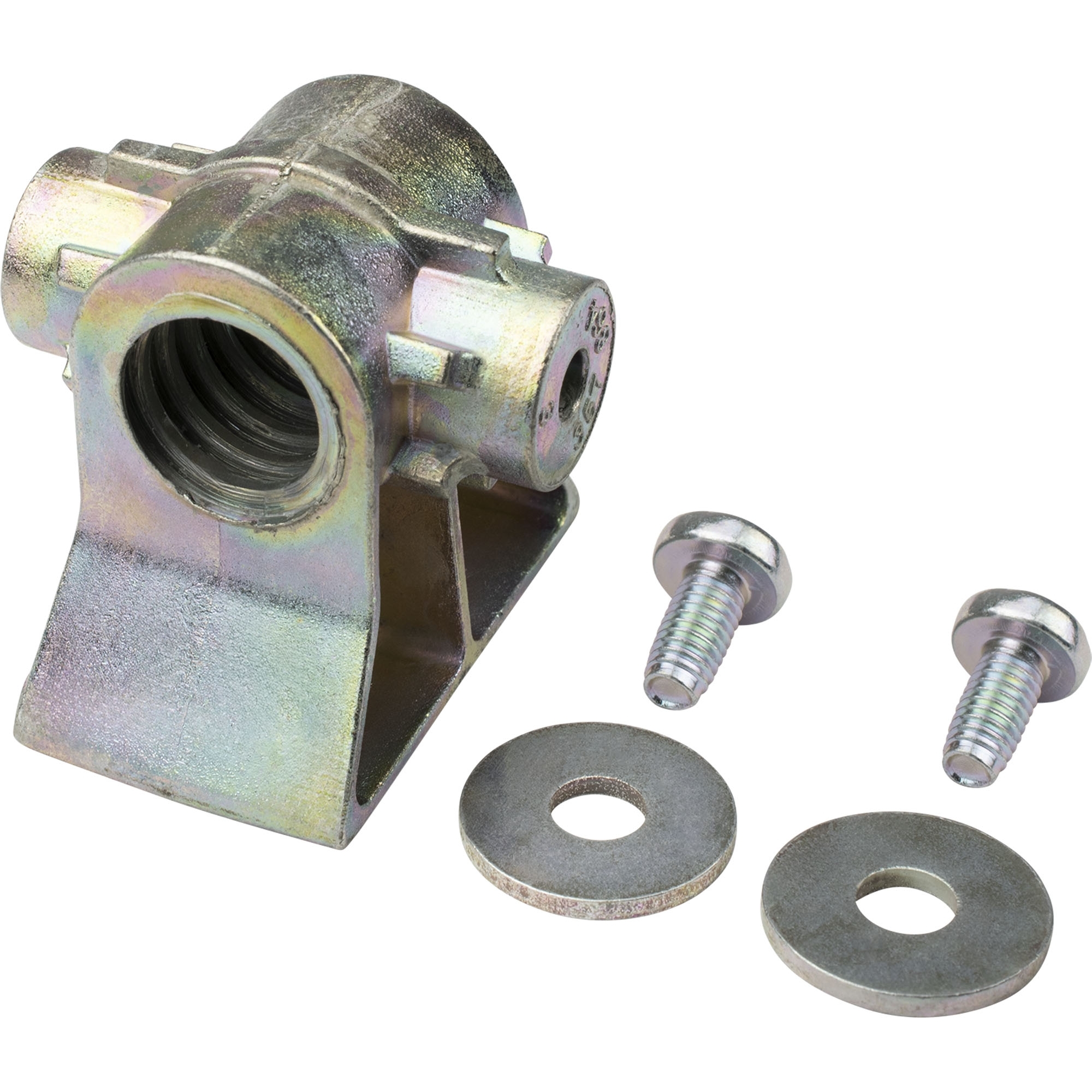

ET-spindle nut for plug prop Ø 20
ET-spindle nut for plug prop
spindle-Ø 20
for AL-KO plug prop 205817, 205808
Product number:
35519810
Extendable crank 140 x 665 SW 19
Extendable crank for crank prop
length 665 mm
SW 19
hot- dip galvanised
weight 0.6 kg
Product number:
205520

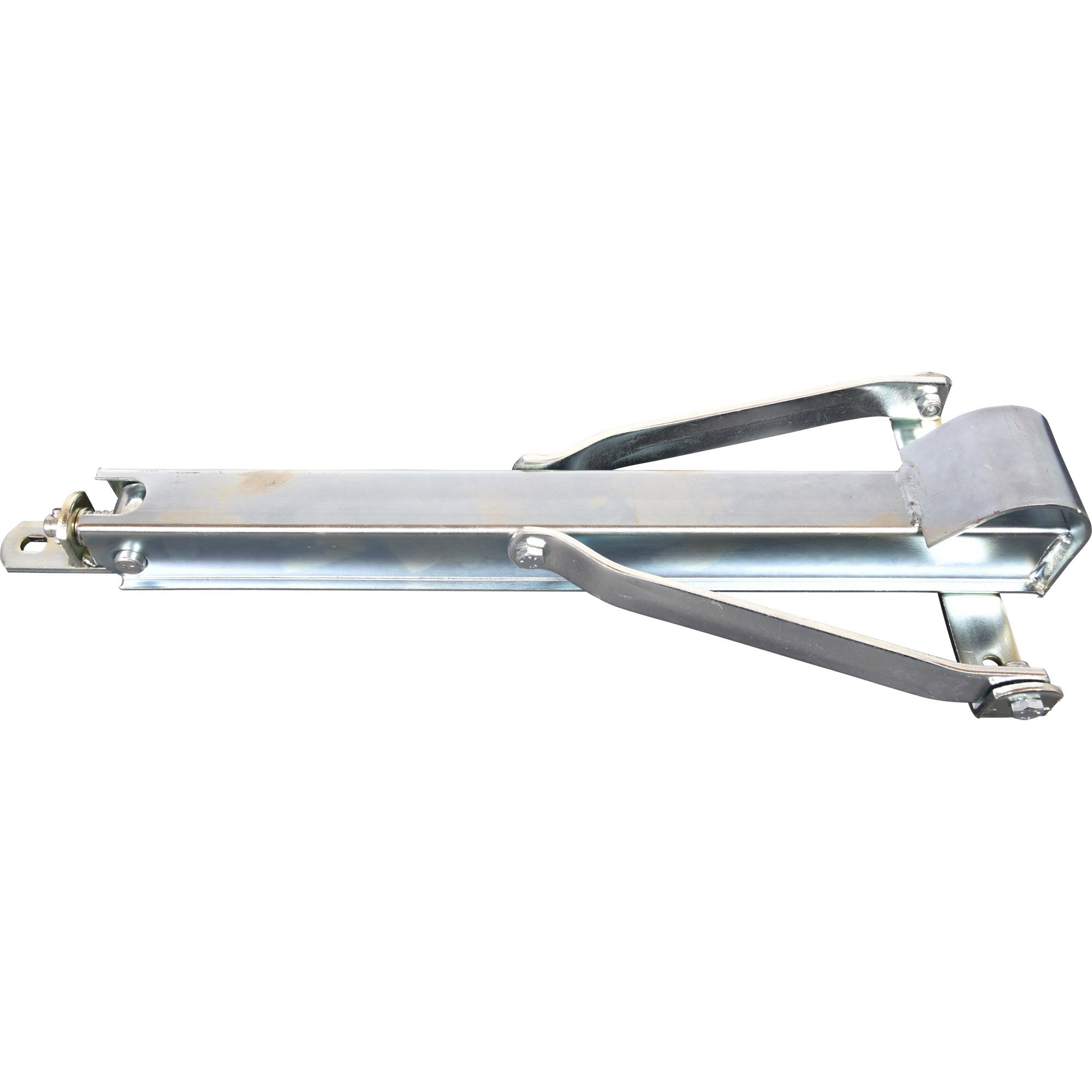

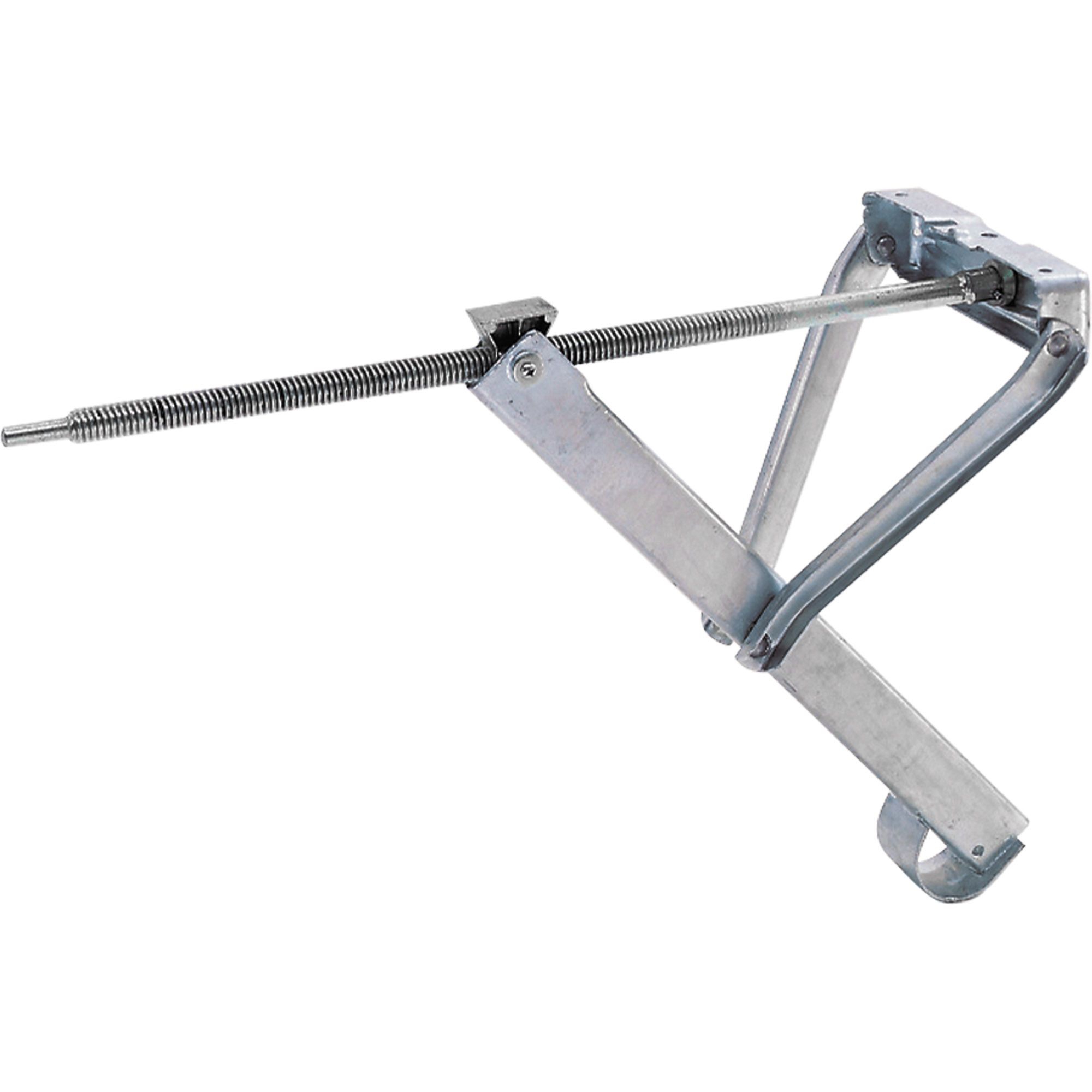

Extendable prop, comb. left and right,large versio
Extendable prop, comb. left and right, large version
length 605 mm
key x M 19, support load 800 kg
stroke 500 mm
Product number:
205817

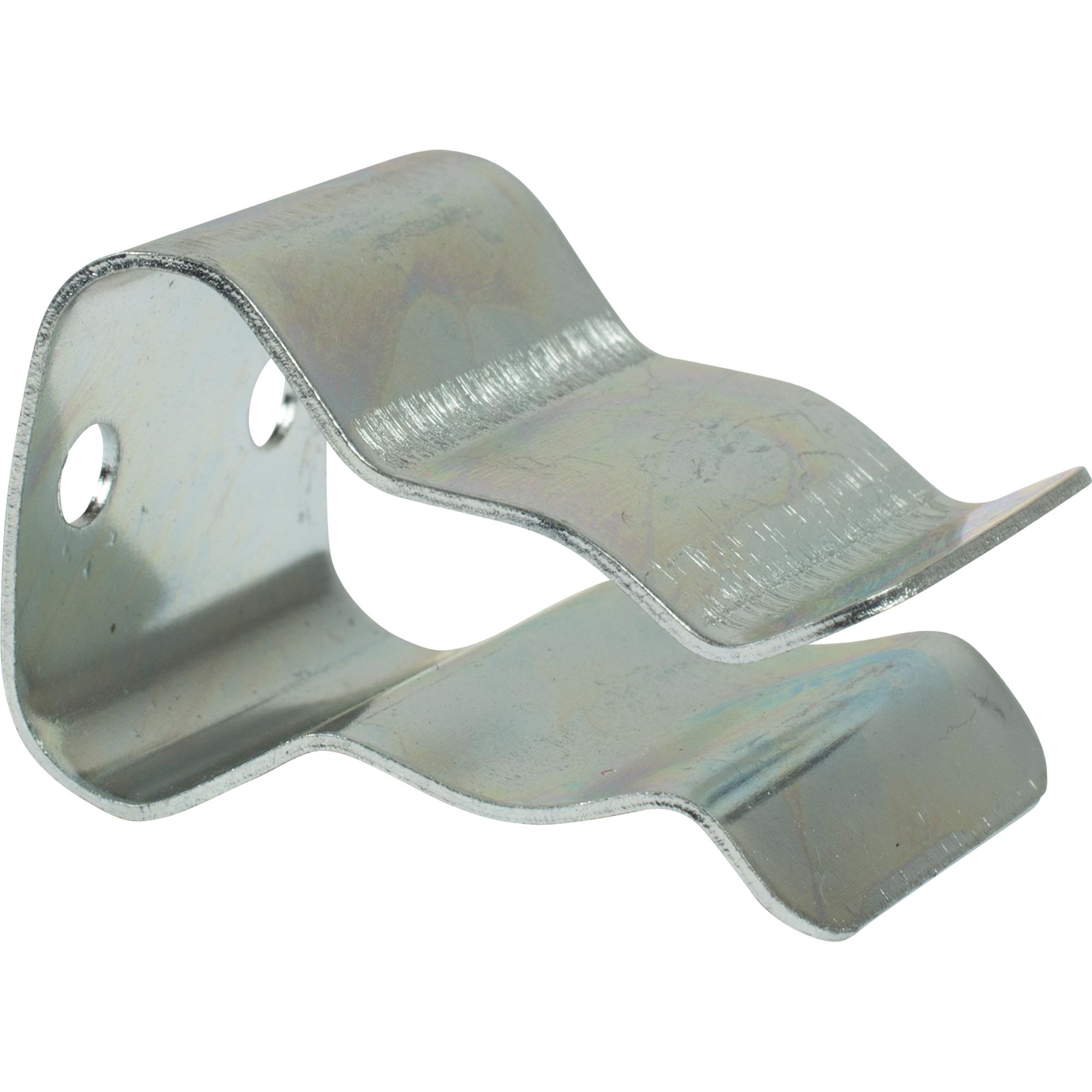

Fixing clips for crank length: 665, M 19
Fixing clips for crank length: 665, M 19
Product number:
016007013

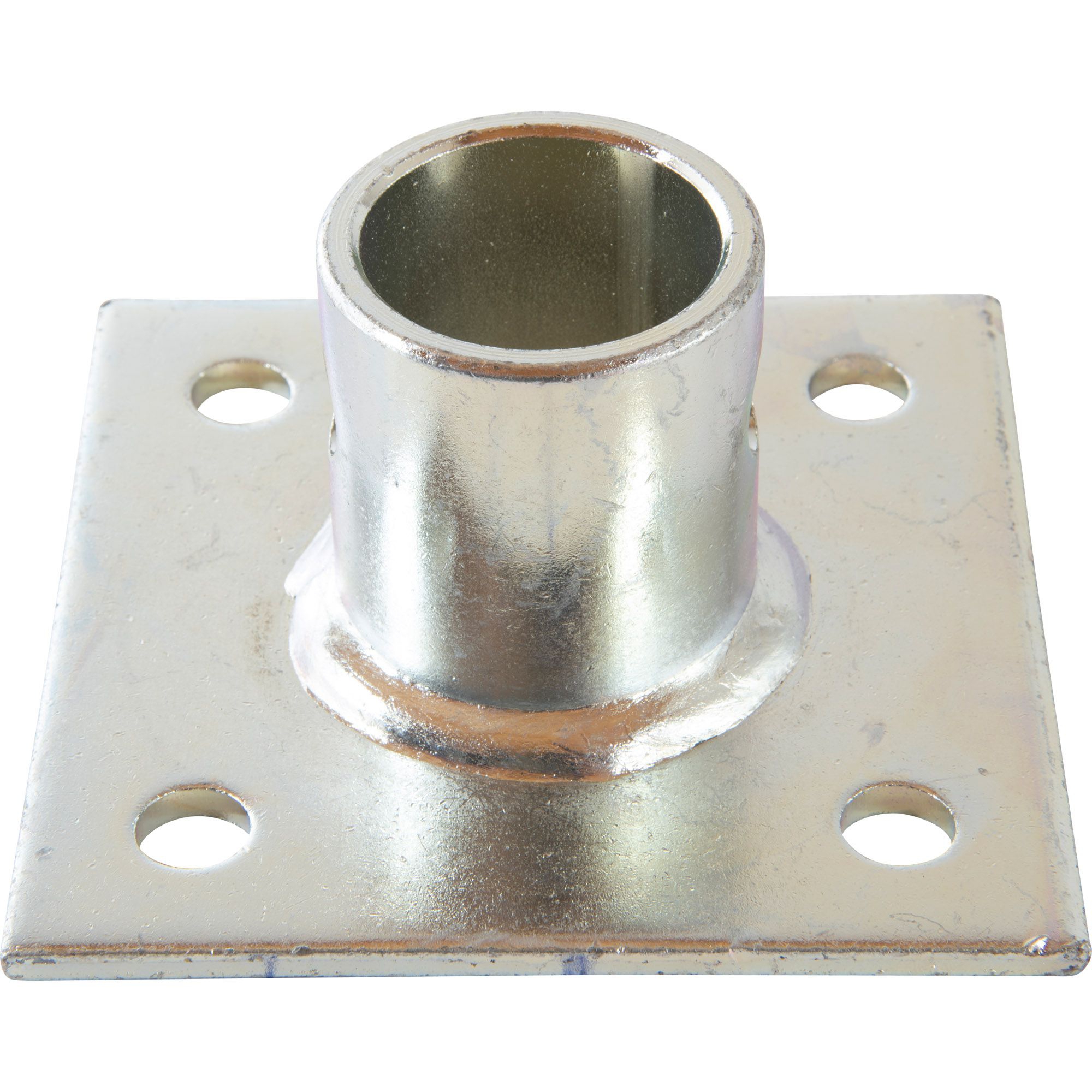

Flange plate for parking jack
Flange plate for parking jack
120x120 mm drilling M12,5 80x80 mm
outer diameter 51mm
Product number:
016007010

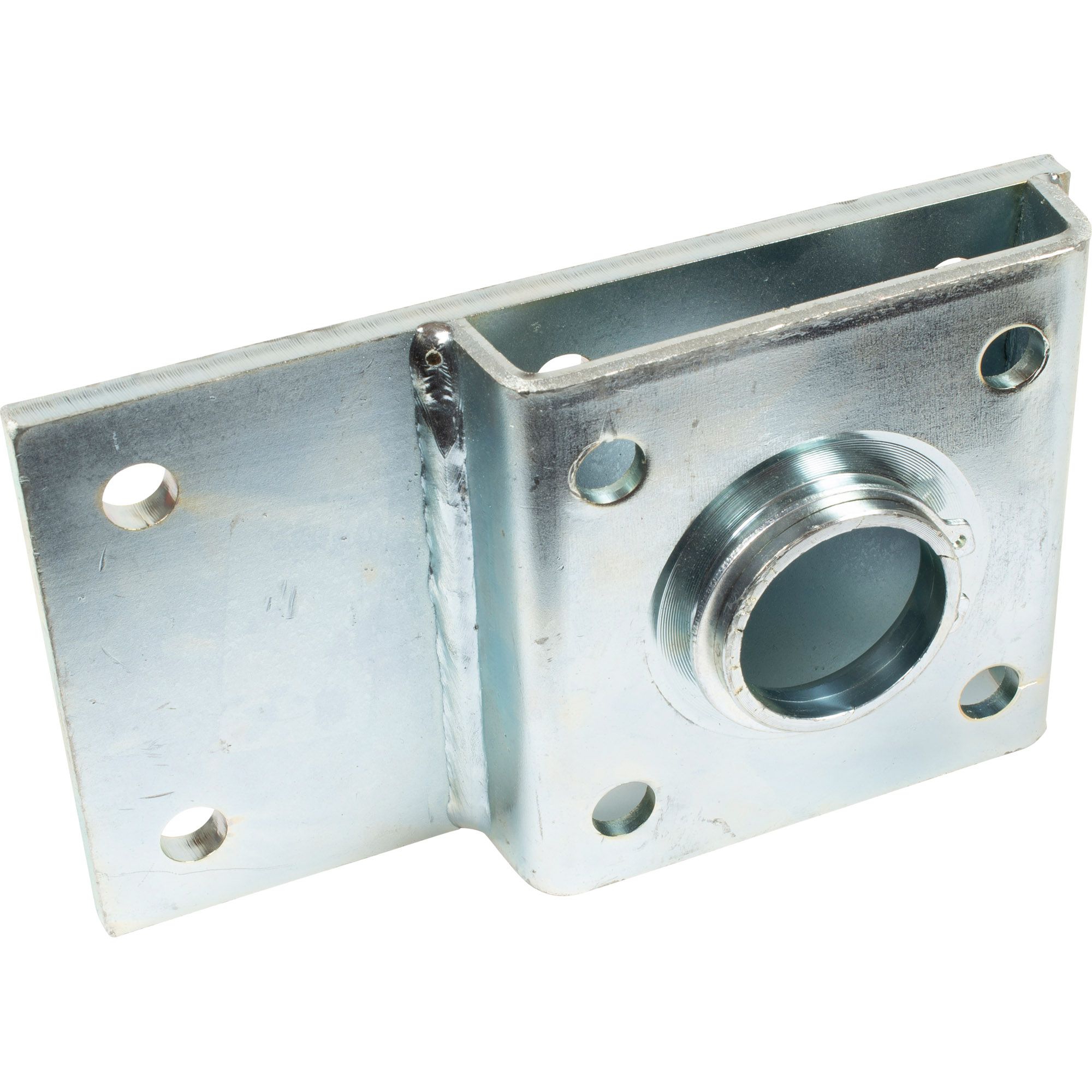

Flange plate for parking jack with spring safety b
Flange plate for parking jack with spring safety bolt
incl.: locking ring
ca. 100 x 100, drillings M 12 80 x 80
Type number of the modifiable parking jacks: 016007050, 016007051 , 016007054, 016007055
Product number:
016007060
