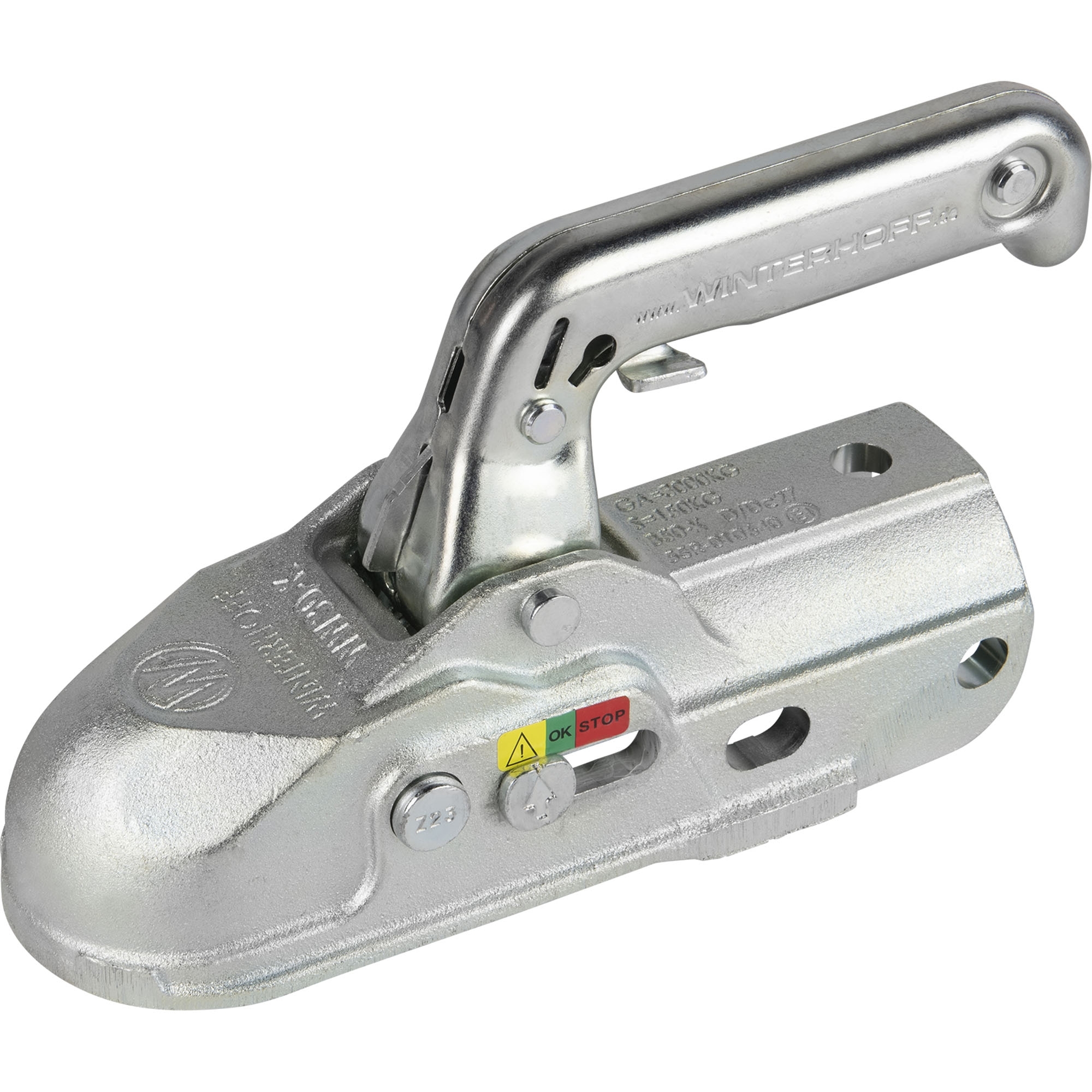

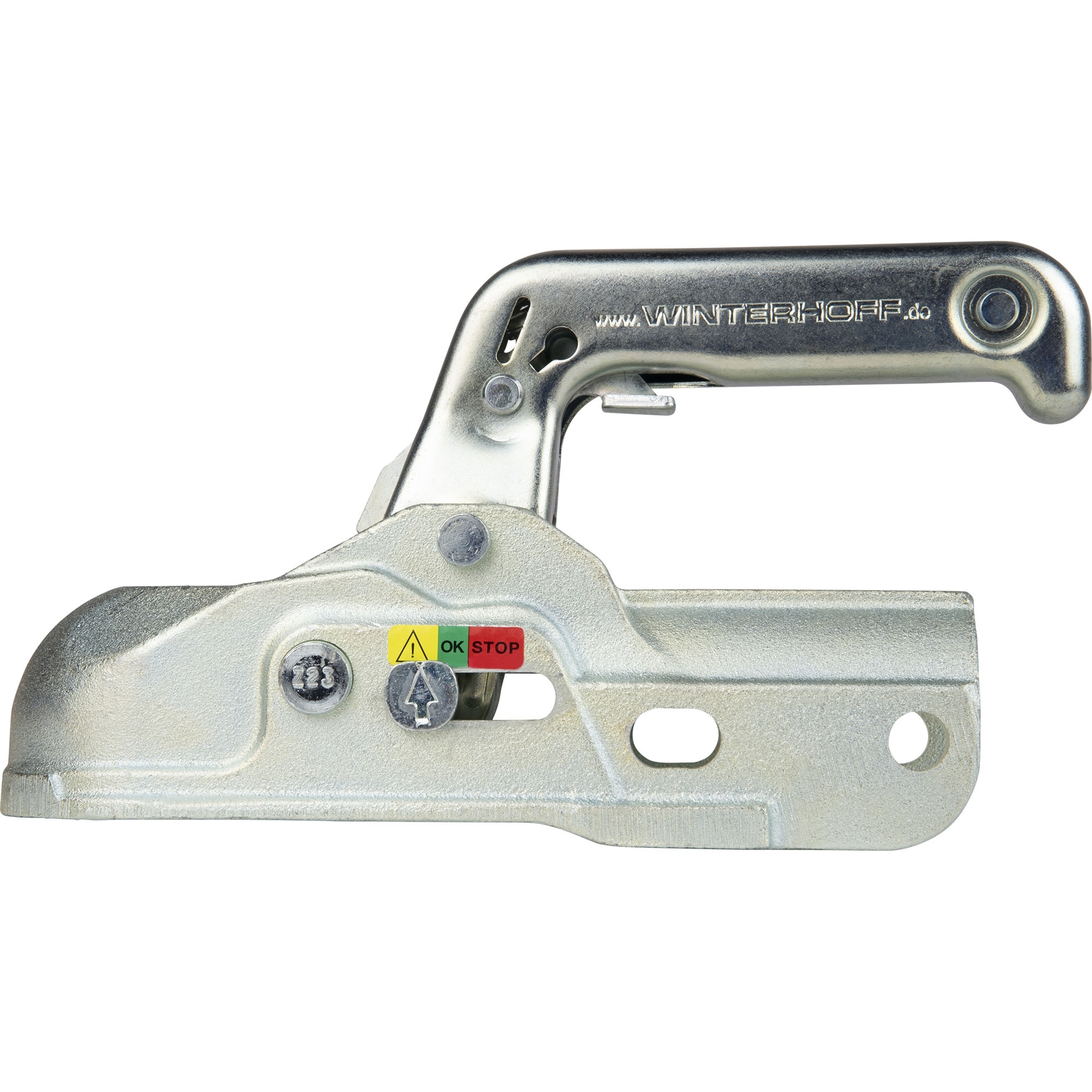

Universal Coupling Head, 3000 kg, WW 30, Ø 35-50mm
Prices visible after login
Register now
Register now
Product information "Universal Coupling Head, 3000 kg, WW 30, Ø 35-50mm"
Coupling Head Winterhoff

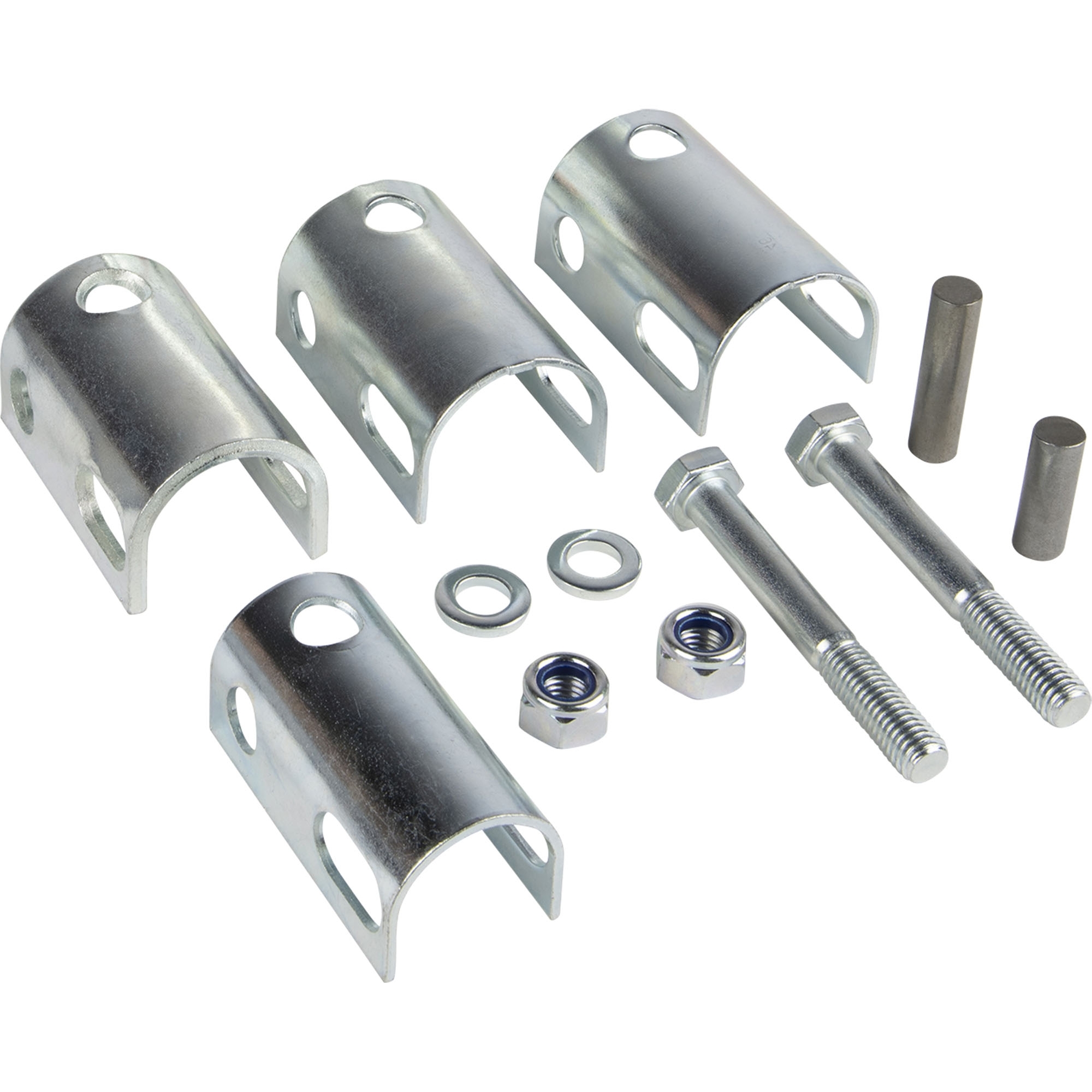

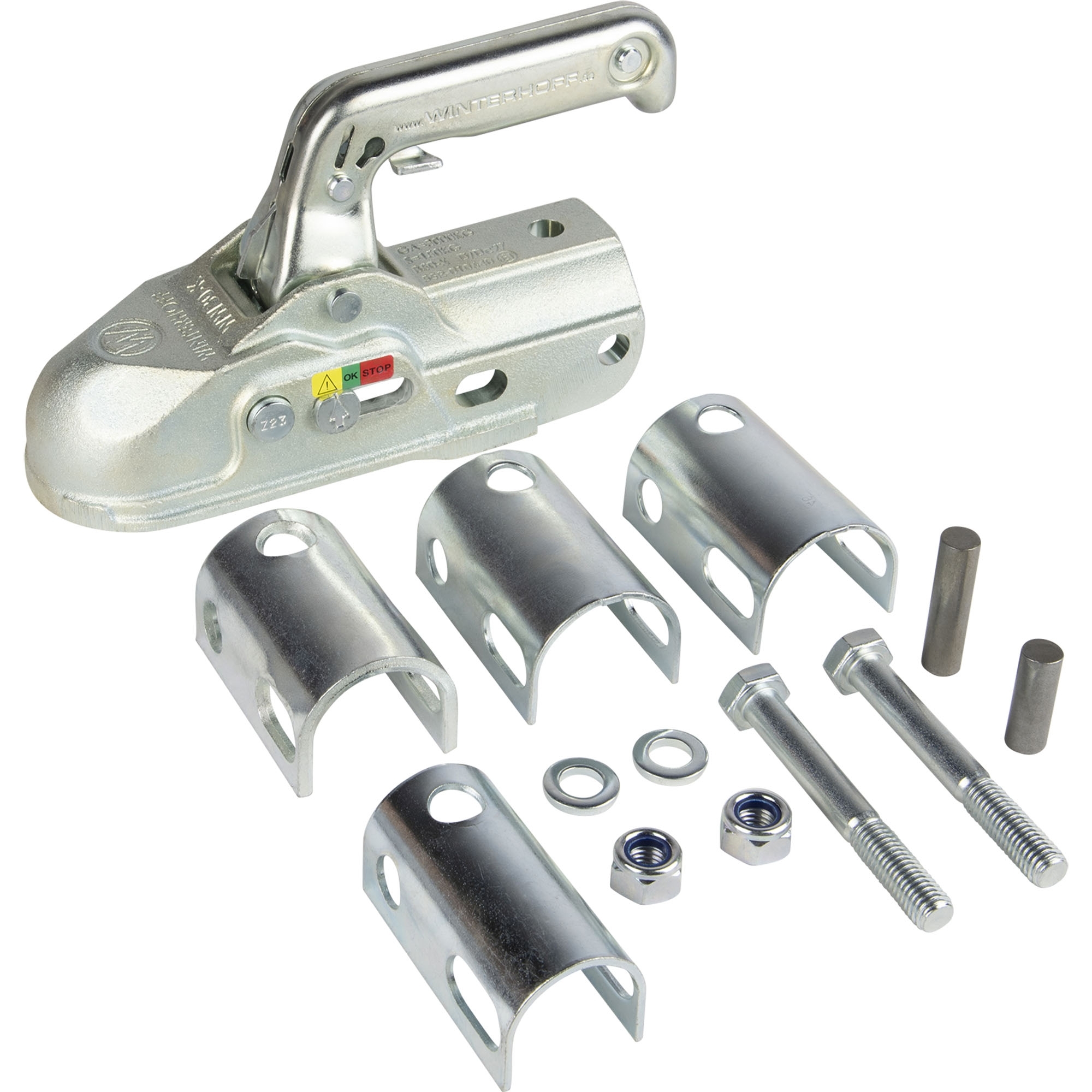

WW 30, incl. reducer + screw material

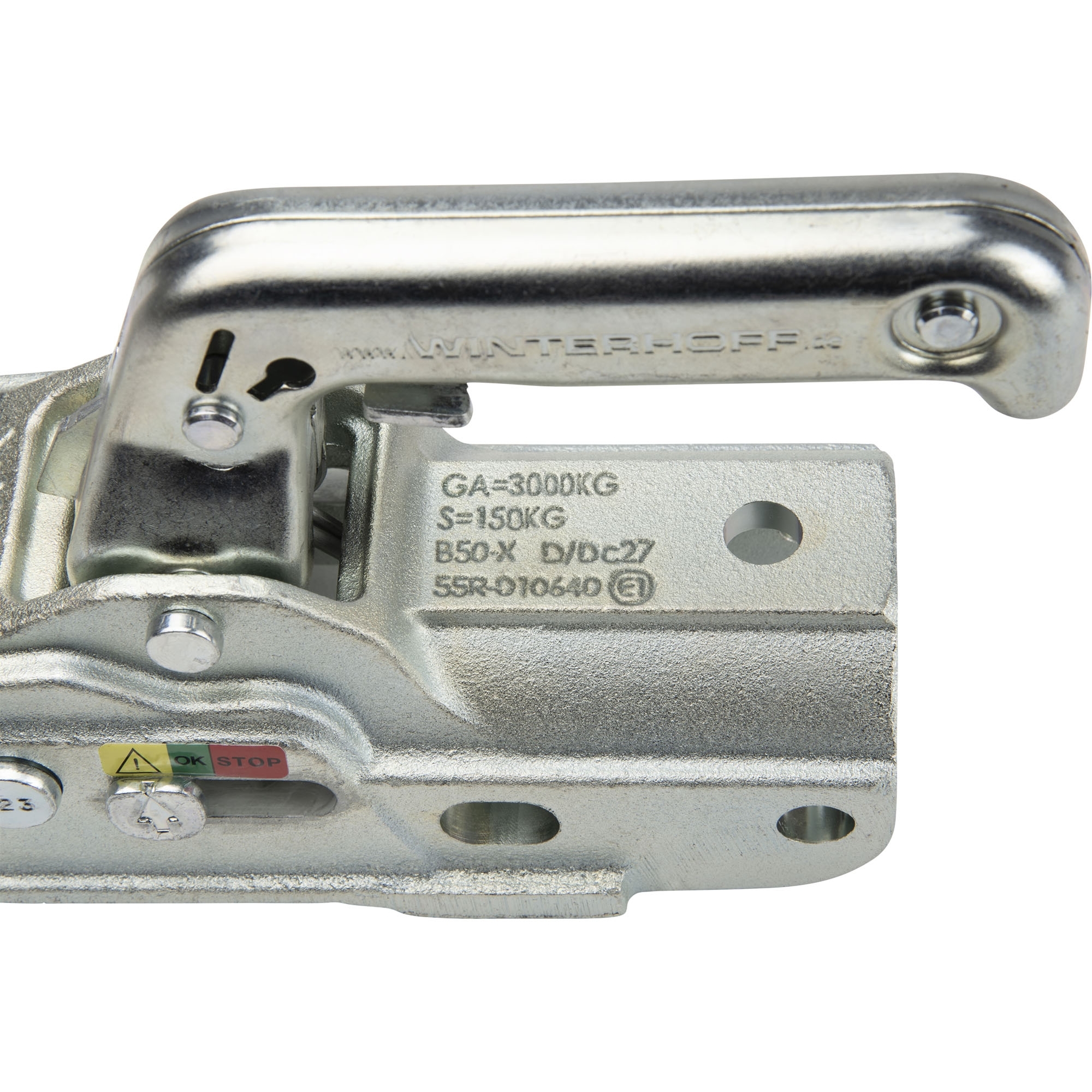

Perm. gross weight 3000 kg
Nose load 150 kg
Drawbar-Ø 50 mm
Reducer Ø 35 / 40 / 45 / 46 mm
Hole horizontal Ø 12.5 mm
Hole vertical Ø 12.5 mm
Hole distance horizontal 47 - 54 mm
Hole distance vertical 40 mm
| Bohrung senkrecht (mm): | 12,5 |
|---|---|
| Bohrung waagrecht (mm): | 12,5 |
| Durchmesser (mm): | 35, 40, 45, 46, 50 |
| Form: | rund |
| Gewicht: | 3.54 |
| Hersteller: | AL-KO, Winterhoff |
| Lochabstand senkrecht (mm): | 40 |
| Lochabstand waagrecht (mm): | 47 - 54 |
| Material: | Guss |
| Stützlast (kg): | 150 |
| Typ: | WW 30 |
| Verkaufsverpackung: | Karton |
| empfohlene VPE (Karton): | 8 |
| empfohlene VPE (Palette): | 170 |
| zul. Gesamtgewicht (kg): | 3000 |
