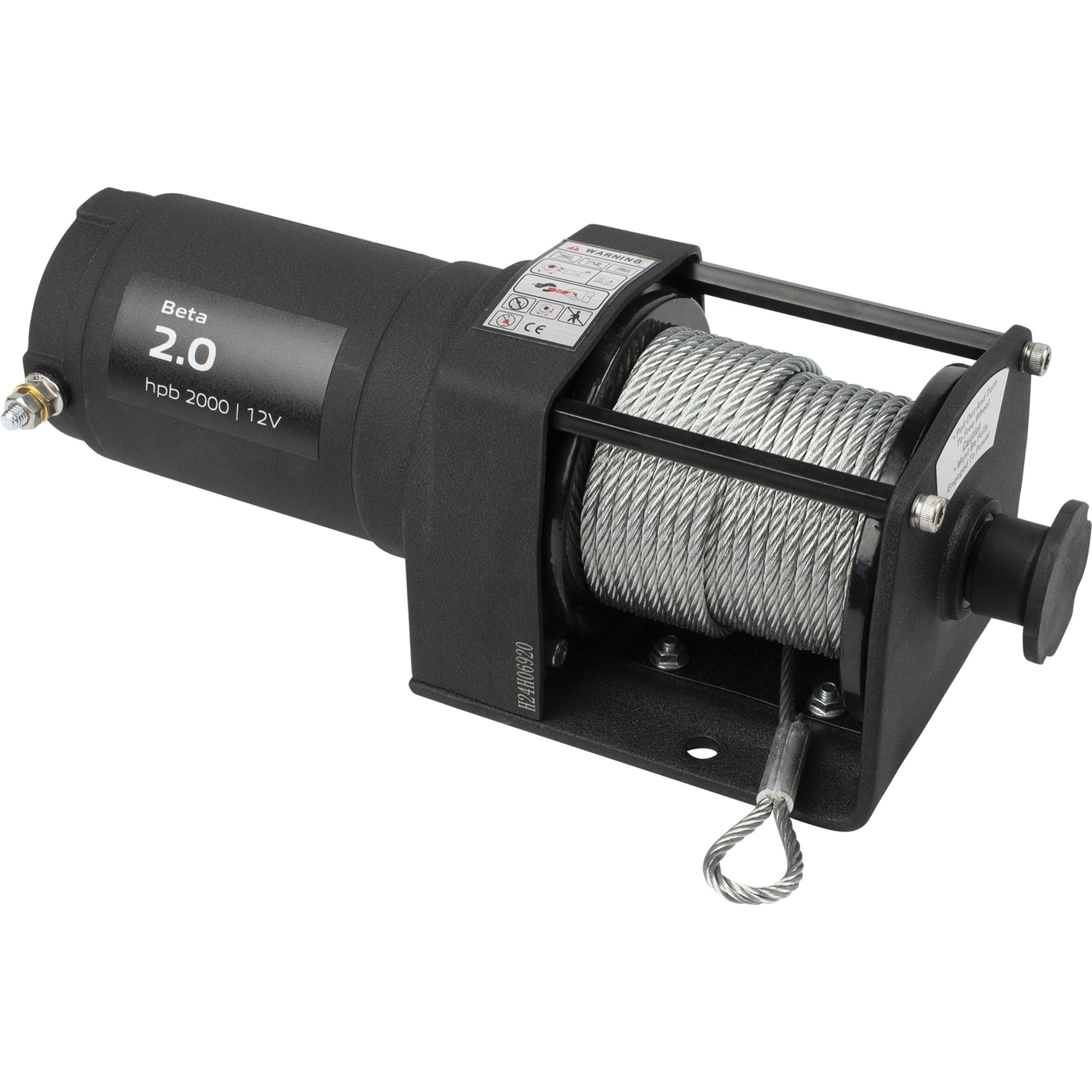

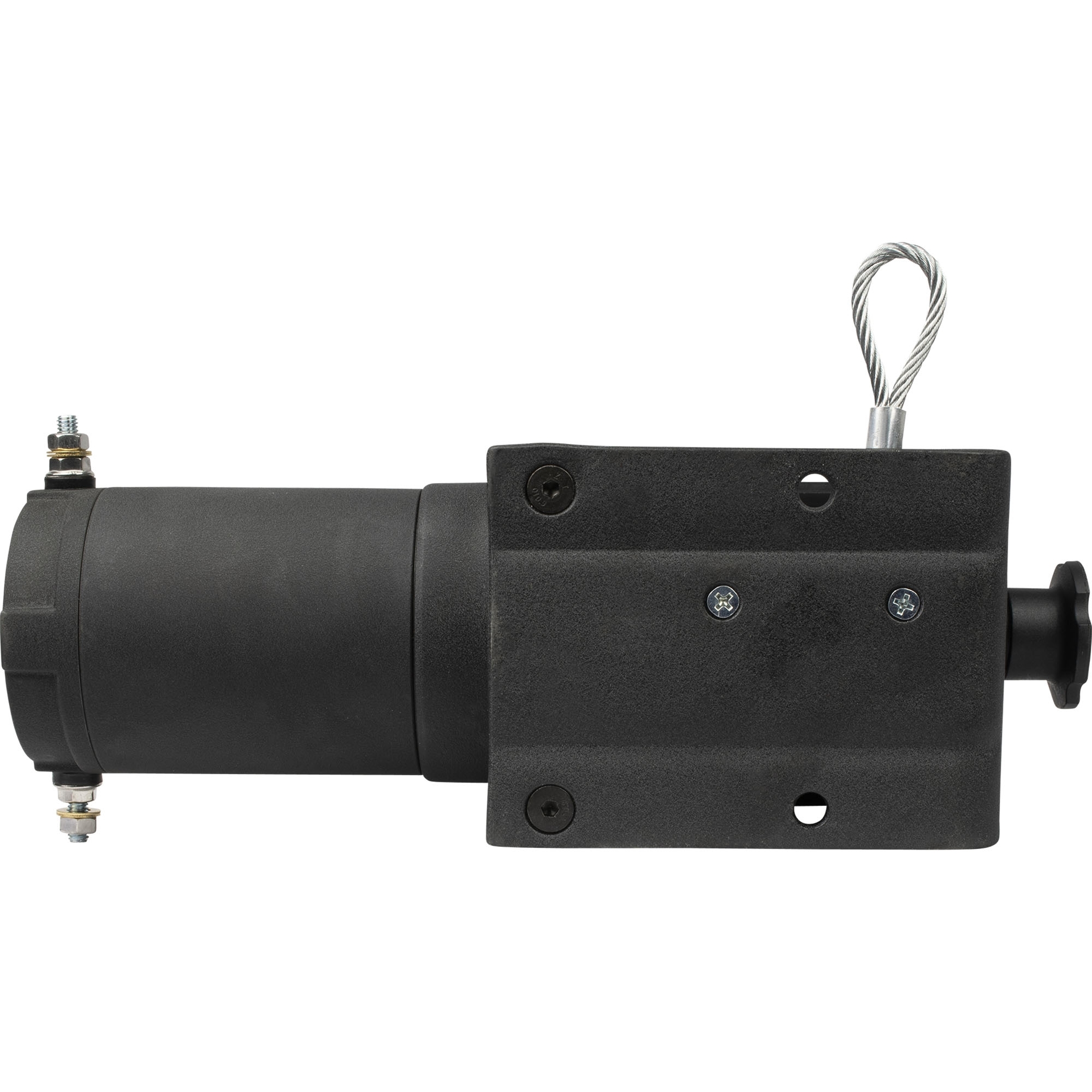

Product information "Winch HPB2000, 12 V, Tensile Force 900 kg"
Product info Technical details
| Besondere Maßeinheit: | Bedienungsanleitung.pdf |
|---|---|
| Breite: | 130 |
| Geschwindigkeit (m/min): | 3,2 |
| Gewicht: | 8 |
| Höhe: | 110 |
| Leistung (W): | 1100 |
| Länge: | 292 |
| Material: | Stahl |
| Seil-Ø (mm): | 4 |
| Spannung (V): | 12 |
| Stromstärke (A): | 90 |
| Trommelkapazität Seil (m): | 15 |
| Typ: | HPB2000 |
| Untersetzung 1: | 153:1 |
| Zugkraft (kg): | 900 |
