Overrun devices V
Filter products
–

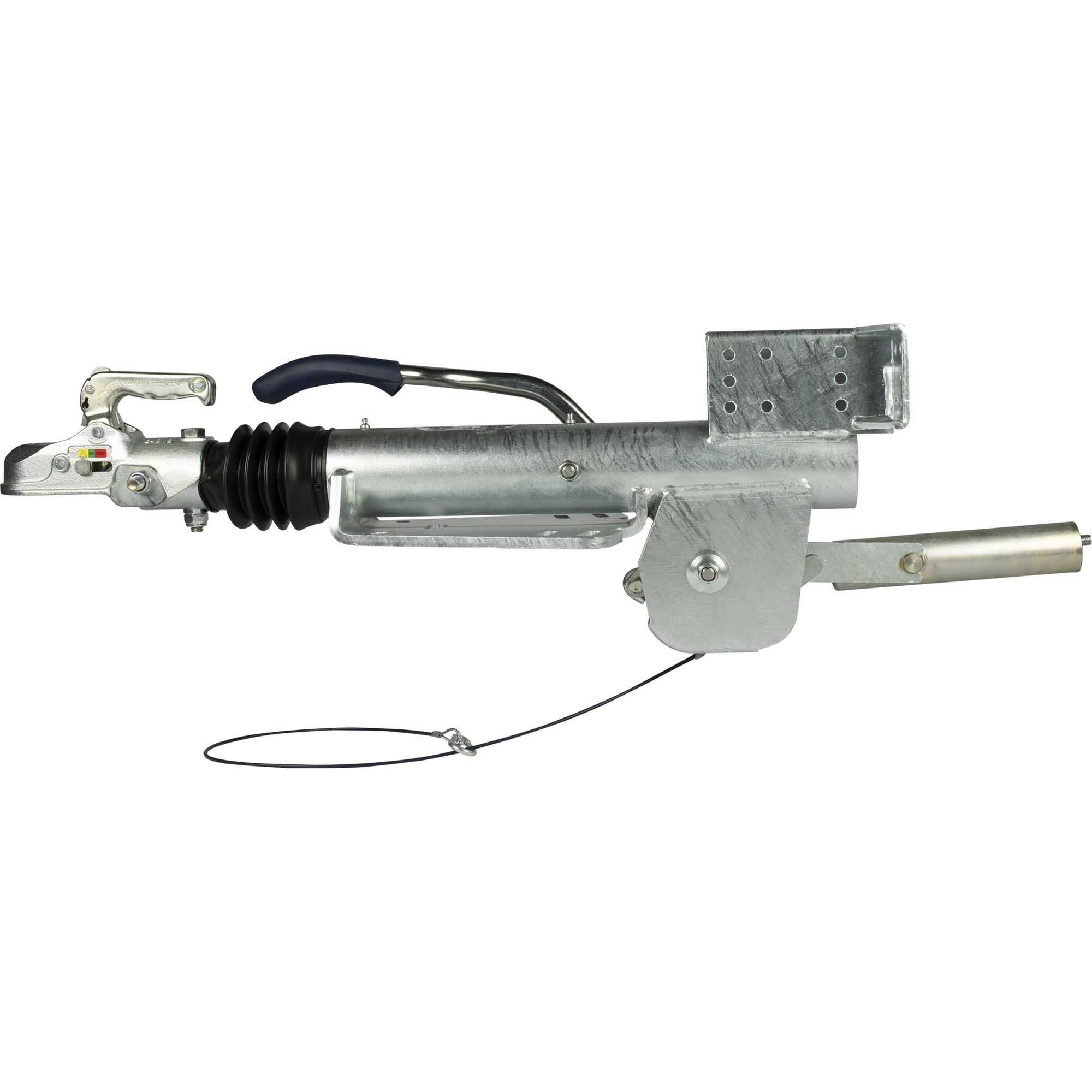

Overrun device BPW
for V-drawbar
BPW ZAF 3.5-3
perm total weight 2500 - 3500 kg
Nose load 200 kg
with dead-centre hand lever and spring mechanism
support wheel panel facing to the side and backwards
incl. coupling head WW350R-D
Lever mounted for wheel brake S2005-7RASK, S2504-7RASK, S3006-7RASK, 2051
suitable for AE3.5-2A
dimensions (see drawing):
A 851 mm
B 358 mm
C 166 mm
D1 133-166 mm
D2 175-258 mm
E 130-150 mm
Product number:
011002235
Bumping head Schlegl SFV 14 with support wheel retainer
perm. total load 800 - 1500 kg
support load 100 kg
dimensions (see drawing):
A 678 mm
B 160 mm
C 166 mm
D 180 mm
E 120 mm
Product number:
011001166
Bumping head Schlegl SFV 14 without support wheel retainer
perm. total load 800 - 1500 kg
support load 100 kg
dimensions (see drawing):
A 678 mm
B 160 mm
C 166 mm
D 180 mm
E 120 mm
Product number:
011001066
Bumping head Schlegl SFV 20 with support wheel retainer
Product number:
011001153

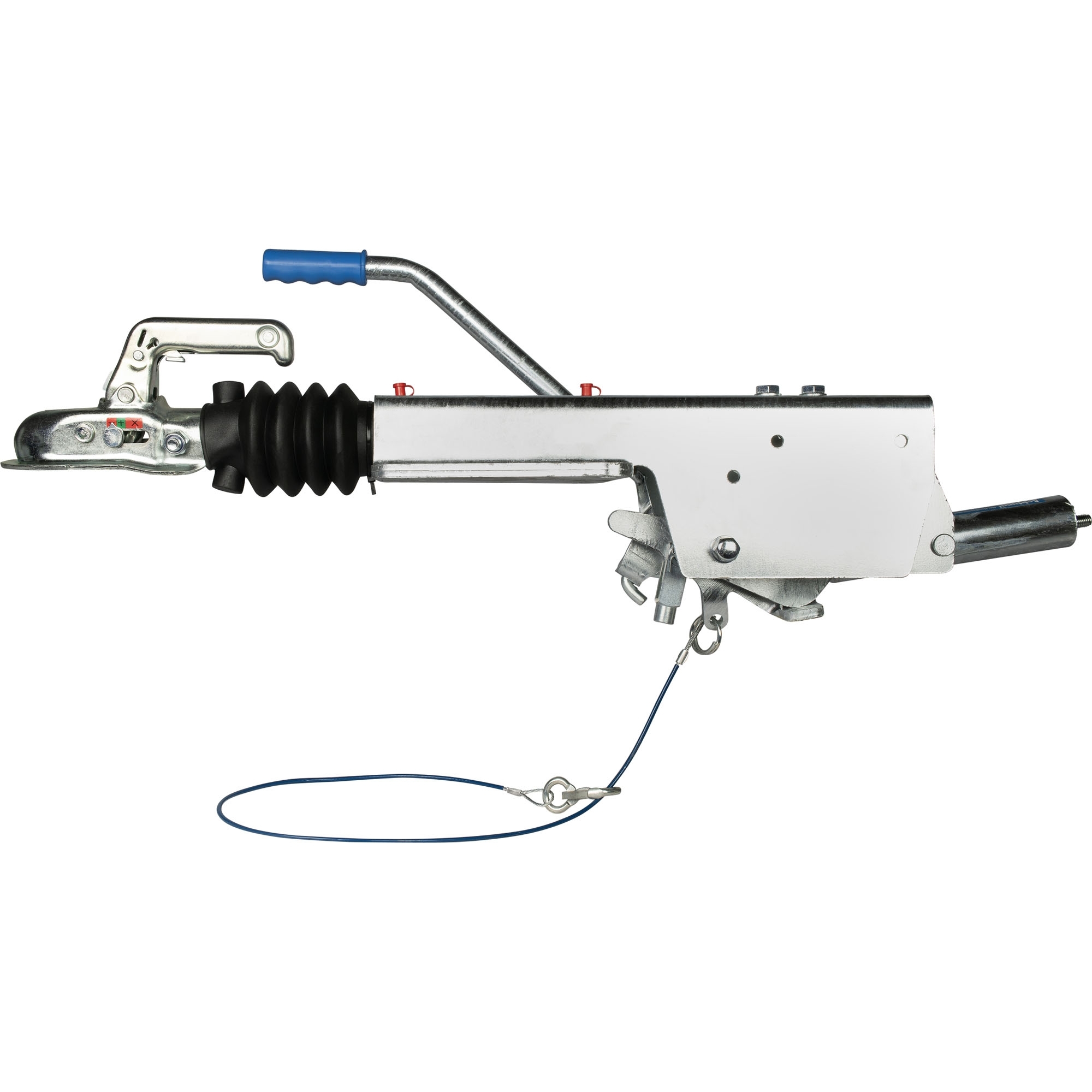

Bumping head Schlegl SFV 20 without support wheel retainer
Product number:
011001053

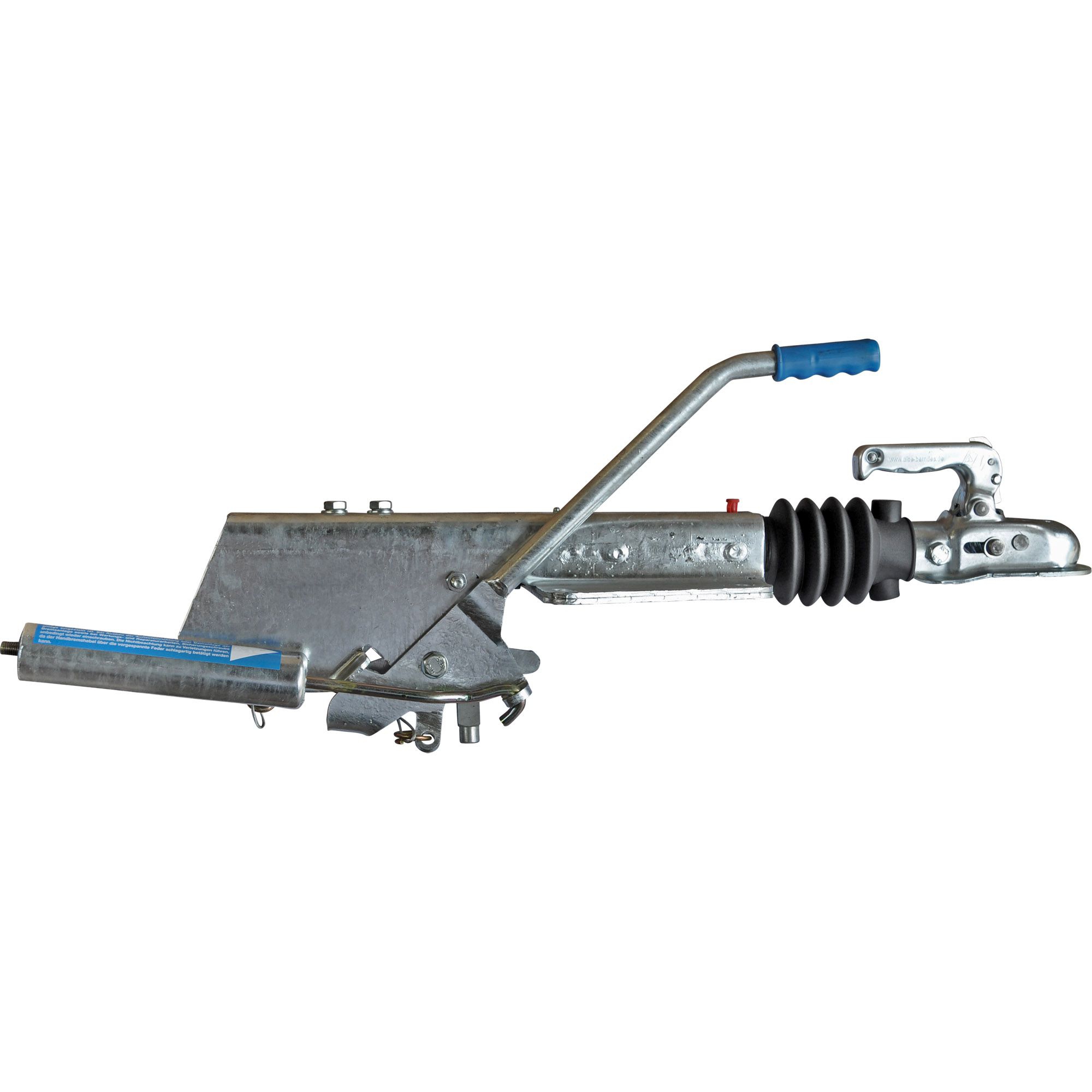

Bumping head Schlegl SFV 25-B without support wheel retainer
perm. total load 2000 - 2700 kg
support load 100 kg
dimensions (see drawing):
A 727 mm
B 165 mm
C 166 mm
D 180 mm
E 120 mm
Product number:
011001063
Bumping head Schlegl SFV 25-B with support wheel retainer
perm. total load 2000 - 2700 kg
support load 100 kg
dimensions (see drawing):
A 727 mm
B 165 mm
C 166 mm
D 180 mm
E 120 mm
Product number:
011001163

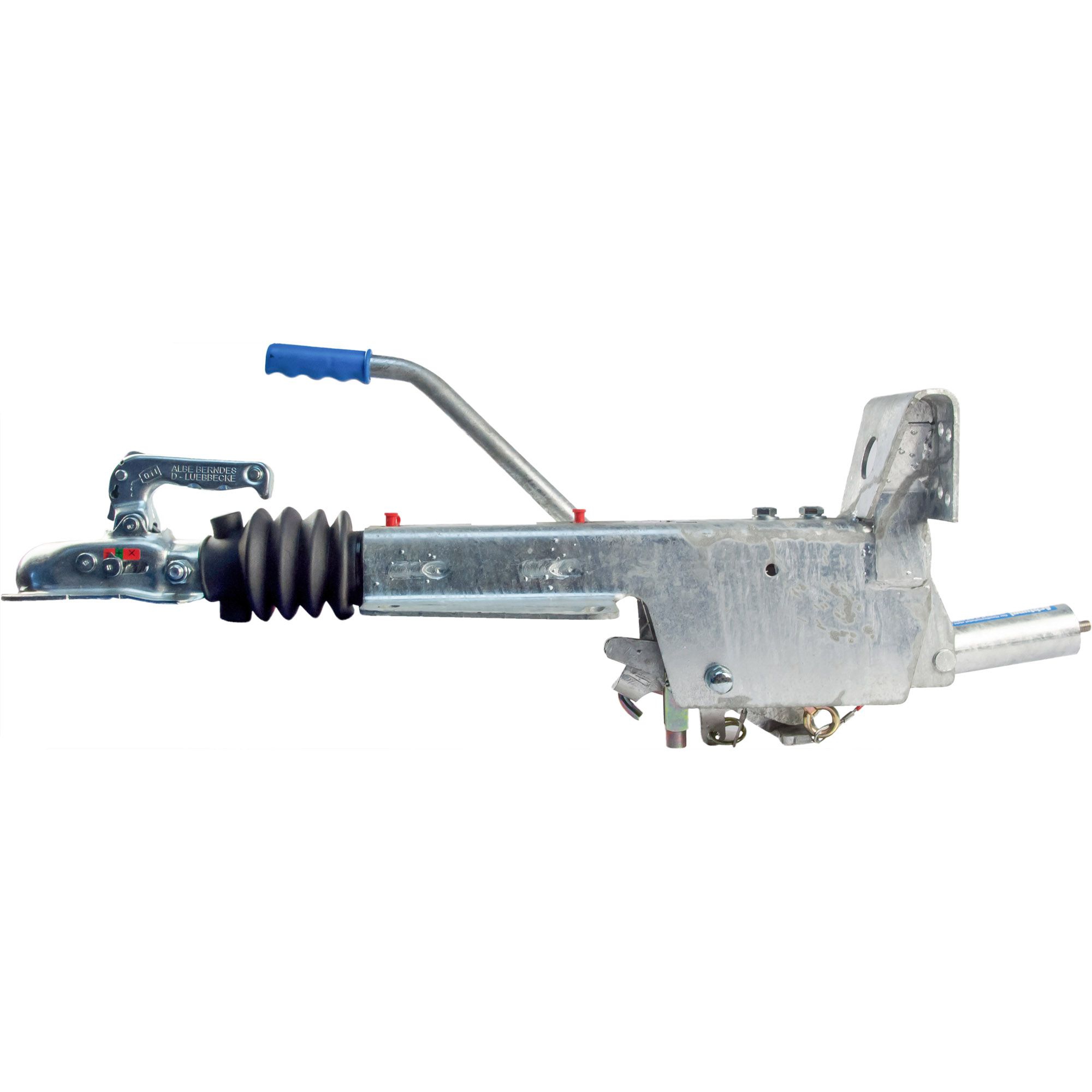

Bumping head Schlegl SFV 30 with support wheel retainer
perm. total load 2500 - 3000 kg
support load 100 kg
dimensions (see drawing):
A 727 mm
B 165 mm
C 166 mm
D 180 mm
E 120 mm
Product number:
011001164

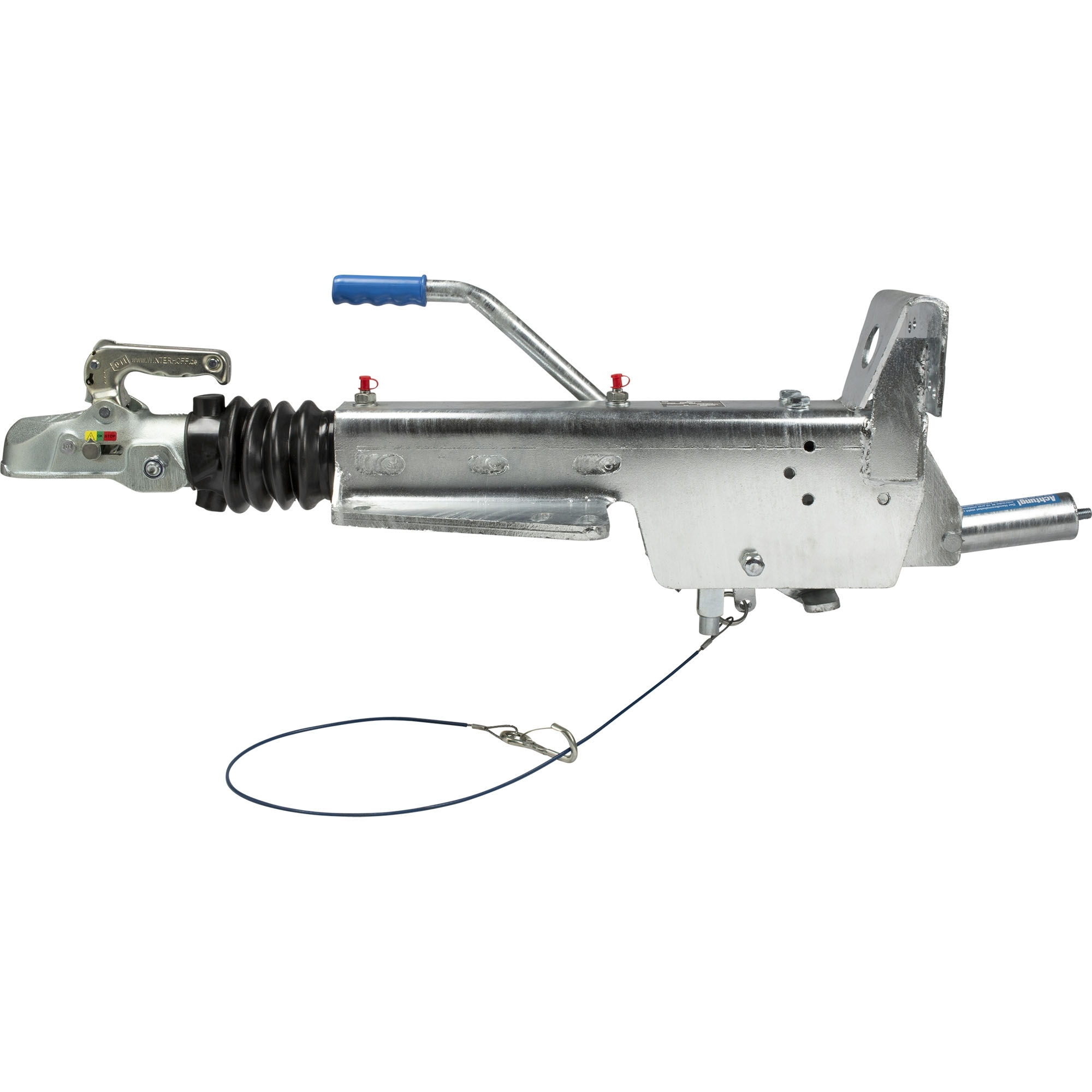

Bumping head Schlegl SFV 35 without support wheel retainer
perm. total load 2500 - 3000 kg
support load 100 kg
dimensions (see drawing):
A 727 mm
B 165 mm
C 166 mm
D 180 mm
E 120 mm
Product number:
011001064
Bumping head Schlegl SFV 25-B without support wheel retainer
perm. total load 3000 - 3500 kg
support load 150 kg
dimensions (see drawing):
A 665 mm
B 183 mm
C 166 / 207 mm
D 227 mm
E 148 mm
Product number:
011001165
Bumping head Schlegl SFV 25-B without support wheel retainer
perm. total load 3000 - 3500 kg
support load 150 kg
dimensions (see drawing):
A 665 mm
B 183 mm
C 166 / 207 mm
D 227 mm
E 148 mm
Product number:
011001065

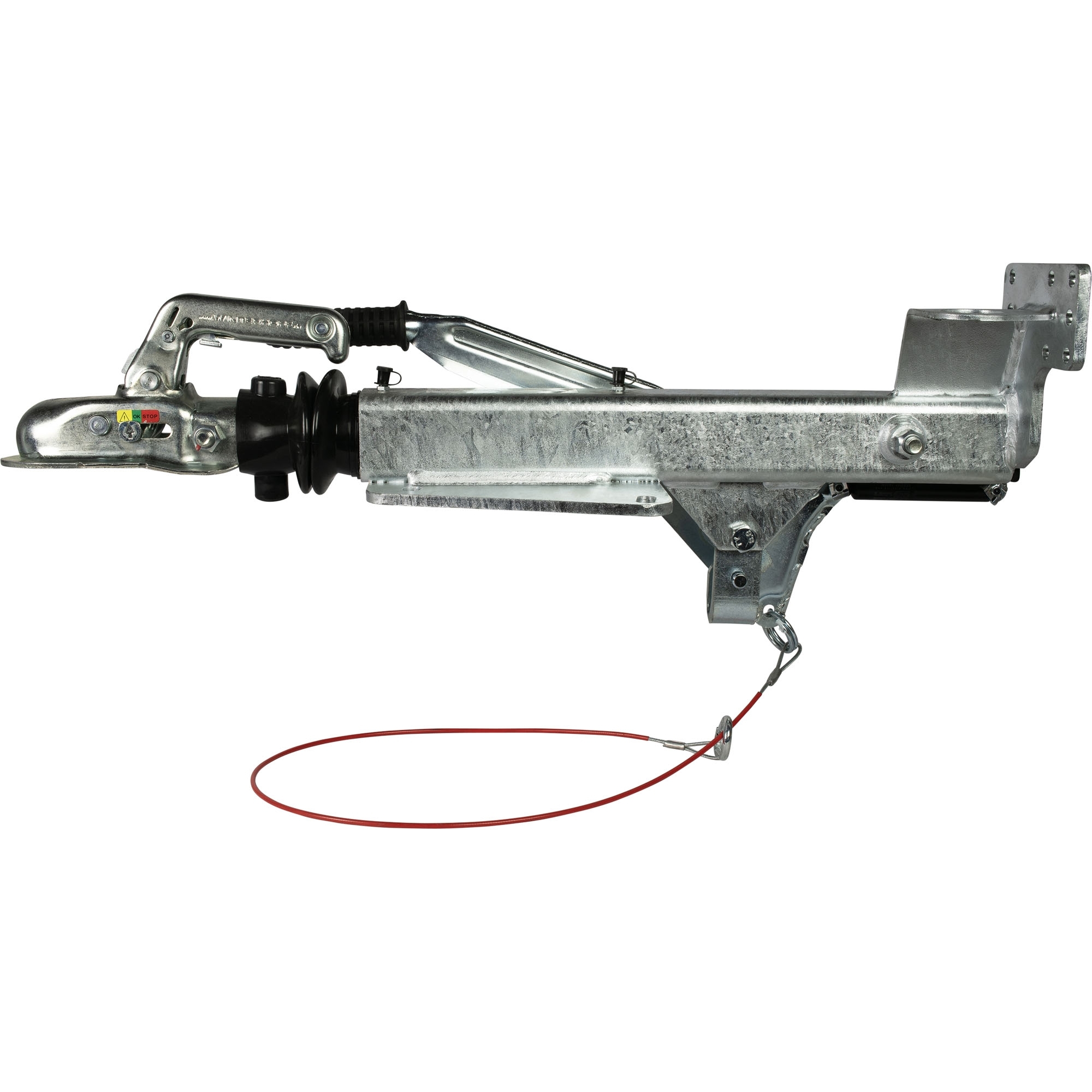

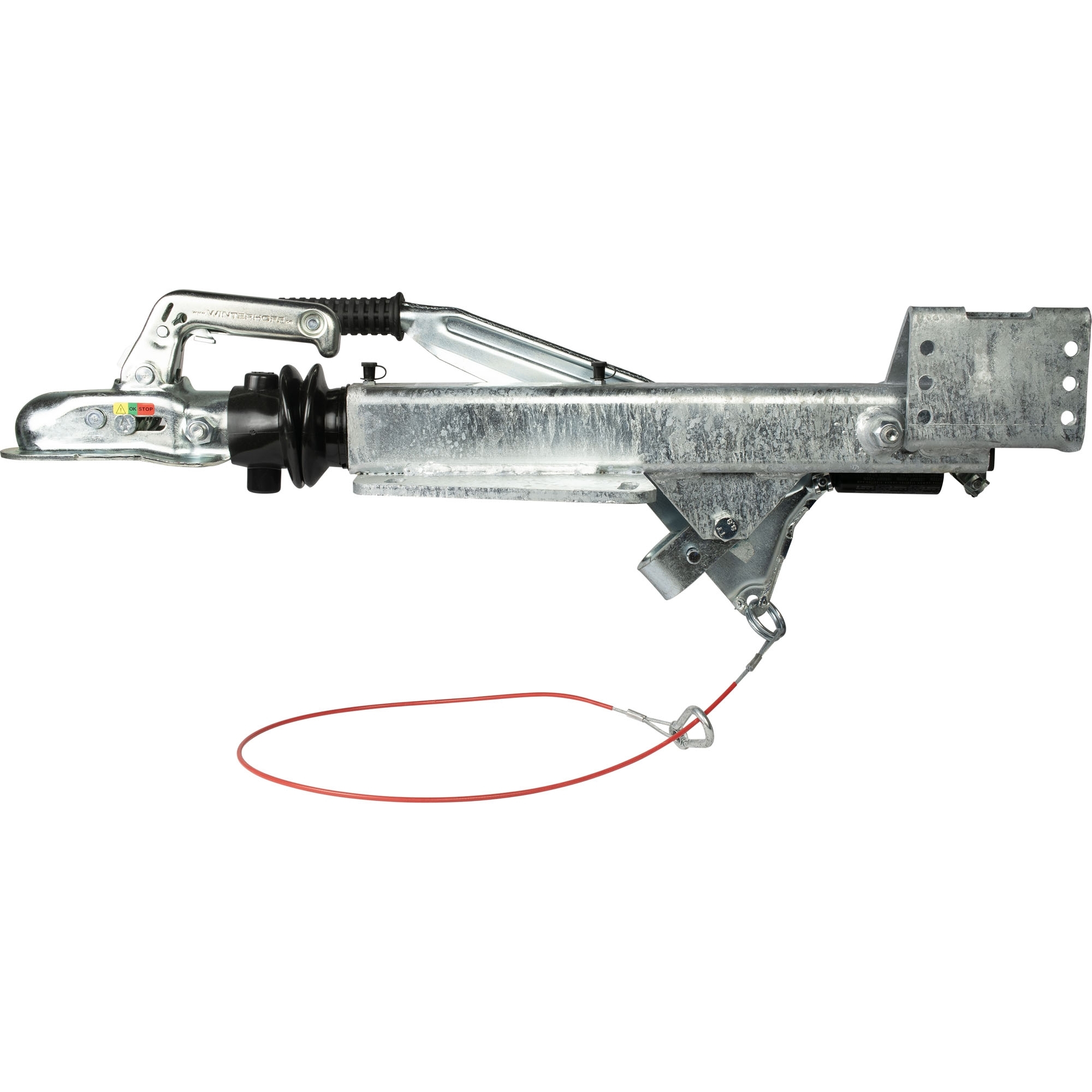

Bumping head WAP 15/15.1
perm. total load up to 1500 kg
support load 100 kg, hole pattern 130 / 240 mm
support wheel retainer diagonally in the back
Product number:
011002012
Bumping head WAP 15/15.1
perm. total load up to 1500 kg
support load 100 kg, suitable for Peitz - PAV/SR 1.3
hole pattern 100 / 160 / 190
support wheel retainer diagonally in the back
Product number:
011002004
Bumping head WAP 15/15.1
perm. total load up to 1500 kg
support load 100 kg, suitable for Peitz - PAV/SR 1.3
hole pattern 100 / 160 / 190
support wheel retainer lateral
Product number:
011002005

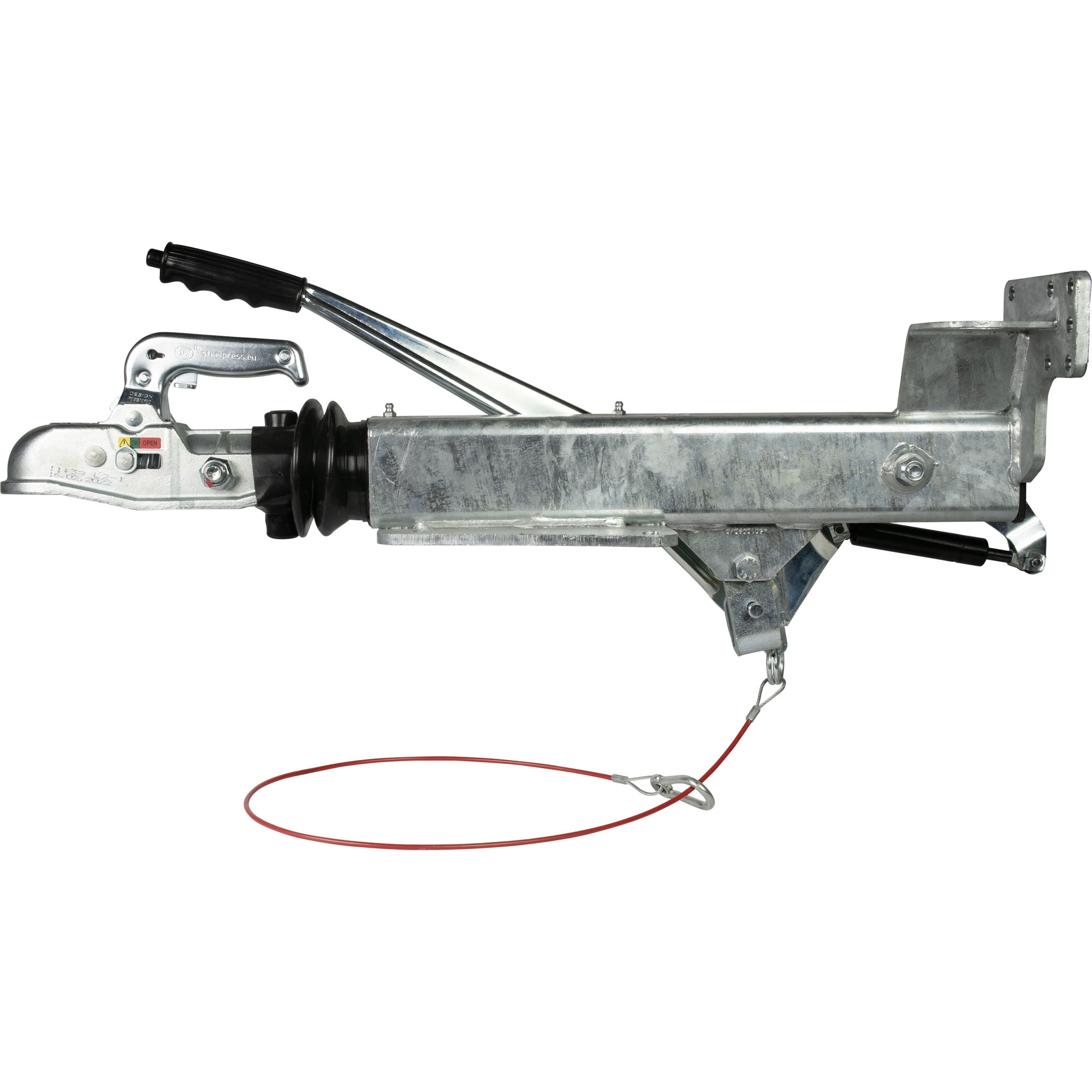

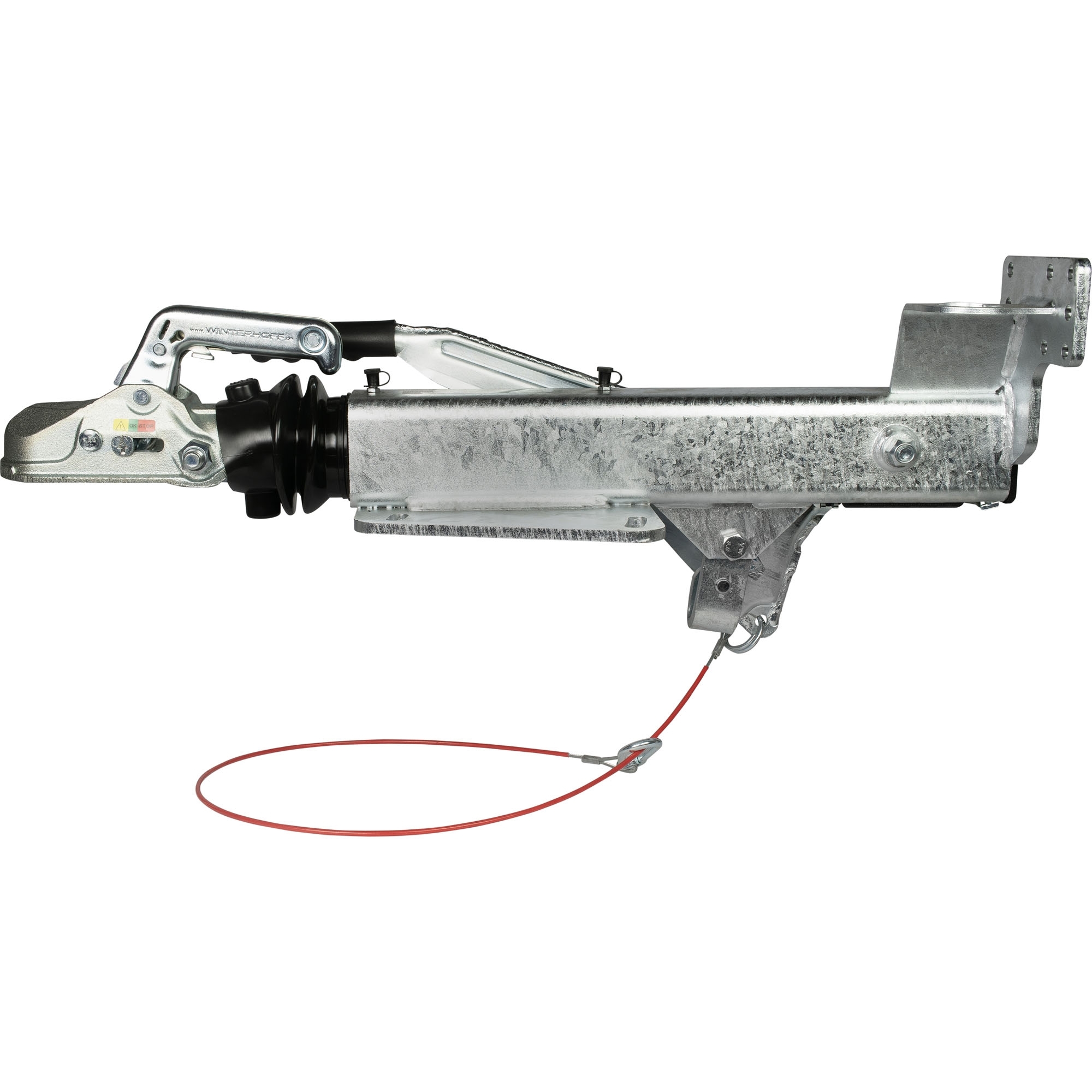

Bumping head WAP 24/35.1
perm. total load up to 2000 kg
support load 100 kg, hole pattern 130 / 210 mm
support wheel retainer diagonally in the back
Product number:
011002013
Bumping head WAP 24/35.1
perm. total load up to 2000 kg
support load 100 kg, suitable for Peitz - PAV/SR 2.0
hole pattern 100 / 160 / 190
support wheel retainer diagonally in the back
Product number:
011002006

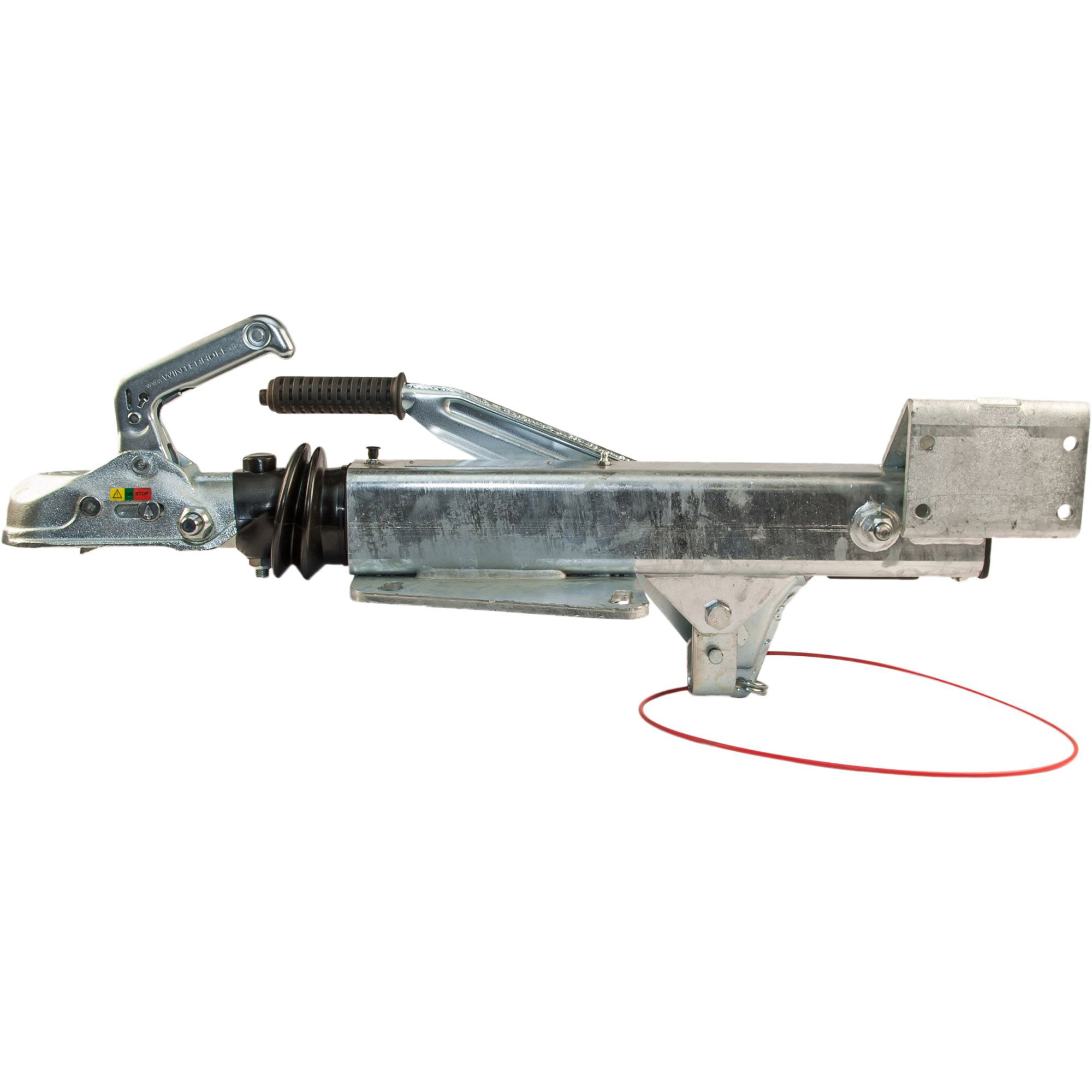

Bumping head WAP 24/35.2
perm. total load up to 2400 kg
support load 150 kg, hole pattern 100 / 190 mm
support wheel retainer lateral
Product number:
011002015
Bumping head WAP 24/35.2
perm. total load up to 2400 kg
support load 150 kg, hole pattern 130 / 210 mm
support wheel retainer diagonally in the back
Product number:
011002016
Bumping head WAP 35/35.2
perm. total load up to 2700 kg
support load 150 kg, suitable for Peitz - PAV/SR 2.7 M
hole pattern 100 / 160 / 190
support wheel retainer diagonally in the back
Product number:
011002007
Bumping head WAP 35/35.2
perm. total load up to 3100 kg
support load 150 kg, suitable for Peitz - PAV/SR 2.7 M
hole pattern 130 / 160 / 240
support wheel retainer diagonally in the back
Product number:
011002009

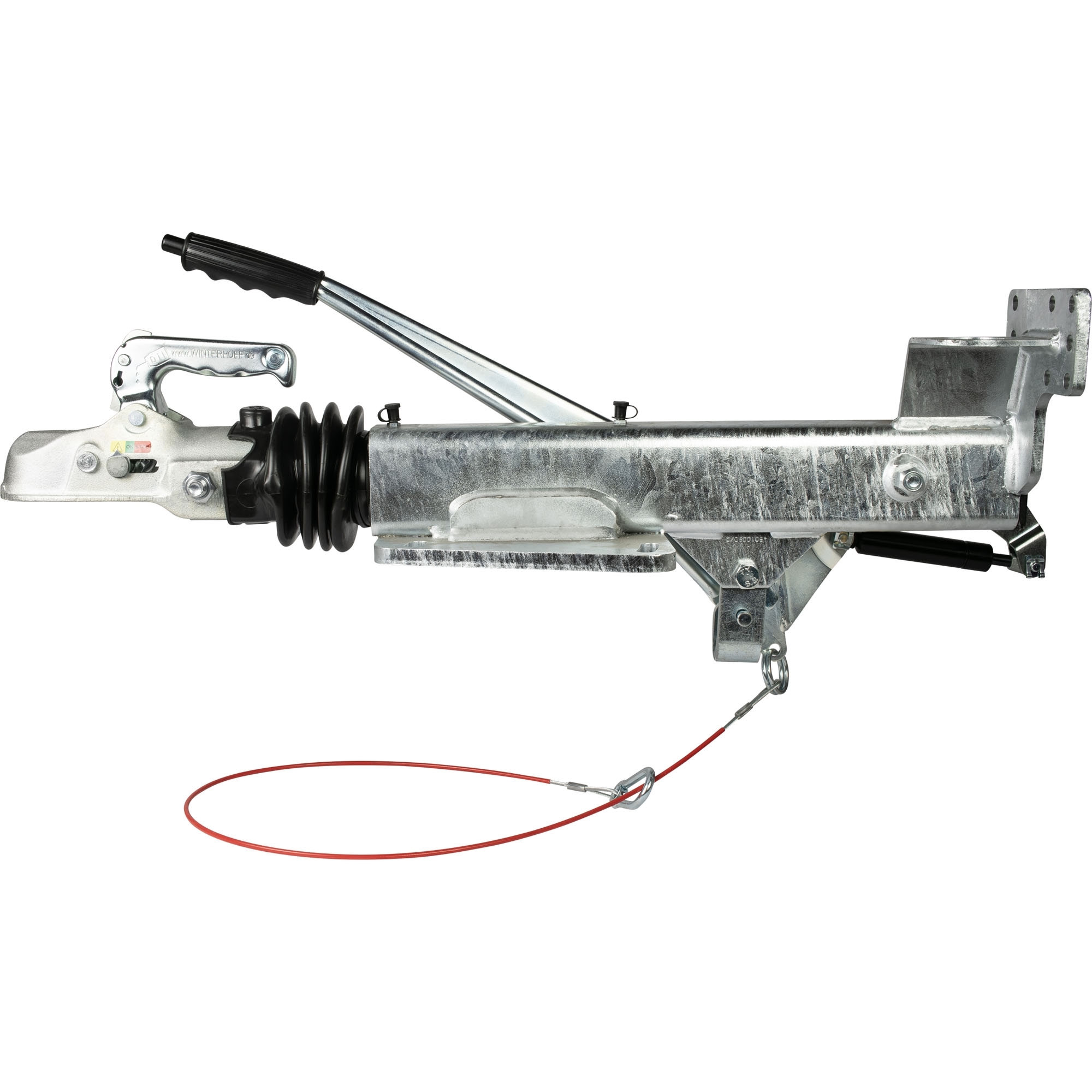

Bumping head WAP 35/35.4
perm. total load up to 3500 kg
support load 150 kg, hole pattern 100 / 190 mm
support wheel retainer diagonally in the back
Product number:
011002018
Bumping head WAP 35/35.4
perm. total load up to 3500 kg
support load 150 kg, hole pattern 130 / 240 mm
support wheel retainer diagonally in the back
Product number:
011002020
Bumping head WAP 35/35.4
perm. total load up to 3500 kg
support load 150 kg, hole pattern 130 / 210 mm
support wheel retainer diagonally in the back
Product number:
011002019

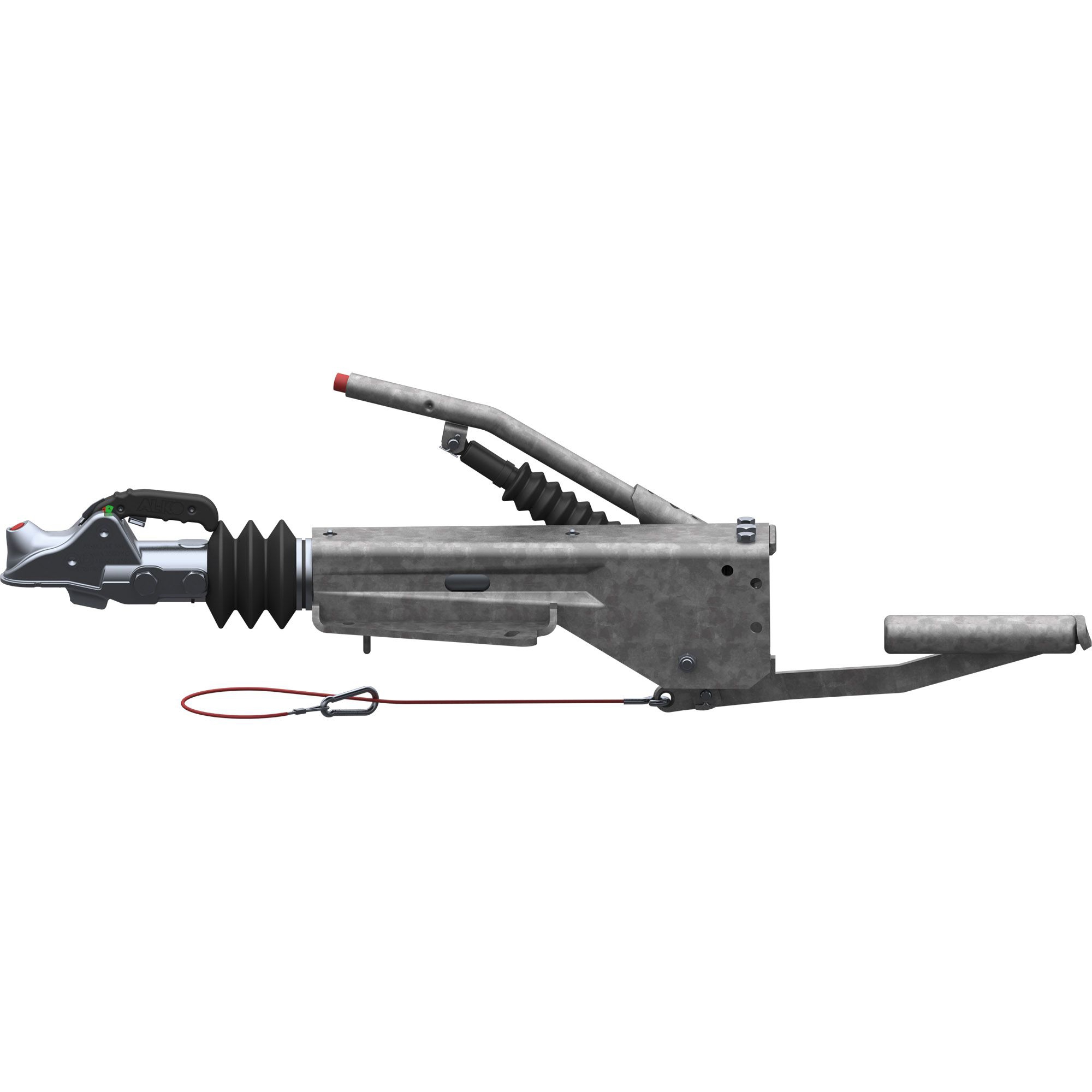

Overrun device AL-KO
for V-drawbar
Type 2,8VB1/-C
Installation top / bottom
Perm. gross weight 2500 – 3500 kg
Nose load 150 kg
with coupling head AK 351
Wheel brake 2051
-Shipped only by forwarding agency-
Product number:
1251875
